浙江大学学报(工学版)
浙江大学学报(工学版)  2021, Vol. 55 Issue (12): 2390-2396    DOI: 10.3785/j.issn.1008-973X.2021.12.020
电子、通信与自动控制技术
考虑协变量的设备退化和生产批量整合模型
刘学娟1(),赵斐2
1. 北京科技大学 经济管理学院，北京 100083
2. 东北大学秦皇岛分校 管理学院，河北 秦皇岛 066004
Integrated model of system degradation and production lot sizing with considering covariate
Xue-juan LIU1(),Fei ZHAO2
1. School of Economics and Management, University of Science and Technology Beijing, Beijing 100083, China
2. School of Management, Northeastern University at Qinhuangdao, Qinhuangdao 066004, China
 全文: PDF(908 KB)   HTML
摘要：

运用随机系数回归模型对设备的退化过程进行建模，基于加速失效时间模型在退化过程分析中加入协变量的影响，并在模型中考虑产品质量问题. 运用更新回报定理建立状态监测维修和经济生产批量的整合费用模型.优化分析整合费用模型，可以得到决策变量的最优值. 通过数值案例分析，得到设备运行状态最优的预防性维修阈值、最优经济生产批量. 结果表明，随着协变量的逐渐增加，最优生产批量逐渐减小，最优预防性维修阈值没有变化. 通过敏感性分析进一步说明模型相关参数对最优解的影响.
关键词： 退化过程;  经济生产批量;  加速失效时间模型;  协变量;  更新回报定理
Abstract:

The system degradation process was modeled by random coefficient regression model, in which the covariate was considered based on the accelerated failure time model, and the product quality was also considered in the model. The integrated cost model of condition-based maintenance and economic production quantity was proposed based on renewal reward theory. The optimal value of decision variables could be obtained by analyzing the integrated cost model. The optimal critical level of preventive maintenance and the optimal lot size were obtained by analysis of numerical case. Result shows that the optimal lot size decreases gradually with the increasing of covariate, but the optimal critical level of preventive maintenance does not change. Influence of optimal results caused by relevant parameter is explained by sensitive analysis.
Key words: degradation process    economic production quantity    accelerated failure time model    covariate    renewal reward theory
收稿日期: 2021-02-26 出版日期: 2021-12-31
CLC:  TB 114.3
基金资助: 国家自然科学基金资助项目(71601019, 71701038, 71871018)；河北省自然科学基金资助项目(G2019501074)；教育部人文社会科学研究资助项目(16YJC630174)；中央高校基本科研业务费专项资金资助项目（FRF-IPPE-2102）
作者简介: 刘学娟(1982—), 女, 副教授, 博士, 从事系统健康管理研究. orcid.org/0000-0002-8520-1711. E-mail: liuxj@ustb.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
刘学娟
赵斐

引用本文:

刘学娟,赵斐. 考虑协变量的设备退化和生产批量整合模型[J]. 浙江大学学报(工学版), 2021, 55(12): 2390-2396.

Xue-juan LIU,Fei ZHAO. Integrated model of system degradation and production lot sizing with considering covariate. Journal of ZheJiang University (Engineering Science), 2021, 55(12): 2390-2396.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.12.020    或    https://www.zjujournals.com/eng/CN/Y2021/V55/I12/2390

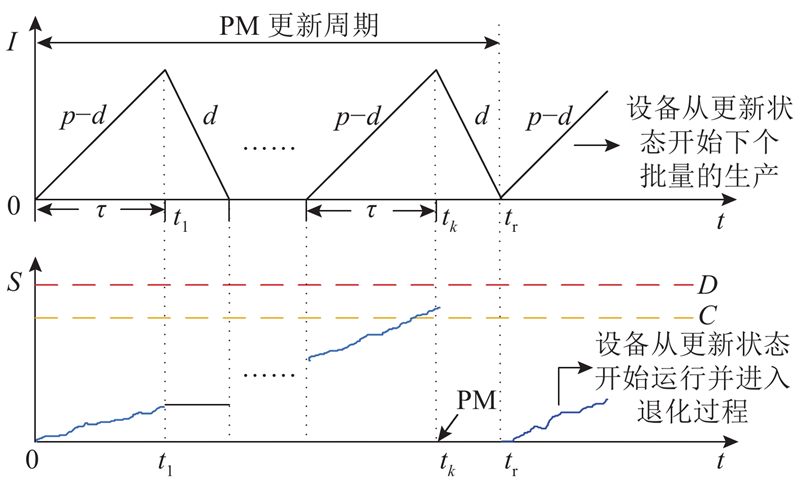

图 1  生产过程和设备退化过程中的PM更新

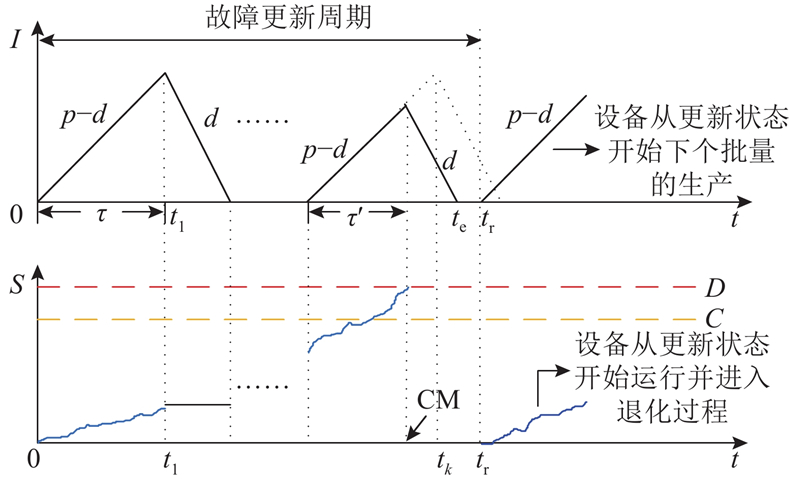

图 2  设备退化过程与生产过程中的故障更新

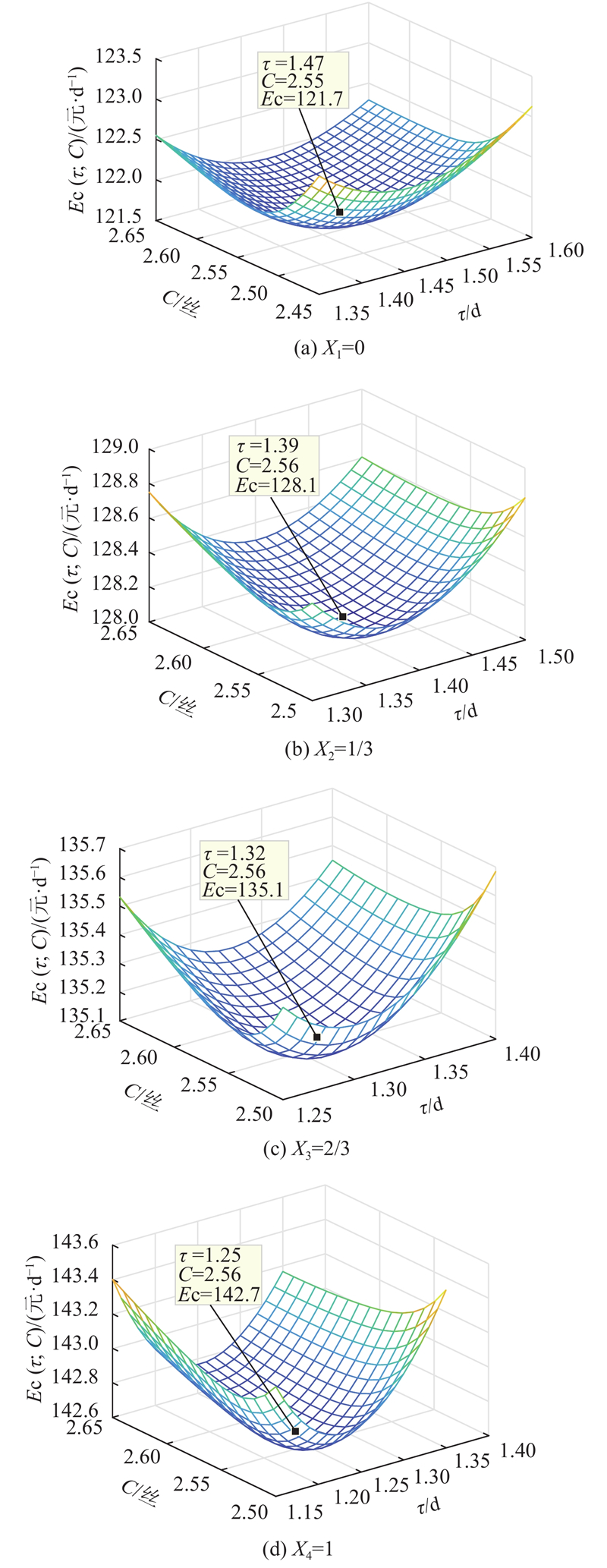

图 3  不同协变量取值情况下的单位时间期望费用
X $\tau^*$/d $C^*$/丝 ${E_{\rm{C}}}(\tau^*;C^*)$/(元·d?1)
0.1 1.45 2.55 123.6
0.2 1.42 2.55 125.5
0.3 1.40 2.56 127.5
0.4 1.38 2.56 129.5
0.5 1.36 2.56 131.6
0.6 1.33 2.56 133.7
0.7 1.31 2.56 135.8
0.8 1.29 2.56 138.1
0.9 1.27 2.56 140.3
表 1  不同协变量取值情况下的参数最优解
$ {C_f} $/元 $\tau^*$/d $C^*$/丝 ${E_{\rm{C}}}(\tau^*;C^*)$/(元·d?1)
300 2.61 4.0 105.3
400 1.81 3.34 120.2
500 1.39 2.56 128.1
600 1.28 2.52 131.3
700 1.21 2.51 133.4
800 1.17 2.50 135.0
表 2  X=1/3时不同单位故障维修费用情况下的参数最优解
1 成国庆, 周炳海, 李玲 劣化系统的生产、质量控制与视情维护联合建模与优化[J]. 计算机集成制造系统, 2019, 25 (7): 1620- 1629
CHENG Guo-qing, ZHOU Bing-hai, LI Ling Joint optimization of production, quality control and condition-based maintenance for imperfect system[J]. Computer Integrated Manufacturing Systems, 2019, 25 (7): 1620- 1629
2 卢震, 郭巧顺, 徐健 基于周期性不完全预防性维修的最优经济生产批量决策[J]. 系统工程理论与实践, 2017, 37 (10): 2621- 2629
LU Zhen, GUO Qiao-shun, XU Jian The decision of optimal economic production lot based on periodic imperfect preventive maintenance[J]. Systems Engineering: Theory and Practice, 2017, 37 (10): 2621- 2629
doi: 10.12011/1000-6788(2017)10-2621-09
3 PENG H, HOUTUM G Joint optimization of condition-based maintenance and production lot-sizing[J]. European Journal of Operational Research, 2016, 253 (1): 94- 107
doi: 10.1016/j.ejor.2016.02.027
4 LIU X, WANG W, PENG R An integrated preventive maintenance and production planning model with sequence-dependent setup costs and times[J]. Quality and Reliability Engineering International, 2017, 33 (8): 2451- 2461
doi: 10.1002/qre.2202
5 王建军, 刘晓盼, 刘锋, 等 随机机器故障下加工时间可控的并行机鲁棒调度[J]. 中国管理科学, 2017, 25 (3): 137- 146
WANG Jian-jun, LIU Xiao-pan, LIU Feng, et al Robust scheduling of unrelated parallel machines subject to stochastic breakdowns and controllable processing times[J]. Chinese Journal of Management Science, 2017, 25 (3): 137- 146
6 刘学娟, 赵斐, 马晓洋 考虑生产率调整的多产品EPQ与设备维修整合模型[J]. 系统工程学报, 2018, 33 (1): 136- 144
LIU Xue-juan, ZHAO Fei, MA Xiao-yang Integrated EPQ and maintenance model for a multi-product production system with varying production rate[J]. Journal of Systems Engineering, 2018, 33 (1): 136- 144
7 BOUSLAH B, GHARBI A, PELLERIN R Joint optimal lot sizing and production control policy in an unreliable and imperfect manufacturing system[J]. International Journal of Production Economics, 2013, 144 (1): 143- 156
doi: 10.1016/j.ijpe.2013.01.031
8 CHEN Y C An optimal production and inspection strategy with preventive maintenance error and rework[J]. Journal of Manufacturing Systems, 2013, 32 (1): 99- 106
doi: 10.1016/j.jmsy.2012.07.010
9 YE Z, XIE M Stochastic modelling and analysis of degradation for highly reliable products[J]. Applied Stochastic Models in Business and Industry, 2015, 31 (1): 16- 32
doi: 10.1002/asmb.2063
10 ZHANG Z, SI X, HU C, et al A prognostic model for stochastic degrading systems with state recovery: application to Li-ion batteries[J]. IEEE Transactions on Reliability, 2017, 66 (4): 1293- 1308
doi: 10.1109/TR.2017.2742298
11 ZHAI Q, YE Z RUL prediction of deteriorating products using an adaptive wiener process model[J]. IEEE Transactions on Industrial Informatics, 2017, 13 (6): 2911- 2921
doi: 10.1109/TII.2017.2684821
12 LAWLESS J F, CROWDER M J Covariates and random effects in a gamma process model with application to degradation and failure[J]. Lifetime Data Analysis, 2004, 10 (3): 213- 227
doi: 10.1023/B:LIDA.0000036389.14073.dd
13 LU D, PANDEY M D, XIE W An efficient method for the estimation of parameters of stochastic gamma process from noisy degradation measurements[J]. Journal of Risk and Reliability, 2013, 227 (4): 425- 433
14 YE Z, CHEN N The inverse Gaussian process as a degradation model[J]. Technometrics, 2014, 56 (3): 302- 311
doi: 10.1080/00401706.2013.830074
15 WANG X, XU D An inverse Gaussian process model for degradation data[J]. Technometrics, 2010, 52 (2): 188- 197
doi: 10.1198/TECH.2009.08197
16 LU C, MEEKER W Using degradation measures to estimate a time-to-failure distribution[J]. Technometrics, 1993, 35 (2): 161- 173
doi: 10.1080/00401706.1993.10485038
17 JAFARI L, MAKIS V Joint optimal lot sizing and preventive maintenance policy for a production facility subject to condition monitoring[J]. International Journal of Production Economics, 2015, 169: 156- 168
doi: 10.1016/j.ijpe.2015.07.034
18 JAFARI L, MAKIS V Optimal lot-sizing and maintenance policy for a partially observable production system[J]. Computers and Industrial Engineering, 2016, 93: 88- 98
doi: 10.1016/j.cie.2015.12.009
19 BOUSLAH B, GHARBI A, PELLERIN R Joint economic design of production, continuous sampling inspection and preventive maintenance of a deteriorating production system[J]. International Journal of Production Economics, 2016, 173: 184- 198
doi: 10.1016/j.ijpe.2015.12.016
20 CHENG G, ZHOU B, LI L Joint optimization of lot sizing and condition-based maintenance for multi-component production systems[J]. Computers and Industrial Engineering, 2017, 110: 538- 549
doi: 10.1016/j.cie.2017.06.033
21 CHENG G Q, ZHOU B H, LI L Integrated production, quality control and condition-based maintenance for imperfect production systems[J]. Reliability Engineering and System Safety, 2018, 175: 251- 264
doi: 10.1016/j.ress.2018.03.025
22 刘学娟, 冯志鹏 基于随机系数增长模型的状态维修与EPQ联合优化[J]. 系统工程理论与实践, 2019, 39 (1): 251- 258
LIU Xue-juan, FENG Zhi-peng Joint optimization of condition-based maintenance and EPQ based on the random coefficient growth model[J]. Systems Engineering: Theory and Practice, 2019, 39 (1): 251- 258
doi: 10.12011/1000-6788-2018-0365-08
23 喻勇, 司小胜, 胡昌华, 等 数据驱动的可靠性评估与寿命预测研究进展: 基于协变量的方法[J]. 自动化学报, 2018, 44 (2): 216- 227
YU Yong, SI Xiao-sheng, HU Chang-hua, et al Data driven reliability assessment and life-time prognostics: a review on covariate models[J]. Acta Automatica Sinica, 2018, 44 (2): 216- 227
24 COX D R. Regression models and life-tables [J]. Journal of the Royal Statistical Society, 1972, 34(2): 187−220.
25 刘学娟. 基于随机系数回归模型的退化过程及维修策略[J]. 控制与决策. 2021, 36(3): 754-760.
LIU Xue-juan. Research of degradation process and maintenance planning based on random coefficient regression model [J]. Control and Decision, 2021, 36(3): 754-760.
