台风影响下东南沿海山地风电场尾流与功率特征研究
董彦斌1(),李德顺1,2,3,*(),李仁年1,2,3
1. 兰州理工大学 能源与动力工程学院，甘肃 兰州 730050
2. 甘肃省风力机工程技术研究中心，甘肃 兰州 730050
3. 甘肃省流体机械及系统重点实验室，甘肃 兰州 730050
Wake and power characteristics of wind farms in typhoon-affected southeastern coastal mountains
Yanbin DONG1(),Deshun LI1,2,3,*(),Rennian LI1,2,3
1. College of Energy and Power Engineering, Lanzhou University of Technology, Lanzhou 730050, China
2. Gansu Provincial Technology Centre for Wind Turbines, Lanzhou 730050, China
3. Key Laboratory of Fluid Machinery and Systems of Gansu Province, Lanzhou 730050, China
 全文: PDF(8783 KB)   HTML
摘要：

以2018年第8号台风“玛莉亚”为背景，基于中尺度天气预报模式（WRF）耦合风电场参数化模型，研究东南沿海复杂山地地形风电场在台风影响下的尾流与功率特征. 结果表明，在台风外围环流影响阶段（低风速条件下），地形效应对风电场来流产生显著调制作用. 当来流风向偏北时，1到4号机组受地形遮蔽效应影响，功率输出较21到24号机组降低约35%，风电场尾迹区的大气运动主要表现为水平输送特征. 受复杂山地地形制约的风电场不规则布局，导致机组功率输出对来流风向变化极为敏感，相邻机组在风向微小变化下呈现显著的功率输出差异. 在台风影响期间，整场来流风速增大，风电场满发，机组间尾流干涉对功率输出的影响较小.
关键词： 台风;  风电场;  尾流;  功率输出;  中尺度模式
Abstract:

Against the backdrop of Typhoon Maria (2018), the mesoscale weather research and forecasting model (WRF) coupled with a wind-farm parameterization scheme was used to investigate the wake and power characteristics of wind farms in the complex mountainous terrain of the southeastern coast under typhoon influence. Results showed that during the phase influenced by the typhoon’s peripheral circulation (under low wind speed conditions), the topographic effects significantly modulated the incoming flow to the wind farm. When the incoming flow was northerly, the topographic shielding reduced the power output of units 1 to 4 by approximately 35% compared with units 21 to 24. The atmospheric motion in the wake area of the wind farm was primarily characterized by horizontal transport. The irregular layout of the wind farm, constrained by the complex mountainous terrain, resulted in a high sensitivity of unit power output to changes in incoming flow direction, with significant power output differences observed among adjacent units even with minor directional changes. During the typhoon impact period, the overall incoming wind speed increased, leading to full power generation at the wind farm, and the influence of wake interference among units on power output was minimal.
Key words: typhoon    wind farm    wake    power output    mesoscale model
收稿日期: 2025-01-04 出版日期: 2026-02-03
CLC:  TK 89
基金资助: 国家自然科学基金资助项目（52166014）；中国工程院战略研究与咨询项目（2023-DFZD-04-03）.
通讯作者: 李德顺     E-mail: dongyanbin_lut@outlook.com;lideshun_8510@sina.com
作者简介: 董彦斌（1994—），男，博士生，从事风能气象数值模拟研究. orcid.org/0000-0001-7058-7896. E-mail：dongyanbin_lut@outlook.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
董彦斌
李德顺
李仁年

引用本文:

董彦斌,李德顺,李仁年. 台风影响下东南沿海山地风电场尾流与功率特征研究[J]. 浙江大学学报(工学版), 2026, 60(2): 240-247.

Yanbin DONG,Deshun LI,Rennian LI. Wake and power characteristics of wind farms in typhoon-affected southeastern coastal mountains. Journal of ZheJiang University (Engineering Science), 2026, 60(2): 240-247.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.02.002    或    https://www.zjujournals.com/eng/CN/Y2026/V60/I2/240

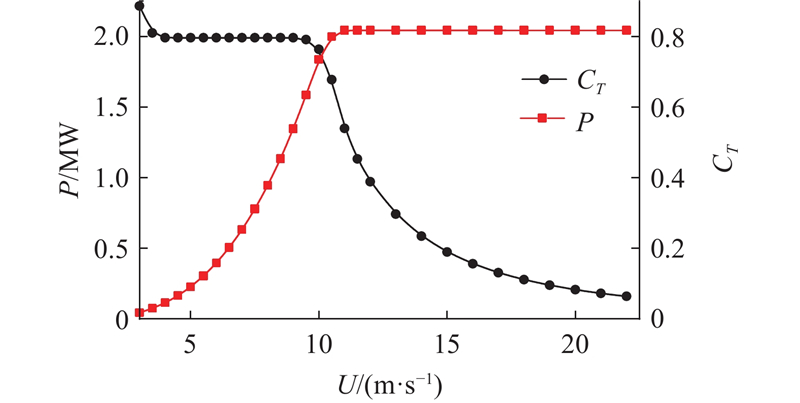

图 1  风力机功率与推力系数随水平风速的变化

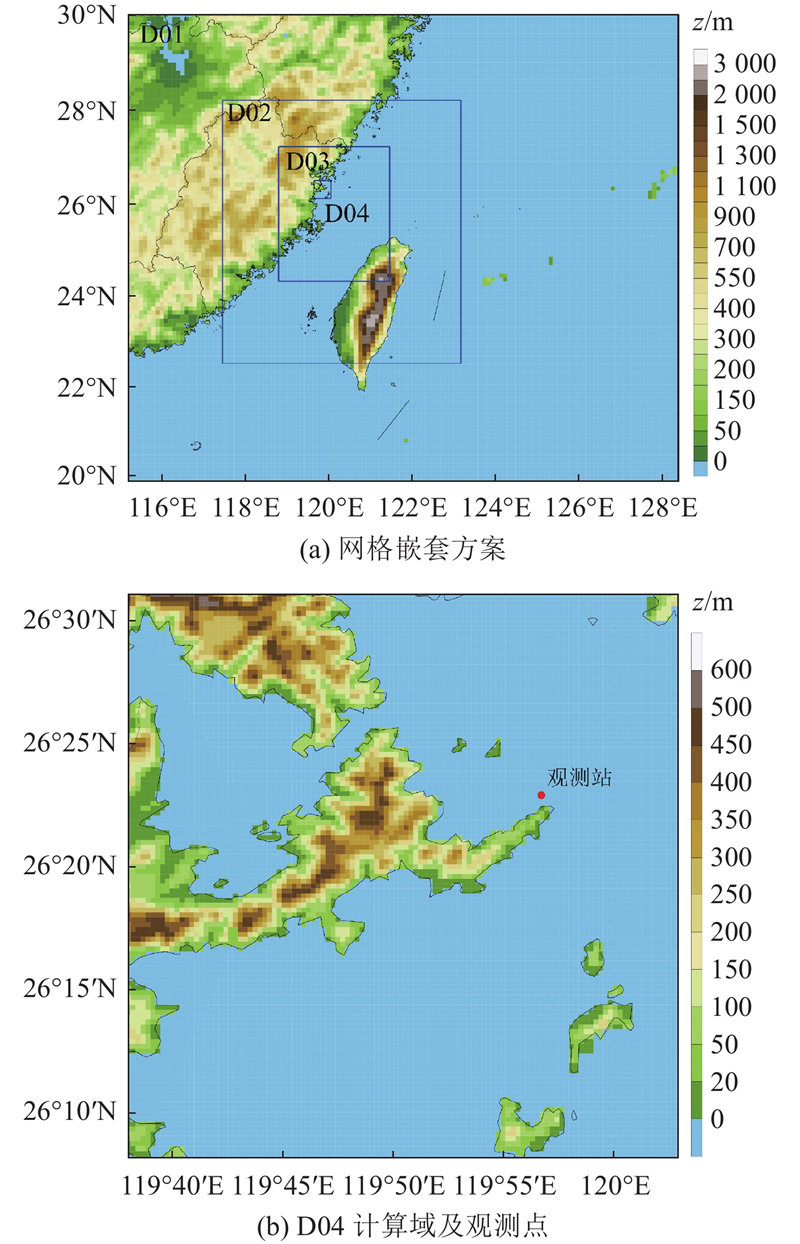

图 2  中尺度天气预报模式的数值计算域
图 3  风电场布局及风力机海拔
图 4  台风“玛莉亚”(2018)的移动轨迹图
图 5  观测站的风速-压力时程图

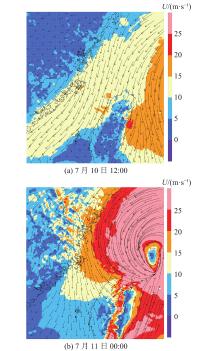

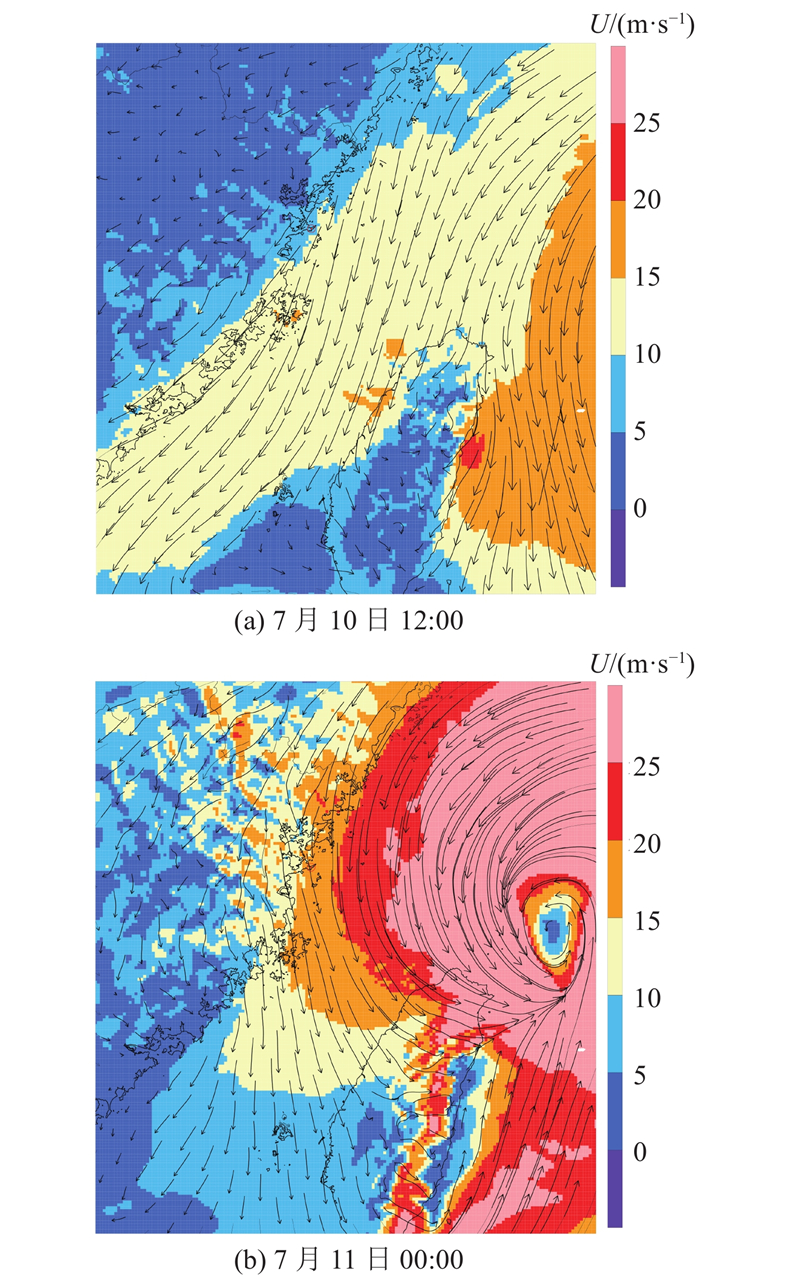

图 6  海峡风速云图(z=80 m)

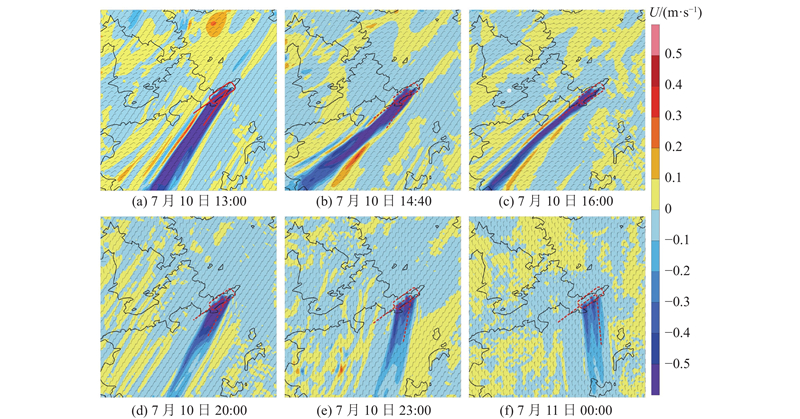

图 7  受台风影响前不同时刻有无风电场的风速差场
图 8  受台风影响前不同时刻风电场功率输出
图 9  受台风影响期间不同时刻有无风电场的风速差场
图 10  受台风影响后不同时刻风电场功率输出
