溶液温度波动对动态再生过程的性能影响
甘建平1(),俞小莉1,2,常晋伟1,黄瑞1,2,*(),陈俊玄1,李智1
1. 浙江大学 能源工程学院，浙江 杭州 310027
2. 浙江省汽车智能热管理科学与技术重点实验室，浙江 台州 317200
Influence of solution temperature fluctuation on performance of dynamic regeneration process
Jianping GAN1(),Xiaoli YU1,2,Jinwei CHANG1,Rui HUANG1,2,*(),Junxuan CHEN1,Zhi LI1
1. College of Energy Engineering, Zhejiang University, Hangzhou 310027, China
2. Key Laboratory of Automotive Intelligent Thermal Management Science and Technology of Zhejiang Province, Taizhou 317200, China
 全文: PDF(1089 KB)   HTML
摘要：

为了明晰溶液再生温度波动对溶液再生性能的影响规律，建立再生器的动态仿真模型. 搭建溶液再生系统实验台，设计开展溶液再生过程的动态实验，验证动态模型的准确性. 通过仿真模拟分析溶液再生温度的平均温度、波动周期与幅值对再生溶液质量分数极差和平均再生量的影响规律. 结果表明，溶液平均温度对平均再生量的影响最为明显，溶液温度波动幅值对再生溶液质量分数极差的影响最大. 当溶液温度波动周期为0.5 h时，平均再生量随波动幅值的增大而增大；当波动周期为2.0 h时，平均再生量主要受溶液平均温度的影响. 再生溶液质量分数极差在温度波动幅值小时随波动周期的增大而增大，在幅值大时随周期的增大而减小.
关键词： 溶液再生;  温度波动;  动态性能;  再生量
Abstract:

A dynamic model of the regenerator was developed to investigate the influence of solution temperature fluctuation on regeneration performance. An experimental platform of solution regeneration system was built to verify the model. The simulation was conducted to investigate the effects of average temperature, fluctuation period, and amplitude of the solution temperature on the range of solution mass fraction and average regeneration rate. Results show that the average temperature of the solution has the most significant impact on the average regeneration rate, while the fluctuation amplitude has the greatest influence on the range of solution mass fraction. When the temperature fluctuation period of the solution is 0.5 h, the average regeneration rate shows an increase with the rise of the fluctuation amplitude. With a fluctuation period of 2.0 h, the average regeneration rate is primarily affected by the average temperature of the solution. The range of solution mass fraction increases with the fluctuation period increases when the temperature fluctuation amplitude is small. Whereas, when the amplitude is large, the mass fraction range exhibits a descending trend with the increase in the period.
Key words: solution regeneration    temperature fluctuation    dynamic performance    regeneration rate
收稿日期: 2023-08-10 出版日期: 2024-09-27
CLC:  TU 83
基金资助: 宁波市科技创新2025重大专项资助项目（2022Z151）；国家自然科学基金资助项目（51976176）.
通讯作者: 黄瑞     E-mail: jpgan@zju.edu.cn;hrss@zju.edu.cn
作者简介: 甘建平（1999—），男，硕士生，从事溶液除湿技术研究. orcid.org/0009-0006-8587-8884. E-mail：jpgan@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
甘建平
俞小莉
常晋伟
黄瑞
陈俊玄
李智

引用本文:

甘建平,俞小莉,常晋伟,黄瑞,陈俊玄,李智. 溶液温度波动对动态再生过程的性能影响[J]. 浙江大学学报(工学版), 2024, 58(10): 2104-2110.

Jianping GAN,Xiaoli YU,Jinwei CHANG,Rui HUANG,Junxuan CHEN,Zhi LI. Influence of solution temperature fluctuation on performance of dynamic regeneration process. Journal of ZheJiang University (Engineering Science), 2024, 58(10): 2104-2110.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2024.10.014    或    https://www.zjujournals.com/eng/CN/Y2024/V58/I10/2104

图 1  余热驱动的溶液再生系统原理
图 2  再生器模型的控制体简化图
图 3  储液槽模型的简化图
图 4  溶液再生系统试验台
名称型号精度量程
热电阻PT100±0.1 ℃?70~200 ℃
空气温湿度传感器KS-SHTE23T±2% (RH),
±0.2 ℃		0~100% (RH),
?40~125 ℃
热式气体质量流量计TOCEIL-20N080±1%0~750 kg/h
电磁流量计CKLDY-G-D10-J±0.5%0.03~2.80 m3/h
密度计CJM-2012010?3 g/cm31.0~1.7 g/cm3
表 1  实验测量装置参数

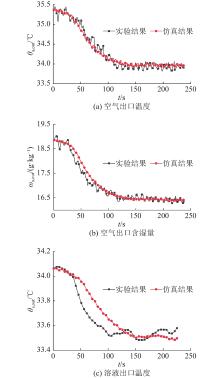

图 5  空气与干燥剂溶液的出口状态参数
