浙江大学学报(工学版)  2023, Vol. 57 Issue (7): 1267-1277    DOI: 10.3785/j.issn.1008-973X.2023.07.001
自动化技术
自适应樽海鞘群算法求解考虑运输时间的柔性作业车间调度
牛昊一(),吴维敏(),章庭棋,沈微,张涛
1. 浙江大学 工业控制技术国家重点实验室，浙江 杭州 310027
2. 浙江大学 智能系统与控制研究所，浙江 杭州 310027
Adaptive salp swarm algorithm for solving flexible job shop scheduling problem with transportation time
Hao-yi NIU(),Wei-min WU(),Ting-qi ZHANG,Wei SHEN,Tao ZHANG
1. State Key Laboratory of Industrial Control Technology, Zhejiang University, Hangzhou 310027, China
2. Institute of Cyber-Systems and Control, Zhejiang University, Hangzhou 310027, China
 全文: PDF(1024 KB)   HTML
摘要：

针对考虑运输时间的柔性作业车间调度问题，以最小化最大完工时间为优化目标，提出自适应樽海鞘群算法. 设计基于随机密钥方法的3层编码方案，将编码的离散解空间连续化. 引入惯性权重评价跟随者之间的相互影响程度，增强算法的全局探索与局部搜索能力. 提出自适应更新领导者-跟随者种群数量策略，根据种群迭代状态对领导者和跟随者的数量进行自适应调整. 在邻域搜索中引入禁忌搜索策略，防止算法陷入局部最优. 通过基准算例测试，验证了算法的有效性和优越性，发现AGV数量对完工时间的影响符合边际效应递减的规律.
关键词： 柔性作业车间调度;  运输时间;  樽海鞘群算法;  智能优化算法;  边际效应
Abstract:

An adaptive salp swarm algorithm was proposed by minimizing the makespan in order to solve the flexible job shop scheduling problem with transportation time. A three-layer coding scheme was designed based on random key in order to make the discrete solution space continuous. The inertia weight was introduced to evaluate the influence among followers in order to enhance the global exploration and local search performance of the algorithm. An adaptive leader-follower population update strategy was proposed, and the number of leaders and followers was adjusted by the population status. The tabu search strategy was combined with the neighborhood search in order to prevent the algorithm from falling into local optimum. The benchmark instances verified the effectiveness and superiority of the proposed algorithm. The influence of the number of AGVs on the makespan conforms to the law of diminishing marginal effect.
Key words: flexible job shop scheduling    transportation time    salp swarm algorithm    intelligent optimization algorithm    marginal utility
收稿日期: 2022-07-26 出版日期: 2023-07-17
CLC:  TP 278
通讯作者: 吴维敏     E-mail: hyniu@zju.edu.cn;wmwu@iipc.zju.edu.cn
作者简介: 牛昊一（1995—），男，博士生，从事智能优化算法的研究. orcid.org/0000-0001-7116-1440. E-mail： hyniu@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
牛昊一
吴维敏
章庭棋
沈微
张涛

引用本文:

牛昊一,吴维敏,章庭棋,沈微,张涛. 自适应樽海鞘群算法求解考虑运输时间的柔性作业车间调度[J]. 浙江大学学报(工学版), 2023, 57(7): 1267-1277.

Hao-yi NIU,Wei-min WU,Ting-qi ZHANG,Wei SHEN,Tao ZHANG. Adaptive salp swarm algorithm for solving flexible job shop scheduling problem with transportation time. Journal of ZheJiang University (Engineering Science), 2023, 57(7): 1267-1277.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2023.07.001    或    https://www.zjujournals.com/eng/CN/Y2023/V57/I7/1267

图 1  编码方案
图 2  工序排列编码的生成方式
图 3  工序排列编码的邻域搜索操作
图 4  邻域搜索的流程图
图 5  自适应樽海鞘群算法的流程图
案例 SSA WSSA LSSA TSSA ASSA
$C_{\max } $ $C_{\rm{{max}}}^{\rm{{avg}}} $ $\delta/ {\text{%}} $ $C_{\max } $ ${C_{\rm{{max}}}^{\rm{{avg}}} } $ $\delta / {\text{%}} $ ${C_{\max }} $ ${C_{\rm{{max}}}^{\rm{{avg}}} } $ $\delta / {\text{%}} $ ${C_{\max }} $ ${C_{\rm{{max}}}^{\rm{{avg}}} } $ $\delta / {\text{%}} $ ${C_{\max }} $ ${C_{\rm{{max}}}^{\rm{{avg}}} } $ $\delta / {\text{%}}$
EX11 96 98 0 96 97.4 0 96 97.8 0 96 96.8 0 96 96 0
EX21 106 108.8 3.92 105 108.3 2.94 106 108.9 3.92 104 106.9 1.96 102 103.4 0
EX31 107 111.7 8.08 108 111.8 9.09 110 113.7 11.11 113 108.5 14.14 99 103.7 0
EX41 122 125.4 8.93 119 125.4 6.25 121 124.1 8.04 120 122.5 7.14 112 114.8 0
EX51 88 89.2 1.15 88 89.6 1.49 88 90.2 1.15 88 88.5 1.15 87 87.1 0
EX64 136 140 13.33 134 138.9 11.67 128 137.9 6.67 130 137.2 8.33 120 126 0
EX74 142 145 10.94 136 142.8 6.25 142 145.3 10.94 136 142.8 6.25 128 133 0
EX84 165 171.1 1.23 165 171.3 1.23 165 170.6 1.23 166 170.4 1.84 163 163 0
EX94 128 133.5 6.67 131 133.8 9.17 128 131.3 6.67 123 128.7 2.50 120 122.6 0
EX104 175 182.8 10.06 179 183.2 12.58 174 180.5 9.43 171 179.1 7.55 159 166.5 0
平均值 — — 6.43 — — 6.07 — — 5.92 — — 5.09 — — 0.0
表 1  不同改进策略的加工完成时间对比结果

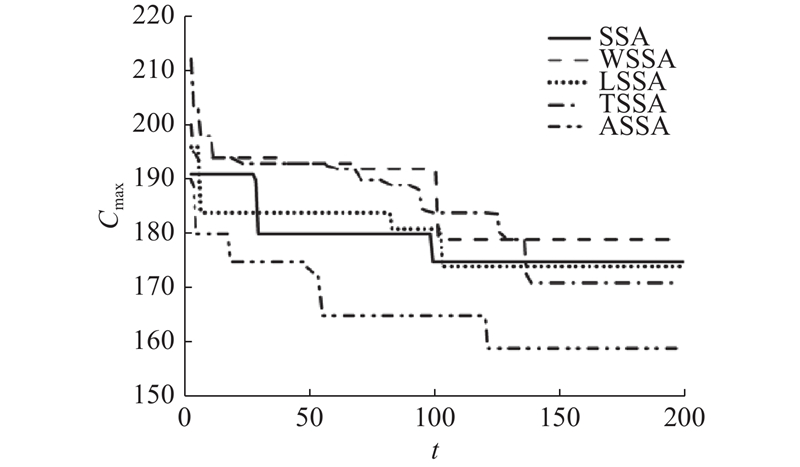

图 6  采用不同改进策略求解EX104的收敛曲线
案例 AGA IDSSA AAADE MOGWO ASSA
$t_{\rm{op }}/ {\rm{s}} $ ${C_{\max }} $ $\delta / {\text{%}} $ $t_{\rm{op }}/ {\rm{s}}$ ${C_{\max }} $ $\delta / {\text{%}} $ $t_{\rm{op }}/ {\rm{s}}$ ${C_{\max }} $ $\delta / {\text{%}} $ $t_{\rm{op }}/ {\rm{s}}$ ${C_{\max }} $ $\delta / {\text{%}} $ $t_{\rm{op }}/ {\rm{s}}$ ${C_{\max }} $ $\delta / {\text{%}} $
EX11 6.37 96 0 7.78 97 1.04 5.46 96 0 8.83 96 0 5.04 96 0
EX21 19.97 102 0 15.21 104 1.96 13.63 102 0 21.00 103 0.98 13.27 102 0
EX32 6.91 85 0 7.25 85 0 5.15 86 1.77 4.78 86 1.77 4.71 85 0
EX42 28.85 88 0 31.78 88 0 26.55 88 0 35.19 88 0 26.03 88 0
EX53 8.71 74 0 11.61 74 0 6.02 76 2.70 8.00 76 2.70 5.68 74 0
EX63 17.16 104 0.97 23.01 107 3.89 15.63 103 0 23.67 104 0.97 15.11 103 0
EX74 23.90 127 0 26.29 130 2.36 18.68 128 0.79 18.42 130 2.36 18.18 128 0.79
EX84 18.75 163 0 23.15 165 1.23 15.79 163 0 17.46 170 4.29 15.23 163 0
EX94 6.81 122 1.67 8.76 125 4.17 6.33 120 0 7.58 122 1.67 5.87 120 0
EX104 14.74 159 0 18.13 165 3.77 12.04 159 0 19.79 160 0.63 11.50 159 0
平均值 15.22 — 0.26 17.30 — 1.84 12.53 — 0.53 16.47 — 1.54 12.06 — 0.08
表 2  不同优化算法的实验测试结果（ ${{\overline t } / {\overline p }} > {\text{0}}{\text{.25}}$）
案例 AGA IDSSA AAADE MOGWO ASSA
$t_{\rm{op }}/ {\rm{s}}$ $C_{{\rm{max}}} $ $\delta / {\text{%}} $ $t_{\rm{op }}/ {\rm{s}}$ $C_{{\rm{max}}} $ $\delta / {\text{%}} $ $t_{\rm{op }}/ {\rm{s}}$ $C_{{\rm{max}}} $ $\delta / {\text{%}}$ $t_{\rm{op }}/ {\rm{s}}$ $C_{{\rm{max}}} $ $\delta / {\text{%}} $ $t_{\rm{op }}/ {\rm{s}}$ $C_{{\rm{max}}} $ $\delta / {\text{%}} $
EX110 1.33 126 0 1.76 126 0 0.70 126 0 0.91 126 0 0.36 126 0
EX210 1.68 148 0 1.90 148 0 0.82 148 0 1.06 148 0 0.44 148 0
EX320 1.38 145 0 1.78 148 2.07 0.84 145 0 1.57 145 0 0.46 145 0
EX420 9.50 114 0 10.31 114 0 6.85 114 0 7.79 114 0 6.40 114 0
EX530 1.32 99 0 1.12 99 0 0.53 99 0 1.09 99 0 0.19 99 0
EX630 5.82 182 0 7.22 182 0 5.12 182 0 8.34 182 0 4.65 182 0
EX740 4.99 137 0 5.24 137 0 3.12 137 0 3.85 137 0 2.65 137 0
EX840 1.49 293 0 2.29 294 0.34 0.78 293 0 1.06 293 0 0.28 293 0
EX940 8.27 175 0 11.50 175 0 6.51 175 0 12.24 175 0 6.12 175 0
EX1040 33.25 240 0 37.28 240 0 24.98 240 0 43.53 240 0 24.49 240 0
平均值 6.9 — 0.0 8.04 — 0.24 5.03 — 0.0 8.14 — 0.0 4.6 — 0.0
表 3  不同优化算法的实验测试结果（ ${{\overline t } / {\overline p }}{\text{ < 0}}{\text{.25}}$）
案例 ASSA GUROBI 案例 ASSA GUROBI
$t_{\rm{op} }/{\rm{s}}$ ${C_{{\rm{\max}} } }$ $\delta / {\text{%}} $ $t_{\rm{op} }/{\rm{s} }$ ${C_{{\rm{\max}} } }$ $\delta / {\text{%}} $ $t_{\rm{op} }/{\rm{s}}$ ${C_{{\rm{\max}} } }$ $\delta / {\text{%}} $ $t_{\rm{op} }/{\rm{s}}$ ${C_{{\rm{\max}} } }$ $\delta / {\text{%}} $
EX11 5.04 96 0 59.29 96 0 EX110 0.36 126 0 15.61 126 0
EX21 13.27 102 0 146.46 102 0 EX210 0.44 148 0 14.56 148 0
EX32 4.71 85 0 60.41 85 0 EX320 0.46 145 0 16.22 145 0
EX42 26.03 88 0 323.05 88 0 EX420 6.40 114 0 53.12 114 0
EX53 5.68 74 0 83.67 74 0 EX530 0.19 99 0 13.64 99 0
EX63 15.11 103 0 196.18 103 0 EX630 4.65 182 0 41.32 182 0
EX74 18.18 128 0 231.56 128 0 EX640 5.41 184 0 45.48 184 0
EX84 15.23 163 0 171.99 163 0 EX740 2.65 137 0 32.03 137 0
EX94 5.87 120 0 71.66 120 0 EX741 1.78 203 0 19.70 203 0
EX104 11.50 159 0 134.67 159 0 EX840 0.28 293 0 12.07 293 0
平均值 12.06 — 0.0 147.89 — 0.0 平均值 2.26 — 0.0 26.38 — 0.0
表 4  ASSA算法与GUROBI求解器的实验测试结果
案例 Cmax
S = 2 S = 3 S = 4 S = 5 S = 6
EX11 96 86 76 76 76
EX21 102 86 86 86 86
EX31 99 88 88 88 88
EX41 112 89 83 78 78
EX51 87 70 65 65 65
EX61 118 108 108 108 108
EX71 113 89 78 77 77
EX81 161 161 161 161 161
EX91 116 107 105 105 105
EX101 147 136 133 133 133
表 5  不同数量AGV的实验测试结果
图 7  各案例的AGV边际效应曲线
