浙江大学学报(工学版)  2023, Vol. 57 Issue (1): 92-99    DOI: 10.3785/j.issn.1008-973X.2023.01.010
 土木工程

1. 哈尔滨工业大学 环境学院，黑龙江 哈尔滨 150090
2. 广东粤港供水有限公司，广东 深圳 518000
3. 广东粤海水务投资有限公司，广东 深圳 518000
Leakage model of water supply plastic pipes and application of discretionary pressure management
Jin-liang GAO1(),Kun-yi LI1,Yuan-zhe LI1,Hang-wei ZHENG2,Guo-sheng SUN3,Cheng-zhi ZHENG3
1. School of Environment, Harbin Institute of Technology, Harbin 150090, China
2. Guangdong Yue Gang Water Supply Limited Company, Shenzhen 518000, China
3. Guangdong Yue Hai Water Investment Limited Company, Shenzhen 518000, China
 全文: PDF(911 KB)   HTML

Abstract:

A leakage model of water supply plastic pipes was constructed based on the mechanism of leak area variation with pressure delay in the viscoelastic theory of plastic material and the orifice outflow model in order to accurately simulate the physical leakage flow of plastic pipes in urban water supply network. The leakage model of water supply plastic pipes is related to the pipe material, pipe inside pressure, leakage area and time. A discretionary pressure management method was proposed by imitating the discretion in the field of economics in order to select a more appropriate pressure regulation strategy and achieve more refined pressure management. The particle swarm optimization algorithm was written by MATLAB, and the pressure-driven hydraulic analysis function of EPANET 2.2 was called in order to solve the leakage model of water supply plastic pipes. Then the optimal setting value of pressure-reducing valve outlet pressure was obtained at each moment, and the discretionary pressure management strategy was developed. Pressure management experiments were conducted in a community located in the southern coastal area by using the traditional pressure management scheme and the discretionary pressure management scheme, respectively. Results showed that the leakage rate of this community was reduced by 56.0% after using the discretionary pressure management scheme, which is better than the traditional pressure management scheme. The reasonableness and feasibility of developing a discretionary pressure management strategy based on the leakage model of water supply plastic pipes was verified.

Key words: urban lifeline    urban water supply network    plastic pipe    pressure management    leakage model    viscoelastic theory    discretion

 CLC: TU 991

 服务 把本文推荐给朋友 加入引用管理器 E-mail Alert 作者相关文章 高金良 李坤仪 李远哲 郑航桅 孙国胜 郑成志

#### 引用本文:

Jin-liang GAO,Kun-yi LI,Yuan-zhe LI,Hang-wei ZHENG,Guo-sheng SUN,Cheng-zhi ZHENG. Leakage model of water supply plastic pipes and application of discretionary pressure management. Journal of ZheJiang University (Engineering Science), 2023, 57(1): 92-99.

#### 链接本文:

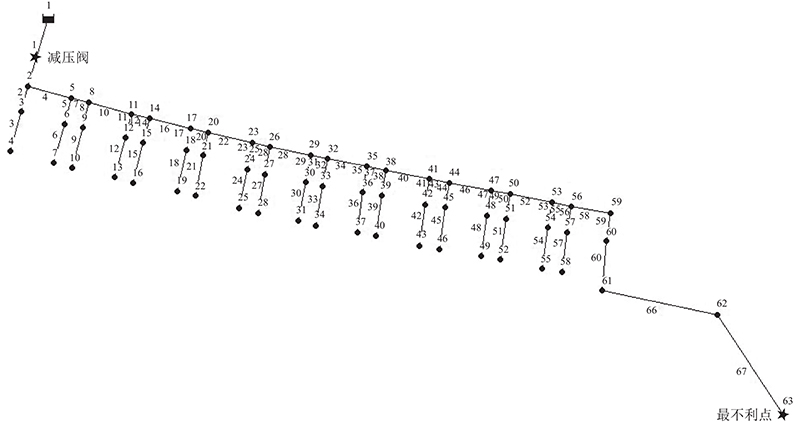

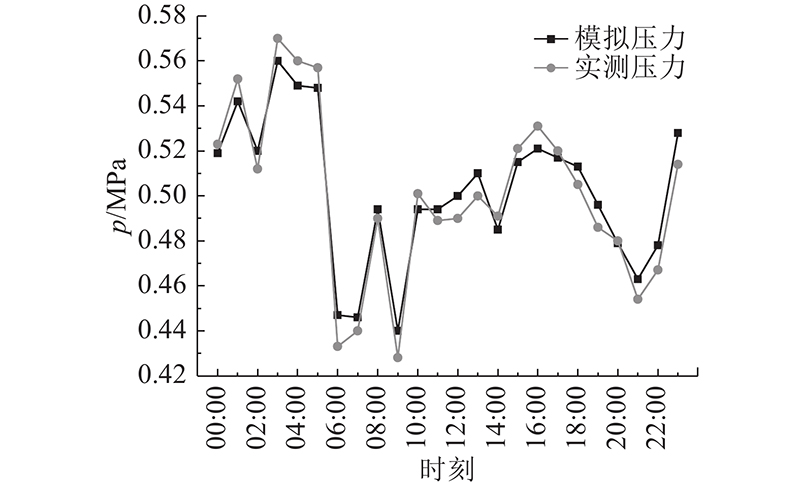

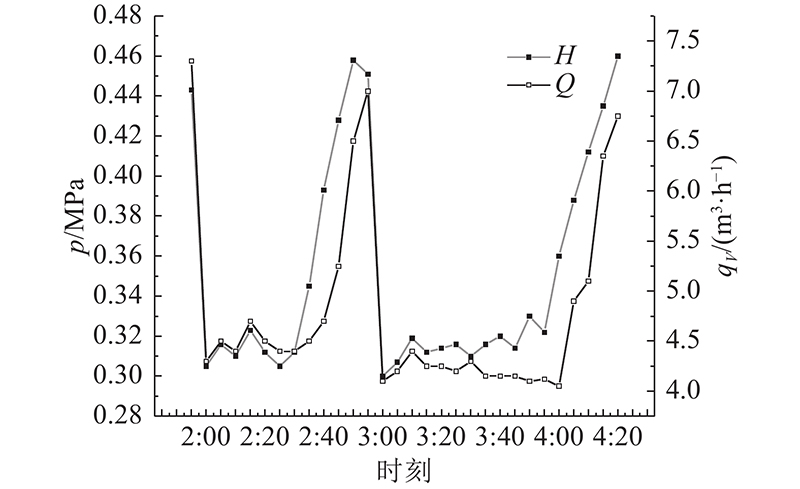

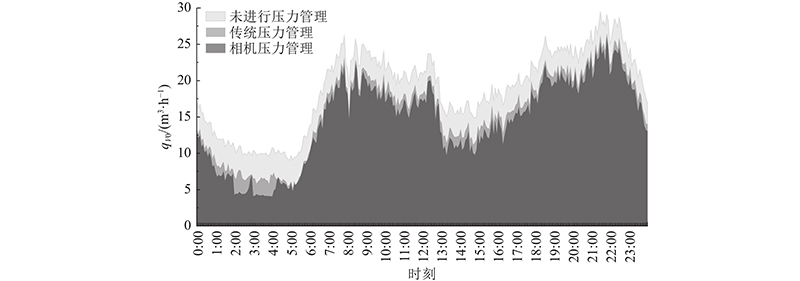

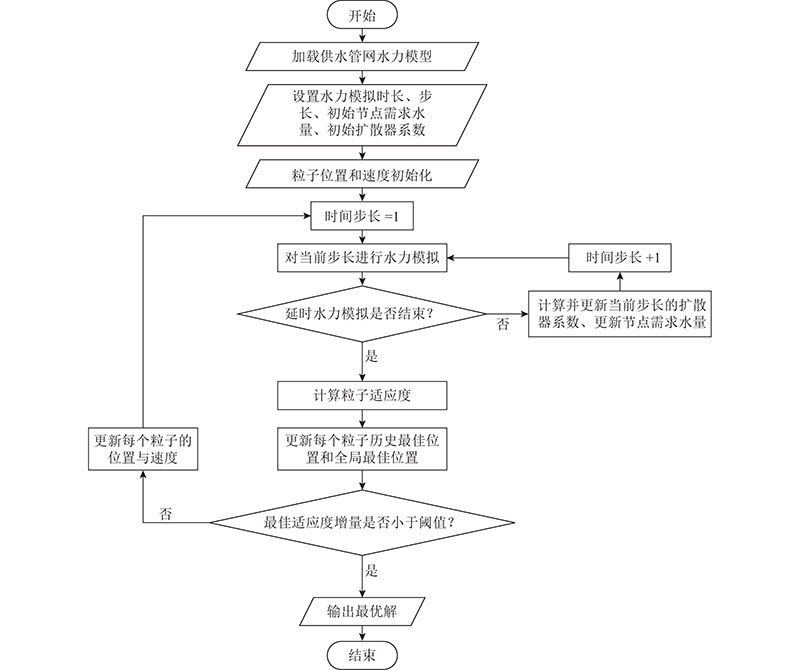

 图 1  供水塑料管道漏失模型求解的流程 图 2  A小区供水管网的拓扑结构 图 3  63号节点压力校核折线图 表 1  传统压力管理方案 表 2  相机压力管理方案 图 4  2:00—4:20时段的qV-t与p-t折线图 图 5  3种情况下的小区用水量比较 表 3  2种压力管理方案的效能评估
 20 YU Bo, WANG Yue, LIU Guo-fu, et al Study on creep performance of cable-membrane structure[J]. Science Technology and Engineering, 2006, (15): 2301- 2305 doi: 10.3969/j.issn.1671-1815.2006.15.019 21 中国城镇供水排水协会, 北京市自来水集团有限责任公司. 城镇供水管网漏损控制及评定标准: CJJ 92-2016 (2018年修订) [S]. 北京: 中国建筑工业出版社, 2016. 22 刘恩华, 许刚, 程伟平 小区给水管网调压减漏技术研究[J]. 中国给水排水, 2016, 32 (3): 52- 55 LIU En-hua, XU Gang, CHENG Wei-ping Research on pressure control for leakage reduction of water supply system in residential area[J]. China Water and Wastewater, 2016, 32 (3): 52- 55 doi: 10.19853/j.zgjsps.1000-4602.2016.03.011 1 周扬, 李云飞, 袁宏永, 等 基于听觉显著图的长输管道漏失检测算法[J]. 吉林大学学报: 工学版, 2020, 50 (4): 1487- 1494ZHOU Yang, LI Yun-fei, YUAN Hong-yong, et al Identification method of long distance pipeline leakage based on auditory saliency map[J]. Journal of Jilin University: Engineering and Technology Edition, 2020, 50 (4): 1487- 1494 2 国家统计局. 2017城市供水统计年鉴[Z/OL]. [2022-02-21]. https://www.yearbookchina.com/navibooklist-n3019080610-1.html.State Statistical Bureau. 2017 urban water supply statistical yearbook [Z/OL]. [2022-02-21]. https://www.yearbookchina.com/navibooklist-n3019080610-1.html. 3 国家统计局. 2016城市供水统计年鉴[Z/OL]. [2022-02-21]. https://www.yearbookchina.com/navibooklist-n3019022704-1.html.State Statistical Bureau. 2016 urban water supply statistical yearbook [Z/OL]. [2022-02-21]. https://www.yearbookchina.com/navibooklist-n3019022704-1.html. 4 FATHI-MOGHADAM M, KIANI S Simulation of transient flow in viscoelastic pipe networks[J]. Journal of Hydraulic Research, 2020, 58 (3): 531- 540 doi: 10.1080/00221686.2019.1581669 5 毛雨润 城镇供水管网漏损原因及应对措施[J]. 清洗世界, 2021, 37 (8): 165- 166 MAO Yu-run Causes of leakage of urban water supply network and countermeasures[J]. Cleaning World, 2021, 37 (8): 165- 166 doi: 10.3969/j.issn.1671-8909.2021.08.077 6 郑成志, 赵焱, 孙国胜, 等 实测方法评估压力管理对漏失水量降低程度的适用性[J]. 中国供水排水, 2019, 35 (19): 50- 56ZHENG Cheng-zhi, ZHAO Yan, SUN Guo-sheng, et al Applicability of measurement method in assessing extent of real losses reduction through pressure management[J]. China Water and Wastewater, 2019, 35 (19): 50- 56 7 杨新兰 论银行监管的相机抉择[J]. 金融研究, 2004, (9): 108- 118YANG Xin-lan On the discretionary choice of banking supervision[J]. Journal of Financial Research, 2004, (9): 108- 118 8 CASSA A M, VAN ZYL J E. A numerical investigation into the behavior of cracks in uPVC pipes under pressure [D]. Johannesburg: University of Johannesburg, 2011. 9 DE M S, MOLARI L, SCALET G, et al A physically-based analytical relationship for practical prediction of leakage in longitudinally cracked pressurized pipes[J]. Engineering Structures, 2014, 79: 142- 148 doi: 10.1016/j.engstruct.2014.08.011 10 BRUNONE B, MENICONI S, CAPPONI C Numerical analysis of the transient pressure damping in a single polymeric pipe with a leak[J]. Urban Water Journal, 2018, 14 (8): 760- 768 11 FERRANTE M, MASSARI C, BRUNONE B, et al Experimental evidence of hysteresis in the head-discharge relationship for a leak in a polyethylene pipe[J]. Journal of Hydraulic Engineering, 2010, 137 (7): 775- 780 12 MASSARI C, FERRANTE M, BRUNONE B, et al Is the leak head-discharge relationship in polyethylene pipes a bijective function?[J]. Journal of Hydraulic Research, 2012, 50 (4): 409- 417 doi: 10.1080/00221686.2012.696558 13 郑成志. 基于信号处理算法的供水管网物理漏失流量分析模型研究[D]. 哈尔滨: 哈尔滨工业大学, 2015.ZHENG Cheng-zhi. Research on leakage discharge analysis model of water distribution network based on algorithm for signal processing [D]. Harbin: Harbin Institute of Technology, 2015. 14 庞明川 习近平宏观调控重要论述的科学体系及原创性贡献[J]. 财经问题研究, 2020, (8): 12- 23 PANG Ming-chuan The scientific system and original contribution of Xl Jin-ping's important discussion on macro-control[J]. Research on Financial and Economic Issues, 2020, (8): 12- 23 doi: 10.19654/j.cnki.cjwtyj.2020.08.002 15 PEARSON D. Standard definitions for water losses [M]. London: IWA Publishing, 2019: 40. 16 邵煜, 虞介泽, 俞亭超 埋地管线均匀腐蚀失效力学模型及随机分析[J]. 浙江大学学报: 工学版, 2010, 44 (6): 1225- 1230SHAO Yu, YU Jie-ze, YU Ting-chao Mechanical model and probability analysis of buried pipelines failure under uniform corrosion[J]. Journal of Zhejiang University: Engineering Science, 2010, 44 (6): 1225- 1230 17 范钦珊, 蔡新. 材料力学(土木水利类)[M]. 北京: 清华大学出版社, 2006: 246-248. 18 赵荣国, 李其棒, 刘亚风, 等. 几种典型黏弹性固体模型的松弛模量与蠕变柔量表达式比较研究[C]// 第十二届全国流变学学术会议论文集. 广州: 中国力学学会, 2014: 6.ZHAO Rong-guo, LI Qi-bang, LIU Ya-feng, et al. Comparative research on expressions of relaxation modulus and creep compliance of several typical viscoelastic solid models [C]// Proceedings of the 12th National Conference on Rheology. Guangzhou: CSTAM, 2014: 6. 19 李茂东, 李彦, 杨波, 等 PE100燃气管材的非线性蠕变行为及其本构模型研究[J]. 中国塑料, 2021, 35 (11): 91- 96 LI Mao-dong, LI Yan, YANG Bo, et al Characterization and constitutive modelling of nonlinear creep of PE100 grade gas pipe material[J]. China Plastics, 2021, 35 (11): 91- 96 doi: 10.19491/j.issn.1001-9278.2021.11.014
