浙江大学学报(工学版)  2020, Vol. 54 Issue (9): 1827-1838    DOI: 10.3785/j.issn.1008-973X.2020.09.020
 航空航天技术

1. 军事科学院 战争研究院，北京 100850
2. 海军航空大学，山东 烟台 264001
3. 洪都航空工业集团 650所，江西 南昌 330024
4. 大连理工大学 工程力学系，辽宁 大连 116024
Trajectory planning for carrier aircraft on deck using Newton Symplectic pseudo-spectral method
Jie LIU1(),Xian-zhou DONG1,Wei HAN2,Xin-wei WANG4,*(),Chun LIU3,Jun JIA1
1. War Research Institute, Academy of Military Sciences, Beijing 100850, China
2. Naval Aviation University, Yantai 264001, China
4. Department of Engineering Mechanics, Dalian University of Technology, Dalian 116024, China
 全文: PDF(1732 KB)   HTML

Abstract:

The kinematic models for three dispatch modes of carrier aircraft were established, including individually taxiing, off-axle hitching towing without drawbar, and off-axle hitching towing with drawbar. As the high nonlinearity in the kinematics, a towing system with drawbar was transformed into a simpler virtual on-axle hitching towing system so as to facilitate the trajectory planning. Considering the dispatch efficiency and security, the trajectory planning problems of three dispatch modes were formulated as time-energy hybrid optimal control problems. To solve the nonlinear optimal control problem efficiently, a Symplectic pseudo-spectral method (SPM) was firstly developed based on the third kind of generating function, Symplectic theory and pseudo-spectral discretization. Then the Newton iteration and the SPM were used to determine the optimal terminal time according to the terminal transversality condition. The developed method was applied to solve trajectory planning problems of three dispatch modes, and the direct pseudo-spectral method was implemented for comparison. The simulation results suggest that the developed method can generate smooth dispatch trajectories with higher accuracy and efficiency, where no infeasible solution occurs, leading to better operability and applicability.

Key words: carrier aircraft    trajectory planning    Symplectic pseudo-spectral method (SPM)    Newton iteration method    optimal control

 CLC: TP 13

 服务 把本文推荐给朋友 加入引用管理器 E-mail Alert 作者相关文章 刘洁 董献洲 韩维 王昕炜 刘纯 贾珺

#### 引用本文:

Jie LIU,Xian-zhou DONG,Wei HAN,Xin-wei WANG,Chun LIU,Jun JIA. Trajectory planning for carrier aircraft on deck using Newton Symplectic pseudo-spectral method. Journal of ZheJiang University (Engineering Science), 2020, 54(9): 1827-1838.

#### 链接本文:

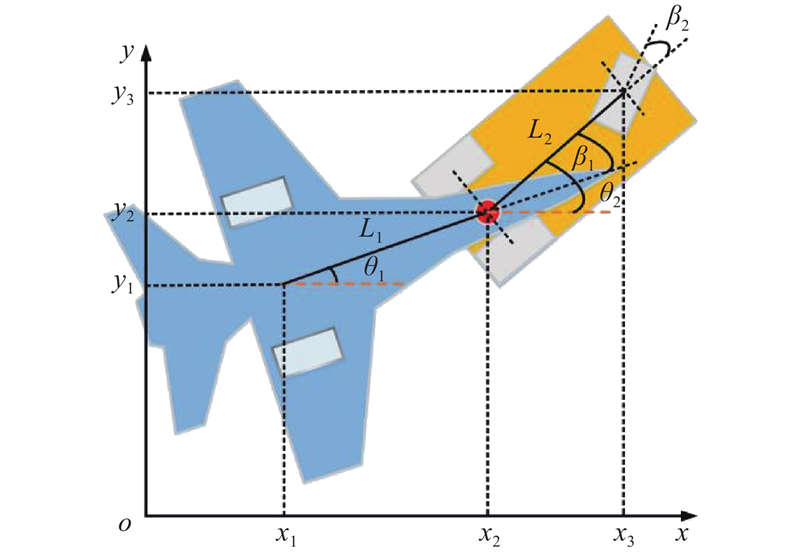

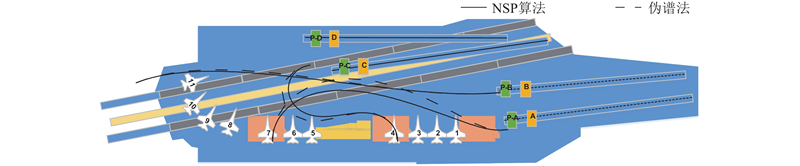

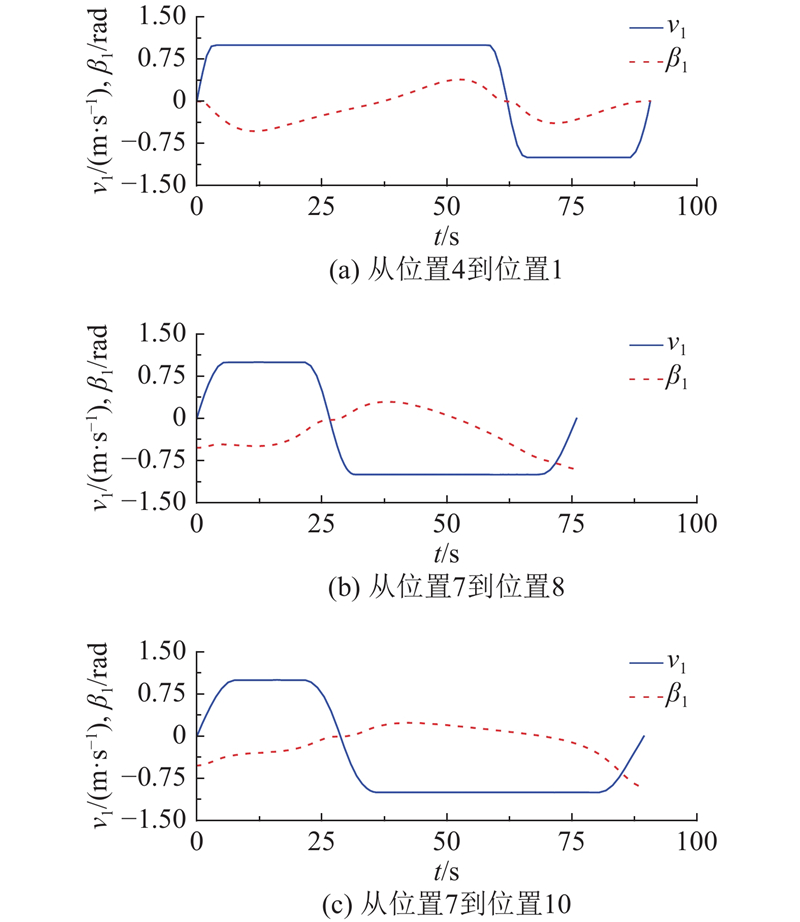

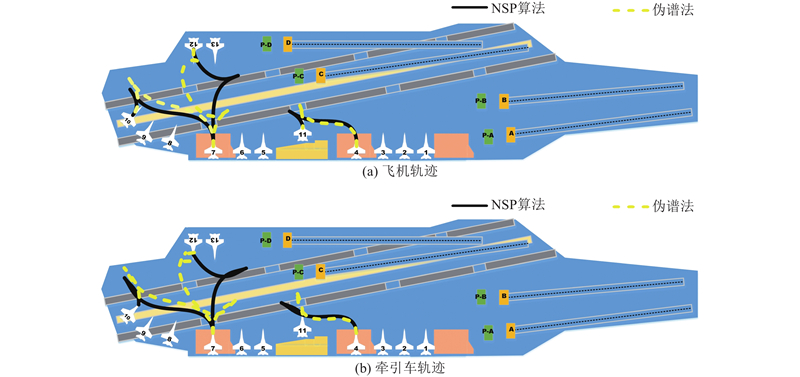

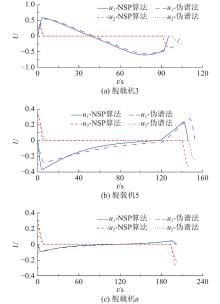

 图 1  虚拟在轴无杆牵引系统 图 2  舰载机的滑行轨迹图 图 3  滑行系统控制变量随时间的变化 图 4  滑行飞机的速度和转向角随时间的变化 表 1  NSP算法与伪谱法对滑行系统进行轨迹规划的对比指标及结果 图 5  无杆牵引系统中飞机和牵引车的路径曲线 图 6  无杆牵引系统的控制变量 图 7  无杆牵引系统中舰载机速度和转向角随时间变化关系图 表 2  采用NSP与伪谱法对无杆牵引系统进行轨迹规划的对比结果 图 8  采用NPS算法得出的有杆牵引系统中飞机和牵引车的路径曲线 图 9  有杆牵引系统中飞机的速度和转向角
 1 TONG H, CHAO W W, DONG X Z, et al Path planning of UAV based on Voronoi diagram and DPSO[J]. Procedia Engineering, 2012, 29: 4198- 4203 doi: 10.1016/j.proeng.2012.01.643 2 CANDELORO M, LEKKAS A M, HEGDE J, et al. A 3D dynamic Voronoi diagram-based path-planning system for UUVs [C] // OCEANS 2016 MTS/IEEE Monterey. Monterey: IEEE. 2016: 1-8. 3 张智, 林圣琳, 朱齐丹, 等 考虑运动学约束的不规则目标遗传避碰规划算法[J]. 航空学报, 2015, 36 (4): 1348- 1358ZHANG Zhi, LIN Sheng-lin, ZHU Qi-dan, et al Genetic collision avoidance planning algorithm for irregular shaped object with kinematics constraint[J]. Acta Aeronautica et Astronautica Sinica, 2015, 36 (4): 1348- 1358 4 司维超, 齐玉东, 韩维 基于融合Dijkstra的凸壳算法的舰载机机库调运规划[J]. 系统工程与电子技术, 2015, 37 (3): 583- 588SI Wei-chao, QI Yu-dong, HAN Wei Carrier plane transportation in hangar based on convex hull algorithm combined with Dijkstra[J]. Systems Engineering and Electronics, 2015, 37 (3): 583- 588 5 韩维, 司维超, 丁大春, 等 基于聚类PSO算法的舰载机舰面多路径动态规划[J]. 北京航空航天大学学报, 2013, 39 (5): 610- 614HAN Wei, SI Wei-chao, DING Da-chun Multi-routes dynamic planning on deck of carrier plane based on clustering PSO[J]. Journal of Beijing University of Aeronautics and Astronautics, 2013, 39 (5): 610- 614 6 WU Y, QU X J Path planning for taxi of carrier aircraft launching[J]. Science Chine: Technology Sciences, 2013, 56 (6): 1561- 1570 doi: 10.1007/s11431-013-5222-5 7 WU Y, QU X J Obstacle avoidance and path planning for carrier aircraft launching[J]. Chinese Journal of Aeronautics, 2015, 28 (3): 695- 703 doi: 10.1016/j.cja.2015.03.001 8 WU Y, HU N, QU X J A general trajectory optimization method for aircraft taxiing on flight deck of carrier[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2019, 233 (4): 1340- 1353 doi: 10.1177/0954410017752224 9 FILIPPIS L D, GUGLIERI G, QUAGLIOTTI F A minimum risk approach for path planning of UAVs[J]. Journal of Intelligent and Robotic Systems, 2011, 61 (1-4): 203- 219 10 ZHANG K, LIU P P, KONG W R, et al An improved heuristic algorithm for UCAV path planning[J]. Journal of Optimization, 2017, (4): 1- 7 doi: 10.1155/2017/8936164 11 NIU H L, LU Y, SAVVARIS A, et al. Efficient path following algorithm for unmanned surface vehicle [C] // OCEANS 2016 - Shanghai. Shanghai: OCEANS, 2016:OCEANS 1-7. 12 ZHANG Y D, WU L N, WANG S H UCAV path planning by fitness-scaling adaptive chaotic particle swarm optimization[J]. Mathematical Problems in Engineering, 2013, 2013 (8): 147- 170 13 DAS P K, BEHERA H S, JENA P K, et al Multi-robot path planning in a dynamic environment using improved gravitational search algorithm[J]. Journal of Electrical Systems and Information Technology, 2016, 3 (2): 295- 313 doi: 10.1016/j.jesit.2015.12.003 14 GROH K, R?CK S A contribution to collision-free trajectory planning for handling systems in varying environments[J]. Production Engineering, 2010, 4 (1): 101- 106 doi: 10.1007/s11740-009-0202-0 15 HUPTYCH M, GROH K, R?CK S. Online path planning for industrial robots in varying environments using the curve shortening flow method [M] // Intelligent Robotics and Applications. Berlin Heidelberg: Springer, 2011: 73-82. 16 HUPTYCH M, R?CK S Online path planning in dynamic environments using the curve shortening flow method[J]. Production Engineering, 2015, 9 (5/6): 613- 621 17 MANCINI M, COSTANTE G, VALIGI P, et al Towards domain independence for learning-based monocular depth estimation[J]. IEEE Robotics and Automation Letters, 2017, 2 (3): 1778- 1785 doi: 10.1109/LRA.2017.2657002 18 MORALES N, TOLEDO J, ACOSTA L Path planning using a multiclass support vector machine[J]. Applied Soft Computing, 2016, 43: 498- 509 doi: 10.1016/j.asoc.2016.02.037 19 BLACKMORE L, A?IKME?E B, III J M C. Lossless convexification of control constraints for a class of nonlinear optimal control problems [C] // American Control Conference. Montreal: [s. n. ], 2012: 5519-5525. 20 MAO Y Q, SZMUK M, A?IKME?E B. Successive convexification of non-convex optimal control problems and its convergence properties [C] // IEEE 55th Conference on Decision and Control (CDC). Las Vegas: IEEE, 2016: 3636-3641. 21 A?IKME?E B, CARSON J M, BLACKMORE L Lossless convexification of nonconvex control bound and pointing constraints of the soft landing optimal control problem[J]. IEEE Transactions on Control Systems Technology, 2013, 21 (6): 2104- 2113 doi: 10.1109/TCST.2012.2237346 22 LIU X F, LU P, PAN B F Survey of convex optimization for aerospace applications[J]. Astrodynamics, 2017, 1 (1): 23- 40 doi: 10.1007/s42064-017-0003-8 23 LIU X F, LU P Solving nonconvex optimal control problems by convex optimization[J]. Journal of Guidance Control and Dynamics, 2014, 37 (3): 750- 765 doi: 10.2514/1.62110 24 GONG Q, KANG W, ROSS I M A pseudospectral method for the optimal control of constrained feedback linearizable systems[J]. IEEE Transactions on Automatic Control, 2006, 51 (7): 1115- 1129 doi: 10.1109/TAC.2006.878570 25 LEWIS L R, ROSS I M, GONG Q. Pseudospectral motion planning techniques for autonomous obstacle avoidance [C] // IEEE Conference on Decision and Control. New Orleans: IEEE, 2007: 5997-6002. 26 LI Y Y, ZHU Y F, LI Q Analysis of aircraft path planning optimal on carrier flight deck[J]. Advanced Materials Research, 2013, 664: 1122- 1127 doi: 10.4028/www.scientific.net/AMR.664.1122 27 PENG H J, GAO Q, WU Z G, et al Symplectic adaptive algorithm for solving nonlinear two-point boundary value problems in astrodynamics[J]. Celestial Mechanics and Dynamical Astronomy, 2011, 110 (4): 319- 342 doi: 10.1007/s10569-011-9360-4 28 PENG H J, GAO Q, WU Z G, et al Symplectic approaches for solving two-point boundary-value problems[J]. Journal of Guidance, Control, and Dynamics, 2012, 35 (2): 653- 659 doi: 10.2514/1.55795 29 PENG H J, GAO Q, WU Z G, et al Efficient sparse approach for solving receding-horizon control problems[J]. Journal of Guidance, Control, and Dynamics, 2013, 36 (6): 1864- 1872 doi: 10.2514/1.60090 30 JOHNSTON J S, SWENSON E D Feasibility study of global-positioning-system-based aircraft-carrier flight-deck persistent monitoring system[J]. Journal of Aircraft, 2010, 47 (5): 1624- 1635 doi: 10.2514/1.C000220 31 KARKEE M, STEWARD B L Study of the open and closed loop characteristics of a tractor and a single axle towed implement system[J]. Journal of Terramechanics, 2010, 47 (6): 379- 393 doi: 10.1016/j.jterra.2010.05.005 32 WANG X W, PENG H J, ZHANG S, et al A symplectic pseudospectral method for nonlinear optimal control problems with inequality constraints[J]. ISA Transactions, 2017, 335- 352 33 PENG H J, WANG X W, LI M W, et al An hp symplectic pseudospectral method for nonlinear optimal control[J]. Communications in Nonlinear Science and Numerical Simulation, 2017, 42: 623- 644 doi: 10.1016/j.cnsns.2016.06.023
