MoS2/硼掺杂石墨烯的电化学析氢和储锂性能
任王瑜(),侯世成,姜孝男,陈卫祥*()
浙江大学 化学系，浙江 杭州 310027
MoS2/B-doped graphene for electrochemical hydrogen evolution and lithium storage
Wang-yu REN(),Shi-cheng HOU,Xiao-nan JIANG,Wei-xiang CHEN*()
Department of Chemistry, Zhejiang University, Hangzhou 310027, China
 全文: PDF(1274 KB)   HTML
摘要：

为了研发高效低成本的析氢反应(HER)电催化剂和高性能的电化学储锂电极材料，通过一步水热法制备MoS2/硼掺杂石墨烯（MoS2/BG）复合材料. 结果表明，少堆积MoS2纳米片均匀地分散在硼掺杂石墨烯上，并具有较多的无序结构和扩大的层间距. 作为析氢反应电催化剂，MoS2/BG复合材料表现出较高的电催化活性和较低的Tafel斜率（46.3 mV/dec）；作为电化学储锂电极材料，MoS2/BG复合材料表现出优异的电化学储锂性能，可逆比容量为1 205 mA·h/g，并具有稳定的循环性能和显著增强的高倍率特性. MoS2/BG复合材料电化学性能优异是由于硼掺杂改变石墨烯的电子性质和表面特性，以及无序结构较多的弱堆积MoS2层均匀地分散在硼掺杂石墨烯表面，增加电催化析氢反应的活性位点和电化学储锂能力，降低电极反应的电子转移阻抗，增强电极反应的动力学性能.
关键词： 二硫化钼（MoS2）;  石墨烯;  电催化;  析氢反应;  电化学储锂
Abstract:

MoS2/B-doped graphene composites (MoS2/BG) were prepared by one-step hydrothermal method, in order to develop high-efficiency and low-cost electrocatalyst for hydrogen evolution reaction (HER) and high-performance lithium storage electrode material. Results show that the poor-stacked MoS2nanosheets with more disordered structures and expanded interlayer distance are well dispersed on the surface of B-doped graphene sheets. MoS2/BG composite shows high electrocatalytic activity with low Tafel slope (46.3 mV/dec) as HER electrocatalyst. MoS2/BG composite shows excellent lithium storage performance as a lithium storage electrode material. It can exhibit a reversible capacity as high as 1 205 mA·h/g with stable cycle performance and significantly enhanced high rate capability. The excellent electrochemical performance of MoS2/BG composite is due to the fact that boron doping modifies the electronic and surface properties of graphene, and the poor-stacked MoS2layers with more disordered structures are uniformly dispersed on the surface of B-doped graphene, which not only increases the active sites for HER and electrochemical lithium storage capability, but also reduces the electron transfer impedance of the electrode reaction, leading to the enhancement of electrode reaction kinetics.
Key words: molybdenum disulfide (MoS2)    graphene    electrocatalyst    hydrogen evolution reaction (HER)    electrochemical lithium storage
收稿日期: 2019-12-18 出版日期: 2020-08-28
CLC:  TTQ 152
基金资助: 国家自然科学基金资助项目（21473156）；浙江省自然科学基金重点资助项目（LZ17E010001）
通讯作者: 陈卫祥     E-mail: 644890828@qq.com;weixiangchen@zju.edu.cn
作者简介: 任王瑜（1995—），女，硕士生，从事应用电化学研究. orcid.org/0000-0001-5580-4944. E-mail： 644890828@qq.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
任王瑜
侯世成
姜孝男
陈卫祥

引用本文:

任王瑜,侯世成,姜孝男,陈卫祥. MoS2/硼掺杂石墨烯的电化学析氢和储锂性能[J]. 浙江大学学报(工学版), 2020, 54(8): 1628-1636.

Wang-yu REN,Shi-cheng HOU,Xiao-nan JIANG,Wei-xiang CHEN. MoS2/B-doped graphene for electrochemical hydrogen evolution and lithium storage. Journal of ZheJiang University (Engineering Science), 2020, 54(8): 1628-1636.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2020.08.023    或    http://www.zjujournals.com/eng/CN/Y2020/V54/I8/1628

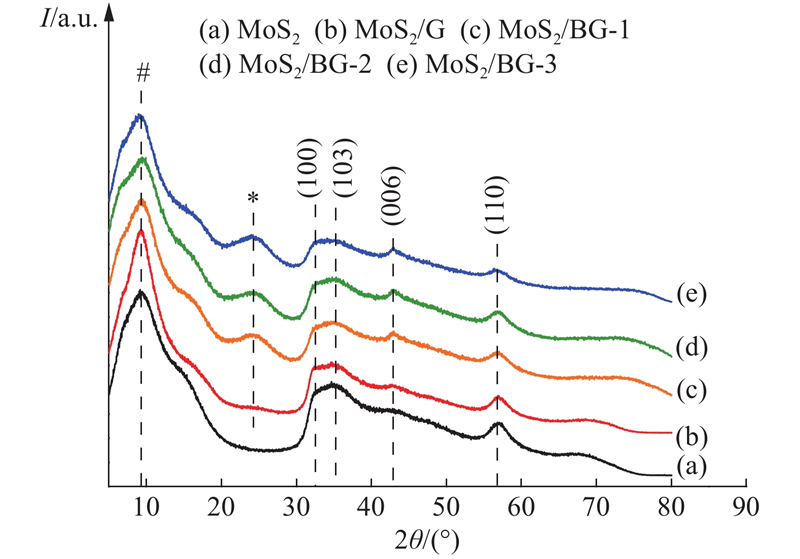

图 1  不同样品的XRD图
图 2  不同样品的SEM图
图 3  不同样品的TEM/HRTEM图
图 4  MoS2/BG-2复合材料的XPS图

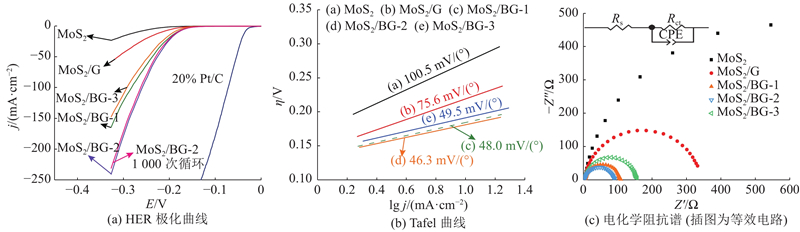

图 5  不同催化剂电极上HER的极化曲线、Tafel斜率分析以及HER电化学阻抗谱
电极 Rs/Ω Rct/Ω
MoS2 3.2 1 131
MoS2/G 4.3 339
MoS2/BG-1 4.8 104
MoS2/BG-2 3.6 87
MoS2/BG-5 4.5 152
表 1  电化学阻抗拟合所得HER动力学参数

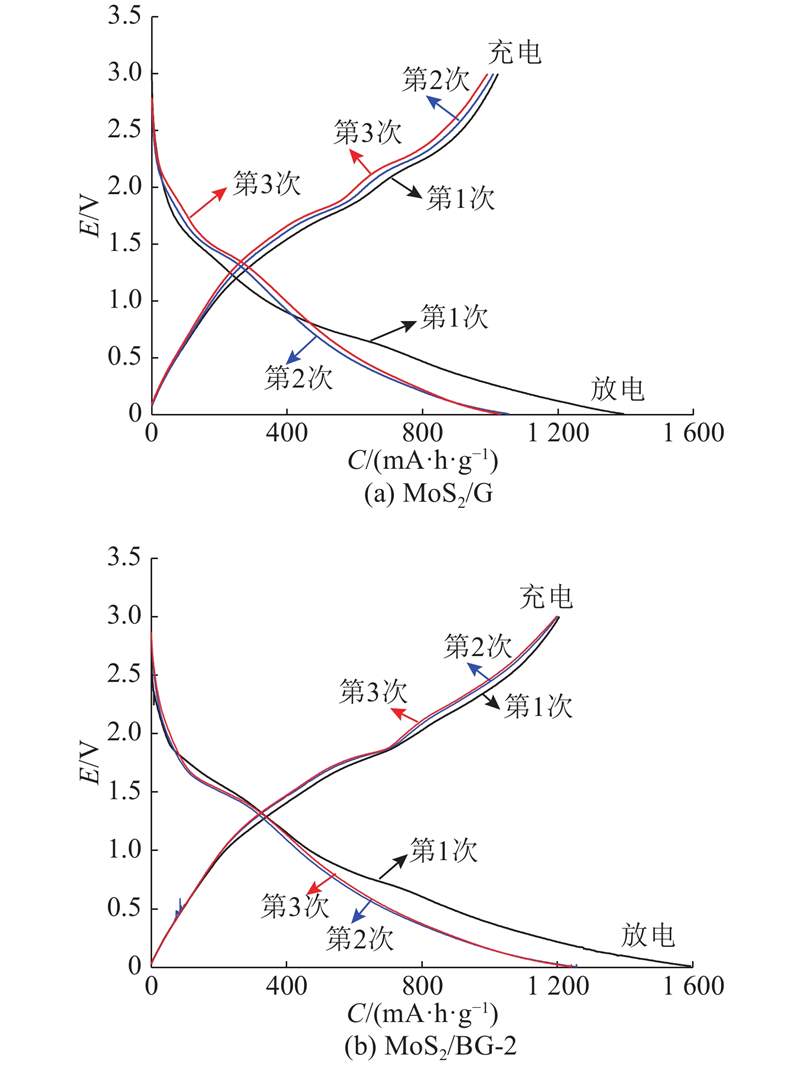

图 6  不同复合材料电极前3个循环的充放电曲线 (电流密度为100 mA/g)

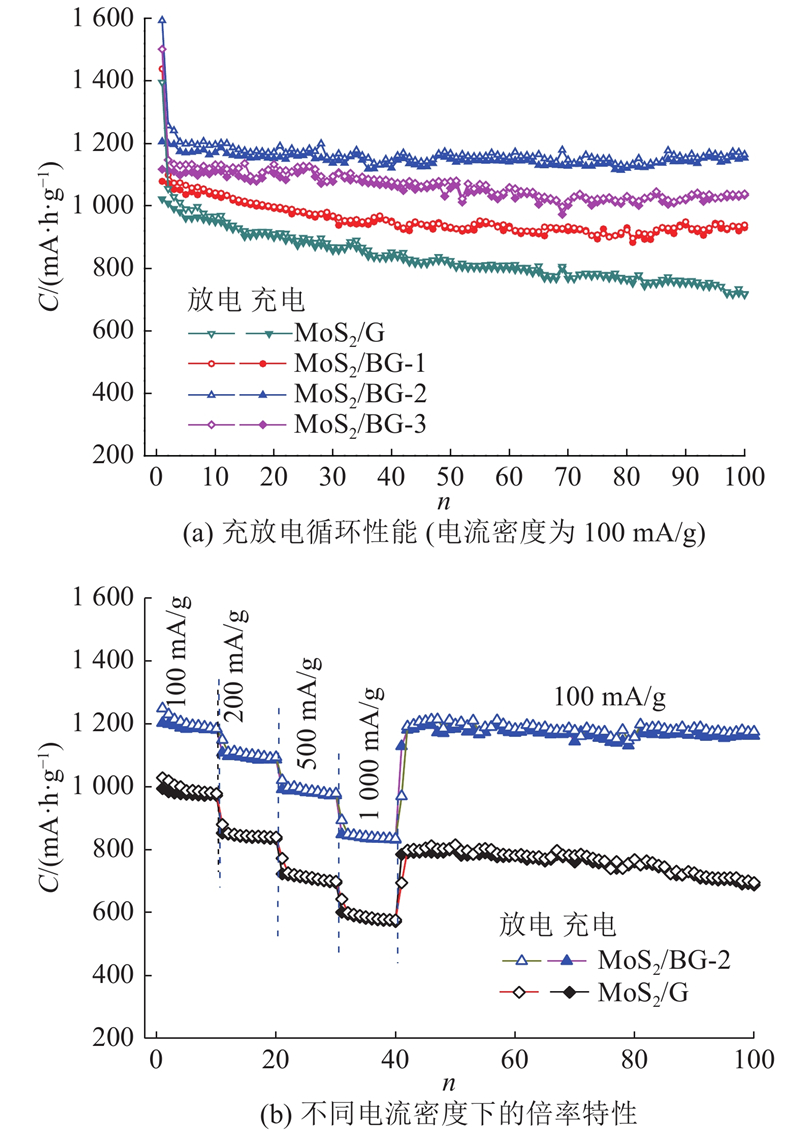

图 7  不同复合材料电极的充放电循环性能及其倍率特性
