Two-stage countercurrent water-washing characteristics of municipal solid waste incineration fly ash from grate furnace |
Yu-ting WANG1( ),Ming-hui TANG1,Da ZONG2,Zhi-liang CHEN1,Xiao-qing LIN1,Sheng-yong LU1,*( ) |
1. State Key Laboratory of Clean Energy Utilization, Zhejiang University, Hangzhou 310027, China 2. Everbright Environmental Technology in China Co. Ltd, Nanjing 315100, China |
|
|

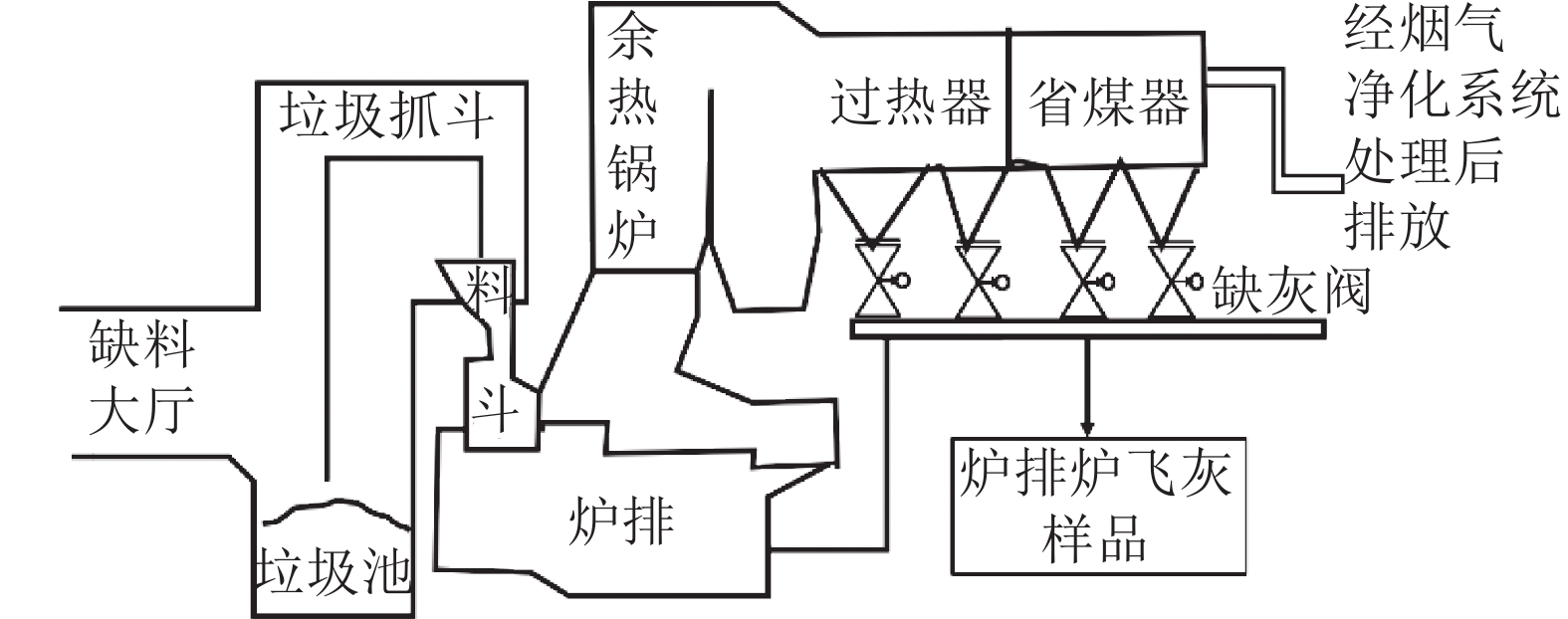

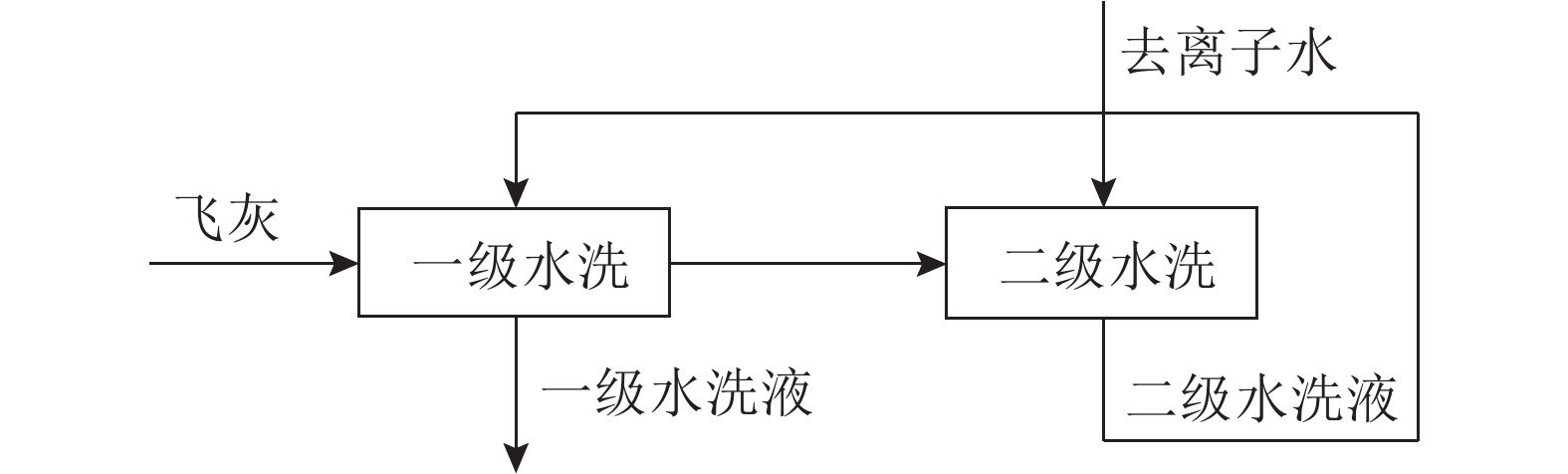

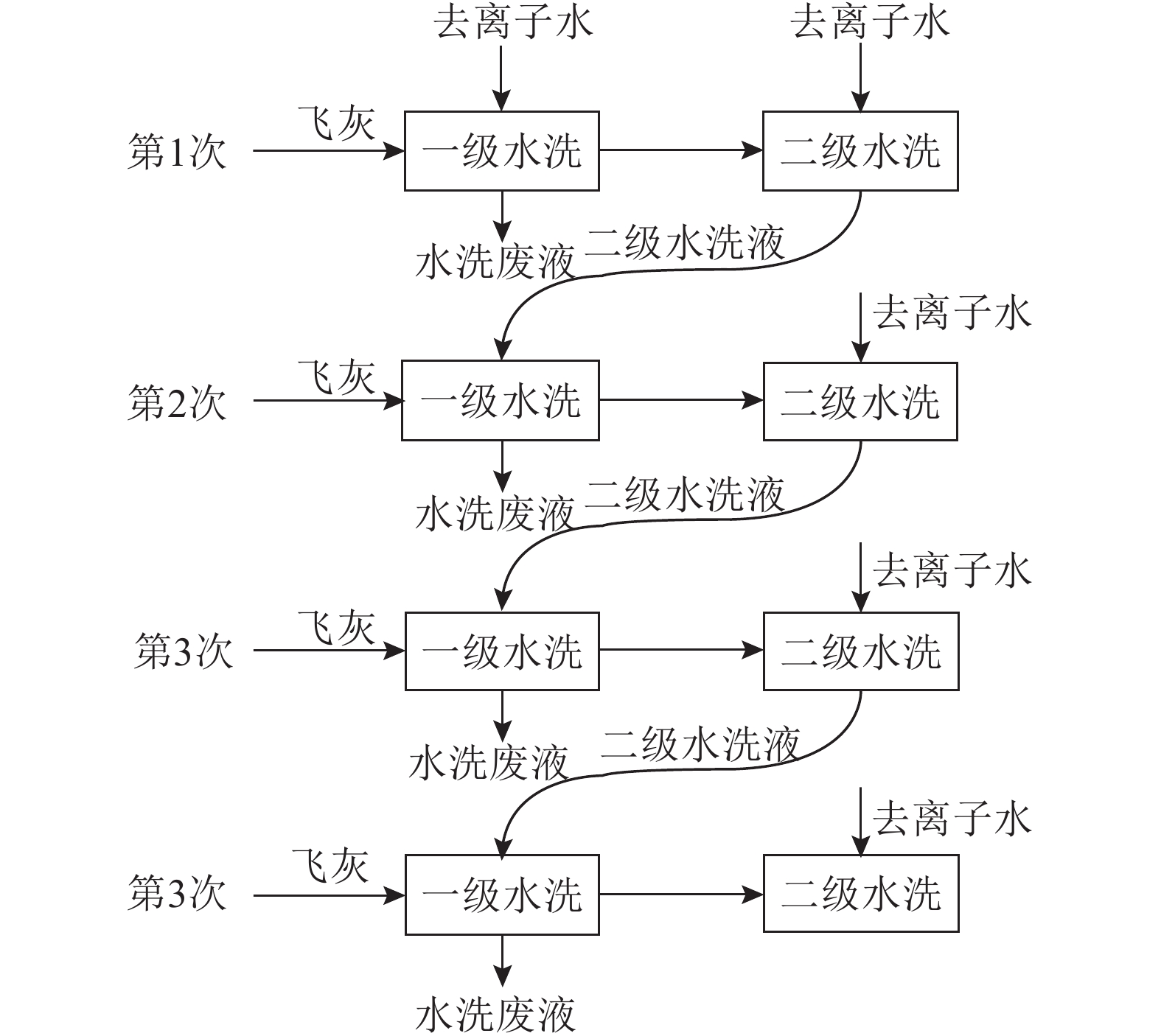

Abstract The effects of washing liquid-solid ratio and time on dissolution of chlorine salt in municipal solid waste incineration (MSWI) fly ash, sampled from a grate furnace were analyzed. The research about two-stage countercurrent water-washing process was carried out. The theoretical calculation models of chlorine mass concentration in washing solution as well as chlorine mass fraction in washed residue were built under the simulation of two-stage countercurrent water-washing process. Results showed that chlorine dissolved quantity became stable when the liquid-solid ratio was 6 mL/g and the time was about 20 min. The mass loss of fly ash after primary and secondary washing was about 32% and 37%, respectively. Two-stage countercurrent water-washing can obviously promote the removal of chlorine from fly ash at the same liquid-solid ratio, compared with primary water-washing. The removal of chlorine from fly ash increased by 15.40% to 61.15% when the liquid-solid ratio was 2 to 6 mL/g. The calculated values obtained from the theoretical models had good correlation with the measured values and the root-mean-square-error was small. The pollutants in the washing solution generated from the two washing processes, such as COD, mass concentration of NH3-N, and pH value exceeded the discharge standard in wastewater quality standards for discharge to municipal sewers, thus the washing solution need further purification before being discharged into the urban sewage system.
|
Received: 12 April 2018
Published: 17 May 2019
|
|
Corresponding Authors:
Sheng-yong LU
E-mail: wangyuting@zju.edu.cn;lushy@zju.edu.cn
|
炉排垃圾焚烧飞灰二级逆流水洗特性
以炉排垃圾焚烧炉飞灰为研究对象,分析水洗液固比和时间对飞灰中氯盐溶出的影响,对二级逆流水洗工艺展开研究. 通过模拟飞灰的二级逆流水洗工艺,建立水洗所产生废液中的氯质量浓度、残渣中氯质量分数的理论计算模型. 结果表明,当水洗液固比为6 mL/g、水洗时间约为20 min时,氯盐溶出质量达到稳定;飞灰经一级、二级水洗后的质量损失分别约为32%、37%;在相同液固比下,与一级水洗相比,二级逆流水洗可以提升飞灰的脱氯效果,当水洗液固比为2~6 mL/g时,提升率可达15.40%~61.15%;模型所得的理论计算值与实验实测值相关性好、均方根误差小. 2种水洗工艺产生的水洗废液中COD、氨氮质量浓度和pH值均高于《污水排入城镇下水道水质标准》的规定,在被排入城市污水系统之前须经过进一步处理.
关键词:
飞灰,
水洗工艺,
脱氯,
计算模型,
污水水质
|
|
[1] |
POLAT H, VENGOSH A, PANKRATOV I, et al A new methodology for removal of boron from water by coal and fly ash[J]. Desalination, 2004, 164 (2): 173- 188
doi: 10.1016/S0011-9164(04)00176-6
|
|
|
[2] |
YU J, SUN L, XIANG J, et al Physical and chemical characterization of ashes from a municipal solid waste incinerator in China[J]. Waste Management and Research, 2013, 31 (7): 663- 673
|
|
|
[3] |
BUHA J, MUELLER N, NOWACK B, et al Physical and chemical characterization of fly ashes from awiss waste incineration plants and determination of the ash fraction in the nanometer range[J]. Environmental Science and Technology, 2014, 48 (9): 4765- 4773
|
|
|
[4] |
CHAKRABORTY R, MUKHERJEE A Mutagenicity and genotoxicity of coal fly ash water leachate[J]. Ecotoxicology and Environmental Safety, 2009, 72 (3): 838- 842
doi: 10.1016/j.ecoenv.2008.09.023
|
|
|
[5] |
王雷, 金宜英, 李润东, 等. 生活垃圾焚烧飞灰的污染特性[J]. 环境科学与技术, 2010, 33(7): 27–32. WANG Lei, JIN Yi-ying, LI Run-dong, et al. Characterization of MSWI fly ash [J]. Environmental Science and Technology, 2010, 33(7): 27–32.
|
|
|
[6] |
张帅毅, 黄亚继, 王昕晔, 等. 模拟垃圾焚烧过程中氯对铅动态挥发特性的影响[J]. 浙江大学学报: 工学版, 2016, 50(3): 485–490. ZHANG Shuai-yi, HUANG Ya-ji, WANG Xin-ye, et al. Effect of chlorides on plumbum dynamic volatilization during simulated municipal solid waste incineration [J]. Journal of Zhejiang University: Engineering Science, 2016, 50(3): 485–490.
|
|
|
[7] |
WANG K, CHIANG K, LIN K, et al Effects of a water-extraction process on heavy metal behavior in municipal solid waste incinerator fly ash[J]. Hydrometallurgy, 2001, 62 (2): 73- 81
doi: 10.1016/S0304-386X(01)00186-4
|
|
|
[8] |
PAN J R, HUANG C, KUO J, et al Recycling MSWI bottom and fly ash as raw materials for Portland cement[J]. Waste Management, 2008, 28 (7): 1113- 1118
doi: 10.1016/j.wasman.2007.04.009
|
|
|
[9] |
罗智宇, 张云月, 张清, 等 垃圾焚烧飞灰水洗去氯的实验研究[J]. 环境卫生工程, 2008, (3): 16- 18 LUO Zhi-yu, ZHANG Yun-yue, ZHANG Qing, et al. Experimentation study on removal chlorine from incineration fly ash by washing process[J]. Environmental Sanitation Engineering, 2008, (3): 16- 18
doi: 10.3969/j.issn.1005-8206.2008.03.006
|
|
|
[10] |
凌永生, 金宜英, 聂永丰. 焚烧飞灰水泥窑煅烧资源化水洗预处理实验研究[J]. 环境保护科学, 2012, 38(4): 1–5. LIN Yong-sheng, JIN Yi-ying, NIE Yong-feng. Experimental study on washing pretreatment process for calcinations of incinerator fly ash in cement kiln for reuse[J]. Environmental Protection Science, 2012, 38(4): 1–5.
|
|
|
[11] |
张清, 陈德珍, 王正宇, 等. 垃圾焚烧飞灰预处理后水泥固化实验研究[J]. 有色冶金设计与研究, 2007, 28(2/3): 113–116. ZHANG Qing, CHEN De-zhen, WANG Zheng-yu, et al. A study on pretreatment of fly ash from incineration before solidification with cement [J]. Nonferrous Metals Engineering and Research, 2007, 28(2/3): 113–116.
|
|
|
[12] |
白晶晶, 张增强, 闫大海, 等. 水洗对焚烧飞灰中氯及重金属元素的脱除研究[J]. 环境工程, 2012, 30(2): 104–108. BAI Jing-jing, ZHANG Zeng-qiang, YAN Da-hai, et al. Study on the removal of chlorine and heavy metals in incineration fly ash during water-washing process [J]. Environmental Engineering, 2012, 30(2): 104–108.
|
|
|
[13] |
CHEN Z, CHANG W, JIANG X, et al Leaching behavior of circulating fluidised bed MSWI air pollution control residue in washing process[J]. Energies, 2016, 9 (9): 743
doi: 10.3390/en9090743
|
|
|
[14] |
YANG R, LIAO W, WU P Basic characteristics of leachate produced by various washing processes for MSWI ashes in Taiwan[J]. Journal of Environmental Management, 2012, 104: 67- 76
|
|
|
[15] |
ZHU F, TAKAOKA M, SHIOTA K, et al Chloride chemical form in various types of fly ash[J]. Environmental Science and Technology, 2008, 42 (11): 3932- 3937
doi: 10.1021/es7031168
|
|
|
[16] |
常威. 生活垃圾焚烧飞灰的水洗及资源化研究[D]. 杭州: 浙江大学, 2016. CHANG Wei. Study on the washing process and recycling of MSWI fly ash [D]. Hangzhou: Zhejiang University, 2016.
|
|
|
[17] |
JOZEWICZ W, GULLETT B K Reaction mechanisms of dry Ca-based sorbents with gaseous HCl[J]. Industrial and Engineering Chemistry Research, 1995, 2 (34): 607- 612
|
|
|
[18] |
ZHANG F, ITOH H Extraction of metals from municipal solid waste incinerator fly ash by hydrothermal process[J]. Journal of Hazardous Materials, 2006, 136 (3): 663- 670
doi: 10.1016/j.jhazmat.2005.12.052
|
|
|
[19] |
侯霞丽, 李晓东, 陈彤, 等. 垃圾焚烧飞灰中主要元素的深度分布及形态[J]. 浙江大学学报: 工学版, 2015, 49(5): 930–937. HOU Xia-li, LI Xiao-dong, CHEN Tong, et al. Distribution and chemical forms of major elements in MSWI fly ash [J]. Journal of Zhejiang University: Engineering Science, 2015, 49(5): 930–937.
|
|
|
[20] |
ITO R, DODBIBA G, FUJITA T, et al Removal of insoluble chloride from bottom ash for recycling[J]. Waste Management, 2008, 28 (8): 1317- 1323
doi: 10.1016/j.wasman.2007.05.015
|
|
|
[21] |
李建新, 严建华, 金余其, 等. 生活垃圾焚烧飞灰重金属特性分析[J]. 浙江大学学报: 工学版, 2004, 38(4): 103–107. LI Jian-xin, YAN Jian-hua, JIN Yu-qi, et al. Characteristic analysis of heavy metal in MSWI fly ash [J]. Journal of Zhejiang University: Engineering Science, 2004, 38(4): 103–107.
|
|
|
|
