| Dynamic control effect of chloride in concrete based on multi-level electromigration |
Xin SONG1,2( ),Wei-jie FAN2,*(),Jiang-hong MAO2,Wei-liang JIN1,2 |
1. Institute of Structural Engineering, Zhejiang University, Hangzhou 310058, China
2. School of Engineering and Architecture, NingboTech University, Ningbo 315100, China |
|
|
|

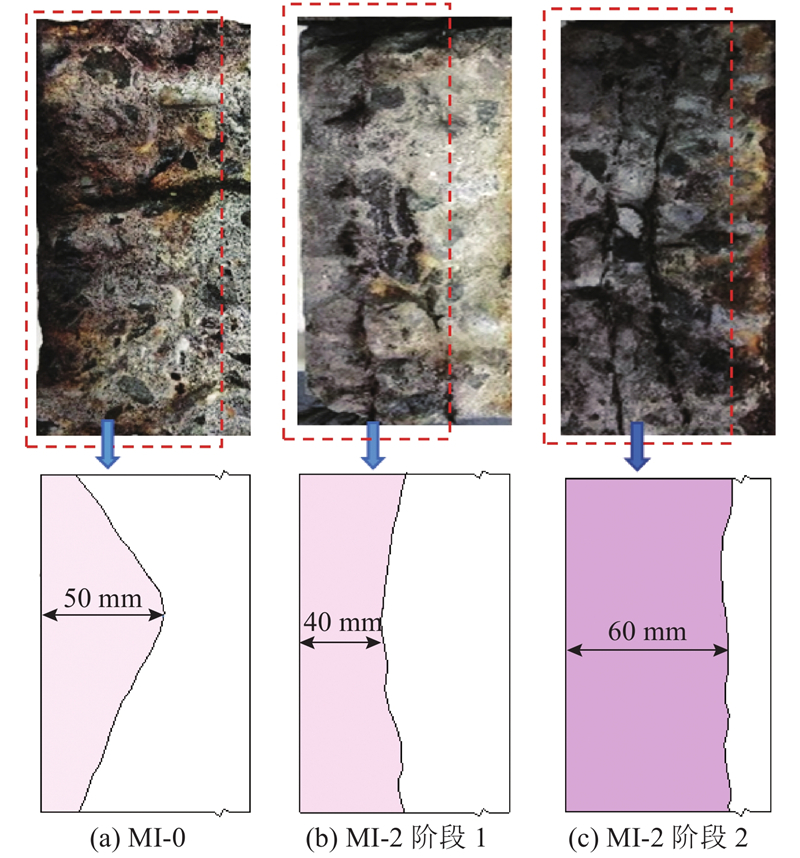

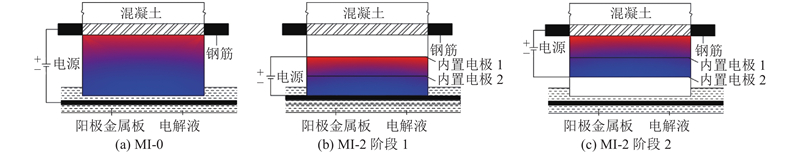

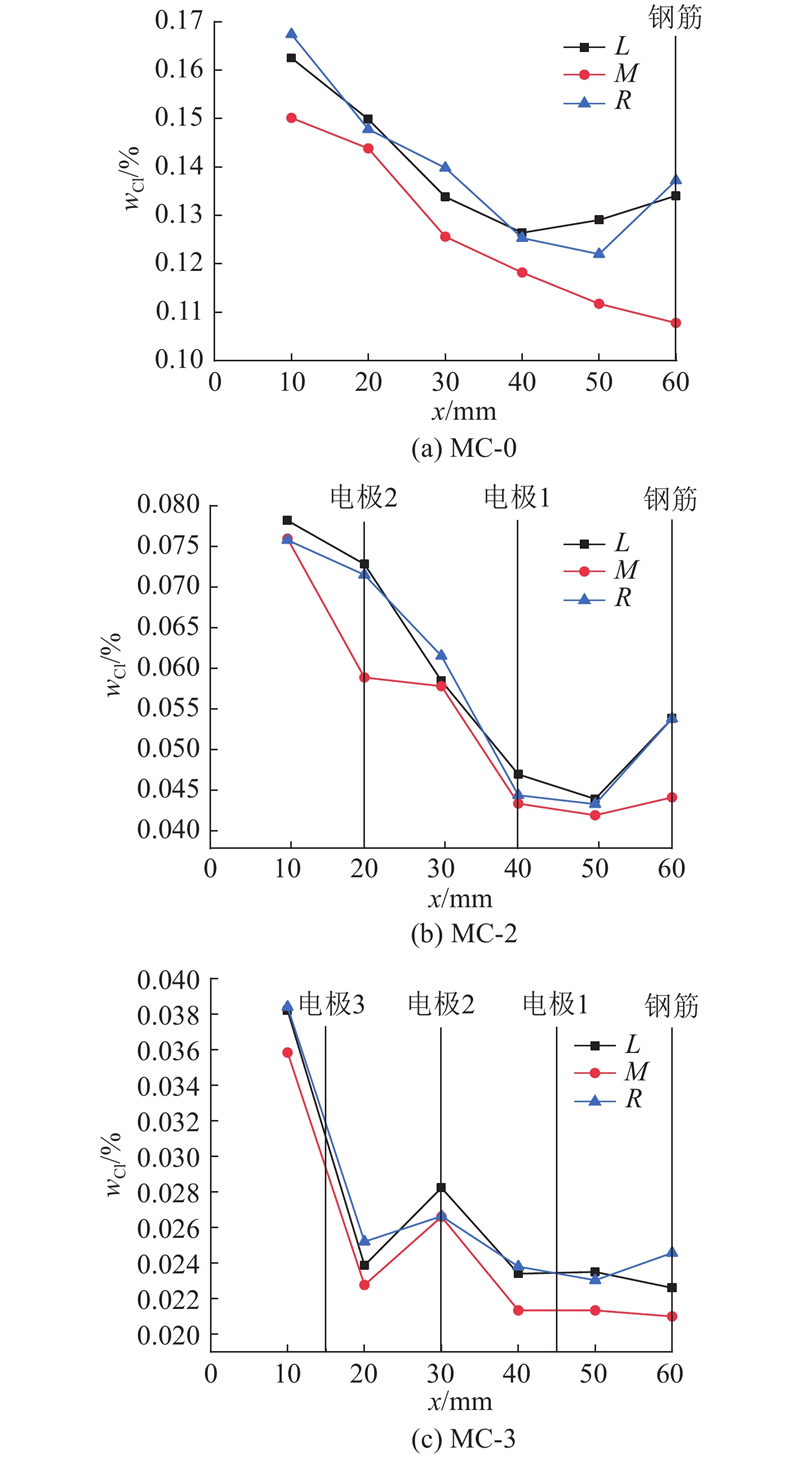

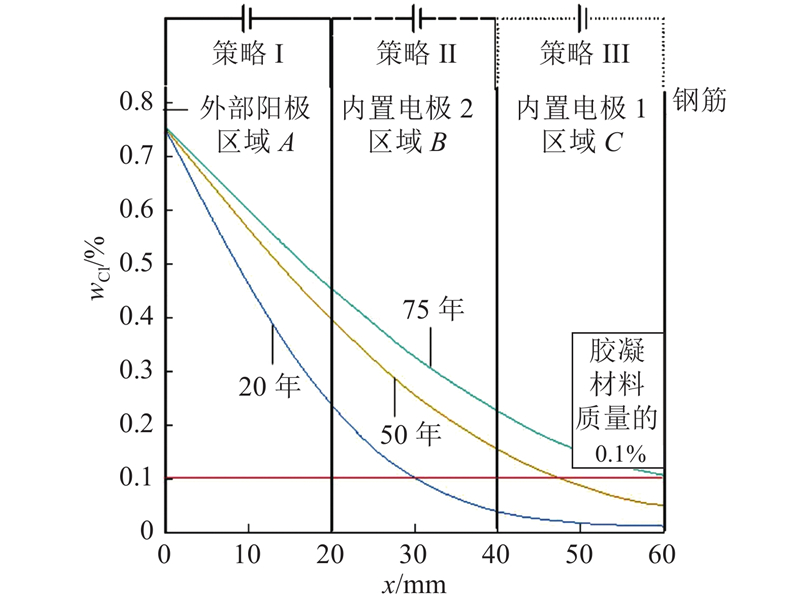

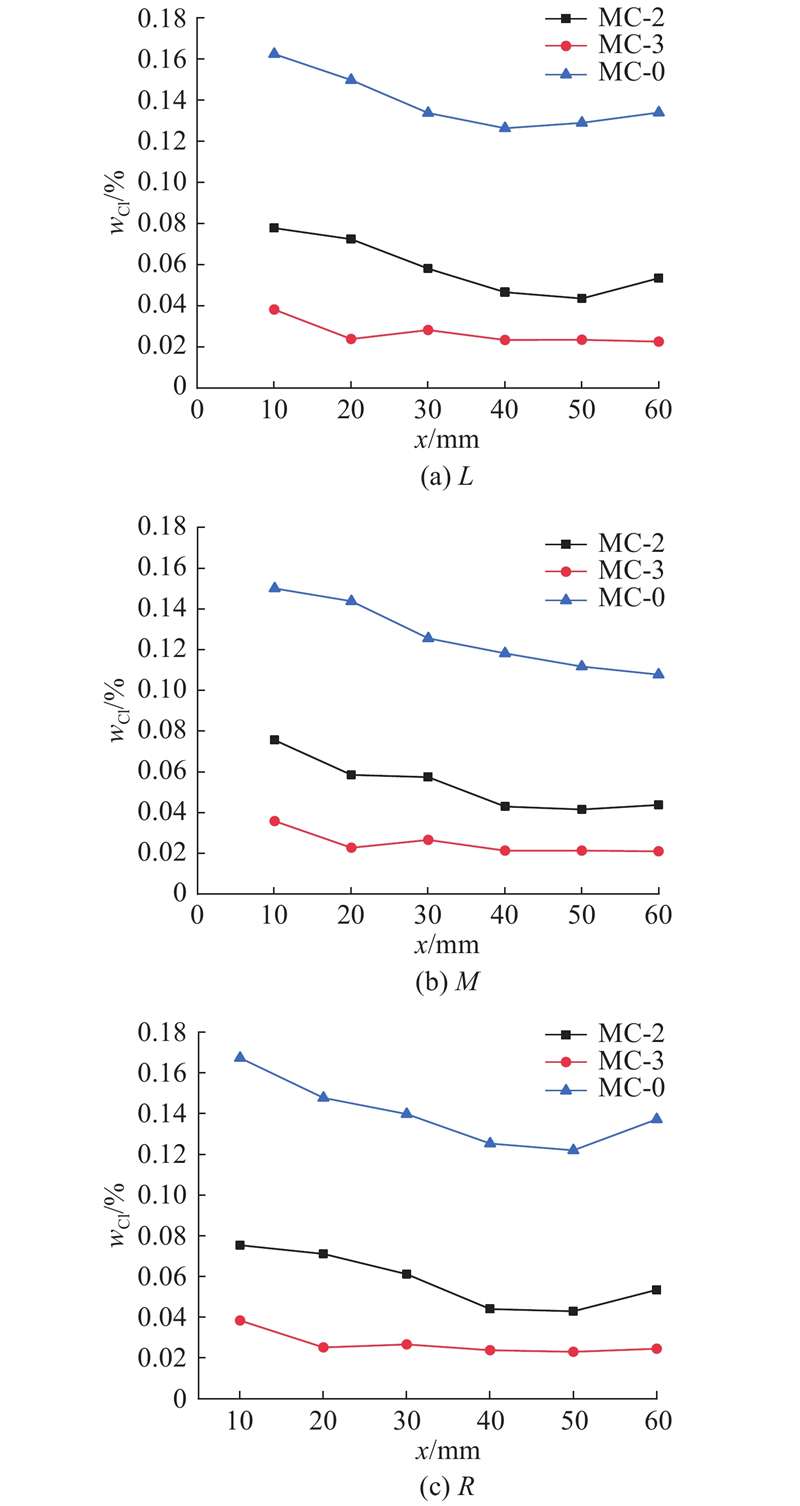

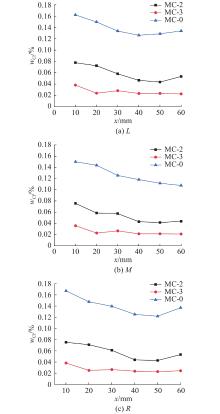

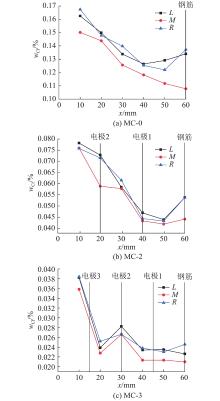

Abstract An embedded carbon fiber net was used as the built-in electrode to carry out the electromigration repair of the concrete specimen in the chloride environment and eliminate the chloride ions near the reinforcement and in the concrete cover. The characteristic test of iodine ion migration was used to reflect the process of ion migration, and to evaluate the relay function of multi-level migration to ion migration. The concentration and spatial distribution of residual chloride ions in the repaired samples were quantitatively studied by setting different layers of built-in electrodes. The long-life protection strategy of concrete structures based on multi-level electrical migration was discussed combined with the investigation data of chloride concentration of existed structures. Experimental results show that the control effect of chloride of multi-level electromigration is more significant than that of direct electromigration. The chlorine removal efficiency of three-level electromigration is 1.20 times and 2.26 times of two-level electromigration and single-level electromigration, respectively.
|
|
Received: 05 February 2020
Published: 25 April 2021
|
|
|
| Fund: 国家自然科学基金资助项目（51638013，51878610，51820105012），浙江省自然科学基金资助项目（LY18E080003，LQ19E080011，LQ19E080012） |
|
Corresponding Authors:
Wei-jie FAN
E-mail: 21712181@zju.edu.cn;fanwj@nit.zju.edu.cn
|
基于多级电迁的混凝土内氯离子动态控制效果
为了高效排除钢筋附近与保护层内的氯离子，预埋碳纤维网作为内置电极对氯盐环境下的混凝土试件进行多级电迁的试验，研究其除氯效果. 利用碘离子迁移特征试验对离子迁移过程作直观效果反映，评价多级电迁对离子的迁移功能. 通过设置不同层数内置电极，定量研究电迁后试件内残余氯离子质量分数与空间分布. 结合既有结构氯离子质量分数调研数据，讨论基于多级电迁的混凝土结构长寿命防护策略. 结果表明：多级电迁对氯离子控制效果更显著，三级电迁作用下保护层除氯效果分别是两级电迁和单级电迁的1.20倍与2.26倍.
关键词：
混凝土耐久性,
电化学修复,
多级电迁,
氯离子,
均匀性
|
|
| [1] |
金伟良, 赵羽习. 混凝土结构耐久性[M]. 北京: 科学出版社, 2014.
|
|
|
| [2] |
TANG S W, YAO Y, ANDRADE C, et al Recent durability studies on concrete structure[J]. Cement and Concrete Research, 2015, 78 (SIA): 143- 154
|
|
|
| [3] |
卢振永, 金伟良, 王海龙 人工气候模拟加速试验的相似性设计[J]. 浙江大学学报: 工学版, 2009, 43 (6): 1071- 1076
LU Zhen-yong, JIN Wei-liang, WANG Hai-long Similarity design of artificial climate simulation accelerated test[J]. Journal of Zhejiang University: Engineering Science, 2009, 43 (6): 1071- 1076
|
|
|
| [4] |
VAKILI H, RAMEZANZADEH B, AMINI R The corrosion performance and adhesion properties of the epoxy coating applied on the steel substrates treated by cerium-based conversion coatings[J]. Corrosion Science, 2015, 94: 466- 475
doi: 10.1016/j.corsci.2015.02.028
|
|
|
| [5] |
杨苹, 李伟华, 赵铁军 不同表面涂层对混凝土的防护效果[J]. 硅酸盐学报, 2012, 40 (11): 1613- 1617
YANG Ping, LI Wei-hua, ZHAO Tie-jun Protective effect of different surface coatings on concrete[J]. Journal of silicate, 2012, 40 (11): 1613- 1617
|
|
|
| [6] |
金伟良, 陈佳芸, 毛江鸿, 等 电化学修复对钢筋混凝土结构服役性能的作用效应[J]. 工程力学, 2016, 33 (2): 1- 10
JIN Wei-liang, CHEN Jia-yun, MAO Jiang-hong, et al Effect of electrochemical repair on service performance of reinforced concrete structures[J]. Engineering Mechanics, 2016, 33 (2): 1- 10
doi: 10.6052/j.issn.1000-4750.2015.06.ST06
|
|
|
| [7] |
ELSENER B, MOLINA M, BOHNI H The electrochemical removal of chlorides from reinforced-concrete[J]. Corrosion Science, 1993, 35 (5-8): 1563- 1565
doi: 10.1016/0010-938X(93)90385-T
|
|
|
| [8] |
蒋正武, 杨凯飞 碳化混凝土电化学再碱化效果研究[J]. 建筑材料学报, 2012, 15 (1): 17- 21
JIANG Zheng-wu, YANG Kai-fei Study on electrochemical realkalization effect of carbonated concrete[J]. Journal of Building Materials, 2012, 15 (1): 17- 21
doi: 10.3969/j.issn.1007-9629.2012.01.004
|
|
|
| [9] |
金伟良, 彭文浩, 毛江鸿 不同电流密度下混凝土裂缝电沉积产物的分布特性[J]. 土木与环境工程学报, 2019, 41 (3): 127- 133
JIN Wei-liang, Peng Wen-hao, Mao Jiang-hong Distribution characteristics of electrodeposited products of concrete cracks under different current densities[J]. Journal of civil and Environmental Engineering, 2019, 41 (3): 127- 133
|
|
|
| [10] |
许晨, 金伟良, 章思颖 氯盐侵蚀混凝土结构延寿技术初探Ⅱ——混凝土中6种胺类有机物电迁移与阻锈性能[J]. 建筑材料学报, 2014, 17 (4): 572- 578
XU Chen, JIN Wei-liang, ZHANG Si-ying Preliminary study on service life extension of concrete structures under chloride environment—effectiveness of six amine-based inhibitors for steel in chloride-contaminated simulated concrete pore solutions[J]. Journal of Building Materials, 2014, 17 (4): 572- 578
doi: 10.3969/j.issn.1007-9629.2014.04.003
|
|
|
| [11] |
WU H, ISFAHANI F T, JIN W, et al Modification of properties of reinforced concrete through nanoalumina electrokinetic treatment[J]. Construction and Building Materials, 2016, 126: 857- 867
doi: 10.1016/j.conbuildmat.2016.09.098
|
|
|
| [12] |
许晨, 金伟良, 黄楠, 等 双向电渗对钢筋混凝土的修复效果实验?保护层表面强度变化规律[J]. 浙江大学学报: 工学版, 2015, 49 (6): 1128- 1138
XU Chen, JIN Wei-liang, HUANG Nan, et al Experimental study on the effect of bidirectional electromigration rehabilitation of reinforced concrete[J]. Journal of Zhejiang University: Engineering Science, 2015, 49 (6): 1128- 1138
|
|
|
| [13] |
BUENFELD N R, BROOMFIELD J P Influence of electrochemical chloride extraction on the bond between steel and concrete[J]. Magazine of Concrete Research, 2000, 52 (2): 79- 91
doi: 10.1680/macr.2000.52.2.79
|
|
|
| [14] |
SIEGWART M Influence of electrochemical chloride extraction on the performance of prestressed concrete under dynamic loading conditions[J]. Journal of Materials in Civil Engineering, 2006, 18 (6): 800- 812
doi: 10.1061/(ASCE)0899-1561(2006)18:6(800)
|
|
|
| [15] |
MAO J, JIN W, ZHANG J, et al Hydrogen embrittlement risk control of prestressed tendons during electrochemical rehabilitation based on bidirectional electro-migration[J]. Construction and Building Materials, 2019, 213: 582- 591
doi: 10.1016/j.conbuildmat.2019.04.008
|
|
|
| [16] |
ZHANG J, JIN W, MAO J, et al Deterioration of static mechanical properties of RC beams due to bond damage induced by electrochemical rehabilitation[J]. Construction and Building Materials, 2020, 237: 117629
doi: 10.1016/j.conbuildmat.2019.117629
|
|
|
| [17] |
ARYA C, SA'ID-SHAWQI Q Factors influencing electrochemical removal of chloride from concrete[J]. Cement and Concrete Research, 1996, 26 (6): 851- 860
doi: 10.1016/0008-8846(96)00067-1
|
|
|
| [18] |
ZHU J H, WEI L, MOAHMOUD H, et al Investigation on CFRP as dual-functional material in chloride-contaminated solutions[J]. Construction and Building Materials, 2017, 151: 127- 137
doi: 10.1016/j.conbuildmat.2017.05.213
|
|
|
| [19] |
刘军. 基于碘离子传输特征的混凝土渗透性评价方法研究[D]. 长沙: 中南大学, 2013.
LIU Jun. Study on the evaluation method of concrete permeability based on the characteristics of iodine ion transport [D]. Changsha: Central South University, 2013.
|
|
|
| [20] |
郭柱. 三乙烯四胺阻锈剂双向电渗效果研究[D]. 杭州: 浙江大学, 2013.
GUO Zhu. A study of triethylenetetramine corrosion inhibitor for bilateral electro-osmotic method [D]. Hangzhou: Zhejiang University, 2013.
|
|
|
| [21] |
元斐斌, 金伟良, 毛江鸿, 等 基于双向电迁移的开裂混凝土除氯阻锈效果[J]. 浙江大学学报: 工学版, 2019, 53 (12): 2317- 2324
YUAN Fei-bin, JIN Wei-liang, MAO Jiang-hong, et al Experimental study on the effect of chloride removal and corrosion prevention for cracked concrete based on bi-directional electro-migration rehabilitation[J]. Journal of Zhejiang University: Engineering Science, 2019, 53 (12): 2317- 2324
|
|
|
| [22] |
XIA J, LI L Numerical simulation of ionic transport in cement paste under the action of externally applied electric field[J]. Construction and Building Materials, 2013, 39: 51- 59
doi: 10.1016/j.conbuildmat.2012.05.036
|
|
|
| [23] |
吴锋, 汪冬冬, 时蓓玲, 等 后张法预应力混凝土大直径管桩耐久性与寿命预测研究[J]. 土木工程学报, 2016, 49 (3): 122- 128
WU Feng, WANG Dong-dong, SHI Bei-ling, et al Research on durability and life prediction for raymond cylinder pile[J]. Journal of Civil Engineering, 2016, 49 (3): 122- 128
|
|
|
|
