| Civil Engineering, Hydraulic Engineering |
|
|
|
|
| Hydrodynamic characteristics of oscillating water column type breakwater |
Peng WANG( ),Zheng-zhi DENG*(),Chen WANG,Xiang REN |
| Ocean College, Zhejiang University, Zhoushan 316021, China |
|
|
|

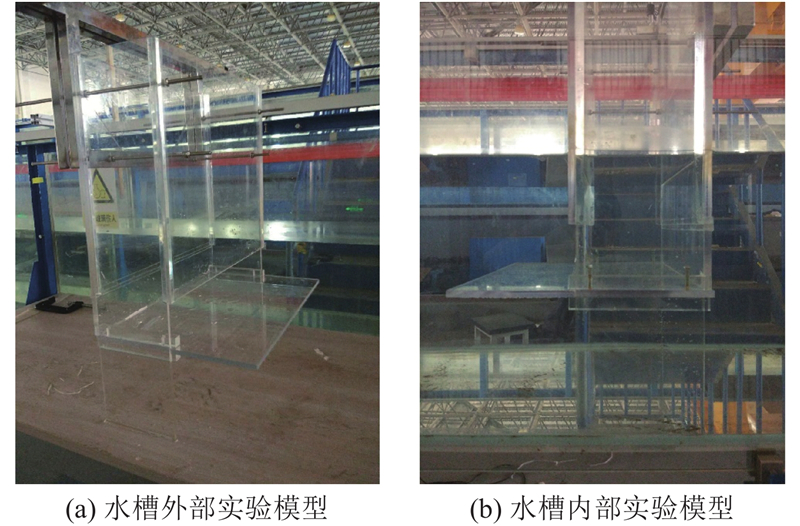

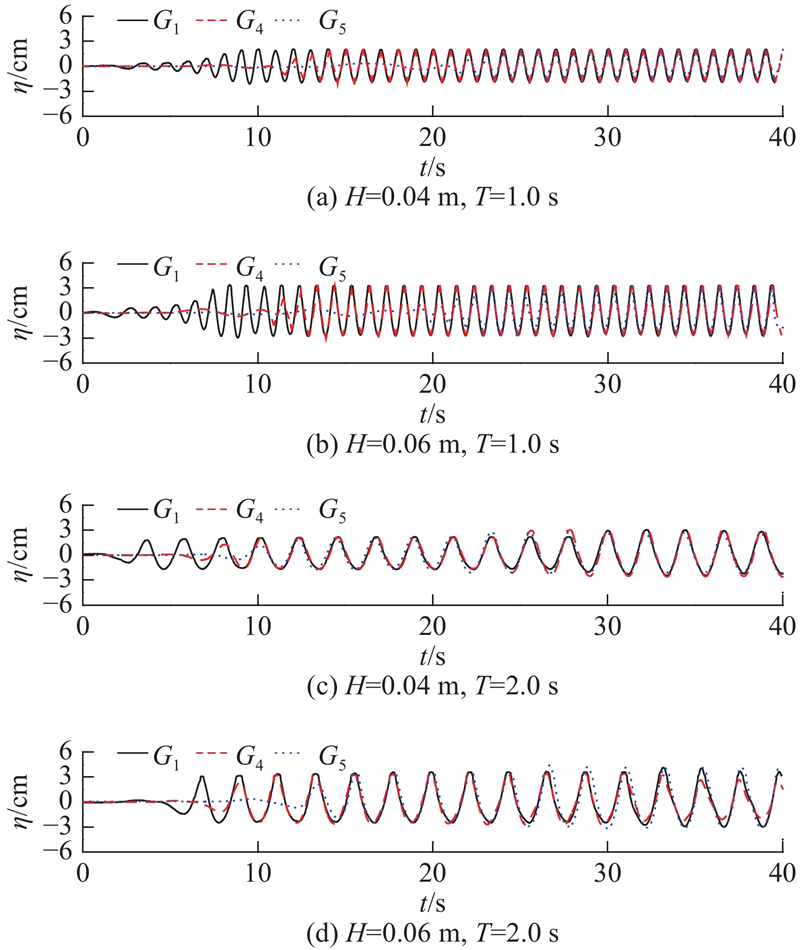

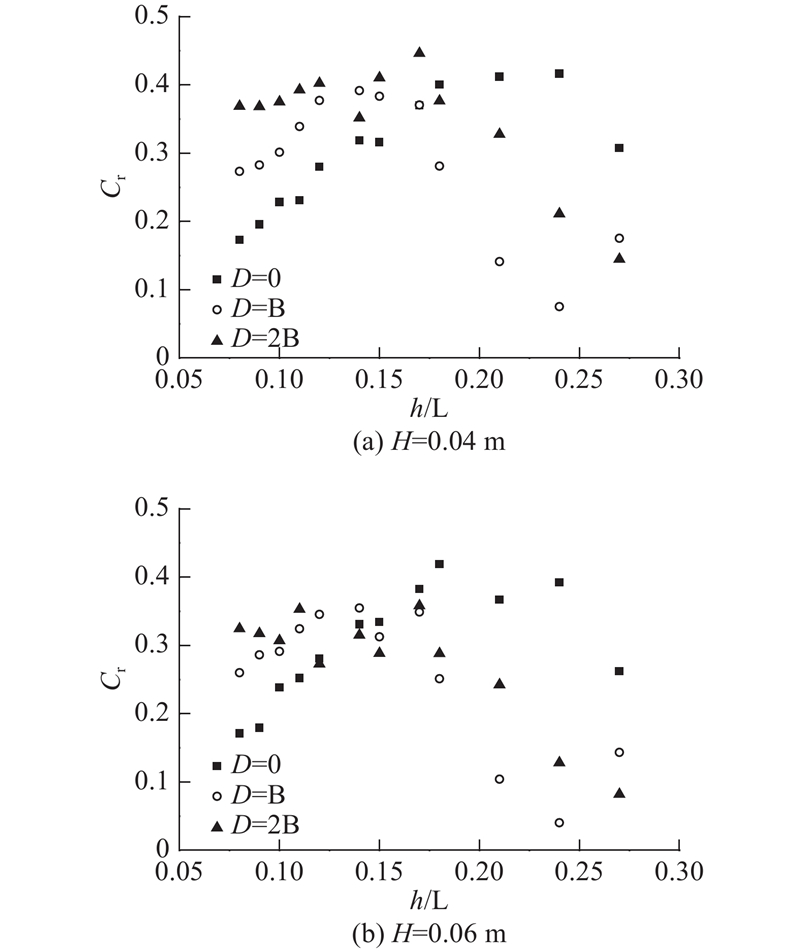

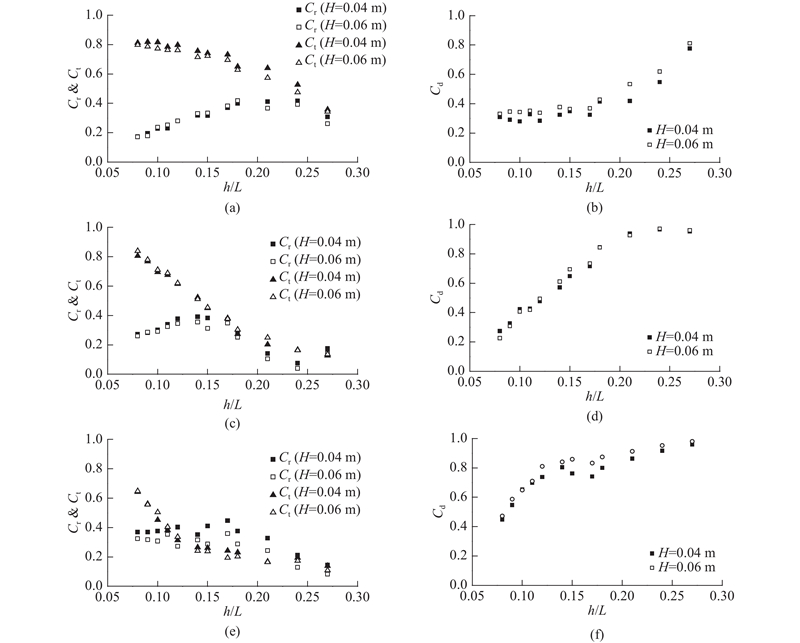

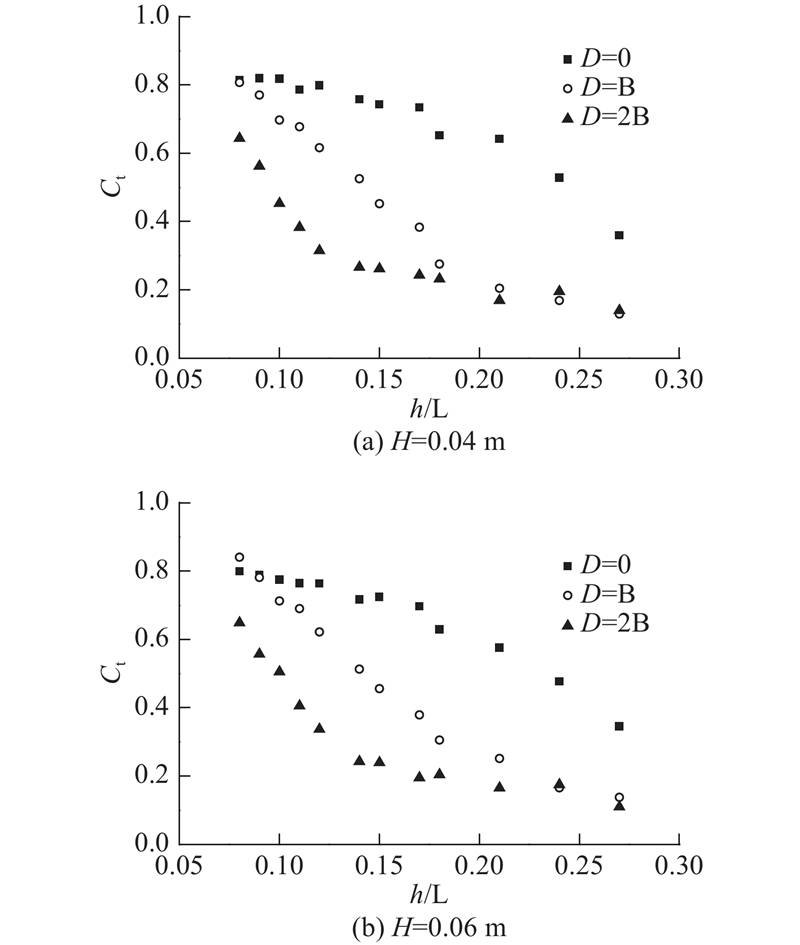

Abstract An advanced oscillating-water-column-type (OWC-type) breakwater with a horizontal underneath plate was proposed. The hydrodynamic characteristics of the system under three different plate breadths and twelve different wave periods were studied using two-dimensional laboratory experiments. The effect of wave height on the hydrodynamic parameters of the breakwater model was explored by experiments. The experimental results show that the wave-damping ability of the breakwater was improved by setting the underneath plate reasonably: the transmission coefficient for incident wave periods within 1.6 s was less than 0.5, as the horizontal bottom plate width was equal to the width between the model plates; the wave transmission was less than 50% for incident wave periods within 2.2 s, as the horizontal bottom width was increased to twice the width between the model plates. The presence of the underneath plate is beneficial for the energy dissipation, which particularly improves the performance of the breakwater for the long-wave regimes. The change of wave height has little effect on the relevant hydrodynamic parameters.
|
|
Received: 18 November 2018
Published: 17 December 2019
|
|
|
|
Corresponding Authors:
Zheng-zhi DENG
E-mail: 21634092@zju.edu.cn;zzdeng@zju.edu.cn
|
振荡水柱式防波堤的水动力特性
提出一种带水平底板的振荡水柱式新型防波堤. 借助二维物理波浪水槽，研究结构系统在3种不同水平底板宽度、12种不同波浪周期下的水动力特性. 通过实验探究波高对防波堤模型相关水动力参数的影响. 结果表明：合理布置水平底板能有效提升振荡水柱式防波堤的阻波性能；当水平底板宽度等于模型板间宽度时，入射波周期小于1.6 s的波浪的透射系数小于0.5；当水平底板宽度增大到2倍模型板间宽度时，入射波周期小于2.2 s的波浪的透射量小于50%. 水平底板的存在增加了系统的能量耗散，提高了系统对长波区间波浪的阻挡性能；波高的变化对相关水动力参数影响不大.
关键词：
防波堤,
反射系数,
透射系数,
能量耗散系数,
振荡水柱,
波浪水槽
|
|
| [1] |
DAI J, WANG C M, UTSUNOMIYA T, et al Review of recent research and developments on floating breakwaters[J]. Ocean Engineering, 2018, 158: 132- 151
doi: 10.1016/j.oceaneng.2018.03.083
|
|
|
| [2] |
HUANG Z, LI Y, LIU Y Hydraulic performance and wave loadings of perforated/slotted coastal structures: a review[J]. Ocean Engineering, 2011, 38 (10): 1031- 1053
doi: 10.1016/j.oceaneng.2011.03.002
|
|
|
| [3] |
汪林, 邓争志, 赵西增, 等 T型透空式防波堤水动力特性的理论研究[J]. 哈尔滨工程大学学报, 2018, 30 (9): 1444- 1450
WANG Lin, DENG Zheng-zhi, ZHAO Xi-zeng, et al The hydrodynamic properties of T-type open-type breakwaters[J]. Journal of Harbin Engineering University, 2018, 30 (9): 1444- 1450
|
|
|
| [4] |
ISAACSON M, BALDWIN J, ALLYN N, et al Wave interactions with perforated breakwater[J]. Journal of Waterway, Port, Coastal, and Ocean Engineering, 2000, 126: 229- 235
doi: 10.1061/(ASCE)0733-950X(2000)126:5(229)
|
|
|
| [5] |
AHMED HG, SCHLENKHOFF A Numerical investigation of wave interaction with double vertical slotted walls[J]. International Journal of Environmental, Ecological, Geological and Mining Engineering, 2014, 8 (8): 536- 543
|
|
|
| [6] |
SHIN D M, CHO Y Diffraction of waves past two vertical thin plates on the free surface: a comparison of theory and experiment[J]. Ocean Engineering, 2016, 124: 274- 286
doi: 10.1016/j.oceaneng.2016.07.013
|
|
|
| [7] |
HE F, HUANG Z Hydrodynamic performance of pile-supported OWC-type structures as breakwaters: an experimental study[J]. Ocean Engineering, 2014, 88 (5): 618- 626
|
|
|
| [8] |
JU L H, ZUO Q H, TENG L, et al Study on wave dissipation of the structure combined by baffle and submerged breakwater[J]. China Ocean Engineering, 2017, 31 (6): 674- 682
doi: 10.1007/s13344-017-0077-3
|
|
|
| [9] |
王辰, 邓争志, 茆大炜 台阶式地形上双垂板透空系统的水动力学特性[J]. 浙江大学学报: 工学版, 2019, 53 (2): 135- 145
WANG Chen, DENG Zheng-zhi, MAO Da-wei Hydrodynamic performance of two vertical plates penetrating system mounted over stepped bottom[J]. Journal of Zhejiang University: Engineering Science, 2019, 53 (2): 135- 145
|
|
|
| [10] |
ALSAYDALANI M O, SAIF M A N, HELAL M M Hydrodynamic characteristics of three rows of vertical slotted wall breakwaters[J]. Journal of Marine Science and Application, 2017, 16 (3): 261- 275
doi: 10.1007/s11804-017-1427-5
|
|
|
| [11] |
USHA R, GAYATHRI T Wave motion over a twin-plate breakwater[J]. Ocean Engineering, 2005, 32 (8): 1054- 1072
|
|
|
| [12] |
GUO C S, ZHANG N C, LI Y Y, et al Experimental study on the performance of twin plate breakwater[J]. China Ocean Engineering, 2011, 25 (4): 645- 656
doi: 10.1007/s13344-011-0051-4
|
|
|
| [13] |
GU Q, HUANG G X, ZHANG N C, et al Experimental study on the wave loads of twin-plate breakwater under oblique waves[J]. Acta Oceanologica Sinica, 2016, 35 (12): 1- 10
doi: 10.1007/s13131-016-0964-0
|
|
|
| [14] |
YU Y F, GUO Z Q, MA Q W Transmission of water waves under multiple vertical thin plates[J]. Water, 2018, 10 (4): 517
doi: 10.3390/w10040517
|
|
|
| [15] |
FANG Z, XIAO L, PENG T Generalized analytical solution to wave interaction with submerged multi-layer horizontal porous plate breakwaters[J]. Journal of Engineering Mathematics, 2016, 105 (1): 1- 19
|
|
|
| [16] |
FANG Z, XIAO L, KOU Y, et al Experimental study of the wave-dissipating performance of a four-layer horizontal porous-plate breakwater[J]. Ocean Engineering, 2018, 151: 222- 233
doi: 10.1016/j.oceaneng.2018.01.041
|
|
|
| [17] |
WANG K, ZHANG Z Q, XU W Transmitted and reflected coefficients for horizontal or vertical plate type breakwater[J]. China Ocean Engineering, 2011, 25 (2): 285- 294
doi: 10.1007/s13344-011-0023-8
|
|
|
| [18] |
HU H, WANG K H, WILLIAMS A. N Wave motion over a breakwater system of a horizontal plate and a vertical porous wall[J]. Ocean Engineering, 2002, 29 (4): 373- 386
doi: 10.1016/S0029-8018(01)00029-4
|
|
|
|
