浙江大学学报(工学版)  2021, Vol. 55 Issue (2): 271-279    DOI: 10.3785/j.issn.1008-973X.2021.02.007
机械工程
多孔纤维型重整微反应器的等效电阻网络建模
徐志佳(),余昌霖,王清辉*()
华南理工大学 机械与汽车工程学院，广东 广州 510640
Equivalent resistance network modeling for reforming micro-reactor with porous fibrous structure
Zhi-jia XU(),Chang-lin YU,Qing-hui WANG*()
School of Mechanical and Automotive Engineering, South China University of Technology, Guangzhou 510640, China
 全文: PDF(1347 KB)   HTML
摘要：

针对应用于重整制氢微反应器的复杂多孔金属纤维载体（PFS）的流速场高效分析难题，建立载体中随机微通道的等效电阻网络分析模型. 基于复杂随机纤维结构的统计网络模型，将纤维载体中三维联通的随机微通道结构及与之相连的进出口腔简化为规则的网络通道结构.借鉴基尔霍夫定律，建立纤维载体的等效电阻网络模型，并确定求解方法. 纤维载体流速场实例分析的结果表明，基于等效电阻网络模型求解的纤维载体流速场与计算流体力学(CFD)方法的结果之间的皮尔森相关系数约为98%，且求解效率约为CFD方法的2.9×104倍. 研究成果为多孔纤维型重整制氢微反应器的设计制造提供了新的支撑方案.
关键词： 重整制氢;  多孔纤维;  等效电阻网络;  流速场;  高效
Abstract:

An equivalent resistance network model for randomly distributed micro-channels in porous fibrous structure (PFS) was established, aming at the efficient analysis problem of flow velocity field for PFS that used in micro-reactor for hydrogen production by reforming. The complex and randomly-connected micro-channels for fluid flow in PFS, as well as the inlet and outlet manifolds of PFS, were simplified as regular network based on the statistical network developed for complex and random fibrous structure. An equivalent resistance network model for PFS was developed in the light of Kirchhoff’s law, and the solution method was determined. The proposed method was validated by comparing with a previously developed computational fluid dynamics (CFD) approach. Results indicated that, the Pearson correlation coefficient between the velocity distributions of PFS obtained by the two methods was about 98%, while the efficiency of the proposed method was about 2.9×104 times that of CFD approach. In this way, a superior supportive technology for the design and fabrication of micro-reactor with PFSs for hydrogen production via reforming was provided.
Key words: hydrogen production by reforming    porous fibrous structure    equivalent resistance network    velocity field    high efficiency
收稿日期: 2020-07-03 出版日期: 2021-03-09
CLC:  TK 91
基金资助: 国家自然科学基金资助项目（51875210，51775192）；广东省自然科学基金资助项目（2018B030311032）；广州市科技计划资助项目（201804010420）；聚合物成型加工工程教育部重点实验室开放课题资助项目（KFKT1804）；中央高校基本业务费资助项目（2019ZD25）
通讯作者: 王清辉     E-mail: mexzj@scut.edu.cn;wqh@scut.edu.cn
作者简介: 徐志佳（1986—），男，副教授，从事多孔功能结构设计、分析与优化，智能CAD/CAM研究. orcid.org/0000-0002-9183-6924. E-mail: mexzj@scut.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
徐志佳
余昌霖
王清辉

引用本文:

徐志佳,余昌霖,王清辉. 多孔纤维型重整微反应器的等效电阻网络建模[J]. 浙江大学学报(工学版), 2021, 55(2): 271-279.

Zhi-jia XU,Chang-lin YU,Qing-hui WANG. Equivalent resistance network modeling for reforming micro-reactor with porous fibrous structure. Journal of ZheJiang University (Engineering Science), 2021, 55(2): 271-279.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.02.007    或    http://www.zjujournals.com/eng/CN/Y2021/V55/I2/271

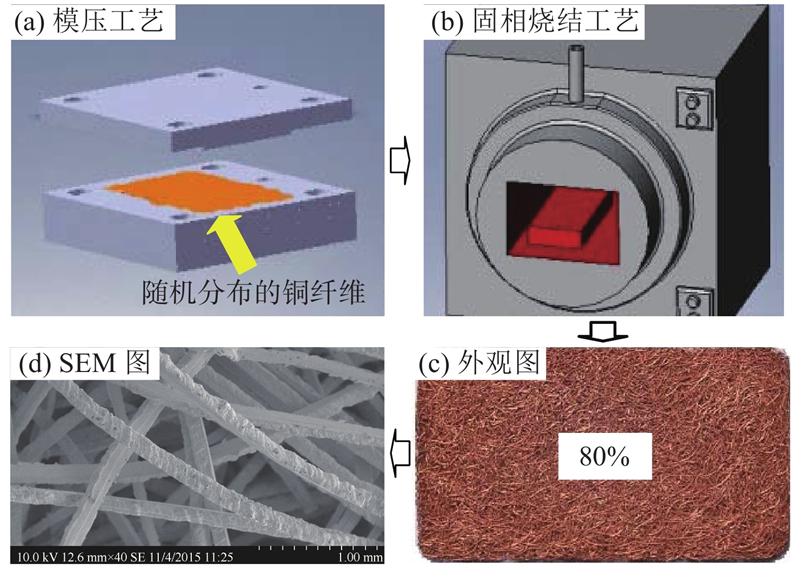

图 1  纤维载体制备工艺及外观图和SEM图

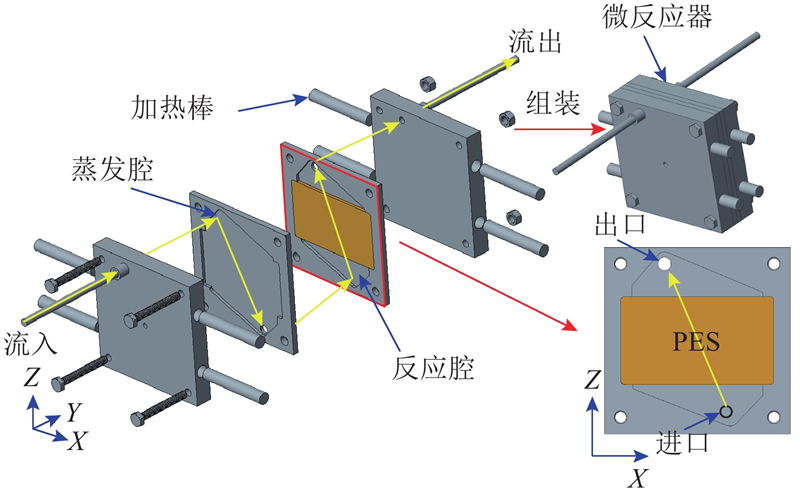

图 2  基于纤维载体的甲醇重整制氢微反应器

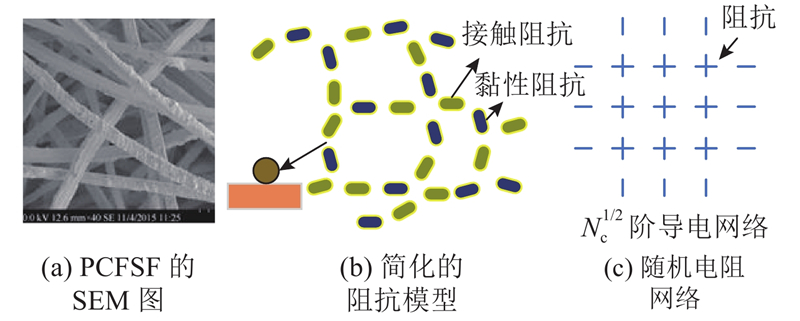

图 3  随机分布纤维结构统计网络模型示意图

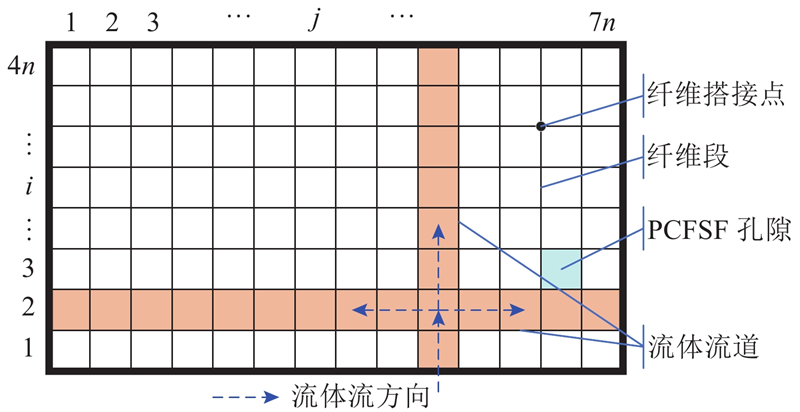

图 4  纤维载体流体微通道网络模型示意图

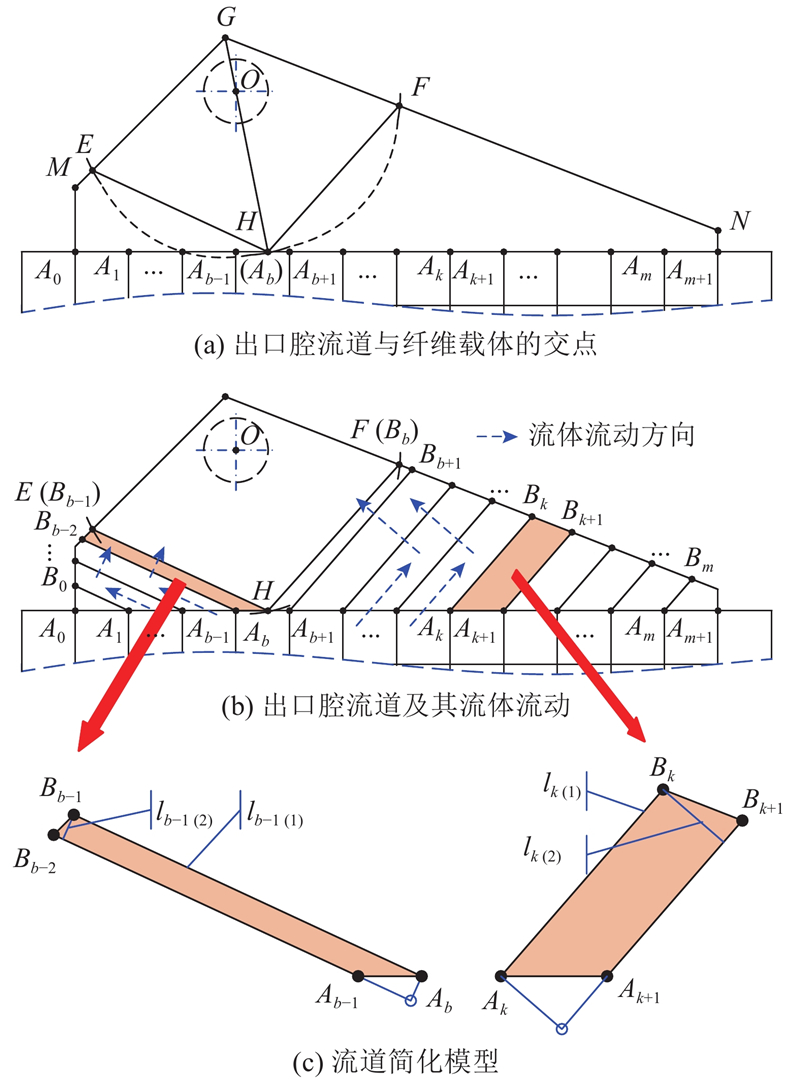

图 5  出口腔流道网络模型示意图

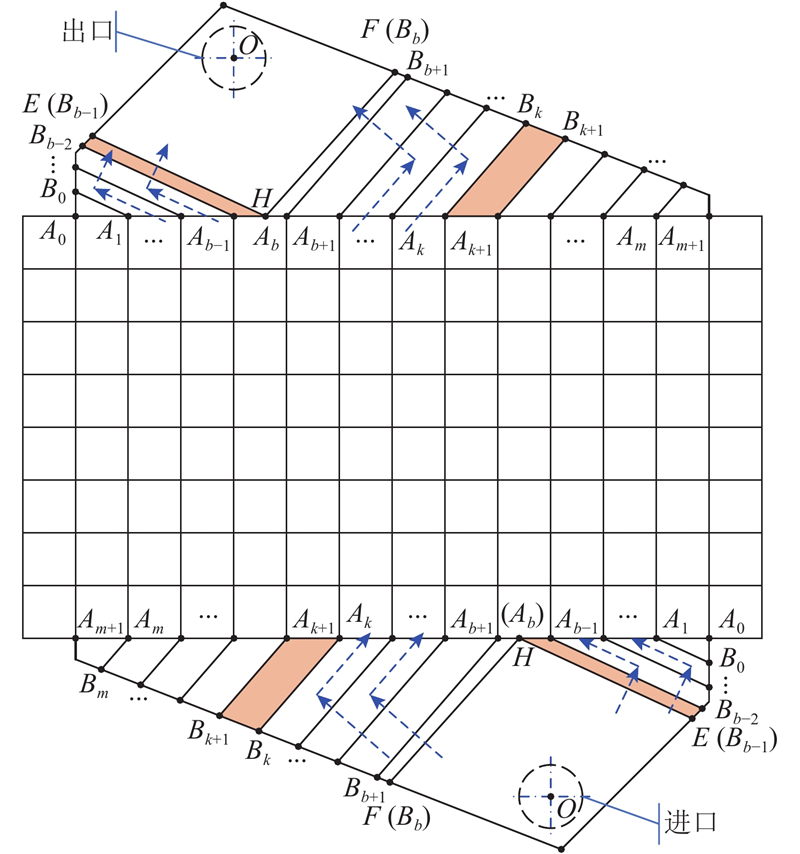

图 6  纤维载体整体流道网络模型示意图

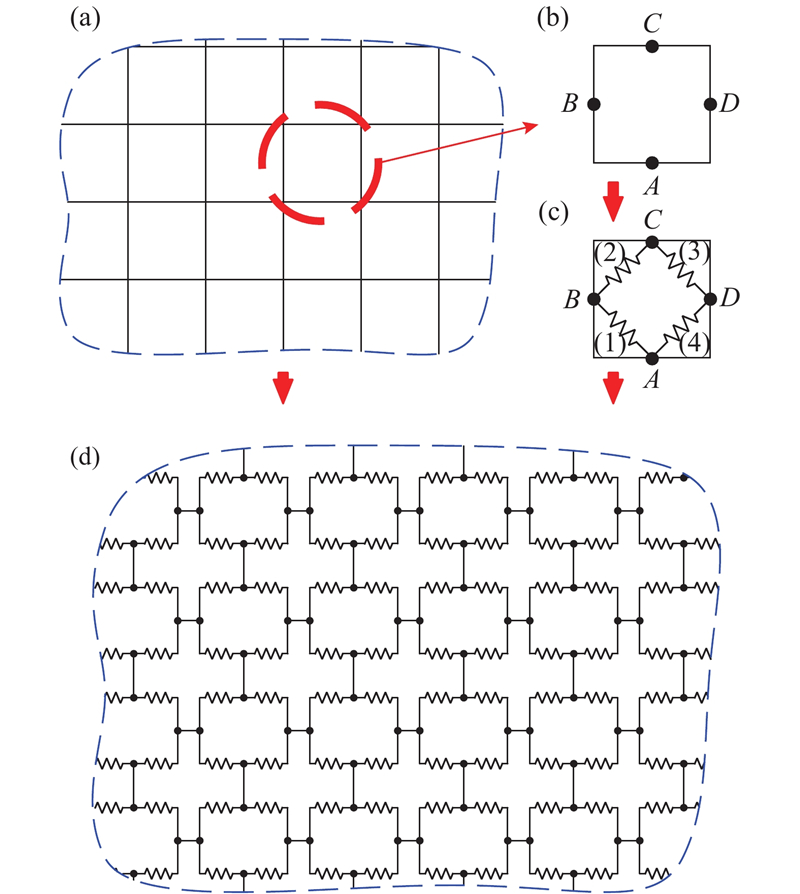

图 7  纤维载体流体微通道等效电阻网络模型

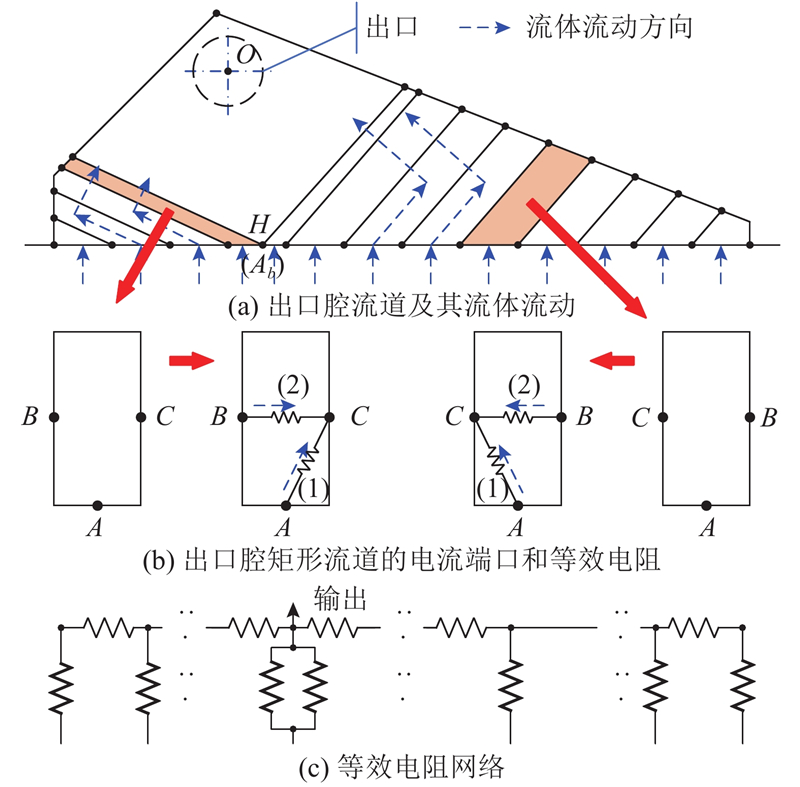

图 8  出口腔等效电阻网络模型示意图

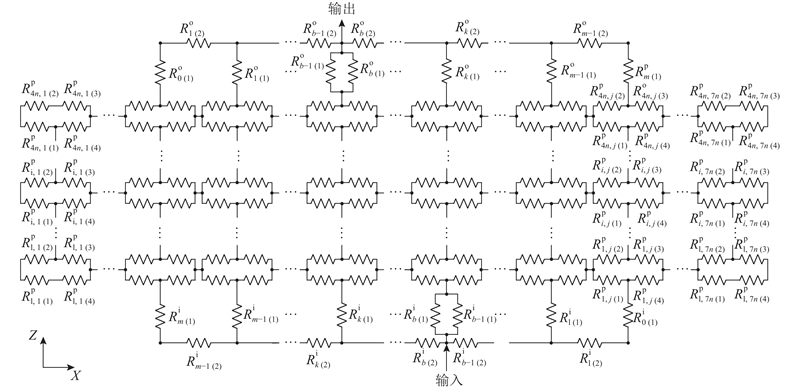

图 9  纤维载体整体等效电阻网络模型

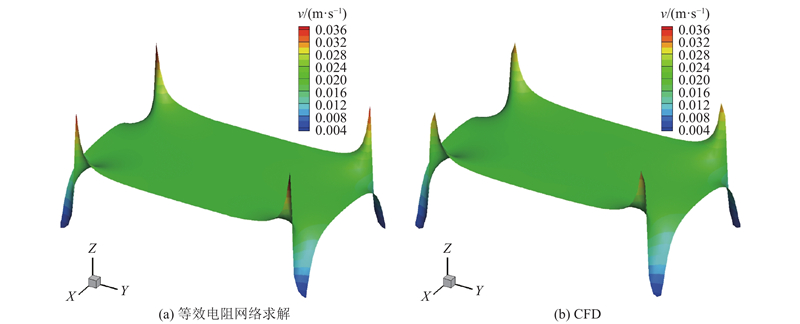

图 10  基于等效电阻网络与CFD的流速场分布对比
E r η /（10?4 m?s?1） MAPE /% MSE /（10?4 m?s?1）
0.7 0.982 1.434 0.741 4.188
0.8 0.978 1.565 0.807 4.617
0.9 0.978 2.499 1.280 4.884
表 1  2种方法获得的流速场的皮尔森相关性
E 方法 vavg /
（m?s?1） 		vmax /
（m?s?1） 		vmin /
（10?3 m?s?1） 		MSE /
（10?6 m?s?1） 		t /s
0.7 CFD 0.019 0.032 3.162 4.800 17208
0.7 本研究 0.019 0.038 2.232 4.794 0.588
0.8 CFD 0.019 0.032 3.148 4.844 16200
0.8 本研究 0.019 0.038 2.245 4.792 0.560
0.9 CFD 0.020 0.033 3.103 5.005 15980
0.9 本研究 0.019 0.038 2.234 4.794 0.542
表 2  2种方法获得的流速场分布统计
