采用Anchor-Free网络结构的实时火灾检测算法
晋耀(),张为*()
天津大学 微电子学院,天津 300072
Real-time fire detection algorithm with Anchor-Free network architecture
Yao JIN(),Wei ZHANG*()
School of Microelectronics, Tianjin University, Tianjin 300072, China
 全文: PDF(1682 KB)   HTML
摘要:

为了解决现有的火灾检测算法中模型复杂,实时性差,检测精度较低的问题,提出快速高效的火灾检测算法. 该算法采用Anchor-Free网络结构,克服了Anchor方法中超参数过多、网络结构复杂的缺点;选用MobileNetV2作为基础特征提取网络,满足了检测的高实时性需求;针对火焰目标的形状、尺度多变的特点,设计适合于火焰检测的分类与边框预测子网络;引入特征选择模块,在特征金字塔网络中自动选择更合适的金字塔特征层. 算法在自建数据集上的检测精度达到90.1%;在公开数据集上取得了较好的检测结果,其检测速度可达24.6 帧/s. 实验结果表明,算法的网络模型简单,检测精度较高,检测速度较快;综合性能优于现有的其他火灾检测算法.

关键词: 计算机视觉目标检测火灾检测Anchor-Free可形变卷积特征选择模块
Abstract:

The existing fire detection algorithms had problems such as too complicated model structure, poor real-time ability, and low detection rate. A fast and efficient fire detection algorithm based on convolutional neural network was proposed, in order to solve those problems. The Anchor-Free network structure was adoped as the whole architecture, which avoided the shortcomings of too many hyper-parameters and complex network structure in the Anchor-based detector. MobileNetV2 was selected as the feature extraction backbone network in order to meet the requirements of high real-time ability. A classification and a box prediction task-specific subnet suitable for fire detection were designed considering that the size and shape of the flame were different from other objects. A feature selective module was introduced to help the feature pyramid network automatically selected a more suitable pyramid feature layer. The algorithm achieves 90.1% accuracy on the self-built dataset, and has good performance on the public fire dataset. The speed of the network achieves 24.6 frames per second. The experimental results show that the detection precision of the proposed algorithm is high and the speed is fast while being simpler. The comprehensive performance of the algorithm is better than other existing fire detection algorithms.

Key words: computer vision    object detection    fire detection    Anchor-Free    deformable convolution    feature selective module
收稿日期: 2019-12-18 出版日期: 2020-12-31
CLC:  TP 391.4
基金资助: 公安部技术研究计划资助项目(2017JSYJC35)
通讯作者: 张为     E-mail: jin_yao@tju.edu.cn;tjuzhangwei@tju.edu.cn
作者简介: 晋耀(1996—),男,硕士生,从事数字图像处理、模式识别研究. orcid.org/0000-0002-2586-2921. E-mail: jin_yao@tju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
晋耀
张为

引用本文:

晋耀,张为. 采用Anchor-Free网络结构的实时火灾检测算法[J]. 浙江大学学报(工学版), 2020, 54(12): 2430-2436.

Yao JIN,Wei ZHANG. Real-time fire detection algorithm with Anchor-Free network architecture. Journal of ZheJiang University (Engineering Science), 2020, 54(12): 2430-2436.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2020.12.018        http://www.zjujournals.com/eng/CN/Y2020/V54/I12/2430

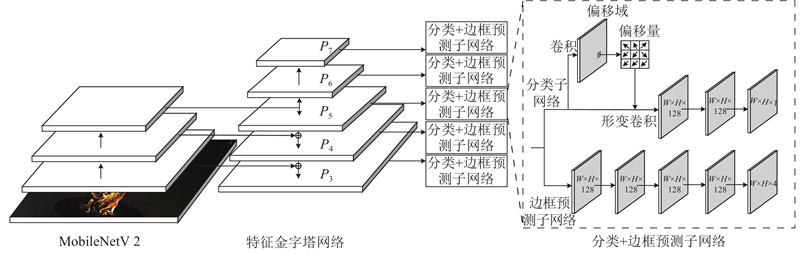

图 1  采用Anchor-Free网络结构的火灾检测算法网络模型
图 2  特征金字塔层中的有效区域

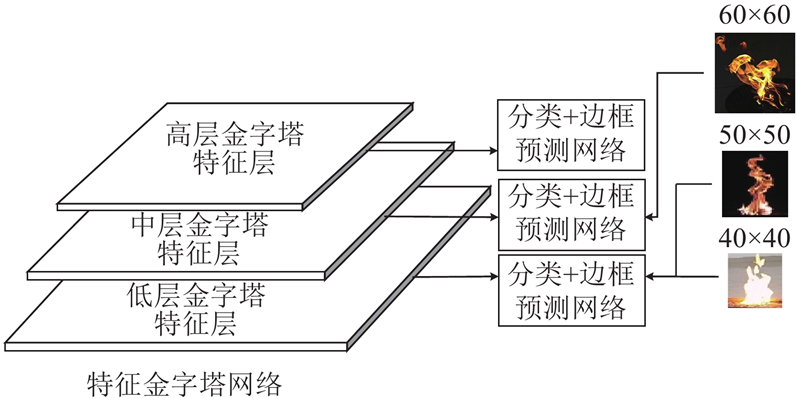

图 3  FPN结构中特征选择过程

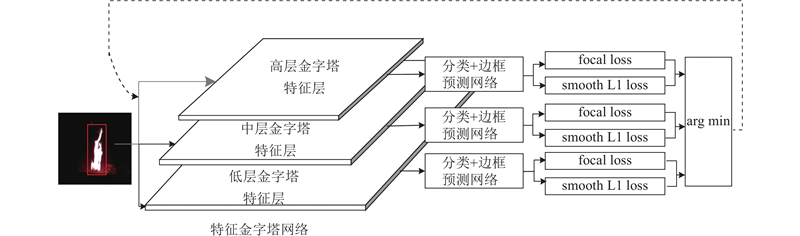

图 4  特征选择模块
算法 可形变卷积
模块
特征选择
模块
AP50 /% 单张图片检测
时间/ms
RetinaNet-
MobileNet
? ? 87.3 41.5
本文算法 ? 86.3 35.7
? 87.9 37.1
90.1 40.7
表 1  消融实验结果

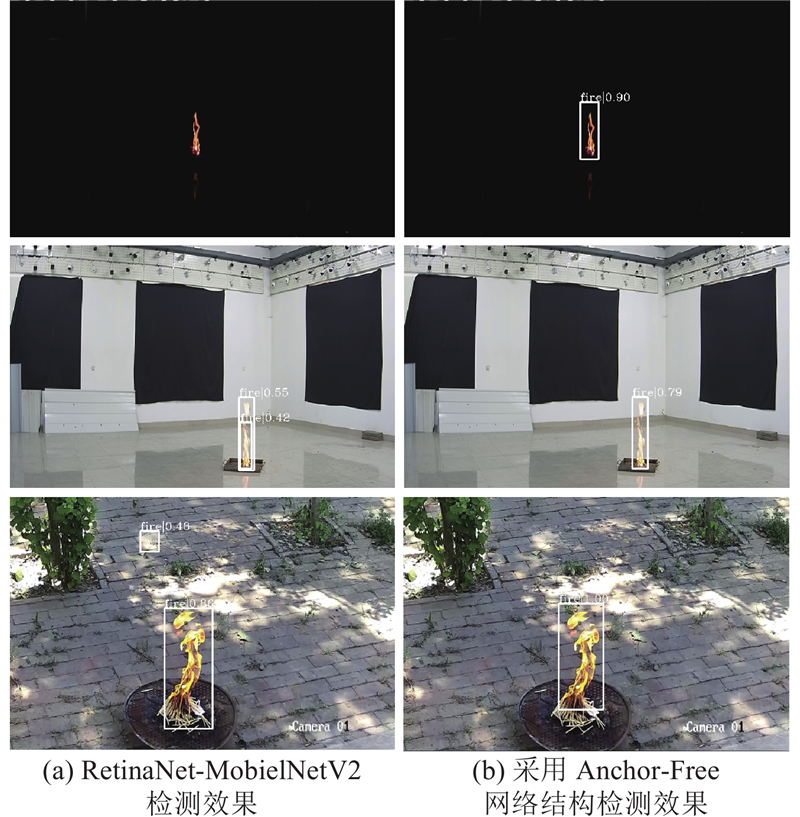

图 5  RetinaNet-MobileNetV2与Anchor-Free网络结构检测结果对比
算法 主干网络 AP50 /% 单张图片检测时间/ms
YoloV3 DarkNet-53 89.2 38.4
SSD300 Vgg[21] 85.0 27.6
ReinaNet-MobileNet MobileNetV2 87.3 41.5
本文 MobileNetV2 90.1 40.7
表 2  经典目标检测算法与本文算法的检测结果对比
图 6  火灾检测公共数据集
算法 TPR/% TNR/%
图6(a) 图6(b) 图6(c) 图6(d) 图6(e) 图6(f) 图6(g) 图6(h)
文献[22] 94.59 ? 92.25 ? 95.45 ? ? ?
文献[23] 94.98 ? 93.00 ? 96.50 ? ? ?
文献[24] 91.20 ? ? 88.60 95.80 ? ? ?
文献[25] 95.70 ? 93.10 ? 100 ? ? ?
文献[26] 93.00 ? 91.00 ? 100 ? ? 100
文献[2] 100 94.29 96.15 ? 100 95.20 ? ?
本文 100 96.15 94.75 97.95 99.49 97.41 100 100
表 3  现有火灾检测算法与本文算法的检测结果对比
