Influence of track irregularity and wheel-rail profile compatibility on metro vehicle sway

doi:10.3785/j.issn.1008-973X.2022.09.010

Journal of ZheJiang University (Engineering Science)

2022, Vol. 56

Issue (9): 1772-1779 DOI: 10.3785/j.issn.1008-973X.2022.09.010

Influence of track irregularity and wheel-rail profile compatibility on metro vehicle sway

Bin ZHANG(

),Qing-hua GUAN*(

),Wei LI,Ya-bo ZHOU,Ze-feng WEN

State Key Laboratory of Traction Power, Southwest Jiaotong University, Chengdu 610031, China

Download:

HTML

PDF(1718KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

In order to comprehensively analyze the influence mechanism of track irregularity and wheel-rail profile compatibility on metro vehicle sway, a combination of dynamic test and numerical simulation was used to study. The lateral vibration acceleration of swaying vehicle, wheel-rail profile and track irregularity were tested. The characteristics of vehicle sway and differences in wheel-rail profile compatibility were revealed. The influence of track irregularity and wheel-rail profile compatibility on vehicle sway were analyzed. Results show that the ride quality will be seriously affected when there is periodic irregularity on the metro operation lines. The difference in the proximity of bogie hunting frequency due to wheel-rail profile compatibility, track excitation frequency and carbody sway modal frequency is the cause of the difference of vehicle ride quality. Measures should be taken in time to treat periodic irregularities on the lines. Meanwhile, reasonable control of the equivalent conicity of wheel-rail profile compatibility can effectively improve the running quality of metro vehicle.

Key words： metro vehicle sway wheel–rail profile compatibility track irregularity coupling resonance

Received: 18 October 2021 Published: 28 September 2022

CLC:

U 270.1

Fund: 国家自然科学基金资助项目(51305360)；广西科技计划项目(2020AC15009)；牵引动力国家重点实验室自主研究课题(2020TPL-T02)

Corresponding Authors: Qing-hua GUAN E-mail: 15191092547@163.com;guan_qh@163.com

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Bin ZHANG
	Qing-hua GUAN
	Wei LI
	Ya-bo ZHOU
	Ze-feng WEN

Cite this article:

Bin ZHANG,Qing-hua GUAN,Wei LI,Ya-bo ZHOU,Ze-feng WEN. Influence of track irregularity and wheel-rail profile compatibility on metro vehicle sway. Journal of ZheJiang University (Engineering Science), 2022, 56(9): 1772-1779.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.09.010 OR https://www.zjujournals.com/eng/Y2022/V56/I9/1772

轨道不平顺与轮轨匹配对地铁车辆晃动的影响

为了综合分析轨道不平顺与轮轨匹配对地铁车辆晃动的影响机理，采用动力学试验与数值仿真相结合的方法展开研究. 测试车辆晃动的横向振动加速度、轮轨廓形及轨道不平顺，掌握车辆晃动、不同轮轨匹配特征，分析轨道不平顺及轮轨匹配对车辆晃动的影响. 结果表明：当地铁运行线路存在周期性轨道不平顺时，将严重影响车辆平稳性；不同轮轨型面匹配引起的转向架蛇行运动频率与轨道激励频率、车体滚摆模态频率的接近程度不同，是导致车辆平稳性存在差异的原因. 及时处理轨道周期性不平顺，合理控制轮轨型面匹配的等效锥度能够有效改善地铁车辆的运行品质.

关键词： 地铁车辆, 晃动, 轮轨匹配, 轨道不平顺, 耦合共振

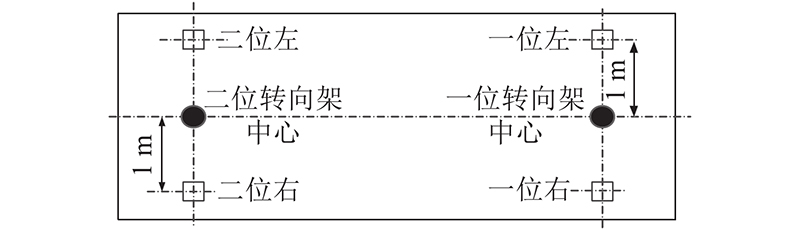

Fig.1 Layout diagram of carbody vibration acceleration measuring points

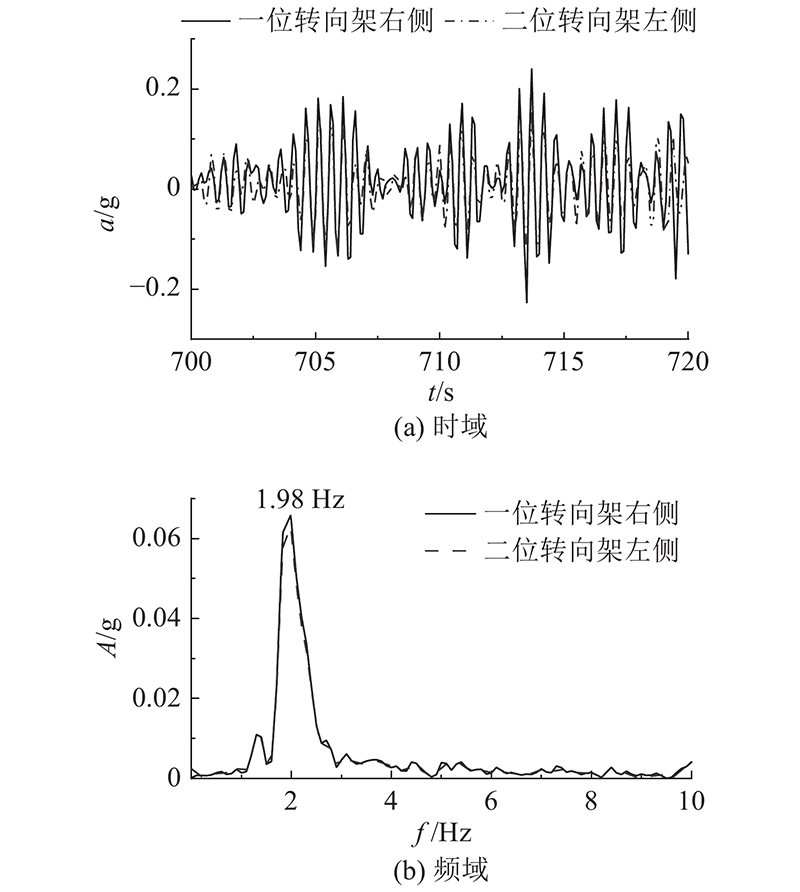

Fig.2 Characteristic analysis of carbody lateral vibration acceleration

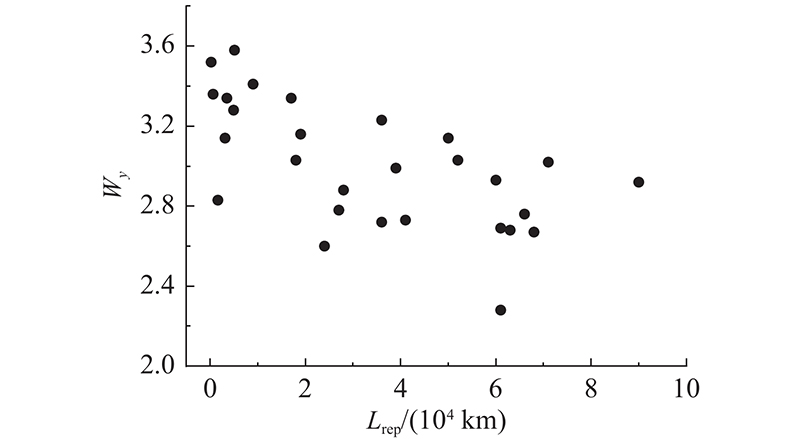

Fig.3 Lateral Sperling index of vehicles with different mileages after wheel re-profiling

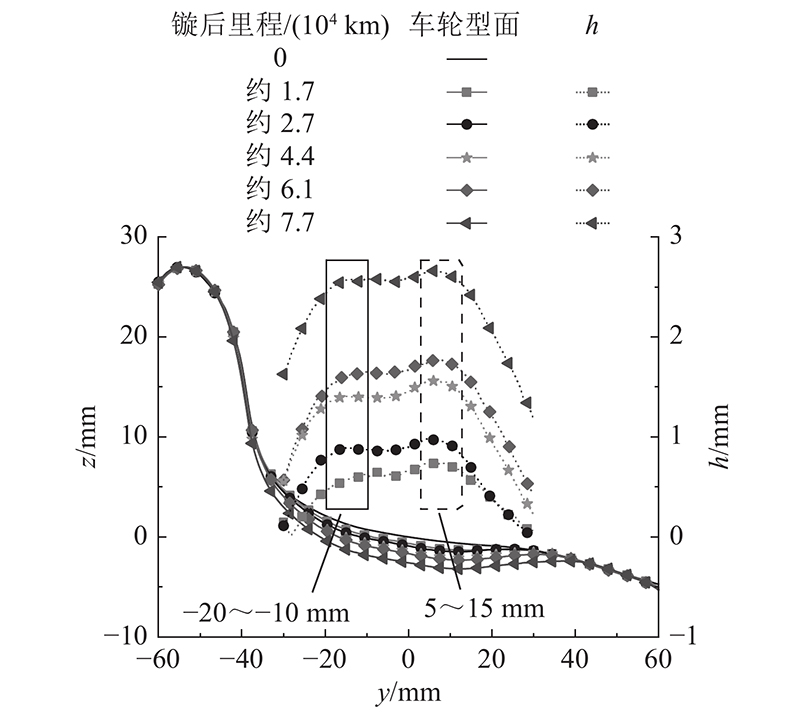

Fig.4 Profiles and wear distribution of wheels with different mileages after re-profiling

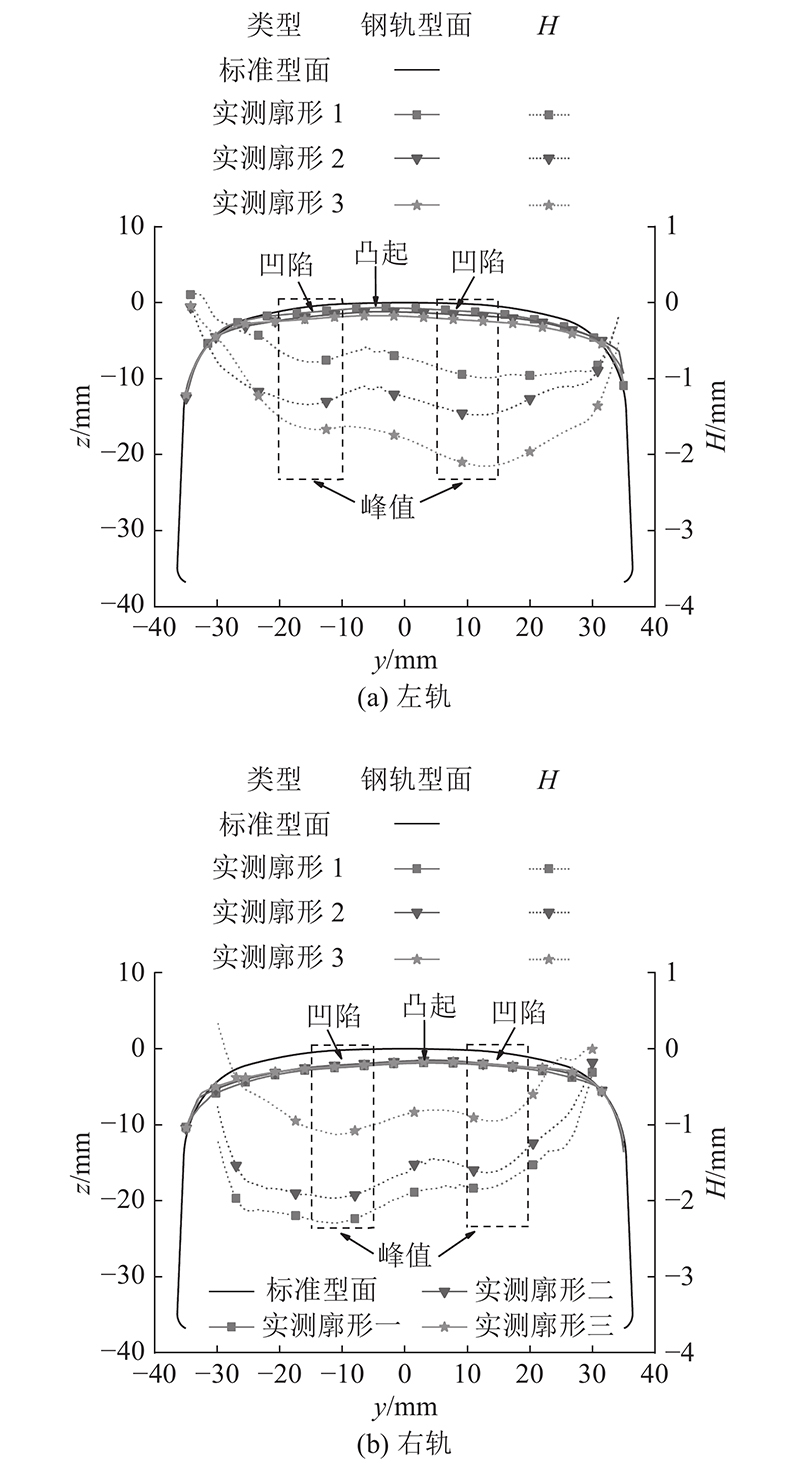

Fig.5 Measured rail profiles and vertical deviation

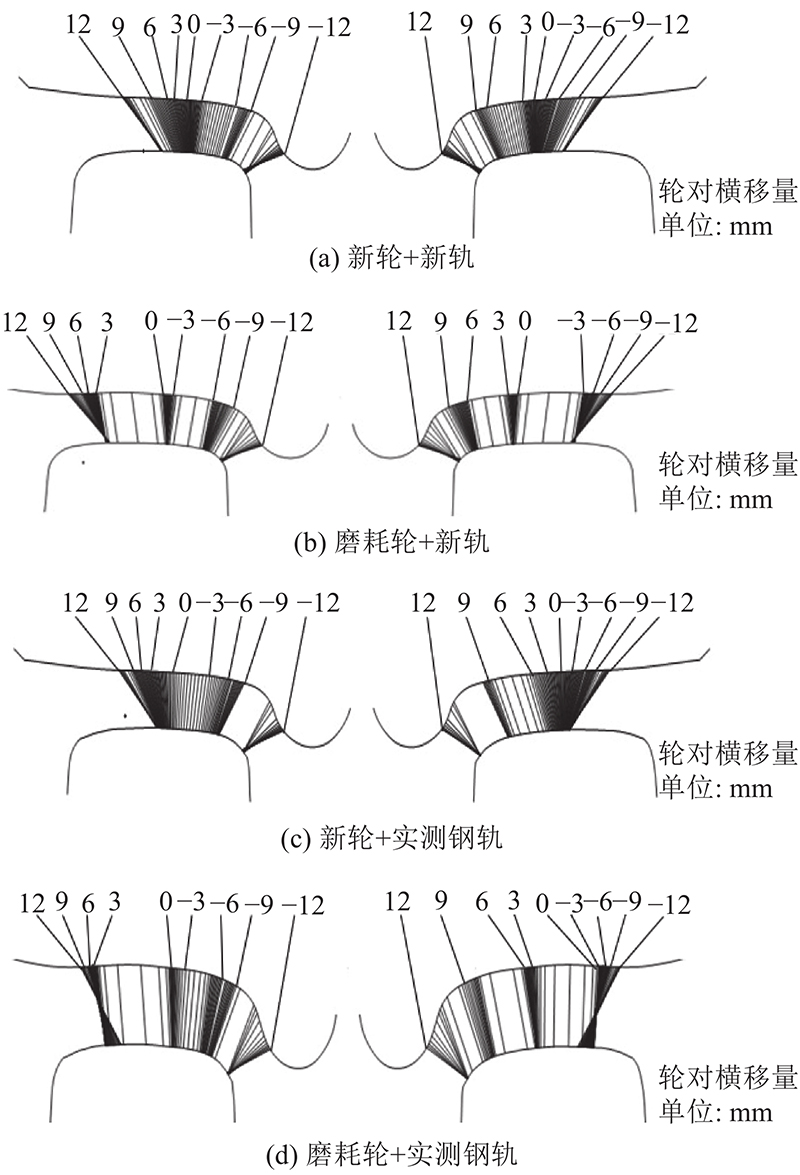

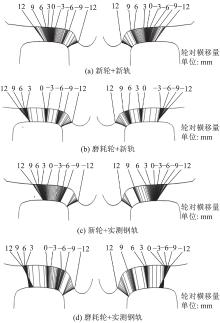

Fig.6 Contact point pair distribution of wheel rail

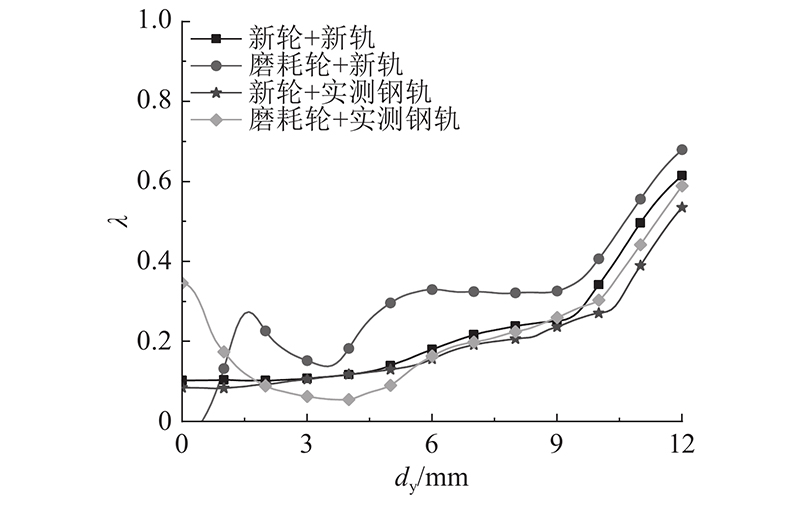

Fig.7 Equivalent conicity with different wheel-rail profile compatibilities

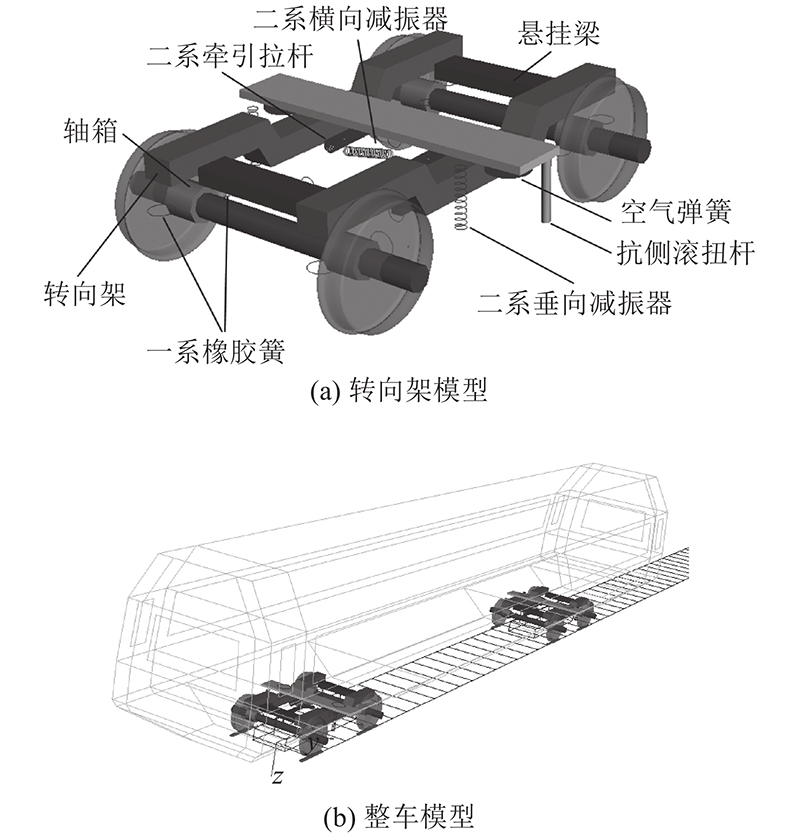

Fig.8 Dynamic model of metro vehicle

Tab.1 Design parameters of metro vehicle

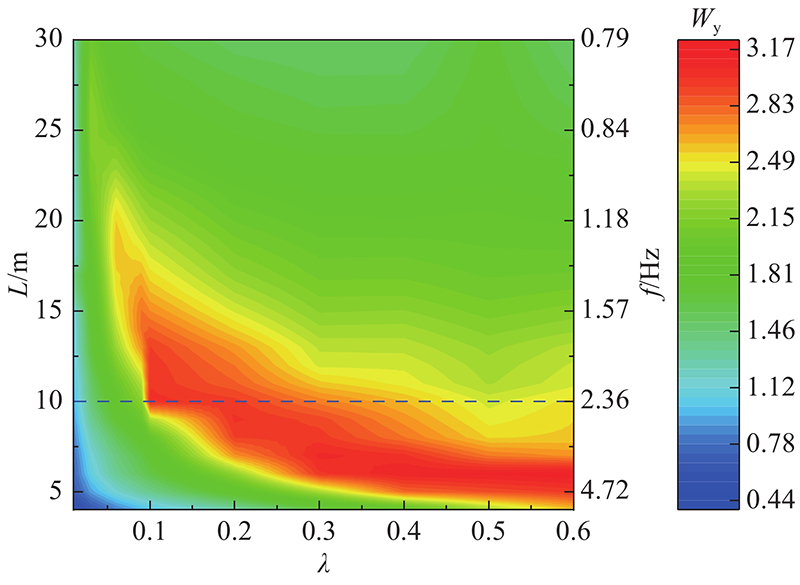

Fig.9 Contour map of lateral Sperling index of vehicle

Fig.10 Frequencies and damping ratios of bogie hunting motion and carbody suspension modes

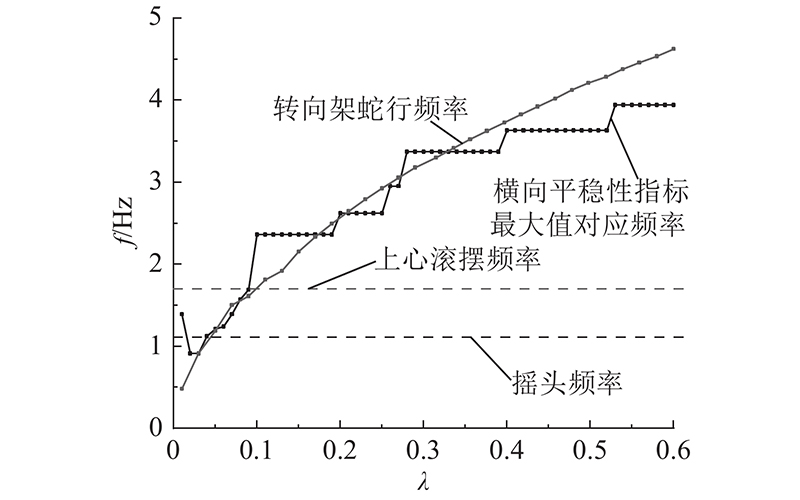

Fig.11 Modal frequency with different equivalent conicities

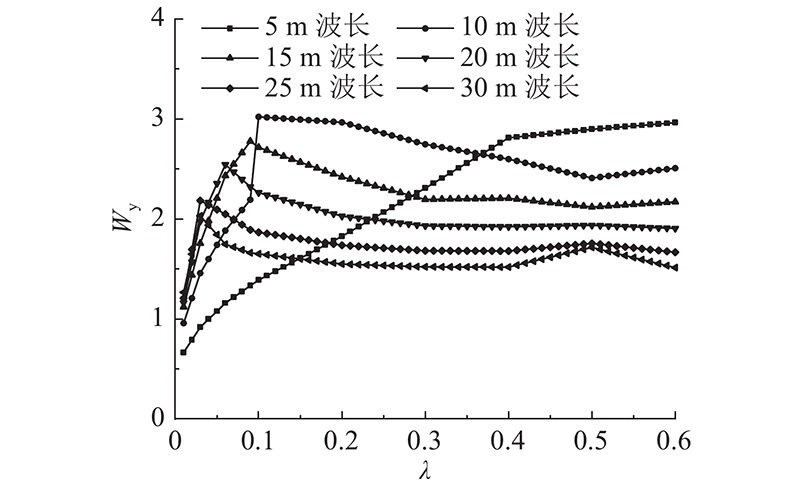

Fig.12 Lateral Sperling index in different excitation conditions

Tab.2 Comparison of equivalent conicity with different wheel-rail profile compatibilities

Tab.3 Comparison of calculation results of vehicle lateral Sperling index with different wheel-rail profile compatibilities


[1]	陈迪来, 沈钢, 宗聪聪基于耦合度的铁道车辆平稳性分析[J]. 同济大学学报:自然科学版, 2018, 46 (1): 118- 124 CHEN Di-lai, SHEN Gang, ZONG Cong-cong Analysis of ride quality of railway vehicle based on coupling degree[J]. Journal of Tongji University: Natural Science, 2018, 46 (1): 118- 124

[2]	王少聪. B0-B0机车横向晃动现象研究 [D]. 成都: 西南交通大学, 2019: 38-53. WANG Shao-cong. Research on low-frequency lateral sway of B0-B0 locomotive [D]. Chengdu: Southwest Jiaotong University, 2019: 38-53.

[3]	SUN J F, CHI M R, JIN X S, ea al Experimental and numerical study on carbody hunting of electric locomotive induced by low wheel–rail contact conicity[J]. Vehicle System Dynamics, 2021, 59 (2): 203- 223 doi: 10.1080/00423114.2019.1674344

[4]	孙永鹏, 罗世辉 SS9改进型电力机车横向晃动问题研究[J]. 机车电传动, 2006, 2: 14- 16, 22 SUN Yong-peng, LUO Shi-hui Study on lateral sway problem of SS9 modified electric locomotive[J]. Electric Drive for Locomotives, 2006, 2: 14- 16, 22

[5]	王开云, 孟宏 SS7E型电力机车横向晃动问题的理论分析[J]. 机车电传动, 2004, (6): 45- 48,51 WANG Kai-yun, MENG Hong Theoretical analysis on transverse shakiness of SS7E electric locomotive[J]. Electric Drive for Locomotives, 2004, (6): 45- 48,51 doi: 10.3969/j.issn.1000-128X.2004.06.014

[6]	孙善超, 王卫东, 刘金朝, 等基于车辆系统稳定性分析的晃车现象研究[J]. 中国铁道科学, 2012, 33 (2): 82- 88 SUN Shan-chao, WANG Wei-dong, LIU Jin-chao, et al Study of carbody’s severe vibration based on stability analysis of vehicle system[J]. China Railway Science, 2012, 33 (2): 82- 88 doi: 10.3969/j.issn.1001-4632.2012.02.15

[7]	付政波衡柳线动车组车体异常晃动问题研究[J]. 铁道机车车辆, 2019, 39 (2): 46- 49 FU Zheng-bo Research on the problem of abnormal shaking of EMU carbody on Hengliu line[J]. Railway Locomotive and Car, 2019, 39 (2): 46- 49

[8]	张金, 田常海, 刘丰收, 等海南环岛高速的动车组晃车原因分析及整治措施[J]. 铁道建筑, 2019, 59 (4): 139- 143 ZHANG Jin, TIAN Chang-hai, LIU Feng-shou, et al Cause analysis and remedial measures of EMU shaking in Hainan Round Island high speed railway[J]. Railway Engineering, 2019, 59 (4): 139- 143

[9]	刘汗青. 地铁车辆车体横向抖动研究 [D]. 成都: 西南交通大学, 2015: 39-51. LIU Han-qing. Study on transverse vibration of metro vehicle body [D]. Chengdu: Southwest Jiaotong University, 2015: 39-51.

[10]	刘永强. 轨道车辆车体晃动机理研究 [D]. 成都: 西南交通大学, 2019: 50-59. LIU Yong-qiang. Research on mechanism of vehicle body sloshing [D]. Chengdu: Southwest Jiaotong University, 2019: 50-59.

[11]	厉鑫波, 周劲松, 夏张辉, 等城际列车晃车机理试验研究[J]. 噪声与振动控制, 2019, 39 (6): 122- 126 LI Xin-bo, ZHOU Jin-song, XIA Zhang-hui, et al Test and analysis of car-body swing mechanism of intercity trains[J]. Noise and Vibration Control, 2019, 39 (6): 122- 126 doi: 10.3969/j.issn.1006-1355.2019.06.022

[12]	叶一鸣, 贡照华机车晃车原因分析及其预防[J]. 铁道学报, 2003, 25 (1): 113- 117 YE Yi-ming, GONG Zhao-hua Analysis of the cause and prevention for the swing of locomotive[J]. Journal of the China Railway Society, 2003, 25 (1): 113- 117

[13]	陈经纬, 崔涛, 孙建锋, 等基于高速列车异常晃动的钢轨廓形打磨管理[J]. 机车电传动, 2020, 276 (5): 128- 131 CHEN Jing-wei, CUI Tao, SUN Jian-feng, et al Grinding management of rail profile based on abnormal hunting of high-speed train[J]. Electric Drive for Locomotives, 2020, 276 (5): 128- 131

[14]	俞喆, 杨光, 王有能, 等钢轨廓形对动车组车体低频横向晃动影响研究[J]. 铁道工程学报, 2020, 37 (7): 23- 28 YU Zhe, YANG Guang, WANG You-neng, et al Research on the influence of rail profile on low frequency lateral sway of EMUs[J]. Journal of Railway Engineering Society, 2020, 37 (7): 23- 28

[15]	池茂儒, 蔡吴斌, 梁树林, 等高速铁路钢轨打磨偏差对车辆动力学性能的影响[J]. 中国机械工程, 2019, 30 (3): 261- 265 CHI Mao-ru, CAI Wu-bin, LIANG Shu-lin, et al Influences of rail grinding deviations on vehicle dynamics performances of high speed railways[J]. China Mechanical Engineering, 2019, 30 (3): 261- 265 doi: 10.3969/j.issn.1004-132X.2019.03.002

[16]	张志超, 李谷, 杜瑞涛, 等动力集中动车组直线运行晃车问题研究[J]. 铁道机车车辆, 2020, 40 (3): 1- 6 ZHANG Zhi-chao, LI Gu, DU Rui-tao, et al Research on transverse vibration problem for the power car of power concentrated EMU[J]. Railway Locomotive and Car, 2020, 40 (3): 1- 6

[17]	孟葳动车组车体蛇行失稳机理与影响因素试验研究[J]. 铁道机车车辆, 2021, 41 (2): 28- 32 MENG Wei Experimental study on mechanism and influencing factors of carbody instability in EMU train[J]. Railway Locomotive and Car, 2021, 41 (2): 28- 32

[18]	夏张辉, 周劲松, 宫岛, 等基于模态连续追踪的铁道车辆车体低频横向晃动现象研究[J]. 铁道学报, 2018, 40 (12): 46- 54 XIA Zhang-hui, ZHOU Jin-song, GONG Dao, et al Research on low–frequency lateral sway of railway vehicle body based on modal continuous tracking[J]. Journal of the China Railway Society, 2018, 40 (12): 46- 54 doi: 10.3969/j.issn.1001-8360.2018.12.007

[19]	何旭升, 吴会超, 高峰高速动车组晃车机理试验研究[J]. 大连交通大学学报, 2017, 38 (1): 21- 25 HE Xu-sheng, WU Hui-chao, GAO Feng Test study on carbody swing of high–speed EMUs[J]. Journal of Dalian Jiaotong University, 2017, 38 (1): 21- 25

[20]	黄彩虹, 梁树林, 宋春元, 等高速车辆车体低频横向晃动的影响因素研究[J]. 机车电传动, 2014, 20 (1): 16 HUANG Cai-hong, LIANG Shu-lin, SONG Chun-yuan, et al Study on influence factors of low–frequency carbody swaying for high–speed vehicles[J]. Electric Drive for Locomotives, 2014, 20 (1): 16

[21]	HUANG Cai-hong, ZENG Jing, LIANG Shu-lin Carbody hunting investigation of a high speed passenger car[J]. Journal of Mechanical Science and Technology, 2013, 27 (8): 2283- 2292 doi: 10.1007/s12206-013-0611-z

[22]	李然, 罗仁低轮轨摩擦因数对高速列车横向运动稳定性影响[J]. 机械工程与自动化, 2017, (1): 20- 21 LI Ran, LUO Ren Influence of low wheel/rail friction coefficient on lateral movement stability of high speed train[J]. Mechanical Engineering and Automation, 2017, (1): 20- 21 doi: 10.3969/j.issn.1672-6413.2017.01.008

[23]	WEI L, ZENG J, CHI M R, et al Carbody elastic vibrations of high-speed vehicles caused by bogie hunting instability[J]. Vehicle System Dynamics, 2017, 55 (9): 1321- 1342 doi: 10.1080/00423114.2017.1310386

[24]	国家铁路局. 机车车辆动力学性能评定及试验鉴定规范: GB/T 5599—2019 [S]. 北京: 中国标准出版社, 2019.

[25]	许世杰, 关庆华, 张雄飞, 等地铁车辆车轮踏面双光带形成机理分析[J]. 机械工程学报, 2021, 57 (18): 240- 251 XU Shi-jie, GUAN Qing-hua, ZHANG Xiong-fei, et al Analysis on the formation mechanism of the contact strips on the wheel tread of metro vehicle[J]. Journal of Mechanical Engineering, 2021, 57 (18): 240- 251

[26]	方静赛. 铁道车辆转向架与车体振动同步研究 [D]. 成都: 西南交通大学, 2015: 32-48. FANG Jing-sai. Study on the vibration synchronization of the rolling stock bogie and carbody [D]. Chengdu: Southwest Jiaotong University, 2015: 32-48.

[27]	池茂儒, 张卫华, 曾京, 等蛇行运动对铁道车辆平稳性的影响[J]. 振动工程学报, 2008, 21 (6): 639- 643 CHI Mao-ru, ZHANG Wei-hua, ZENG Jing, et al Influence of hunting motion on ride quality of railway vehicle[J]. Journal of Vibration Engineering, 2008, 21 (6): 639- 643
