浙江大学学报(工学版)
Journal of ZheJiang University (Engineering Science)  2022, Vol. 56 Issue (1): 26-35    DOI: 10.3785/j.issn.1008-973X.2022.01.003

Recognition method of submarine operation posture based on convolutional pose machine
Jing-luan WANG(),Deng-kai CHEN*(),Meng-ya ZHU,Han-yu WANG,Yi-wei SUN
Shaanxi Engineering Laboratory for Industrial Design, Northwestern Polytechnical University, Xi'an 710072, China
Download: HTML     PDF(1382KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A new posture recognition and analysis method based on convolutional pose machines was proposed aiming at the problems of complicated recognition process and low recognition accuracy in the existing submariner’s operation posture recognition and analysis methods. The human body posture features were structured and coded, and the spatial and projected coordinate system were constructed to explain the human body posture. The calculation formulae of limb angle and the judging processes of special limb state were defined. The spatial and texture features of the RGB operation posture image can be extracted by building the submariner’s operation posture recognition algorithm. The joint points, limb angles and state data of the submariner’s operation posture can be output. The application of the proposed method was verified by the submariner’s operation posture sample data set constructed by collecting submarine operation posture image. The percentage of correct keypoints index value of the recognition algorithm reached 81.2% in the algorithm test. The average accuracy rate of the algorithm in identifying the joint points reached 87.7% in the application verification experiment. The experimental results show that the method is reliable in the recognition and analysis of the submariner’s operation posture, and can effectively identify and analyze the negative factors of the submariner’s operation posture.

Key words： industrial design      posture recognition      submariner’s operation posture      convolutional pose machine      posture analysis
Received: 12 May 2021      Published: 05 January 2022
CLC:  TB 472
Fund:  中央高校基本科研业务费资助项目(31020190504007)；陕西省特支计划领军人才资助项目(w099115)
Corresponding Authors: Deng-kai CHEN     E-mail: wangjingluan1@163.com;chendengkai@nwpu.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Jing-luan WANG
Deng-kai CHEN
Meng-ya ZHU
Han-yu WANG
Yi-wei SUN
Cite this article:

Jing-luan WANG,Deng-kai CHEN,Meng-ya ZHU,Han-yu WANG,Yi-wei SUN. Recognition method of submarine operation posture based on convolutional pose machine. Journal of ZheJiang University (Engineering Science), 2022, 56(1): 26-35.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.01.003     OR     https://www.zjujournals.com/eng/Y2022/V56/I1/26


基于卷积姿态机的潜航员作业姿态识别方法

针对现有潜航员作业姿态识别分析方法中识别过程繁琐、识别精度低的问题，提出基于卷积姿态机的潜航员作业姿态识别分析方法. 对人体姿态特征进行结构化编码，构建空间及投影坐标系进行解析，定义肢体角度计算公式与肢体特殊状态判断流程. 通过搭建潜航员作业姿态识别算法，实现作业姿态RGB图像空间特征与纹理特征的提取，输出潜航员作业姿态关节点、肢体角度与状态数据. 通过采集潜航员作业姿态图像构建潜航员作业姿态样本数据集，对所提方法进行应用验证. 在算法测试中，识别算法的PCK指标值达到81.2%. 在应用验证实验中，算法识别关节点的平均准确率达到87.7%. 该方法在潜航员作业姿态识别分析上是可靠的，可以有效地识别与分析潜航员作业姿态中的危险因素.


关键词： 工业设计,  姿态识别,  潜航员作业姿态,  卷积姿态机,  姿态分析
编码 含义 编码 含义
1 头部 9 左手腕
2 颈部 10 左手指
3 右肩 11 右髋
4 右手肘 12 右膝
5 右手腕 13 右踝
6 右手指 14 左髋
7 左肩 15 左膝
8 左手肘 16 左踝
Tab.1 Human body posture joint point coding
Fig.1 Spatial and sagittal projection coordinate system definition
编码 含义 编码 含义
1-2 颈部 2-9-12 腰部
2-3-4 右大臂 3-4-5 右小臂
4-5-6 右手腕 2-7-8 左大臂
7-8-9 左小臂 8-9-10 左手腕
11-12-13 右腿 14-15-16 左腿
Tab.2 Human body limb coding

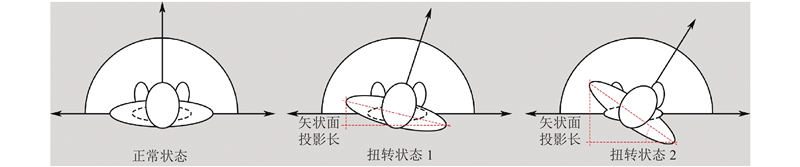

Fig.2 Comparison of trunk normal state and twisted state

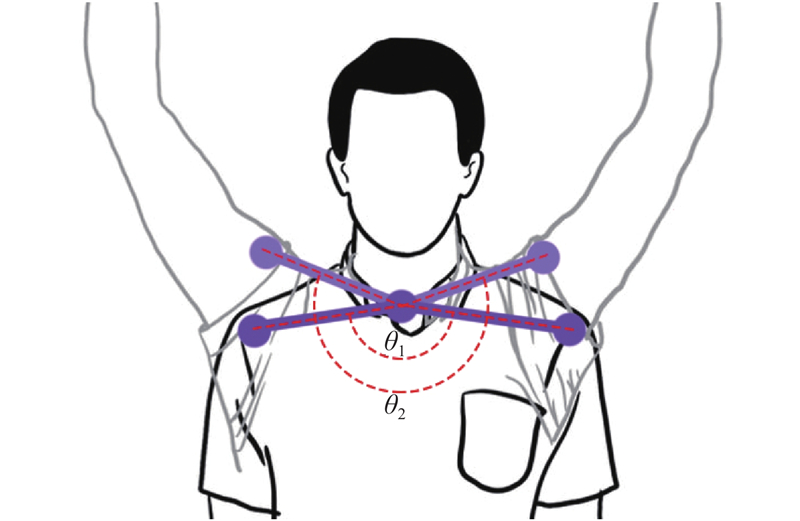

Fig.3 Schematic diagram of shoulders raised

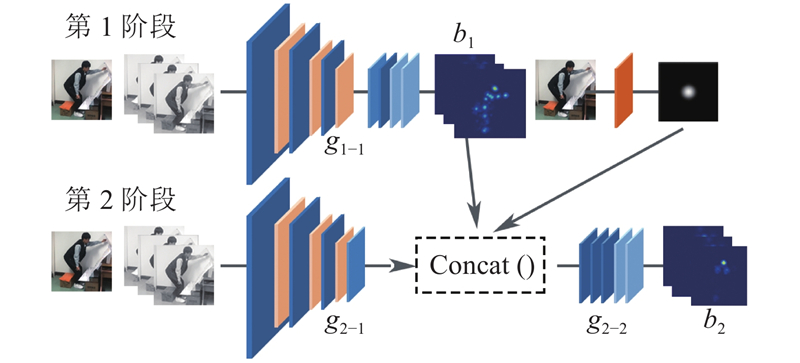

Fig.4 Principles of submariner's operation posture recognition algorithm
Fig.5 Structure of submariner’s operation posture recognition algorithm
序号 输入 运算 参数 输出
1 原始图像 — — 368×368×3
2 368×368×3 Conv.+ReLU k = 9, n = 128, s = 1 368×368×128
3 368×368×128 max_pool 2×2, s = 2 184×184×128
4 184×184×128 Conv.+ReLU k = 9, n = 128, s = 1 184×184×128
5 184×184×128 max_pool 2×2, s =2 92×92×128
6 92×92×128 Conv.+ReLU k = 9, n = 128, s = 1 92×92×128
7 92×92×128 max_pool 2×2, s = 2 46×46×128
8 46×46×128 Conv.+ReLU k = 5, n = 32, s = 1 46×46×32
9 46×46×32 Conv.+ReLU k = 9, n = 512, s = 1 46×46×512
10 46×46×512 Conv.+ReLU k = 1, n = 512, s = 1 46×46×512
11 46×46×512 Conv.+ReLU k = 1, n = 15, s = 1 46×46×15
Tab.3 Parameters of algorithm g1-1 convolution group
序号 输入 运算 参数 输出
1 原始图像 — — 368×368×3
2 368×368×3 Conv.+ReLU k = 9, n = 128, s = 1 368×368×128
3 368×368×128 max_pool 2×2, s = 2 184×184×128
4 184×184×128 Conv.+ReLU k = 9, n = 128, s = 1 184×184×128
5 184×184×128 max_pool 2×2, s = 2 92×92×128
6 92×92×128 Conv.+ReLU k = 9, n = 128, s = 1 92×92×128
7 92×92×128 max_pool 2×2, s = 2 46×46×128
8 46×46×128 Conv.+ReLU k = 5, n = 32, s = 1 46×46×32
9 46×46×32+
46×46×15+
46×46×1 		Concat ( ) — 46×46×48
10 46×46×48 Conv.+ReLU k = 11, n = 128, s = 1 46×46×128
11 46×46×128 Conv.+ReLU k = 11, n = 128, s = 1 46×46×128
12 46×46×128 Conv.+ReLU k = 11, n = 128, s = 1 46×46×128
13 46×46×128 Conv.+ReLU k = 1, n = 128, s = 1 46×46×128
14 46×46×128 Conv.+ReLU k = 1, n = 15, s = 1 46×46×15
Tab.4 Parameters of algorithm g2-1 andg2-2 convolution group

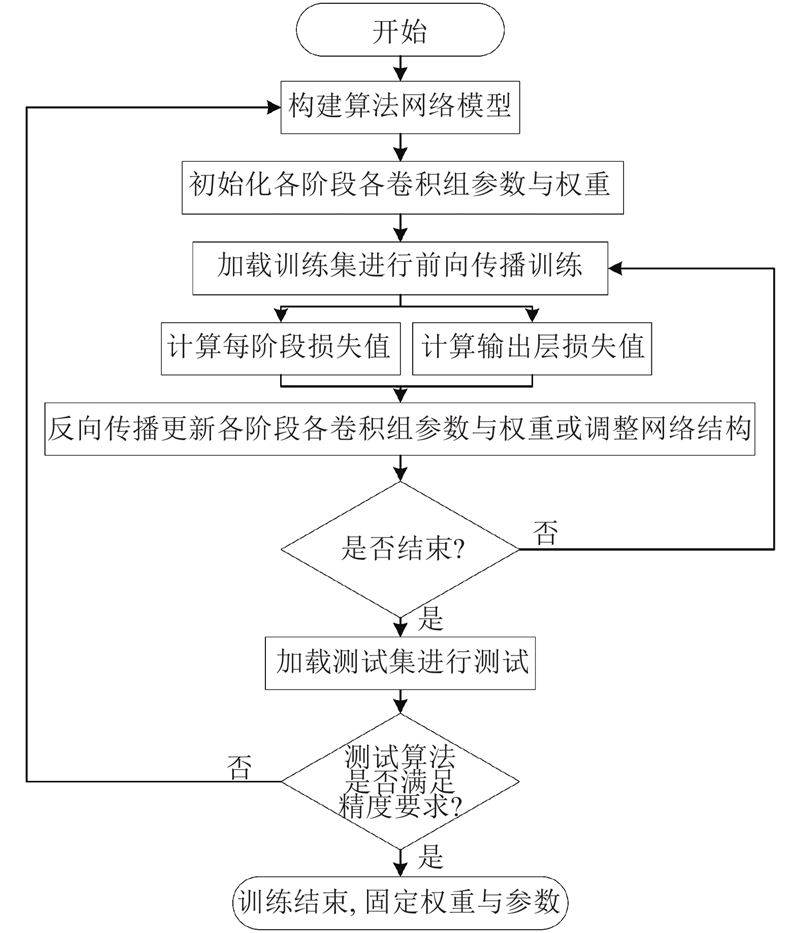

Fig.6 Training process of submariner's operation posture recognition algorithm

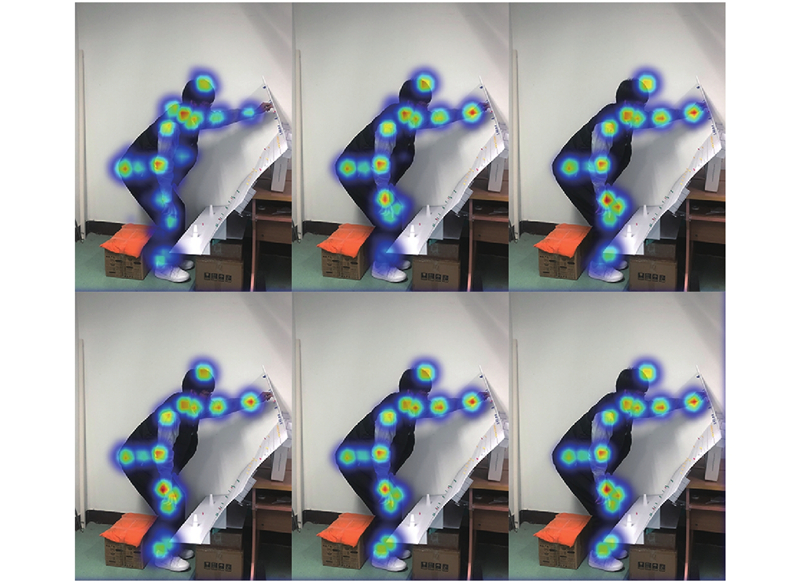

Fig.7 Characteristic diagram of human joint points in six stages
方法 头部 颈部 肩部 肘部 腕部 臀部 膝部 踝部 平均
FC[19] 75.8 71.3 67.3 64.3 60.4 63.7 60.1 55.7 64.8
DC[20] 83.6 74.6 73.9 71.1 66.0 70.9 64.1 59.4 70.5
CPN[21] 85.4 77.1 79.6 74.5 69.9 73.6 70.9 64.8 74.5
PAF[13] 82.6 75.8 75.9 71.3 68.5 68.9 65.9 60.9 71.2
文献[17] 91.8 82.1 80.6 70.9 82.1 81.9 74.6 80.2 80.5
文献[18] 90.6 84.3 84.5 75.0 78.0 83.8 78.9 79.2 81.8
本文方法 93.6 83.2 90.5 83.2 73.6 77.9 76.2 71.7 81.2
Tab.5 Comparison of PCK indicators of different algorithms %
Fig.8 Manned submersible simulation operation interface layout
Fig.9 Human skeleton generated by submariner’s operation posture recognition algorithm

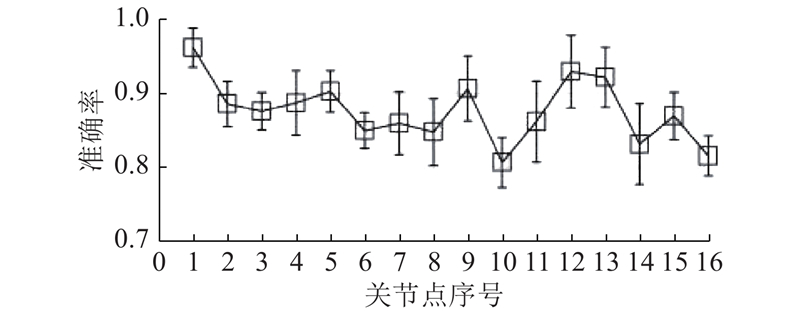

Fig.10 Score of 16 joint points recognition accuracy
作业姿态 $\bar \theta (\sigma ) $/(°) ICC
颈部 腰部 右大臂 右小臂 右手腕 左大臂 左小臂 左手腕 右腿 左腿
1 1.2(1.3) 2.2(2.9) 14.5(10.7) 72.5(9.8) 1.8(1.2) 14.8(12.3) 70.0(5.8) 1.7(1.7) 105(8.0) 107.2(11.5) 0.966
2 8.6(6.8) 6.9(1.7) 29.4(9.7) 42.2(14.0) 6.3(4.5) 19.4(10.0) 65.0(4.3) 1.7(1.5) 103.1(10.1) 105.4(10.2) 0.951
3 ?6.7(3.9) 8.2(1.9) 39.3(7.4) 30.7(13.1) 7.7(5.9) 22.6(9.2) 67.7(10.2) 1.9(1.5) 104.4(10.5) 105.2(11.6) 0.953
4 ?17.9(10.0) 28.2(3.7) ?9.9(33.2) 74.4(32.0) 2.2(2.0) 77.7(11.2) 18.5(6.8) 8.4(4.5) 101.8(10.8) 104.6(10.3) 0.879
5 ?19.7(8.1) 35.9(6.1) ?11.4(4.4) 21.5(11.4) 16.6(4.5) 82.8(8.9) 18.1(9.0) 12.5(4.5) 67.3(21.9) 68.9(24.9) 0.888
6 7.7(1.5) 5.6(0.2) 21.2(7.6) 40.5(19.3) 22.2(2.0) 23.6(7.1) 34.7(10.5) 22.0(0.5) 108.2(12.7) 106.4(10.5) 0.944
7 20.4(10.0) 30.5(14.0) ?19.6(10.5) 119.5(22.9) 2.2(1.2) ?14.1(13.4) 112.6(18.3) 2.0(1.8) 106.1(9.2) 109.3(11.3) 0.950
8 ?4.9(9.6) 19.5(13.9) ?10.5(9.5) 91.4(9.7) 2.0(1.0) ?5.0(8.1) 87.6(9.4) 1.9(1.6) 104.8(2.4) 107.1(4.7) 0.971
9 ?16.9(9.9) 16.0(10.9) 8.1(9.4) 82.6(12.2) 3.3(2.0) 10.3(7.5) 82.1(8.6) 1.4(0.7) 104.2(1.0) 104.5(3.0) 0.976
10 ?6.3(3.2) 16.6(8.4) 17.0(17.7) 61.7(27.6) 9.5(3.1) 8.9(2.5) 76.9(11.9) 1.8(1.1) 108.4(4.9) 107.6(7.2) 0.921
11 ?17.4(3.9) 15.9(7.1) 16.8(15.4) 65.1(24.2) 10.7(5.7) 8.8(4.9) 71.6(15.6) 1.9(1.6) 106.2(5.4) 107.1(3.5) 0.933
12 ?14.8(5.3) 26.2(5.6) ?10.0(6.8) 82.8(15.2) 1.7(1.7) 75.6(11.1) 20.0(6.5) 9.1(3.7) 108.9(11.7) 109.4(12.7) 0.963
13 ?23.4(6.3) 24.1(6.8) ?10.4(4.4) 90.9(13.3) 1.9(1.8) 78.4(10.8) 16.8(8.2) 8.3(3.4) 103.7(10.2) 107.4(12.3) 0.965
14 ?14.0(11.1) 39.2(7.7) 10.7(10.2) 19(6.6) 16.7(5.3) 79.8(13.6) 23.1(14.3) 12.7(5.4) 65.0(26.0) 67.7(28.7) 0.832
15 ?24.9(9.0) 37.3(6.3) 10.3(4.6) 21(5.3) 16.1(4.7) 81.2(10.8) 21.2(11.1) 12.2(4.7) 68.0(27.9) 69.8(27.8) 0.874
ICC 0.935 0.923 0.976 0.974 0.853 0.881 0.956 0.887 0.852 0.819 —
Tab.6 Average value (standard deviation) of limb angle and ICC result of submariner’s operation posture recognition

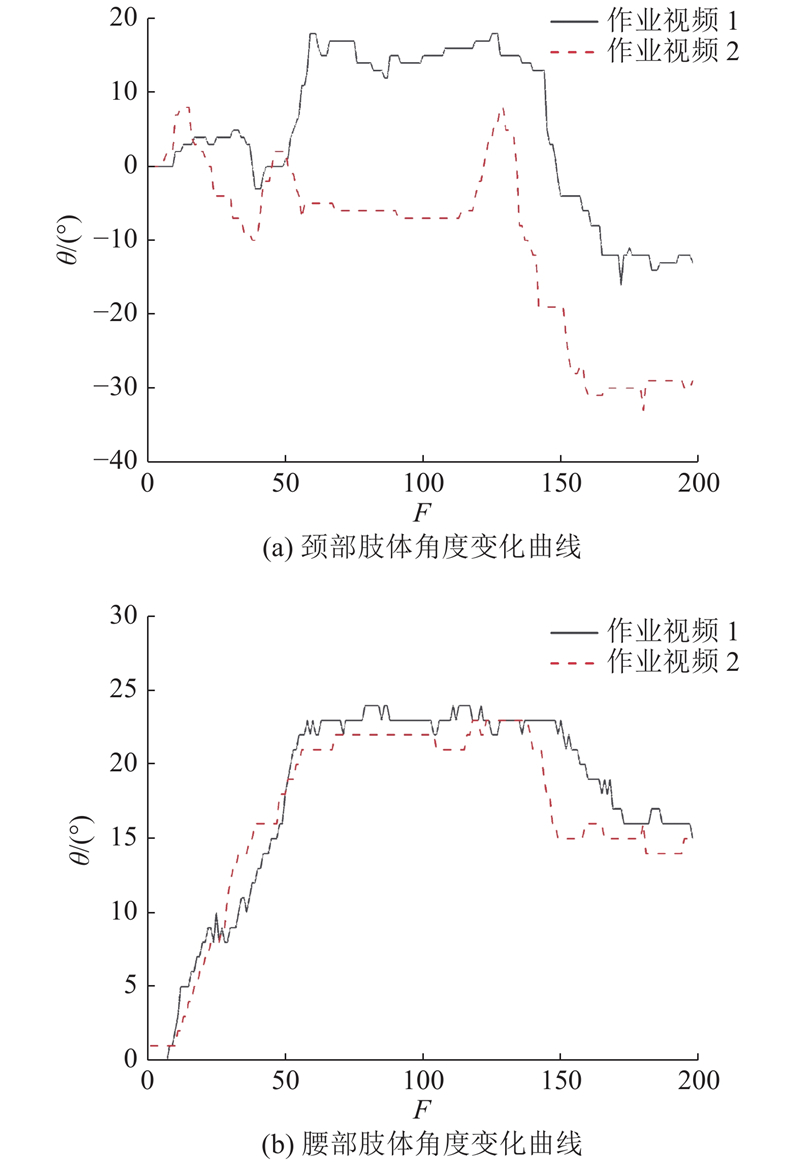

Fig.11 Limb angle change data of operation video
