Model based on relevance vector machine and fuzzy comprehensive evaluation for road condition prediction
Hao LIN1,2(),Lei-xiao LI1,2,*(),Hui WANG1,2,Zhi-qiang MA1,2,Jian-xiong WAN1,2
1. College of Data Science and Application, Inner Mongolia University of Technology, Hohhot 010080, China
2. Inner Mongolia Autonomous Region Engineering and Technology Research Center of Big Data Based Software Service, Hohhot 010080, China
Download: HTML     PDF(1303KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A model based on relevance vector machine and fuzzy comprehensive evaluation was proposed in order to solve the problems of traffic congestion, low road service level, and low efficiency of citizens’ travel. Genetic algorithm and particle swarm optimization algorithm were used as the parameter optimization algorithm in order to optimize relevance vector machine with combined kernel functions. Then the parameter optimization algorithm was parallelized by Spark to improve the training efficiency of model. Genetic algorithm and particle swarm optimization based on Spark parallelization were proposed, and combined kernel relevance vector machine (SPGAPSO-CKRVM) was optimized. Traffic flow and traffic speed were predicted by SPGAPSO-CKRVM, and the prediction results were used to calculate three traffic condition evaluation parameters: average speed, road occupancy and traffic density. These three parameters were input into fuzzy comprehensive evaluation model. Weight coefficients of these evaluation parameters in peak hours and normal hours were determined by entropy method. Road condition was divided into six levels. The proposed model was verified with the real data of Whitemud Drive in Canada. The experimental results show that the proposed model has better prediction accuracy and scalability than traditional methods. The accuracy of road condition prediction can reach 90.28%.

Key words： road condition prediction      relevance vector machine (RVM)      combined kernel function      fuzzy comprehensive evaluation      Spark
Received: 02 July 2020      Published: 30 July 2021
CLC:  TP 181
Fund:  内蒙古自治区科技重大专项资助项目（2019ZD015）；内蒙古自治区关键技术攻关计划资助项目（2019GG273）
Corresponding Authors: Lei-xiao LI     E-mail: suzukaze_aoba@foxmail.com;llxhappy@126.com
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Hao LIN
Lei-xiao LI
Hui WANG
Zhi-qiang MA
Jian-xiong WAN
Cite this article:

Hao LIN,Lei-xiao LI,Hui WANG,Zhi-qiang MA,Jian-xiong WAN. Model based on relevance vector machine and fuzzy comprehensive evaluation for road condition prediction. Journal of ZheJiang University (Engineering Science), 2021, 55(6): 1072-1082.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.06.007     OR     https://www.zjujournals.com/eng/Y2021/V55/I6/1072


基于相关向量机和模糊综合评价的路况预测模型

为了缓解交通拥堵、道路服务水平低、市民出行效率低等问题，提出基于相关向量机和模糊综合评价的路况预测模型. 利用遗传算法和粒子群算法作为参数寻优算法，优化组合核相关向量机. 基于Spark并行化参数寻优算法，提高模型的训练效率. 提出基于Spark并行化的遗传算法和粒子群算法，优化组合核相关向量机（SPGAPSO-CKRVM）. 使用SPGAPSO-CKRVM对车流量和车速进行预测，利用预测结果计算3个交通路况评价参数：平均车速、路段饱和度和交通流密度. 将3个参数输入到模糊综合评价模型中，通过熵值法确定高峰时段和平常时段的各指标权重系数，将路况划分为6个等级. 使用加拿大Whitemud Drive公路的真实数据进行验证，证明了该模型与传统方法相比具有更高的预测精度和扩展性，路况预测准确率达到90.28%.


关键词： 路况预测,  相关向量机（RVM）,  组合核函数,  模糊综合评价,  Spark

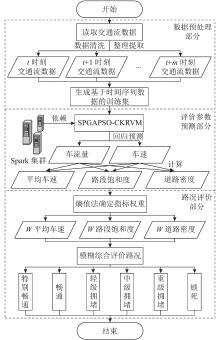

Fig.1 Flow figure of proposed road prediction model
Fig.2 Membership function used in this paper
Fig.3 Structure of parameter optimization algorithm

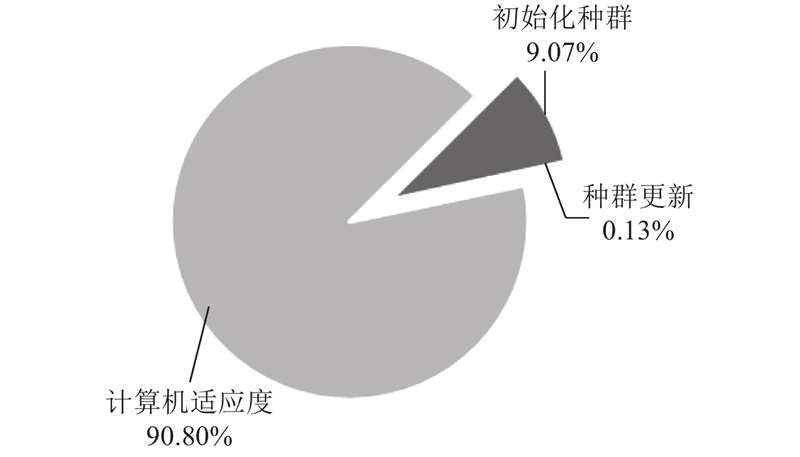

Fig.4 Time consumed by each part in parameter optimization algorithm

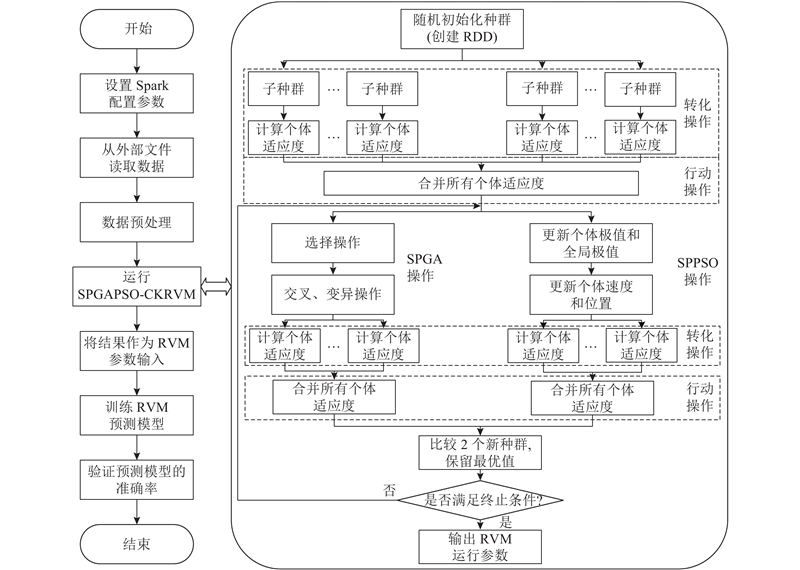

Fig.5 Algorithm flow chart of SPGAPSO-CKRVM
数据集编号 道路 方向 监测点编号
数据集1 Whitemud Drive 向东 1027
数据集2 Whitemud Drive 向西 1036
数据集3 Whitemud Drive匝道 向西 1042
Tab.1 Information of experiment data in Whitemud Drive Road
参数 参数值
种群大小 $m$ 10
最大迭代次数 $T$ 20
最小适应度 ${\rm{fitnes}}{{\rm{s}}_{{\rm{min}}}}$ 0.000 1
交叉概率 0.6
变异概率 0.2
粒子群学习因子 1.5
粒子速度 [?0.2，0.2]
粒子位置 [?8，8]
Tab.2 Parameter setting of SPGAPSO-CKRVM
编号 核函数 准确率
数据集1 数据集2 数据集3
1 $\exp\; \left( { - \dfrac{ {\left\| {{{a}}_1 - {{{a}}_2} } \right\|} }{ { {\rm{2} }{\sigma ^{\rm{2} } } } } } \right)$ 0.8084 0.7964 0.7131
2 $\exp\; \left( { - \dfrac{ { { {\left\| {{{a}}_1 - {{{a}}_2} } \right\|}^2} } }{ {2{\sigma ^2} } } } \right)$ 0.8520 0.8355 0.7452
3 ${{a}}_1^{\rm{T}}{{a}}_2$ 0.8529 0.8310 0.7472
4 $\gamma {\left( {{{a} }_1^{\rm{T} }{{a} }_2 + 1} \right)^d} + c$ 0.8514 0.8367 0.7544
5 $\exp\; \left( { - \dfrac{ {\left\| {{{a}}_1 - {{{a}}_2} } \right\|} }{ {2{\sigma ^2} } } } \right)\lambda + \left( { {\rm{1 - } }\lambda } \right)\left[ {\gamma { {\left( {{{a}}_1^{\rm{T}}{{a}}_2 + 1} \right)}^d} + c} \right]$ 0.8529 0.8368 0.7554
6 $\exp \;\left( { - \dfrac{ { { {\left\| {{{a}}_1 - {{{a}}_2} } \right\|}^2} } }{ {2{\sigma ^2} } } } \right)\lambda + \left( { {\rm{1 - } }\lambda } \right)\left[ {\gamma { {\left( {{{a}}_1^{\rm{T}}{{a}}_2 + 1} \right)}^d} + c} \right]$ 0.8503 0.8387 0.7555
Tab.3 Comparison of performance of different kernel function
算法模型 数据集1 数据集2 数据集3
MSE RMSE MAPE MSE RMSE MAPE MSE RMSE MAPE
PSO-SVM 564.06 23.75 0.1624 251.54 15.86 0.1724 48.86 6.99 0.2701
LSTM 493.13 22.21 0.1435 234.37 15.31 0.1689 82.88 9.10 0.2702
GRU 495.68 22.26 0.1432 233.978 15.29 0.1676 83.10 9.12 0.2733
CNN-LSTM 483.18 21.92 0.1438 235.89 15.36 0.1663 82.43 9.08 0.2659
CNN-GRU[26] 487.46 22.07 0.1429 229.62 15.15 0.1648 82.44 9.08 0.2640
Bi-LSTM[27] 481.34 21.94 0.1545 223.13 14.94 0.1811 81.58 9.03 0.2703
GA-CKRVM[28] 433.53 20.82 0.1412 161.56 12.71 0.1616 62.24 7.76 0.2347
CNN-Bi-LSTM 477.35 21.84 0.1396 227.11 15.07 0.1622 81.79 9.04 0.2578
SPGAPSO-CKRVM 392.43 19.81 0.1383 161.1 12.69 0.1589 41.09 6.41 0.2232
Tab.4 Comparison of traffic flow predicted by different algorithms and models

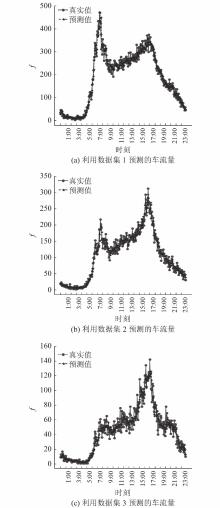

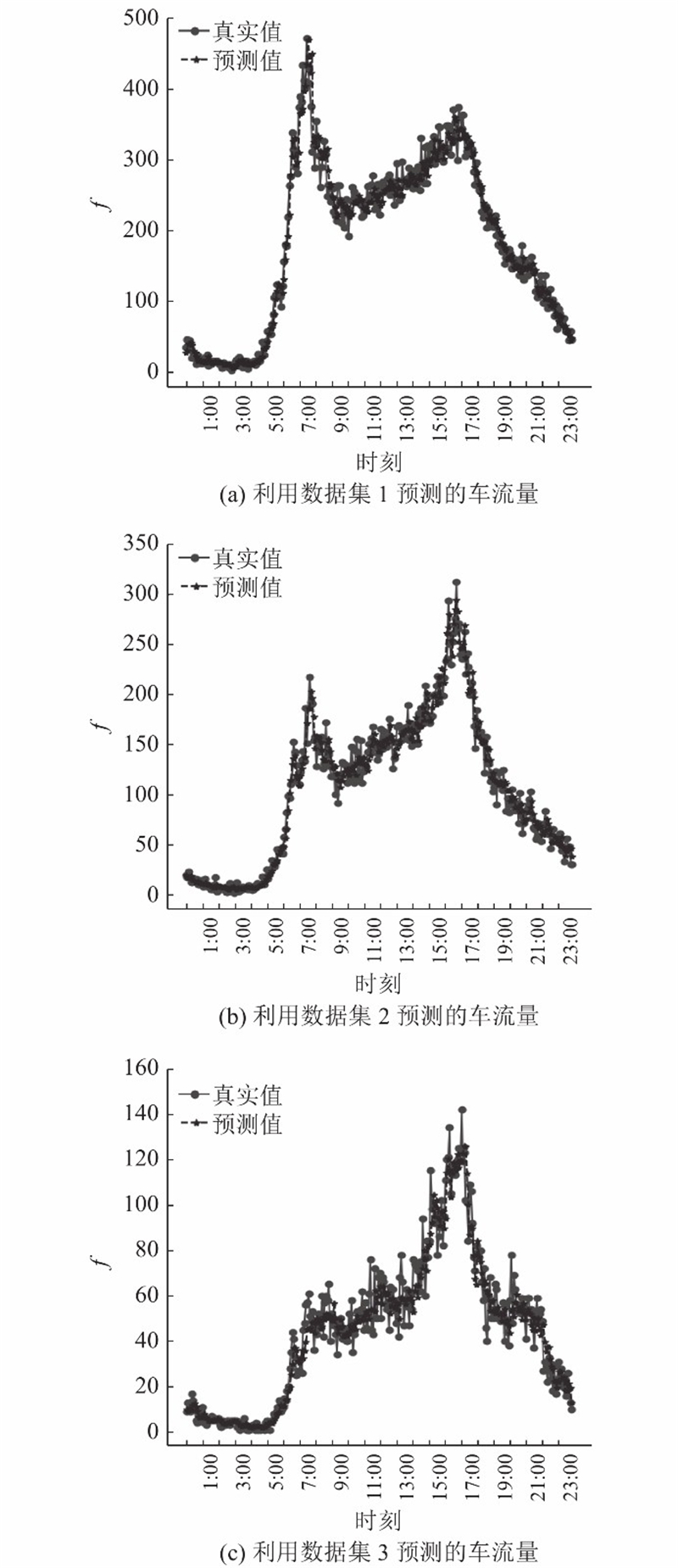

Fig.6 Traffic flow prediction results in three stations by SPGAPSO-CKRVM

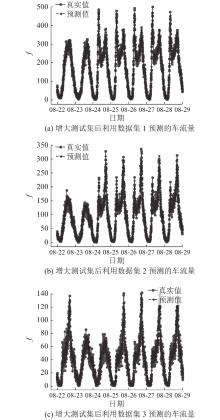

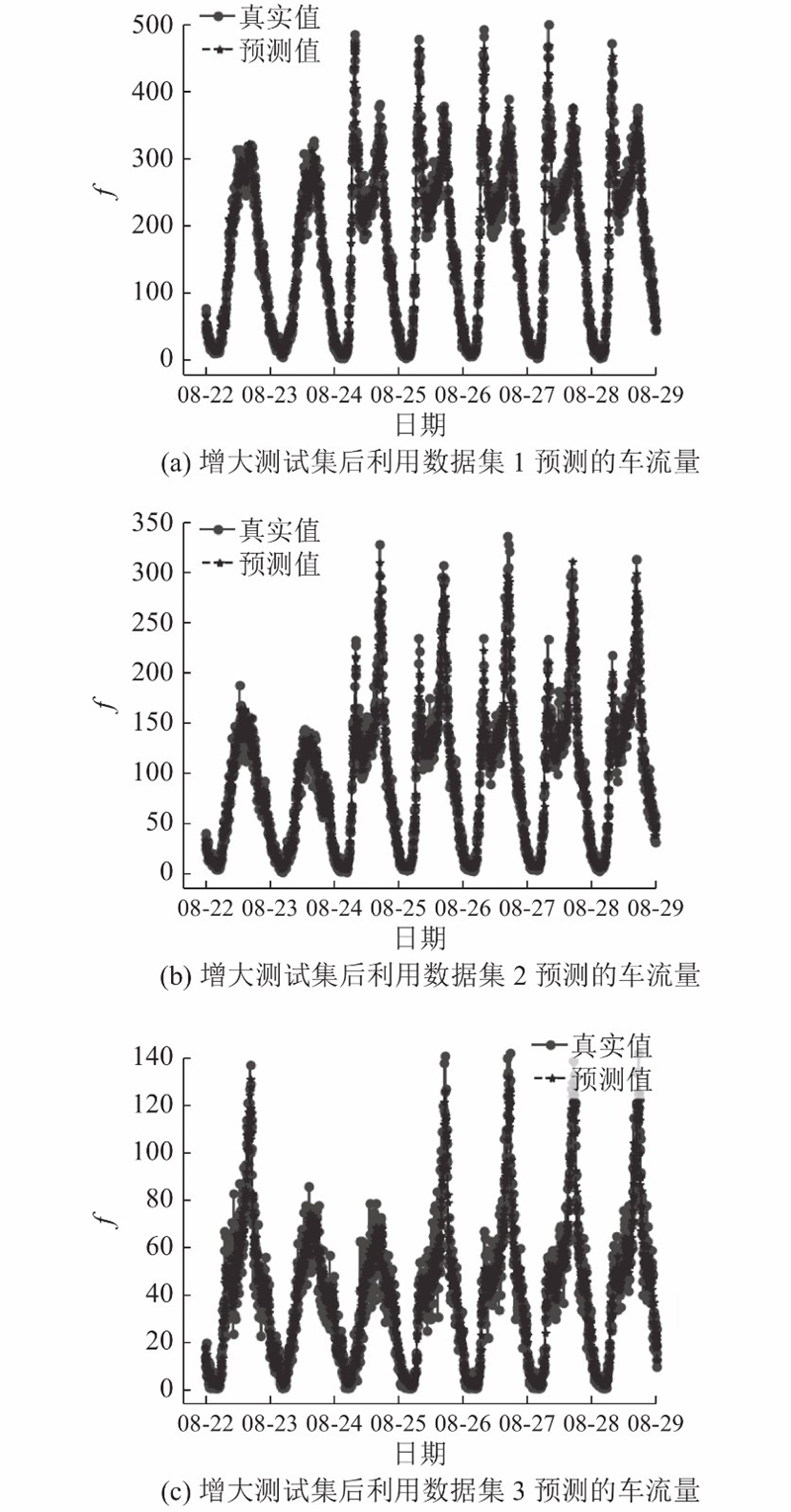

Fig.7 Traffic flow prediction results in three stations after increasing test set
算法模型 数据集1 数据集2 数据集3
MSE RMSE MAPE MSE RMSE MAPE MSE RMSE MAPE
PSO-SVM 6.0762 2.4650 0.0738 7.2539 2.6933 0.0768 7.1888 2.6812 0.0754
LSTM 5.1940 2.2790 0.0596 5.6122 2.3690 0.0625 5.5984 2.3661 0.0629
GRU 5.1532 2.2701 0.0583 5.6074 2.3681 0.0628 5.6164 2.3699 0.0632
CNN-LSTM 5.1726 2.2740 0.0582 5.3024 2.3027 0.0613 5.5418 2.3541 0.0622
CNN-GRU 5.0687 2.2514 0.0576 5.2964 2.3014 0.0612 5.5469 2.3552 0.0621
Bi-LSTM 5.1557 2.2706 0.0579 5.4228 2.3287 0.0627 5.5691 2.3599 0.0625
GA-CKRVM 4.8118 2.1936 0.0581 5.0895 2.2560 0.0603 5.5145 2.3483 0.0597
CNN-Bi-LSTM 5.0794 2.2538 0.0572 5.1734 2.2745 0.0599 5.5286 2.3513 0.0603
SPGAPSO-CKRVM 4.6656 2.1601 0.0570 4.9809 2.2318 0.0586 5.4214 2.3284 0.0589
Tab.5 Comparison of speed predicted by different algorithms and models

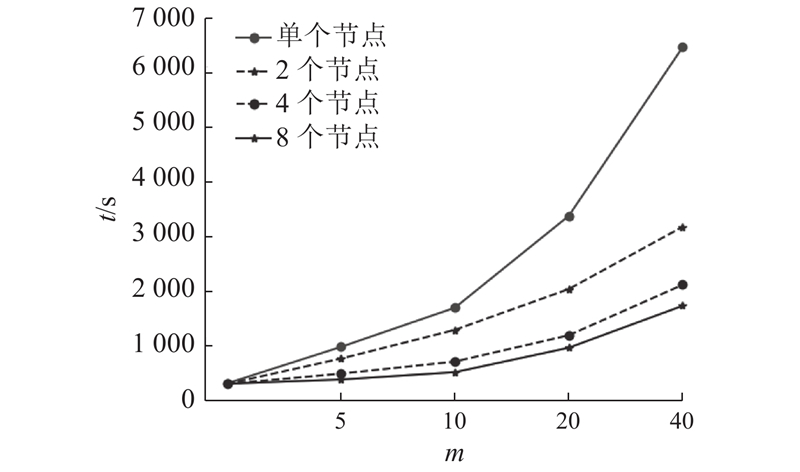

Fig.8 Training time under different circumstances
Fig.9 Result of speedup under different circumstances

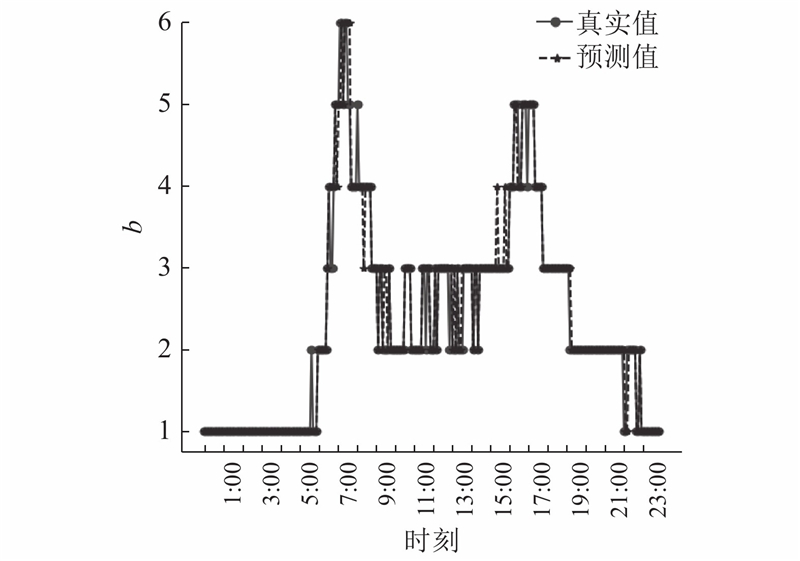

Fig.10 Result of road condition prediction
