Distributed mimic decision model and framework design

Xinsheng YU1(

),Lunhan LUO1,Fan ZHANG2,Bo ZHANG3,Danjiang ZHU1,Wei XIE1

1. The 32nd Research Institute of China Electronics Technology Group Corporation, Shanghai 201808, China
2. National Digital Switching System Engineering & Technological R&D Center, Zhengzhou 450002, China
3. China Electric Power Research Institute, Beijing 100192, China

Download:

HTML

PDF(1001KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A mimic defense framework with a single decision unit presupposes decision algorithms based on the number of executors, which makes the number of executors unadjustable. A distributed mimic decision model was proposed, transforming the design of the output values comparing algorithm into the multi-hierarchy linked logic arithmetic topology planning. Any number of executors or fault-tolerance executor customization was supported, and the cascading topology of the logic arithmetic was adjusted dynamically. The imposed consistency between the number of executors and the decision algorithm was decoupled, and the prerequisite of the decision algorithm according to the number of executors was removed. A distributed mimic decision framework for high-security systems and high-robustness systems was designed, and the relationship between the number of executors, the tolerance and the number of iterative layers of cascading topology was quantitatively analyzed. In the simulation experiments, the capability and efficiency were compared among a mimic decision framework with a single unit, a classical triple modular redundancy voting model and the distributed mimic decision framework. Results show that the distributed mimic decision framework is efficient in decision-making and has flexible scalability.

Key words： mimic defense single decision unit distributed mimic decision triple modular redundancy voting model cascading topology fault tolerance

Received: 13 September 2024 Published: 27 October 2025

CLC:

TN 915.08

Fund: 国家重点研发计划资助项目（2022YFB3104300）.

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xinsheng YU
	Lunhan LUO
	Fan ZHANG
	Bo ZHANG
	Danjiang ZHU
	Wei XIE

Cite this article:

Xinsheng YU,Lunhan LUO,Fan ZHANG,Bo ZHANG,Danjiang ZHU,Wei XIE. Distributed mimic decision model and framework design. Journal of ZheJiang University (Engineering Science), 2025, 59(10): 2195-2204.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.10.020 OR https://www.zjujournals.com/eng/Y2025/V59/I10/2195

分布式拟态裁决模型与架构设计

单裁决器拟态防御架构根据执行体数量预设裁决算法，导致执行体数量无法弹性伸缩，为此提出分布式拟态裁决模型，将执行体值裁决转变为多层级联逻辑运算的拓扑结构规划问题. 所提模型支持自定义数量的执行体与故障容许度，动态调整逻辑运算级联拓扑，解耦执行体数量与裁决算法的强一致性关系，移除根据执行体数量预设裁决算法的前提条件. 设计针对高安全、高鲁棒系统的分布式拟态裁决架构，定量分析执行体数量、容许度与级联逻辑运算迭代层数的关系. 在仿真实验中，对比单裁决器拟态裁决架构、经典三模冗余投票模型、分布式拟态裁决架构的裁决能力与裁决效率. 验证结果表明，分布式拟态裁决架构的裁决效率高，具有灵活的扩展性.

关键词： 拟态防御, 单裁决器, 分布式拟态裁决, 三模冗余投票模型, 级联拓扑, 故障容许度

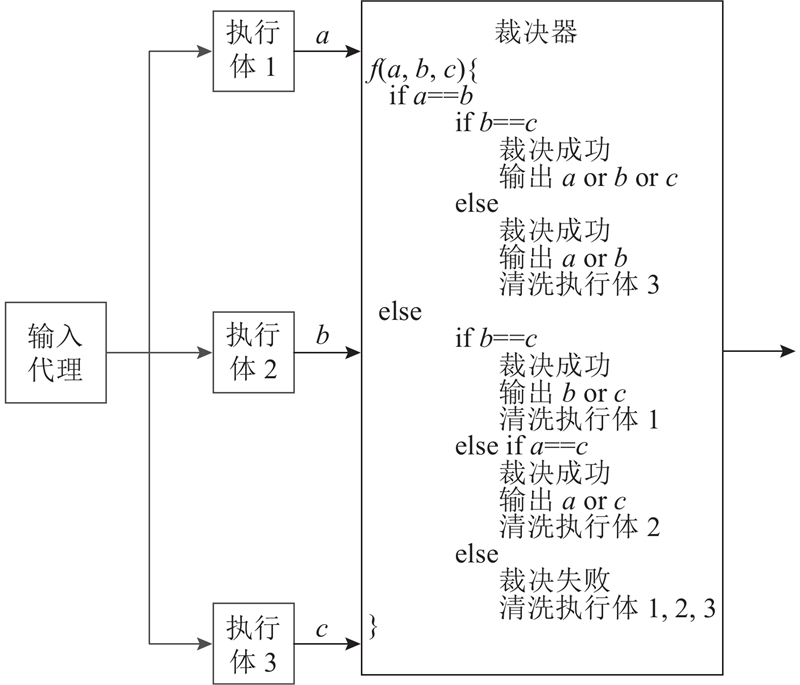

Fig.1 N-candidate decision model

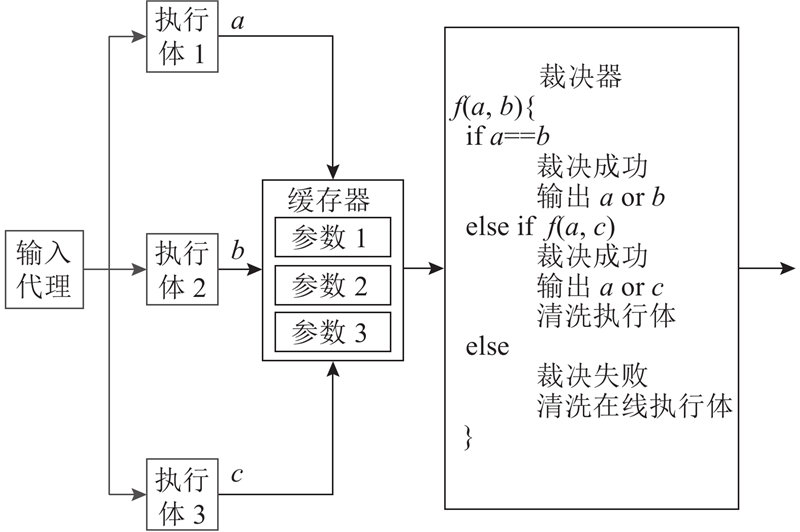

Fig.2 N–1-candidate decision model

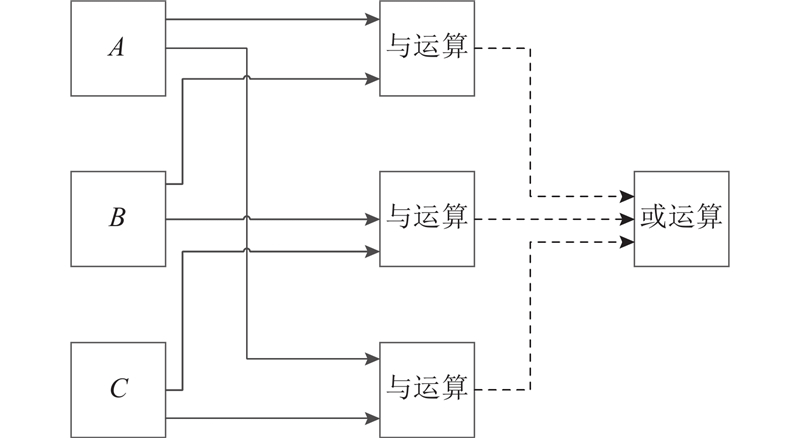

Fig.3 Classical triple modular redundancy voting model

Tab.1 Values of classical triple modular redundancy voting model

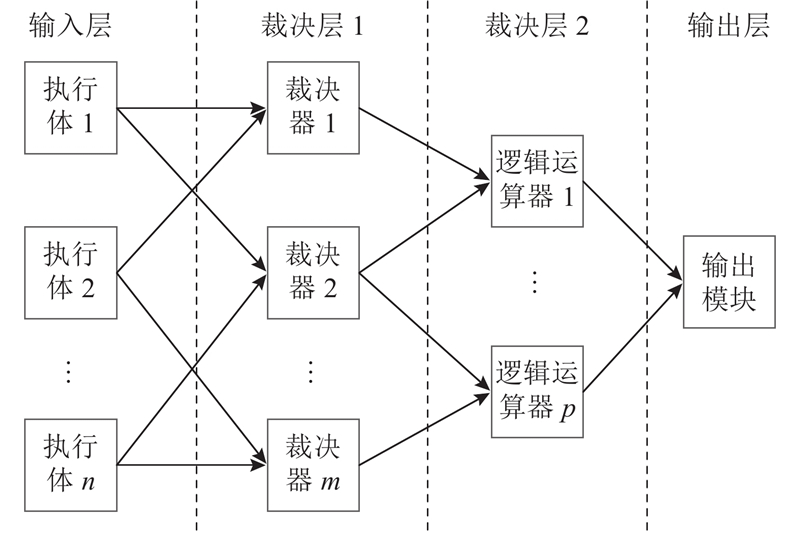

Fig.4 Distributed mimic decision model

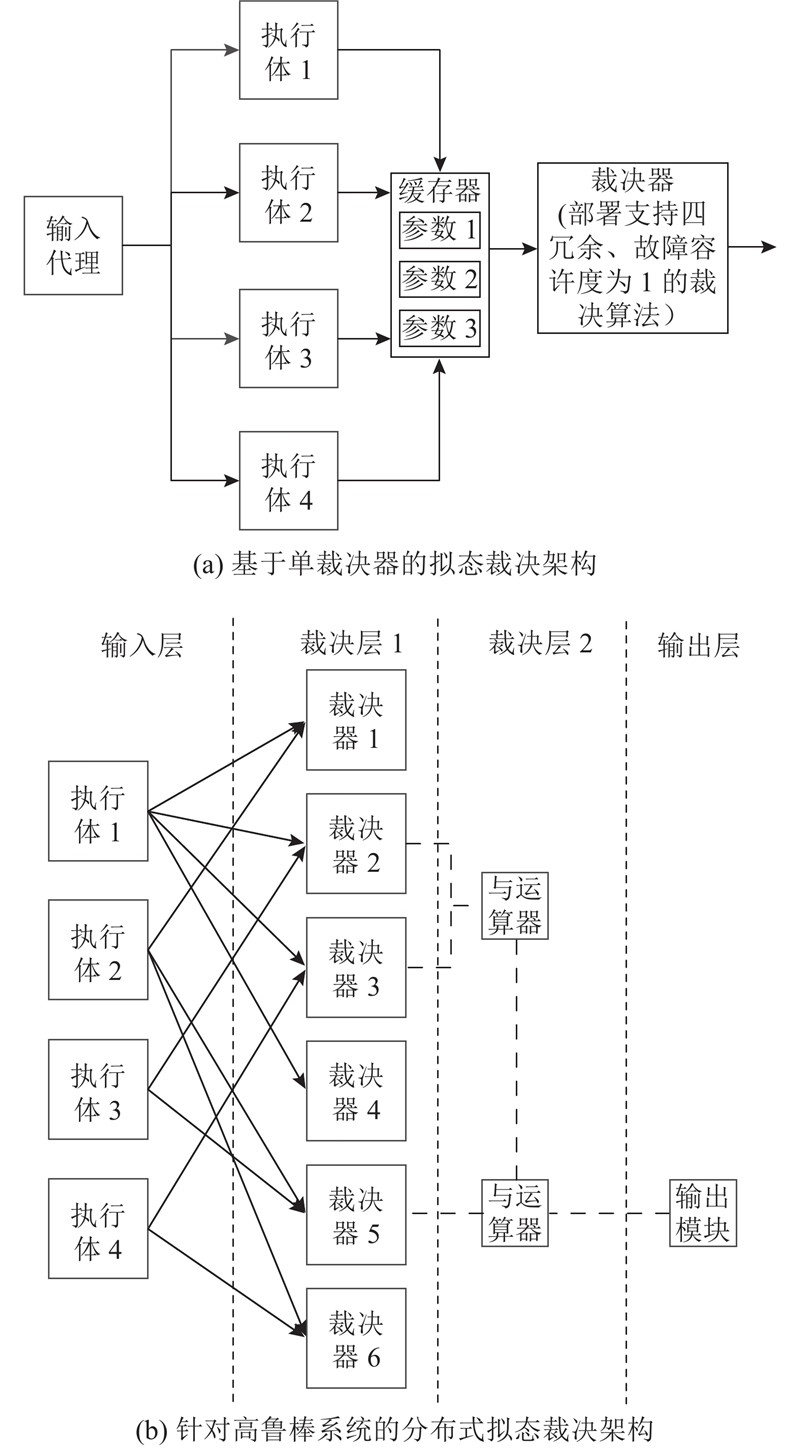

Fig.5 Mimic decision framework for high-security information system including four executors

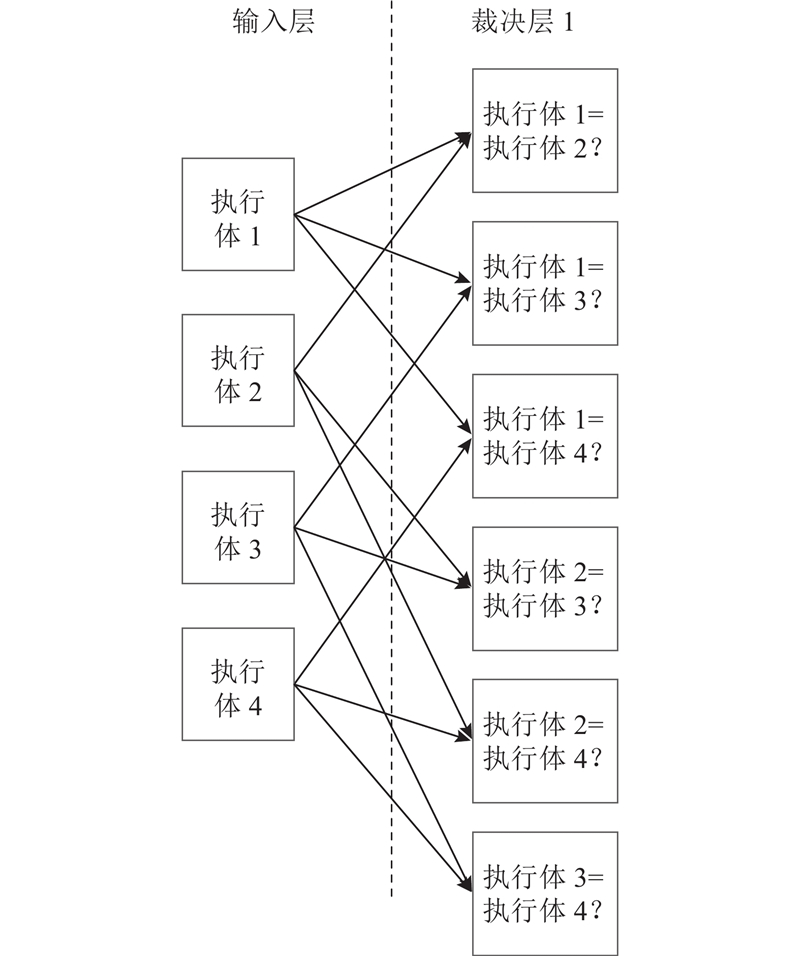

Fig.6 Judgement in decision unit of information system including four executors

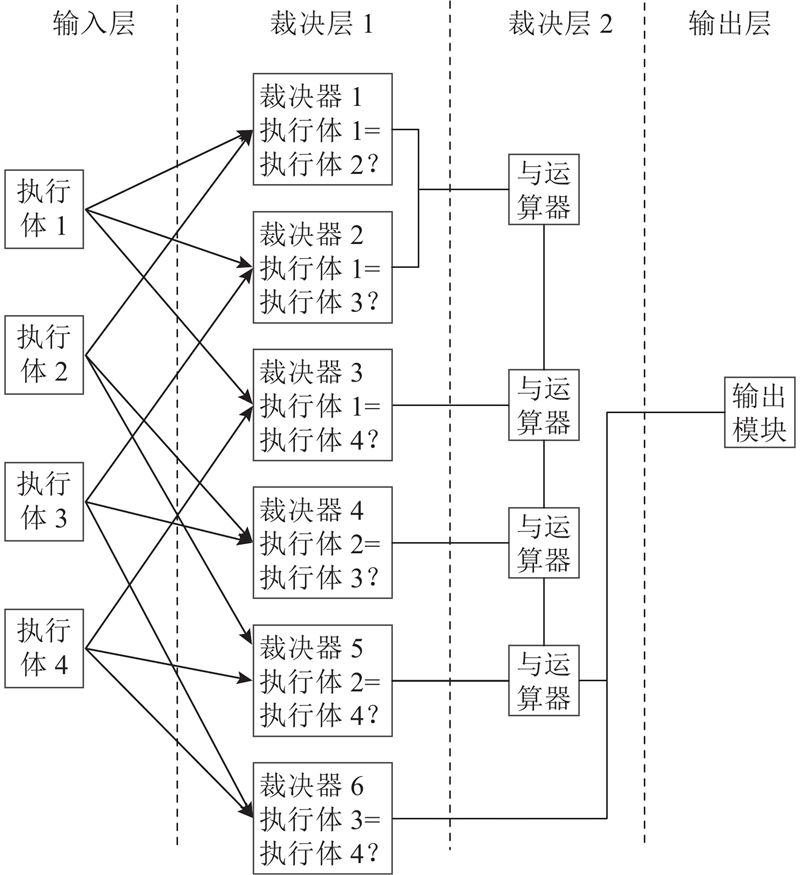

Fig.7 Cascading topology for judge layer 2

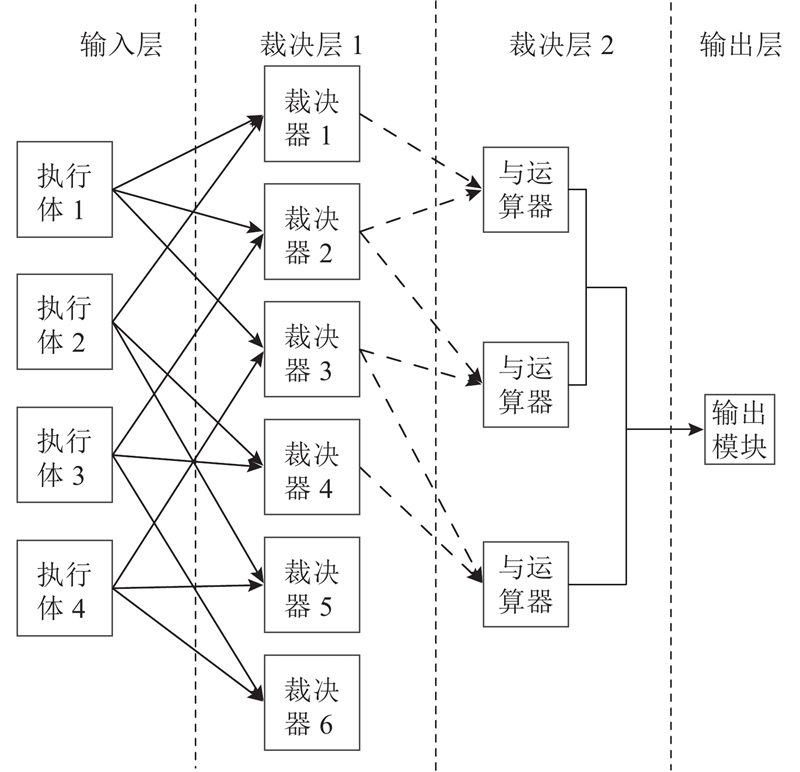

Fig.8 Cascading topology for improving computational efficiency of judge layer 2

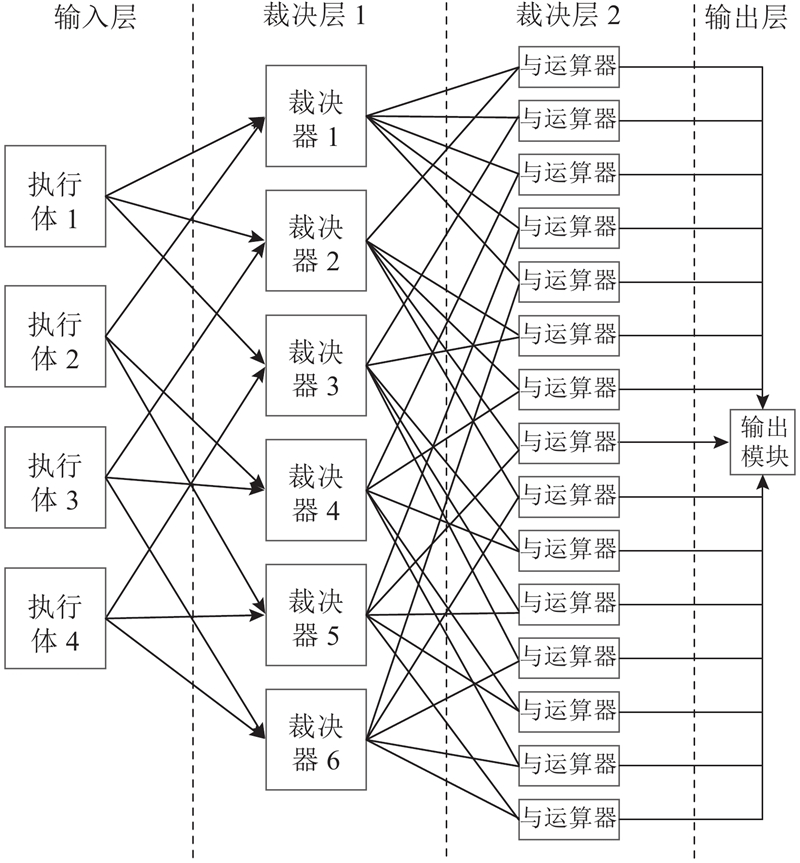

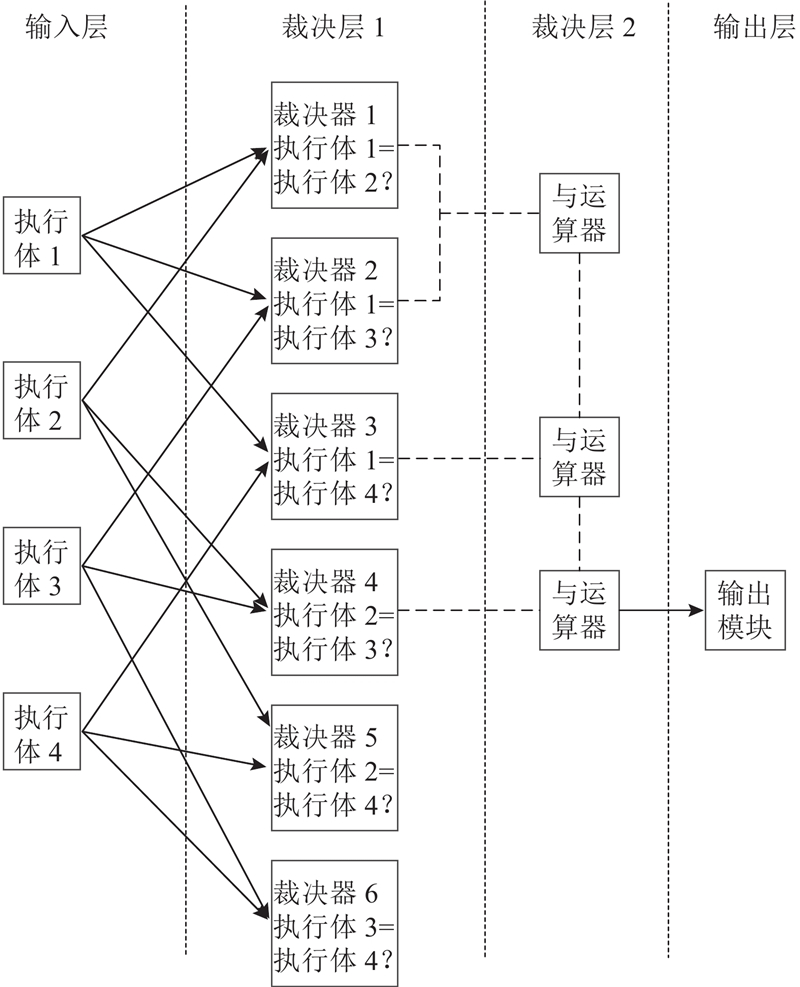

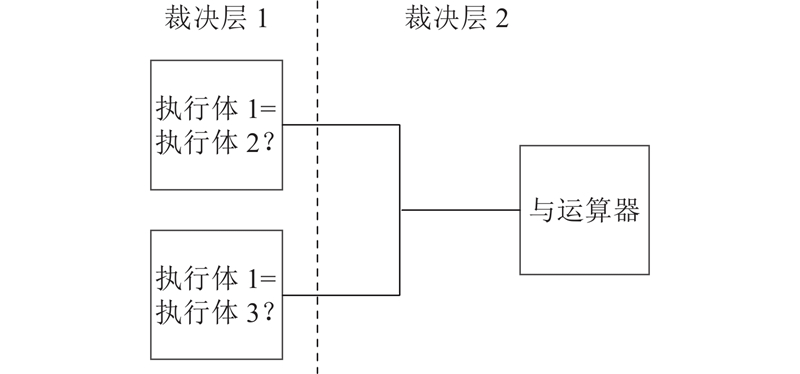

Fig.9 Logical operation units in judge layer 2 （four executors, one fault tolerance information system）

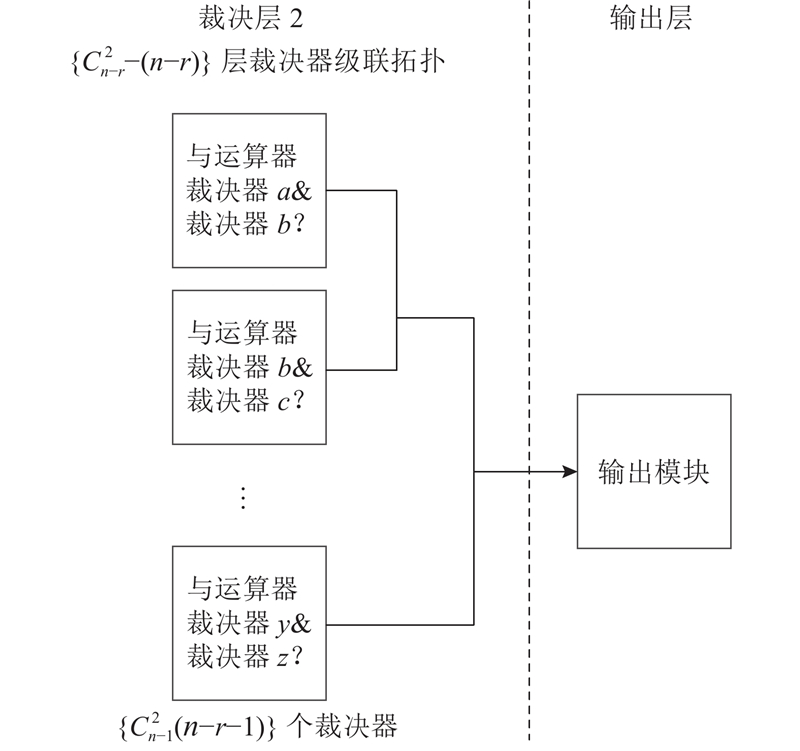

Fig.10 Logical operation units in judge layer 2（n executors, r fault tolerance information system）

Fig.11 Mimic decision framework for high-robustness information system (four executors, one fault tolerance information system)

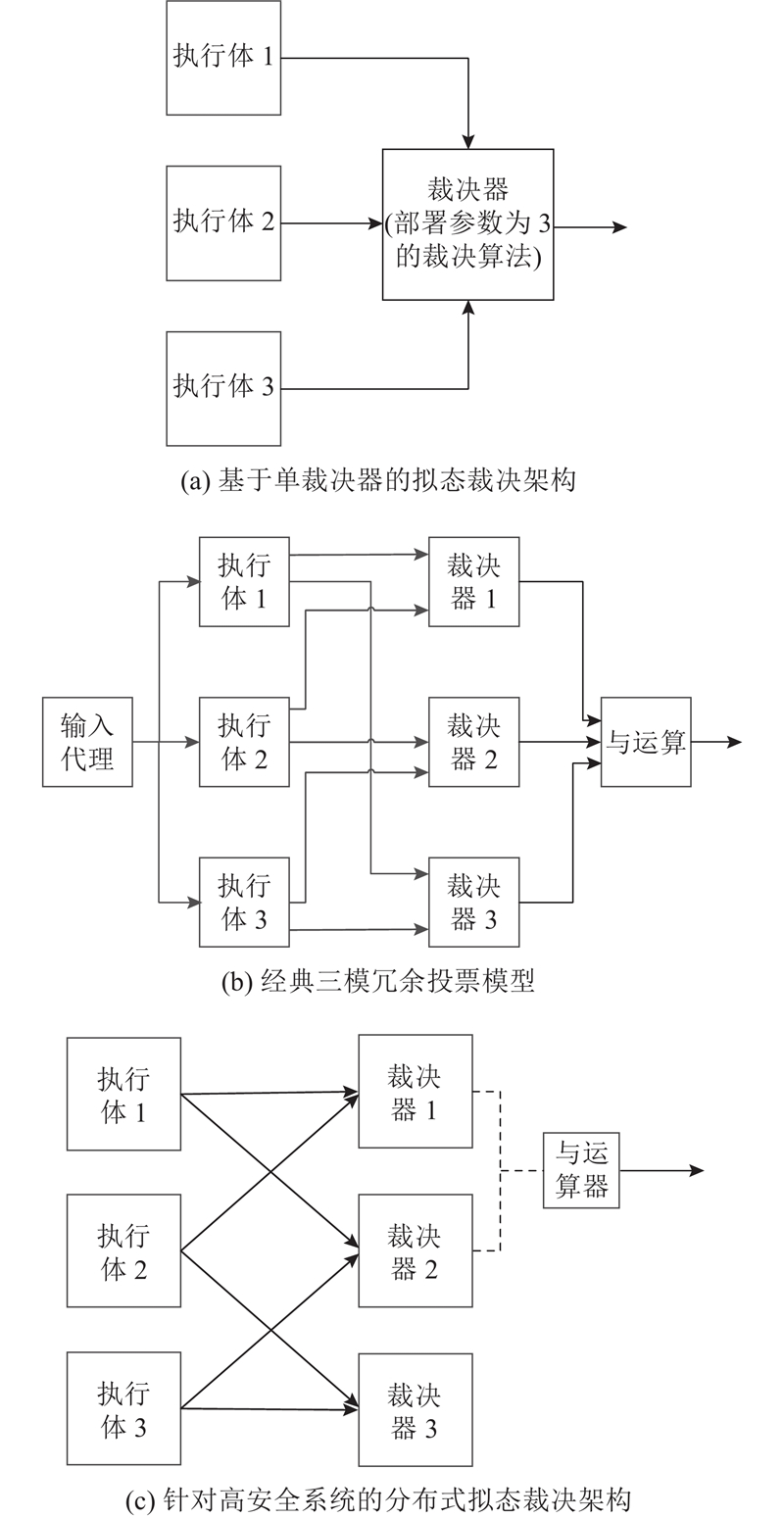

Fig.12 Schematic diagrams of different mimic decision frameworks (three executors, zero fault tolerance information system)

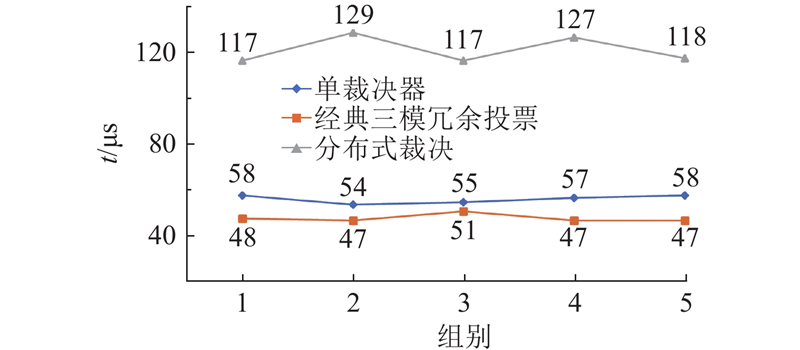

Fig.13 Decision intervals for different mimic decision frameworks (three executors, zero fault tolerance information system)

Tab.2 Decision results of different mimic decision frameworks (three executors, zero fault tolerance information system)

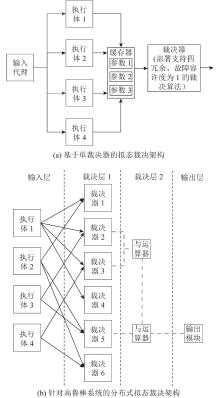

Fig.14 Schematic diagrams of different mimic decision frameworks (four executors, one fault tolerance information system)

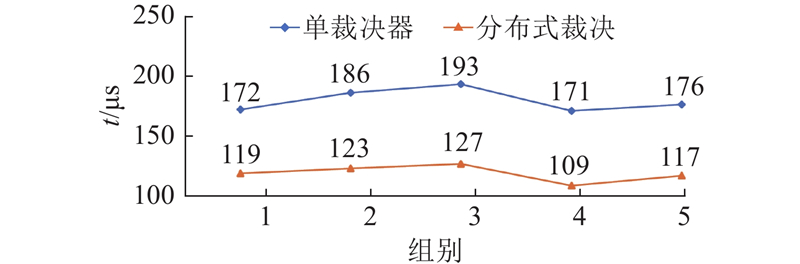

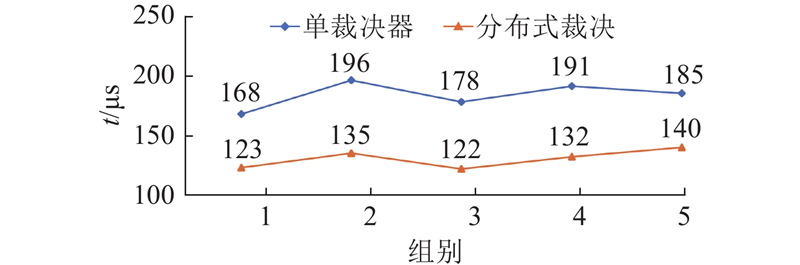

Fig.15 Decision intervals for different mimic decision frameworks (four executors, one fault tolerance information system)
