Dynamic 3D reconstruction method using binocular vision and improved YOLOv8

Jingyao HE1(

),Pengfei LI1,*(

),Chengzhi WANG1,Zhenming LV2,Ping MU1

1. College of River and Ocean Engineering, Chongqing Jiaotong University, Chongqing 400074, China
2. School of Mechatronics and Vehicle Engineering, Chongqing Jiaotong University, Chongqing 400074, China

Download:

HTML

PDF(7266KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A dynamic 3D reconstruction technology for construction sites was proposed to ensure safety and efficiency in the construction process. A Binocular camera was deployed to scan the reconstruction site in 3D to obtain the model base and target activity trajectory. The YOLOv8 model was enhanced with an attentional scale sequence fusion (ASF) module to form the YOLOv8-ASF framework, which improved the accuracy and performance of the model, to solve the pain points such as target occlusion and target loss. The improved semi-global block matching (SGBM) algorithm was fused, and the YOLOv8-ASF-SGBM algorithm was integrated with the YOLOv8-ASF to achieve near-real-time target recognition and localization based on 2D images. The obtained depth information was used to 3D project the behavior trajectories of dynamic elements into the substrate, to realize the near-real-time and full-view monitoring of the real construction site. Experimental results show that the proposed technology reproduces the movement trajectory of construction dynamic elements in high-precision three-dimensional, and the relative error with the real motion trajectory of dynamic elements is less than 5%, which can realize high-precision full-view three-dimensional monitoring based on two-dimensional image and video information, and has good application scenarios and engineering value.

Key words： dynamic 3D reconstruction YOLOv8-attentional scale sequence fusion (ASF) semi-global block matching (SGBM) algorithm target occlusion binocular vision

Received: 31 May 2024 Published: 25 July 2025

CLC:

TU 17

Fund: 国家自然科学基金资助项目（52379115）；重庆市自然科学基金资助项目（CSTB2022NSCQ-MSX0509）.

Corresponding Authors: Pengfei LI E-mail: 622220960055@mails.cqjtu.edu.cn;lipengfei@cqjtu.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jingyao HE
	Pengfei LI
	Chengzhi WANG
	Zhenming LV
	Ping MU

Cite this article:

Jingyao HE,Pengfei LI,Chengzhi WANG,Zhenming LV,Ping MU. Dynamic 3D reconstruction method using binocular vision and improved YOLOv8. Journal of ZheJiang University (Engineering Science), 2025, 59(7): 1443-1450.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.07.012 OR https://www.zjujournals.com/eng/Y2025/V59/I7/1443

基于双目视觉和改进YOLOv8的动态三维重建方法

为了确保施工过程中的安全和效率，提出施工现场动态三维重建技术. 部署双目摄像头对重建现场进行三维扫描获取模型基底和目标活动轨迹，基于YOLOv8模型引入注意力量表序列融合(ASF)模块形成YOLOv8-ASF框架，提高预测模型精度和性能，解决如目标遮挡、目标丢失的痛点. 融合改进的半全局立体匹配 (SGBM)算法，与YOLOv8-ASF集成YOLOv8-ASF-SGBM算法，实现基于二维图像的目标近实时识别和定位. 利用获取的深度信息，将动态要素行为轨迹三维动态投影至模型基底中，实现对真实施工现场的近实时、全视角监控. 实验结果表明：所提技术高精度三维复现了施工动态要素的运动轨迹，且与动态要素真实运动轨迹的相对误差小于5%，实现了基于二维图像视频信息的高精度全视角三维立体化监控，具有良好的应用场景和工程价值.

关键词： 动态三维重建, YOLOv8-注意力量表序列融合(ASF), 半全局立体匹配(SGBM)算法, 目标遮挡, 双目视觉

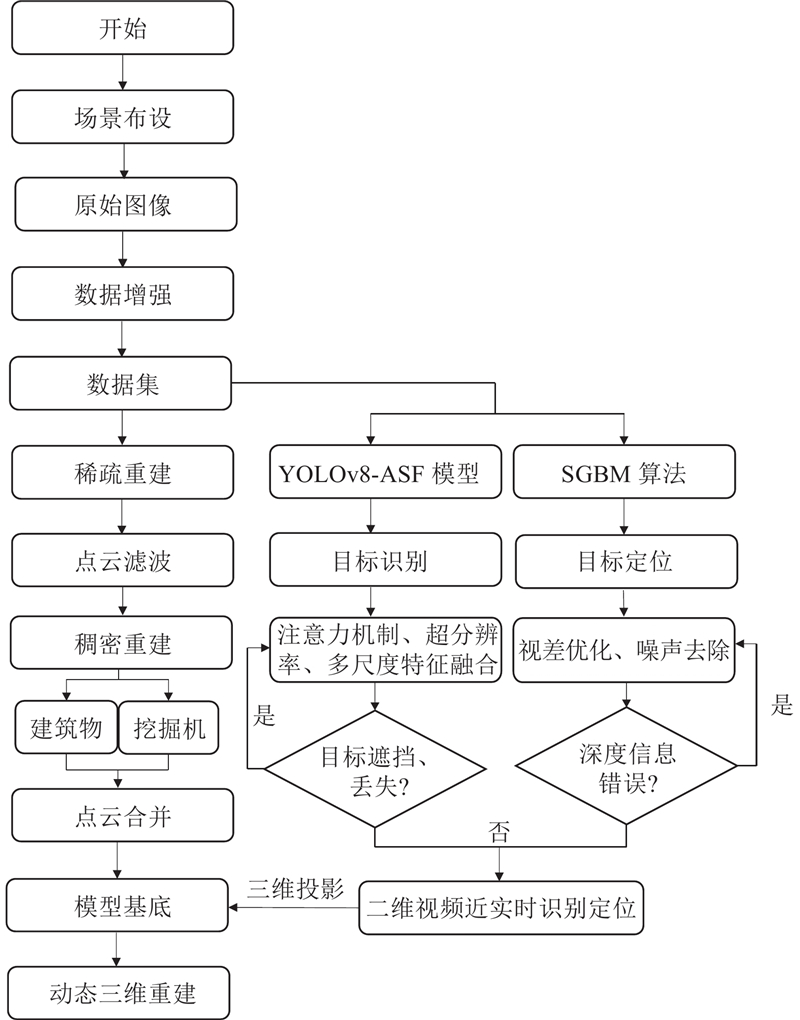

Fig.1 Technical framework for dynamic 3D reconstruction

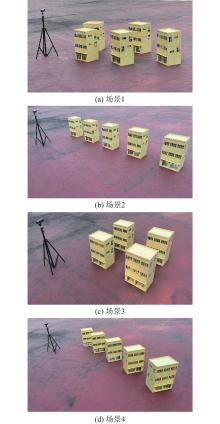

Fig.2 Simulation scenario for layout of dynamic and static elements at construction site

Fig.3 Principle of binocular camera calibration

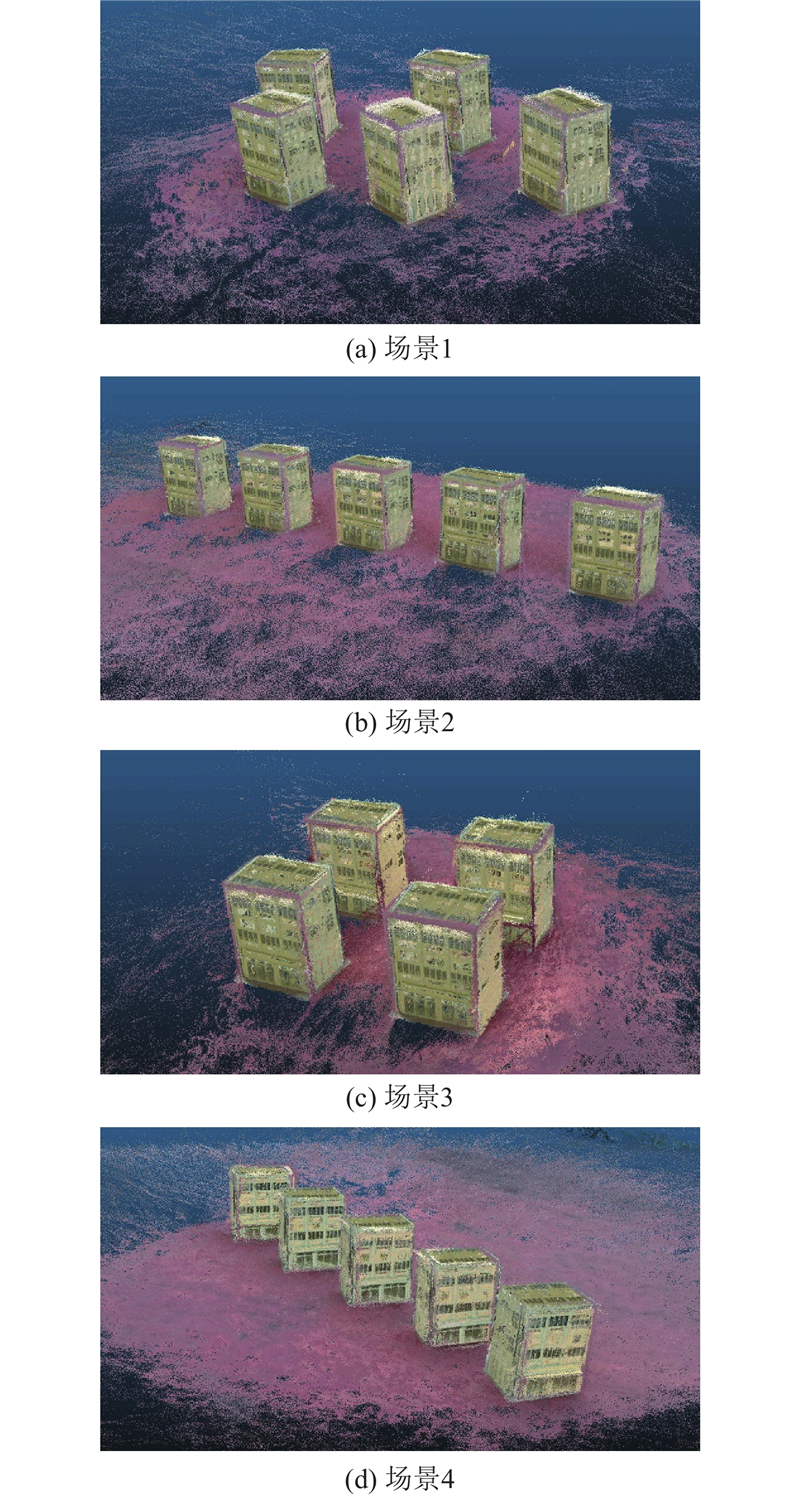

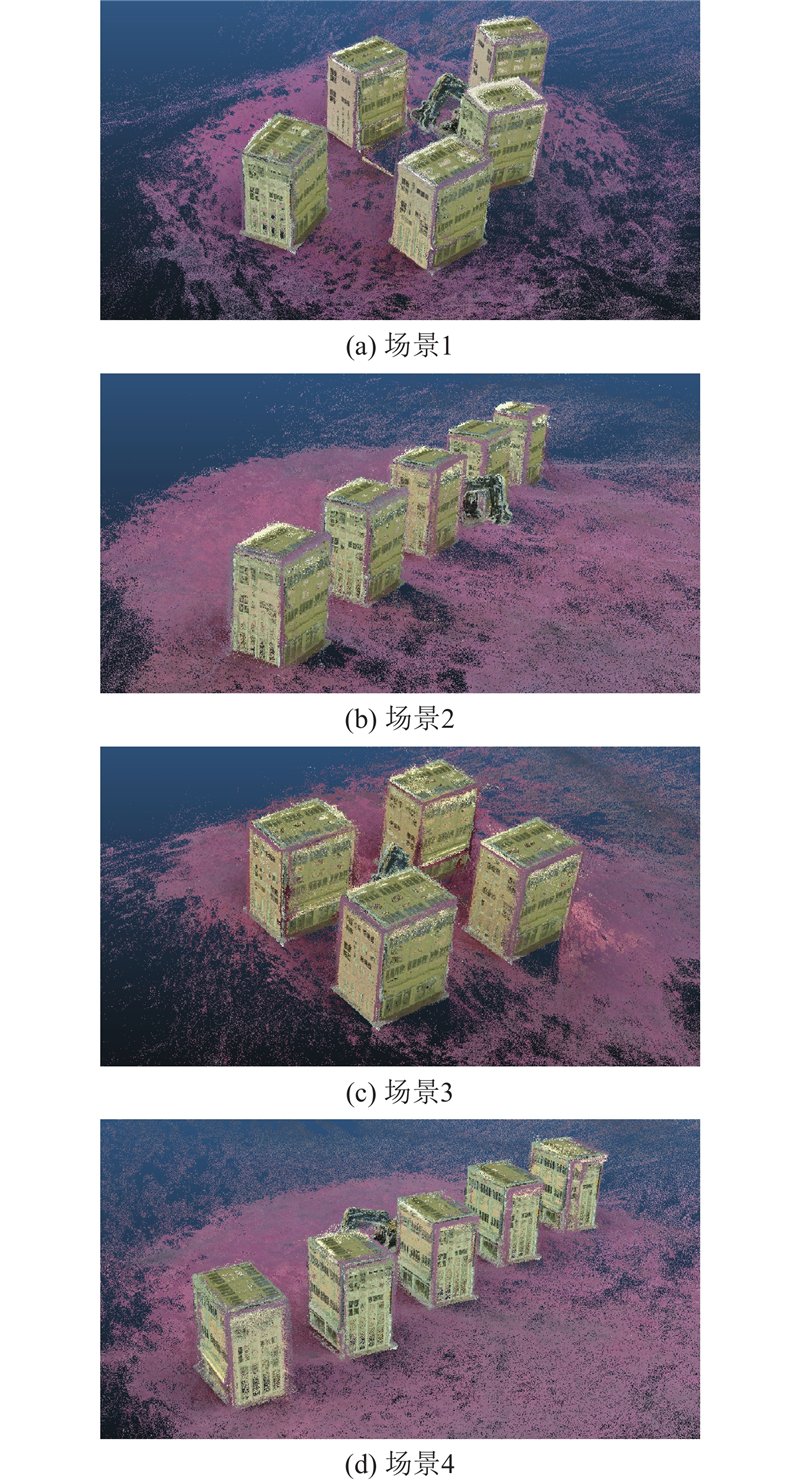

Fig.4 Reconstruction results under simulation scenario for dynamic and static element layout at construction site

Tab.1 Ratio error between true sizes of dynamic and static elements and point-cloud sizes

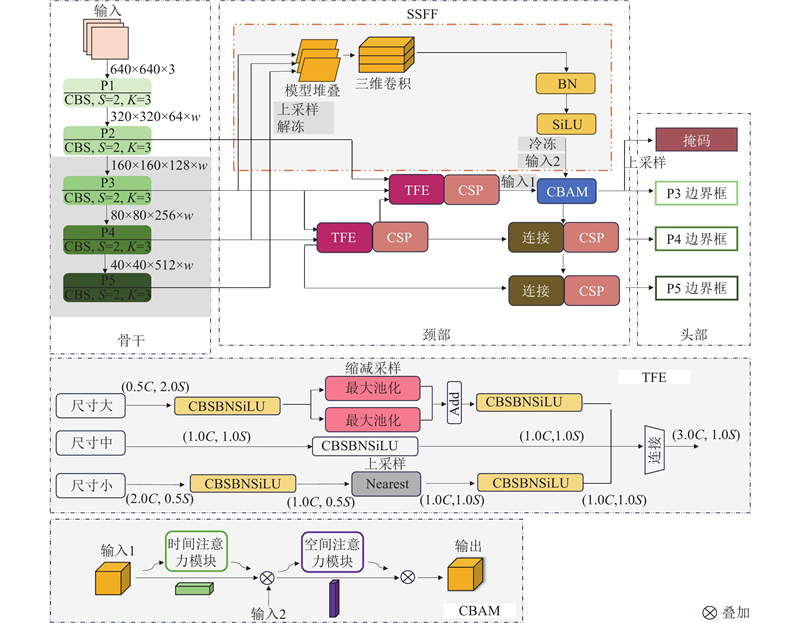

Fig.5 Framework of YOLOv8-attentional scale sequence fusion model

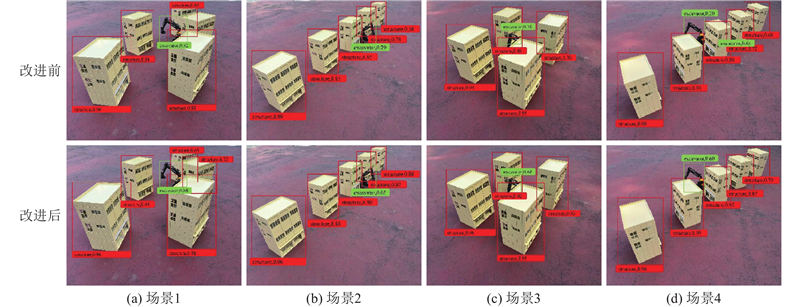

Fig.6 Visualization of model target recognition results before and after attenetional scale sequence fusion to improve YOLOv8

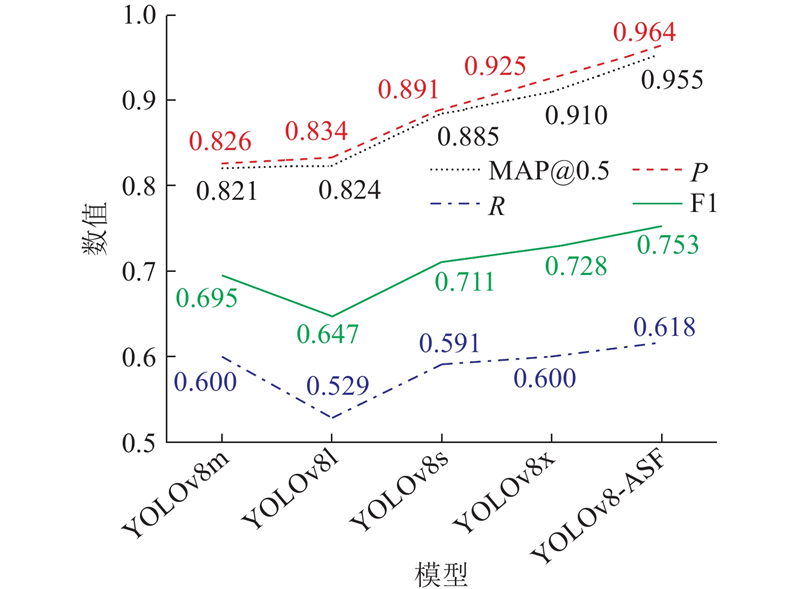

Fig.7 Comparison of object detection performance of different YOLOv8 models

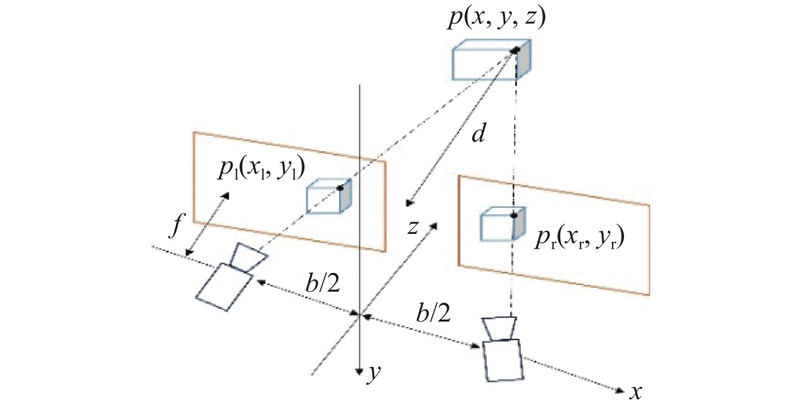

Fig.8 Binocular ranging principle

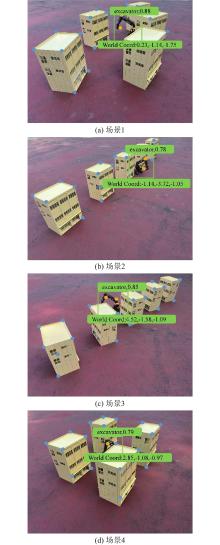

Fig.9 Detection and localization of excavator by improved model in simulation scenarios

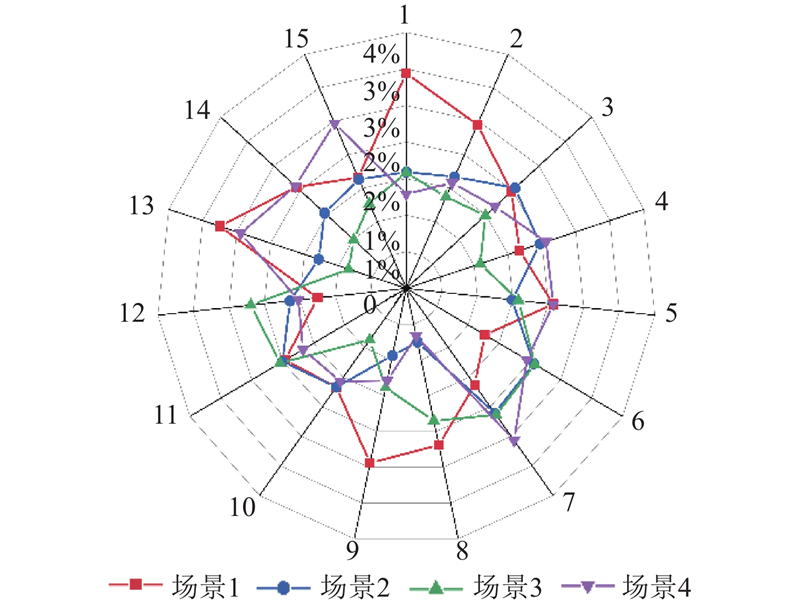

Fig.10 Feature point matching accuracy of different algorithms in four simulation scenarios

Fig.11 Dynamic reconstruction of excavator behavior trajectory in simulation scenario

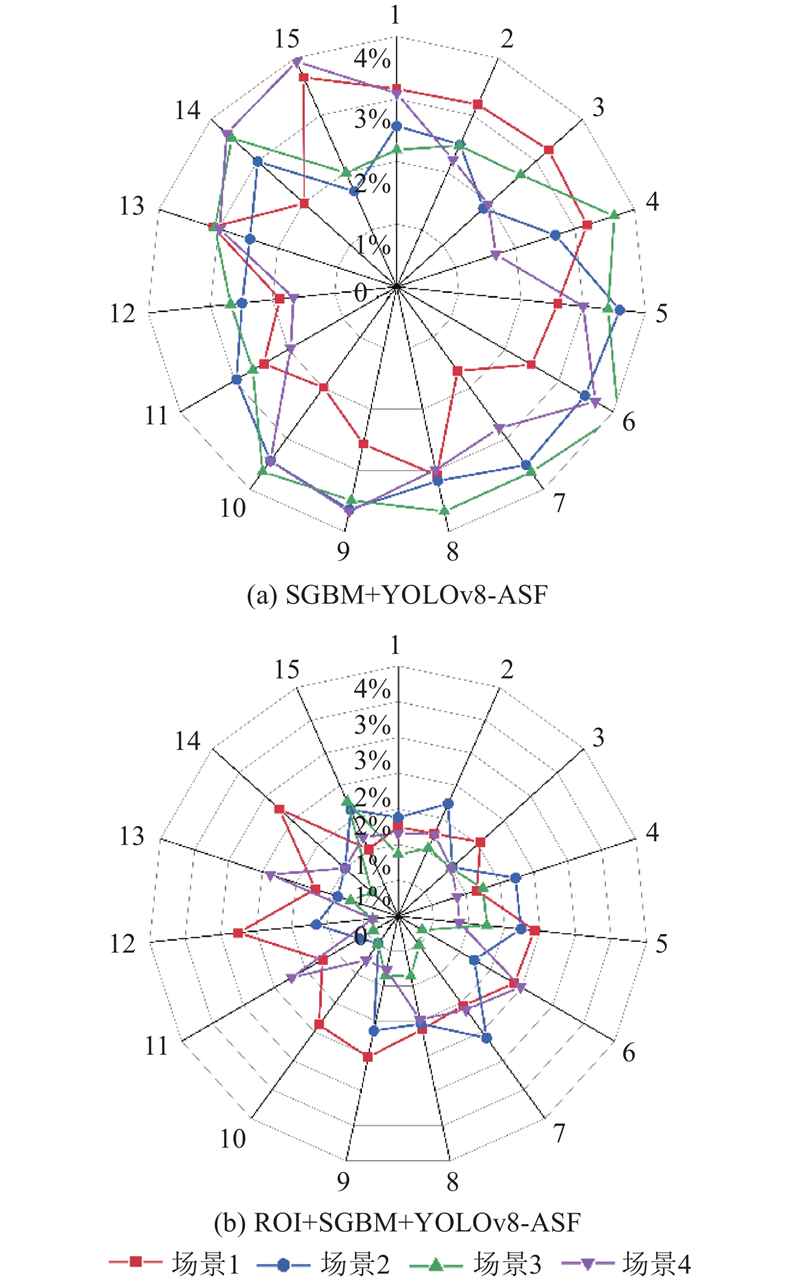

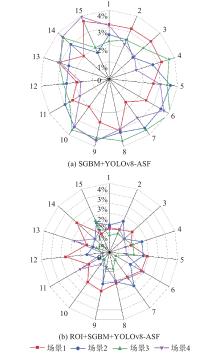

Fig.12 Accuracy of dynamic reconstruction of excavator behavior trajectory in simulation scenario
