Model-free adaptive control of combustion process in marine natural gas engine

doi:10.3785/j.issn.1008-973X.2025.06.022

Journal of ZheJiang University (Engineering Science)

2025, Vol. 59

Issue (6): 1311-1321 DOI: 10.3785/j.issn.1008-973X.2025.06.022

Model-free adaptive control of combustion process in marine natural gas engine

Rongjia LIN1(

),Yun LONG1,Chong YAO1,*(

),Tikang SONG2,Yun KE1

1. Yantai Research Institute, Harbin Engineering University, Yantai 264000, China
2. China National Heavy Duty Truck Group Co., Jinan 250000, China

Download:

HTML

PDF(1894KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The dynamic characteristics of the natural gas engine combustion process are difficult to describe, highly nonlinear, and subject to unknown disturbances, resulting in the low control precision of feedback control variable of combustion process. To address the above issue, an improved model-free adaptive controller (MFAC) was proposed. Firstly, a natural gas engine system model was established and its effectiveness was verified, and the combustion midpoint (CA50) was selected as the feedback control variable of the combustion process. The traditional MFAC was obtained by establishing a discrete partial form dynamic linearization model, using the system input and output data to estimate the pseudo partial derivatives of the ignition timing and air-fuel ratio during the combustion process. The MFAC continuously tracked the expected state updated online to realize the tracking control of CA50. Furthermore, in order to take into account the dynamic convergence rate and tracking accuracy of CA50, a fast convergence term based on the differential of the tracking error was introduced into the traditional MFAC, and strict stability proof and convergence performance analysis were provided for the closed loop system. Finally, two test experiments were conducted to compare the proposed controller with the PID controller, and the results showed that the proposed improved MFAC made significant improvements in robustness, convergence rate and tracking accuracy.

Key words： natural gas engine combustion process combustion midpoint model-free adaptive controller convergence rate online data

Received: 26 April 2024 Published: 30 May 2025

CLC:

TP 241

Fund: 山东省自然科学基金资助项目（ZR2023QE009）.

Corresponding Authors: Chong YAO E-mail: a13199462689@163.com;esmartcontrolheu@163.com

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Rongjia LIN
	Yun LONG
	Chong YAO
	Tikang SONG
	Yun KE

Cite this article:

Rongjia LIN,Yun LONG,Chong YAO,Tikang SONG,Yun KE. Model-free adaptive control of combustion process in marine natural gas engine. Journal of ZheJiang University (Engineering Science), 2025, 59(6): 1311-1321.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.06.022 OR https://www.zjujournals.com/eng/Y2025/V59/I6/1311

船用天然气发动机燃烧过程无模型自适应控制

天然气发动机燃烧过程的动态特性难以描述、非线性强、存在未知干扰，导致燃烧过程反馈量控制精度较低. 为此提出改进的无模型自适应控制器（MFAC). 建立天然气发动机系统模型并校验其有效性，选取燃烧中点(CA50)作为燃烧过程反馈控制量. 通过建立离散的偏格式动态线性化模型，利用系统输入输出数据估计燃烧过程中点火正时和空燃比的伪偏导数，求解得到MFAC控制器. MFAC控制器持续追踪在线更新的期望状态进而实现对CA50的跟踪控制. 为了兼顾CA50动态收敛速度和静态跟踪精度，在MFAC控制器中引入基于跟踪误差变化的快速收敛项，并针对闭环系统给出严格的稳定性和收敛性能分析. 设计2种测试方案，将所提控制器与增量式PID控制器进行对比，结果表明所提出的控制器在鲁棒性、收敛速度和跟踪精度方面都有更优越的表现.

关键词： 天然气发动机, 燃烧过程, 燃烧中点, 无模型自适应控制, 收敛速度, 在线数据

Fig.1 Schematic diagram of natural gas engine system model

Tab.1 Basic structural parameters of natural gas engine

Tab.2 Correction working point of natural gas engine model

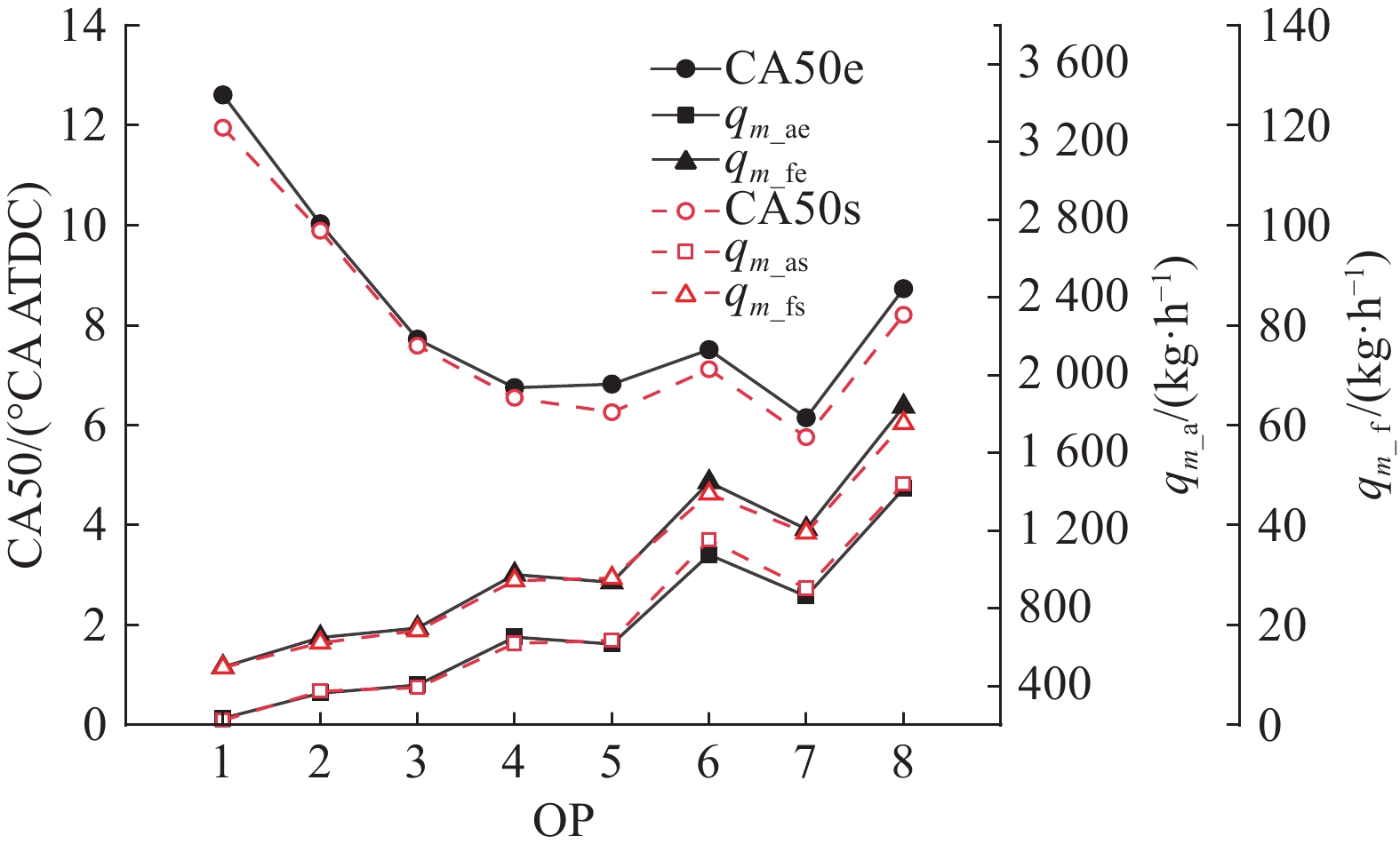

Fig.2 Model calibration curve

Fig.3 Flowchart of MFAC controller design for combustion process

Fig.4 Semi physics experiment platform of MFAC

Fig.5 Comparison of experimental results of CA50 under constant speed condition

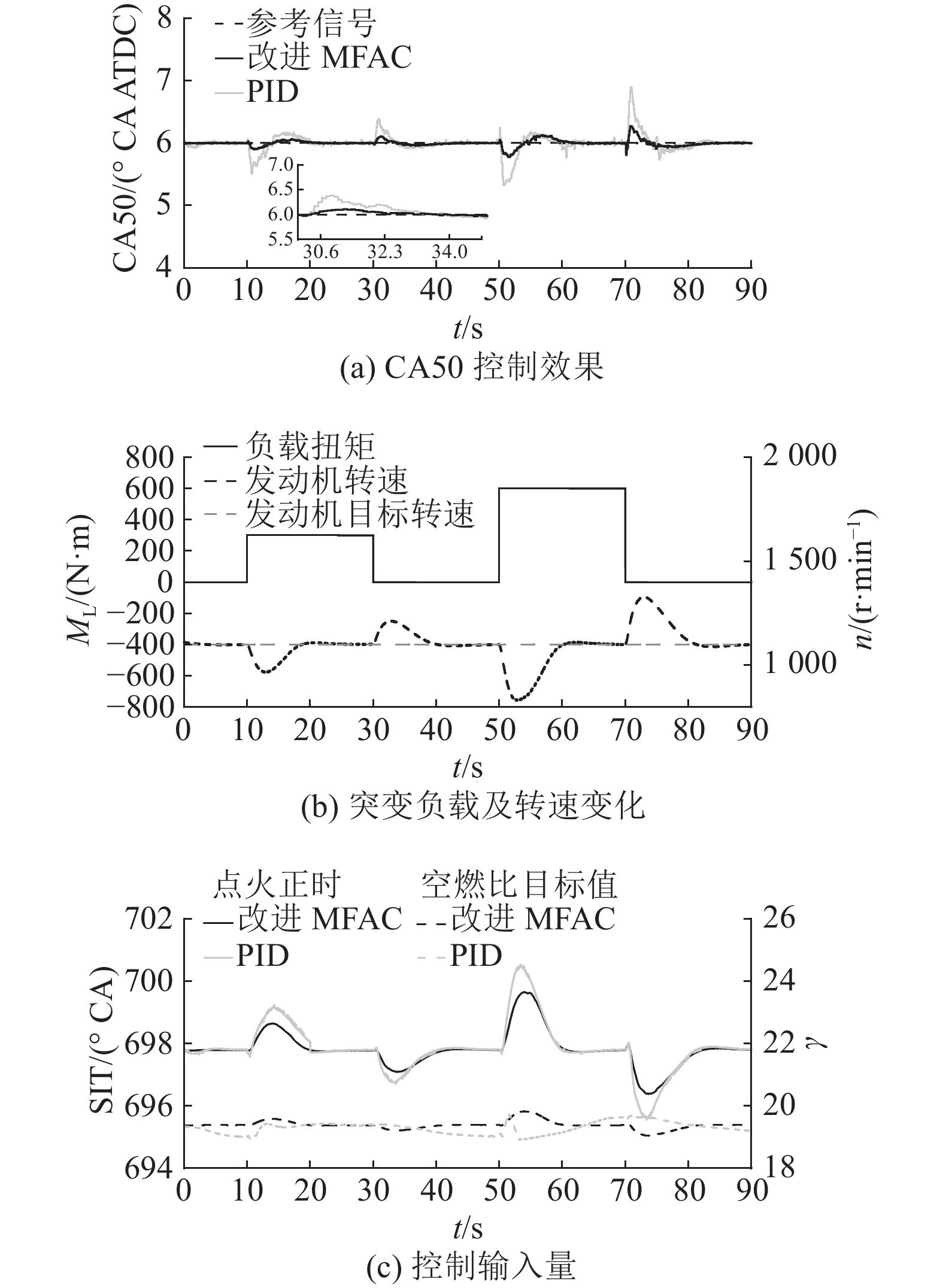

Fig.6 CA50 performance during sudden load torque variations

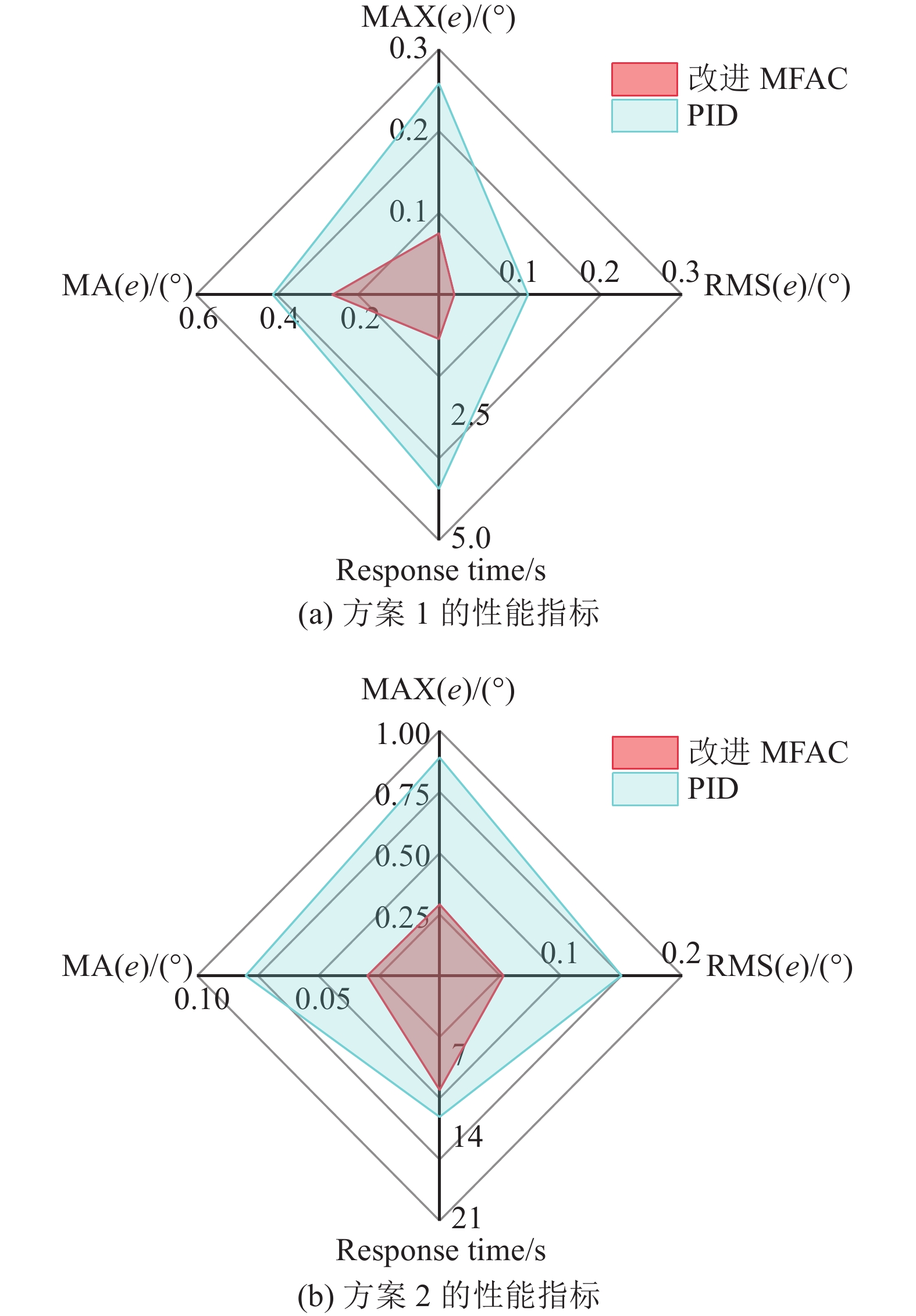

Fig.7 Comparison of experimental performance indicators under different working conditions


[1]	GONG Q, XU J, YE J, et al Nonlinear model predictive control for premixed turbocharged natural gas engine[J]. IEEE/ASME Transactions on Mechatronics, 2022, 27 (5): 3694- 3705 doi: 10.1109/TMECH.2021.3130910

[2]	CAO J, DONG D, WEI F, et al Investigation on jet controlled diffusion combustion (JCDC) mode applied on a marine large-bore two-stroke engine[J]. Journal of Cleaner Production, 2023, 429: 139546 doi: 10.1016/j.jclepro.2023.139546

[3]	刘津津, 丁顺良, 高建设, 等低负荷工况下天然气发动机燃烧不稳定性分析[J]. 内燃机学报, 2022, 40 (5): 394- 402 LIU Jinjin, DING Shunliang, GAO Jianshe, et al Analysis of combustion instability for a natural gas engine under low load conditions[J]. Transactions of CSICE, 2022, 40 (5): 394- 402

[4]	CARLUCCI A P, LAFORGIA D, MOTZ S, et al Advanced closed loop combustion control of a LTC diesel engine based on in-cylinder pressure signals[J]. Energy Conversion and Management, 2014, 77: 193- 207 doi: 10.1016/j.enconman.2013.08.054

[5]	GAO J, WU Y, SHEN T A statistical combustion phase control approach of SI engines[J]. Mechanical Systems and Signal Processing, 2017, 85: 218- 235 doi: 10.1016/j.ymssp.2016.08.007

[6]	付建勤, 刘敬平, 阳辉勇, 等 LNG发动机低速工况下瞬态燃烧过程试验研究[J]. 湖南大学学报: 自然科学版, 2016, 43 (2): 64- 69 FU Jianqin, LIU Jingping, YANG Huiyong, et al Experimental study on the transient combustion process of LNG engine under low-speed conditions[J]. Journal of Hunan University: Natural Sciences, 2016, 43 (2): 64- 69

[7]	刘晓阳, 姚崇, 王睿, 等船用柴油机燃烧过程控制策略设计及仿真验证[J]. 内燃机学报, 2021, 39 (3): 209- 216 LIU Xiaoyang, YAO Chong, WANG Rui, et al Designed and verified the marine diesel engine combustion process control strategy[J]. Transactions of CSICE, 2021, 39 (3): 209- 216

[8]	OLSSON J-O, TUNESTAL P, JOHANSSON B. Closed-loop control of an HCCI engine [C]// SAE 2001 World Congress and Exhibition. Detroit: SAE International, 2001, 110: 1076–1085.

[9]	唐俊, 余永华, 王勤鹏, 等船用中速柴油机缸压闭环控制技术仿真研究[J]. 内燃机工程, 2019, 40 (1): 72- 78 TANG Jun, YU Yonghua, WANG Qinpeng, et al Simulation and analysis of closed-loop control technology for medium speed marine diesel engines based on in-cylinder pressure[J]. Chinese Internal Combustion Engine Engineering, 2019, 40 (1): 72- 78

[10]	STRANDH P, BENGTSSON J, JOHANSSON R, et al. Cycle-to-cycle control of a dual-fuel HCCI engine [C]// SAE 2004 World Congress and Exhibition. Detroit: SAE International, 2004, 113: 589−598.

[11]	曲栓, 石磊, 邓康耀均质压燃燃烧闭环控制系统的开发和试验研究[J]. 内燃机工程, 2012, 33 (2): 28- 32 QU Shuan, SHI Lei, DENG Kangyao Development and experimental study of cyele-based combustion control system[J]. Chinese Internal Combustion Engine Engineering, 2012, 33 (2): 28- 32 doi: 10.3969/j.issn.1000-0925.2012.02.005

[12]	王佐, 刘鹏受扰直流降压变换器自适应离散滑模控制设计与实现[J]. 控制理论与应用, 2023, 40 (11): 1911- 1919 WANG Zuo, LIU Peng Adaptive discrete-time sliding mode control design and implementation for DC-DC buck converters with disturbances[J]. Control Theory and Applications, 2023, 40 (11): 1911- 1919 doi: 10.7641/CTA.2023.20471

[13]	张鹏, 蒋明宏, 李翁衡, 等基于无模型自适应算法的主控式干摩擦阻尼器-双转子系统振动主动控制[J]. 机械工程学报, 2025, 61 (1): 140- 149 ZHANG Peng, JIANG Minghong, LI Wengheng, et al Vibration control of active dry friction damper-twin rotor system based on the model-free adaptive algorithm[J]. Journal of Mechanical Engineering, 2025, 61 (1): 140- 149

[14]	ZHANG B, ZHANG W Adaptive predictive functional control of a class of nonlinear systems[J]. ISA Transactions, 2006, 45 (2): 175- 183 doi: 10.1016/S0019-0578(07)60188-8

[15]	焦世广, 侯忠生运行时间区间可变的地铁列车无模型自适应迭代学习控制[J]. 控制理论与应用, 2025, 42 (3): 642- 648 JIAO Shiguang, HOU Zhongsheng Model-free adaptive iterative learning control for subway train with variable operation time interval[J]. Control Theory and Technology, 2025, 42 (3): 642- 648

[16]	YUE B F, SU M Y, JIN X Z, et al Event-triggered MFAC of nonlinear NCSs against sensor faults and DoS attacks[J]. IEEE Transactions on Circuits and Systems II: Express Briefs, 2022, 69 (11): 4409- 4413

[17]	LIU X, QIU L, FANG Y, et al Predictor-based data-driven model-free adaptive predictive control of power converters using machine learning[J]. IEEE Transactions on Industrial Electronics, 2023, 70 (8): 7591- 7603 doi: 10.1109/TIE.2022.3208594

[18]	YANG C, ZHENG T, BU M, et al Distributed model-free adaptive control strategy for hybrid AC/DC microgrid with event-triggered mechanism[J]. IEEE Transactions on Industrial Electronics, 2024, 71 (8): 9077- 9086 doi: 10.1109/TIE.2023.3331158

[19]	侯忠生, 许建新数据驱动控制理论及方法的回顾和展望[J]. 自动化学报, 2009, 35 (6): 650- 667 HOU Zhongsheng, XU Jianxin On data-driven control theory: the state of the art and perspective[J]. Acta Automatica Sinica, 2009, 35 (6): 650- 667 doi: 10.3724/SP.J.1004.2009.00650

[20]	罗禹贡, 陈锐, 胡云分布式电驱动车辆线控转向系统MFAC主动容错控制[J]. 机械工程学报, 2019, 55 (22): 131- 139 LUO Yugong, CHEN Rui, HU Yun Active fault-tolerant control based on MFAC or 4WID EV with steering by wire system[J]. Journal of Mechanical Engineering, 2019, 55 (22): 131- 139 doi: 10.3901/JME.2019.22.131

[21]	XU F, SUI Z, WANG Y, et al An improved data-driven integral sliding-mode control and its automation application[J]. Applied Sciences, 2023, 13 (24): 13094 doi: 10.3390/app132413094

[22]	OOMMEN L P, NARAYANAPPA K G Assimilative capacity approach for air pollution control in automotive engines through magnetic field-assisted combustion of hydrocarbons[J]. Environmental Science and Pollution Research, 2021, 28 (45): 63661- 63671 doi: 10.1007/s11356-020-11923-5

[23]	LIU J, DUMITRESCU C E Single and double Wiebe function combustion model for a heavy-duty diesel engine retrofitted to natural-gas spark-ignition[J]. Applied Energy, 2019, 248: 95- 103 doi: 10.1016/j.apenergy.2019.04.098

[24]	MA F, WANG Y, WANG M, et al Development and validation of a quasi-dimensional combustion model for SI engines fuelled by HCNG with variable hydrogen fractions[J]. International Journal of Hydrogen Energy, 2008, 33 (18): 4863- 4875 doi: 10.1016/j.ijhydene.2008.06.068

[25]	施东晓, 郭立新, 钟博, 等废气再循环率及点火时刻对天然气发动机燃烧和排温的影响[J]. 内燃机工程, 2021, 42 (1): 7- 14 SHI Dongxiao, GUO Lixin, ZHONG Bo, et al Effect of exhaust gas recirculation and ignition timing on combustion process and exhaust temperature of natural gas engine[J]. Chinese Internal Combustion Engine Engineering, 2021, 42 (1): 7- 14

[26]	WEN B, WU X, WU K, et al CA50 estimation based on Neural Network and smooth variable structure filter[J]. ISA Transactions, 2021, 114: 499- 507 doi: 10.1016/j.isatra.2020.12.032

[27]	HOU Z, JIN S A novel data-driven control approach for a class of discrete-time nonlinear systems[J]. IEEE Transactions on Control Systems Technology, 2011, 19 (6): 1549- 1558 doi: 10.1109/TCST.2010.2093136
