Model construction and evaluation method of fuzzy reliability life of spherical hinge based on accuracy

doi:10.3785/j.issn.1008-973X.2025.03.020

Journal of ZheJiang University (Engineering Science)

2025, Vol. 59

Issue (3): 626-634 DOI: 10.3785/j.issn.1008-973X.2025.03.020

Model construction and evaluation method of fuzzy reliability life of spherical hinge based on accuracy

Shuang CHEN1,2(

),Shihua LI2,*(

),Jing SUN3

1. School of Physical Science and Technology, Tangshan Normal University, Tangshan 064000, China
2. School of Mechanical Engineering, Yanshan University, Qinhuangdao 066004, China
3. College of Mechanical Engineering, North China University of Science and Technology, Tangshan 063210, China

Download:

HTML

PDF(1081KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The service life of the spherical hinge in the mechanism was analyzed combining the multi-body system dynamics and fuzzy reliability theory. The wear life model and evaluation method of the spherical hinge based on accuracy requirements were constructed in order to accurately predict the life that met the accuracy requirements of the mechanism. The functional relationship between the wear clearance of the spherical hinge and the quantitative index of mechanism accuracy was established by quantifying the accuracy characteristics of the mechanism and the multi-body dynamic model of spherical hinges with clearance. The maximum allowable wear clearance value of the spherical hinge was determined based on the accuracy requirements of the mechanism. Furthermore, considering the dual uncertainties of randomness and fuzziness in wear clearances, the maximum allowable clearance value of the spherical hinge was used to determine the maximum allowable wear amount. The fuzzy reliability life model of solid lubricated spherical hinge was constructed considering the working conditions of solid lubrication. Finally, taking the 3-RPS parallel mechanism as an example, considering the influence of all spherical hinges, the wear life of solid lubricated spherical hinges in atmospheric and vacuum environments was predicted by setting the accuracy threshold of the mechanism. Results showed that the proposed method could predict the service life of spherical hinges by the precision failure threshold of the mechanism, improve the safety of the mechanism during service, and provide theoretical basis for improving the evaluation method system of wear life.

Key words： spherical hinge wear life evaluation accuracy index fuzzy reliability solid lubrication

Received: 11 January 2024 Published: 10 March 2025

CLC:

TH 117

Fund: 国家自然科学基金资助项目（52275032）；河北省自然科学基金资助项目（E2022203077）；河北省省级科技计划资助项目（22371801D）；河北省科学技术研究与发展计划-中央引导地方科技发展资金项目（246Z1818G）；唐山师范学院博士基金资助项目（2023B31）.

Corresponding Authors: Shihua LI E-mail: 157200223@qq.com;shli@ysu.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Shuang CHEN
	Shihua LI
	Jing SUN

Cite this article:

Shuang CHEN,Shihua LI,Jing SUN. Model construction and evaluation method of fuzzy reliability life of spherical hinge based on accuracy. Journal of ZheJiang University (Engineering Science), 2025, 59(3): 626-634.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.03.020 OR https://www.zjujournals.com/eng/Y2025/V59/I3/626

基于精度的球铰模糊可靠性寿命模型构建及评估方法

结合多体系统动力学和模糊可靠性理论，分析球铰在机构中的服役寿命. 为了准确预测满足机构精度要求下的寿命，构建基于精度要求的球铰磨损寿命模型和评估方法. 提出机构精度特性的量化指标，分析含间隙球铰的多体动力学，建立球铰磨损间隙与机构精度指标之间的函数关系，并根据机构精度要求确定球铰最大允许磨损间隙. 针对磨损间隙具有随机性和模糊性的双重不确定性，由球铰的最大允许间隙得到最大允许磨损量，进一步考虑固体润滑工况，构建固体润滑球铰的模糊可靠性寿命模型. 以3-RPS并联机构为例，计及所有球铰的影响，通过设定机构精度阈值，分别预测大气和真空环境下固体润滑球铰的磨损寿命. 基于精度的寿命评估新方法能够根据机构精度要求预测球铰使用年限，提高机构在服役期间的安全性，为建全磨损寿命评价方法体系提供理论依据.

关键词： 球铰, 磨损寿命评估, 精度指标, 模糊可靠性, 固体润滑

Fig.1 Schematic diagram of spherical hinge clearance model

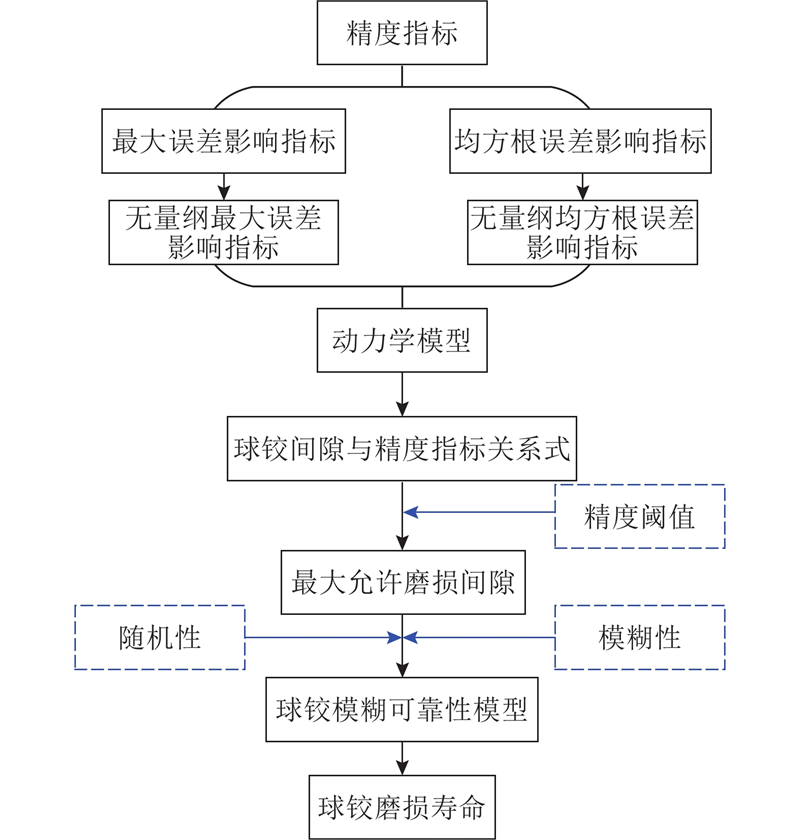

Fig.2 Wear life evaluation system of spherical hinges based on accuracy requirements

Fig.3 3-RPS parallel mechanism model

Tab.1 Structural parameters and dynamic parameters of 3-RPS parallel mechanism

Fig.4 Influence index of maximum error on position of 3-RPS mechanism

Fig.5 Influence index of root mean square error on position of 3-RPS mechanism

Fig.6 Influence index of dimensionless maximum error on position of 3-RPS mechanism

Fig.7 Influence index of dimensionless root mean square error on position of 3-RPS mechanism

Fig.8 Distribution curves of semi-trapezoidal and semi-normal membership functions in wear of spherical hinge

Fig.9 Probability reliability and fuzzy reliability curves of wear of spherical hinge


[1]	MUKRAS S, KIM N H, MAUNTLER N A, et al Analysis of planar multibody systems with revolute joint wear[J]. Wear, 2010, 268 (5/6): 643- 652 doi: 10.1016/j.wear.2009.10.014

[2]	HELMI ATTIA M Fretting fatigue and wear damage of structural components in nuclear power stations-fitness for service and life management perspective[J]. Tribology International, 2006, 39 (10): 1294- 1304 doi: 10.1016/j.triboint.2006.02.052

[3]	CHEBAKOV M I, DANILCHENKO S A Wear simulation of a spherical hinge joint with a thin composite coating[J]. Mechanics of Composite Materials, 2021, 57 (5): 667- 674 doi: 10.1007/s11029-021-09993-8

[4]	王龙, 崔建昆, 刘兵, 等医疗辅助机械臂关节处的球铰结构设计[J]. 农业装备与车辆工程, 2020, 58 (12): 106- 109 WANG Long, CUI Jiankun, LIU Bing, et al Design of ball joint structure based on joint of medical auxiliary mechanical arm[J]. Agricultural Equipment & Vehicle Engineering, 2020, 58 (12): 106- 109 doi: 10.3969/j.issn.1673-3142.2020.12.024

[5]	WOZNIAK M, SICZEK K, OZUNA G, et al A study on wear and friction of passenger vehicles control arm ball joints[J]. Energies, 2021, 14 (11): 3238 doi: 10.3390/en14113238

[6]	HOU J H, YAO G F, HUANG H L Dynamic analysis of a spatial mechanism including frictionless spherical clearance joint with flexible socket[J]. Journal of Computational and Nonlinear Dynamics, 2018, 13 (3): 031002 doi: 10.1115/1.4038508

[7]	CHEN X L, JIA Y H Wear analysis of spatial parallel mechanisms with multiple three-dimensional spherical clearance joints[J]. Journal of Tribology, 2019, 141 (10): 101604 doi: 10.1115/1.4044295

[8]	白争锋, 赵阳, 赵志刚考虑运动副间隙的机构动态特性研究[J]. 振动与冲击, 2011, 30 (11): 17- 20 BAI Zhengfeng, ZHAO Yang, ZHAO Zhigang Dynamic characteristics of mechanisms with joint clearance[J]. Journal of Vibration and Shock, 2011, 30 (11): 17- 20 doi: 10.3969/j.issn.1000-3835.2011.11.005

[9]	FLORES P, AMBRÓSIO J, CLARO J C P, et al Dynamics of multibody systems with spherical clearance joints[J]. Journal of Computational and Nonlinear Dynamics, 2006, 1 (3): 240- 247 doi: 10.1115/1.2198877

[10]	王庚祥, 刘宏昭考虑球面副间隙的4-SPS/CU并联机构动力学分析[J]. 机械工程学报, 2015, 51 (1): 43- 51 WANG Gengxiang, LIU Hongzhao Dynamics analysis of 4-SPS/CU parallel mechanism with spherical joint clearance[J]. Journal of Mechanical Engineering, 2015, 51 (1): 43- 51 doi: 10.3901/JME.2015.01.043

[11]	李研彪, 徐涛涛, 郑航, 等含球面副间隙的空间并联机构动态特性[J]. 浙江大学学报: 工学版, 2020, 54 (2): 348- 356 LI Yanbiao, XU Taotao, ZHENG Hang, et al Dynamic characteristics of spatial parallel mechanism with spherical joint clearance[J]. Journal of Zhejiang University: Engineering Science, 2020, 54 (2): 348- 356

[12]	冯国弟, 李彬, 冯威, 等基于模糊理论的机械零部件磨损可靠性设计[J]. 工程机械, 2021, 52 (12): 59- 63 FENG Guodi, LI Bin, FENG Wei, et al Reliability design of machinery parts wear based on fuzzy theory[J]. Construction Machinery and Equipment, 2021, 52 (12): 59- 63 doi: 10.3969/j.issn.1000-1212.2021.12.014

[13]	赵美英, 冯元生机构磨损可靠性高精度算法[J]. 机械强度, 1998, 20 (1): 49- 52 ZHAO Meiying, FENG Yuansheng The computation of wear reliability of mechanism with high accuracy[J]. Journal of Mechanical Strength, 1998, 20 (1): 49- 52

[14]	国志刚, 冯蕴雯, 冯元生铰链磨损可靠性分析及计算方法[J]. 西北工业大学学报, 2006, 24 (5): 644- 648 GUO Zhigang, FENG Yunwen, FENG Yuansheng Wear reliability of linkage under periodic loading[J]. Journal of Northwestern Polytechnical University, 2006, 24 (5): 644- 648 doi: 10.3969/j.issn.1000-2758.2006.05.024

[15]	YUN W Y, LU Z Z, FENG K X, et al A novel step-wise AK-MCS method for efficient estimation of fuzzy failure probability under probability inputs and fuzzy state assumption[J]. Engineering Structures, 2019, 183: 340- 350 doi: 10.1016/j.engstruct.2019.01.020

[16]	陈紫起, 薛冬新基于T-S模糊故障树的某柴油机缸套可靠性分析[J]. 合肥工业大学学报: 自然科学版, 2021, 44 (7): 875- 880 CHEN Ziqi, XUE Dongxin Reliability analysis of a diesel engine cylinder liner based on T-S fuzzy fault tree[J]. Journal of Hefei University of Technology: Natural Science, 2021, 44 (7): 875- 880

[17]	黄晓宇, 王攀, 李海和, 等具有模糊失效状态的涡轮盘疲劳可靠性及灵敏度分析[J]. 西北工业大学学报, 2021, 39 (6): 1312- 1319 HUANG Xiaoyu, WANG Pan, LI Haihe, et al Fatigue reliability and sensitivity analysis of turbine disk with fuzzy failure status[J]. Journal of Northwestern Polytechnical University, 2021, 39 (6): 1312- 1319 doi: 10.3969/j.issn.1000-2758.2021.06.018

[18]	SUNIL K, RANJAN M S, LOKESWAR P Wear parameter optimization of ceramic coating using the fuzzy integrated PSI-CODAS decision-making framework[J]. Arabian Journal for Science and Engineering, 2023, 48 (3): 3819- 3841 doi: 10.1007/s13369-022-07212-7

[19]	WALLBRIDGE N C, DOWSON D Distribution of wear rate data and a statistical approach to sliding wear theory[J]. Wear, 1987, 119 (3): 295- 312 doi: 10.1016/0043-1648(87)90037-8

[20]	赵颖, 王旭东, 刘曦, 等重叠可展开天线双轴指向机构的设计及应用[J]. 空间电子技术, 2020, 17 (1): 83- 87 ZHAO Ying, WANG Xudong, LIU Xi, et al Design of a new satellite antennas deployment pointing mechanism[J]. Space Electronic Technology, 2020, 17 (1): 83- 87 doi: 10.3969/j.issn.1674-7135.2020.06.015

[21]	XUE X Y, LIU C X, QIAO J, et al The research about radiometric technology of two-dimensional rotary table based on image gray level[J]. EURASIP Journal on Image and Video Processing, 2019, (1): 45

[22]	ZHANG H D, ZHANG X M, ZHANG X C, et al Dynamic analysis of a 3-PRR parallel mechanism by considering joint clearances[J]. Nonlinear Dynamics, 2017, 90 (1): 405- 423 doi: 10.1007/s11071-017-3672-1

[23]	刘柏希, 陈宏石, 屈涛, 等多因素耦合下机构运动精度可靠性仿真试验及寿命评估[J]. 机械传动, 2017, 41 (7): 119- 125 LIU Baixi, CHEN Hongshi, QU Tao, et al Reliability simulative trial of kinematic accuracy and life evaluation for planar mechanism with multi-factor coupling[J]. Journal of Mechanical Transmission, 2017, 41 (7): 119- 125

[24]	王文清, 郑慕侨综合传动铸铁密封环磨损模糊可靠性分析与计算[J]. 北京理工大学学报, 2005, 25 (2): 112- 115 WANG Wenqing, ZHENG Muqiao Analysis and calculation of fuzzy reliability on the cast iron sealing ring in composite transmissions[J]. Transactions of Beijing Institute of Technology, 2005, 25 (2): 112- 115 doi: 10.3969/j.issn.1001-0645.2005.02.005

[25]	陈爽, 王勇杰, 李仕华, 等 MoS2薄膜摩擦因数和磨损量的数学模型[J]. 表面技术, 2022, 51 (3): 51- 56 CHEN Shuang, WANG Yongjie, LI Shihua, et al Mathematical model of friction coefficient and wear of MoS2 Film[J]. Surface Technology, 2022, 51 (3): 51- 56

[26]	徐晓岭, 顾蓓青, 王蓉华正态分布变差系数的置信区间研究[J]. 电子产品可靠性与环境试验, 2021, 39 (2): 35- 41 XU Xiaoling, GU Beiqing, WANG Ronghua Study on confidence interval of variation coefficient for normal distribution[J]. Electronic Product Reliability and Environmental Testing, 2021, 39 (2): 35- 41
