Experimental study on pile driving process of grouted enlarged toe pile
Shaohan GENG1,3(),Fan SUN1,2,Juntao WU1,2,*(),Kuihua WANG1,2,Ying YANG4,5,Gang GAN2,3
1. College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
2. Center for Balance Architecture, Zhejiang University, Hangzhou 310063, China
3. The Architecture Design and Research Institute of Zhejiang University Limited Company, Hangzhou 310027, China
4. Zhejiang Dadi Geological Survey and Design Limited Company, Hangzhou 310030, China
5. Zhongtian Construction Group Limited Company, Hangzhou 310016, China
Download: HTML     PDF(2912KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The transparent soil model test was conducted for the construction process of a new grouted enlarged-toe (GET) precast pile. The end resistance and side friction resistance can be significantly improved because of the expansion of the enlarged toe structure at the end and the solidification of the cement slurry around the pile, which makes the new pile type have higher uplift resistance compared with traditional prefabricated piles. Then the transparent soil material Laponite RD was used to simulate the construction environment of soft clay, and comparative model tests were conducted on conventional precast piles, precast piles with enlarged toe, and grouted enlarged-toe (GET) precast pile. Particle image velocimetry (PIV) technology was used to visualize the post processing of the pile construction process in order to explore the mechanism of the pile formation process of the new pile and provide theoretical support for the further promotion and application. Results showed that the distribution of soil displacement field in the construction of new pile types was different from that of conventional prefabricated piles, showing a vortex shape. The influence range was reduced by the enlarged toe structure and synchronous grouting technology of surface and internal construction disturbances on the soil surrounding pile, which is very beneficial for the construction of squeezed soil pile foundations.

Key words： enlarged-toe      side grouting      transparent soil      pile driving mechanism      construction squeezing
Received: 04 September 2023      Published: 23 October 2024
CLC:  TU 473
Fund:  国家自然科学基金资助项目（52108349，52178358）；浙江省自然科学基金探索项目（LTGG24E080001）.
Corresponding Authors: Juntao WU     E-mail: gengshaohan2000@126.com;wujuntao31@126.com
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Shaohan GENG
Fan SUN
Juntao WU
Kuihua WANG
Ying YANG
Gang GAN
Cite this article:

Shaohan GENG,Fan SUN,Juntao WU,Kuihua WANG,Ying YANG,Gang GAN. Experimental study on pile driving process of grouted enlarged toe pile. Journal of ZheJiang University (Engineering Science), 2024, 58(11): 2376-2383.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2024.11.019     OR     https://www.zjujournals.com/eng/Y2024/V58/I11/2376


带扩大桩靴桩侧同步灌浆桩成桩过程试验研究

针对新型带扩大桩靴桩侧同步灌浆预制桩基础的施工成桩过程，开展透明土模型的试验研究. 相较于传统预制桩，新桩型成桩完成后，端部扩大桩靴结构及桩周固化后的水泥浆液可以明显提升基桩端阻力和侧摩阻力，使得该新桩型具有较高的抗拔能力. 通过透明土材料Laponite RD模拟软黏土施工环境，分别针对常规预制桩、带扩大桩靴预制桩及带扩大桩靴桩侧同步灌浆预制桩开展对比模型试验，采用粒子图像测速（PIV）技术进行成桩施工过程的可视化后处理，以探明该新桩型的成桩过程机理，为新桩型的进一步推广应用提供理论支撑. 研究结果表明，新桩型施工挤土位移场的分布形式不同于常规预制桩，呈涡旋状，挤土位移的影响范围小于桩靴同直径的预制桩. X、Y方向的位移云图显示，扩大桩靴结构和同步灌浆施工技术使得桩周土体表面及内部施工扰动的影响范围更小，这对于挤土型桩基施工而言是十分有益的.


关键词： 扩大桩靴,  桩侧灌浆,  透明土,  成桩机理,  施工挤土

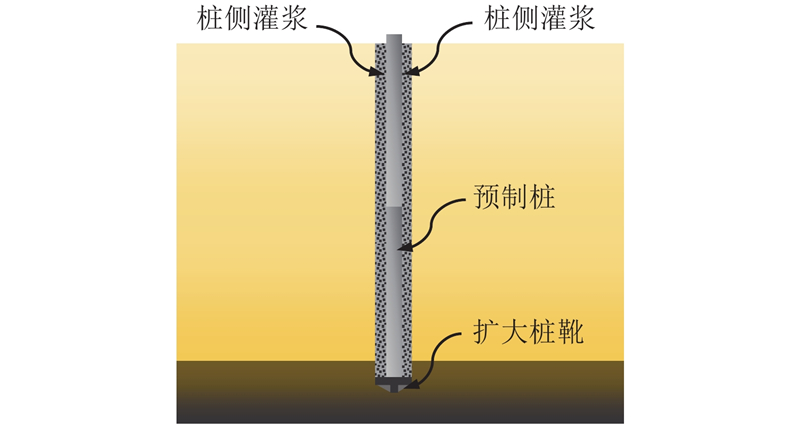

Fig.1 Schematic diagram of new pile foundation structure

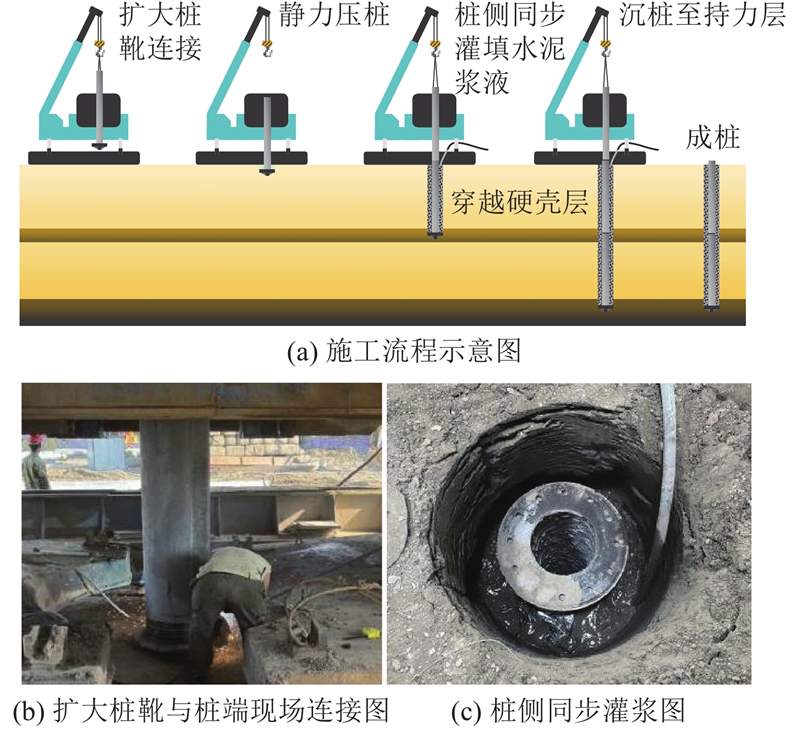

Fig.2 Construction of new pile foundation
Fig.3 Single pile static load test
桩型Q/kNW/元Wq/（元·kN?1）
PHC500-AB-1251 5006 8254.55
新桩型2 4757 7363.13
Tab.1 Unit bearing capacity cost calculation table

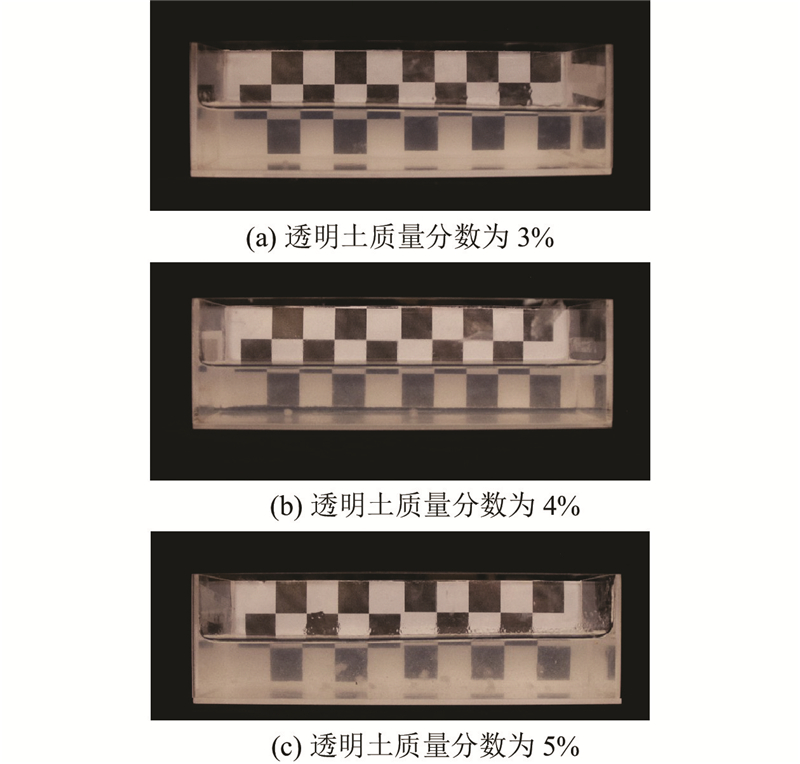

Fig.4 Transparent comparison at soil sample thickness of 50 mm
参数数值
单晶尺寸/nm25×0.92
含水率/%<10
折射率/%1.5
相对密度2.53
Tab.2 Material parameter of Laponite RD

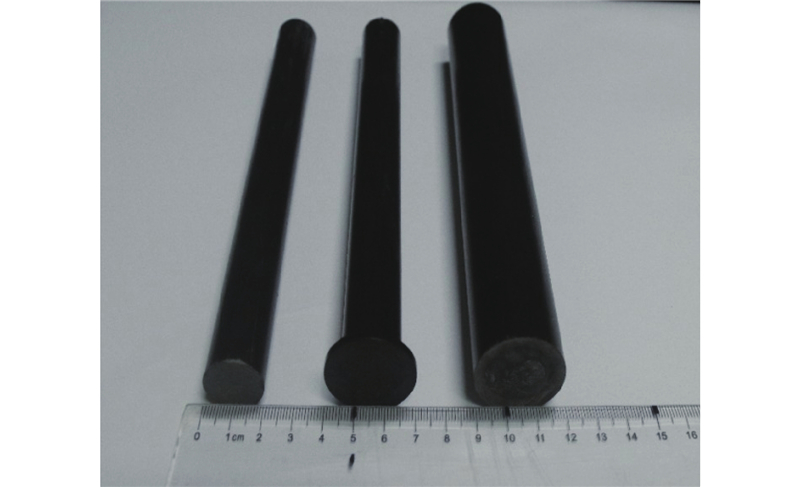

Fig.5 Schematic diagram of model pile
编号桩型桩身尺寸
（桩长×直径）		桩靴尺寸
（直径×厚度）
#1常规预制桩200 mm×20 mm—
#2带扩大桩靴预制桩200 mm×20 mm30 mm×2 mm
#3带扩大桩靴+桩侧灌浆预制桩200 mm×20 mm30 mm×2 mm
#4常规预制桩200 mm×30 mm—
Tab.3 Parameter of Laponite RD material
Fig.6 Experimental setup diagram of transparent soil model

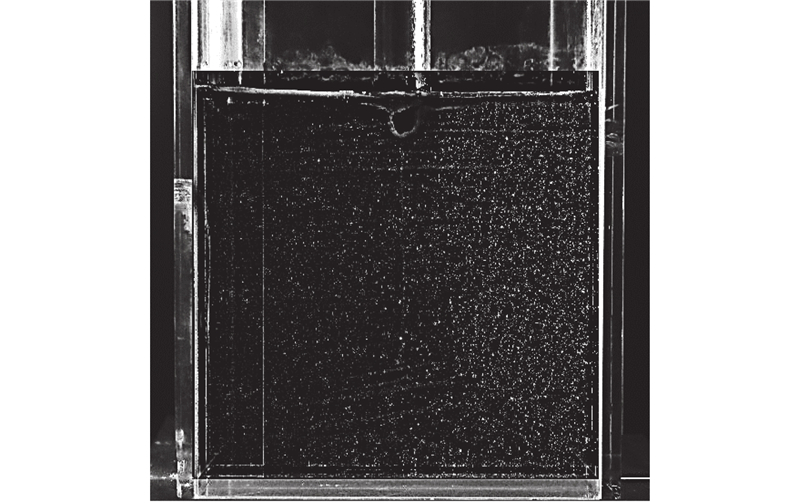

Fig.7 Schematic diagram of speckle field

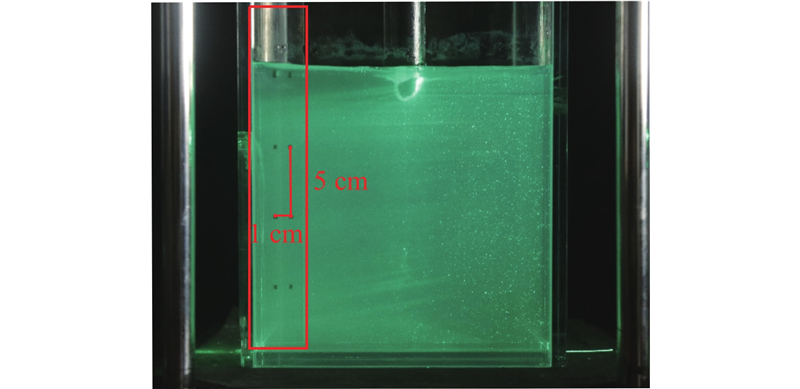

Fig.8 Schematic diagram of calibration point

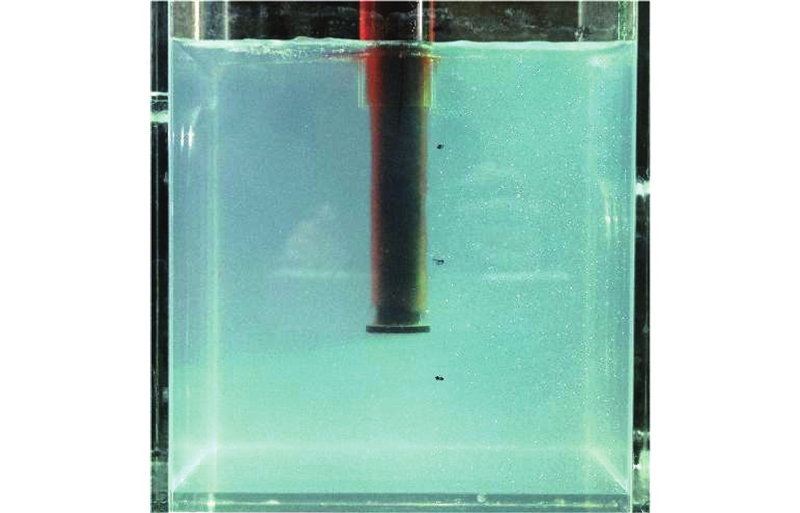

Fig.9 Grouting effect diagram on pile side

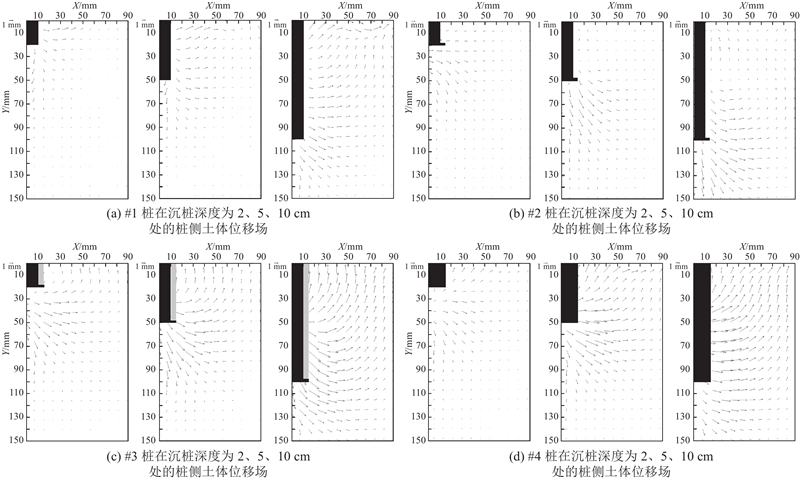

Fig.10 Diagram of displacement of soil mass at pile side

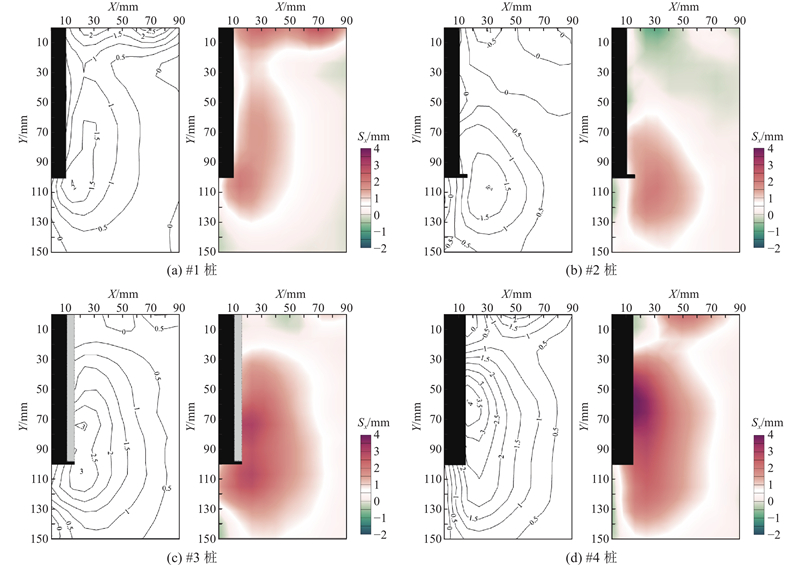

Fig.11 Displacement contour of surrounding soil in X direction

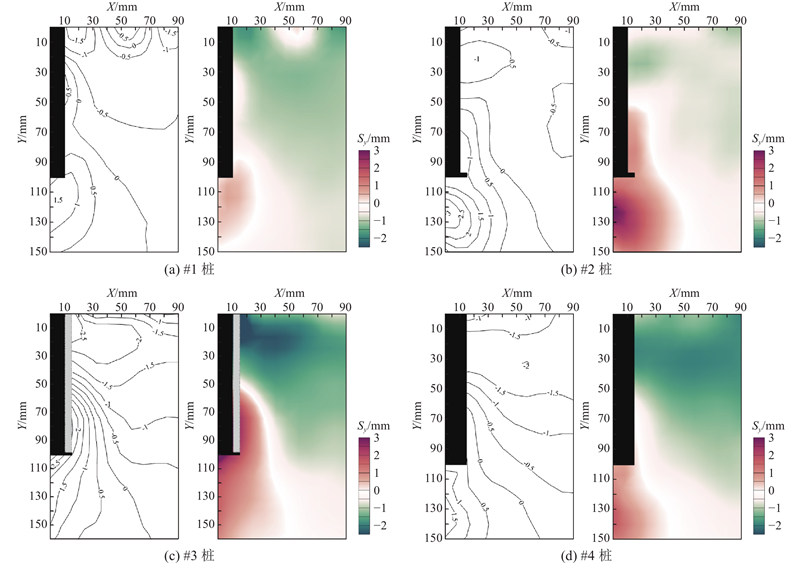

Fig.12 Displacement contours of surrounding soil in Y direction
