Dynamic multimedia pricing scheme based on three-party Stackelberg game in Internet of vehicles
Haibo ZHANG1(),Xinyue WANG1,Dongyu WANG2,Fu LIU3
1. School of Communication and Information Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2. School of Artificial Intelligence, Beijing University of Posts and Telecommunications, Beijing 100876, China
3. Chongqing Urban Lighting Center, Chongqing 400023, China
Download: HTML     PDF(1519KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The user quality of experience (QoE) is reduced due to the low enthusiasm of the relay vehicle data forwarding and the limited storage space in the current Internet of vehicles (IoV) application scenarios. Thus, a dynamic multimedia pricing scheme based on the three-party Stackelberg game was proposed. Aiming at incentivizing relay vehicles to participate in forwarding multimedia content, a new multimedia content pricing framework was proposed, in which the relay vehicle received a full commission and then paid a partial commission to the roadside unit (RSU). A dynamic pricing model based on Stackelberg game was designed to establish a utility function, which was based on the storage space utilization, the content data size and the cost of the relay vehicle, the user vehicle and the RSU. The utility function was transformed into a three-party, four-stage Stackelberg pricing model. The existence of the Nash equilibrium solution was proved using backward induction technique, and the dynamic pricing process among the three parties was finally realized to achieve their respective optimal strategies. The simulation results showed that the proposed scheme effectively solved the problem of overloaded storage space in the relay vehicle and improved the enthusiasm of the relay vehicle, and it had advantages over the traditional scheme in improving user QoE.

Key words： Internet of vehicles (IoV)      dynamic pricing      Stackelberg game      QoE      backward induction technique
Received: 24 May 2023      Published: 30 August 2024
CLC:  TN 92
Fund:  国家自然科学基金资助项目（62271094）；长江学者和创新团队发展计划基金资助项目（IRT16R72）；重庆市留创计划创新类资助项目(cx2020059).
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Haibo ZHANG
Xinyue WANG
Dongyu WANG
Fu LIU
Cite this article:

Haibo ZHANG,Xinyue WANG,Dongyu WANG,Fu LIU. Dynamic multimedia pricing scheme based on three-party Stackelberg game in Internet of vehicles. Journal of ZheJiang University (Engineering Science), 2024, 58(9): 1781-1789.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2024.09.003     OR     https://www.zjujournals.com/eng/Y2024/V58/I9/1781


车联网中基于三方Stackelberg博弈的动态多媒体定价方案

在当前车联网的应用场景下，中继车辆数据转发的积极性低下与存储空间有限，导致用户体验质量（QoE）降低，为此提出基于三方Stackelberg博弈的动态多媒体定价方案. 为了激励中继车辆参与转发多媒体内容，提出多媒体内容定价框架，其中中继车辆获得全额佣金后向路侧单元（RSU）支付部分佣金. 设计基于Stackelberg博弈的动态定价模型，根据中继车辆、用户车辆与RSU三方的存储空间利用率、内容数据大小和成本因素，建立各自的效用函数，并将其转化为三方四阶段Stackelberg定价模型. 通过反向归纳法证明纳什均衡的存在，实现三方之间的动态定价以得到各自最优策略. 仿真结果表明，所提方案有效解决了中继车辆存储空间过载问题，并提高了中继车辆积极性，且在提升用户QoE方面较传统方案具有优势.


关键词： 车联网(IoV),  动态定价,  Stackelberg博弈,  QoE,  反向归纳法

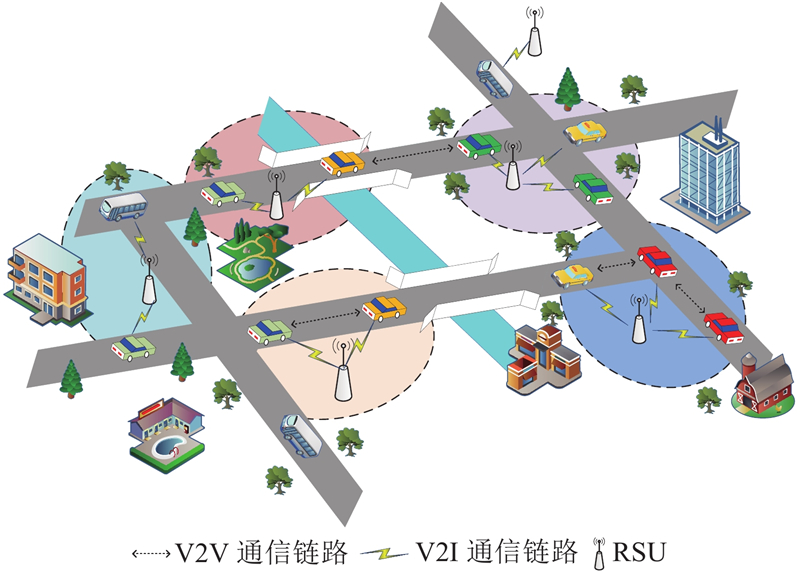

Fig.1 IoV communication model

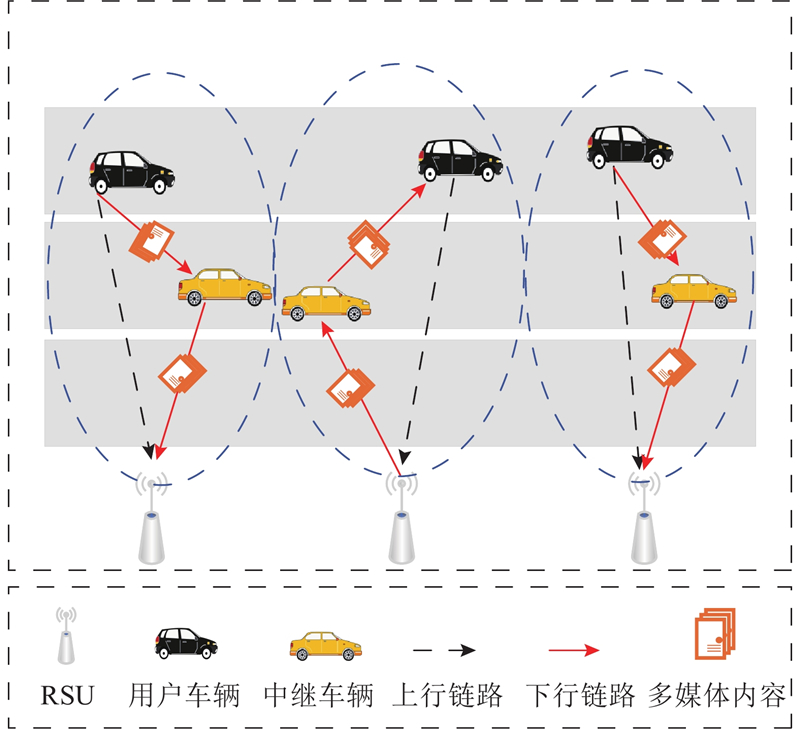

Fig.2 Three-party game model
参数数值参数数值
Pmax/dBm27$\xi $[23]1
$\varepsilon $0.17$\tau $1.6
$\gamma $[21]0.1$\lambda $1/1024
Tab.1 Simulation parameter settings for three-party, four-stage Stackelberg game iterative algorithm

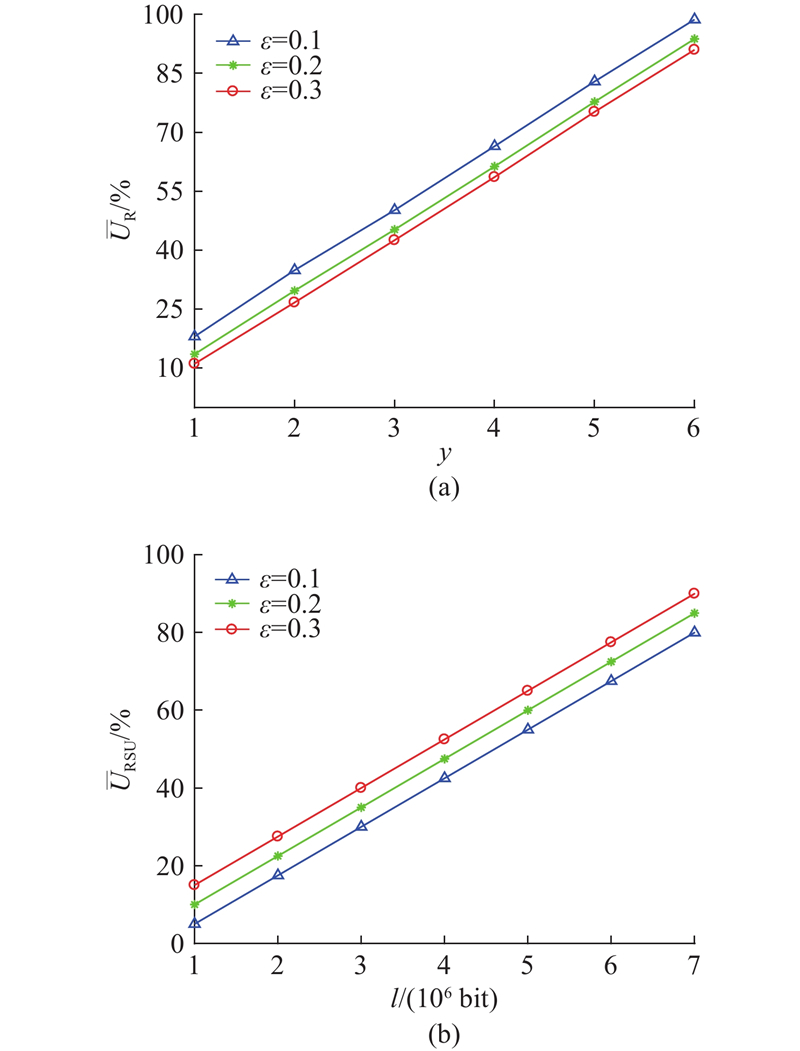

Fig.3 Impact of commission ratio changes on relay vehicle utility and RSU utility

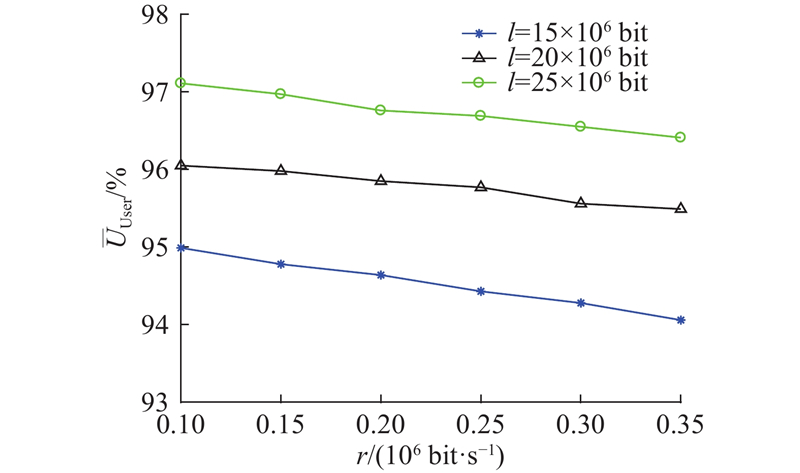

Fig.4 Effect of different transmission rates on user utility

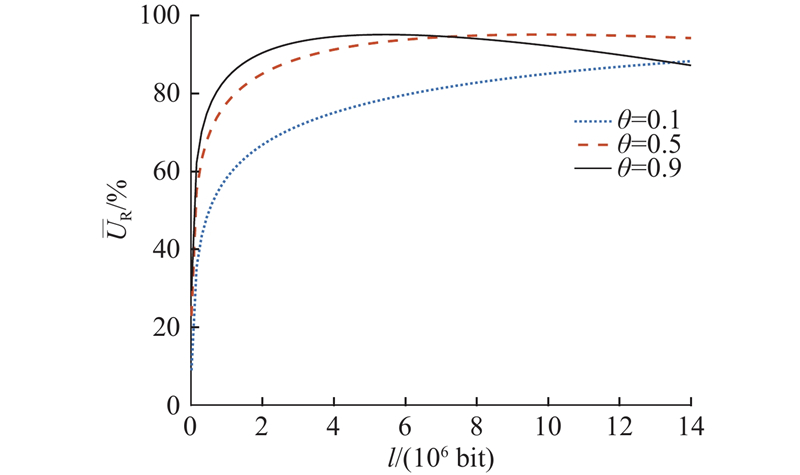

Fig.5 Utility of relay vehicle under different space utilization values

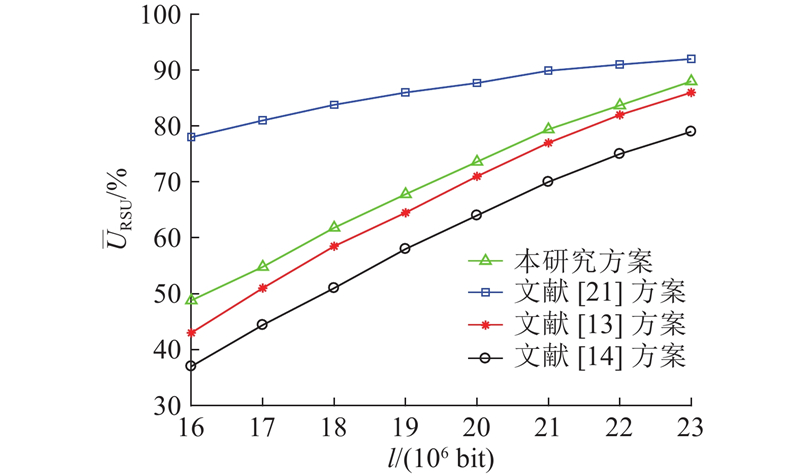

Fig.6 Comparison of RSU utility under different schemes

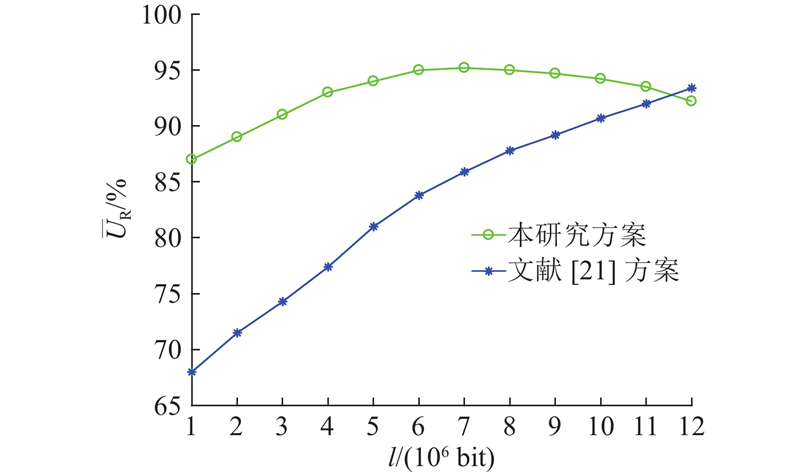

Fig.7 Comparison of utility of relay vehicle under different schemes

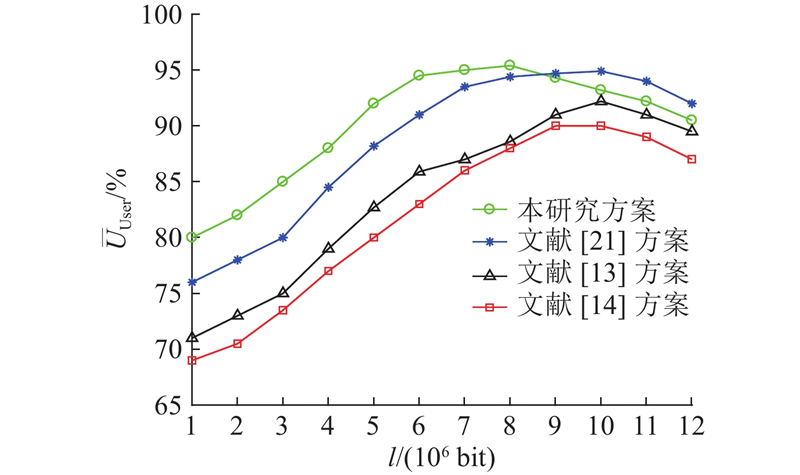

Fig.8 Comparison of utility of user vehicle under different schemes
[1]   VOROBYEV A I, KOVESHNIKOV A A, GAVRILYUK M V, et al. Classification of integration platforms of intelligent transport systems [C]// 2023 Systems of Signals Generating and Processing in the Field of on Board Communications . Moscow: IEEE, 2023: 1−5.
[2]   WANG J, ZHU K, HOSSAIN E Green Internet of vehicles (IoV) in the 6G era: toward sustainable vehicular communications and networking[J]. IEEE Transactions on Green Communications and Networking, 2022, 6 (1): 391- 423
doi: 10.1109/TGCN.2021.3127923
[3]   XU W, GUO S, MA S, et al Augmenting drive-thru internet via reinforcement learning-based rate adaptation[J]. IEEE Internet of Things Journal, 2020, 7 (4): 3114- 3123
doi: 10.1109/JIOT.2020.2965148
[4]   ZHANG H, XU R, LI Z, et al Resource-aware video delivery in fog radio access networks: a joint QoE and QoS perspective[J]. IEEE Transactions on Vehicular Technology, 2023, 72 (5): 6669- 6682
doi: 10.1109/TVT.2023.3234141
[5]   叶进, 肖庆宇, 陈梓晗, 等 以用户QoE预测值为奖励的视频自适应比特率算法[J]. 电子科技大学学报, 2021, 50 (2): 236- 242
YE Jin, XIAO Qingyu, CHEN Zihan, et al A video adaptive bitrate algorithm with user QoE prediction as reward[J]. Journal of University of Electronic Science and Technology of China, 2021, 50 (2): 236- 242
doi: 10.12178/1001-0548.2020325
[6]   MUSTAFA R U, MOURA D, ROTHENBERG C E. Machine learning approach to estimate video QoE of encrypted dash traffic in 5G networks [C]// 2021 IEEE Statistical Signal Processing Workshop . Brazil: IEEE, 2021: 586−589.
[7]   ROTHENBERG C E, PEREZ D A L, SOUSA N F S, et al. Intent-based control loop for dash video service assurance using ML-based edge QoE estimation [C]// 2020 6th IEEE Conference on Network Softwarization . Belgium: IEEE, 2020: 353−355.
[8]   AMOUR L, MUSHTAQ M S, SOUIHI S, et al. QoE-based framework to optimize user perceived video quality [C]// 2017 IEEE 42nd Conference on Local Computer Networks . Singapore: IEEE, 2017: 599−602.
[9]   ZHANG H, LU Z M, WEN X M, et al QoE-based reduction of handover delay for multimedia application in IEEE 802.11 networks[J]. IEEE Communications Letters, 2015, 19 (11): 1873- 1876
doi: 10.1109/LCOMM.2015.2459048
[10]   LI C, TONI L, ZOU J H, et al QoE-driven mobile edge caching placement for adaptive video streaming[J]. IEEE Transactions on Multimedia, 2018, 20 (4): 965- 984
doi: 10.1109/TMM.2017.2757761
[11]   BAEK B, LEE J, PENG Y, et al Three dynamic pricing schemes for resource allocation of edge computing for IoT environment[J]. IEEE Internet of Things Journal, 2020, 7 (5): 4292- 4303
doi: 10.1109/JIOT.2020.2966627
[12]   MITRA D, SRIDHAR A. Consortiums of ISP-content providers formed by nash bargaining for Internet content delivery [C]// IEEE Conference on Computer Communications . Paris: IEEE, 2019: 631−639.
[13]   RAMAMOORYHY K M K, WANG W. QoE-sensitive economic pricing model for wireless multimedia communications using Stackelberg game [C]// IEEE Global Communications Conference . Waikoloa: IEEE, 2019: 1−6.
[14]   RAMAMOORYHY K M K. User preference aware multimedia pricing model using game theory and prospect theory for wireless communications [C]// 34th IEEE/ACM International Conference on Automated Software Engineering . San Diego: IEEE, 2019: 1265−1267.
[15]   DENG G, LI F C, WANG L W. Cooperative downloading in VANETs-LTE heterogeneous network based on named data [C]// IEEE Conference on Computer Communications Workshops . San Francisco: IEEE, 2016: 233−238.
[16]   CHAI R, LV Y, YANG B, et al. Cooperative game based relay vehicle selection algorithm for VANETs [C]// 14th International Symposium on Communications and Information Technologies . Incheon: IEEE, 2014: 30−34.
[17]   MA X, WANG L. Game theory based cooperation incentive mechanism in vehicular ad hoc networks [C]// International Conference on Management of e-Commerce and e-Government . Beijing: IEEE, 2012: 127−132.
[18]   HUI Y, SU Z, LUAN T H, et al Reservation service: trusted relay selection for edge computing services in vehicular networks[J]. IEEE Journal on Selected Areas in Communications, 2020, 38 (12): 2734- 2746
doi: 10.1109/JSAC.2020.3005468
[19]   XIONG Z G, XIAO N, XU F, et al An equivalent exchange based data forwarding incentive scheme for socially aware networks[J]. Journal of Signal Processing Systems, 2021, 93: 249- 263
doi: 10.1007/s11265-020-01610-6
[20]   XIA Z, MAO X, GU K, et al Two-dimensional behavior-marker-based data forwarding incentive scheme for fog-computing-based SIoVs[J]. IEEE Transactions on Computational Social Systems, 2022, 9 (5): 1406- 1418
doi: 10.1109/TCSS.2021.3129898
[21]   RAMAMOORYHY K M K, WANG W A QoE-driven pricing scheme for inter-vehicular communications with four-stage Stackelberg game[J]. IEEE Transactions on Vehicular Technology, 2022, 71 (3): 3121- 3130
doi: 10.1109/TVT.2021.3138328
[22]   SENNAN S, RAMASUBBAREDDY S, BALAASUBR- AMANIVAM S, et al MADCR: mobility aware dynamic clustering-based routing protocol in Internet of Vehicles[J]. China Communications, 2021, 18 (7): 69- 85
doi: 10.23919/JCC.2021.07.007
