Journal of ZheJiang University (Engineering Science)  2024, Vol. 58 Issue (8): 1691-1703    DOI: 10.3785/j.issn.1008-973X.2024.08.016

Land subsidence risk zoning for high speed railway based on hesitant fuzzy linguistic model
Chuxin WANG2(),Yingchao WANG1,2,*(),Jiguang YANG3,Xiamin FAN3,Zheng ZHANG3,4
1. State Key Laboratory of Intelligent Construction and Healthy Operation and Maintenance of Deep Underground, China University of Mining and Technology, Xuzhou 221116, China
2. School of Mechanics and Civil Engineering, China University of Mining and Technology, Xuzhou 221116, China
3. Construction Headquarters of Xuzhou Railway Hub Project, China Railway Shanghai Bureau Group Limited Company, Xuzhou 221000, China
4. Hefei Railway Hub Project Construction Headquarters, China Railway Shanghai Bureau Group Limited Company, Hefei 230011, China
Download: HTML     PDF(3180KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A new hesitant fuzzy 2-tuple-data envelopment analysis (DEA) model was established in order to assess the risk of land subsidence along high-speed railway. Assessment opinions were handled with the computation theory of hesitant fuzzy 2-tuple linguistic model. Experts’ weights were adjusted based on the principle of maximum group consensus, and the factors’ weights were determined by using the DEA model, which made up for the defects of the previous assessment methods, such as difficulty of passing consistency test, difficulty of assessment process, and low degree of consensus of the evaluators. The hesitant fuzzy 2-tuple-DEA analysis model was applied to a high-speed railway project under construction in Huaibei, Anhui Province. The risk assessment index system of hazard factors, vulnerability factors and sensitivity factors was established. The fuzzy assessment set of individual hesitation and matrix of group hesitation were established, and weight of each factor was obtained. The visual display of risk distribution in the disaster, vulnerability and sensitivity index assessment area was realized based on GIS system. Land subsidence risk distribution along the high-speed railway was obtained. Results show that DK66-DK67 is the highest risk section, and the subsidence monitoring in this section should be strengthened.

Key words： hesitant fuzzy theory      land subsidence      risk assessment      data envelopment analysis (DEA)      high-speed railway
Received: 24 July 2023      Published: 23 July 2024
CLC:  TU 997
Fund:  国家自然科学基金资助项目（42272313）；国家重点研发计划资助项目（2022YFC3003304）；中国铁路上海局集团有限公司科研资助项目（2022178）.
Corresponding Authors: Yingchao WANG     E-mail: 1287670901@qq.com;wych12345678@126.com
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Chuxin WANG
Yingchao WANG
Jiguang YANG
Xiamin FAN
Zheng ZHANG
Cite this article:

Chuxin WANG,Yingchao WANG,Jiguang YANG,Xiamin FAN,Zheng ZHANG. Land subsidence risk zoning for high speed railway based on hesitant fuzzy linguistic model. Journal of ZheJiang University (Engineering Science), 2024, 58(8): 1691-1703.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2024.08.016     OR     https://www.zjujournals.com/eng/Y2024/V58/I8/1691


基于犹豫模糊语言模型的高铁地面沉降风险区划

为了评估高速铁路的沿线地面沉降风险，建立新的犹豫模糊二元语言-数据包络分析(DEA)模型. 该方法根据犹豫模糊二元语言计算理论处理评估意见，基于最大群体共识度原则调整专家权重，采用DEA模型确定因子权重，弥补以往评估方法一致性检验难通过、评估过程难度高及评估人员共识度低的缺陷. 将犹豫模糊二元语言-DEA分析模型应用于安徽省淮北正在建设的某高铁工程，构建灾害因子、易损因子和敏感因子的风险评估指标体系，建立个体犹豫模糊评价集合和群体犹豫模糊评价矩阵，求得各因子权重. 基于GIS系统实现灾害性、易损性和敏感性指标区域风险分布的可视化展示，得到高铁沿线地面沉降风险分布. 结果表明，DK66-DK67为风险最高区段，须加强该区段的沉降监测.


关键词： 犹豫模糊理论,  地面沉降,  风险评估,  数据包络分析(DEA),  高铁

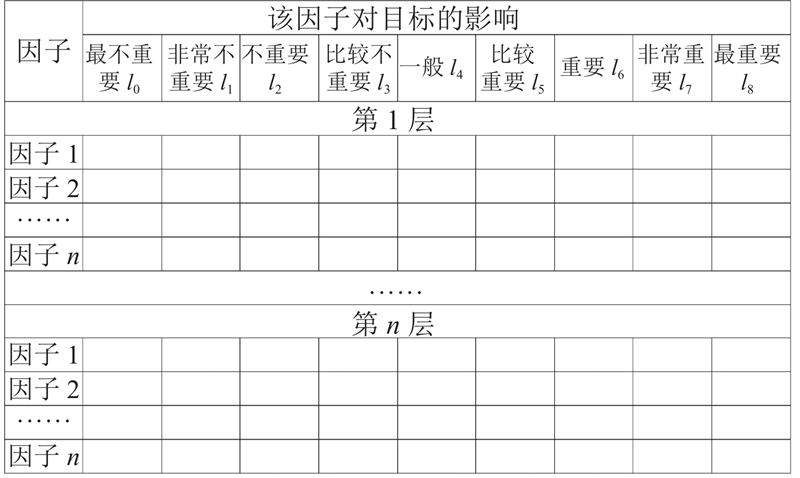

Fig.1 Questionnair for collection of risk assessment opinion

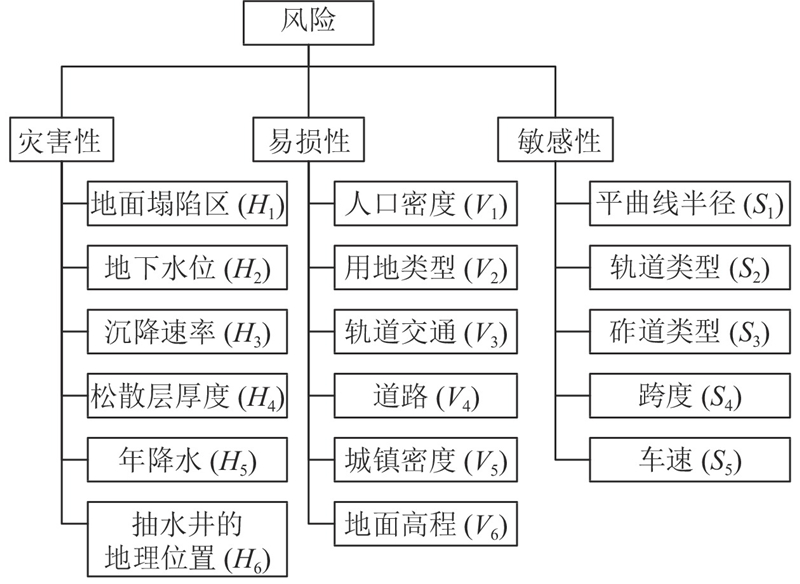

Fig.2 System of subsidence risk assessment
分级H1H2/mH3/(mm·a?1)H4/mH5/mm
1无明显塌陷?20 ~ ?160~10150~175< 200
2—?16 ~ ?1211~20175~200200~400
3有明显塌陷趋势?12 ~ ?821~30200~225400~600
4—?8 ~ ?431~40225~250600~800
5已发生明显塌陷?4 ~ 0>40250~275>800
Tab.1 Grading standard of hazard factor[38-43]

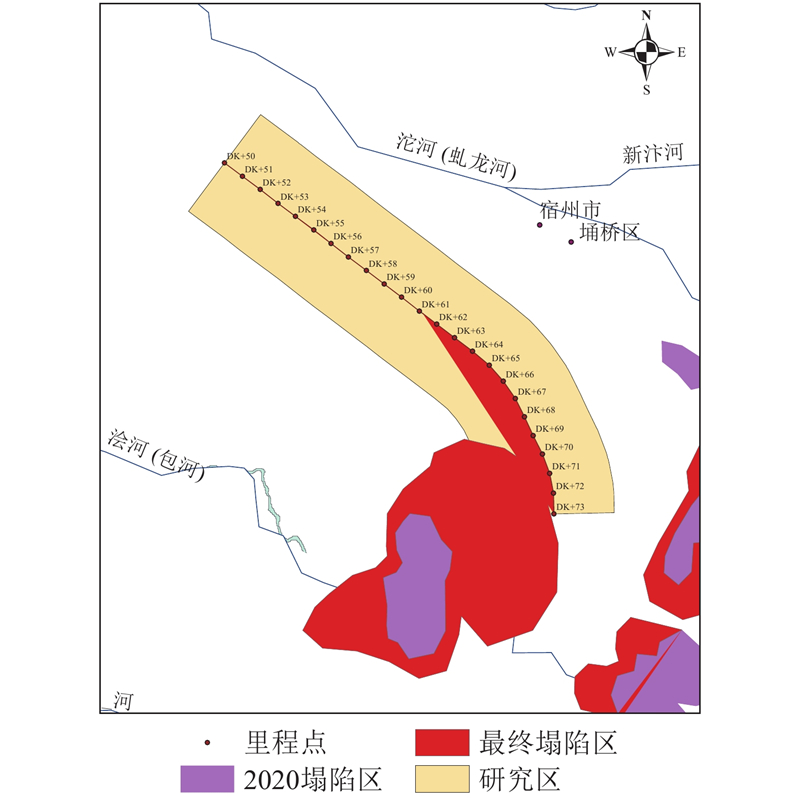

Fig.3 Distribution of ground collapse disaster
分级V6/mV5V2V4
110~15<10工业用地四级公路
215~20—居住用地三级公路
320~2510~15公共服务二级公路
425~30—农业用地一级公路
5>30>15生态绿地高速公路
Tab.2 Grading standards of vulnerability factor[44-45]
分级S4/mS5/(km·h?1)S2S1/m
1<5250纵连板式5 000~6 500
25~20——6 500~8 000
320~40300单元板式8 000~9 500
440~150——9 500~11 000
5>150350双块式>11 000
Tab.3 Grading standard of sensitivity factor[40, 46-48]

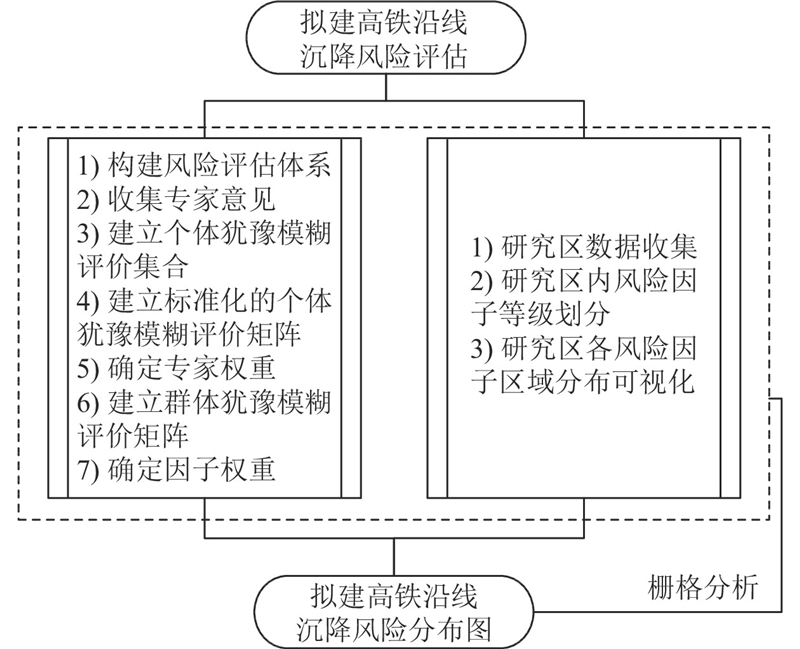

Fig.4 Flow chart of risk assessment

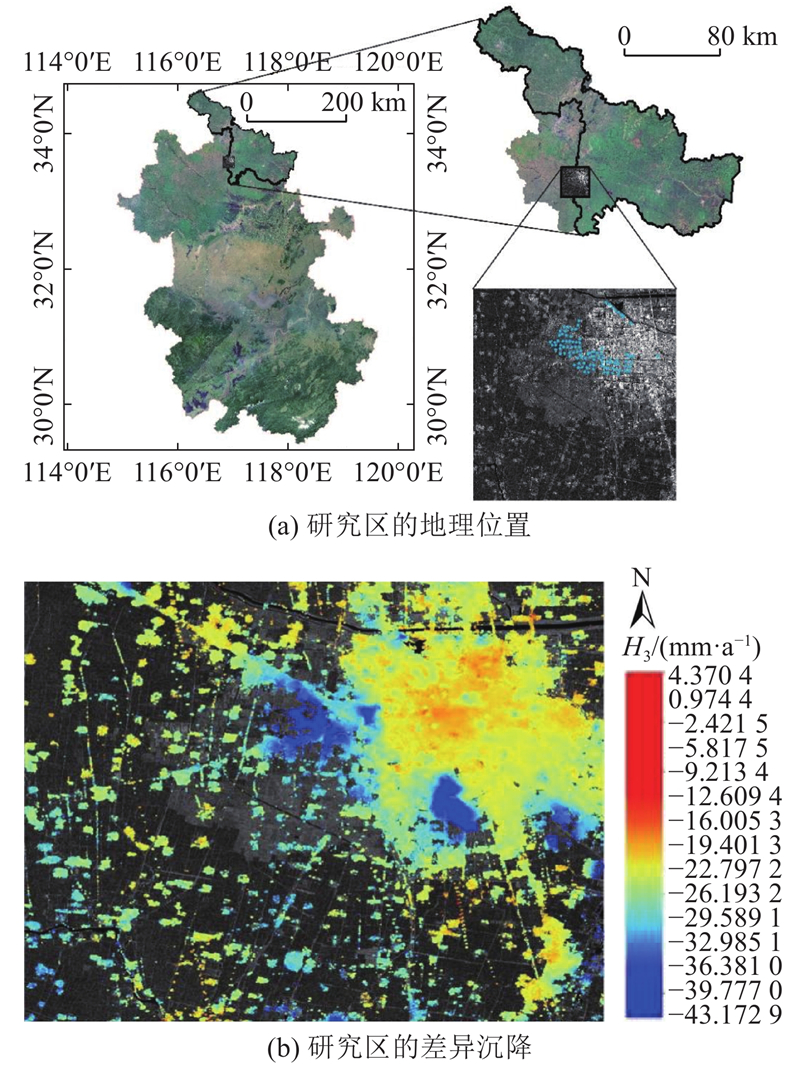

Fig.5 Schematic diagram of study area[49]

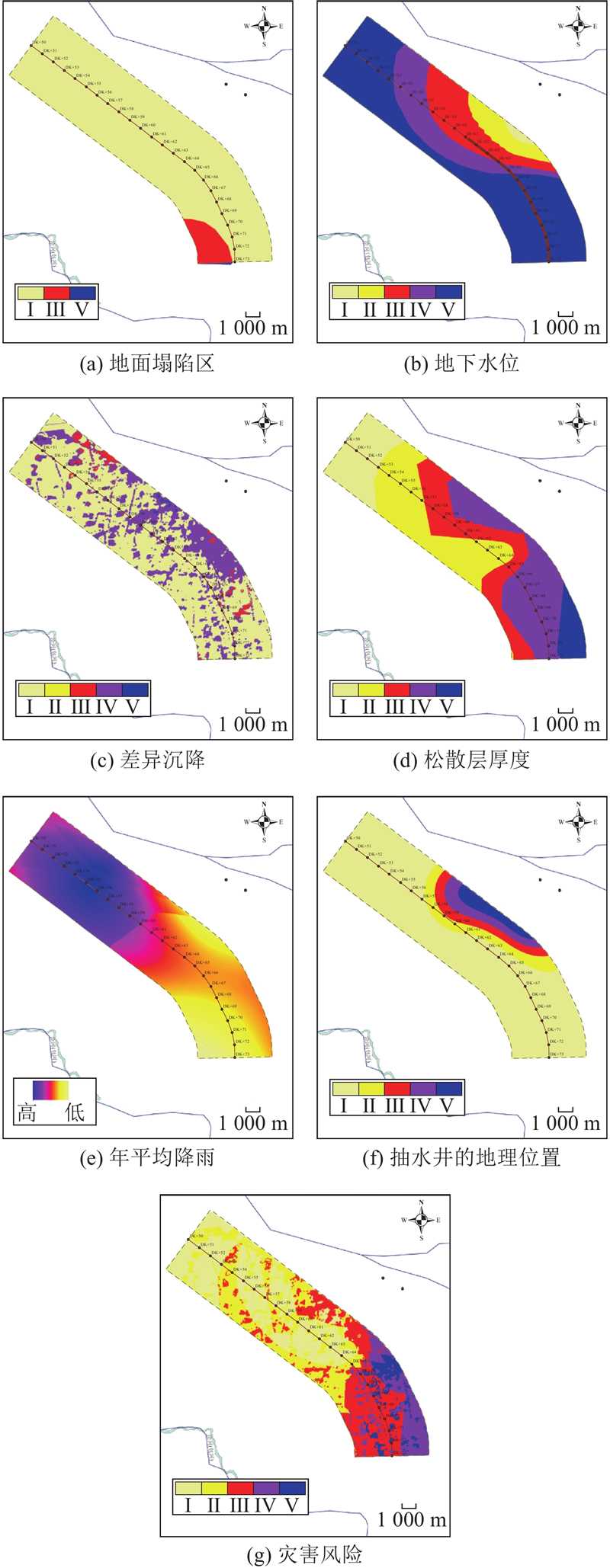

Fig.6 Spatial distribution of hazard risk level and hazard factor in study area

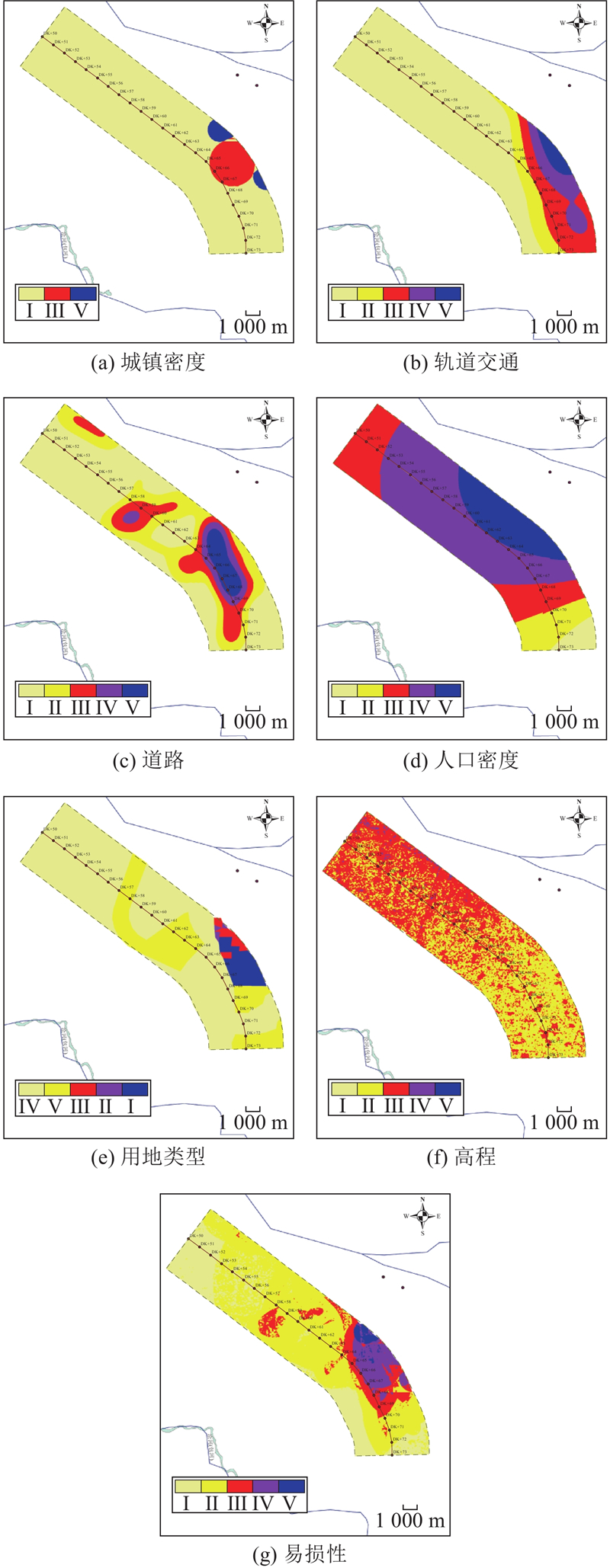

Fig.7 Spatial distribution of vulnerability risk level and vulnerability factor in study area
DMH1H2H3H4H5H6
DM1{l3, l4}{l6, l7}{l5, l6}{l7, l8}{l4, l5}{l8}
DM2{l3, l4, l5}{l5, l6, l7}{l6, l7}{l8}{l3, l4}{l7, l8}
DM3{l3, l4, l5}{l6, l7}{l6, l7}{l7, l8}{l3, l4}{l7, l8}
Tab.4 Set of individual expert hesitant fuzzy assessment for hazard factor
DMH1H2H3H4H5H6
DM1{l3, l3, l3, l4, l4, l4}{l6, l6, l6, l7, l7, l7}{l5, l5, l5, l6, l6, l6}{l7, l7, l7, l8, l8, l8}{l4, l4, l4, l5, l5, l5}{l8, l8, l8, l8, l8, l8}
DM2{l3, l3, l4, l4, l5, l5}{l5, l5, l6, l6, l7, l7}{l6, l6, l6, l7, l7, l7}{l8, l8, l8, l8, l8, l8}{l3, l3, l3, l4, l4, l4}{l7, l7, l7, l8, l8, l8}
DM3{l3, l3, l4, l4, l5, l5}{l6, l6, l6, l7, l7, l7}{l6, l6, l6, l7, l7, l7}{l7, l7, l7, l8, l8, l8}{l3, l3, l3, l4, l4, l4}{l6, l6, l7, l7, l8, l8}
Tab.5 Matrix of normalized individual expert hesitant fuzzy assessment for hazard factor
因子评价结果
H1{(l3, +0.000 3), (l3, +0.000 3), (l4, ?0.393 8), (l4, +0.000 4), (l5, ?0.393 8), (l5, ?0.393 8)}
H2{(l6, ?0.287 8), (l6, ?0.287 8), (l6, ?0.287 8), (l7, ?0.287 7), (l7, ?0.287 7), (l7, ?0.287 7)}
H3{(l6, ?0.393 6), (l6, ?0.393 6), (l6, ?0.393 6), (l7, ?0.393 5), (l7, ?0.393 5), (l7, ?0.393 5)}
H4{(l7, +0.289 1), (l7, +0.289 1), (l7, +0.289 1), (l8, +0.000 8), (l8, +0.000 8)(l8, +0.000 8)}
H5{(l3, +0.394 5), (l3, +0.394 5), (l3, +0.394 5), (l4, +0.394 6), (l4, +0.394 6), (l4, +0.394 6)}
H6{(l7, +0.394 9), (l7, +0.394 9), (l7, +0.394 9), (l8, +0.000 8), (l8, +0.000 8), (l8, +0.000 8)}
Tab.6 Matrix of group hesitant fuzzy assessment for hazard factor
因子权重因子权重
H10.107 6H40.216 2
H20.175 7H50.110 1
H30.172 7H60.217 7
Tab.7 Weights of hazard factors

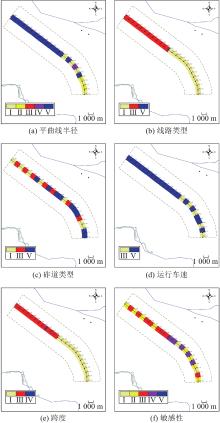

Fig.8 Spatial distribution of sensitivity risk level and sensitivity factor along high-speed railway

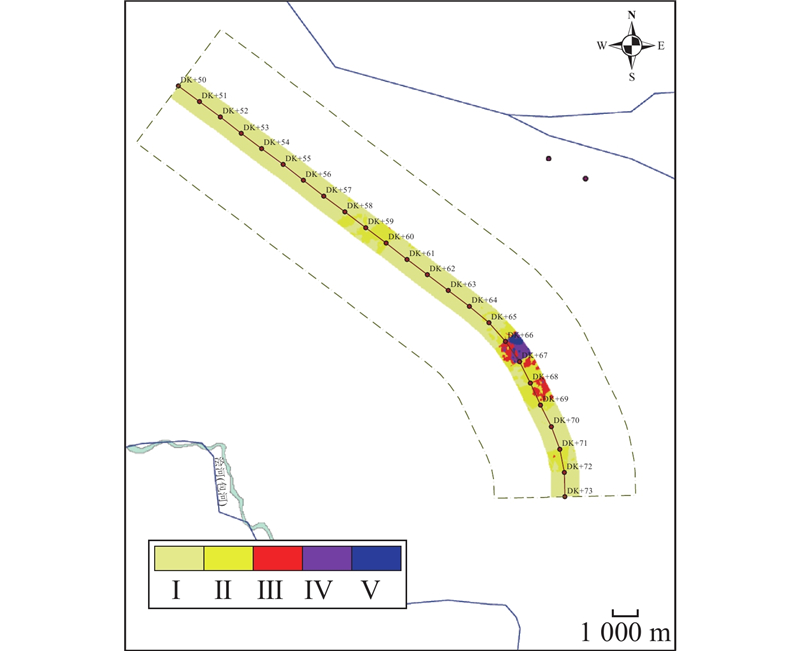

Fig.9 Spatial distribution of risk level along high-speed railway
因子分类因子权重
灾害性因子地面塌陷区（H1）0.107 6
地下水位（H2）0.175 7
差异沉降速率（H3）0.172 7
松散层厚度（H4）0.216 2
降雨量（H5）0.110 1
抽水井的地理位置（H6）0.217 7
易损性因子人口密度（V1）0.165 0
用地类型（V2）0.161 7
轨道交通（V3）0.190 1
道路类型（V4）0.198 4
城镇密度（V5）0.136 6
地面高程（V7）0.148 2
敏感性因子平曲线半径（S1）0.203 2
轨道类型（S2）0.310 3
砟道类型（S3）0.199 4
跨度（S4）0.075 7
车速（S5）0.211 3
Tab.8 Weights of factors
