Unsupervised surface defect detection of magnetic tile for repair of suspected area defects

doi:10.3785/j.issn.1008-973X.2024.04.007

Journal of ZheJiang University (Engineering Science)

2024, Vol. 58

Issue (4): 718-728 DOI: 10.3785/j.issn.1008-973X.2024.04.007

Unsupervised surface defect detection of magnetic tile for repair of suspected area defects

Shancheng TANG(

),Jianhui LU,Ying ZHANG,Zicheng JIN,Anxin ZHAO

1. College of Communication and Information Technology, Xi’an University of Science and Technology, Xi’an 710054, China

Download:

HTML

PDF(2238KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The number of magnetic tiles with surface defects is limited, and abnormal visual features are diversely distributed. The existing supervised detection methods that rely on target features cannot effectively detect undefined defects. The non-uniform and non-periodic distribution of normal texture on the surface of magnetic tiles makes it difficult for classical reconstruction networks to accurately reconstruct the normal features, resulting in poor performance of related unsupervised detection methods. The multi-head attention-based masked image inpaint network (MIINet) was utilized to extract image features over long distances, capture global information and enhance the repair capability of images. The vision saliency algorithm was used to suppress the texture information of the magnetic tile surface and emphasize the defect area, enabling the binary value algorithm to accurately segment the suspected defect region. MIINet was utilized to repair the suspected defect region in the image. The residual image and structural similarity of the before and after repair images were selected to achieve defect detection and defect judgment. Compared with the classical unsupervised method, the accuracy of the proposed surface defect detection method for repairing the suspected defect area was increased by 2.36%, and the F1 value was increased by 1.62%.

Key words： multi-head attention magnetic tile surface defect detection unsupervised learning image inpainting vision saliency

Received: 27 June 2023 Published: 27 March 2024

CLC:

TP 391.4

Fund: 国家重点研发计划资助项目（2018YFC0808300）；陕西省科技计划重点产业创新链（群）项目（2020ZDLGY15-07）.

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Shancheng TANG
	Jianhui LU
	Ying ZHANG
	Zicheng JIN
	Anxin ZHAO

Cite this article:

Shancheng TANG,Jianhui LU,Ying ZHANG,Zicheng JIN,Anxin ZHAO. Unsupervised surface defect detection of magnetic tile for repair of suspected area defects. Journal of ZheJiang University (Engineering Science), 2024, 58(4): 718-728.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2024.04.007 OR https://www.zjujournals.com/eng/Y2024/V58/I4/718

修复缺陷嫌疑区域的无监督磁瓦表面缺陷检测

磁瓦表面缺陷样本数量少，异常视觉特征分布发散，现有依赖目标特征的有监督检测方法不能有效检测未定义缺陷；磁瓦表面正常纹理呈非均匀且非周期性分布，使得经典重构网络难以准确地重构磁瓦表面正常特征，导致相关无监督检测方法性能低下. 为此，采用多头注意力增强的掩码图像修复网络(MIINet)，长距离提取图像特征，捕捉全局信息，增强图像修复的能力；引入视觉显著性算法抑制磁瓦表面纹理信息和突显缺陷区域，以便二值化算法精准分割缺陷嫌疑区域；利用MIINet修复待检测图像缺陷嫌疑区域，选用修复前后图像的残差图像和结构相似性实现缺陷检测与缺陷判定. 与经典无监督方法相比，修复缺陷嫌疑区域的表面缺陷检测方法的准确率提升了2.36%，F1值提升了1.62%.

关键词： 多头注意力, 磁瓦表面缺陷检测, 无监督学习, 图像修复, 视觉显著性

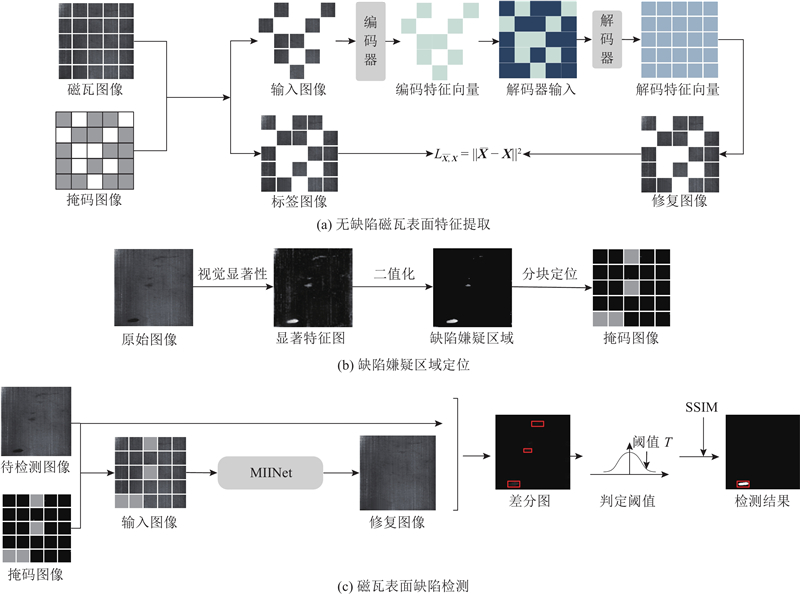

Fig.1 Unsupervised surface defect detection of magnetic tile for repair of suspected area defects

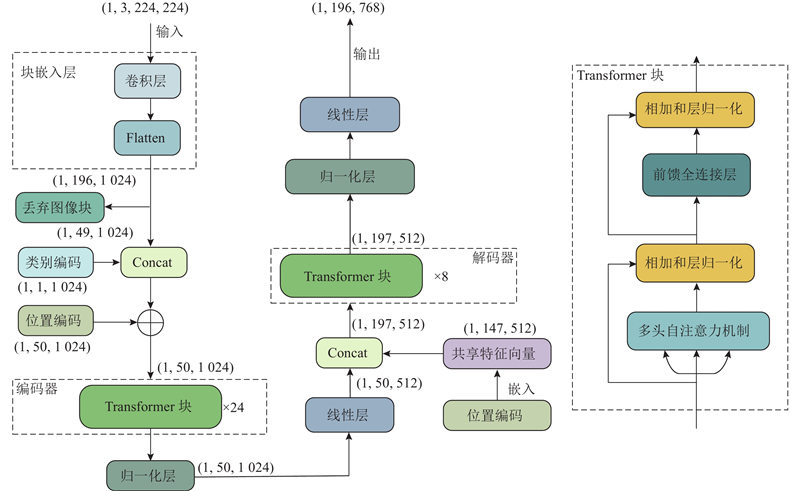

Fig.2 Structure of masked image inpaint network

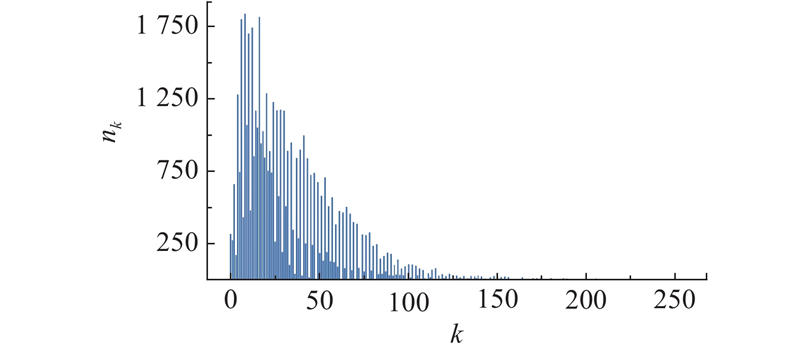

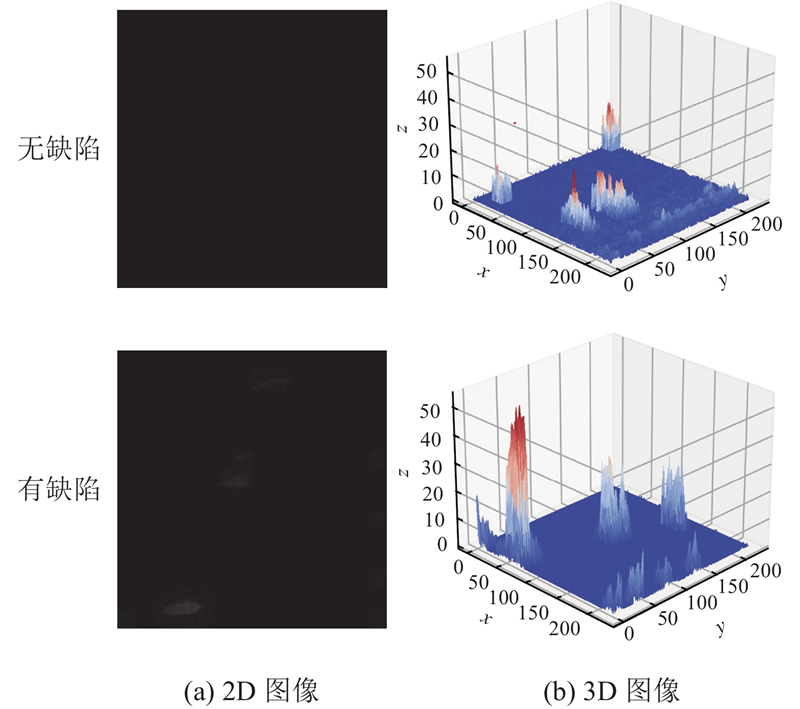

Fig.3 Analysis of saliency characteristics of defect-free magnetic tiles

Fig.4 Surface defect detection process of magnetic tile

Fig.5 Differential image before and after magnetic tile repair

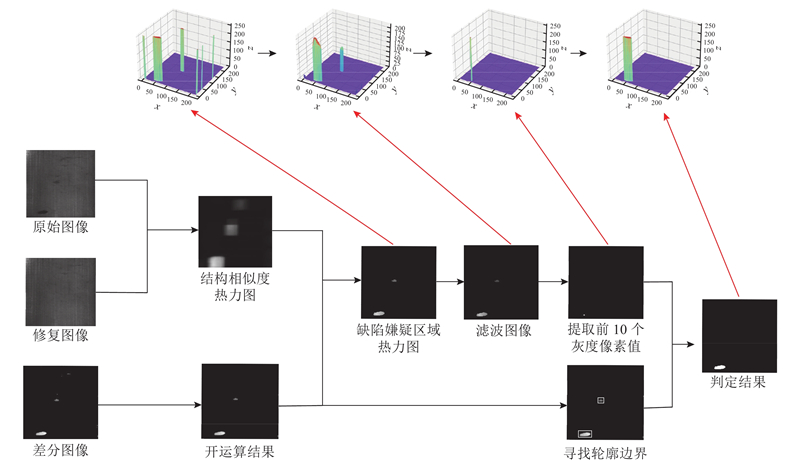

Fig.6 Flow chart of defect area determination

Tab.1 Parameters of magnetic tile dataset

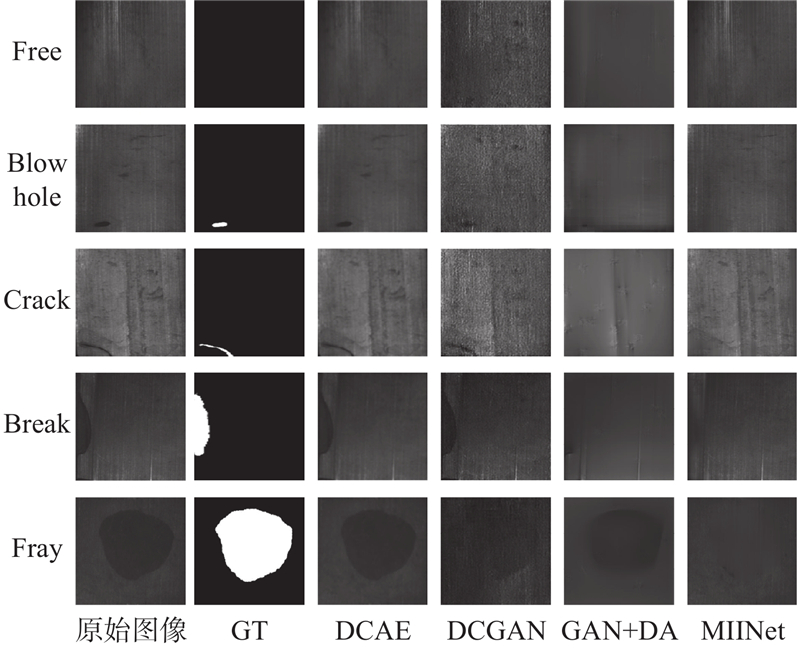

Fig.7 Magnetic tile reconstruction results of different detection models

Fig.8 Localization results of suspected defect area for different methods

Fig.9 Verdict results of different defects by MIINet

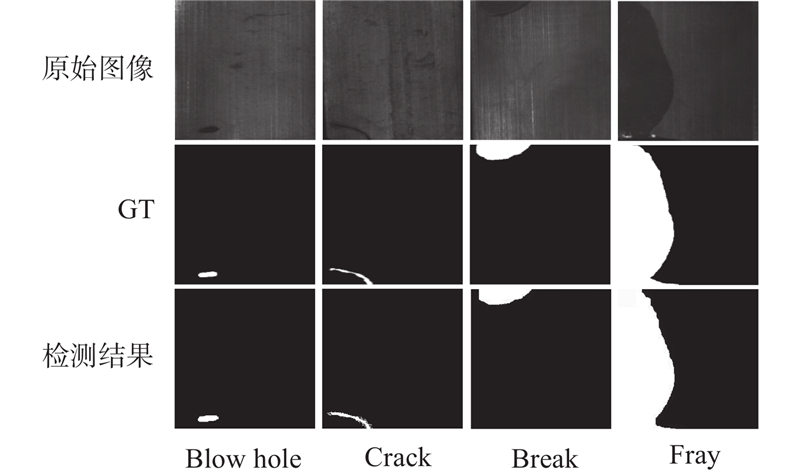

Fig.10 Magnet tile surface defect detection results

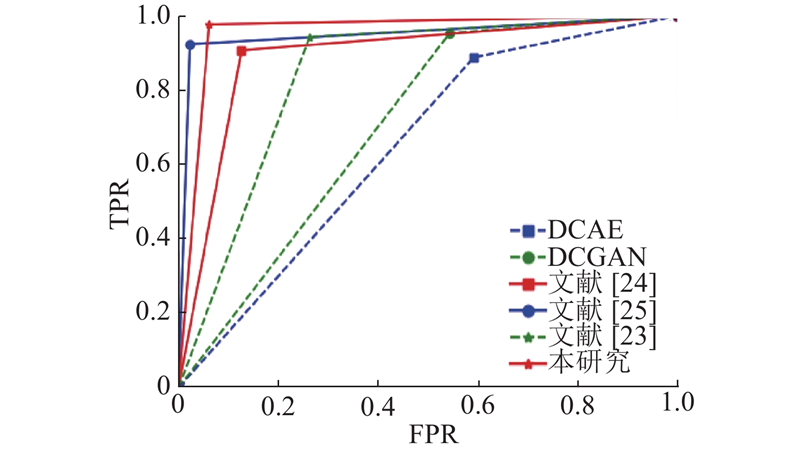

Fig.11 Comparison of receiver operating characteristic curves for six detection methods
