Binocular vision object 6D pose estimation based on circulatory neural network
Heng YANG1(),Zhuo LI1,Zhong-yuan KANG2,Bing TIAN1,Qing DONG1
1. College of Mechanical Engineering, Taiyuan University of Science and Technology, Taiyuan 030024, China
2. College of Mechanical Engineering, Chongqing Agricultural Mechanization School, Chongqing 402160, China
Download: HTML     PDF(1068KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A method for creating binocular dataset and a 6D pose estimation network called Binocular-RNN were proposed, in response to the problem of low accuracy in the current task of 6D pose estimation for objects. The existing images in the YCB-Video Dataset were used as the content captured by the left camera of the binocular system. The corresponding 3D object models in the YCB-Video Dataset were imported using Open GL, and the parameters related to each object were input to generate synthetic images captured by the virtual right camera of the binocular system. A monocular prediction network was utilized in the Binocular-RNN to extract geometric features from the left and right images in the binocular dataset, and recurrent neural network was used to fuse these geometric features and predict the 6D pose of the objects. The evaluation of Binocular-RNN and other pose estimation methods was based on the average distance of model points (ADD), average nearest point distance (ADDS), translation error and angle error. The results show that when the network was trained on a single object, the ADD or ADDS score of Binocular-RNN was 2.66 times that of PoseCNN and 1.15 times that of GDR-Net. Furthermore, the Binocular-RNN trained by the physics-based real-time rendering (Real+PBR) outperformed the DeepIM method based on deep neural network iterative 6D pose matching.

Key words： 6D pose      monocular vision      active vision      circulatory neural network      YCB-Video Dataset
Received: 20 November 2022      Published: 11 December 2023
CLC:  TP 391.4
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Heng YANG
Zhuo LI
Zhong-yuan KANG
Bing TIAN
Qing DONG
Cite this article:

Heng YANG,Zhuo LI,Zhong-yuan KANG,Bing TIAN,Qing DONG. Binocular vision object 6D pose estimation based on circulatory neural network. Journal of ZheJiang University (Engineering Science), 2023, 57(11): 2179-2187.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.11.005     OR     https://www.zjujournals.com/eng/Y2023/V57/I11/2179


基于循环神经网络的双目视觉物体6D位姿估计

针对当前物体6D位姿估计任务准确率较低的问题，提出双目数据集制作方法及物体6D位姿估计网络Binocular-RNN. 将YCB-Video Dataset中已有图像作为双目相机左摄像头捕获内容，利用Open GL将YCB-Video Dataset中相应三维物体模型进行导入，输入各物体相关参数，由虚拟双目相机右摄像头捕获合成图片. 利用单目预测网络分别对双目数据集中左、右图像的几何特征进行提取. 经过循环神经网络对几何特征进行融合，并预测物体6D位姿. 以模型点平均距离(ADD)、平均最近点距离(ADDS)、平移误差和角度误差作为评价指标,对Binocular-RNN与其他位姿估计方法进行对比. 结果表明，在利用单一物体对网络进行训练时，Binocular-RNN 的ADD或ADDS指标得分分别为PoseCNN、GDR-Net的2.66、1.15倍. 利用基于物理的实时渲染（Real+PBR）方式训练的Binocular-RNN的性能超过基于深度神经网络的迭代6D姿态匹配的方法(DeepIM).


关键词： 6D位姿,  单目视觉,  主动视觉,  循环神经网络,  YCB-Video数据集

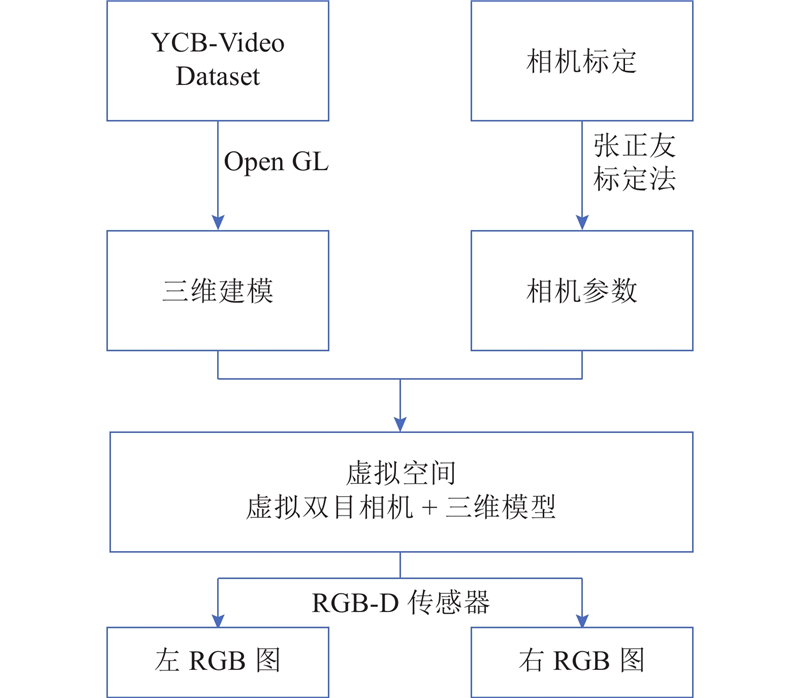

Fig.1 Production process of binocular data set

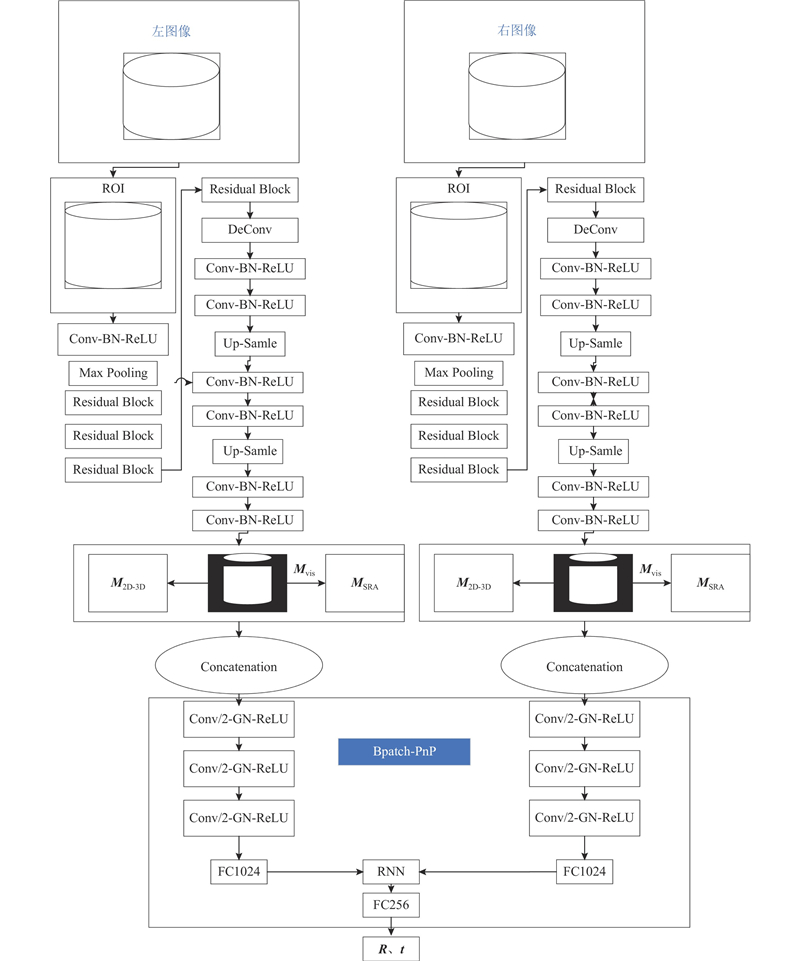

Fig.2 Binocular-RNN overall framework

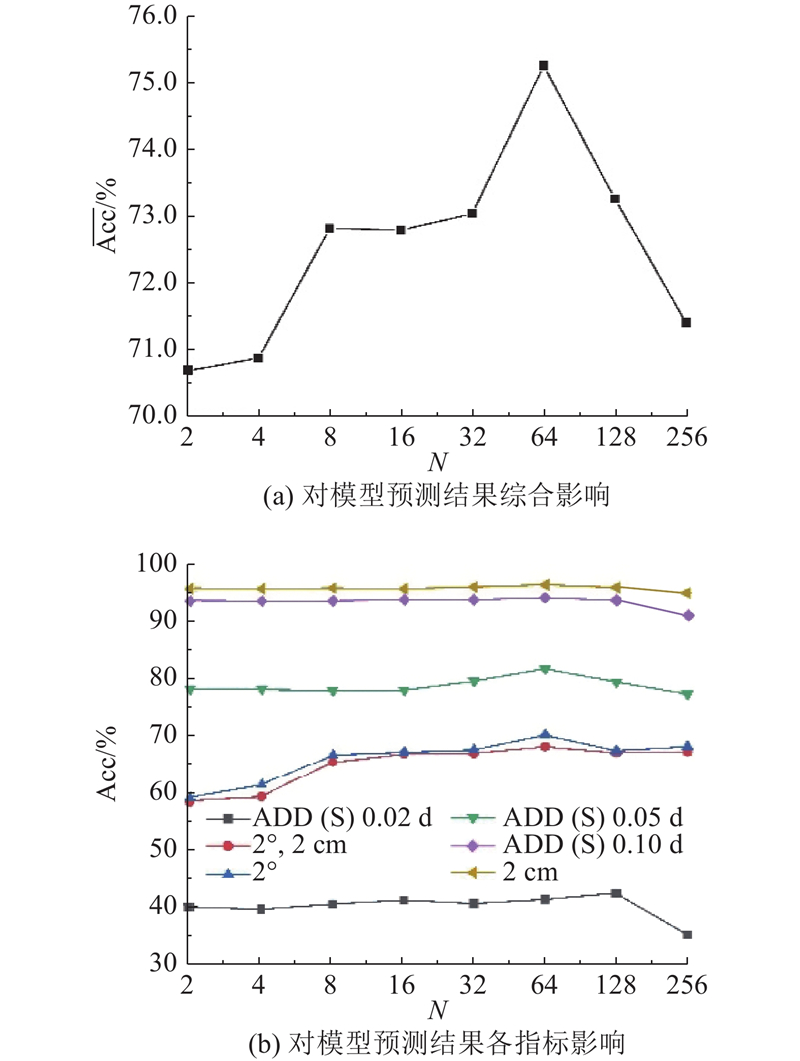

Fig.3 Effect of MSRA quantity on model prediction results

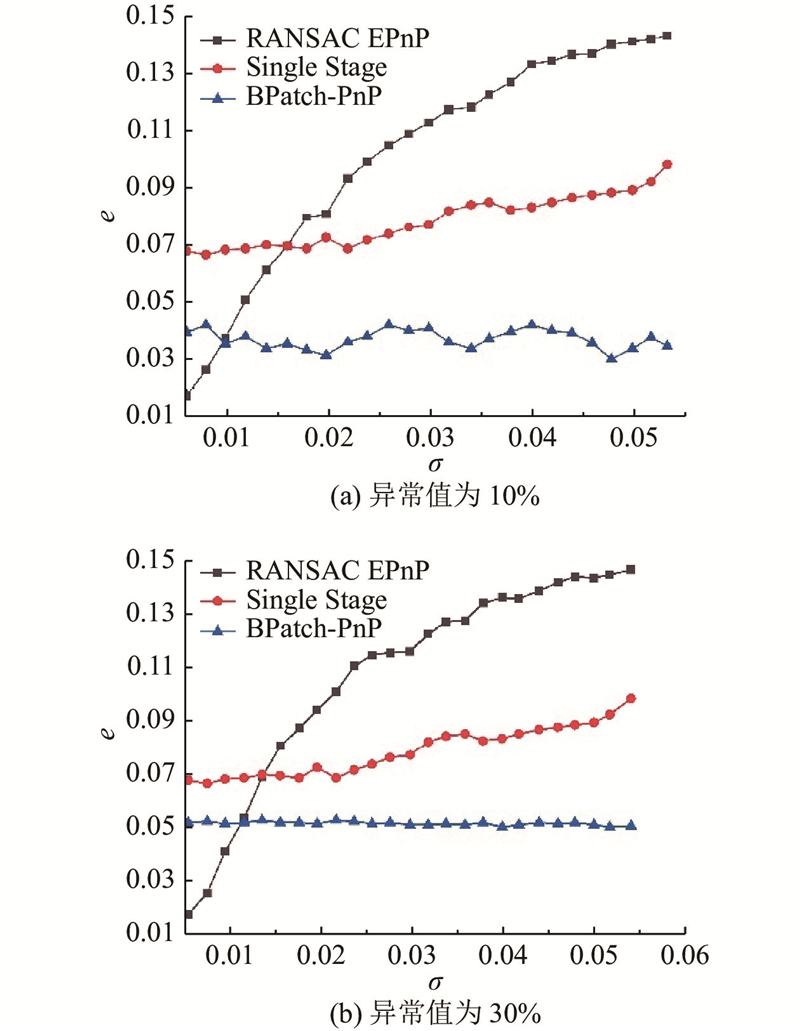

Fig.4 Effect of PnP variant on Synthetic Sphere dataset
方法 Ref m Acc(ADD(S))/
% 		AUC/% ts/ms
ADDS ADD(S)
Only-RNN — 1 — — — —
Only-CNN — 1 18.4 62.3 59.6 35
Only-CNN — M 15.6 — — —
Binocular-RNN — 1 56.7 90.8 85.2 23
Binocular-RNN — M 70.5 93.4 89.6 —
PoseCNN[19] — 1 21.3 75.9 61.3 24
GDR-Net — 1 49.1 89.1 80.2 22
GDR-Net — M 60.1 91.6 84.4 —
Single-Stage[16] — M 53.9 — — —
DeepIM[19] √ 1 — 88.1 81.9 25
CosyPose[20] √ 1 — 89.8 84.5 25
Tab.1 Comparison of Binocular-RNN with other methods on YCB-Video Dataset
方法 m 训练数据 模型 MEAN
Ape Can Cat Driller Duck Eggbox Glue Holep
PoseCNN 1 Real+syn 9.6 45.2 0.9 41.4 19.6 22.0 38.5 22.1 24.9
PVNet M Real+syn 15.8 63.3 16.7 65.7 25.2 50.2 49.6 36.1 40.8
Single-Stage M Real+syn 19.2 65.1 18.9 69.0 25.3 52.0 51.4 45.6 43.3
GDR-NET M Real+syn 41.3 71.1 18.2 54.6 41.7 40.2 59.5 52.6 47.4
Binocular-RNN 1 Real+syn 49.6 78.2 40.3 67.4 50.6 45.4 60.5 68.2 57.5
M Real+syn 41.3 79.1 42.8 71.2 55.3 48.3 65.7 70.5 51.6
1 Real+pbr 48.6 82.3 51.4 73.5 61.2 58.3 70.5 72.6 64.8
M Real+pbr 50.4 85.7 58.3 76.2 68.3 62.1 75.8 74.2 68.9
DPOD 1 Real+syn — — — — — — — — 47.3
DeepIM 1 Real+syn 59.2 63.5 26.2 55.6 52.4 63.0 71.7 52.5 55.5
Tab.2 Comparison of Binocular-RNN with other methods on LM-O %

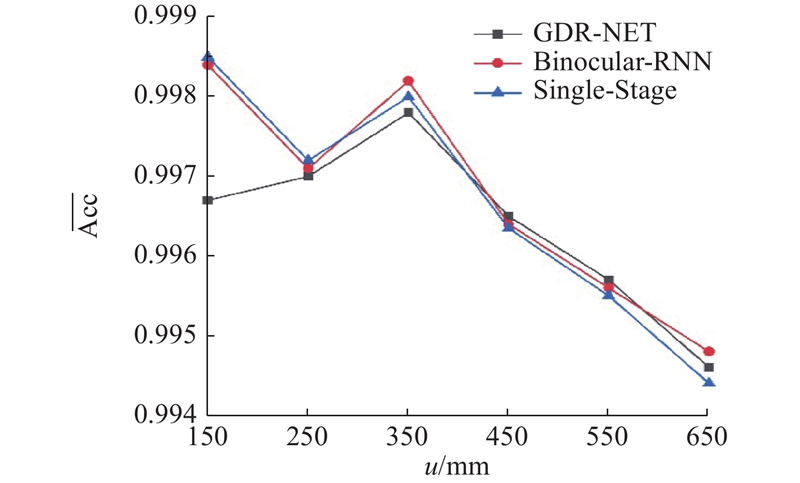

Fig.5 Effect of distance on accuracy
