Journal of ZheJiang University (Engineering Science)  2023, Vol. 57 Issue (11): 2170-2178    DOI: 10.3785/j.issn.1008-973X.2023.11.004

Safety-enhanced multi-vehicle tracking based on joint probability data association
Jun-hui ZHANG1,2,3(),Xiao-man GUO2,3,Jing-xian WANG2,3,Zong-jie FU2,3,Da-peng CHEN2,3
1. School of Electrical and Automatic Engineering, Changshu Institute of Technology, Suzhou 215500, China
2. Wuxi Internet of Things Innovation Center Co. Ltd, Wuxi 214029, China
3. Kunshan Department, Jiangsu Internet of Things Innovation Center, Wuxi 215347, China
Download: HTML     PDF(2042KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A novel multi-sensor data fusion based multi-vehicle tracking algorithm and a longitudinal collision warning strategy were proposed, in order to achieve the safety-enhanced multi-vehicle tracking in dense clutter environments. The time registration and spatial fusion approaches were introduced, with respect to the problems of time asynchronous sampling sequences of multi-source sensors caused by nonidentity of sampling periods, sampling start-up time and inherent communication time delay, as well as different coordinate systems and different space dimensions. The single sensor multi-object state estimation based on the improved joint probability data association (JPDA) was utilized to estimate the multi-object trajectory, which not only ensured the effective association, but also could reduce the computational complexity to a certain extent. Furthermore, the multi-sensor joint probability data association (MSJPDA) sequential filtering algorithm was employed to update the motion state of targets serially, and the output of the last sensor was utilized as the state estimation of the fusion center, by which the situation of longitudinal collision could be well-estimated. Results of comparative experiment demonstrated the feasibility and effectiveness of the tracking algorithm proposed.



Key wordsintelligent vehicle      multi-source data fusion      multi-vehicle tracking      threat estimation      joint probabilistic data association
Received: 15 November 2022      Published: 11 December 2023
CLC:  U 461.91
Fund:  江苏省博士后科研资助计划(2020Z411)
Cite this article:

Jun-hui ZHANG,Xiao-man GUO,Jing-xian WANG,Zong-jie FU,Da-peng CHEN. Safety-enhanced multi-vehicle tracking based on joint probability data association. Journal of ZheJiang University (Engineering Science), 2023, 57(11): 2170-2178.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.11.004     OR     https://www.zjujournals.com/eng/Y2023/V57/I11/2170


基于联合概率数据融合的多目标车辆安全跟随

为了实现密集杂波环境下多目标车辆安全跟随,提出多源传感器数据融合的多目标车辆跟踪算法与纵向避撞预警策略. 针对多源传感器观测序列因采样周期、采样起始时刻、通信时延差异等引起的时间异步,以及空间上存在不同维度、不同坐标系的问题,给出时间配准与空间融合的软同步方法. 采用基于改进的联合概率数据关联(JPDA)的单一传感器多目标状态估计算法对目标轨迹进行滤波估计,能够在保证有效关联的同时,在一定程度上降低计算复杂度. 基于多源传感器联合概率数据融合(MSJPDA)序贯滤波算法对目标的运动状态进行序贯更新,将最后一级的输出作为融合中心的最终状态估计,再根据威胁估计模型对追尾危险的发展态势进行评估与分级. 实车试验与仿真结果验证了该算法的可行性与有效性.


关键词: 智能车辆,  多源数据融合,  多车辆跟踪,  威胁估计,  联合概率数据关联

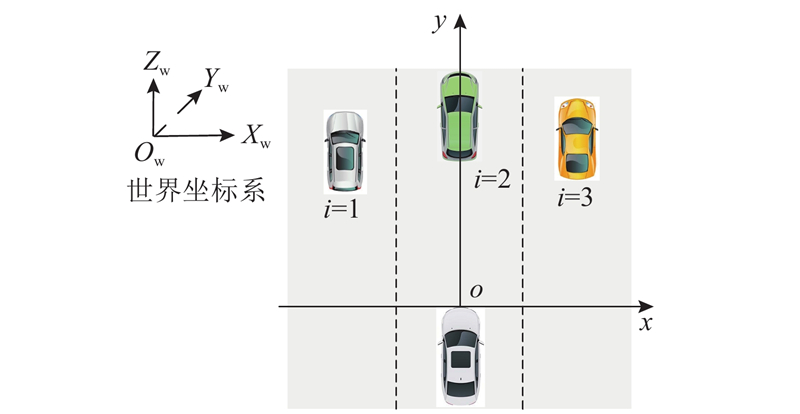

Fig.1 Coordinate system for multi-lane multi-vehicle tracking

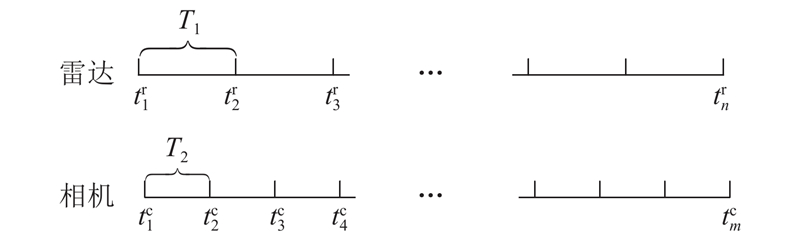

Fig.2 Sampling sequence of radar and camera
Fig.3 Relationship between camera pixel coordinate system and world coordinate system

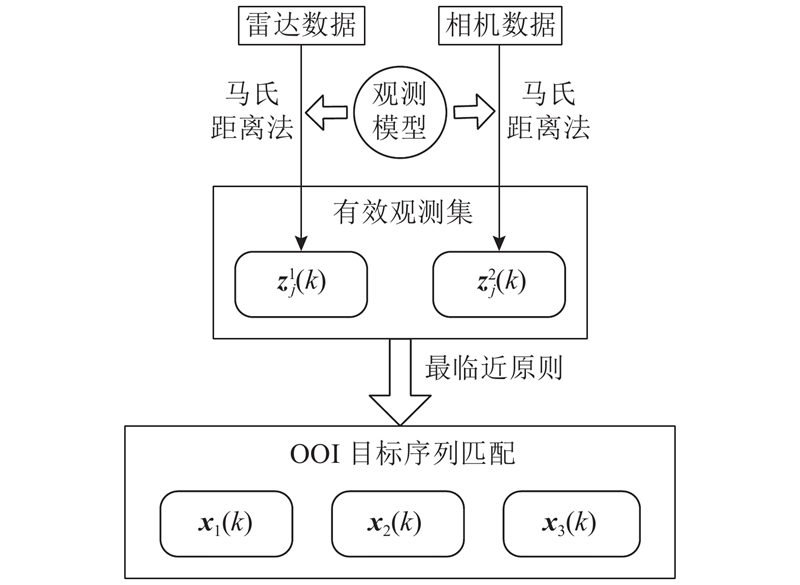

Fig.4 Flow chart of data association for radar and camera
类别 融合方法 不确定性 融合层次
概率统计类 加权平均法 低层次
卡尔曼滤波法 高斯噪声 低层次
贝叶斯估计法 高斯噪声 低层次
产生式规则 置信因子 高层次
人工智能类 模糊推理 隶属度 高层次
神经网络 学习误差 低或高
Tab.1 Comparison of common data fusion methods

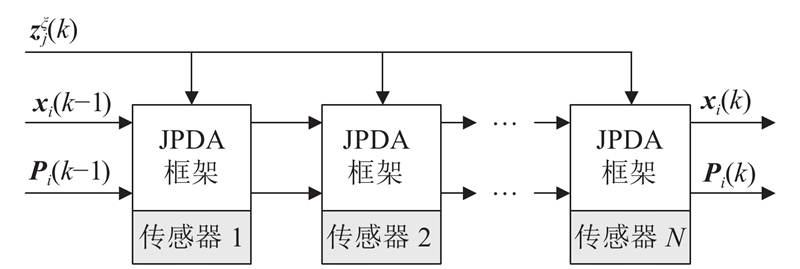

Fig.5 Flow chart of MSJPDA sequential filtering algorithm

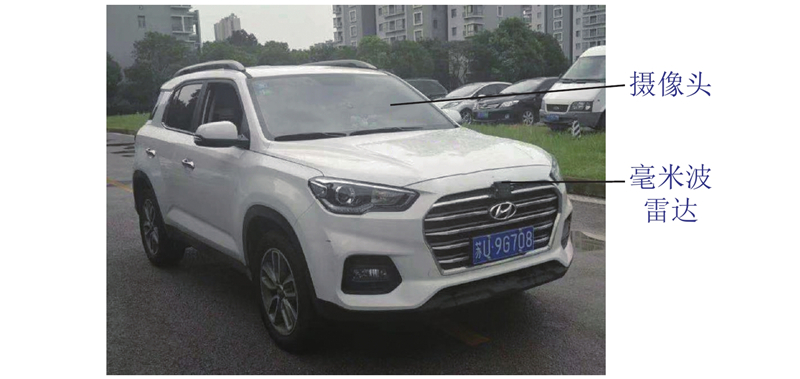

Fig.6 Experimental vehicle and sensors
传感器 参数 数值
毫米波
雷达
型号 大陆ARS 408-21
载波频率/ GHz 77
长距模式 最大测距/m 250
量测精度/m ±0.4
水平角/(°) ±9
短距模式 最大测距/m 70
量测精度/m ±0.1
水平角/(°) ±45
速度范围/(km·h?1) ?400~200
(?表示远离目标;+表示靠近目标)
通信方式 CAN
扫描周期/ms ~60
相机 型号 Logitech C310
分辨率/像素 1 280×720
焦距/mm 29.5
帧率/(帧·s?1) 30
Tab.2 Main performance parameters of radar and camera

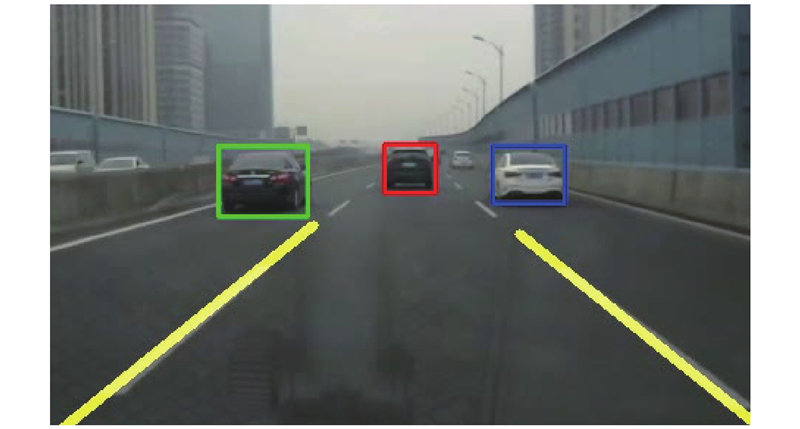

Fig.7 Detection result of multi-lane multi-vehicle tracking

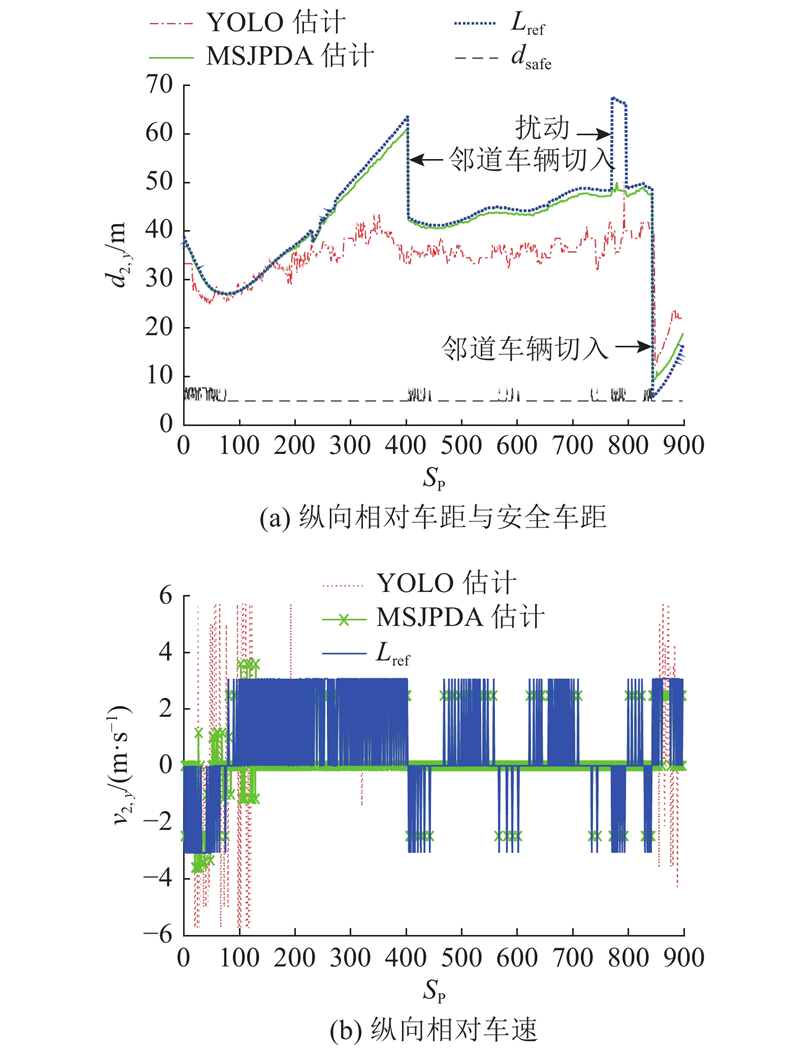

Fig.8 Longitudinal inter-vehicle motion estimation between host vehicle and OOI vehicle in host-lane

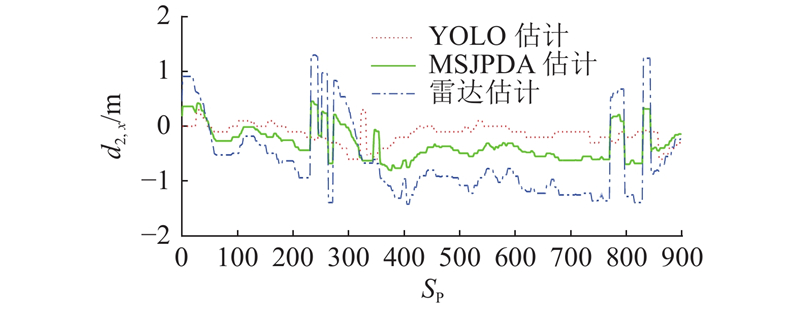

Fig.9 Lateral inter-vehicle motion estimation between host vehicle and OOI vehicle in host-lane

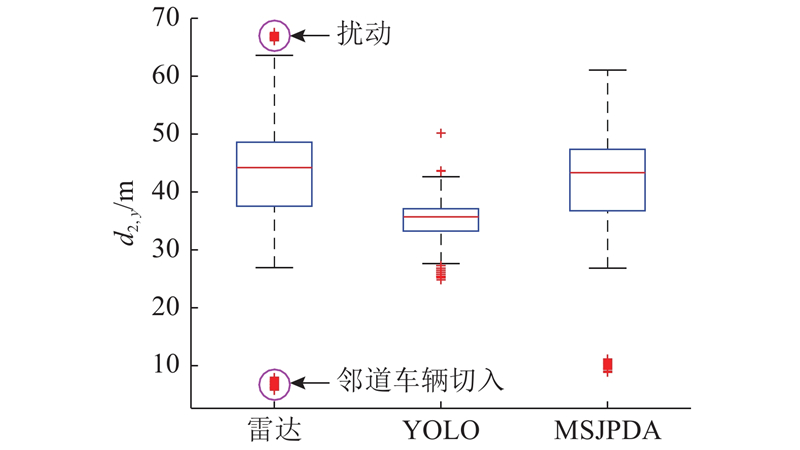

Fig.10 Longitudinal inter-vehicle distance distribution between host vehicle and OOI vehicle in host-lane

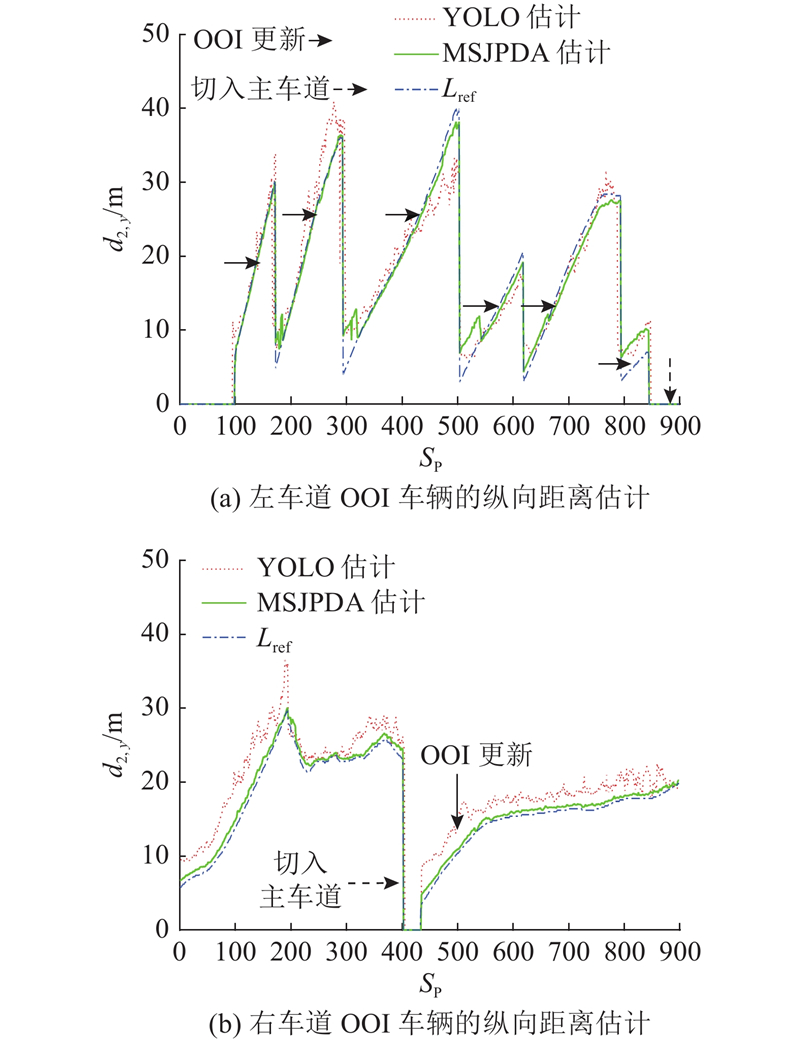

Fig.11 Comparison of longitudinal inter-vehicle motion estimation between host vehicle and OOI vehicle in adjacent-lane

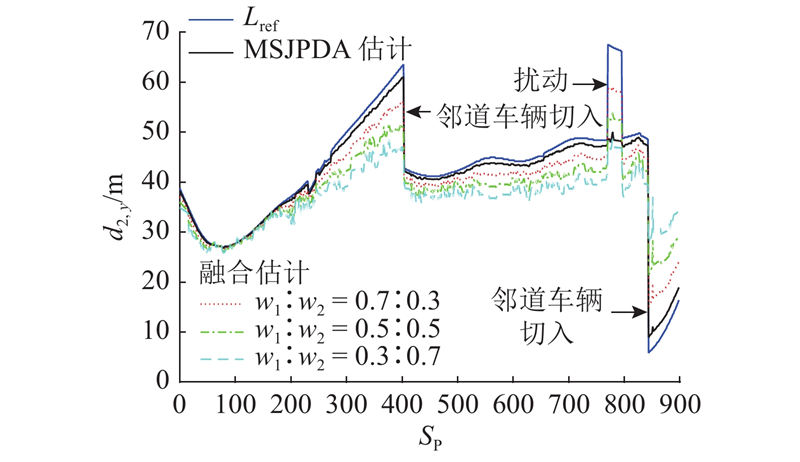

Fig.12 Comparison between MSJPDA estimation and weighted fusion estimation

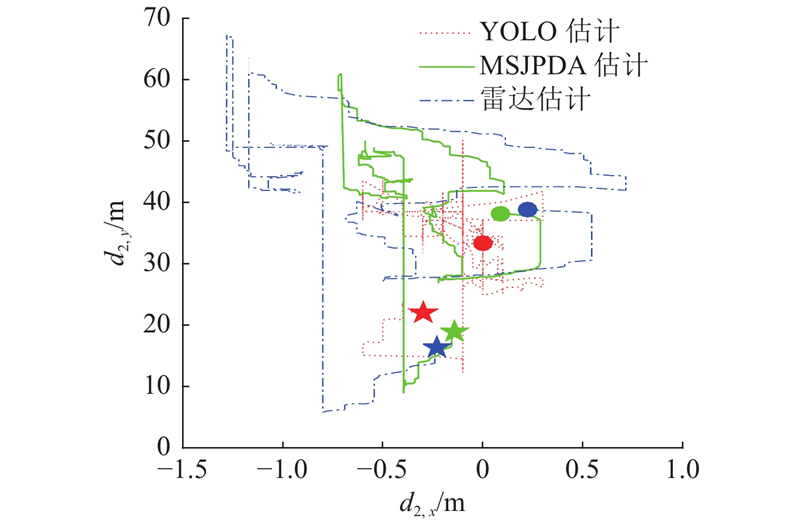

Fig.13 Trajectory estimation of OOI vehicle in host-lane
