Journal of ZheJiang University (Engineering Science)  2023, Vol. 57 Issue (3): 552-561    DOI: 10.3785/j.issn.1008-973X.2023.03.013

Grouting technology for surface soft soil in coastal tidal karst area and its application
Xiao-jie GAO1(),Zhao-feng LI1,*(),Jiu-qing LIN4,Yun-long SONG2,Shang-jie QING3,Xiang-dong CUI2,Xiao-guang PENG4
1. Geotechnical and Structural Engineering Research Center, Shandong University, Jinan 250061, China
2. Shandong Zhengyuan Construction Engineering Limited Company, Jinan 250098, China
3. China Resources Cement (Hepu) Limited Company, Beihai 536119, China
4. China Resources Cement Investments Limited Company, Shenzhen 518001, China
Download: HTML     PDF(3177KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The soil around the first mining area of a company was taken as the research object, aiming at the engineering problems of soft and weak bearing capacity of Quaternary surface soil in coastal karst area. In consideration of the change of water head under tidal action, through the means of indoor model test, the cement-water glass double slurry commonly used in engineering was selected to study the grouting reinforcement of karst surface soft soil layer. Results show that the shape of plasma veins is various in the tidal semitidal and high tide environments, and the advanced grouting technology has the best reinforcement effect. Results also show that the fixed-point grouting technology at the buried depth of 60 cm has the optimal growth rate in the improvement of bearing capacity and water stability characteristics. The maximum increase of compressive strength of the injected soil layer was 46.8%, and the increase range of water stability characteristics was 773 s. The site adopts the fixed-point grouting technology in the half tide period, and the grouting depth is 2/3 of the average depth of the topsoil as the best reinforcement scheme for the coastal karst soft soil layer.



Key wordscoastal karst      soft soil      grouting reinforcement      grouting process      engineering application
Received: 29 March 2022      Published: 31 March 2023
CLC:  TU 45
Fund:  山东省重大科技创新工程项目(2021CXGCO10301, 2020CXGC011405);山东省自然科学基金重点项目(ZR2020KE006)
Corresponding Authors: Zhao-feng LI     E-mail: 15005425712@163.com;lizf@sdu.edu.cn
Cite this article:

Xiao-jie GAO,Zhao-feng LI,Jiu-qing LIN,Yun-long SONG,Shang-jie QING,Xiang-dong CUI,Xiao-guang PENG. Grouting technology for surface soft soil in coastal tidal karst area and its application. Journal of ZheJiang University (Engineering Science), 2023, 57(3): 552-561.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.03.013     OR     https://www.zjujournals.com/eng/Y2023/V57/I3/552


滨海潮汐岩溶地表软土注浆技术研究与应用

针对滨海岩溶第四系表层土质地松软、承压能力弱的工程施工难题,以某公司矿山首采区周边土层为研究对象,考虑滨海潮汐作用导致渗流水头变化的特殊因素,通过室内模型试验的手段,选取工程常用水泥-水玻璃双浆液对岩溶表层松软土层进行注浆加固试验研究. 结果表明:潮汐半潮及高潮环境下浆脉形态多样,且前进式注浆工艺加固效果最佳;埋深60 cm处定点注浆技术在承压能力及水稳特性提升方面具有最优的增长速率,被注土层抗压强度最大增幅为46.8%,水稳特性增幅区间为773 s. 确定将现场采用半潮时段定点注浆技术、注浆深度为表土层平均深度的2/3处,作为滨海岩溶上表松软土层的最佳加固方案.


关键词: 滨海岩溶,  松软土层,  注浆加固,  注浆工艺,  工程应用

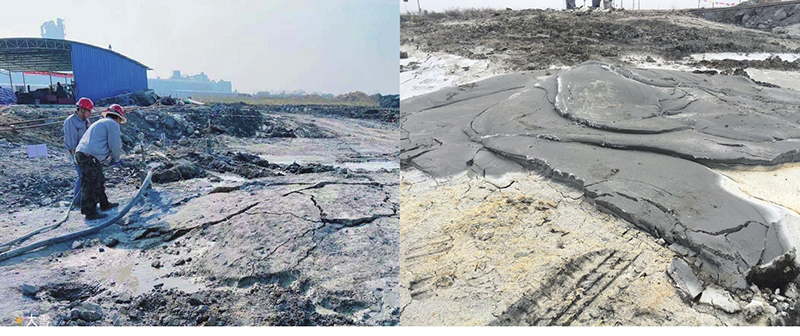

Fig.1 Picture of ground cracking and slurry overflow

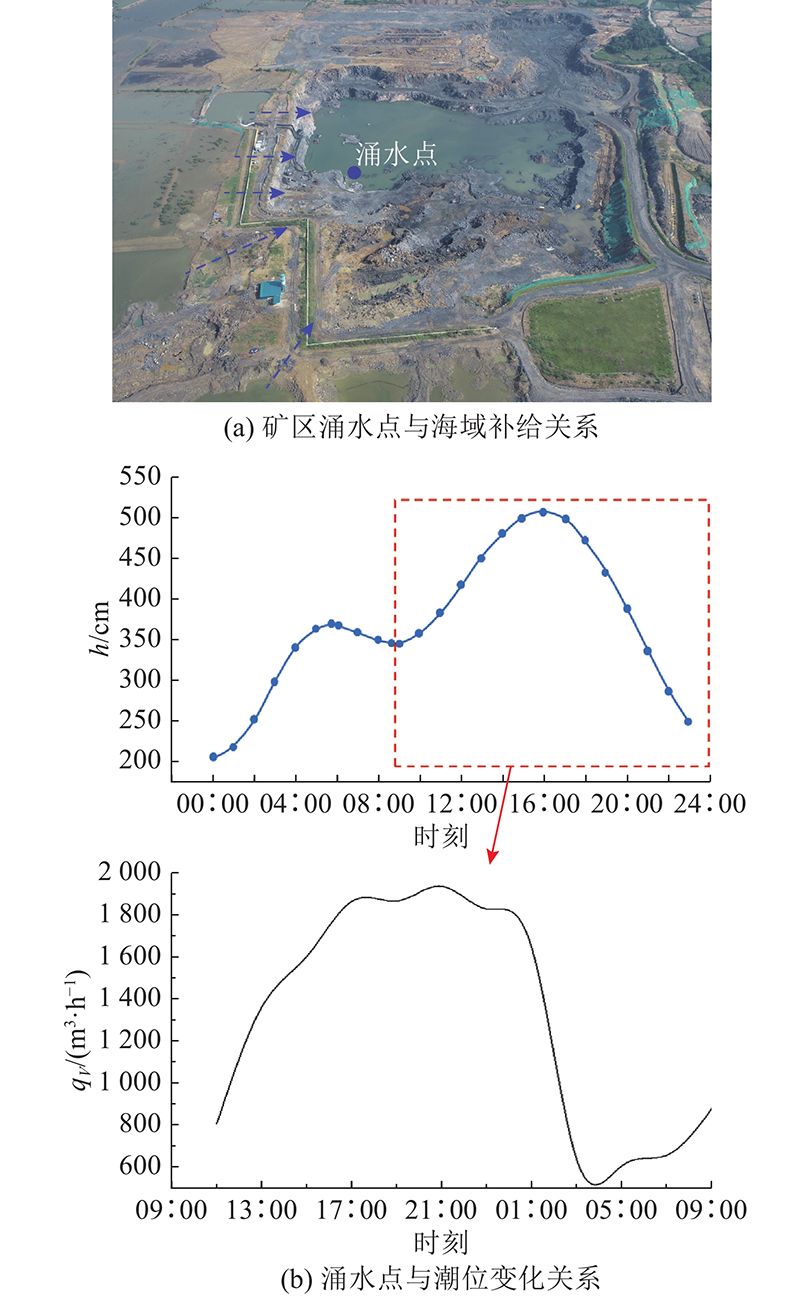

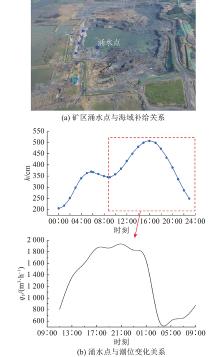

Fig.2 Diagram of coastal tidal lateral recharge

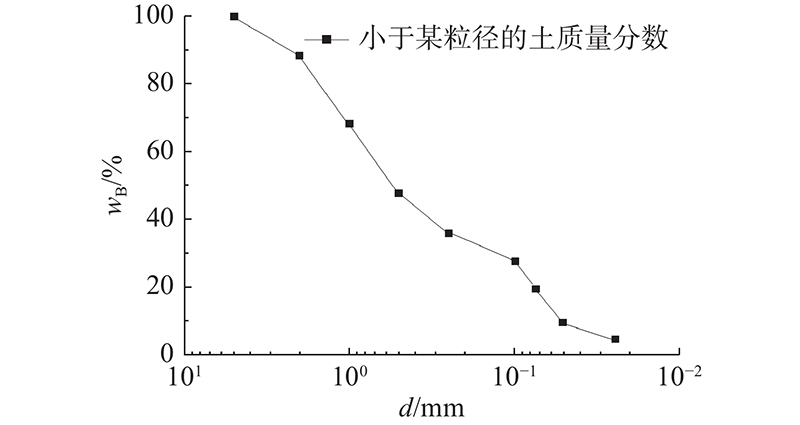

Fig.3 Gradation curve of soil around karst mining area
rw/c 水泥 C-S p(3 d)/MPa p(7 d)/MPa
ti/h tf /h ti/s tf /s 水泥 C-S 水泥 C-S
0.7∶1 8.5 17.5 52 65 9.1 2.1 12.2 2.5
1∶1 12.5 23 78 88 4.8 1.6 7.9 1.8
1.5∶1 18 49.5 85 95 1.23 0.87 1.78 1.28
Tab.1 Physical and mechanical properties of cement slurry and C-S slurry

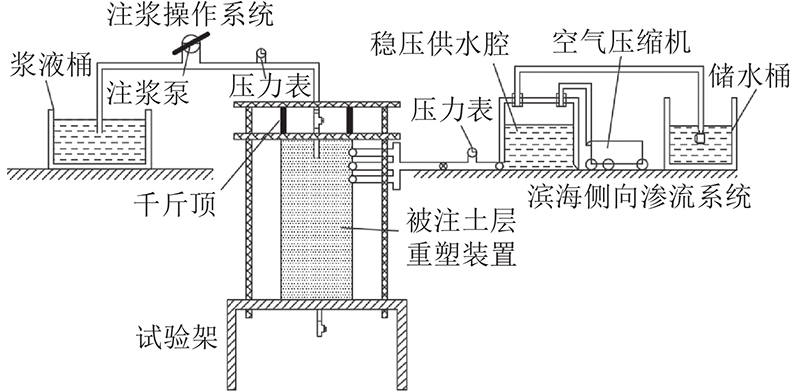

Fig.4 Schematic diagram of coastal tidal seepage grouting simulation device
名称 数量 规格/cm 用途
承压钢板 3 L40×L40×H1.5 封闭腔体、承压
被注腔体 1 Φ28×H92 装载被注试样
千斤顶 2 市面常规 压力输出装置
螺纹螺杆 12 ΦH100 连接、固定实验装置
Tab.2 Basic parameters of test device

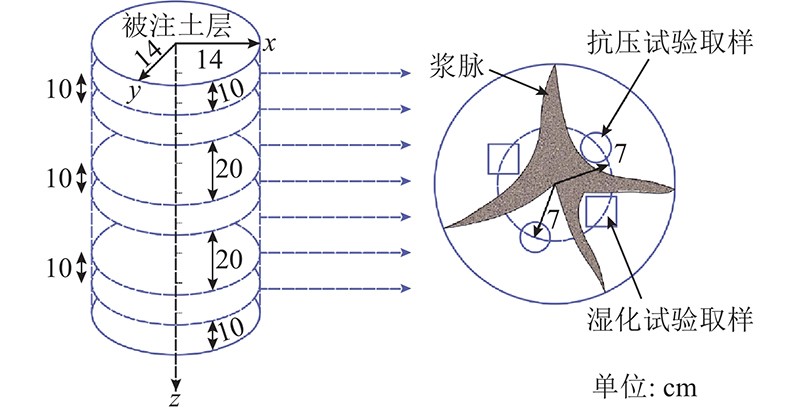

Fig.5 Sampling diagram of grouting reinforcement test

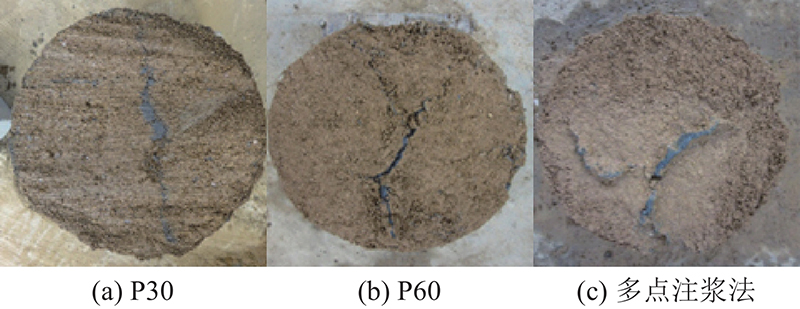

Fig.6 Slurry vein morphology in low tide environment

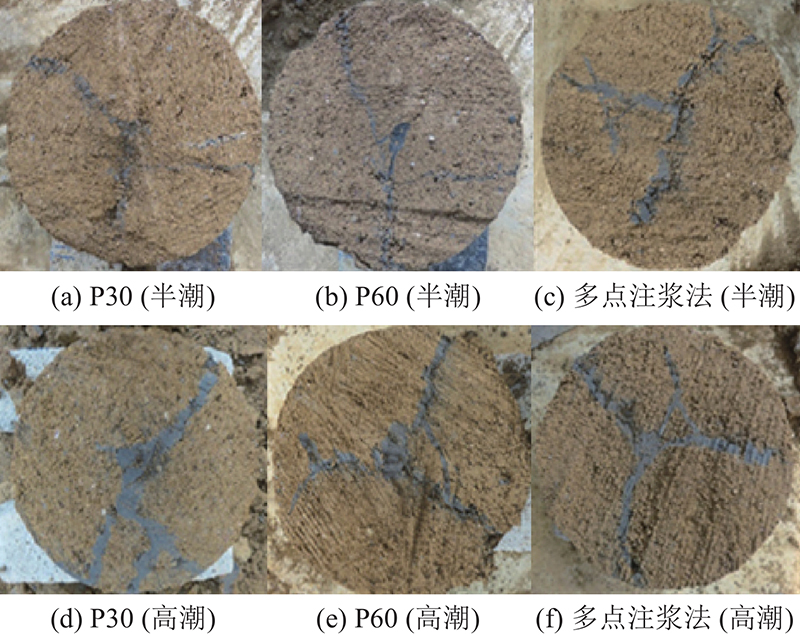

Fig.7 Slurry vein morphology of three grouting methods at half tide/high tide

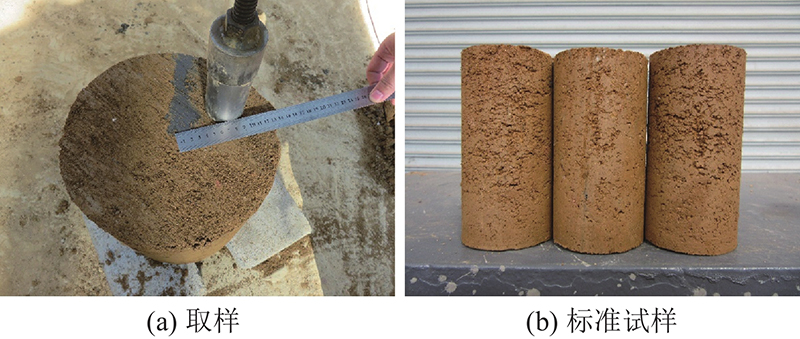

Fig.8 Photo of sampling process and standard sample

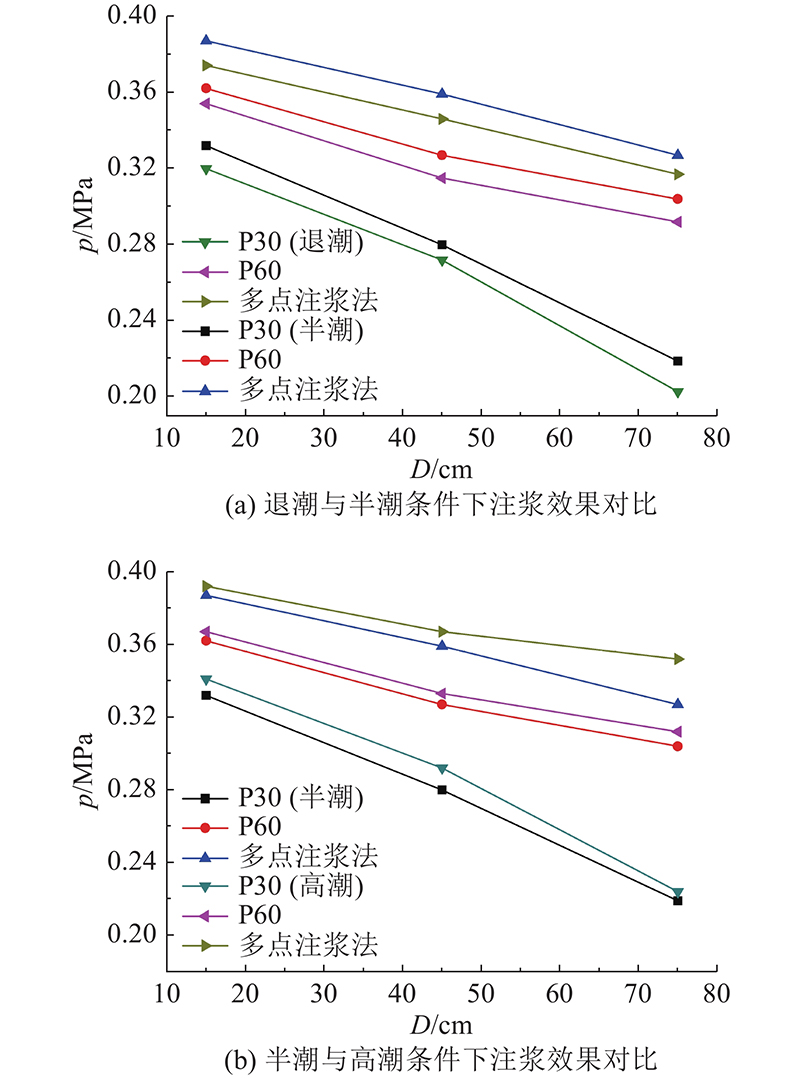

Fig.9 Variation curve of compressive strength of samples at different depths with three grouting methods under different tidal environment

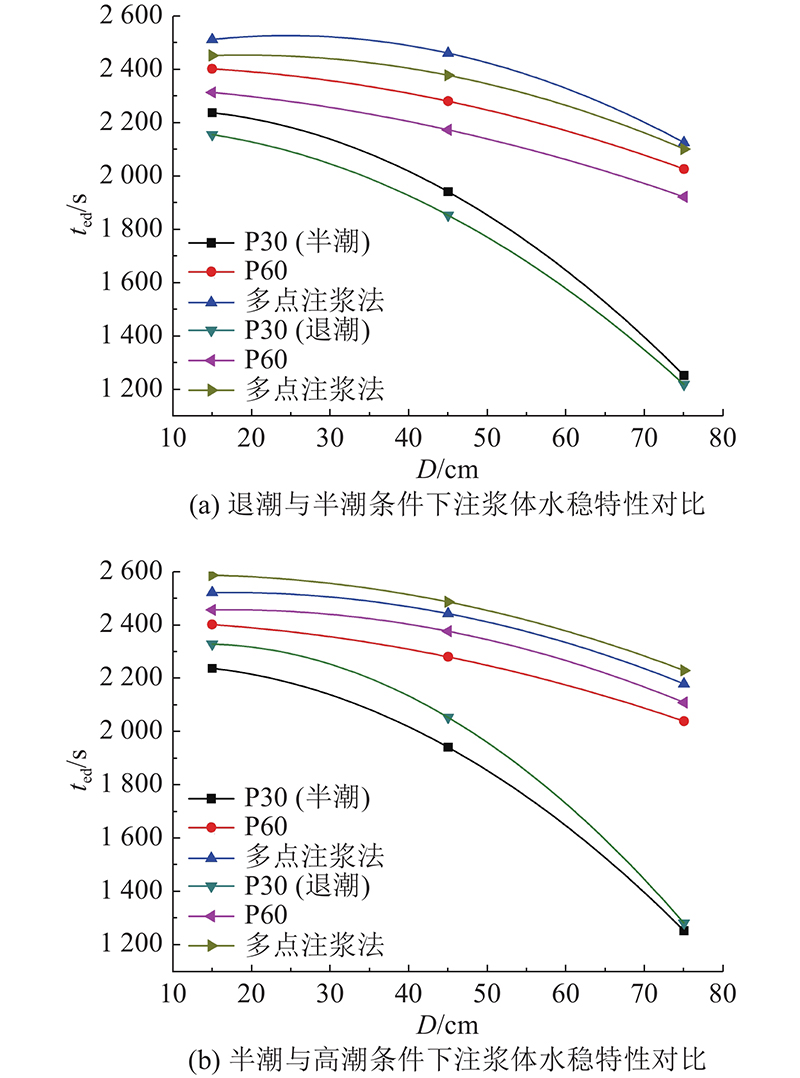

Fig.10 Variation curve of water stability characteristic of samples at different depths with three grouting methods under different tidal environment

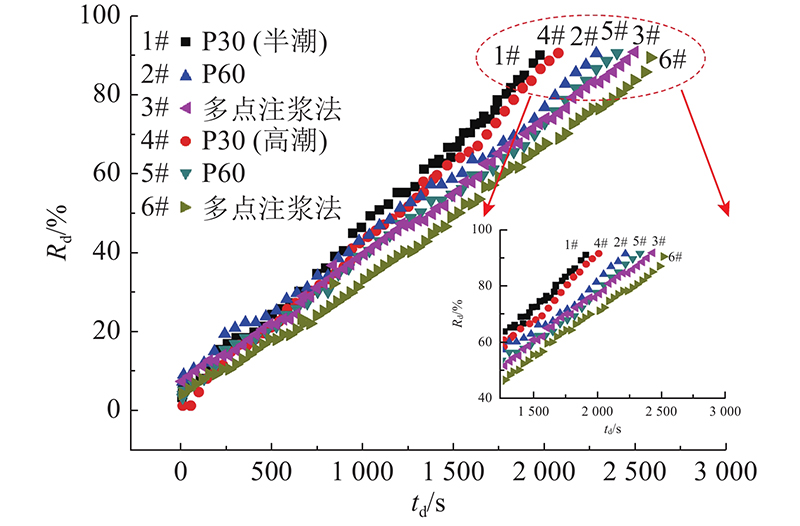

Fig.11 Variation curve of disintegration rate characteristic of samples at 45 cm depths with three grouting methods under different tidal environment

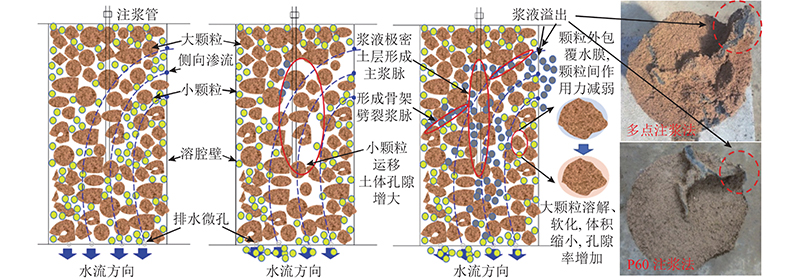

Fig.12 Diagram of slurry vein diffusion mechanism in coastal environment
Fig.13 Pressure-time curve and pressure of inspection hole
