An operating modes identification of spaceborne synthetic aperture radar (SAR) model based on one-dimensional convolutional neural network was proposed according to the timing characteristics of SAR signals, in order to solve the limitation of the recognition accuracy and the timeliness of traditional spaceborne SAR operating modes inversion methods. The impulse peak amplitude of the SAR signal was taken as input, more subtle and representative features of the original signal were learned by using adaptive learning and pattern recognition ability of the convolutional neural network, the human interference factors of traditional methods were avoided, and the effective identification of the operating modes of spaceborne SAR was finally realized. The one-dimensional convolutional neural network structure was designed referring to the existing convolutional neural network with good performance, and the better parameters were adjusted and set to train a model with good recognition performance according to the feedback of the accuracy and the loss value in the training process of the network. Contrast experiments based on simulation data demonstrate that the model has higher recognition accuracy than traditional spaceborne SAR operating modes inversion methods and has excellent robustness and noise anti-noise ability under different types of signals and different detection conditions.
Jun HE,Ya-sheng ZHANG,Can-bin YIN. Operating modes identification of spaceborne SAR based on deep learning. Journal of ZheJiang University (Engineering Science), 2022, 56(8): 1676-1684.

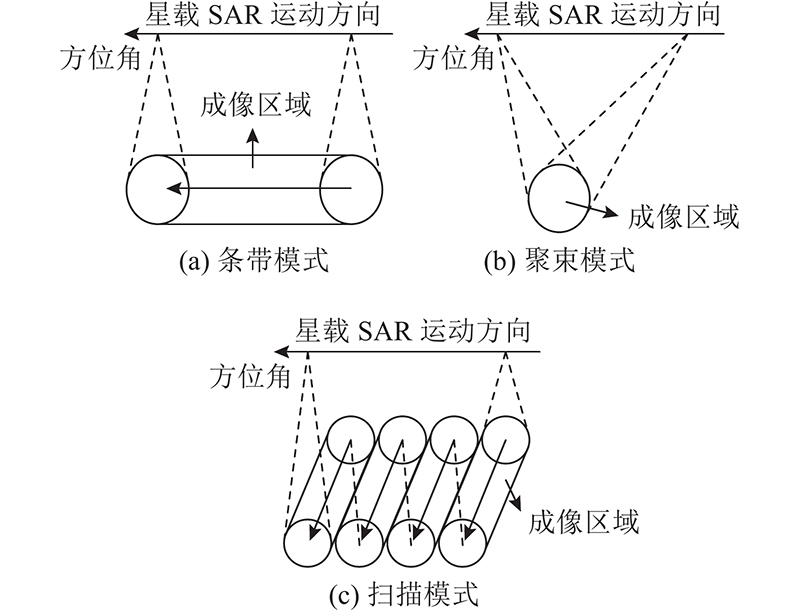

Fig.1Schematic diagram of operating modes of spaceborne SAR

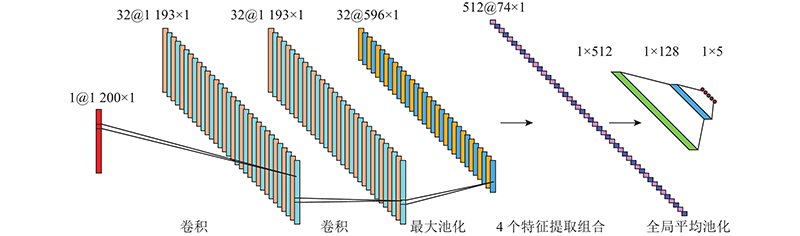

Fig.2Schematic diagram of one-dimensional convolutional neural network structure

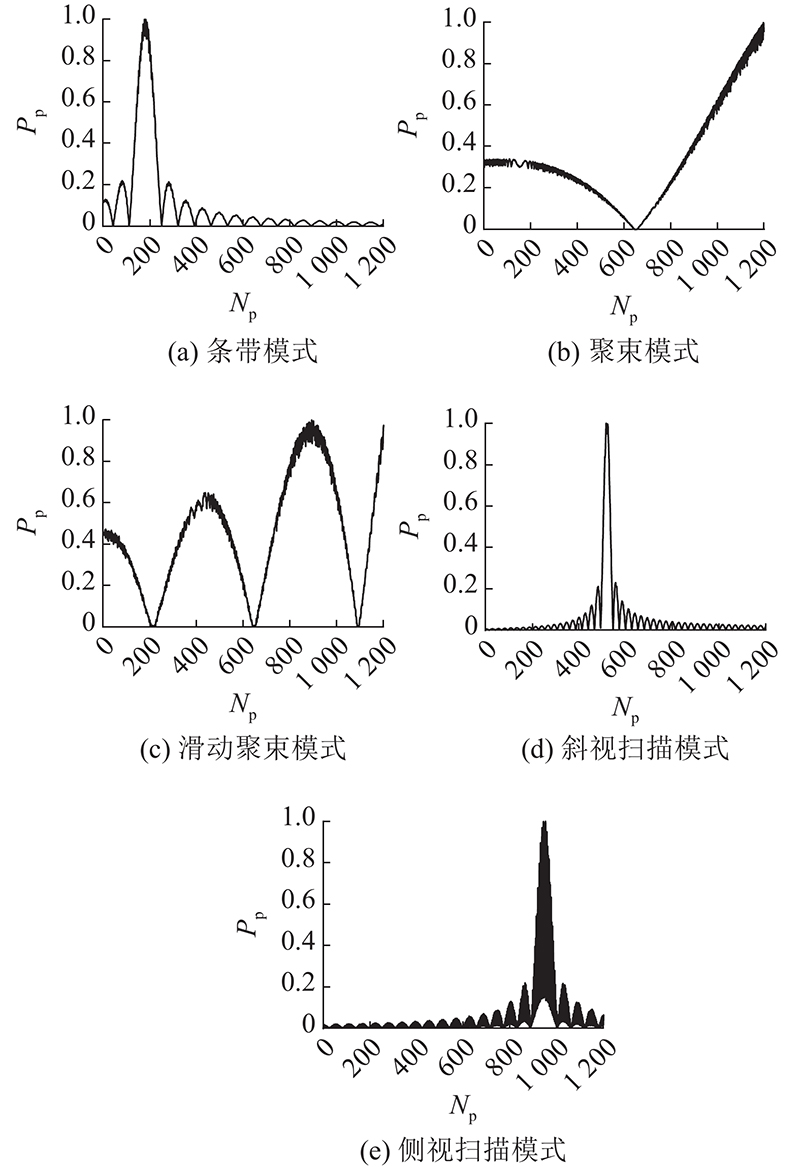

Fig.3Peak amplitude of pulse signal in different operating modes
仿真参数
数值
仿真参数
数值
发射功率
5 000 W
合成孔径时间
20 s
天线增益
45 dB
最小侧视角
20°
波束方位宽度
0.2°
最大侧视角
50°
波束距离宽度
1°
最大斜视角
30°
信号带宽
30 MHz
发射脉冲宽度
5 us
载波频率
10 GHz
侦收采样率
60 MHz
Tab.1Parameters of spaceborne SAR

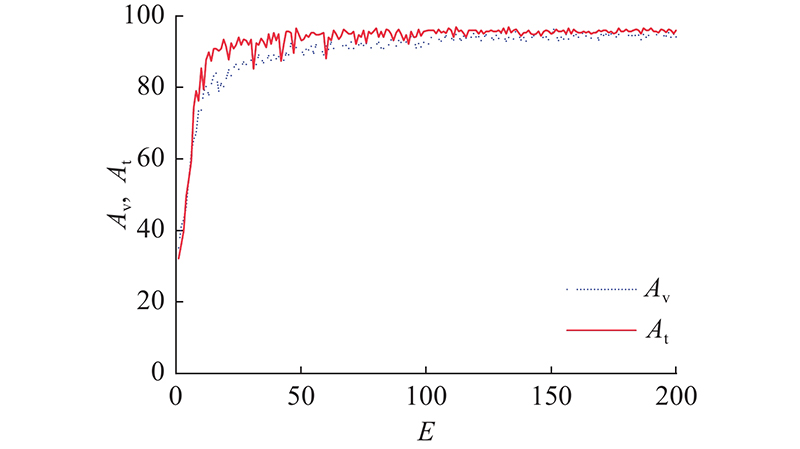

Fig.4Curve diagram of training accuracy

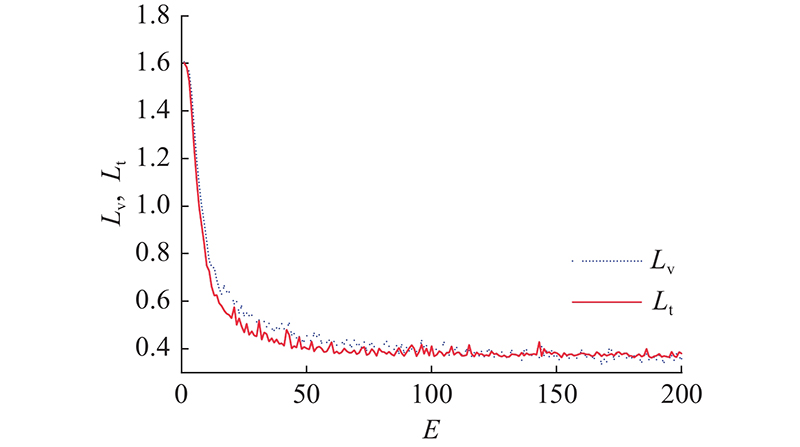

Fig.5Curve diagram of training loss

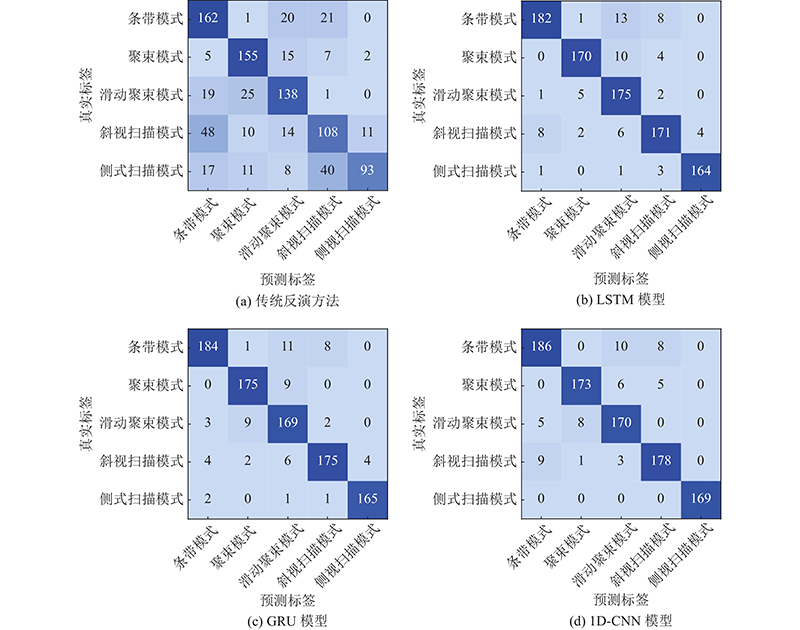

Fig.6Confusion matrixes of different recognition methods
方法
Re/%
Acc/%
条带 模式
聚束 模式
滑动 聚束
斜视 扫描
侧式 扫描
文献[5]
79.41
84.24
75.41
56.54
55.03
70.46
LSTM
89.22
92.39
95.63
89.53
96.04
92.59
GRU
90.20
95.11
92.35
91.62
97.63
93.23
1D-CNN
91.18
94.02
92.90
93.19
100.00
94.09
Tab.2Comparison of recognition accuracy by different classification methods
方法
Nt
tt
LSTM
80 755 205
7 h 16 min 22 s
GRU
80 229 381
5 h 53 min 56 s
1D-CNN
4 262 597
1 h 10 min 46 s
Tab.3Comparison of training by different deep learning models

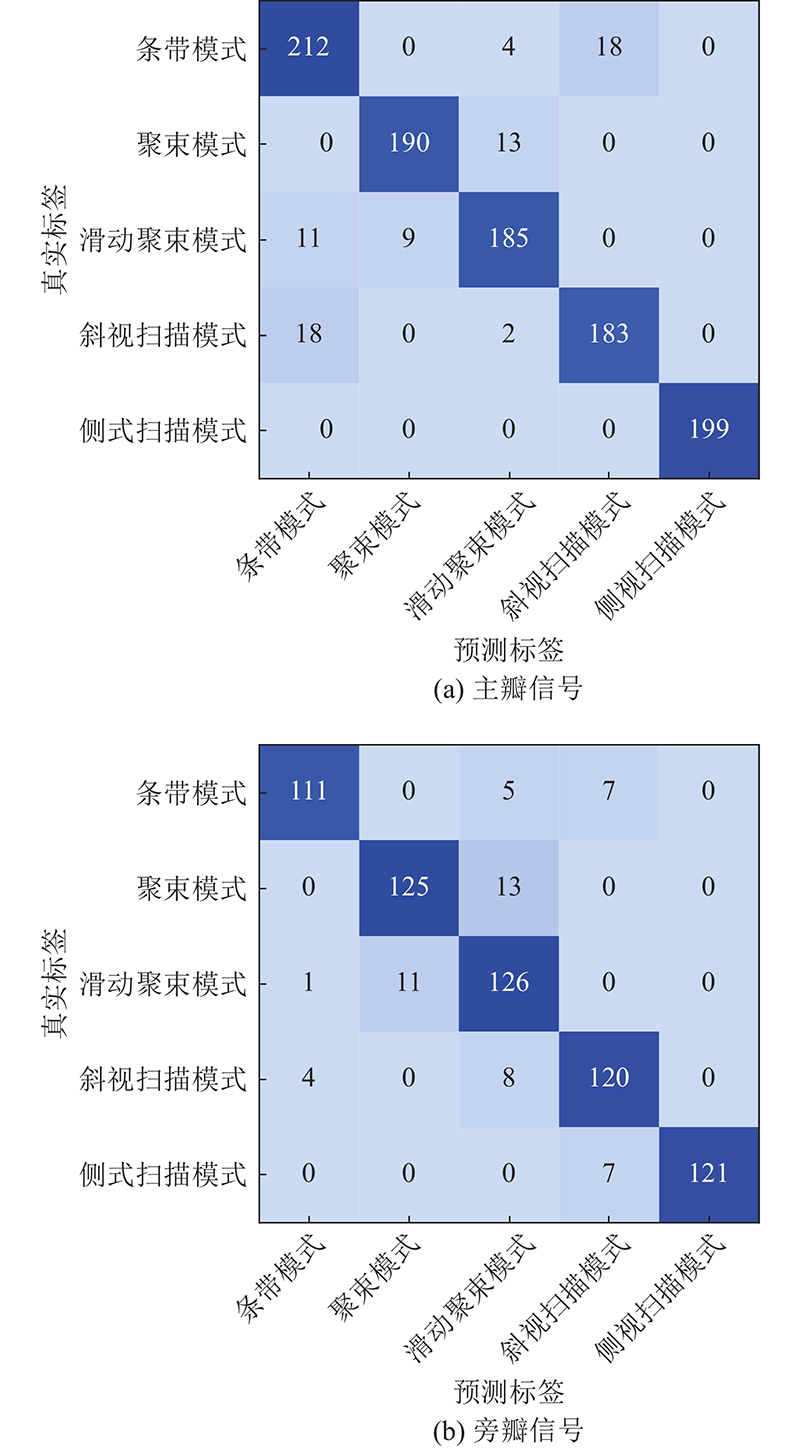

Fig.7Confusion matrix of different types of signals
信号类型
Re/%
Acc/%
条带 模式
聚束 模式
滑动 聚束
斜视 扫描
侧式 扫描
主瓣信号
90.60
93.60
90.24
90.15
100
92.82
旁瓣信号
90.24
90.58
91.30
90.90
94.53
91.50
Tab.4Classification accuracy of different types of signals

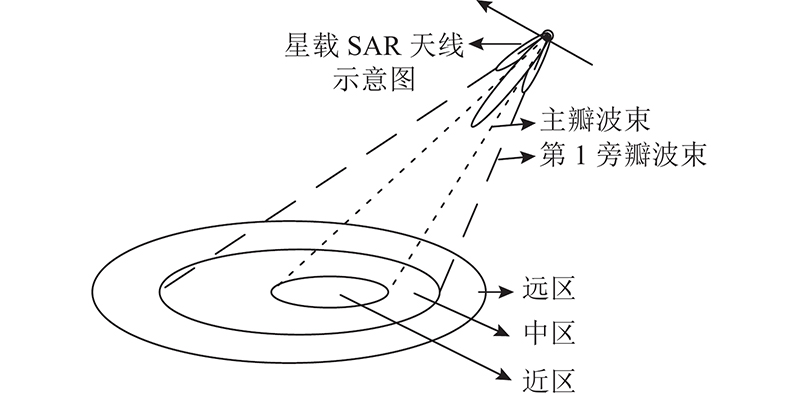

Fig.8Division of deployment areas of ground receiving station

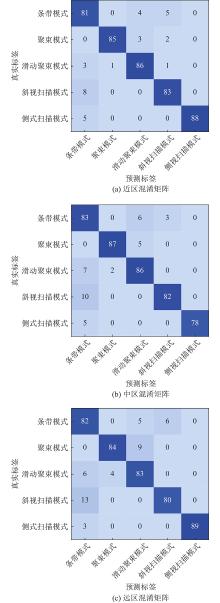

Fig.9Confusion matrix of different regions of receiving
接收区域
Re/%
Acc/%
条带 模式
聚束 模式
滑动 聚束
斜视 扫描
侧式 扫描
近区
90.00
94.44
94.51
91.21
94.62
92.97
中区
90.22
94.57
90.53
89.13
93.98
91.63
远区
88.18
90.32
89.25
86.02
96.74
90.09
Tab.5Classification accuracy of different regions of receiving
