Tunnel lining crack detection method based on image compensation

doi:10.3785/j.issn.1008-973X.2022.07.016

Journal of ZheJiang University (Engineering Science)

2022, Vol. 56

Issue (7): 1404-1415 DOI: 10.3785/j.issn.1008-973X.2022.07.016

Tunnel lining crack detection method based on image compensation

Jian-feng WANG1,2(

),Yu QIU1,Shui-zhou LIU1

1. School of Automobile, Chang’an University, Xi’an 710064, China
2. Shaanxi Road Traffic Intelligent Detection and Equipment Engineering Technology Research Centre, Xi’an 710064, China

Download:

HTML

PDF(2348KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A tunnel lining crack detection method based on image compensation was proposed aiming at the problems of low accuracy for tunnel lining crack image recognition and poor reliability of detection data caused by the vibration of detection platform. A vehicle mounted tunnel lining crack detection system was developed, and a method for adaptive motion estimation between image frames was proposed. Adaptive motion estimation based on feature point matching was conducted on the image obtained by ambient light enhancement processing in order to establish the motion relationship between image frames. The Kalman filter algorithm was utilized to filter the motion parameters in order to remove the random vibration of the acquisition platform. Then the image compensation was realized through bicubic interpolation. A method for lining image crack segmentation based on adaptive block comprehensive filtering and morphological methods was proposed to effectively complete crack extraction and crack parameter measurement. The experimental results show that the proposed method can better compensate the vibration error of the acquisition platform, accurately extract the crack information, and realize the high-precision detection of the tunnel lining crack.

Key words： tunnel lining crack image compensation crack detection motion estimation morphological processing

Received: 13 August 2021 Published: 26 July 2022

CLC:

U 456

Fund: 国家重点研发计划资助项目（2020YFB1713303）；陕西省重点研发计划资助项目（2020ZDLGY16-05）

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jian-feng WANG
	Yu QIU
	Shui-zhou LIU

Cite this article:

Jian-feng WANG,Yu QIU,Shui-zhou LIU. Tunnel lining crack detection method based on image compensation. Journal of ZheJiang University (Engineering Science), 2022, 56(7): 1404-1415.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.07.016 OR https://www.zjujournals.com/eng/Y2022/V56/I7/1404

基于图像补偿的隧道衬砌裂缝检测方法

针对检测平台振动导致隧道衬砌裂缝图像识别准确率低、检测数据可靠性差的问题，提出基于图像补偿的隧道衬砌裂缝检测方法.开发车载式隧道衬砌裂缝检测系统，提出图像帧间自适应运动估计的方法. 对采用环境光增强处理得到的图像进行基于特征点匹配的自适应运动估计，建立图像帧间的运动关系，用卡尔曼滤波算法对运动参数进行滤波，去除采集平台的无规则振动，经过双三次插值实现图像补偿. 提出基于自适应分块综合滤波和形态学方法的衬砌图像裂缝分割方法，有效地完成裂缝提取和裂缝参数计算. 实验结果表明，利用提出的方法能够较好地补偿采集平台的振动误差，准确地提取裂缝信息，实现隧道衬砌裂缝的高精度检测.

关键词： 隧道衬砌裂缝, 图像补偿, 裂缝检测, 运动估计, 形态学处理

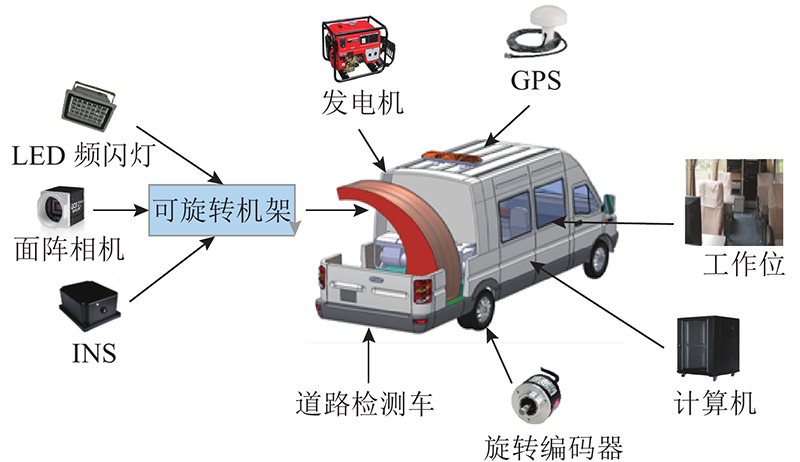

Fig.1 Detection system of tunnel lining crack

Fig.2 Visual field of detection system for tunnel lining

Fig.3 Process of crack detection method

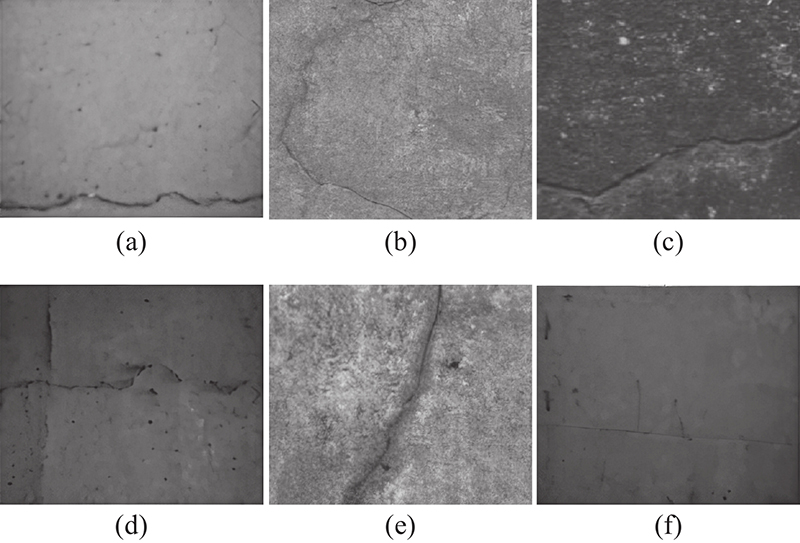

Fig.4 Enhanced image

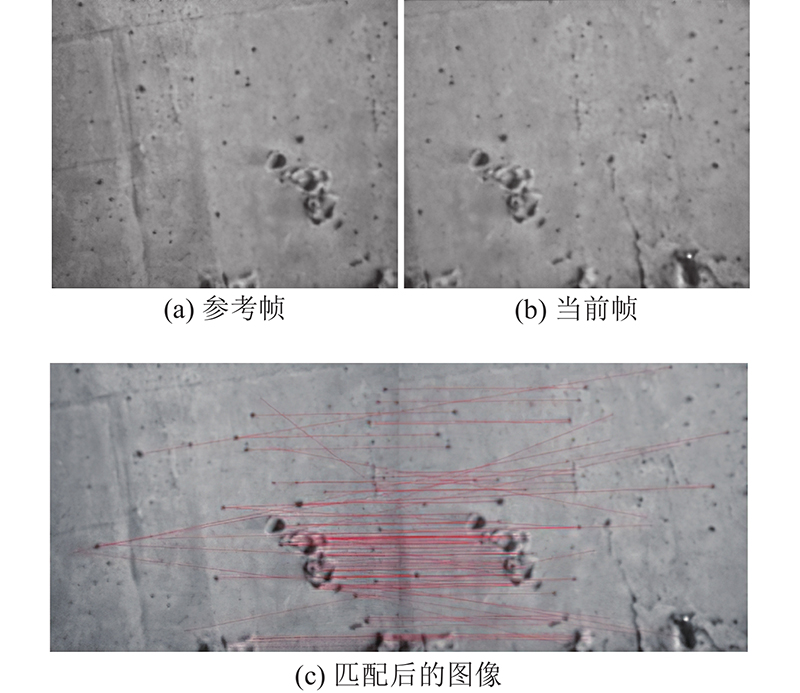

Fig.5 Image of initial matching

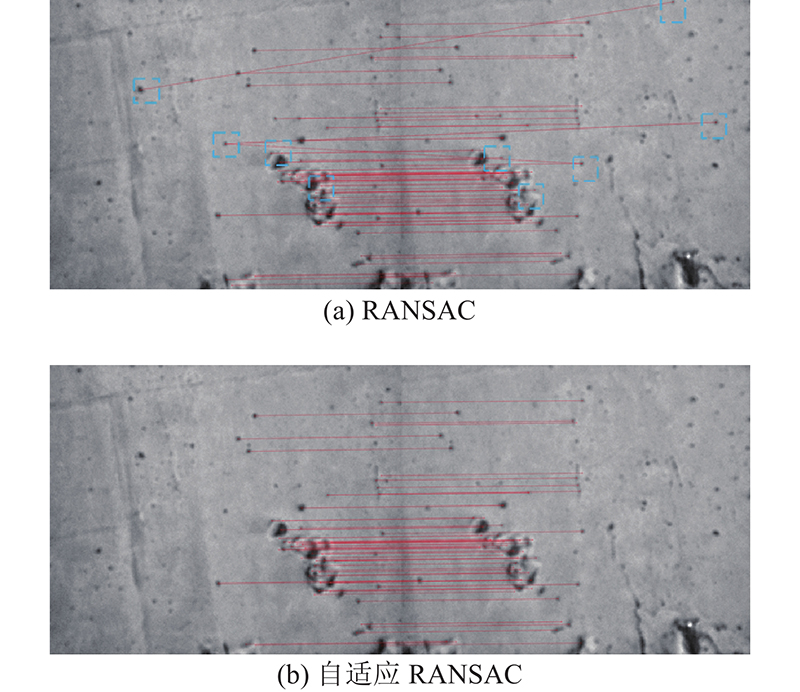

Fig.6 Comparison of two matching methods

Fig.7 Motion filtering results of Kalman filter

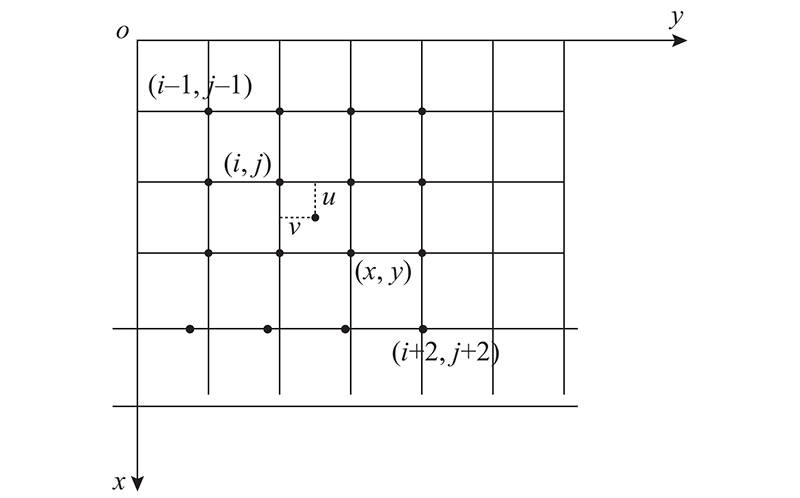

Fig.8 Cubic interpolation method

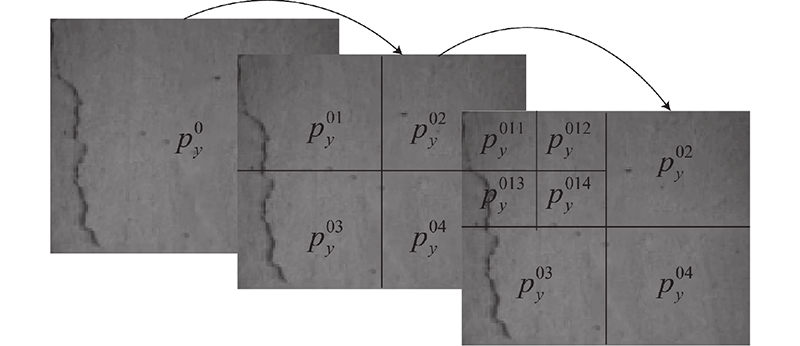

Fig.9 Adaptive blocking method

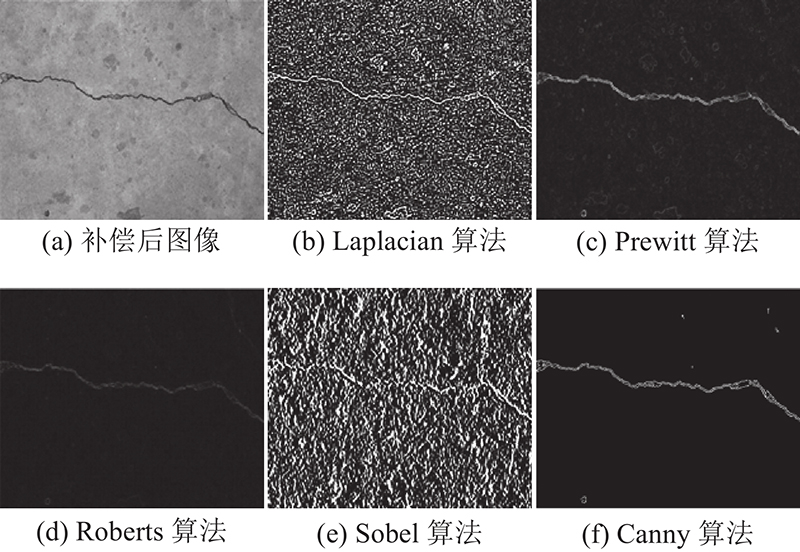

Fig.10 Comparison of edge detection algorithms

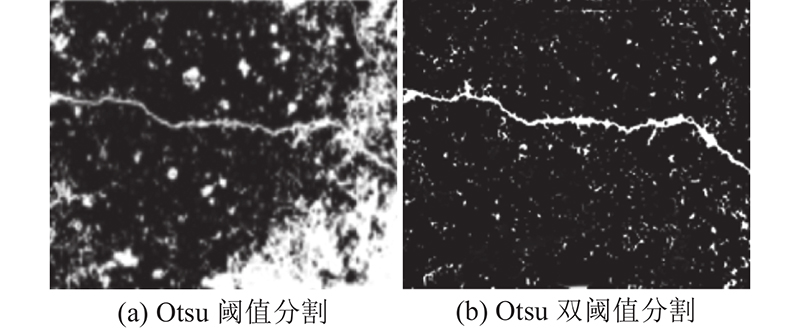

Fig.11 Comparison of threshold segmentation algorithms

Fig.12 Result of Canny and Otsu dual threshold synthesis

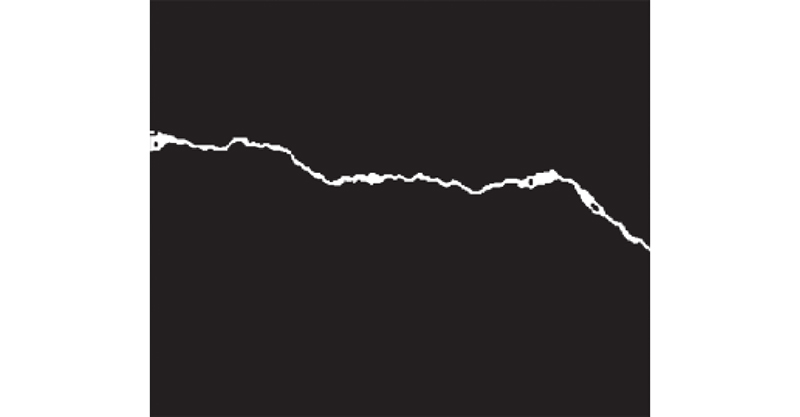

Fig.13 Results of region feature denoising and morphology

Fig.14 Calculation process of crack width

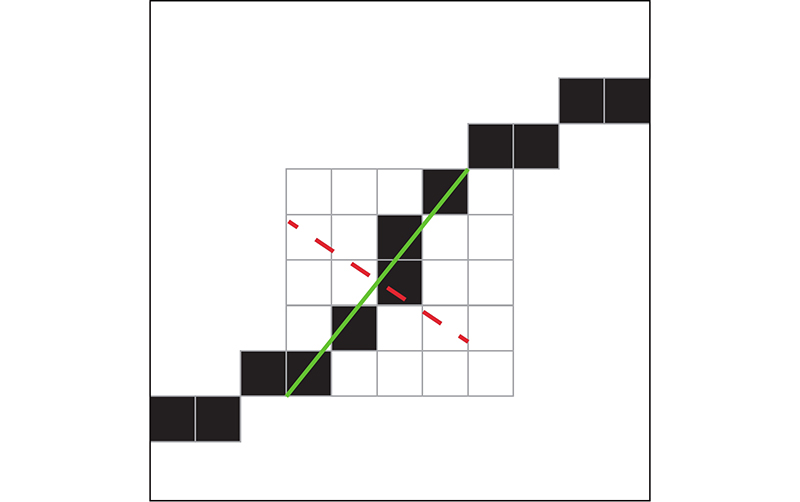

Fig.15 Calculation method of crack width

Fig.16 Image comparison before and after compensation

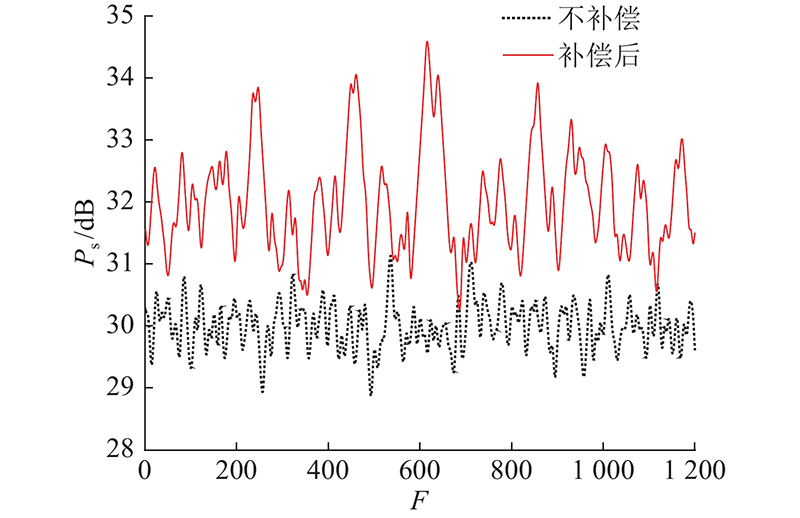

Fig.17 PSNR results of compensation method

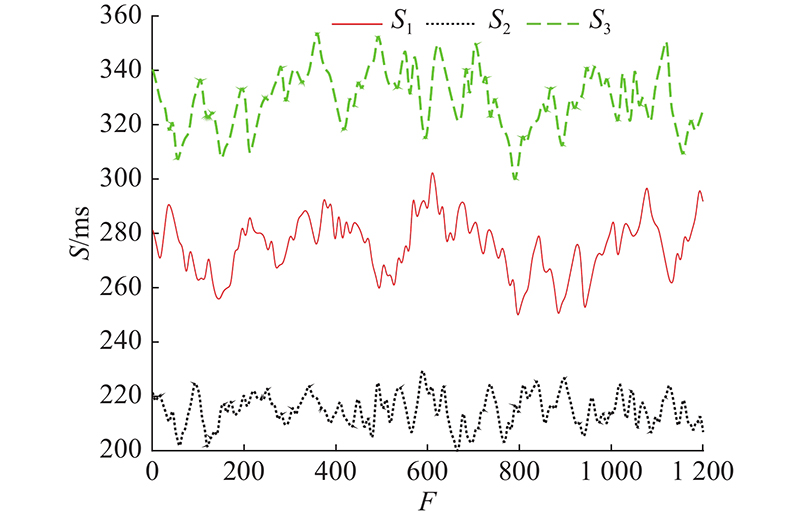

Fig.18 Results of operation efficiency of three algorithms

Tab.1 Comparison results of crack types

Tab.2 Comparison results of crack length

Tab.3 Comparison results of crack width

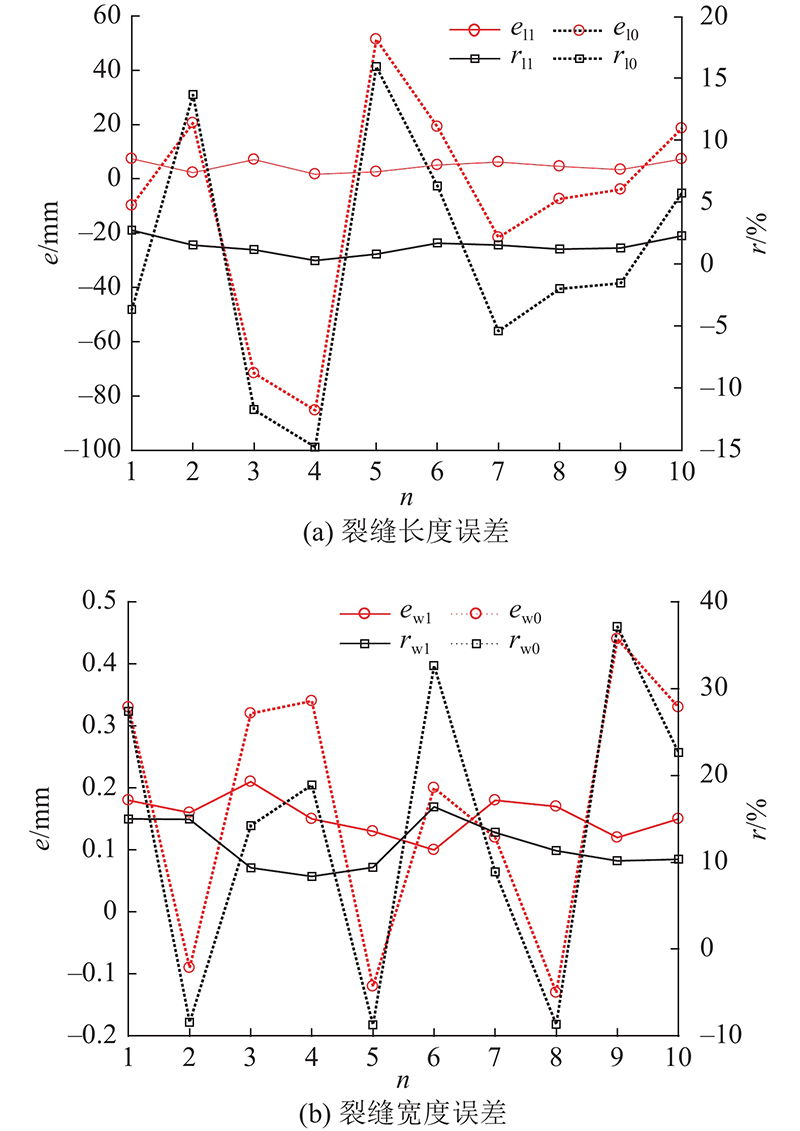

Fig.19 Calculation error of crack length and width
