General calculation method for manufacturing parameters of steel box girder in staged construction
Jin-feng WANG1(),Song-wei YANG1,Yang-yang KANG2,Hua-wei XIANG1
1. College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
2. Fuyuan County Transportation Bureau, Qujing 655500, China
Download: HTML     PDF(1249KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

In order to accurately calculate the manufacturing parameters of steel box girder in staged construction and form a simple and unified solution idea, a general calculation method for manufacturing parameters of the steel box girder bridge such as the manufacturing angle between the segments and the length of the top and bottom plates was proposed, based on the idea of achieving smooth butt joints at the interface of the sections during installation. This method determines the relative positional relationship between the installed section and the section to be installed at the bridge site directly according to the cumulative displacement of the structure, and takes the girder length at the centroid of the segment under design finished bridge state as the datum length. It was applied to a three-span steel box continuous girder bridge constructed by large-segment hoisting method. The manufacturing parameters of each small-segment steel box girder were accurately calculated, and the processing length of the top and bottom plates at the joints of the large-segment steel box girder was accurately corrected. The results show that the welding seam width at the interface of small-segment steel box girder is uniform and consistent after manufacturing, the end faces of the large-segment steel box girder were accurately matched during on-site installation, and the alignment of main girder after closuring is in good agreement with the design alignment, which verify the correctness of the proposed method.

Key words： bridge structure      staged construction      steel box girder      manufacturing parameters      general calculation method
Received: 29 April 2021      Published: 29 March 2022
CLC:  U 44
Fund:  国家自然科学基金资助项目（51878603）
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Jin-feng WANG
Song-wei YANG
Yang-yang KANG
Hua-wei XIANG
Cite this article:

Jin-feng WANG,Song-wei YANG,Yang-yang KANG,Hua-wei XIANG. General calculation method for manufacturing parameters of steel box girder in staged construction. Journal of ZheJiang University (Engineering Science), 2022, 56(3): 550-557.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.03.014     OR     https://www.zjujournals.com/eng/Y2022/V56/I3/550


分阶段施工中钢箱梁制造参数的通用计算方法

为了精确计算分阶段施工中钢箱梁制造参数，形成简便统一的求解思路，基于安装时节段间交界面实现平顺对接的思想，直接根据结构累计位移确定已安装、待安装节段桥位现场的相对位置关系，以设计成桥状态下节段形心处梁长为基准，提出分阶段施工钢箱梁桥节段间制造夹角、顶底板长度制造参数的通用计算方法. 将该方法应用于三跨钢箱连续梁桥大节段吊装施工，准确计算各小节段钢箱梁制造参数，并精准修正大节段接缝处顶底板加工长度. 结果表明：制造完成后各小节段钢箱梁交界面焊缝宽度均匀一致，现场安装时大节段钢箱梁端面实现精准匹配，合龙后主梁线形与设计线形吻合良好，验证了所提方法的正确性.


关键词： 桥梁结构,  分阶段施工,  钢箱梁,  制造参数,  通用计算方法

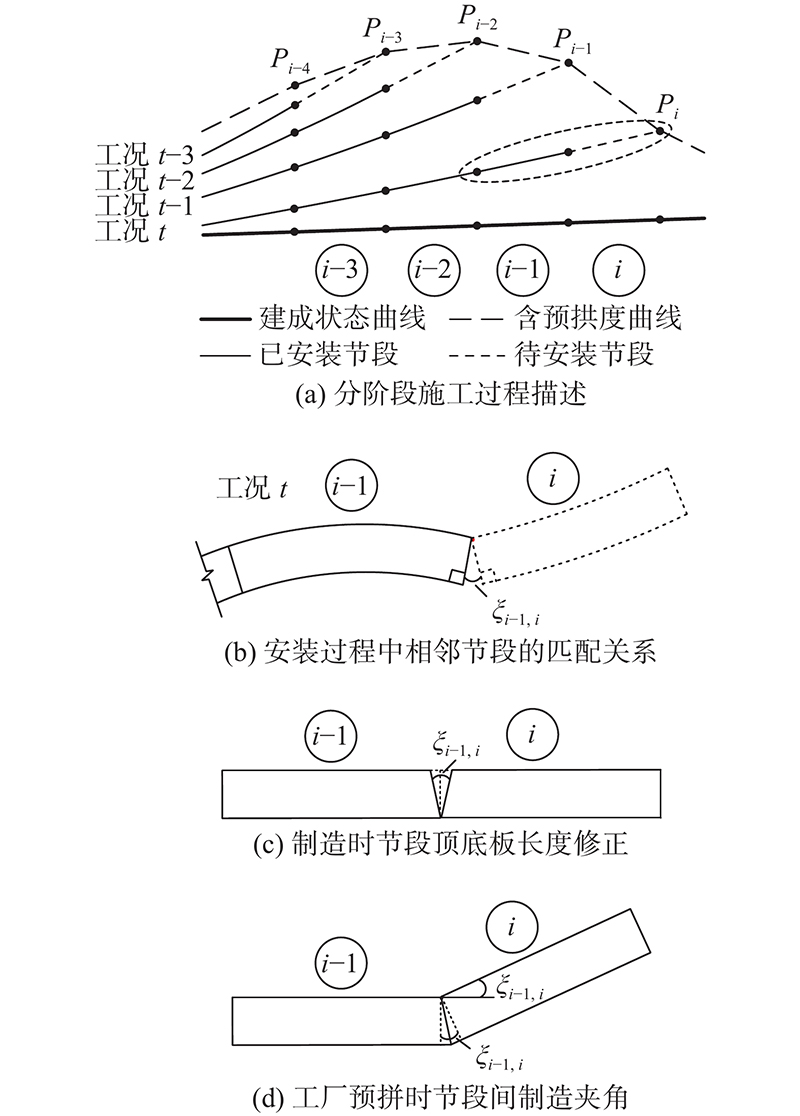

Fig.1 Determination for manufacturing status of segments in staged construction

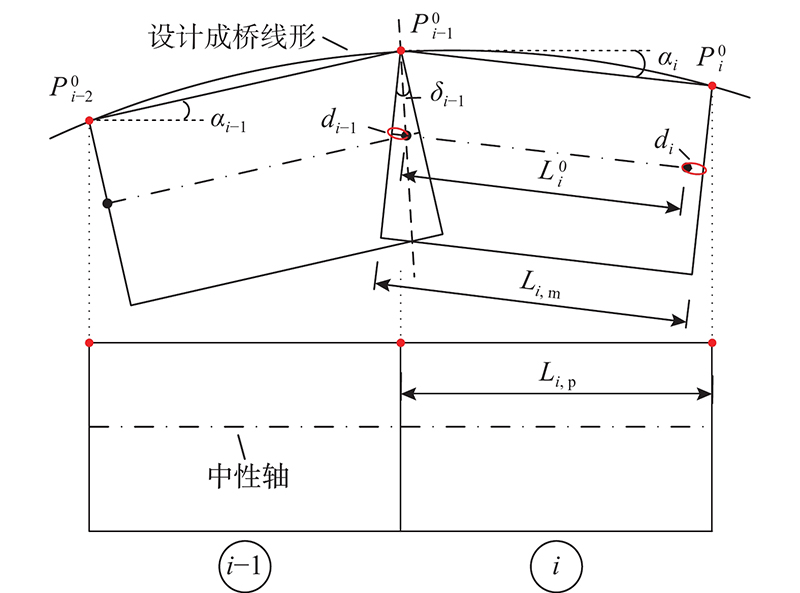

Fig.2 Calculation of manufacturing included angle between segments

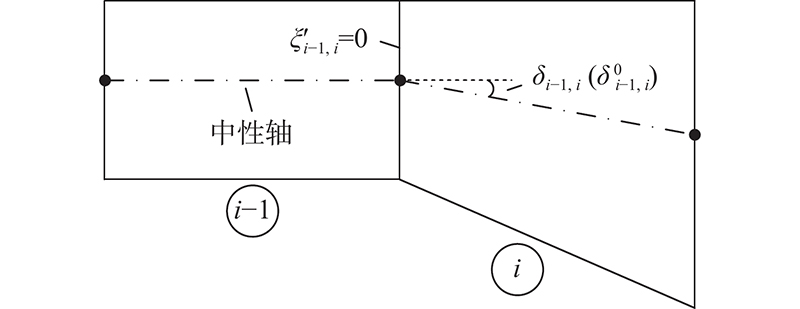

Fig.3 Relationship between manufacturing included angle between segments and neutral axis included angle
Fig.4 Length correction of segment top and bottom plate

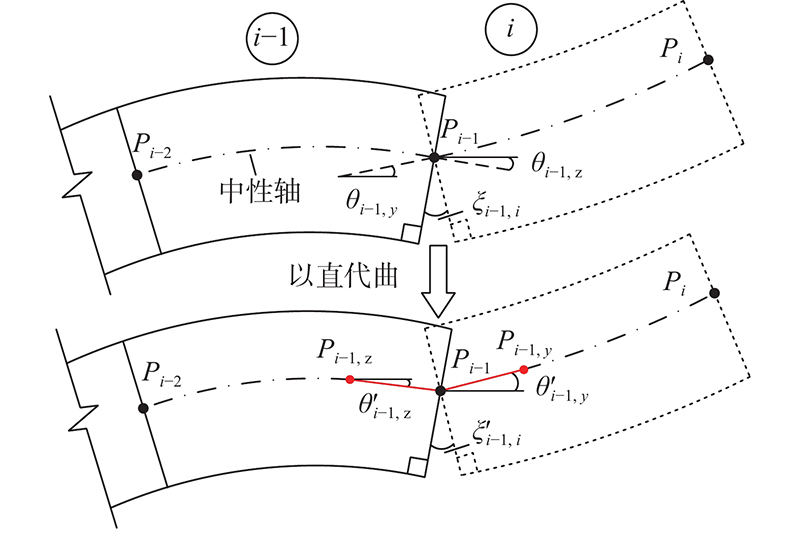

Fig.5 Calculation of girder length at centroid under design finished bridge state

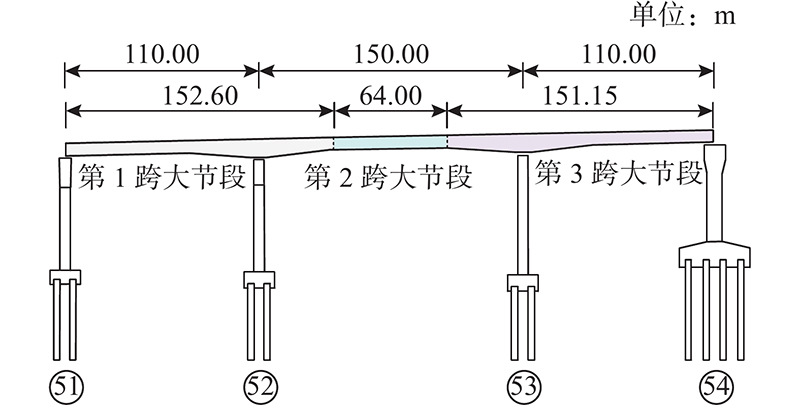

Fig.6 Span layout of three-span continuous beam bridge

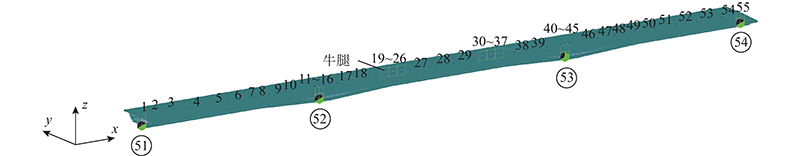

Fig.7 Segment division of steel box girder
Fig.8
节段 $H_i^{\text{D}}$/m $\Delta _i^{\text{D}}$/mm ${L_{i,{\text{p}}}}$/m ${\theta _{i - 1,{{z} } } }$/(°) $\delta _{i - 1,i}^0$/(°) ${\xi _{i - 1,i}}$/(°) ${h_{i - 1,{\text{t}}}}$/mm ${h_{i - 1,{\text{b}}}}$/mm ${d_{i - 1,{\text{t}}}}$/mm ${d_{i - 1,{\text{b}}}}$/mm
0# 37.332 ?3.0 — — — — — — — —
1# 37.614 61.4 14.1 1.407 — — — — — —
2# 37.840 108.1 15.0 1.041 ?0.283 ?0.083 1573.1 2926.9 2.3 ?4.2
3# 38.090 119.3 12.5 1.197 0.283 -0.127 1647.2 2852.8 3.7 ?6.3
4# 38.417 105.4 12.5 1.438 0.357 ?0.115 1647.2 2852.8 3.3 -5.7
5# 38.590 71.7 12.5 0.635 ?0.713 ?0.090 1569.4 2930.6 2.5 ?4.6
6# 38.650 31.9 12.5 0.096 ?0.511 ?0.028 1647.2 2852.8 0.8 ?1.4
7# 38.642 7.0 10.0 ?0.188 ?0.324 0.040 1836.4 3170.2 ?1.3 2.2
8# 38.544 ?4.7 10.0 ?0.632 ?0.519 0.075 2044.4 3495.6 ?2.7 4.6
9# 38.439 ?2.8 7.5 ?0.785 ?0.236 0.082 2343.0 3730.3 ?3.4 5.3
10# 38.559 14.3 6.0 1.309 1.946 0.149 2597.8 3875.5 ?6.7 10.0
11# 38.964 55.3 7.5 3.401 1.946 0.147 2597.8 3875.5 -6.6 9.9
12# 39.462 124.9 10.0 3.251 ?0.236 0.085 2343.0 3730.3 ?3.5 5.6
13# 39.870 207.9 10.0 2.811 ?0.519 0.078 2044.4 3495.6 ?2.8 4.8
14# 40.156 319.6 12.5 1.822 ?1.026 0.038 1836.4 3170.2 ?1.2 2.1
Tab.1 Length correction of top and bottom plate of small-segment steel box girder (first span large-segment)
节段 $H_{i{{ - } }1}^{\text{E} }$/m $ H_i^{\text{E}} $/m $\varDelta _{i - 1}^i$/mm $\varDelta _i^i$/mm ${L_{i,{\text{p}}}}$/m $\delta _{i - 1,i}^0$/(°)　 ${\xi' _{i - 1,i} }$/(°) ${h_{i - 1,{\text{t}}}}$/mm　 ${h_{i - 1,{\text{b}}}}$/mm　 ${d'_{i - 1,{\text{t} } } }$/mm　 ${d'_{i - 1,{\text{b} } } }$/mm　
14# 40.078 40.476 ?166.8 ?255.2 12.5 — — — — — —
15# 40.589 40.998 ?368.1 ?395.0 12.5 0.3507 ?0.0207 1800.4 2699.6 0.7 ?1.0
19# 41.778 41.871 ?395.8 ?369.5 12.5 — — — — — —
20# 41.766 41.865 ?265.6 ?174.0 12.5 0.3507 ?0.0206 1800.4 2699.6 0.6 ?1.0
Tab.2 Length correction of top and bottom plate at large-segment joints

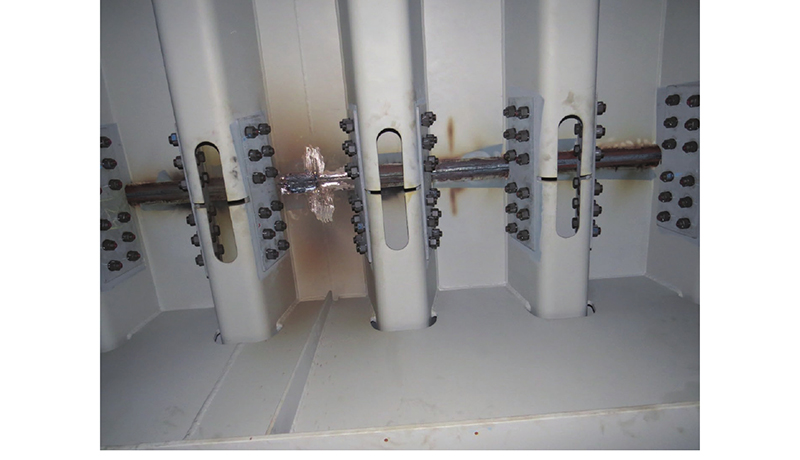

Fig.9 Exact matching of large-segment end faces
Fig.10 Elevation errors of main girder
mm
钢箱梁节段 ${l_{\text{N}}}$ ${l_{\text{m}}}$ ${l_{\text{t}}}$ ${l_{\text{b}}}$ $\Delta l$
第1跨大节段 152 654.6 152 664.9 152 678.3 152 655.5 23.7
第2跨大节段 64 013.8 64 014.9 64 001.8 64 034.5 20.7
第3跨大节段 151 205.4 151 211.7 151 217.0 151 189.8 15.6
全桥钢箱梁节段 367 873.8 367 891.4 367 897.1 367 879.8 23.3
Tab.3 Length of girder centroid after cutting

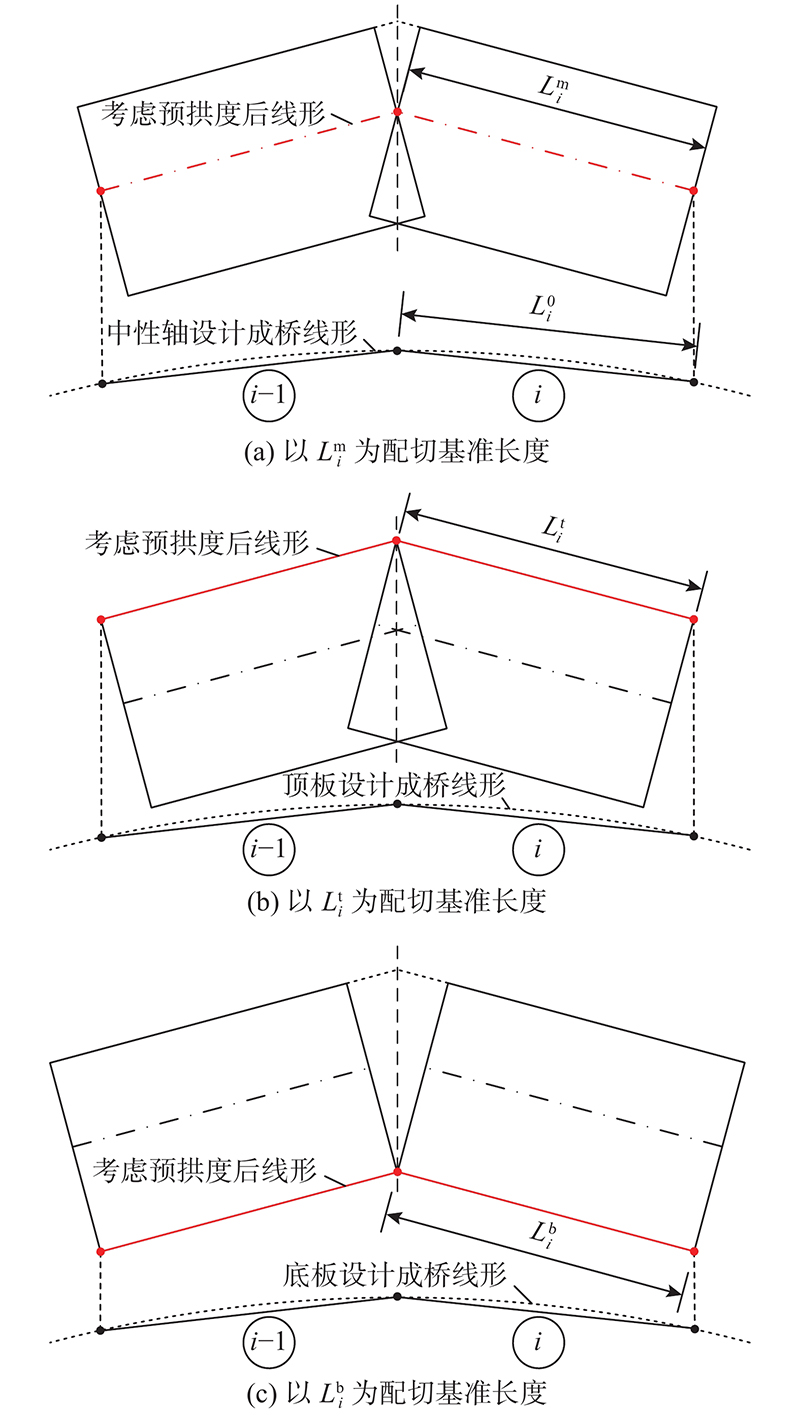

Fig.11 Datum length of segment cutting in common method
