| Water adsorption in aluminum-based metal-organic framework for atmospheric water harvesting |
En-yu WU( ),Guo-dong QIAN,Bin LI*() |
| School of Materials Science and Engineering, Zhejiang University, Hangzhou 310027, China |
|
|
|

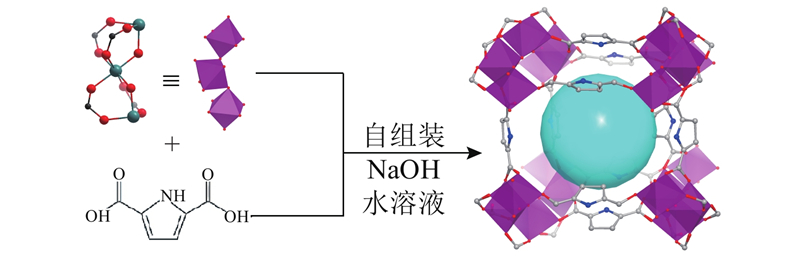

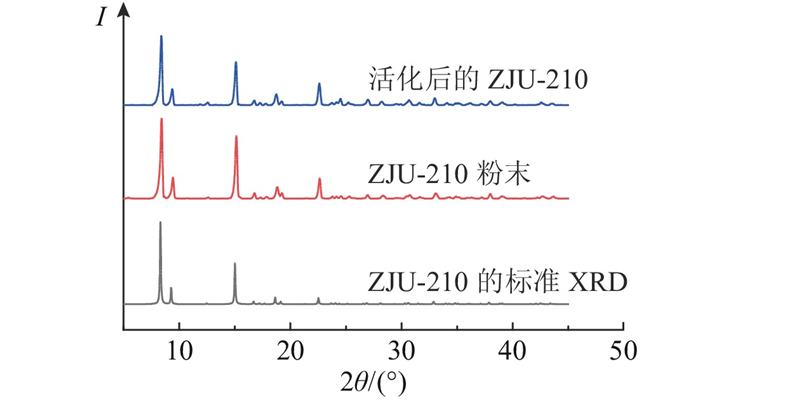

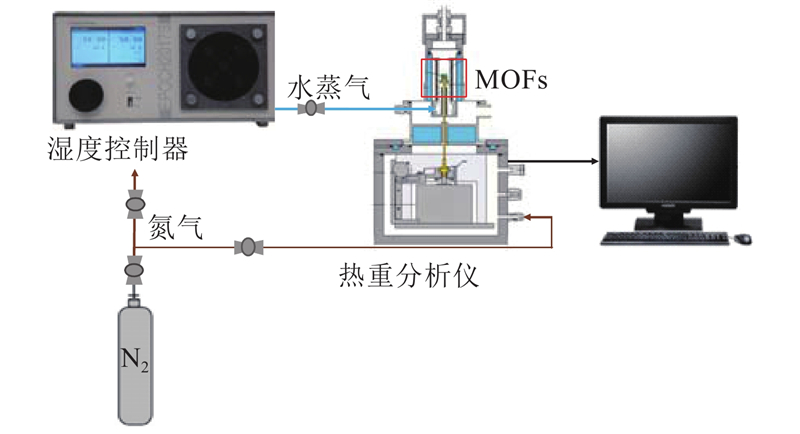

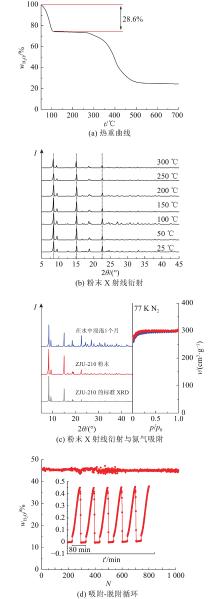

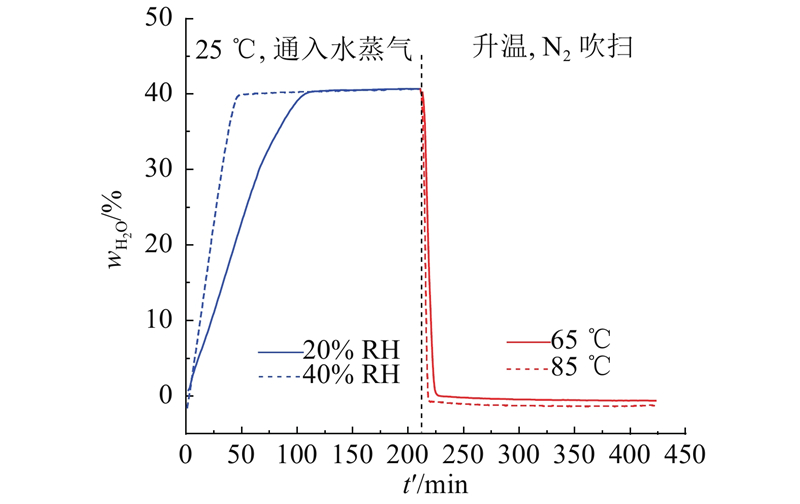

Abstract A simple and green hydrothermal method was used to prepare an aluminum-based metal-organic framework (MOF) ZJU-210 with high stability in order to efficiently collect water from the atmosphere. The powder X-ray diffraction was used to analyze the crystal structure, and the thermogravimetric analyzer was used to test the stability and adsorption-desorption kinetics. The gas and vapor adsorption analyzer was used to analyze the pore structure and water adsorption performance. The analysis results show that ZJU-210 has a one-dimensional square channel along the c axis with a pore size of about 0.58 nm. The channel has abundant nitrogen and oxygen sites, which greatly enhances the hydrophilicity of channel. Water mass fraction reached 40% at a relative humidity of 20% (25 ℃) and a fast adsorption-desorption cycle was achieved. ZJU-210 is reusable and can still maintain its initial water adsorption performance after 1 000 water adsorption-desorption cycles. Out-door experiment shows the fast water release powered by natural sunlight. ZJU-210 was testified to have many advantages compared with classic desiccants (such as silica gel, zeolite, and hygroscopic salts), providing a promising strategy for developing next-generation hydrophilic material for atmosphere water harvesting.
|
|
Received: 28 July 2021
Published: 05 January 2022
|
|
|
| Fund: 国家自然科学基金资助项目（51803179） |
|
Corresponding Authors:
Bin LI
E-mail: 2196090@zju.edu.cn;bin.li@zju.edu.cn
|
铝基金属-有机框架材料的水吸附性能与大气集水应用

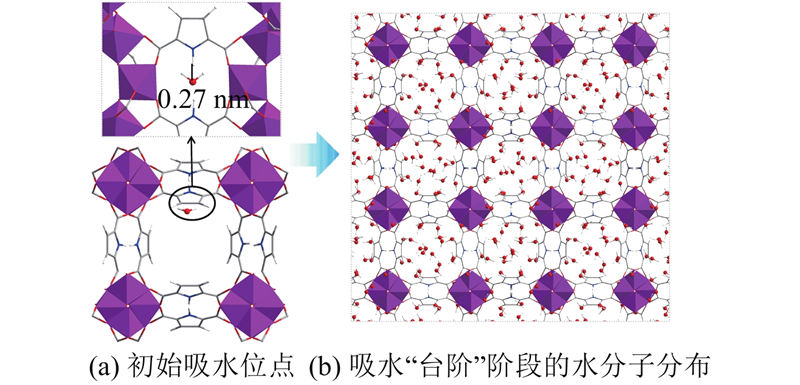

为了从大气中高效收集水蒸气，采用简单绿色的水热法制备具有高稳定性的铝基金属-有机框架材料（MOF）ZJU-210. 采用粉末X射线衍射技术进行晶体结构分析，利用同步热分析仪测试样品的稳定性和吸附-脱附动力学，利用气体与蒸汽吸附仪分析样品的孔结构和水吸附性能. 分析结果显示，ZJU-210延c轴形成一维方孔道，孔道直径约为0.58 nm. ZJU-210的孔道内拥有丰富的氮位点和氧位点，增强了材料孔道的亲水性，使ZJU-210在20%相对湿度下（25 ℃）水质量分数高达40%，能够在极短的时间内完成吸附-脱附循环. ZJU-210具有良好的稳定性，经历1 000次水吸附-脱附循环后能够保持初始的吸水性能. 室外实验证明ZJU-210能通过太阳光完成快速脱附. 与传统干燥剂（如硅胶、沸石和吸湿盐）相比，ZJU-210具有许多优点，有望成为新一代大气集水材料.
关键词：
多孔材料,
金属-有机框架材料,
大气集水,
水稳定性,
等温水吸附曲线
|
|
| [1] |
ELIMELECH M, PHILLIP W A The future of seawater desalination: energy, technology, and the environment[J]. Science, 2011, 333 (6043): 712- 717
doi: 10.1126/science.1200488
|
|
|
| [2] |
KALMUTZKI M J, DIERCKS C S, YAGHI O M Metal-organic frameworks for water harvesting from air[J]. Advanced Materials, 2018, 30 (37): e1704304
doi: 10.1002/adma.201704304
|
|
|
| [3] |
GREENLEE L F, LAWLER D F, FREEMAN B D, et al Reverse osmosis desalination: water sources, technology, and today's challenges[J]. Water Research, 2009, 43 (9): 2317- 2348
doi: 10.1016/j.watres.2009.03.010
|
|
|
| [4] |
TU Y D, WANG R Z, ZHANG Y N, et al Progress and expectation of atmospheric water harvesting[J]. Joule, 2018, 2 (8): 1452- 1475
doi: 10.1016/j.joule.2018.07.015
|
|
|
| [5] |
SCRIVANI A, BARDI U A study of the use of solar concentrating plants for the atmospheric water vapour extraction from ambient air in the Middle East and Northern Africa region[J]. Desalination, 2008, 220 (1-3): 592- 599
doi: 10.1016/j.desal.2007.04.060
|
|
|
| [6] |
KIM H, YANG S, RAO S R, et al Water harvesting from air with metal-organic frameworks powered by natural sunlight[J]. Science, 2017, 356 (6336): 430- 432
doi: 10.1126/science.aam8743
|
|
|
| [7] |
ATTAR N F, KHALILI K, BEHMANESH J, et al. On the reliability of soft computing methods in the estimation of dew point temperature: the case of arid regions of Iran[J]. Computers and Electronics in Agriculture, 2018, 153: 334-346.
|
|
|
| [8] |
LI R Y, SHI Y, ALSAEDI M, et al Hybrid hydrogel with high water vapor harvesting capacity for deployable solar-driven atmospheric water generator[J]. Environmental Science and Technology, 2018, 52 (19): 11367- 11377
doi: 10.1021/acs.est.8b02852
|
|
|
| [9] |
YANG K J, SHI Y, WU M C, et al Hollow spherical SiO2 micro-container encapsulation of LiCl for high-performance simultaneous heat reallocation and seawater desalination [J]. Journal of Materials Chemistry A, 2020, 8 (4): 1887- 1895
doi: 10.1039/C9TA11721K
|
|
|
| [10] |
ZHAO F, ZHOU X, LIU Y, et al Super moisture-absorbent gels for all-weather atmospheric water harvesting[J]. Advance Materials, 2019, 31 (10): e1806446
doi: 10.1002/adma.201806446
|
|
|
| [11] |
ZHENG X, GE T S, WANG R Z. Recent progress on desiccant materials for solid desiccant cooling systems. [J] Energy, 2014, 74(1): 280-294.
|
|
|
| [12] |
KUMAR M, YADAV A Experimental investigation of design parameters of solar glass desiccant box type system for water production from atmospheric air[J]. Journal of Renewable and Sustainable Energy, 2015, 7 (3): e033122
|
|
|
| [13] |
HONICKE I M, SENKOVSKA I, BON V, et al Balancing mechanical stability and ultrahigh porosity in crystalline framework materials[J]. Angewandte Chemie-International Edition, 2018, 57 (42): 13780- 13783
doi: 10.1002/anie.201808240
|
|
|
| [14] |
JIAO L, SEOW J Y R, SKINNER W S, et al Metal-organic frameworks: structures and functional applications[J]. Materials Today, 2019, 27 (1): 43- 68
|
|
|
| [15] |
CANIVET J, FATEEVA A, GUO Y, et al Water adsorption in MOFs: fundamentals and applications[J]. Chemical Society Reviews, 2014, 43 (16): 5594- 617
doi: 10.1039/C4CS00078A
|
|
|
| [16] |
PAN T, YANG K, HAN Y Recent progress of atmospheric water harvesting using metal-organic frameworks[J]. Chemical Research in Chinese Universities, 2020, 36 (1): 33- 40
doi: 10.1007/s40242-020-9093-6
|
|
|
| [17] |
ZHANG J, LI P, ZANG X, et al Water adsorption properties and applications of stable metal-organic frameworks[J]. Acta Chimica Sinica, 2020, 78 (7): 597- 612
doi: 10.6023/A20050153
|
|
|
| [18] |
KARMAKAR A, MILEO P G M, BOK I, et al Thermo-responsive MOF/polymer composites for temperature-mediated water capture and release[J]. Angewandte Chemie-International Edition, 2020, 59 (27): 11003- 11009
doi: 10.1002/anie.202002384
|
|
|
| [19] |
KO N, HONG J, SUNG S, et al A significant enhancement of water vapour uptake at low pressure by amine-functionalization of UiO-67[J]. Dalton Transactions, 2015, 44 (5): 2047- 2051
doi: 10.1039/C4DT02582B
|
|
|
| [20] |
TANNERT N, ERNST S J, JANSEN C, et al Evaluation of the highly stable metal–organic framework MIL-53(Al)-TDC (TDC = 2, 5-thiophenedicarboxylate) as a new and promising adsorbent for heat transformation applications[J]. Journal of Materials Chemistry A, 2018, 6 (36): 17706- 17712
doi: 10.1039/C8TA04407D
|
|
|
| [21] |
HANIKEL N, PREVOT M S, YAGHIO M MOF water harvesters[J]. Nature Nanotechnology, 2020, 15 (5): 348- 355
doi: 10.1038/s41565-020-0673-x
|
|
|
| [22] |
SCHOENECKER P M, CARSON C G, JASUJA H, et al Effect of water adsorption on retention of structure and surface area of metal-organic frameworks[J]. Industrial and Engineering Chemistry Research, 2012, 51 (18): 6513- 6519
doi: 10.1021/ie202325p
|
|
|
| [23] |
ABDULHALIM R G, BHATT P M, BELMABKHOUT Y, et al A fine-tuned metal-organic framework for autonomous indoor moisture control[J]. Journal of the American Chemical Society, 2017, 139 (31): 10715- 10722
doi: 10.1021/jacs.7b04132
|
|
|
| [24] |
BRENNAN J K, BANDOSZ T J, THOMSON K T, et al Water in porous carbons[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2001, 187: 539- 568
|
|
|
| [25] |
HANIKEL N, PREVOT M S, FATHIEH F, et al Rapid cycling and exceptional yield in a metal-organic framework water harvester[J]. ACS Central Science, 2019, 5 (10): 1699- 1706
doi: 10.1021/acscentsci.9b00745
|
|
|
| [26] |
CADIAU A, LEE J S, DAMASCENO B D, et al Design of hydrophilic metal organic framework water adsorbents for heat reallocation[J]. Advance Materials, 2015, 27 (32): 4775- 4780
doi: 10.1002/adma.201502418
|
|
|
| [27] |
REINSCH H, VANDERVEEN M A, GIL B, et al Structures, sorption characteristics, and nonlinear optical properties of a new series of highly stable aluminum MOFs[J]. Chemistry of Materials, 2012, 25 (1): 17- 26
|
|
|
| [28] |
FURUKAWA H, GANDARA F, ZHANG Y B, et al Water adsorption in porous metal-organic frameworks and related materials[J]. Journal of American Chemical Society, 2014, 136 (11): 4369- 4381
doi: 10.1021/ja500330a
|
|
|
| [29] |
KIM S I, YOON T U, KIM M B, et al Metal-organic frameworks with high working capacities and cyclic hydrothermal stabilities for fresh water production[J]. Chemical Engineering Journal, 2016, 286 (1): 467- 475
|
|
|
| [30] |
LI X, LI Z, XIA Q B, et al Effects of pore sizes of porous silica gels on desorption activation energy of water vapour[J]. Applied Thermal Engineering, 2007, 27 (5/6): 869- 876
|
|
|
| [31] |
SCHLUSENER C, JORDAN D N, XHINOVCI M, et al Probing the limits of linker substitution in aluminum MOFs through water vapor sorption studies: mixed-MOFs instead of mixed-linker CAU-23 and MIL-160 materials[J]. Dalton Transactions, 2020, 49 (22): 7373- 7383
doi: 10.1039/D0DT01044H
|
|
|
| [32] |
SEO Y K, YOON J W, LEE J S, et al Energy-efficient dehumidification over hierarchically porous metal-organic frameworks as advanced water adsorbents[J]. Advanced Materials, 2012, 24 (6): 806- 810
doi: 10.1002/adma.201104084
|
|
|
| [33] |
DE LANGE M F, GUTIERREZ-SEVILLANO J J, HAMAD S, et al Understanding adsorption of highly polar vapors on mesoporous MIL-100(Cr) and MIL-101(Cr): experiments and molecular simulations[J]. The Journal of Physical Chemistry C, 2013, 117 (15): 7613- 7622
doi: 10.1021/jp3128077
|
|
|
| [34] |
ZHENG J, VEMURI R S, ESTEVEZ L, et al Pore-engineered metal-organic frameworks with excellent adsorption of water and fluorocarbon refrigerant for cooling applications[J]. Journal of the American Chemical Society, 2017, 139 (31): 10601- 10604
doi: 10.1021/jacs.7b04872
|
|
|
|
