Journal of ZheJiang University (Engineering Science)  2021, Vol. 55 Issue (7): 1308-1316    DOI: 10.3785/j.issn.1008-973X.2021.07.010

Study of flow characteristics around row of oscillating water column pile under regular waves
Cong-hao XU1,2(),Yu YAO1,2,*(),Ting GUO2,Zheng-zhi DENG3
1. Hunan Provincial key Laboratory of key Technology on Hydropower Development, Changsha 410014, China
2. School of Hydraulic Engineering, Changsha University of Science & Technology, Changsha 410114, China
3. Ocean College, Zhejiang University, Zhoushan 316021, China
Download: HTML     PDF(1847KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A numerical wave tank was developed based on Reynolds-Averaged Navier-Stokes equations with k? $\omega$ turbulence closure. The accuracy of numerical model was first verified by laboratory experiments. Then, the model was used to simulate the flow field characteristics near the device under the effect of regular waves. The vortex characteristics and its implication to local erosion mechanism were analyzed. Results show that under tested conditions, a concave horseshoe vortex is formed at the toe of the oscillating water column pile and wake vortices are formed around the structure. The strength of the horseshoe vortices decreases with the increase of the Keulegan-Carpenter (KC) number, and the strength of the wake vortices increases with the increase of the KC number. The horseshoe vortices are too weak to be the main factor in sediment scour at the range of KC number in this simulation, while the strong wake vortices are likely to be a main control factor of sediment initiation of motion, transport and scour near the pile foundation.

Key words： wave energy      row of piles      wake vortices      Navier-Stokes equations      regular wave
Received: 16 May 2020      Published: 05 July 2021
CLC:  TV 139.2
Fund:  水能资源利用关键技术湖南省重点实验室开放研究基金资助项目（PKLHD201706）
Corresponding Authors: Yu YAO     E-mail: conghaox@163.com;yaoyu821101@163.com
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Cong-hao XU
Yu YAO
Ting GUO
Zheng-zhi DENG
Cite this article:

Cong-hao XU,Yu YAO,Ting GUO,Zheng-zhi DENG. Study of flow characteristics around row of oscillating water column pile under regular waves. Journal of ZheJiang University (Engineering Science), 2021, 55(7): 1308-1316.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.07.010     OR     https://www.zjujournals.com/eng/Y2021/V55/I7/1308


排桩式波浪能发电装置附近流场特性研究

基于雷诺时均Navier-Stokes方程和k?ω湍流模型，研究单排桩式振荡水柱式波浪能发电装置在规则波作用下的桩基附近流场特性. 通过物理模型实验验证所建数值波浪水槽的准确性. 模拟规则波作用下装置附近的流场特性，分析装置附近的涡特征以及其对装置附近泥沙冲刷情况的潜在影响. 结果表明，测试工况下，在桩式振荡水柱装置桩柱体的桩基附近观察到马蹄涡和尾涡现象，马蹄涡强度随着Keulegan–Carpenter（KC）数的增大而减小，尾涡强度随着KC数的增大而增大. 马蹄涡因强度过小，在模拟的KC数范围内不是装置桩基泥沙冲刷的主要因素，高强度的尾涡很可能成为装置桩基附近泥沙起动、输运和冲刷的重要影响因素.


关键词： 波浪能,  排柱,  尾涡,  Navier-Stokes方程,  规则波
Fig.1 Setting of experiment and numerical model cell
Fig.2 Comparison of time-series free surface elevations between numerical simulations and experimental measurements
Fig.3 Flow fields on vertical plane at different phases under test condition $T = 0.{\rm{7 }}\;{\rm{s}} $
Fig.4 Flow fields on vertical plane at different phases under test condition $T = 1.5{\rm{ }}\;{\rm{s}} $

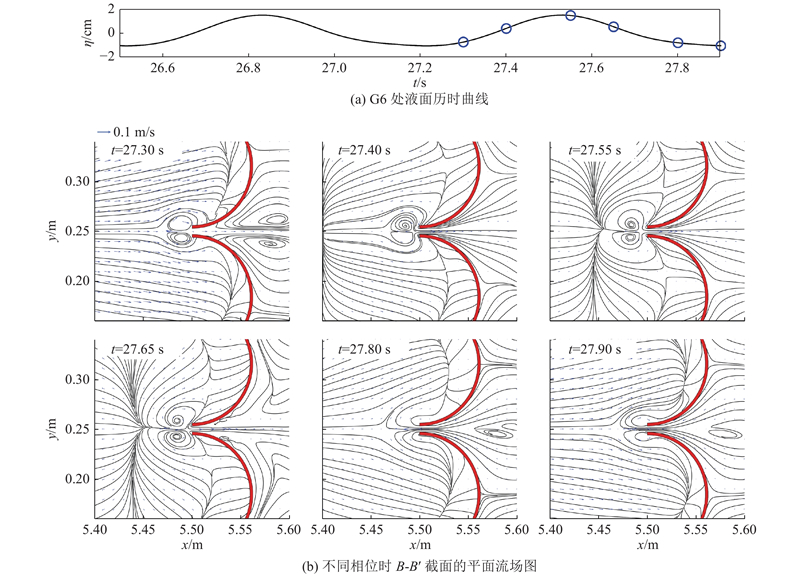

Fig.5 Flow fields on horizontal plane at different phases under test condition T = 0.7 s
Fig.6 Flow fields on horizontal plane at different phases under test condition T = 1.5 s
T/s KC数 S1 S2 S3
0.7 1.02 0.061 4 0.0130 0.003 78
1.5 1.53 1.286 0 0.4830 0.003 21
Tab.1 Strengths of horseshoe vortex and wake vortex for different test conditions.
[1]   HENRIQUES J C C, CÂNDIDO J J, PONTES M T, et al Wave energy resource assessment for a breakwater-integrated oscillating water column plant at Porto, Portugal[J]. Energy, 2013, 63: 52- 60
doi: 10.1016/j.energy.2013.09.063
[2]   王鹏, 邓争志, 王辰, 等 振荡水柱式防波堤的水动力特性[J]. 浙江大学学报: 工学版, 2019, 53 (12): 2335- 2341
WANG Peng, DENG Zheng-zhi, WANG Chen, et al Hydrodynamic characteristics of oscillating water column type breakwater[J]. Journal of Zhejiang University: Engineering Science, 2019, 53 (12): 2335- 2341
[3]   HE F, HUANG Z Hydrodynamic performance of pile-supported OWC-type structures as breakwaters: an experimental study[J]. Ocean Engineering, 2014, 88: 618- 626
doi: 10.1016/j.oceaneng.2014.04.023
[4]   XU C, HUANG Z A dual-functional wave-power plant for wave-energy extraction and shore protection: a wave-flume study[J]. Applied Energy, 2018, 229: 963- 976
doi: 10.1016/j.apenergy.2018.08.005
[5]   HE F, LI M, HUANG Z An experimental study of pile-supported OWC-type breakwaters: energy extraction and vortex-induced energy loss[J]. Energies, 2016, 9 (7): 540
doi: 10.3390/en9070540
[6]   DENG Z, HUANG Z, LAW A W K Wave power extraction by an axisymmetric oscillating water-column converter supported by a coaxial tube-sector-shaped structure[J]. Applied Ocean Research, 2013, 42: 114- 123
doi: 10.1016/j.apor.2013.05.006
[7]   DENG Z, HUANG Z, LAW A Wave power extraction from a bottom-mounted oscillating water column converter with a V-shaped channel[J]. Proceedings of the Royal Society A: Mathematical, Physical and Engineering Sciences, 2014, 470 (2167): 20140074
doi: 10.1098/rspa.2014.0074
[8]   XU C, HUANG Z, DENG Z Experimental and theoretical study of a cylindrical oscillating water column device with a quadratic power take-off model[J]. Applied Ocean Research, 2016, 57: 19- 29
doi: 10.1016/j.apor.2016.02.003
[9]   XU C, HUANG Z Three-dimensional CFD simulation of a circular OWC with a nonlinear power-takeoff: model validation and a discussion on resonant sloshing inside the pneumatic chamber[J]. Ocean Engineering, 2019, 176: 184- 198
doi: 10.1016/j.oceaneng.2019.02.010
[10]   DEY S, RAIKAR R V Characteristics of horseshoe vortex in developing scour holes at piers[J]. Journal of Hydraulic Engineering, 2007, 133 (4): 399- 413
doi: 10.1061/(ASCE)0733-9429(2007)133:4(399)
[11]   齐梅兰, 石粕辰 局部冲刷坑发展过程的泥沙输运特性[J]. 水利学报, 2018, 49 (12): 1471- 1480
QI Mei-lan, SHI Po-chen Study on the mechanism of water-sediment interaction in the scouring process around a pile[J]. Journal of Hydraulic Engineering, 2018, 49 (12): 1471- 1480
[12]   RUSCHE H. Computational fluid dynamics of dispersed two-phase flows at high phase fractions[D]. London: Imperial College London, 2003.
[13]   JACOBSEN N G, FUHRMAN D R, FREDSØE J A wave generation toolbox for the open-source CFD library: OpenFoam®[J]. International Journal for numerical methods in fluids, 2012, 70 (9): 1073- 1088
doi: 10.1002/fld.2726
[14]   WILCOX D C Formulation of the k−ω turbulence model revisited [J]. AIAA journal, 2008, 46 (11): 2823- 2838
doi: 10.2514/1.36541
[15]   PERRY A E, FAIRLIE B D Critical points in flow patterns[J]. Advances in Geophysics, 1974, 18: 299- 315
[16]   SUMER B M, FREDSØE J Wave scour around a large vertical circular cylinder[J]. Journal of Waterway, Port, Coastal, and Ocean Engineering, 2001, 127 (3): 125- 134
doi: 10.1061/(ASCE)0733-950X(2001)127:3(125)
[17]   DARGAHI B The turbulent flow field around a circular cylinder[J]. Experiments in Fluids, 1989, 8 (1-2): 1- 12
doi: 10.1007/BF00203058
