Learning effective connectivity network structure based on parallel searching of double firefly populations
Zi-long JI(),Jun-zhong JI*()
Beijing Municipal Key Laboratory of Multimedia and Intelligent Software Technology, Beijing University of Technology, Beijing 100124, China
Download: HTML     PDF(867KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A new method to learn brain effective connectivity (EC) networks by parallel searching of double firefly populations in order to identify high-quality brain EC network from functional magnetic resonance imaging (fMRI) data. The double population optimization was used to learn brain EC networks. The initial population was divided into an elite population and a common population. Then the brain EC networks were gradually constructed through the directional movements of the elite population and the random movements of the common population. The population sizes of the elite population and the common population were dynamically adjusted in the process of network constructions, and the information exchange between the two populations was realized by using a population migration operation. An adaptive updating mechanism based on a diversity measure was used to dynamically update the two populations after a certain number of evolution iterations. The experimental results on many simulated datasets verify that the new algorithm has obvious advantages on the whole performance compared with other algorithms, and shows the potential practicability of the new algorithm on real datasets.

Key words： brain network      brain effective connectivity network      Bayesian network      firefly algorithm      parallel searching of double populations
Received: 22 January 2019      Published: 05 April 2020
CLC:  TP 311
  TP 18
Corresponding Authors: Jun-zhong JI     E-mail: 403796237@qq.com;jjz01@bjut.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Zi-long JI
Jun-zhong JI
Cite this article:

Zi-long JI,Jun-zhong JI. Learning effective connectivity network structure based on parallel searching of double firefly populations. Journal of ZheJiang University (Engineering Science), 2020, 54(4): 694-703.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.04.008     OR     http://www.zjujournals.com/eng/Y2020/V54/I4/694


基于双萤火虫种群并行搜索的脑效应连接网络学习方法

为了从功能磁共振成像（fMRI）数据中识别到高质量的脑效应连接网络，提出双萤火虫种群并行搜索的脑效应连接网络学习方法. 利用2个萤火虫种群寻优完成脑效应连接网络的学习，将萤火虫种群划分为精英种群和普通种群. 通过精英种群的定向移动和普通种群的随机移动，分别逐步构建脑效应连接网络；在网络构建过程中，利用种群迁移操作动态地调整精英种群和普通种群的种群规模，以实现两种群之间的信息交流. 每隔一定代数，使用基于多样性度量的种群自适应更新机制，动态地进行2个种群的更新. 在多组模拟数据上的实验结果表明，新算法与其他算法相比，在识别总体性能上具有明显优势. 在真实数据上的实验表明了算法的潜在实用性.


关键词： 脑网络,  脑效应连接网络,  贝叶斯网,  萤火虫算法,  双种群并行搜索

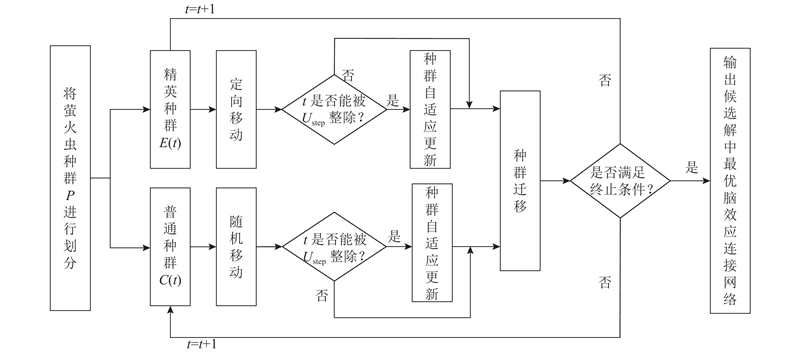

Fig.1 Framework of DFA-EC algorithm
Fig.2 Example of directional movement of firefly individual i
Fig.3 Example of random movement of firefly individual i
数据组号 Nnodes Ss/min Ttr /s Nn /% HHRF.std.dev /s 其他因素
1 5 2.5 3.00 1.0 0.5 ?
2 5 5 3.00 1.0 0.5 ?
3 5 60 3.00 1.0 0.5 ?
4 5 10 3.00 1.0 0.5 ?
5 10 10 3.00 1.0 0.5 ?
6 15 10 3.00 1.0 0.5 ?
7 50 10 3.00 1.0 0.5 ?
8 5 10 3.00 1.0 0.5 2组测试
9 5 10 3.00 1.0 0.5 外部输入
Tab.1 Specific parameters of simulated dataset
被试组别 被试数量 男的数量/女的数量 年龄 平均年龄
正常组 50 27/23 70~85 77.6
AD患者组 50 20/30 69~83 74.8
Tab.2 Information of subjects
脑叶 感兴趣区域 编号 脑叶 感兴趣区域 编号
额叶 Frontal_Sup_L（左背外侧额上回） 1 枕叶 Occipital_Mid_L（左枕中回） 19
额叶 Frontal_Sup_R（右背外侧额上回） 2 枕叶 Occipital_Mid_R（右枕中回） 20
额叶 Frontal_Mid_L（左额中回） 3 枕叶 Occipital_Inf_L（左枕下回） 21
额叶 Frontal_Mid_R（右额中回） 4 枕叶 Occipital_Inf_R（右枕下回） 22
额叶 Rectus_L（左回直肌） 5 颞叶 Temporal_Sup_L（左颞上回） 23
额叶 Rectus_R（右回直肌） 6 颞叶 Temporal_Sup_R（右颞上回） 24
额叶 Cingulum_Ant_L（左前扣带和旁扣带脑回） 7 颞叶 Temporal_Mid_L（左颞中回） 25
额叶 Cingulum_Ant_R（右前扣带和旁扣带脑回） 8 颞叶 Temporal_Mid_R（右颞中回） 26
顶叶 Cingulum_Post_L（左后扣带回） 9 颞叶 Temporal_Inf_L（左颞下回） 27
顶叶 Cingulum_Post_R（右后扣带回） 10 颞叶 Temporal_Inf_R（右颞下回） 28
顶叶 Precuneus_L（左楔前叶） 11 颞叶 Hippocampus_L（左海马） 29
顶叶 Precuneus_R（右楔前叶） 12 颞叶 Hippocampus_R（右海马） 30
顶叶 Parietal_Sup_L（左顶上回） 13 颞叶 ParaHippocampal_L（左海马旁回） 31
顶叶 Parietal_Sup_R（右顶上回） 14 颞叶 ParaHippocampal_R（右海马旁回） 32
顶叶 Parietal_Inf_L（左顶下缘角回） 15 颞叶 Angular_L（左角回） 33
顶叶 Parietal_Inf_R（左顶下缘角回） 16 颞叶 Angular_R（右角回） 34
枕叶 Occipital_Sup_L（左枕上回） 17 颞叶 Fusiform_L（左梭状回） 35
枕叶 Occipital_Sup_R（右枕上回） 18 颞叶 Fusiform_R（右梭状回） 36
Tab.3 Selected regions of interest
Fig.4 Comparison of Fd of DFA-EC on Sim1-9 when parameters change
数据组号 算法 Fd t/ms 数据组号 算法 Fd t/ms
1 FAR-EC 1 168 6 FAR-EC 0.81 14 387
1 DFA-EC 1 93 6 DFA-EC 0.82 12 073
2 FAR-EC 0.98 250 7 FAR-EC 0.77 245 154
2 DFA-EC 1 167 7 DFA-EC 0.77 231 212
3 FAR-EC 1 2 177 8（a） FAR-EC 0.96 236
3 DFA-EC 1 1 791 8（a） DFA-EC 1 183
4 FAR-EC 1 384 8（b） FAR-EC 1 230
4 DFA-EC 1 317 8（b） DFA-EC 1 186
5 FAR-EC 0.89 6 135 9 FAR-EC 0.83 396
5 DFA-EC 0.93 5 871 9 DFA-EC 0.92 346
Tab.4 Results of DFA-EC and FAR-EC on the Sim1-9
算法 Fc Fd
Sim1 Sim2 Sim3 Sim1 Sim2 Sim3
GES 1 1 1 0.8 1 0.8
LiNGAM 1 0.91 1 0.6 0.73 1
GC 0.83 1 1 0.33 0.6 0.6
GS 1 1 1 0.6 0.8 1
Patel 1 1 1 0.8 0.98 1
AIAEC 1 1 1 0.96 0.98 1
ACOEC 1 1 1 0.96 0.98 1
DFA-EC 1 1 1 1 1 1
Tab.5 Identification results of eight algorithms on Sim1-3
算法 Fc Fd
Sim4 Sim5 Sim6 Sim7 Sim4 Sim5 Sim6 Sim7
GES 1 1 1 1 0.4 0.64 0.5 0.59
LiNGAM 0.91 0.96 0.95 0.98 0.91 0.87 0.84 0.68
GC 1 1 0.97 0.95 1 0.64 0.65 0.58
GS 1 1 1 1 0.6 0.82 0.89 0.79
Patel 1 1 1 1 0.8 0.82 0.84 0.77
AIAEC 1 1 1 1 1 0.91 0.84 0.75
ACOEC 1 1 1 1 1 0.89 0.86 0.80
DFA-EC 1 1 1 1 1 0.93 0.82 0.77
Tab.6 Identification results of eight algorithms on Sim4-7
算法 Fc Fd
Sim8(a) Sim8(b) Sim9 Sim8(a) Sim8(b) Sim9
GES 1 1 0.91 0.6 1 0.55
LiNGAM 1 1 1 1 1 0.8
GC 0.89 1 0.91 0.89 0.8 0.36
GS 1 1 0.83 0.6 0.6 0.5
Patel 1 1 0.83 0.6 0.8 0.67
AIAEC 1 1 1 0.88 0.92 0.76
ACOEC 1 1 1 0.92 0.88 0.80
DFA-EC 1 1 1 1 1 0.92
Tab.7 Identification results of eight algorithms on Sim8, 9

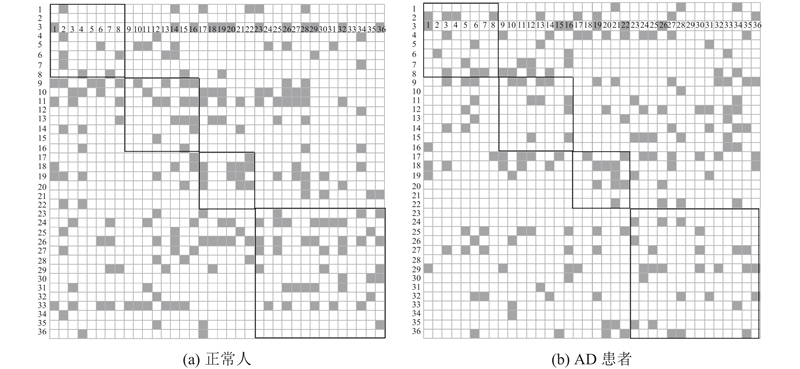

Fig.5 Effective connectivity network constructed by DFA-EC on real dataset
