浙江大学学报(工学版)  2021, Vol. 55 Issue (7): 1381-1390    DOI: 10.3785/j.issn.1008-973X.2021.07.017
能源与环境工程
水下排气降噪装置设计及其降噪特性
张凌(),邢允,叶豪杰,吴大转*()
浙江大学 能源工程学院,浙江 杭州 310027
Design of underwater exhaust noise reduction device and its noise reduction characteristics
Ling ZHANG(),Yun XING,Hao-jie YE,Da-zhuan WU*()
College of Energy Engineering, Zhejiang University, Hangzhou 310027, China
 全文: PDF(1578 KB)   HTML
摘要:

为了降低水下排气过程中难以衰减的中低频气泡噪声和边界噪声,从排气噪声特性和机理出发,设计由排气层、挡板层和纱网层组成的水下排气降噪装置. 装置结合多小孔低速排气、噪声隔绝和两相接触面积增加等降噪方法,将高速排气气流转化为低速气泡流,有效降低水下排气噪声. 实验结果表明:装置在实验流量范围内可以有效降低水下排气噪声,全频段噪声降低7.5 dB,其中噪声低频段(10~250 Hz)能量占比最大降低18.7%,极大缓解了噪声能量在低频段的富集;装置的排气层起主要降噪作用,其与挡板层组合而成的装置具有最好的、最稳定的低频降噪效果.

关键词: 水下排气中低频噪声降噪装置设计多孔排气降噪降噪性能
Abstract:

An underwater exhaust noise reduction device consisting of an exhaust layer, a baffle layer and a gauze layer was designed based on the characteristics and mechanism of underwater exhaust noise, in order to reduce the medium-low frequency bubble noise and boundary noise that is difficult to attenuate during underwater exhaust. The device combines noise reduction methods like low-speed exhaust with multiple small holes, noise isolation and increasing two-phase contact area to convert the high-speed exhaust air flow into a low-speed bubble flow, effectively reducing underwater exhaust noise. Experimental result shows that the device reduces the underwater exhaust noise effectively within the experimental flow rate range. The noise reduction in the full frequency band is about 7.5 dB, and the energy ratio of the low frequency band (10~250 Hz) is reduced by a maximum of 18.7%, greatly alleviating the enrichment of noise energy in low frequency band; moreover, the exhaust layer plays a major role in noise reduction, and its combination with baffle layer reduces low-frequency exhaust noise the best and the most stably.

Key words: underwater exhaust    mid-low frequency noise    design of noise reduction device    multi-hole exhaust noise reduction    noise reduction performance
收稿日期: 2020-05-13 出版日期: 2021-07-05
CLC:  TB 535
通讯作者: 吴大转     E-mail: 21860058@zju.edu.cn;wudazhuan@zju.edu.cn
作者简介: 张凌(1997—),女,硕士生,从事水下多孔排气噪声特性和降噪方法研究. orcid.org/0000-0002-6467-7067.E-mail: 21860058@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
张凌
邢允
叶豪杰
吴大转

引用本文:

张凌,邢允,叶豪杰,吴大转. 水下排气降噪装置设计及其降噪特性[J]. 浙江大学学报(工学版), 2021, 55(7): 1381-1390.

Ling ZHANG,Yun XING,Hao-jie YE,Da-zhuan WU. Design of underwater exhaust noise reduction device and its noise reduction characteristics. Journal of ZheJiang University (Engineering Science), 2021, 55(7): 1381-1390.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.07.017        https://www.zjujournals.com/eng/CN/Y2021/V55/I7/1381

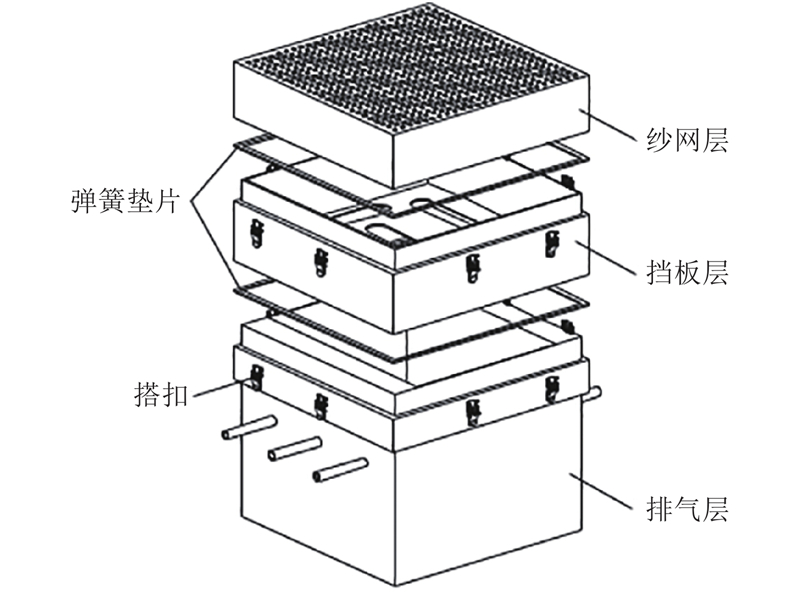

图 1  水下排气降噪装置爆炸图

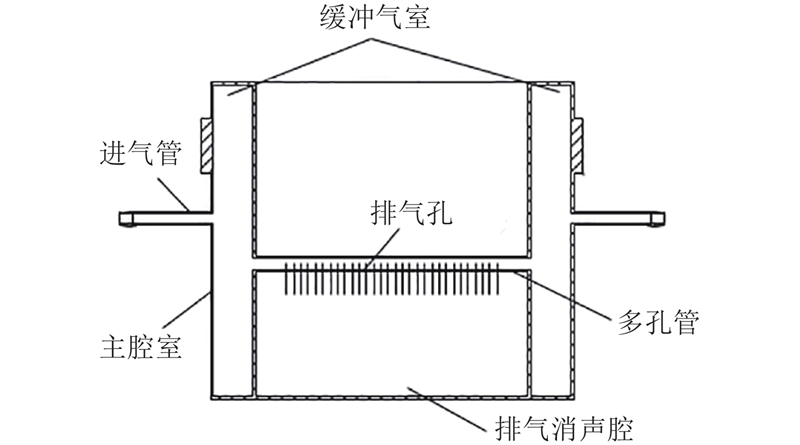

图 2  水下排气降噪装置排气层剖视图

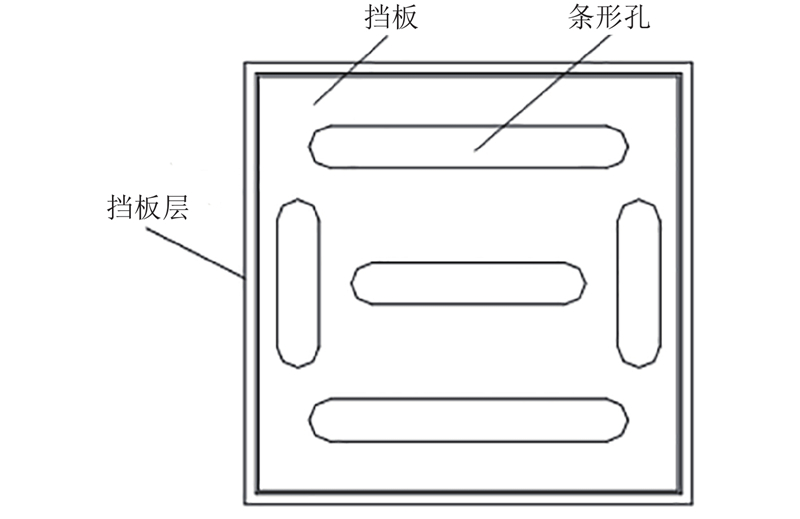

图 3  水下排气降噪装置挡板层俯视图
图 4  水下排气降噪装置降噪特性实验系统示意图

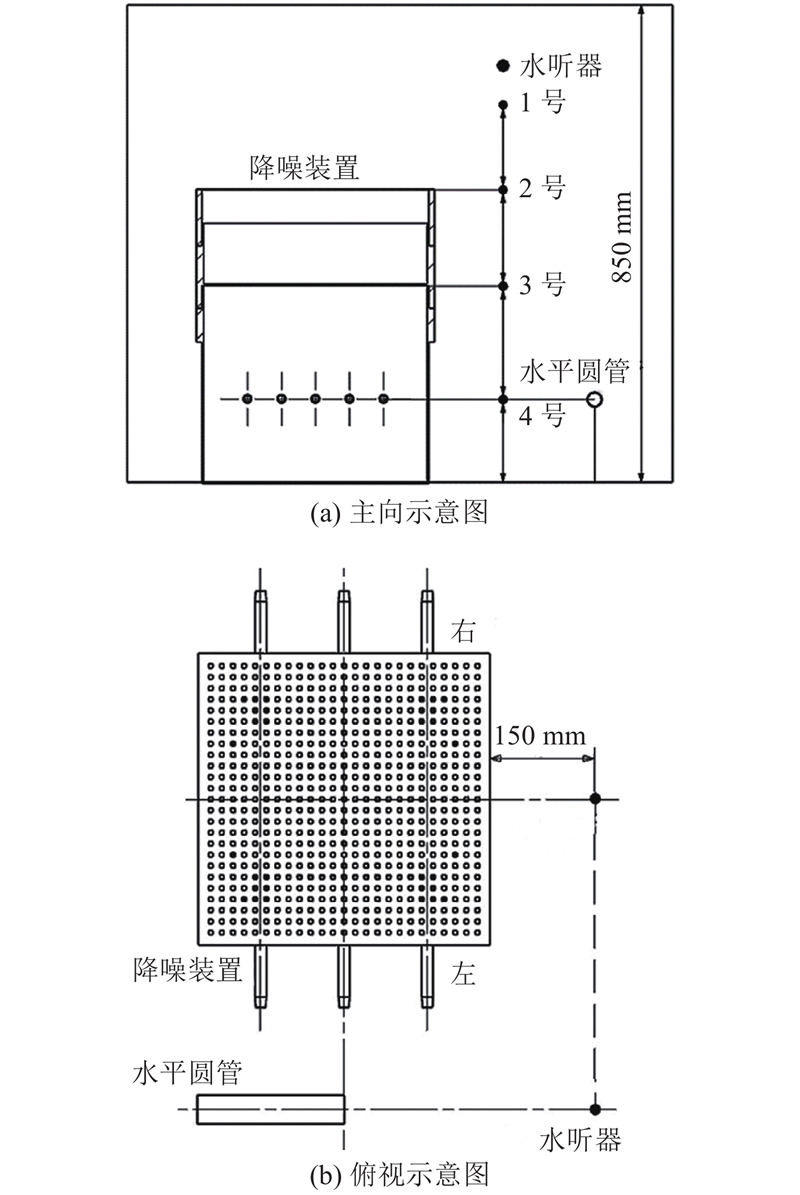

图 5  水下排气降噪装置降噪特性实验中水听器布置示意图
序号 T/℃ P/MPa Q/(L·min?1) v/(m·s?1)
1 20 0.05 10 1.47
2 20 0.05 25 3.69
3 20 0.05 50 7.37
4 20 0.05 75 11.06
5 20 0.05 100 14.74
6 20 0.05 125 18.43
7 20 0.05 150 22.12
表 1  水下排气降噪装置降噪特性实验气体状态参数
装置结构 排气层 挡板层 纱网层
注:“√”表示具有该层,“×”表示不具有该层
M
M1 ×
M2 ×
M3 × ×
表 2  排气层、挡板层和纱网层组合成的不同结构的水下排气降噪装置

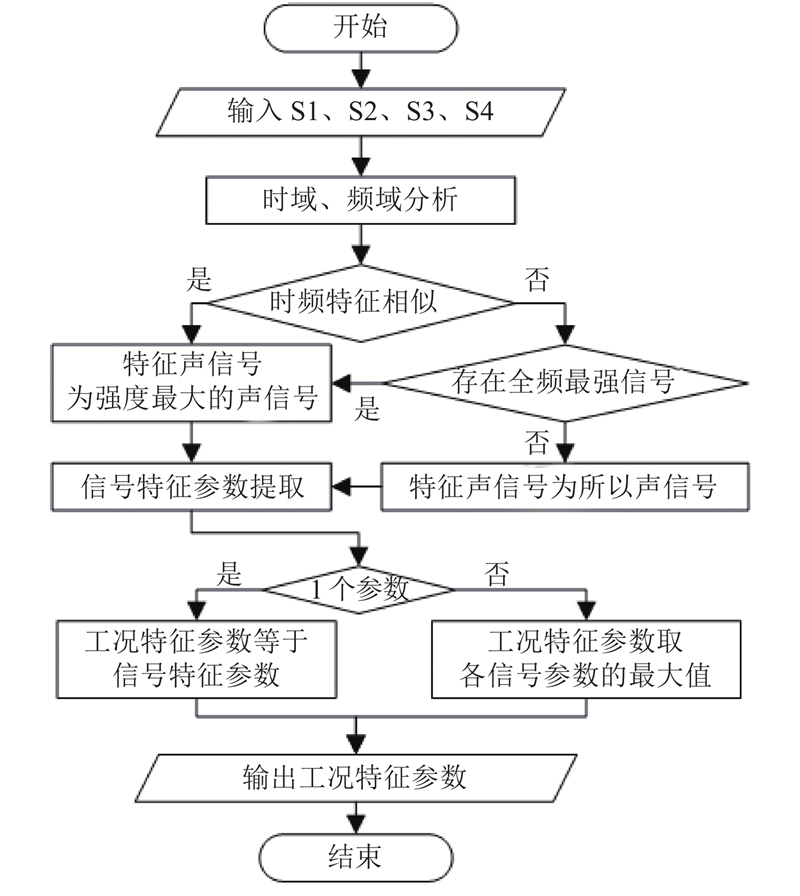

图 6  水下排气声信号处理与分析思路

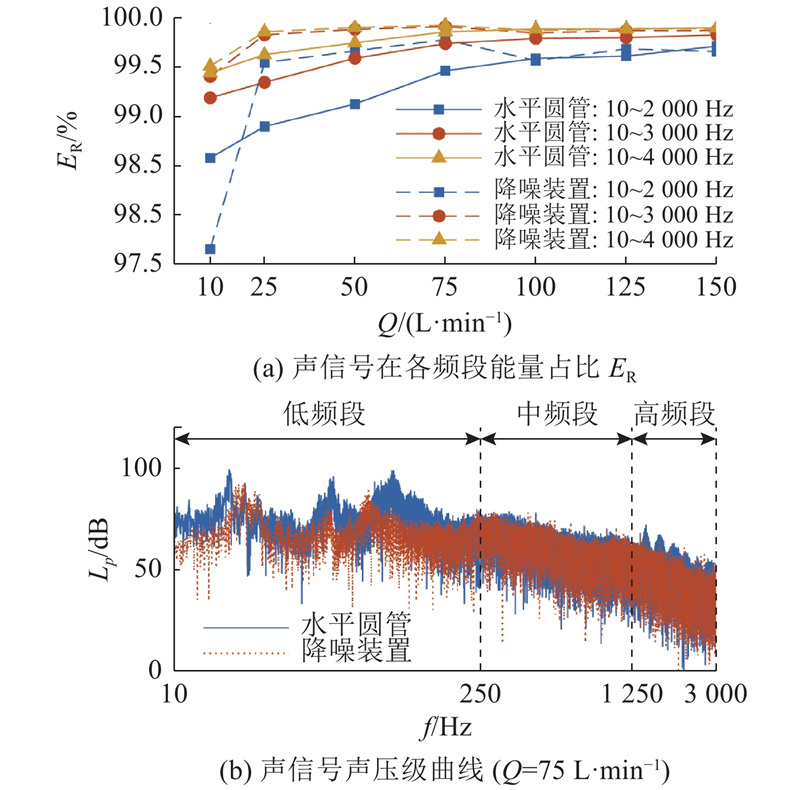

图 7  水下排气声信号的能量分布和声压级曲线

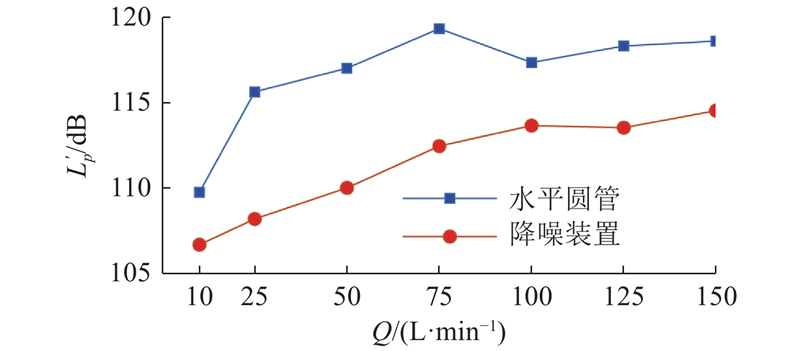

图 8  水下排气噪声总声压级

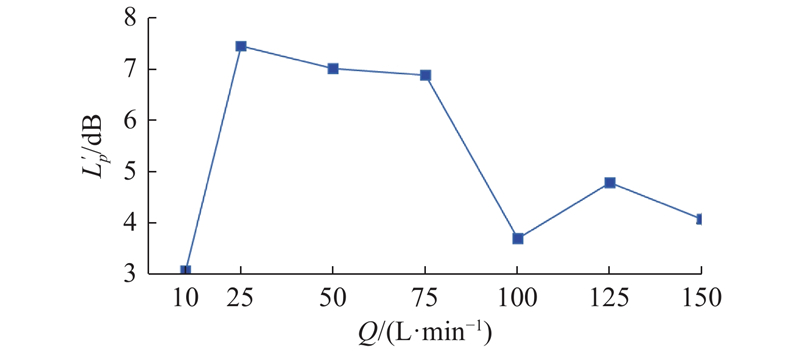

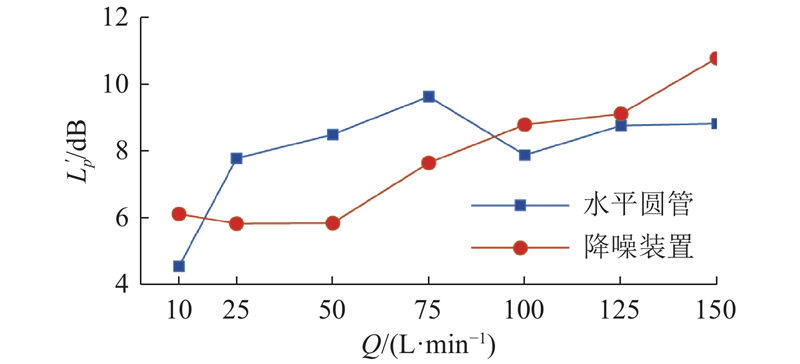

图 9  水下排气降噪装置的降噪效果

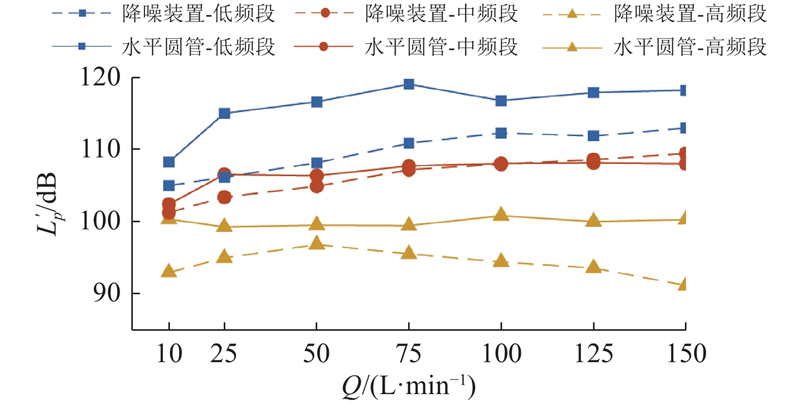

图 10  水下排气噪声在不同频段总声压级

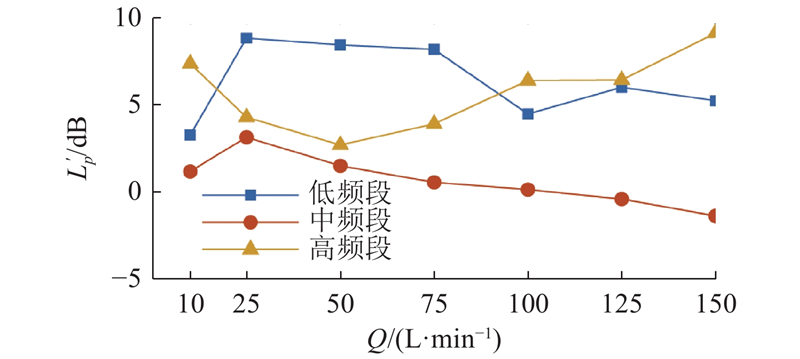

图 11  水下排气降噪装置在各频段的降噪效果
图 12  水下排气噪声各频段总声压级的标准差
图 13  水下排气噪声在各频段能量占比

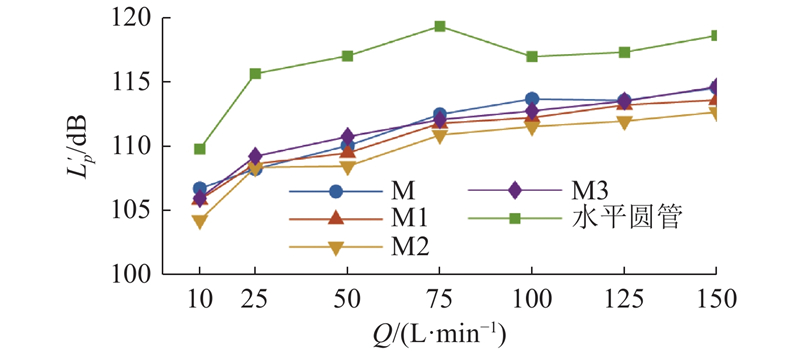

图 14  不同结构水下排气装置排气噪声总声压级

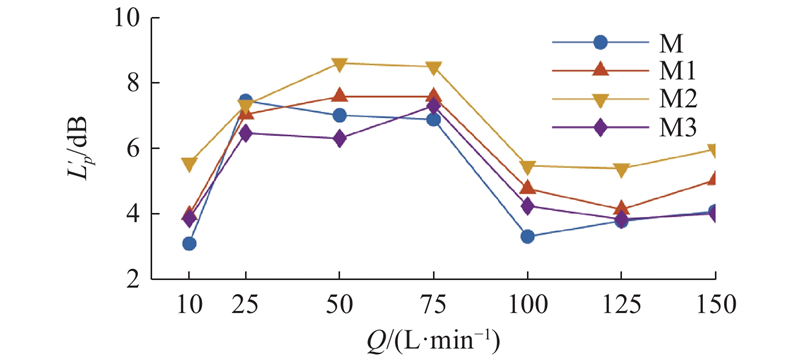

图 15  不同结构水下排气降噪装置的降噪效果

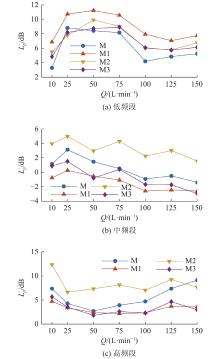

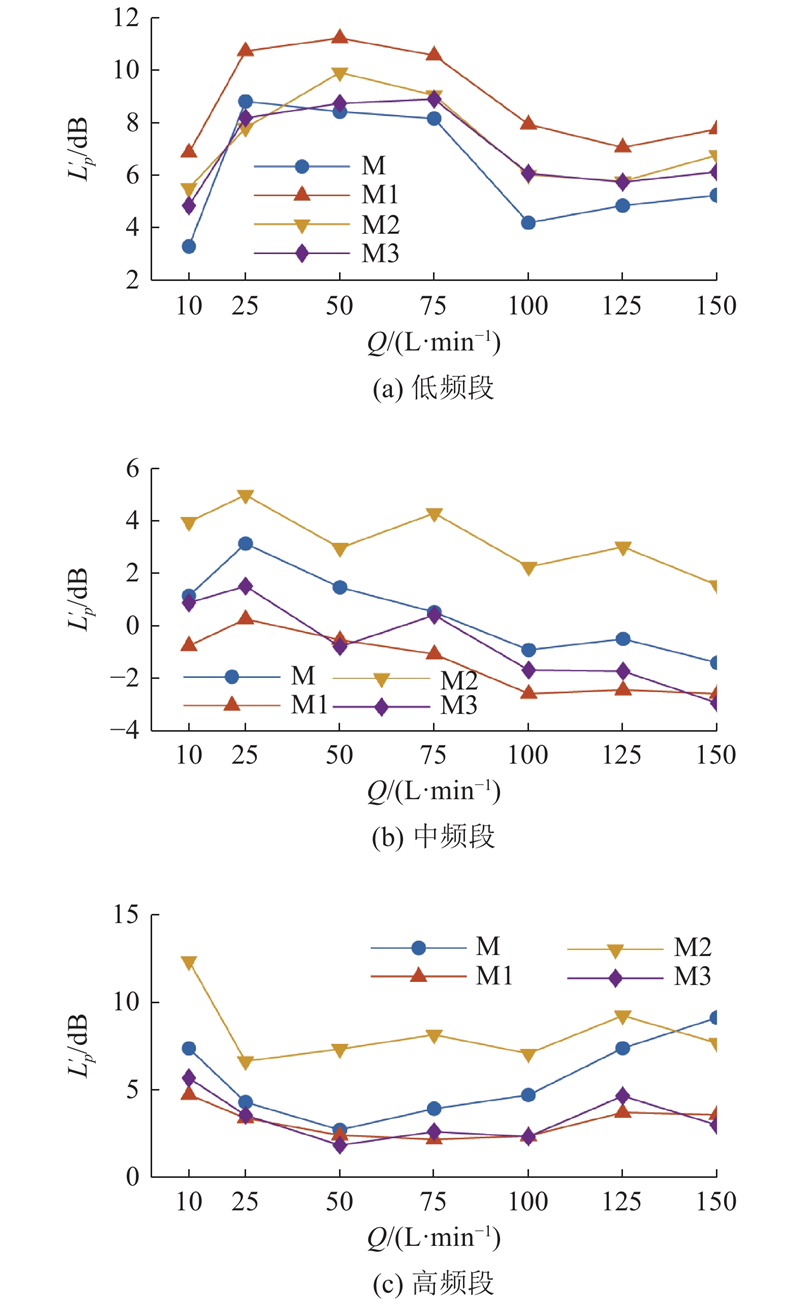

图 16  不同结构水下排气降噪装置在各频段的降噪效果
