浙江大学学报(工学版)  2026, Vol. 60 Issue (9): 2049-2058    DOI: 10.3785/j.issn.1008-973X.2026.09.023
能源工程
火电厂煤炭购存耗系统优化模型构建及应用
陈天豪1,4(),冯博2,程豫洲3,*(),罗坤1,3,樊建人1
1. 浙江大学 能源工程学院,浙江 杭州 310027
2. 浙江大唐乌沙山发电有限责任公司,浙江 宁波 315700
3. 上海浙江大学高等研究院,上海 200127
4. 浙江大学工程师学院,浙江 杭州 310015
Construction and application of optimization model for coal procurement, storage and consumption in thermal power plant
Tianhao CHEN1,4(),Bo FENG2,Yuzhou CHENG3,*(),Kun LUO1,3,Jianren FAN1
1. College of Energy Engineering, Zhejiang University, Hangzhou 310027, China
2. Datang Wushashan Power Generation Limited Company, Ningbo 315700, China
3. Shanghai Institute for Advanced Study, Zhejiang University, Shanghai 200127, China
4. Polytechnic Institute of Zhejiang University, Hangzhou 310015, China
 全文: PDF(926 KB)   HTML
摘要:

针对发电企业中占总成本70%~80%的煤炭相关生产过程进行优化,构建火力发电厂煤炭采购、存储和耗用的整个生命周期构建一体化的优化模型. 模型在采购阶段引入燃煤市场信息构建两阶段采购模型,依据能量守恒定律从发电所需热量出发逐步分解计算不同煤质的燃煤需求. 在存储阶段考虑煤种数量和煤场卸取燃煤的数量匹配问题,在制定存煤方案时动态规划煤场存煤,构建存煤策略的整数规划模型. 在掺配阶段,结合配煤专家模型保证满足掺配方案的煤质要求,多层规划可以实现制定方案过程中的快速响应,构建多级约束条件的专家配煤模型. 相关模型在东南沿海某大型统调火力发电厂进行示范应用,显著提升了经营效益,等效供电煤耗降低了1.05 g/(kW·h),等效经济收益预估为1 160万元/a. 不同阶段的模型通过数据中台实现数据流转和协同运行,采购阶段对应煤场进煤量质信息,存煤阶段对应煤场存煤位置,掺配阶段对应煤场耗用计划,共同维持了煤场的动态平衡,显著提高了火电厂的总体经济效益.

关键词: 燃煤火电厂燃煤管理供应分析成本优化
Abstract:

An integrated optimization model covering the entire lifecycle of coal procurement, storage and consumption in a coal-fired thermal power plant was developed in order to optimize the coal-related production process, which accounted for 70%-80% of the total cost in power generation enterprise. A two-stage procurement model was formulated by incorporating thermal coal market information in the procurement stage. The coal demand for different coal quality was calculated based on the law of energy conservation through stepwise decomposition starting from the thermal energy required for power generation. The number of coal types and the matching between coal unloading and reclaiming quantity in the coal yard were considered in the storage stage. Dynamic programming was employed to optimize coal yard inventory when developing storage schemes, and an integer programming model for coal storage strategy was constructed. An expert coal blending model with multi-level constraints was established in the blending stage. The multi-level planning enabled rapid response during scheme formulation while ensuring that the coal quality requirement of the blending scheme was satisfied. The proposed models were validated through a demonstration application at a large grid-connected coal-fired thermal power plant on the southeast coast of China, yielding a significant improvement in operational efficiency. The equivalent net coal consumption rate was reduced by 1.05?g/(kW·h), and the estimated equivalent economic benefit was 11.60?million CNY per annum. Data flow and collaborative operation among the models at different stages were realized through a data platform. The procurement stage provided information on the quantity and quality of coal received, the storage stage determined the allocation of coal storage positions, and the blending stage guided the coal consumption plan. Then the dynamic balance of the coal yard was maintained, thereby significantly improving the overall economic performance of the coal-fired thermal power plant.

Key words: coal-fired thermal power enterprise    coal management    supply analysis    cost optimization
收稿日期: 2025-07-24 出版日期: 2026-07-20
CLC:  TP 393
通讯作者: 程豫洲     E-mail: 22360073@zju.edu.cn;chengyz@zju.edu.cn
作者简介: 陈天豪(2001—),男,硕士生,从事能源工程领域数据驱动模型研究. orcid.org/0009-0009-7878-2325. E-mail:22360073@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
陈天豪
冯博
程豫洲
罗坤
樊建人

引用本文:

陈天豪,冯博,程豫洲,罗坤,樊建人. 火电厂煤炭购存耗系统优化模型构建及应用[J]. 浙江大学学报(工学版), 2026, 60(9): 2049-2058.

Tianhao CHEN,Bo FENG,Yuzhou CHENG,Kun LUO,Jianren FAN. Construction and application of optimization model for coal procurement, storage and consumption in thermal power plant. Journal of ZheJiang University (Engineering Science), 2026, 60(9): 2049-2058.

链接本文:

https://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2026.09.023        https://www.zjujournals.com/eng/CN/Y2026/V60/I9/2049

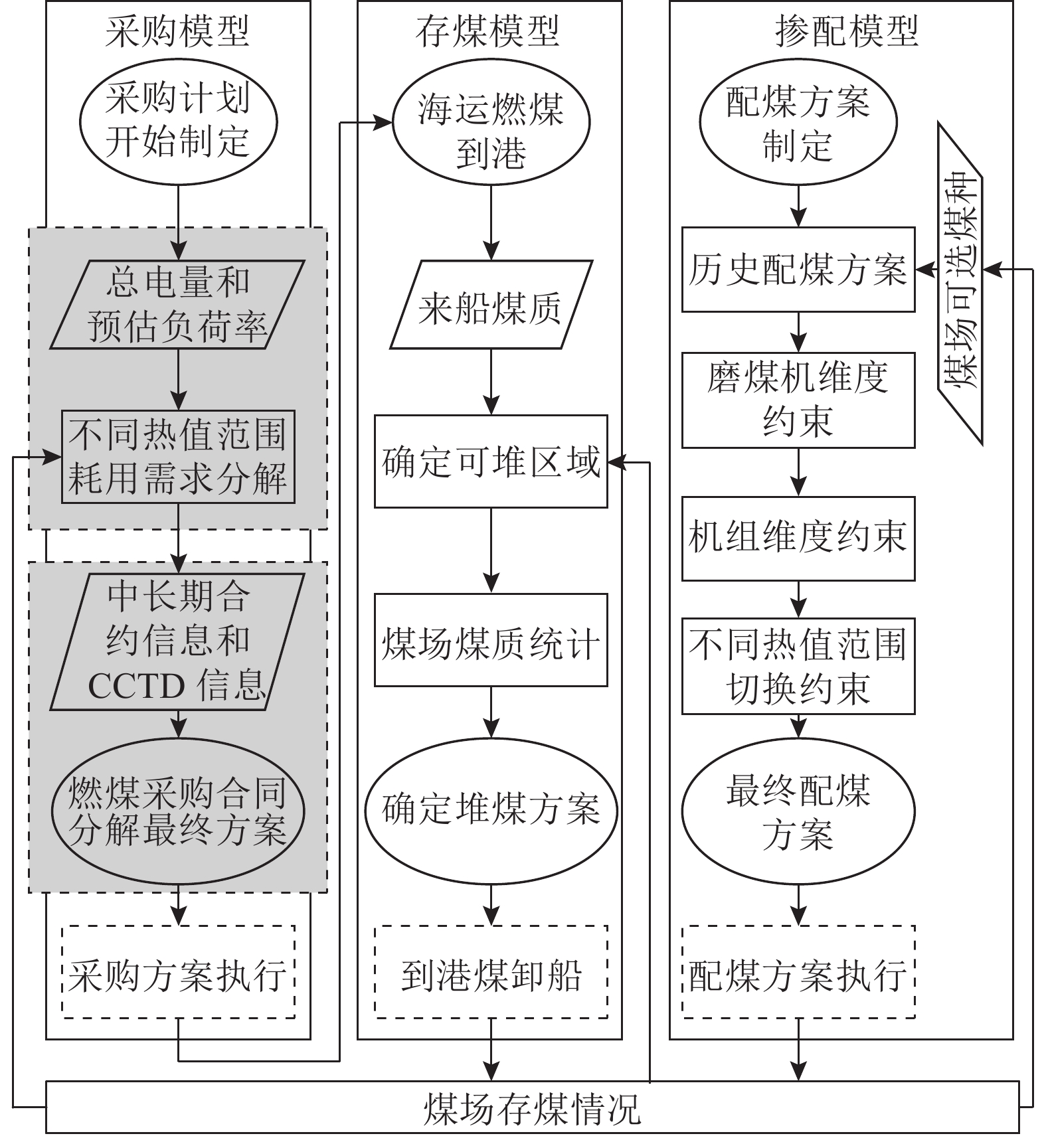

图 1  燃煤购-存-耗业务优化的模型框架

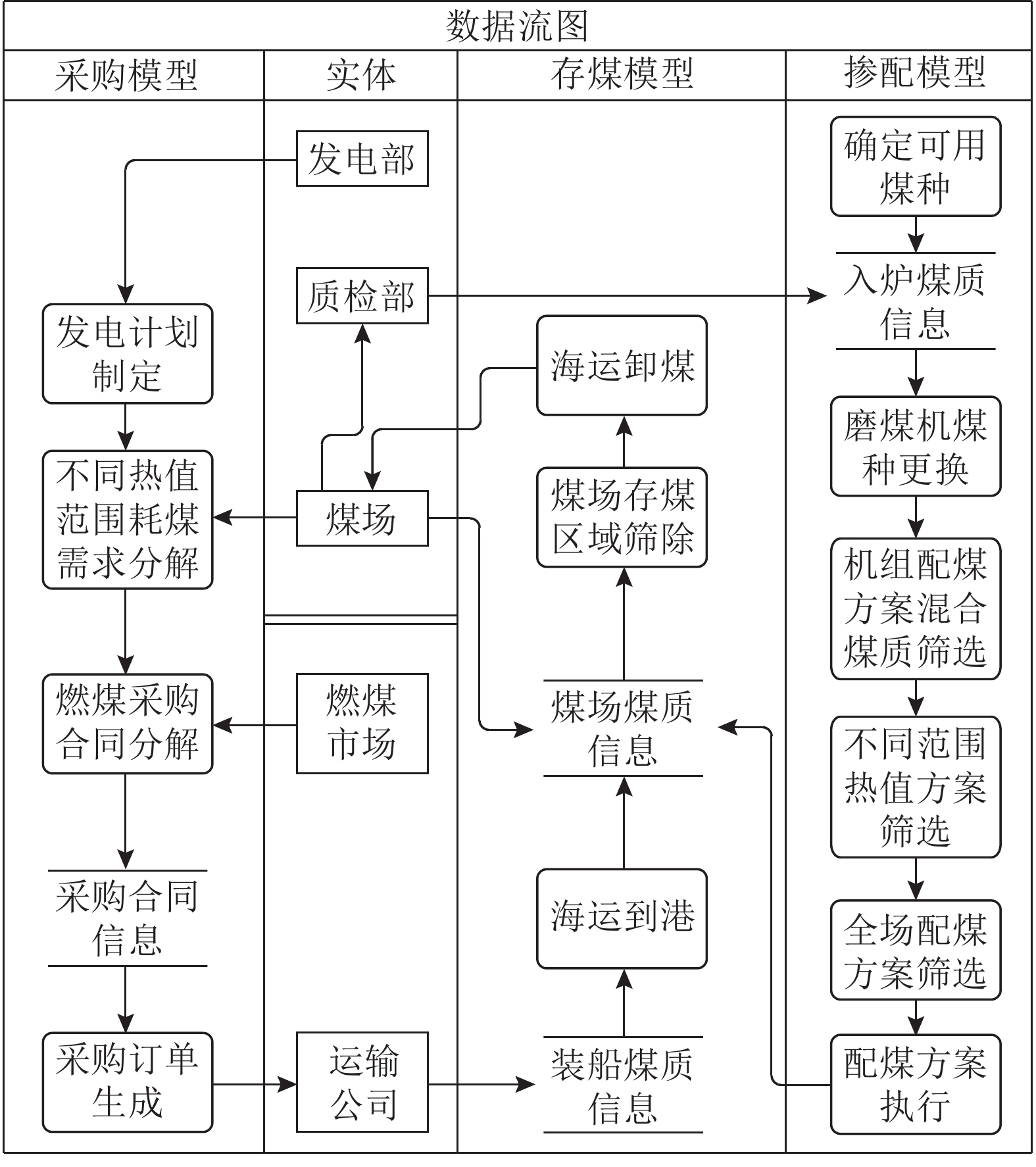

图 2  燃煤购-存-耗业务优化模型的数据流图

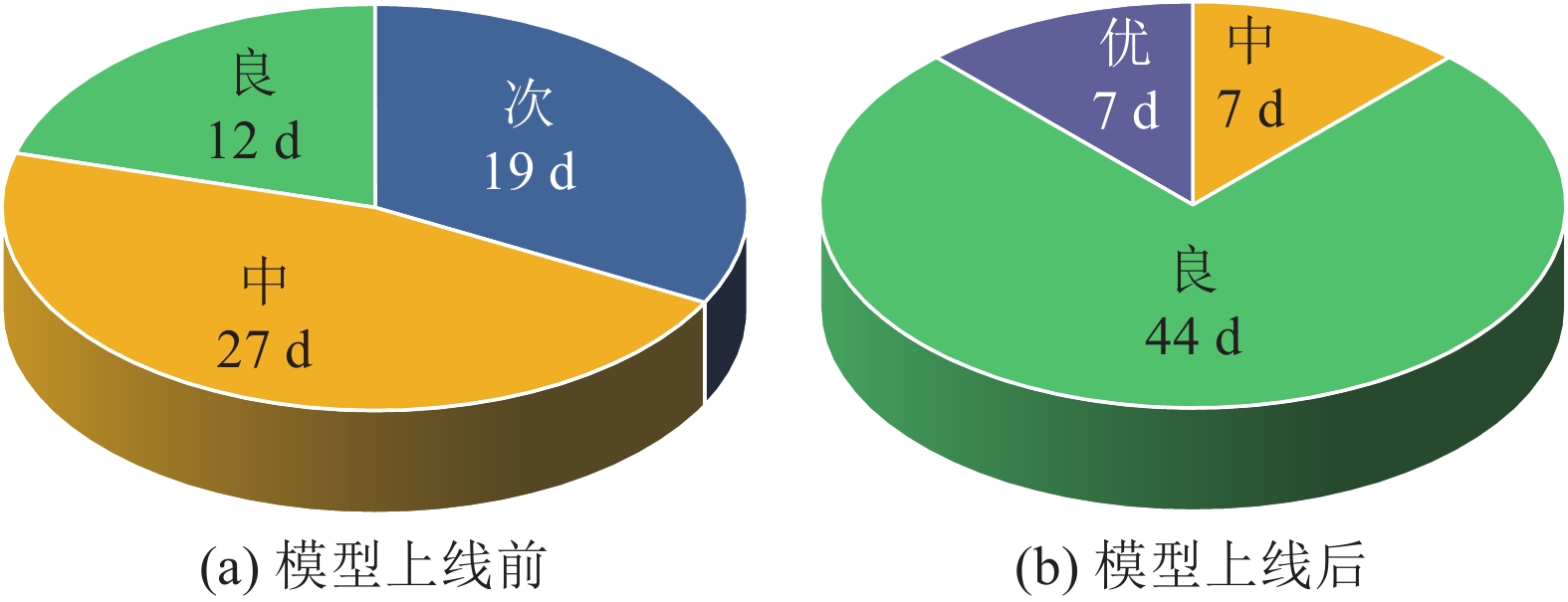

图 3  煤场高热值存煤均匀性的对比

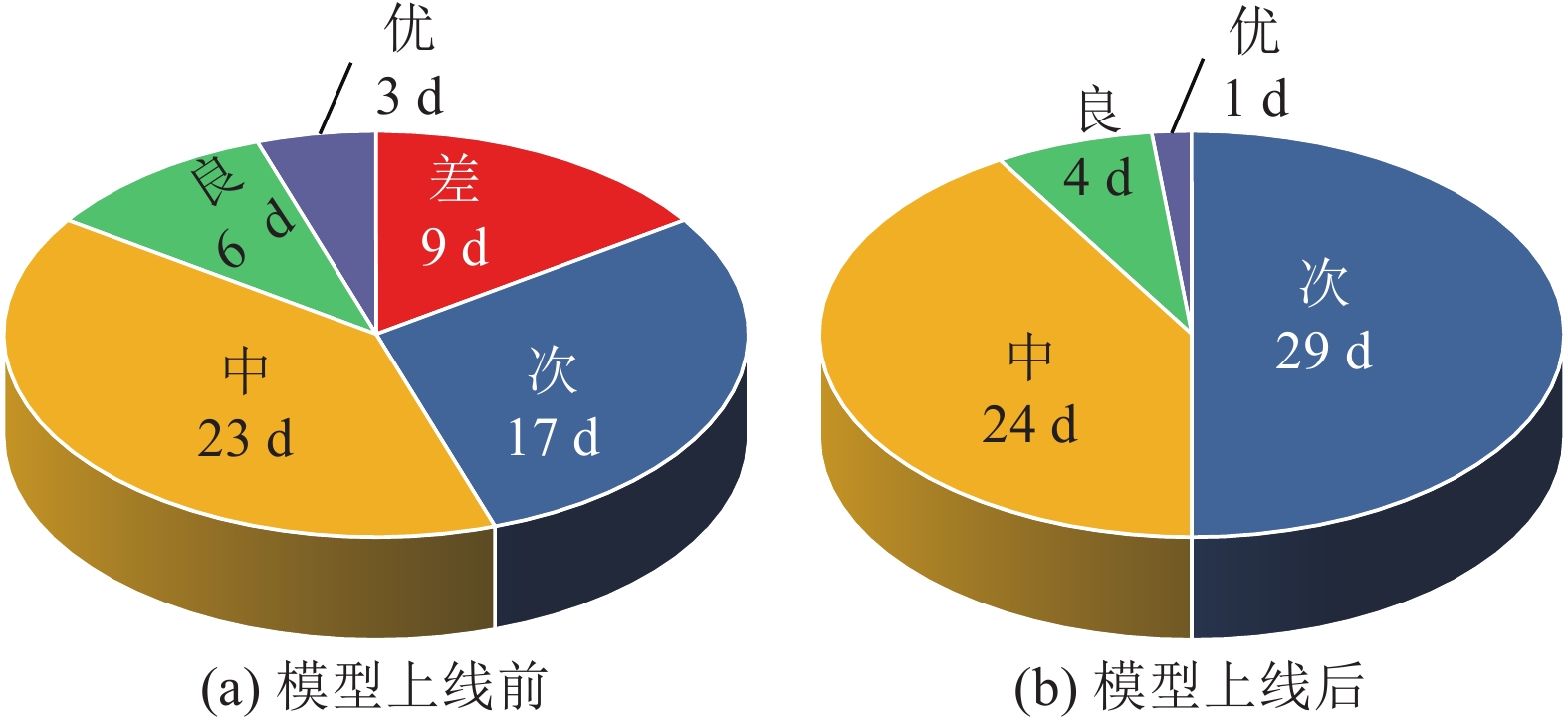

图 4  煤场低热值存煤均匀性的对比

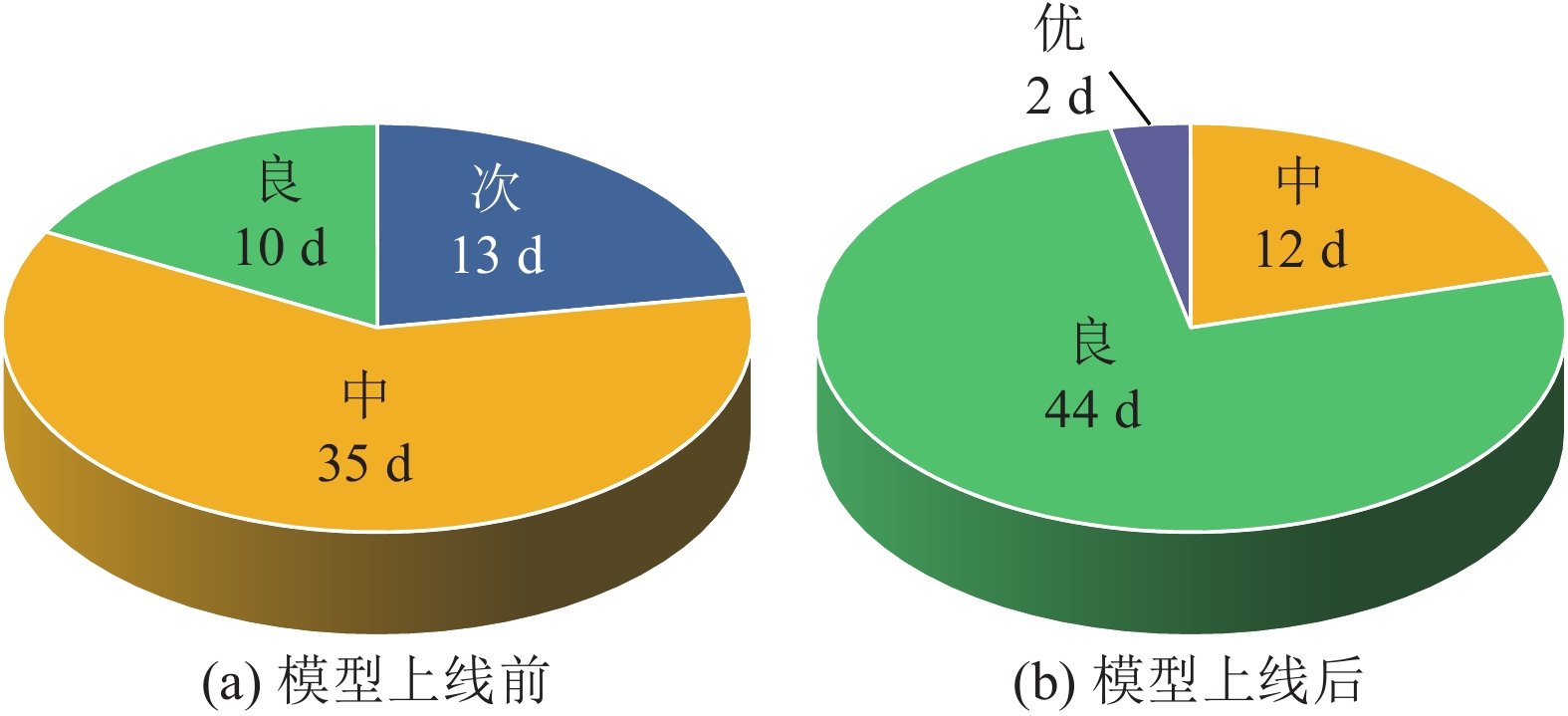

图 5  煤场高灰熔点存煤均匀性的对比

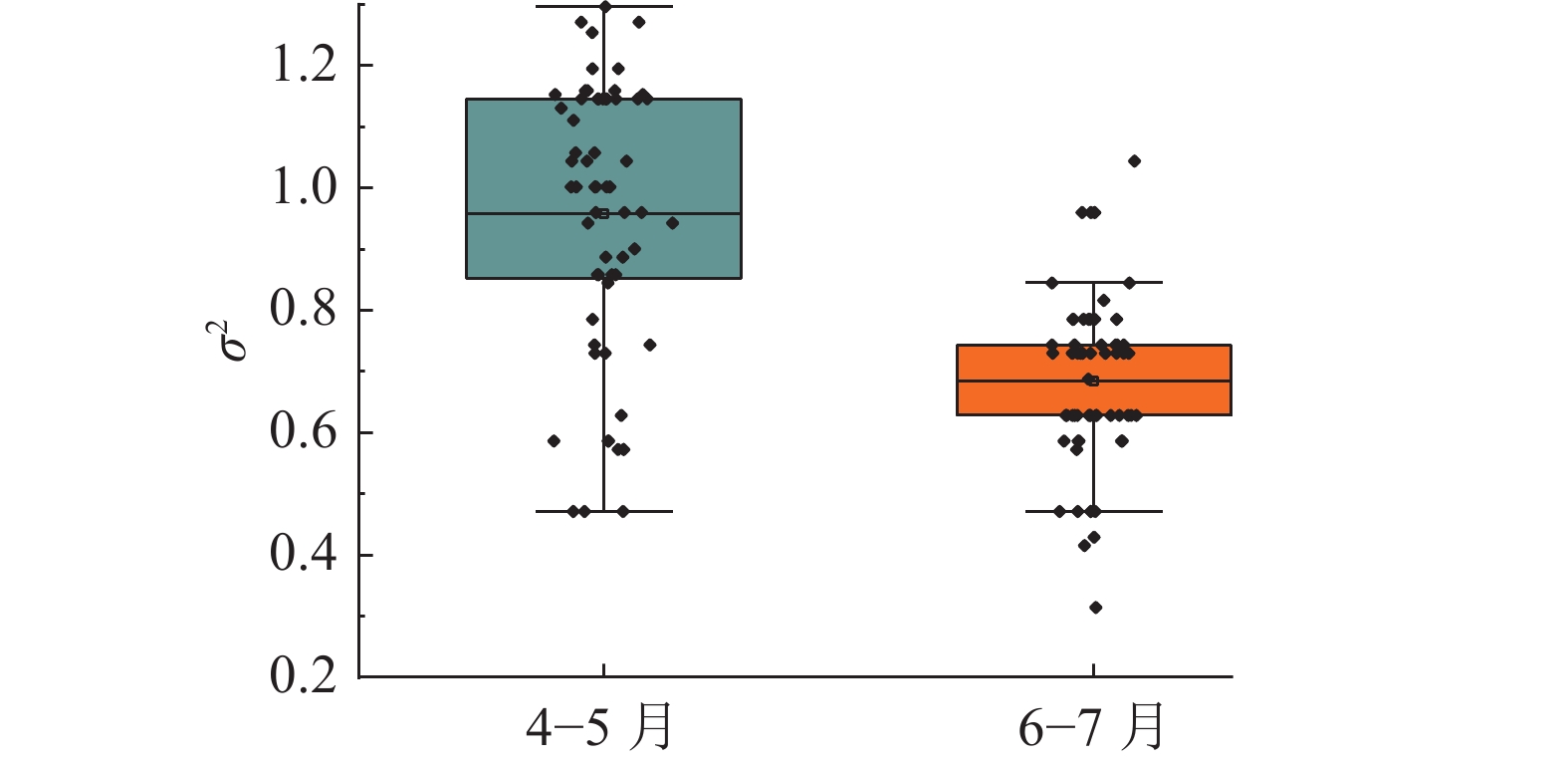

图 6  煤场存煤均匀性方差均值分布
