浙江大学学报(工学版)  2020, Vol. 54 Issue (12): 2356-2363    DOI: 10.3785/j.issn.1008-973X.2020.12.010
土木与交通工程
动态承压水作用下考虑土体非线性的基坑弱透水层出逸比降研究
应宏伟1,2,3,4(),王迪1,3,4,许鼎业1,3,4,章丽莎5
1. 浙江大学 滨海和城市岩土工程研究中心,浙江 杭州 310058
2. 河海大学 岩土工程科学研究所,江苏 南京 210098
3. 浙江省城市地下空间开发工程技术研究中心,浙江 杭州 310058
4. 浙江大学 软弱土与环境土工教育部重点实验室,浙江 杭州 310058
5. 浙江大学城市学院 土木工程系,浙江 杭州 310015
Analysis on exit gradient of aquitard at bottom of foundation pit under dynamic confined water considering nonlinearity of soil
Hong-wei YING1,2,3,4(),Di WANG1,3,4,Ding-ye XU1,3,4,Li-sha ZHANG5
1. Research Center of Coastal and Urban Geotechnical Engineering, Zhejiang University, Hangzhou 310058, China
2. Geotechnical Research Institute of Hohai University, Hohai University, Nanjing 210098, China
3. Engineering Research Center of Urban Underground Development of Zhejiang Province, Hangzhou 310058, China
4. MOE Key Laboratory of Soft Soils and Geoenvironmental Engineering, Zhejiang University, Hangzhou 310058, China
5. Department of Civil Engineering, Zhejiang University City College, Hangzhou 310015, China
 全文: PDF(1427 KB)   HTML
摘要:

针对滨海临江地区基坑底部弱透水层由动态承压水导致的突涌问题,将基坑底部弱透水层渗流问题简化为一维越流模型,考虑土体的压缩非线性和渗透非线性,推导动态承压水作用下弱透水层超静孔压半解析解,通过与有限差分解进行对比,验证解的可靠性. 分析土体非线性以及动态承压水参数对弱透水层中超静孔压和开挖面处出逸比降的影响. 分析结果表明:当考虑土体的非线性特性时,弱透水层中各深度处的超静孔压均大于线性假定下的结果;承压水波动过程中基坑开挖面处最大出逸比降随无量纲因子的增加而增加;不考虑土的非线性会使求得的出逸比降偏小. 用线性假定下的解进行突涌稳定性分析或者降水设计均会带来较大的安全隐患,在动态承压水变化周期长、平均水位高、波动幅值大的情况下应充分考虑土体非线性的影响.

关键词: 动态承压水土体非线性出逸比降突涌弱透水层
Abstract:

Aiming at the problem that the confined water usually fluctuates in coastal area and it will cause inrush accidents of foundation pit. To deal with the stability in this condition, the seepage consolidation theory was used. Then the semi-analytical solution of excess pore water pressure considering soil nonlinearity was deduced. The solution was compared with the results by finite difference method in order to verify the validity of the solution. The effects of soil nonlinearity and dynamic confined water parameters on the excess pore pressure in the aquifer and the exit gradient at the excavation surface were analyzed. The calculating results show that the excess pore pressure considering the nonlinearity of the soil is larger than that under the linear assumption at all depths. The maximum exit gradient at the excavation surface of the foundation pit increases with the increasing of the dimensionless factor. The exit gradient will be smaller without considering the nonlinearity of the soil. The analysis of stability or precipitation design with solutions under linear assumption will lead to great potential safety hazards. The nonlinear influence should be fully considered especially when the dynamic pressure water has a long cycle of change, the average water level is high, or the amplitude of the fluctuation is large.

Key words: dynamic confined water    nonlinearity of soil    exit gradient    inrush accident    aquitard
收稿日期: 2019-10-31 出版日期: 2020-12-31
CLC:  TU 432
基金资助: 国家自然科学基金资助项目(51678523,51808492)
作者简介: 应宏伟(1971—),男,教授,博士,从事岩土工程研究. orcid.org/0000-0003-2079-6504. E-mail: ice898@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
应宏伟
王迪
许鼎业
章丽莎

引用本文:

应宏伟,王迪,许鼎业,章丽莎. 动态承压水作用下考虑土体非线性的基坑弱透水层出逸比降研究[J]. 浙江大学学报(工学版), 2020, 54(12): 2356-2363.

Hong-wei YING,Di WANG,Ding-ye XU,Li-sha ZHANG. Analysis on exit gradient of aquitard at bottom of foundation pit under dynamic confined water considering nonlinearity of soil. Journal of ZheJiang University (Engineering Science), 2020, 54(12): 2356-2363.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2020.12.010        http://www.zjujournals.com/eng/CN/Y2020/V54/I12/2356

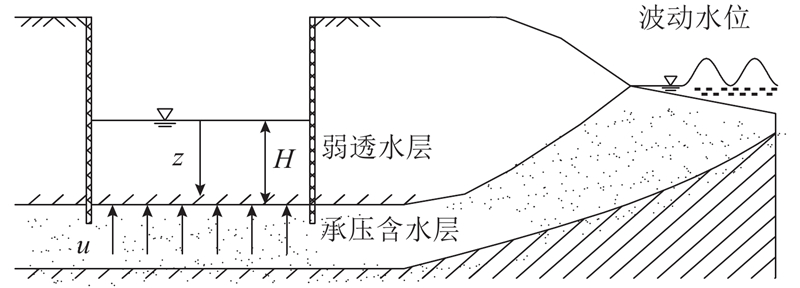

图 1  滨海临江地区基坑剖面示意图

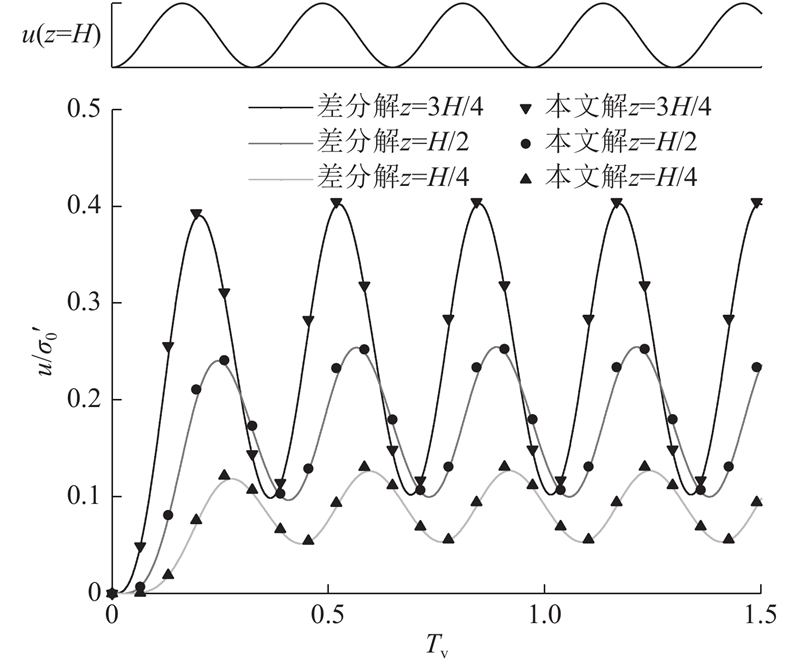

图 2  超静孔压随时间因子的变化

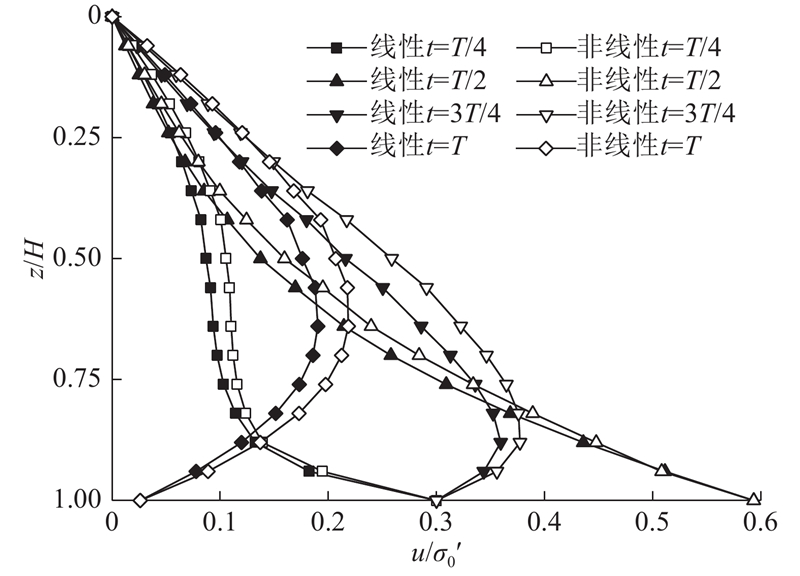

图 3  同一周期内不同时刻超静孔压沿深度分布
图 4  超静孔压随时间因子的变化

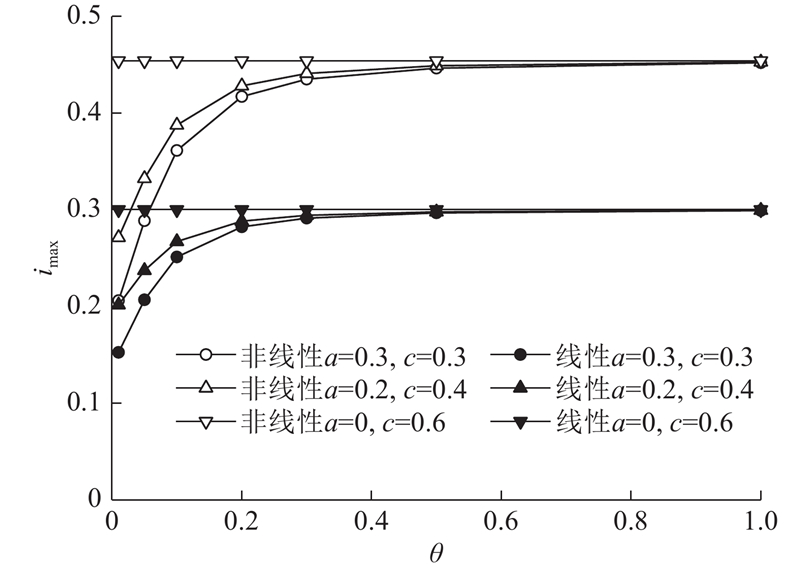

图 5  最大出逸比降随θ的变化

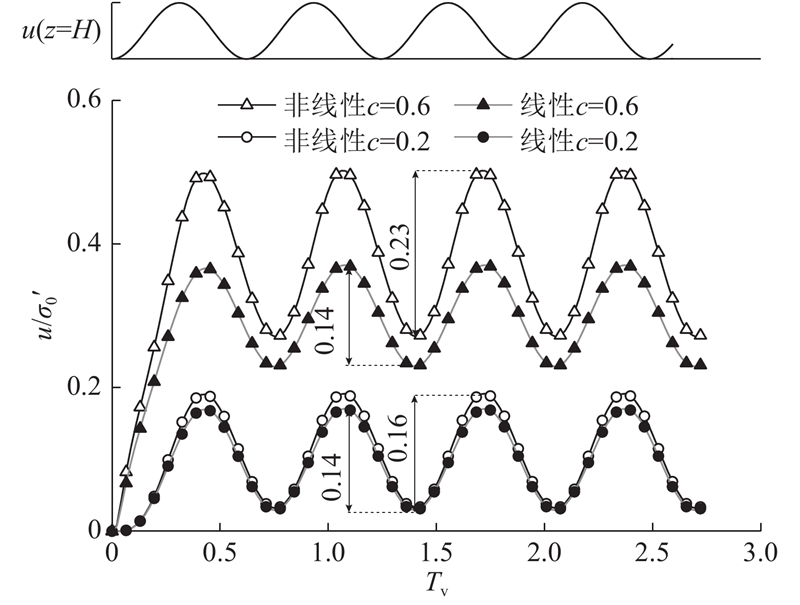

图 6  超静孔压随时间因子的变化
图 7  最大出逸比降随平均水位因子的变化

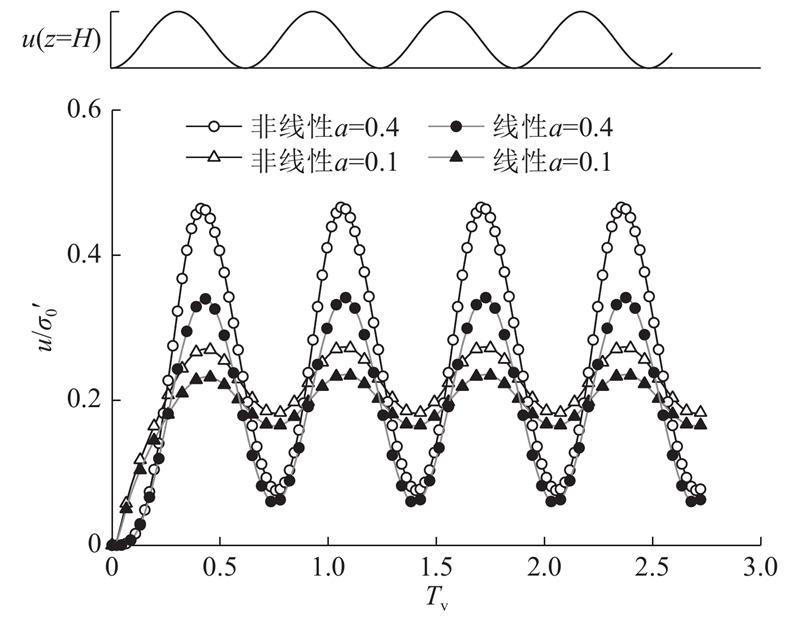

图 8  超静孔压随时间因子的变化
图 9  最大出逸比降随幅值因子的变化

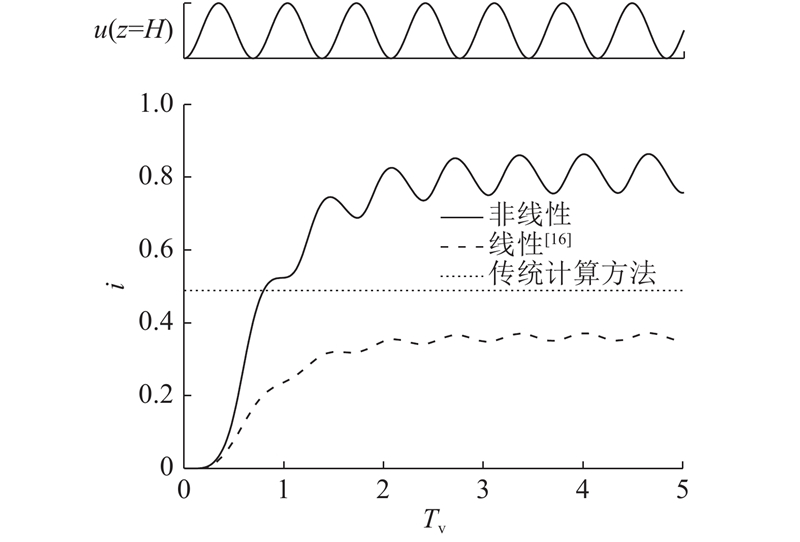

图 10  出逸比降随时间因子的变化
