浙江大学学报(工学版)
浙江大学学报(工学版)  2020, Vol. 54 Issue (4): 796-803    DOI: 10.3785/j.issn.1008-973X.2020.04.019
土木工程、交通工程
考虑路口上游停靠站影响的公交延误模型
朱文韬1(),钱国敏1,马东方2,王殿海1,*()
1. 浙江大学 建筑工程学院，浙江 杭州 310058
2. 浙江大学 海洋学院，浙江 杭州 310058
Bus delay model considering influence of stop at upstream of intersection
Wen-tao ZHU1(),Guo-min QIAN1,Dong-fang MA2,Dian-hai WANG1,*()
1. School of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
2. Ocean College, Zhejiang University, Hangzhou 310058, China
 全文: PDF(1432 KB)   HTML
摘要：

针对路口上游停靠站影响下的公交延误分析问题，考虑路口上游停靠站位置、信号配时、停靠时间、输入流量等因素，将建模场景按照是否设置公交专用道以及停靠站位置是否大于路口最远排队点分成3类，基于交通波理论对各场景分别建立停靠站影响下的公交延误模型. 通过数值模拟，对所建模型进行分析测算. 结果表明，BL场景下的期望公交延误仅与周期和绿信比有关；NBL1场景下的延误随着流量、周期、红灯时长的增大而增大，且与公交停靠时长无关，NBL2场景下的延误随着站点距离的增加呈现先减小后增大的趋势；在相同条件下，随着流量的增加，NBL1下的期望公交延误最大.
关键词： 公交延误;  停靠站;  最远排队点;  公交专用道;  交通波
Abstract:

The bus delay under the influence of upstream stop at intersection was analyzed. The modeling scenario was divided into three categories according to whether the system set the bus lane and the bus station position was father than the farthest queue point of the intersection by analyzing the location of the stop upstream at the intersection, the signal timing, the stop time, the input flow and other factors. The bus delay model under the influence of the stop was established based on the traffic wave theory. All models were analyzed and calculated by the numerical simulation. Results show that the expected bus delay is only related to the cycle and the green signal ratio in the BL scenario. In the NBL1 scenario, the expected bus delay increases with the increase of traffic flow, cycle and red light duration, and has nothing to do with the bus stop time. In the NBL2 scenario, the expected bus delay first decreases and then increases as the distance of the station increases. The expected bus delay under NBL1 is the largest with the increase of traffic flow under the same conditions.
Key words: bus delay    bus stop    farthest queuing point    bus lane    traffic wave
收稿日期: 2019-03-29 出版日期: 2020-04-05
CLC:  U 491
基金资助: 教育部人文社科基金资助项目（17YJCZH124）
通讯作者: 王殿海     E-mail: 11212058@zju.edu.cn;wangdianhai@zju.edu.cn
作者简介: 朱文韬（1990—），男，博士生，从事交通规划研究. orcid.org/0000-0002-0022-7294. E-mail： 11212058@zju.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
朱文韬
钱国敏
马东方
王殿海

引用本文:

朱文韬,钱国敏,马东方,王殿海. 考虑路口上游停靠站影响的公交延误模型[J]. 浙江大学学报(工学版), 2020, 54(4): 796-803.

Wen-tao ZHU,Guo-min QIAN,Dong-fang MA,Dian-hai WANG. Bus delay model considering influence of stop at upstream of intersection. Journal of ZheJiang University (Engineering Science), 2020, 54(4): 796-803.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2020.04.019    或    http://www.zjujournals.com/eng/CN/Y2020/V54/I4/796

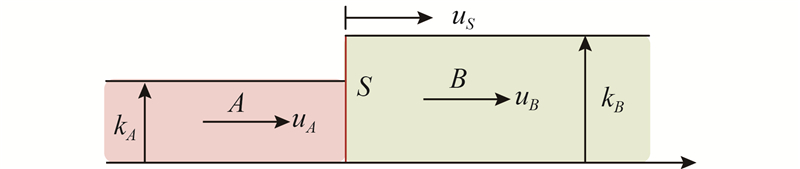

图 1  交通波传播示意图

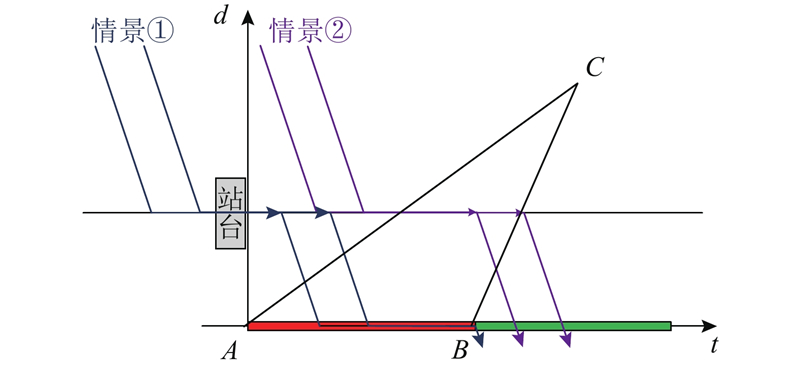

图 2  BL场景下的交叉口车辆运行时空图

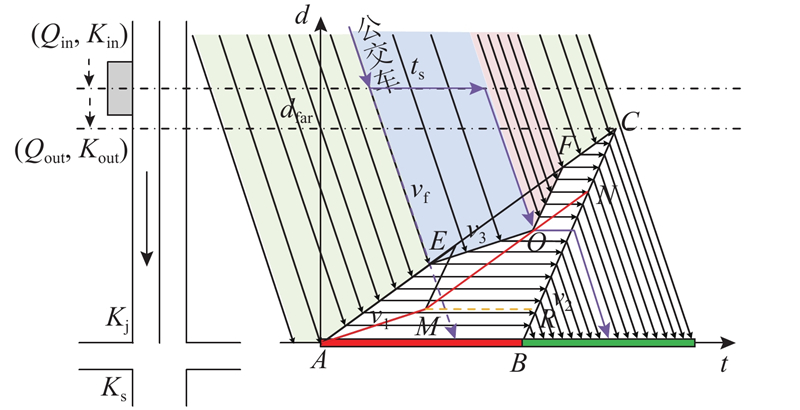

图 3  NBL1场景下的交叉口车辆运行时空图

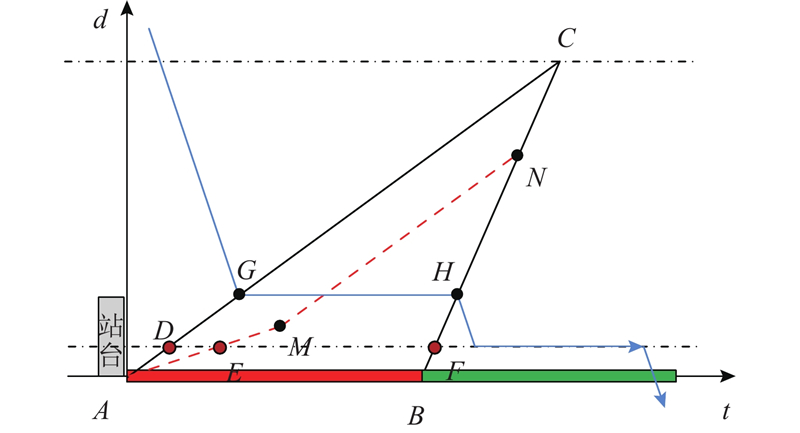

图 4  NBL2场景下的交叉口车辆运行时空图

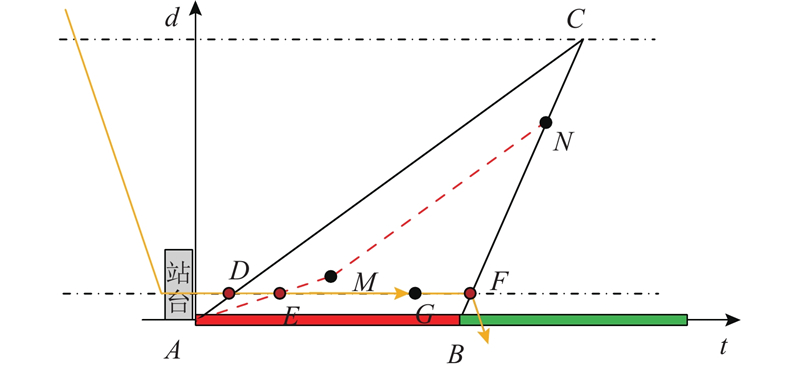

图 5  当 ${d_{\rm{A}}} \leqslant {d_{\rm{s}}} < {d_{\rm{M}}}$时情景1）的公交运行轨迹图

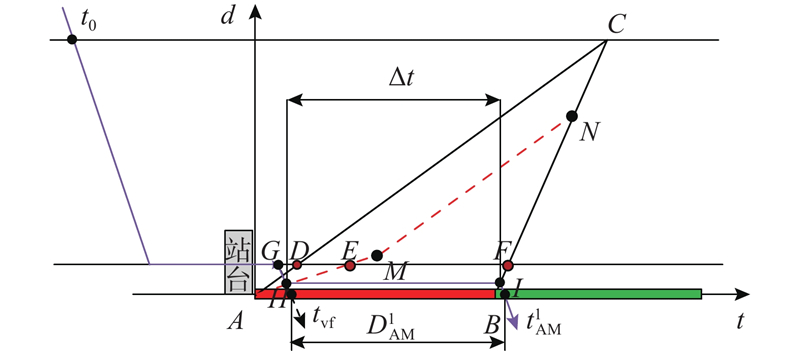

图 6  当 ${d_{\rm{A}}} \leqslant {d_{\rm{s}}} < {d_{\rm{M}}}$时情景2）的公交运行轨迹图
图 7  当 ${d_{\rm{A}}} \leqslant {d_{\rm{s}}} < {d_{\rm{M}}}$时情景3）的公交运行轨迹图
图 8  当 ${d_{\rm{A}}} \leqslant {d_{\rm{s}}} < {d_{\rm{M}}}$时情景4）的公交运行轨迹图

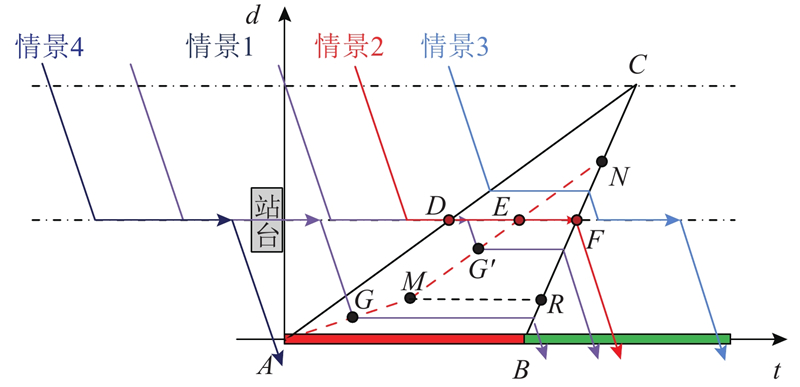

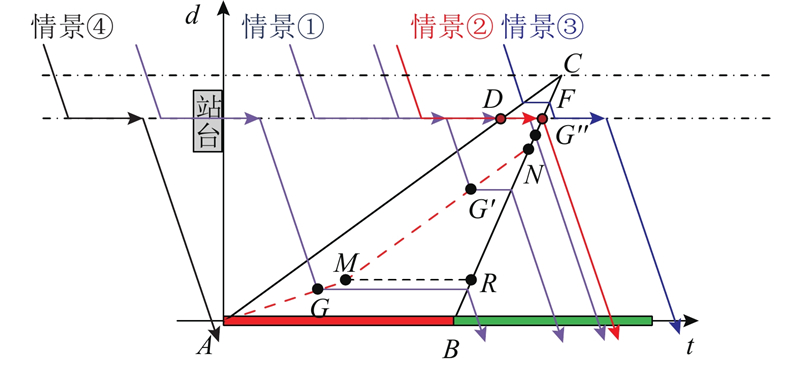

图 9  当 ${d_{\rm{M}}} \leqslant {d_{\rm{s}}} < {d_{\rm{N}}}$时不同情景下的公交运行轨迹图
图 10  当 ${d_{\rm{N}}} \leqslant {d_{\rm{s}}} < {d_{\rm{C}}}$时不同情景下的公交运行轨迹图
图 11  BL场景下C-λ-D关系图
图 12  NBL1场景下公交延误分析

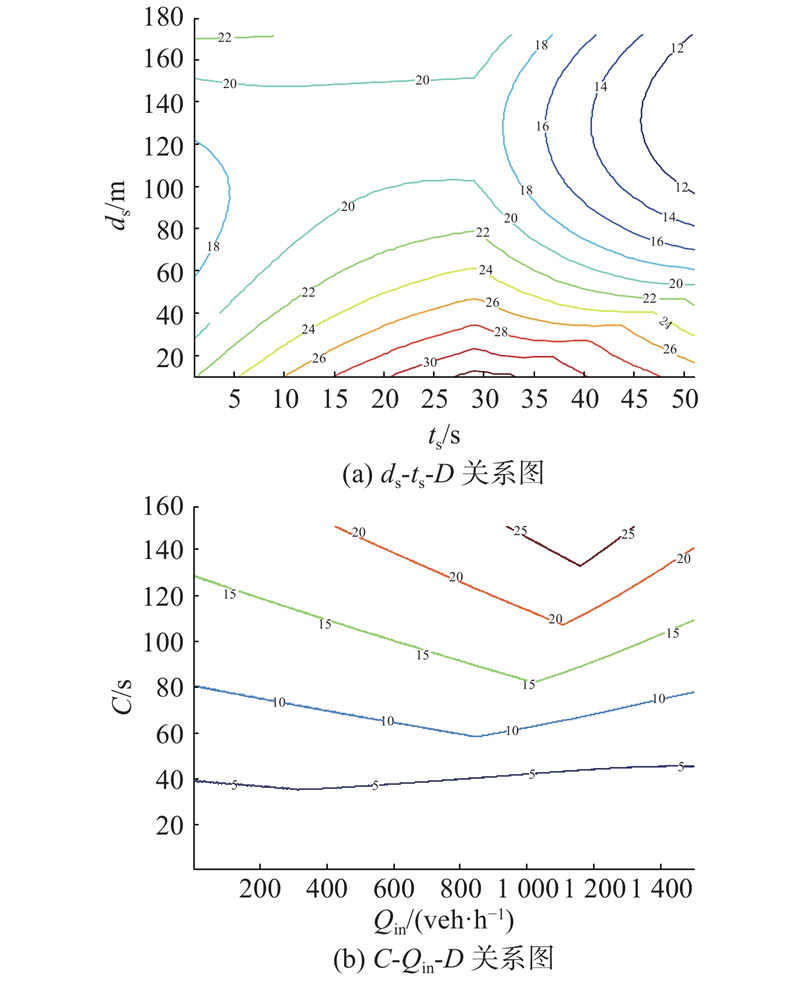

图 13  NBL2场景下公交延误分析

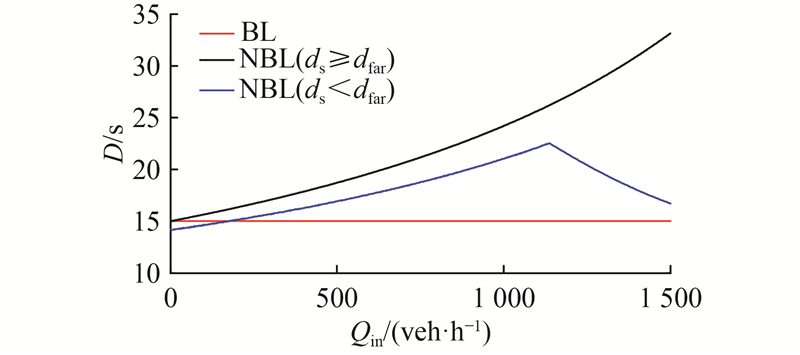

图 14  3种场景下的输入流量-延误影响
