Absorption of NO<sub>2</sub> by magnesium sulfite and ions distribution in liquid phase

doi:10.3785/j.issn.1008-973X.2020.10.015

Journal of ZheJiang University (Engineering Science)

2020, Vol. 54

Issue (10): 1978-1985 DOI: 10.3785/j.issn.1008-973X.2020.10.015

Absorption of NO₂ by magnesium sulfite and ions distribution in liquid phase

Meng-di ZHANG1(

),Meng-yue YING1,Yue LIU1,*(

),Zhong-biao WU1,2

1. College of Environmental and Resource Sciences, Zhejiang University, Hangzhou 310058, China
2. Zhejiang Provincial Engineering Research Center of Industrial Boiler and Furnace Flue Gas Pollution Control, Hangzhou 310058, China

Download:

HTML

PDF(1657KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Magnesium sulfite was employed as simulated magnesia wet flue gas desulfurization (WFGD) slurry for NO₂ absorption. The NO₂ absorption efficiency and the distributions of aqueous ions in the absorption solution under different operating conditions were analyzed. The experimental results show that the presence of oxygen greatly influences on NO₂ absorption. The absorption of NO₂ mainly occur via a series of chain reactions with SO₃^2?, finally generating SO₄^2? and NO₂^?. Oxygen can competitively consume SO₃^2?, resulting in a great decrease in NO₂ absorption efficiency. The addition of catechol can retard the consumption of SO₃^2? by O₂ so that NO₂ absorption efficiency can maintain, and this effect is enhanced with an increase of content. The pH value affects the absorption reaction through the existing form of S (IV). The denitrification efficiency reduces under acidic conditions, and increased NO₃^? content can be observed owing to the disproportionation of NO₂^?. The accumulation of nitrite ions can slightly inhibit the absorption of NO₂, while other anions such as NO₃^?, SO₄^2? and Cl^? have no significant effects. Some metal cations like Mn²⁺ and Co²⁺ can accelerate the oxidation rate of SO₃^2?, which affect the absorption of NO₂ to some extent.

Key words： magnesium sulfite nitrogen dioxide aqueous absorption ions distribution chain reaction

Received: 02 September 2019 Published: 28 October 2020

CLC:

X 701

Corresponding Authors: Yue LIU E-mail: zhangmd@zju.edu.cn;yueliu@zju.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Meng-di ZHANG
	Meng-yue YING
	Yue LIU
	Zhong-biao WU

Cite this article:

Meng-di ZHANG,Meng-yue YING,Yue LIU,Zhong-biao WU. Absorption of NO₂ by magnesium sulfite and ions distribution in liquid phase. Journal of ZheJiang University (Engineering Science), 2020, 54(10): 1978-1985.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.10.015 OR http://www.zjujournals.com/eng/Y2020/V54/I10/1978

亚硫酸镁对NO₂的液相吸收及产物离子分布

以亚硫酸镁模拟氧化镁湿法脱硫浆液对NO₂进行吸收，考察不同操作条件下的NO₂吸收效率及吸收液中主要离子的分布情况. 结果表明，O₂对吸收过程的影响很大，NO₂主要通过与SO₃^2?之间发生的链式反应在液相中产生SO₄^2?和NO₂^?，O₂会与NO₂发生竞争作用，极大地消耗了SO₃^2?，导致脱硝效率迅速下降. 抗氧化剂邻苯二酚的添加可以抑制SO₃^2?的氧化，且添加的浓度越高，抑制效果越好. 溶液的pH值主要通过影响S（IV）的存在形态来影响吸收反应，当pH值较低时，吸收反应的速率降低，且在酸性条件下，NO₂^?易发生歧化反应转化为NO₃^?. NO₂^?的累积将会在一定程度上降低NO₂的吸收，其他阴离子NO₃^?、SO₄^2?及Cl^?对NO₂的吸收无明显影响. 金属阳离子例如Mn²⁺及Co²⁺会加速SO₃^2?的氧化，在一定程度上影响NO₂的吸收.

关键词： 亚硫酸镁, 二氧化氮, 液相吸收, 离子分布, 链式反应

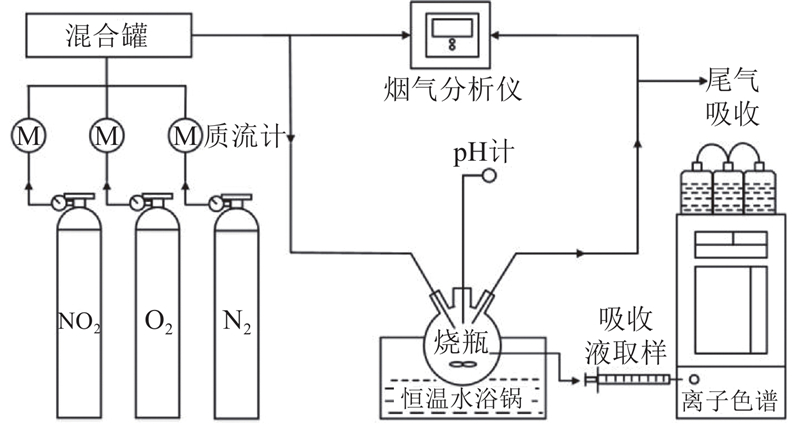

Fig.1 Schematic diagram of experimental setup for NO₂ absorption

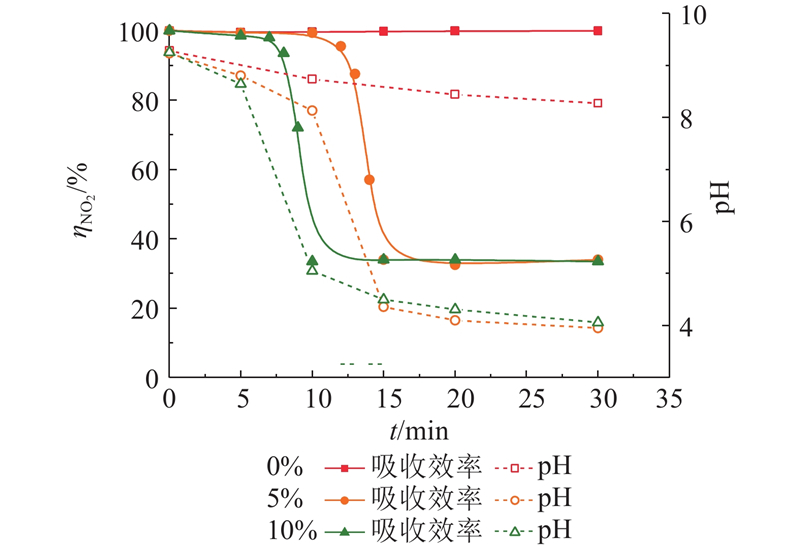

Fig.2 Effect of O₂ on NO₂ absorption efficiency and pH

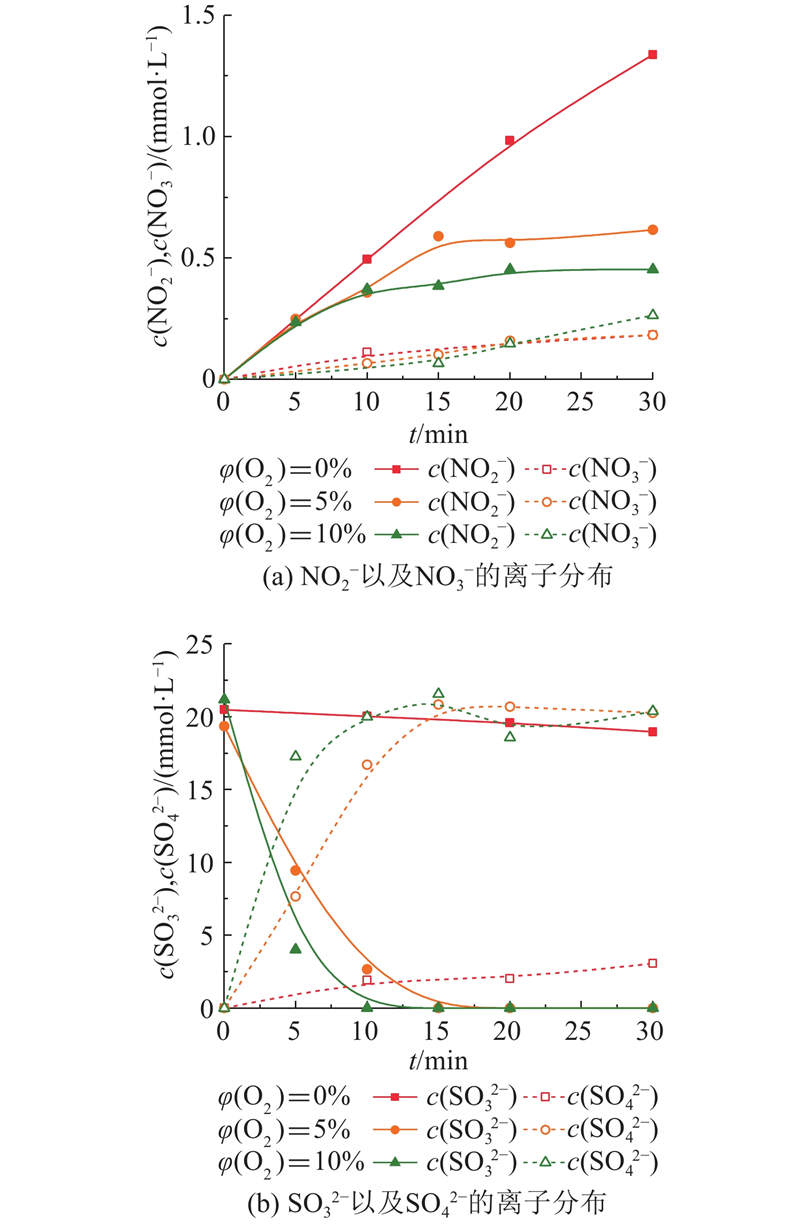

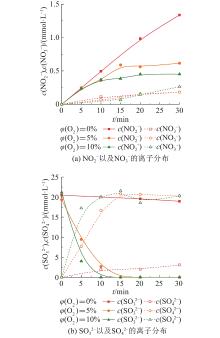

Fig.3 Effect of O₂ on ions distribution

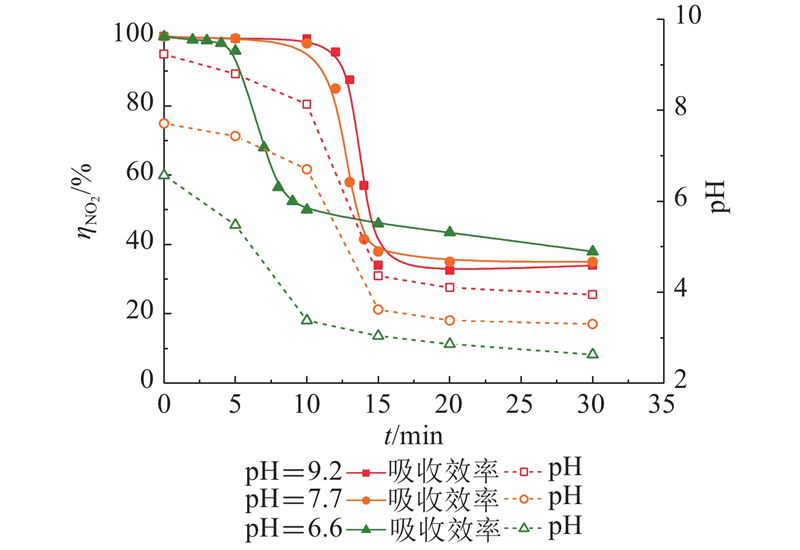

Fig.4 Effect of initial pH on NO₂ absorption efficiency and pH value variation

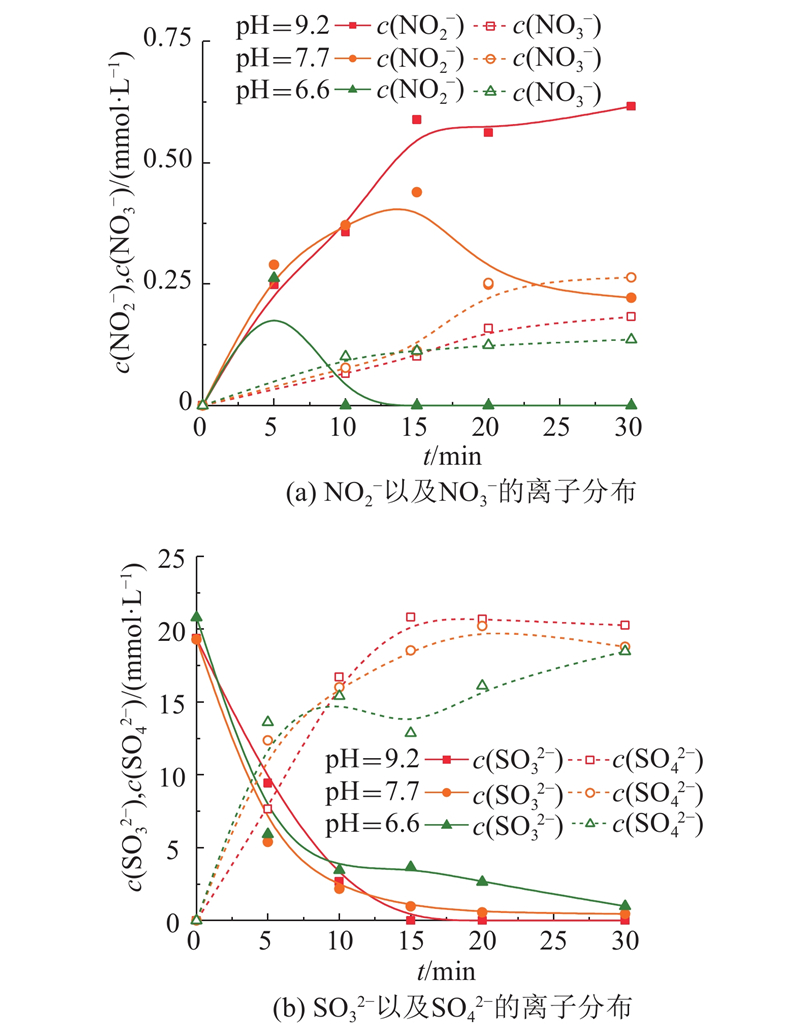

Fig.5 Effect of initial pH on ions distribution

Fig.6 Effect of pH on NO₂ absorption rate

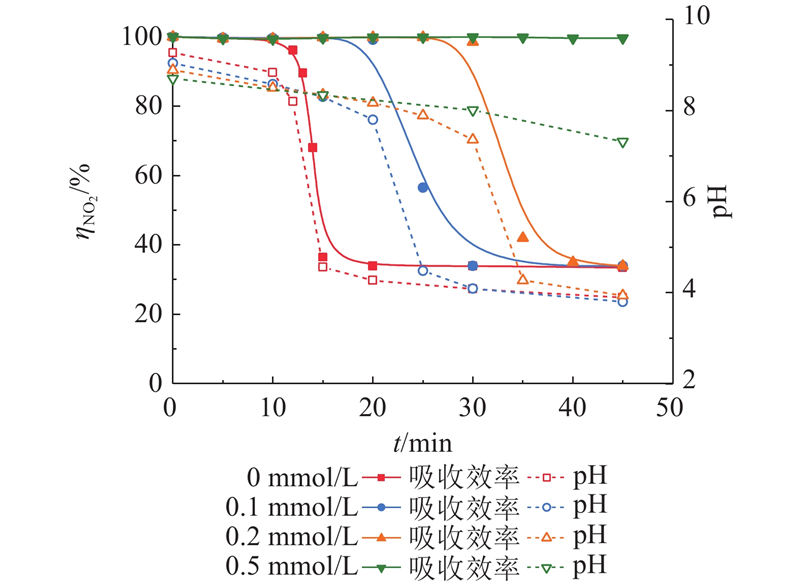

Fig.7 Effect of catechol concentration on NO₂ absorption efficiency and pH

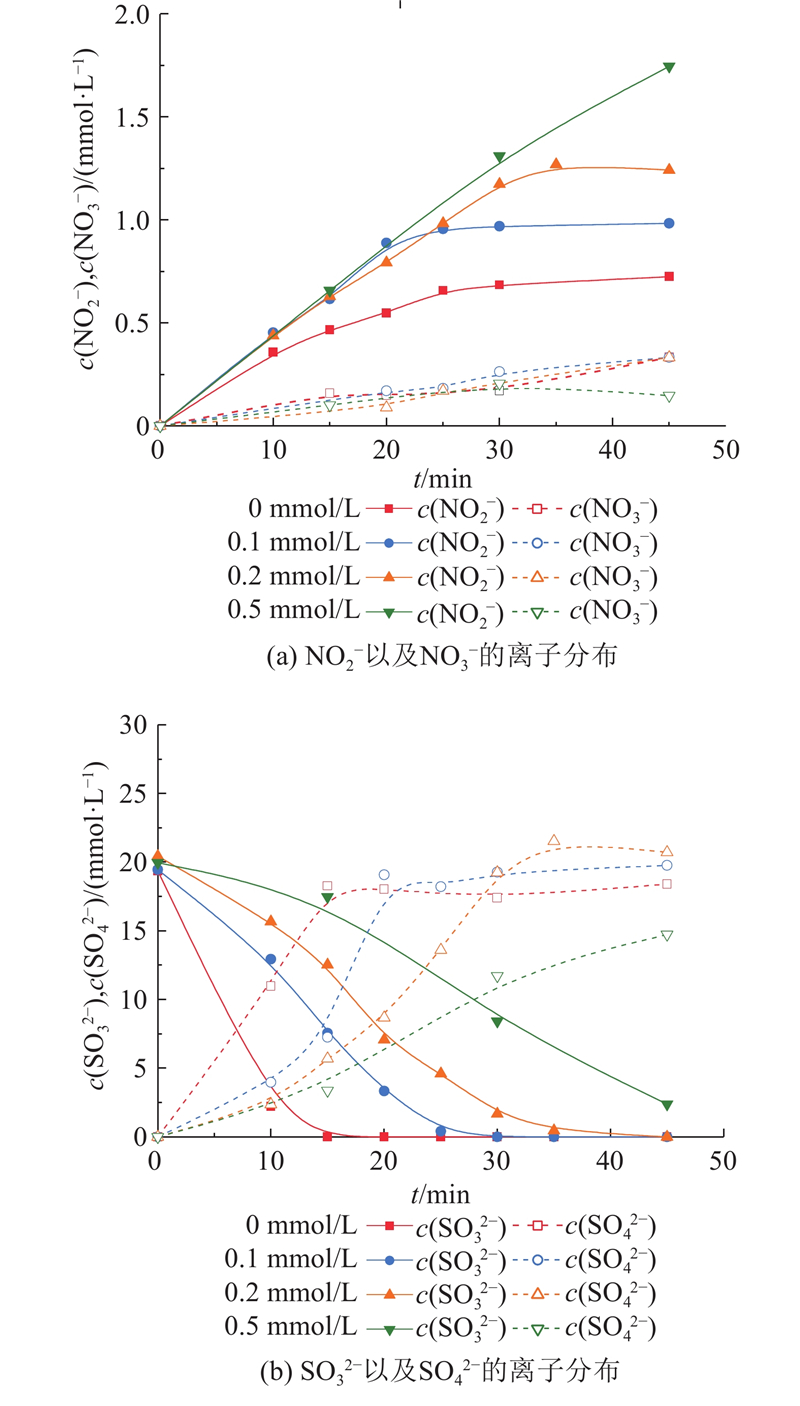

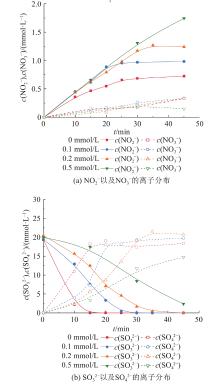

Fig.8 Effect of catechol concentration on ions distribution

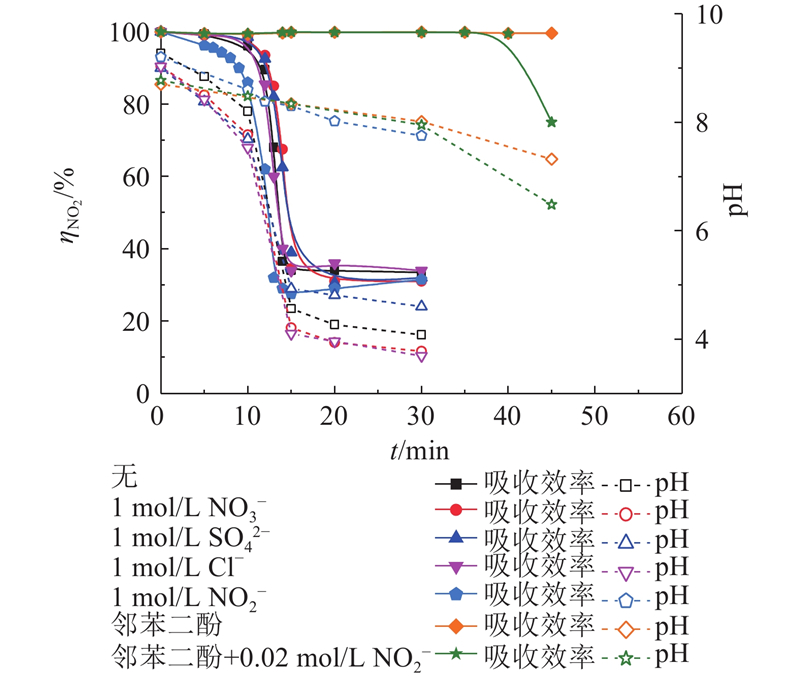

Fig.9 Effect of different anions on NO₂ absorption efficiency and pH

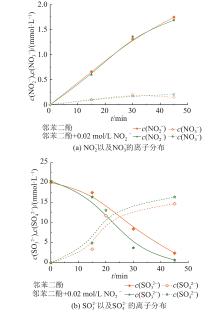

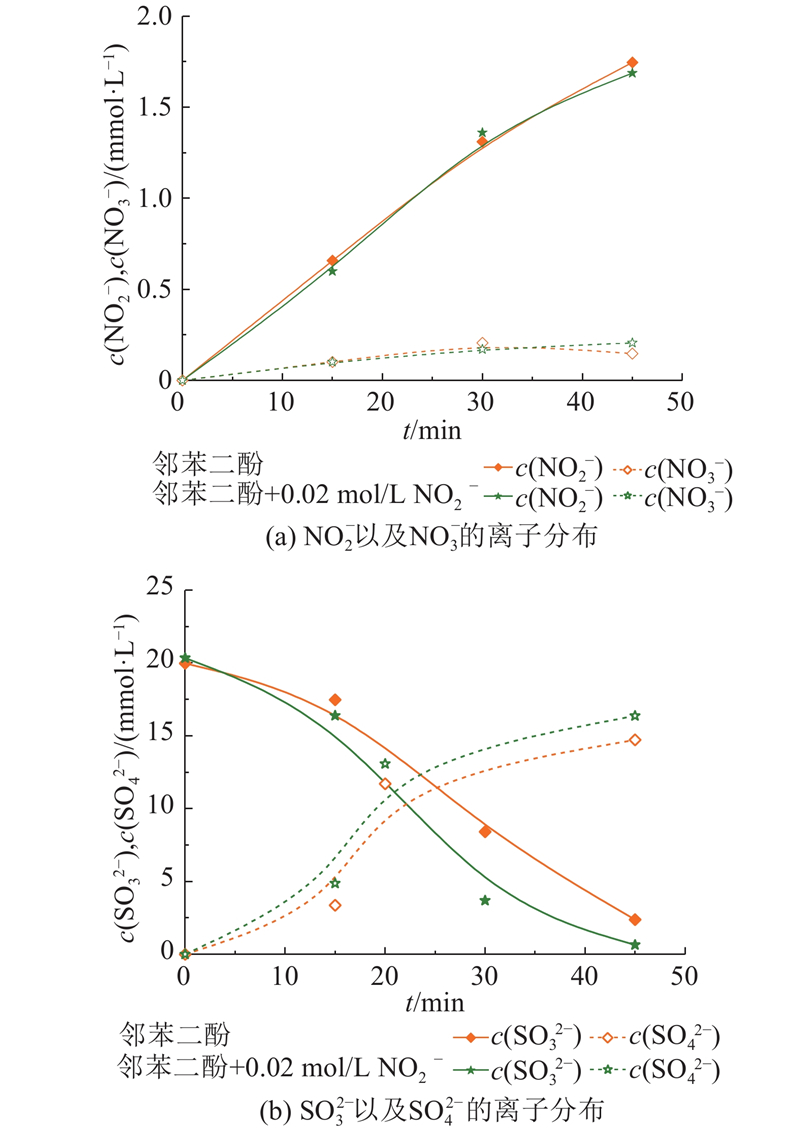

Fig.10 Effect of NO₂^– on ions distribution

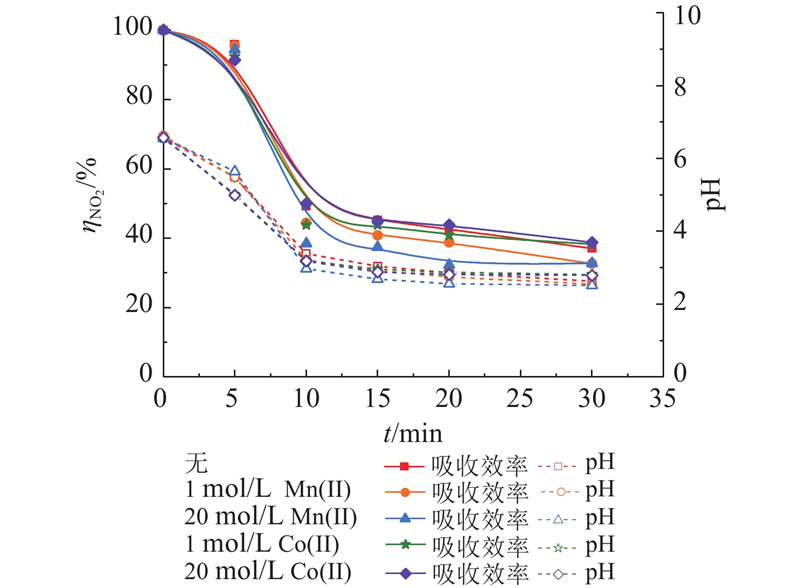

Fig.11 Effect of metal cations on NO₂ absorption efficiency and pH

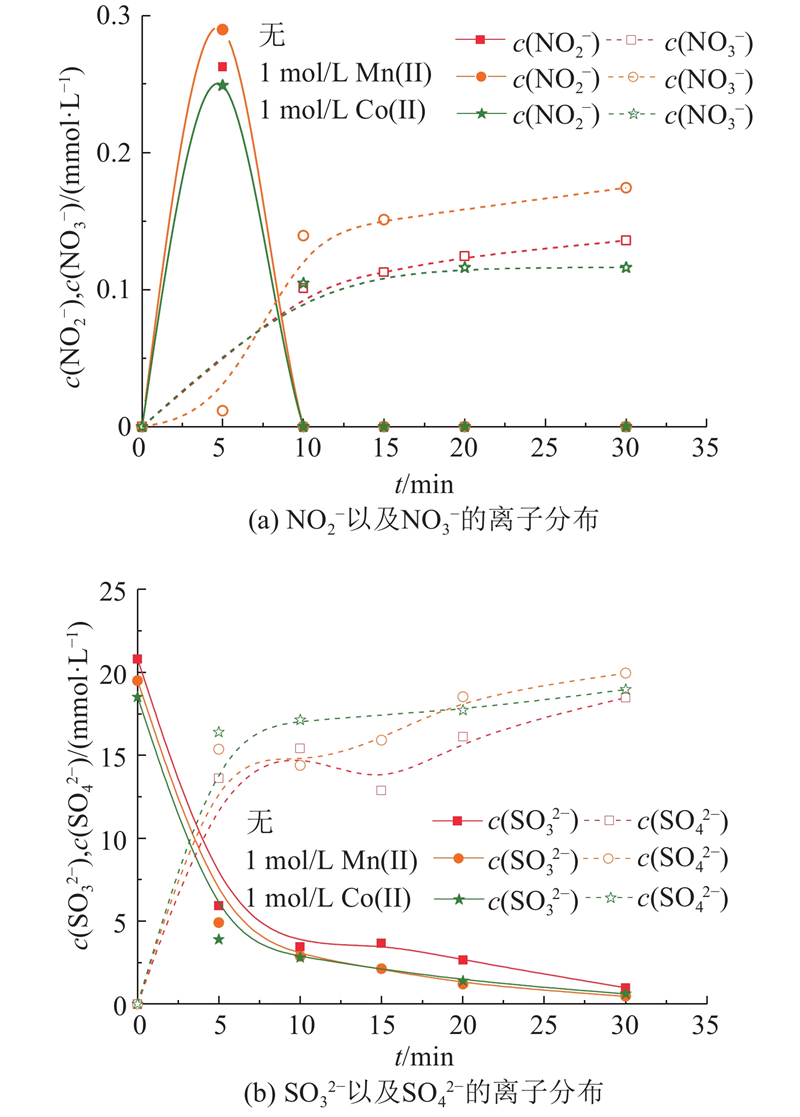

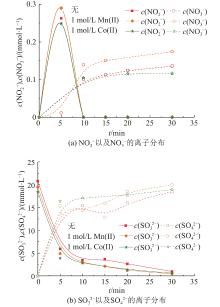

Fig.12 Effect of metal cations on ions distribution
