Journal of ZheJiang University (Engineering Science)  2020, Vol. 54 Issue (10): 1955-1963    DOI: 10.3785/j.issn.1008-973X.2020.10.012

Experimental study on slagging characteristics during coal and biomass co-combustion with on-line measurement technique
Jia-kai ZHANG1(),Li NIE2,Ke-fa CEN1,Xiao JIANG1,Hao ZHOU1,*()
1. State Key Laboratory of Clean Energy Utilization, Zhejiang University, Hangzhou 310027, China
2. Dongfang Boiler Limited Company, Dongfang Electric Corporation, Chengdu 611731, China
Download: HTML     PDF(1364KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

An online measurement technique was applied to analyze the slagging characteristics during co-combustion of coal and stalk in a 50 kW furnace. Results showed that with the addition of biomass stalk, the stable slag thickness increased and the stable relative heat flux decreased compared with combustion of pure coal. When the mass ratio of corn stalks is 0%, 6.7%, 15%, 22%, the corresponding stable thickness of the slag were 1.37, 2.51, 5.21, 5.38 mm, and the stable relative heat fluxes were 0.44, 0.42, 0.37, 0.35. When the mass proportions of peanut stalks were 6.7%, 15%, and 22%, the corresponding stable thickness of the slag were 3.37, 3.89, and 5.33 mm, and the stable relative heat fluxes were 0.39, 0.36, and 0.30. The liquid slag mass fraction which was obtained by Factsage increased significantly when coal was co-fired with stalk. Base-to-acid ratio showed a good performance in predicting the ash behavior and slagging tendency by using four slagging indexes.

Key words： ash deposition      on-line measurement      heat flux      biomass      slagging indice
Received: 16 August 2019      Published: 28 October 2020
CLC:  TK 11
Corresponding Authors: Hao ZHOU     E-mail: zhangjiakai_111@163.com;zhouhao@cmee.zju.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Jia-kai ZHANG
Li NIE
Ke-fa CEN
Xiao JIANG
Hao ZHOU
Cite this article:

Jia-kai ZHANG,Li NIE,Ke-fa CEN,Xiao JIANG,Hao ZHOU. Experimental study on slagging characteristics during coal and biomass co-combustion with on-line measurement technique. Journal of ZheJiang University (Engineering Science), 2020, 54(10): 1955-1963.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.10.012     OR     http://www.zjujournals.com/eng/Y2020/V54/I10/1955


生物质秸秆与神府烟煤掺烧结渣特性的在线监测

利用自主开发的在线监测系统，在50 kW的下行炉探究2种生物质秸秆与神府烟煤掺烧的结渣特性. 结果表明，随着生物质秸秆的掺烧，灰渣的稳定厚度增加，稳定热流减小. 当掺烧玉米秸秆质量分数为0%、6.7%、15%、22%时，相应的灰渣稳定厚度为1.37、2.51、5.21、5.38 mm，稳定相对热流密度为0.44、0.42、0.37、0.35. 当掺烧花生秸秆质量分数为6.7%、15%、22%时，相应的灰渣稳定厚度为3.37、3.89、5.33 mm，稳定相对热流密度为0.39、0.36、0.30. 利用热力学计算软件Factsage进行化学平衡计算发现，随着秸秆掺烧比例的增加，灰中熔融相的质量分数增加. 用4种结渣指数对生物质掺烧结渣进行预判，碱酸比的预测最准确.


关键词： 灰沉积,  在线监测,  热流密度,  生物质,  结渣指数
Fig.1 Experimental device of 50 kW furnace

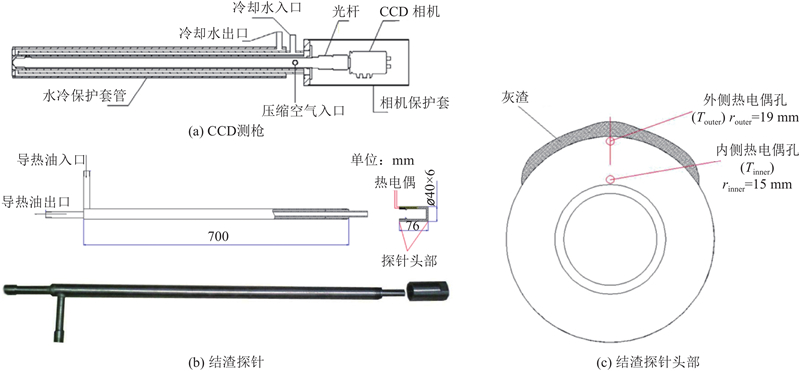

Fig.2 Schematic diagram of on-line measurement system
燃料 工业分析1）wB/% 元素分析2）wB/% 低位发热量/
（MJ·kg?1） 		灰熔点/°C
水分 挥发分 固定碳 灰分 C H N S O DT ST HT FT
神府烟煤 8.77 26.96 48.96 15.32 77.94 4.47 1.42 0.34 15.83 22.57 1234 1257 1275 1302
玉米秸秆 8.47 68.19 16.22 7.12 48.57 5.67 1.09 0.20 44.47 15.23 980 1220 1240 1310
花生秸秆 9.39 64.54 15.67 10.40 48.87 5.80 1.60 0.25 43.48 14.51 1180 1220 1240 1250
Tab.1 Fuel characteristics of bituminous coal and biomass straw
燃料 灰成分wB/%
Na2O MgO Al2O3 SiO2 P2O5 SO3 K2O CaO TiO2 Fe2O3
注：1）空气干燥基；2）干燥无灰基.
神府烟煤 0.05 1.13 27.95 55.19 0.34 1.06 0.25 6.34 0.78 6.92
玉米秸秆 0.76 2.76 9.22 56.77 1.72 2.57 19.57 6.37 0.27 0.00
花生秸秆 0.79 3.46 12.78 43.13 2.43 4.49 19.84 11.88 0.33 0.85
Tab.1
参数 数值
过量空气系数 1.1
炉膛功率/kW 50
燃料量/（kg·h?1） 8.0
一次风量/（m3·h?1），风温/°C 12.8，80
二次风量/（m3·h?1），风温/°C 3.5，300
三次风量/（m3·h?1），风温/°C 9.0，272
燃尽风量/（m3·h?1），风温/°C 18.6，292
燃料量/（kg·h?1） 8.0
炉内烟气流速/（m·s?1） 2.0
炉膛温度/°C 1 200
炉膛出口φ(O2)/% 4
探针内部导热油温度/°C 230
灰沉积时间/min 120
Tab.2 Operation conditions of furnace
工况 wB/% 工况 wB/%
工况1 纯烟煤 工况5 花生秸秆：6.7
工况2 玉米秸秆：6.7 工况6 花生秸秆：15
工况3 玉米秸秆：15 工况7 花生秸秆：22
工况4 玉米秸秆：22 ? ?
Tab.3 Experiment conditions of coal and biomass co-combustion

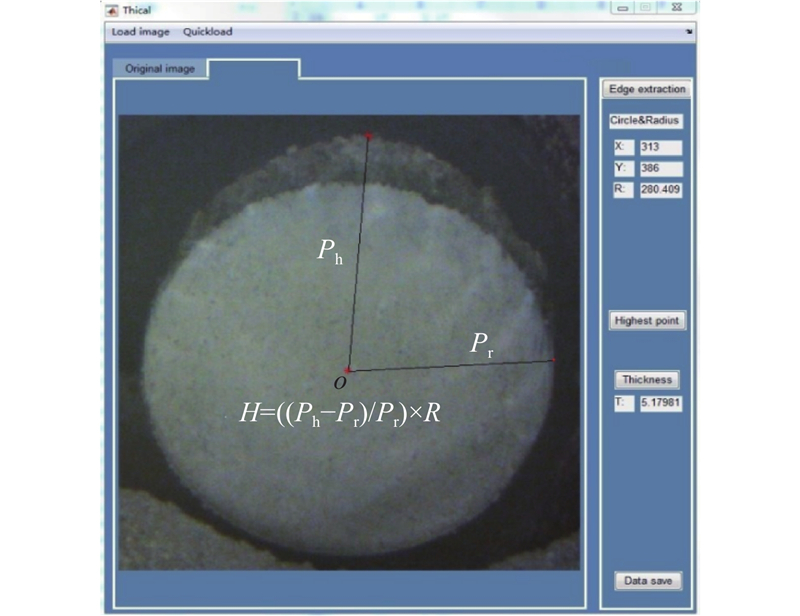

Fig.3 Schematic diagram of thickness equation[20]

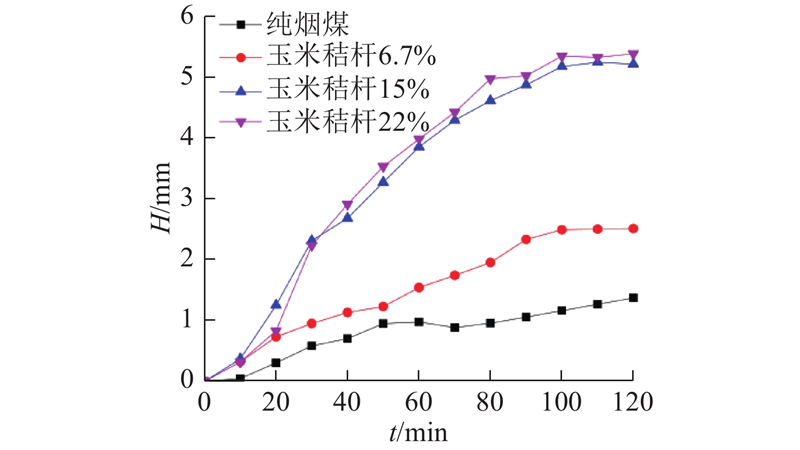

Fig.4 Ash growth curve of bituminous coal mixed with different mass fractions of corn stalks
Fig.5 Ash growth curve of bituminous coal mixed with different mass fractions of peanut straw
掺烧工况 H/mm q/q0
工况1 1.37 0.44
工况2 2.51 0.42
工况3 5.21 0.37
工况4 5.38 0.35
工况5 3.37 0.39
工况6 3.89 0.36
工况7 5.33 0.30
Tab.4 Experiment results of coal and biomass co-combustion
Fig.6 Relative heat fluxes and probe surface temperatures under condition of blending bituminous coal with different mass fractions of corn stalks
Fig.7 Relative heat fluxes and probe surface temperatures under condition of blending bituminous coal with different mass fractions of peanut straw
%
掺烧工况 w（Na） w（Mg） w（Al） w（Si） w（P） w（S） w（K） w（Ca） w（Ti） w（Fe）
工况1 1.34 1.77 13.32 47.26 0.82 4.03 2.09 12.05 1.26 16.06
工况2 1.26 1.20 11.15 51.67 0.35 4.12 3.75 12.94 1.20 12.35
工况3 1.33 1.13 10.37 50.80 0.75 6.62 4.13 13.93 0.74 10.19
工况4 1.33 1.38 10.55 52.55 0.83 4.35 6.04 12.18 0.75 9.67
工况5 0.97 1.27 12.86 50.39 0.70 4.14 3.42 11.60 1.09 13.55
工况6 1.56 1.45 13.53 45.86 0.72 5.29 5.74 10.69 1.29 13.54
工况7 1.69 1.45 14.64 46.25 0.67 4.62 5.57 11.54 0.98 12.58
Tab.5 Element distribution in initial layer of ash
代码 物质 数据库 相
436 MgO（SLAG A） FACT FACT-SLAG A
437 FeO（SLAG A） FACT FACT-SLAG A
438 MnO（SLAG A） FACT FACT-SLAG A
439 Na2O（SLAG A） FACT FACT-SLAG A
440 SiO2（SLAG A） FACT FACT-SLAG A
441 TiO2（SLAG A） FACT FACT-SLAG A
442 Ti2O3（SLAG A） FACT FACT-SLAG A
443 CaO（SLAG A） FACT FACT-SLAG A
444 Al2O3（SLAG A） FACT FACT-SLAG A
445 K2O（SLAG A） FACT FACT-SLAG A
Tab.6 List of slagging systems and their components selected in chemical equilibrium calculation
%
掺烧工况 w（Na2O） w（MgO） w（Al2O3） w（SiO2） w（P2O5） w（SO3） w（K2O） w（CaO） w（TiO2） w（Fe2O3）
工况1 0.05 1.13 27.95 55.19 0.34 1.06 0.25 6.34 0.78 6.92
工况2 0.10 1.24 26.69 55.29 0.43 1.16 1.55 6.34 0.75 6.46
工况3 0.16 1.37 25.14 55.42 0.54 1.28 3.15 6.34 0.71 5.88
工况4 0.21 1.49 23.83 55.53 0.64 1.39 4.50 6.35 0.67 5.4
工况5 0.10 1.28 26.93 54.38 0.48 1.29 1.57 6.71 0.75 6.51
工况6 0.16 1.48 25.67 53.38 0.65 1.57 3.19 7.17 0.71 6.01
工况7 0.21 1.64 24.61 52.53 0.80 1.81 4.56 7.56 0.68 5.58
Tab.7 Ash composition under various working conditions
Fig.8 Liquid slag mass fraction under various working conditions
序号 结渣指数 判别界限
轻微 中等 严重
1 硅比 78.8 66.1~78.8 66.1
2 硅铝比 <1.87 1.87~2.65 >2.65
3 碱酸比 <0.2 0.2~0.4 >0.4
4 铁钙比 <0.3或>3 0.3~3（不包含≈1） ≈1
Tab.8 Discrimination range of slagging index
工况 硅比 硅铝比 碱酸比 铁钙比
工况1 79.32 1.97 0.18 1.09
工况1 轻微 中等 轻微 严重
工况2 79.76 2.07 0.19 1.02
工况2 轻微 中等 轻微 严重
工况3 80.30 2.20 0.21 0.93
工况3 轻微 中等 中等 严重
工况4 80.76 2.33 0.22 0.85
工况4 轻微 中等 中等 中等
工况5 78.94 2.02 0.20 0.97
工况5 轻微 中等 中等 严重
工况6 78.46 2.08 0.23 0.84
工况6 中等 中等 中等 中等
工况7 78.04 2.13 0.25 0.74
工况7 中等 中等 中等 中等
Tab.9 Slag index prediction result
