Seismic responses of disc spring isolated-single degree of freedom system based on asymmetric model
Wei WANG1,2(),Shang-xin GAO1,Ai-qun LI2,3,*(),Xing-xing WANG1
1. School of Civil Engineering and Architecture, Jiangsu University of Science and Technology, Zhenjiang 212000, China
2. School of Civil Engineering, Southeast University, Nanjing 210096, China
3. Beijing University of Civil Engineering and Architecture, Beijing Advanced Innovation Center for Future Urban Design, Beijing 100044, China
Download: HTML     PDF(2275KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

An asymmetry restoring force model was proposed based on the asymmetric force characteristics of disc spring vertical isolation (DSVI) bearing, and it was validated by the test results. Then, based on the asymmetric restoring force model, nonlinear time-history analysis program for the disc spring vertical isolation-single degree of freedom (DSVI-SDOF) system was established. Furthermore, the nonlinear dynamic time history analysis of a typical DSVI-SDOF system was carried out to study influence of the asymmetric restoring force model on the structural seismic responses. Results show that the asymmetric model can accurately characterize the mechanical behavior of the DSVI bearing; hence, the seismic responses of the DSVI-SDOF system can be simulated accurately by the nonlinear time-history analysis program. With increase of peak ground acceleration, the isolation ratios of maximum acceleration and maximum seismic force of the DSVI-SDOF system increase first and then decrease. When peak ground acceleration is 400 cm/s2, the isolation effect of the DSVI-SDOF system is optimal, and the isolation ratios of both maximum accelerations and maximum forces are between 20%?50%.

Key words： disc spring vertical isolation (DSVI) bearing      asymmetric restoring force model      seismic responses      vertical isolation      single degree of freedom (SDOF) system
Received: 18 May 2019      Published: 06 July 2020
CLC:  TU 352.12
Corresponding Authors: Ai-qun LI     E-mail: wangweidimias@sina.com;aiqunli@seu.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Wei WANG
Shang-xin GAO
Ai-qun LI
Xing-xing WANG
Cite this article:

Wei WANG,Shang-xin GAO,Ai-qun LI,Xing-xing WANG. Seismic responses of disc spring isolated-single degree of freedom system based on asymmetric model. Journal of ZheJiang University (Engineering Science), 2020, 54(6): 1095-1105.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.06.006     OR     http://www.zjujournals.com/eng/Y2020/V54/I6/1095


基于非对称模型的碟簧隔震单自由度体系地震响应

基于碟簧竖向隔震（DSVI）支座的非对称受力特征，提出非对称恢复力模型，并利用试验结果对该恢复力模型进行验证；基于该非对称恢复力模型，建立碟簧竖向隔震单自由度（DSVI-SDOF）体系的非线性时程分析程序. 在此基础上，对典型DSVI-SDOF体系进行非线性动力时程分析，研究非对称恢复力模型对其地震响应分析结果的影响. 研究结果表明，非对称恢复力模型能够准确表征DSVI支座的力学行为，从而使得非线性时程分析程序能够较为准确地模拟DSVI-SDOF体系的地震响应. 随着地震动峰值加速度的增加，DSVI-SDOF体系的峰值加速度、峰值地震力的隔震率先增大后减小，当地震动峰值加速度为400 cm/s2时，DSVI-SDOF体系的隔震效果达到最优，峰值加速度和峰值地震力的隔震率均在20%~50%.


关键词： 碟簧竖向隔震（DSVI）支座,  非对称恢复力模型,  地震响应,  竖向隔震,  单自由度（SDOF）体系

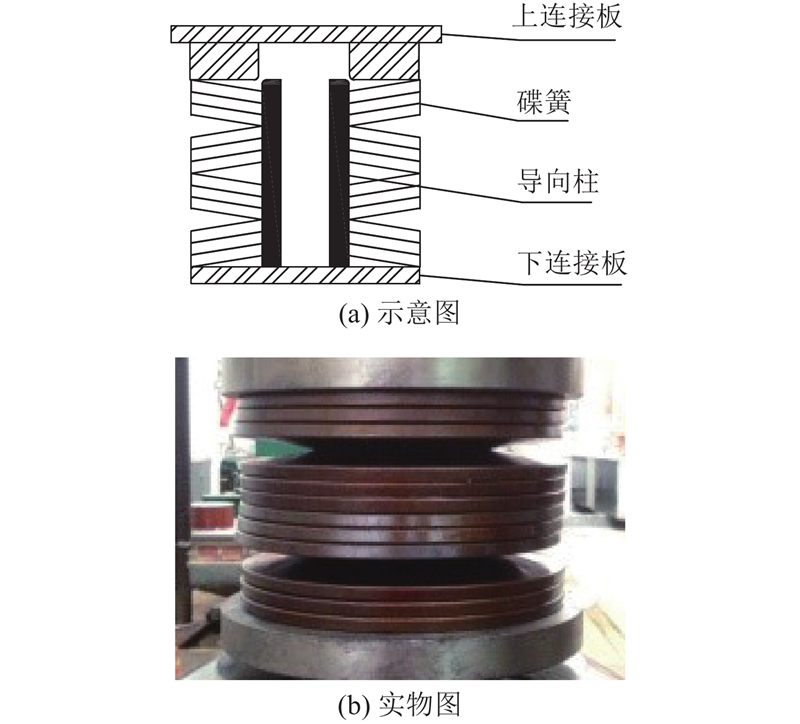

Fig.1 Disc spring vertical isolation（DSVI）bearing
Fig.2 Diagram of viso-elastic model

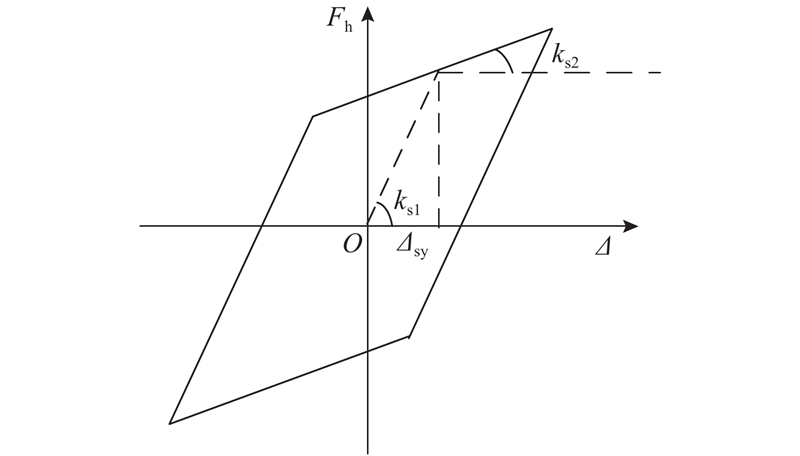

Fig.3 Diagram of bilinear model

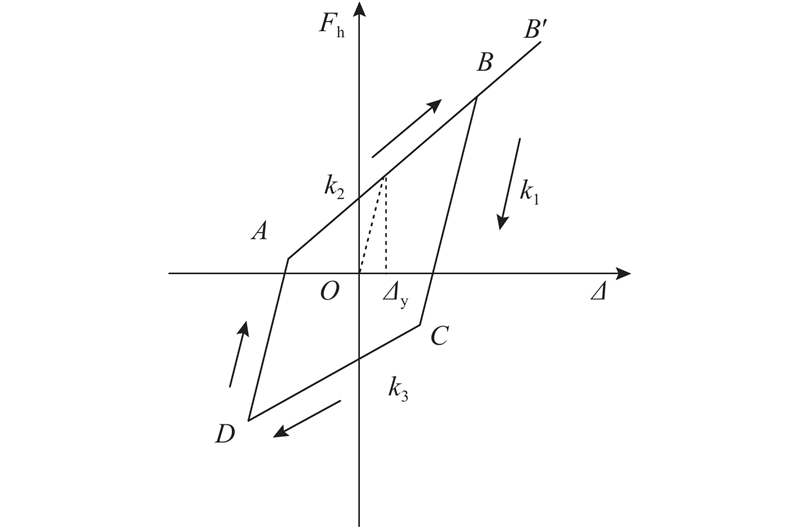

Fig.4 Diagram of asymmetric model

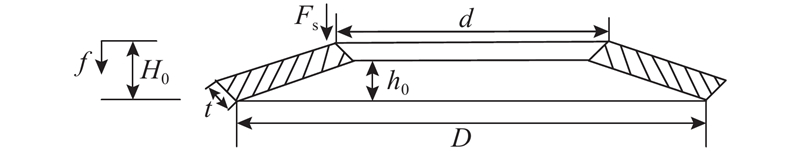

Fig.5 Diagram for dimensions of single disc spring

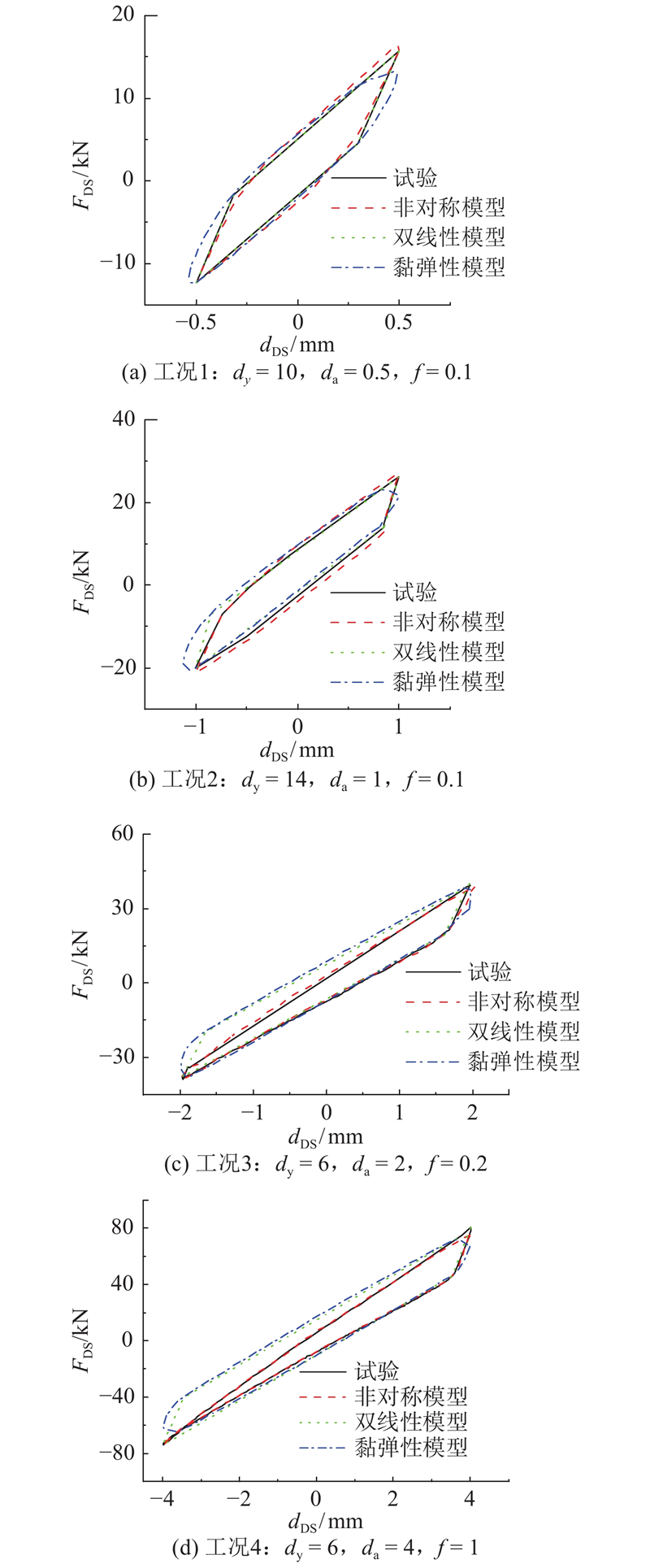

Fig.6 Comparison of experimental and simulation results under loadings

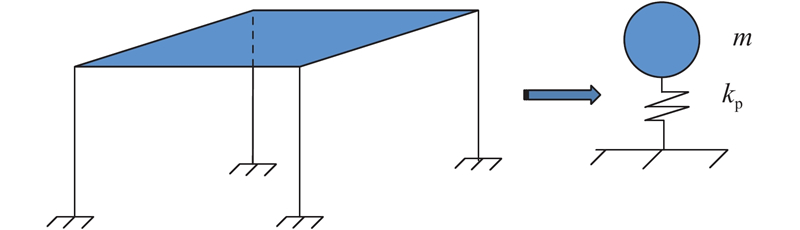

Fig.7 Non-isolated frame structure and its simplified model
Fig.8 Isolated frame structure and its simplified model

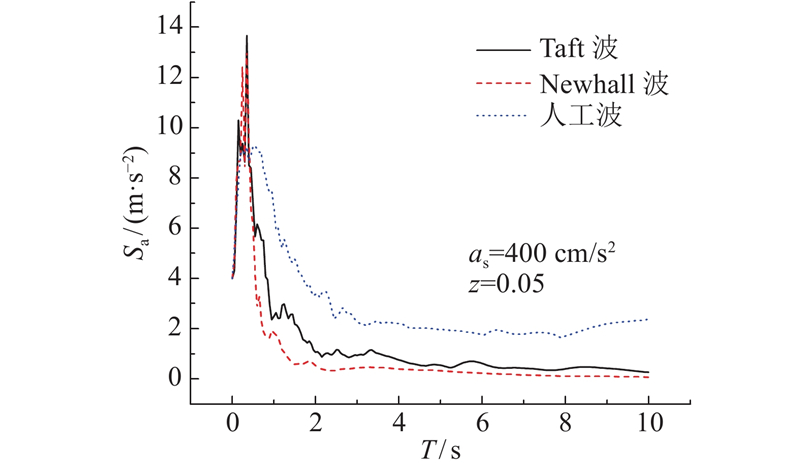

Fig.9 Acceleration spectrum of ground motions

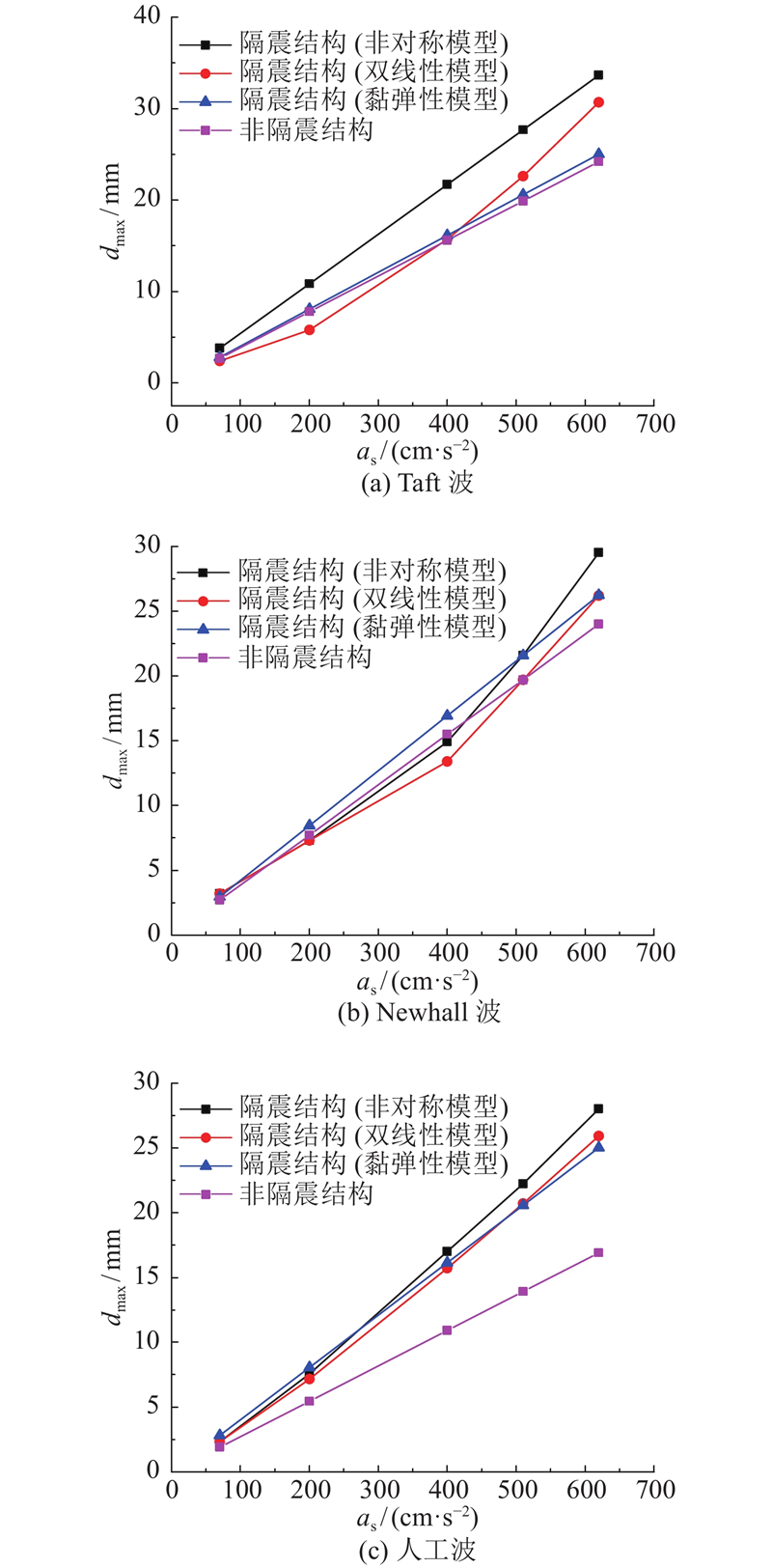

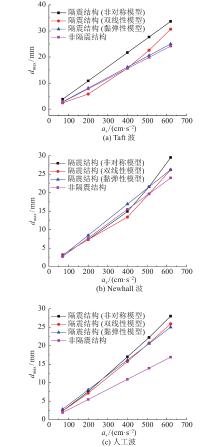

Fig.10 Comparison of maximum displacements of disc spring vertical isolation-single degree of freedom (DSVI-SDOF) system

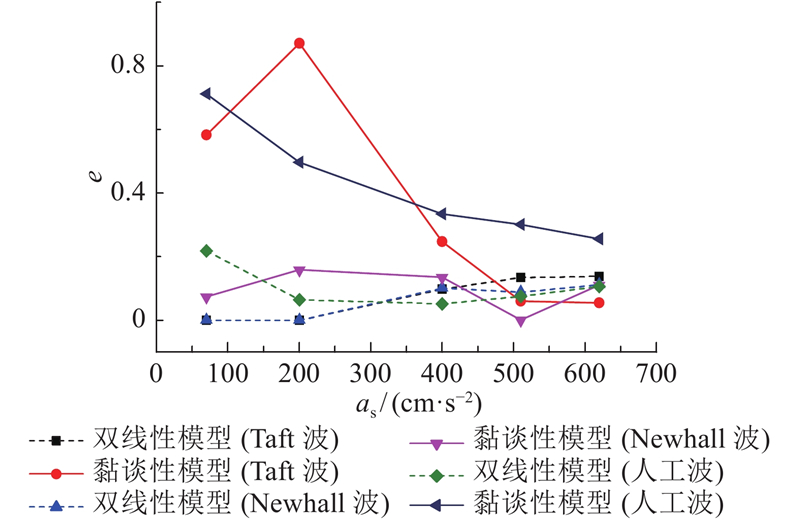

Fig.11 Relative errors of maximum displacements of DSVI-SDOF system

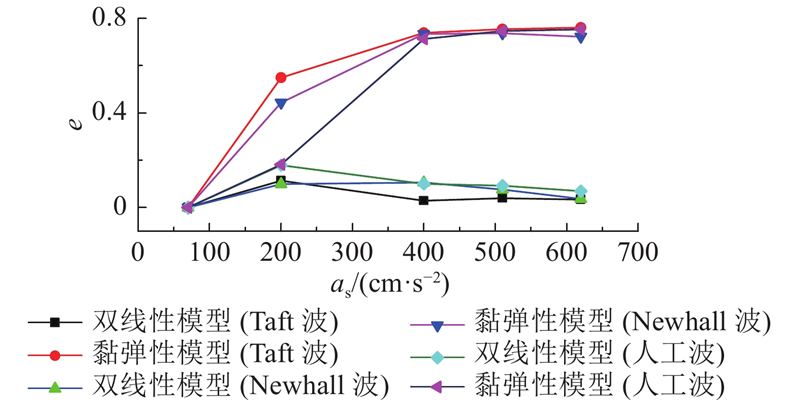

Fig.12 Isolation ratios of maximum displacements of DSVI-SDOF system

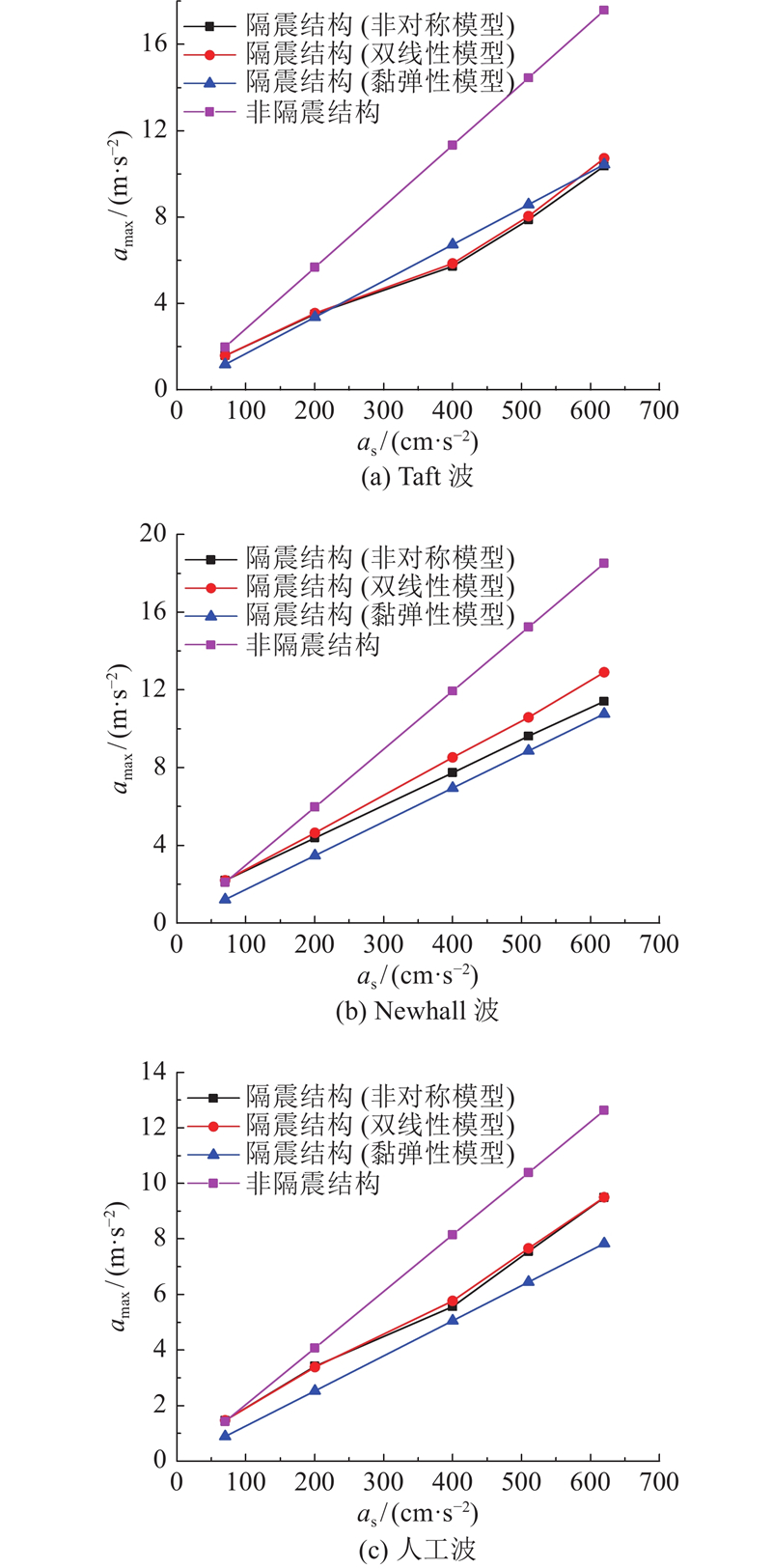

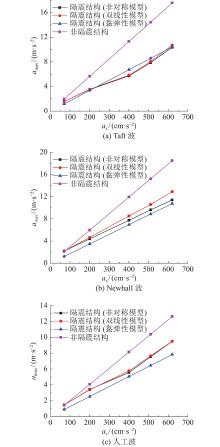

Fig.13 Comparison of maximum accelerations of DSVI-SDOF system

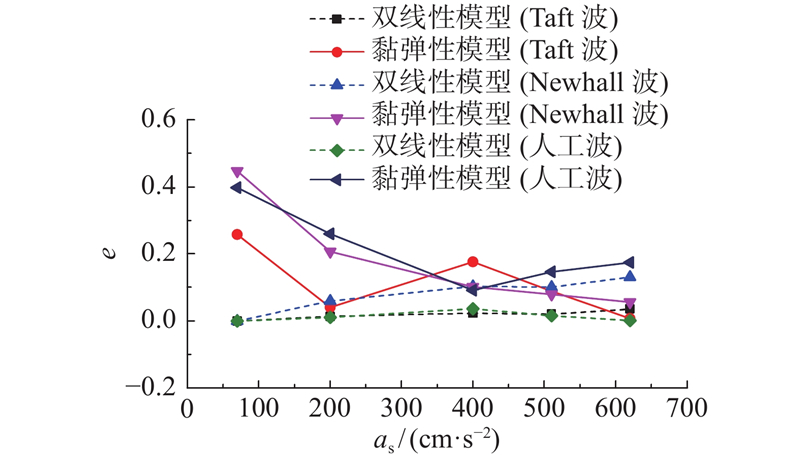

Fig.14 Relative errors of maximum accelerations of DSVI-SDOF system

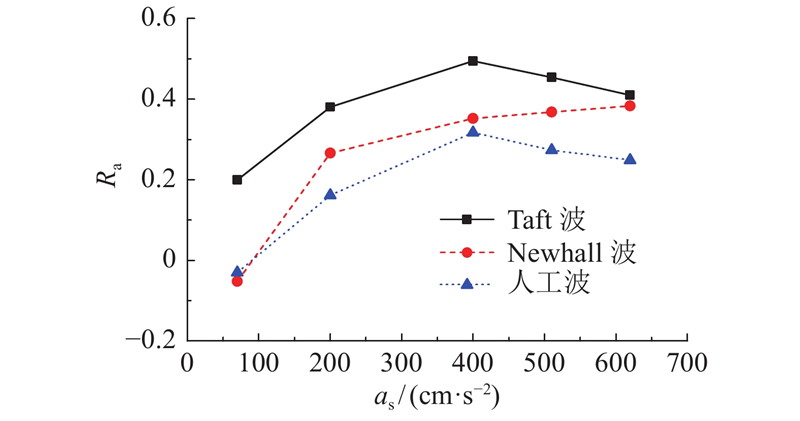

Fig.15 Isolation ratios of maximum accelerations of DSVI-SDOF system

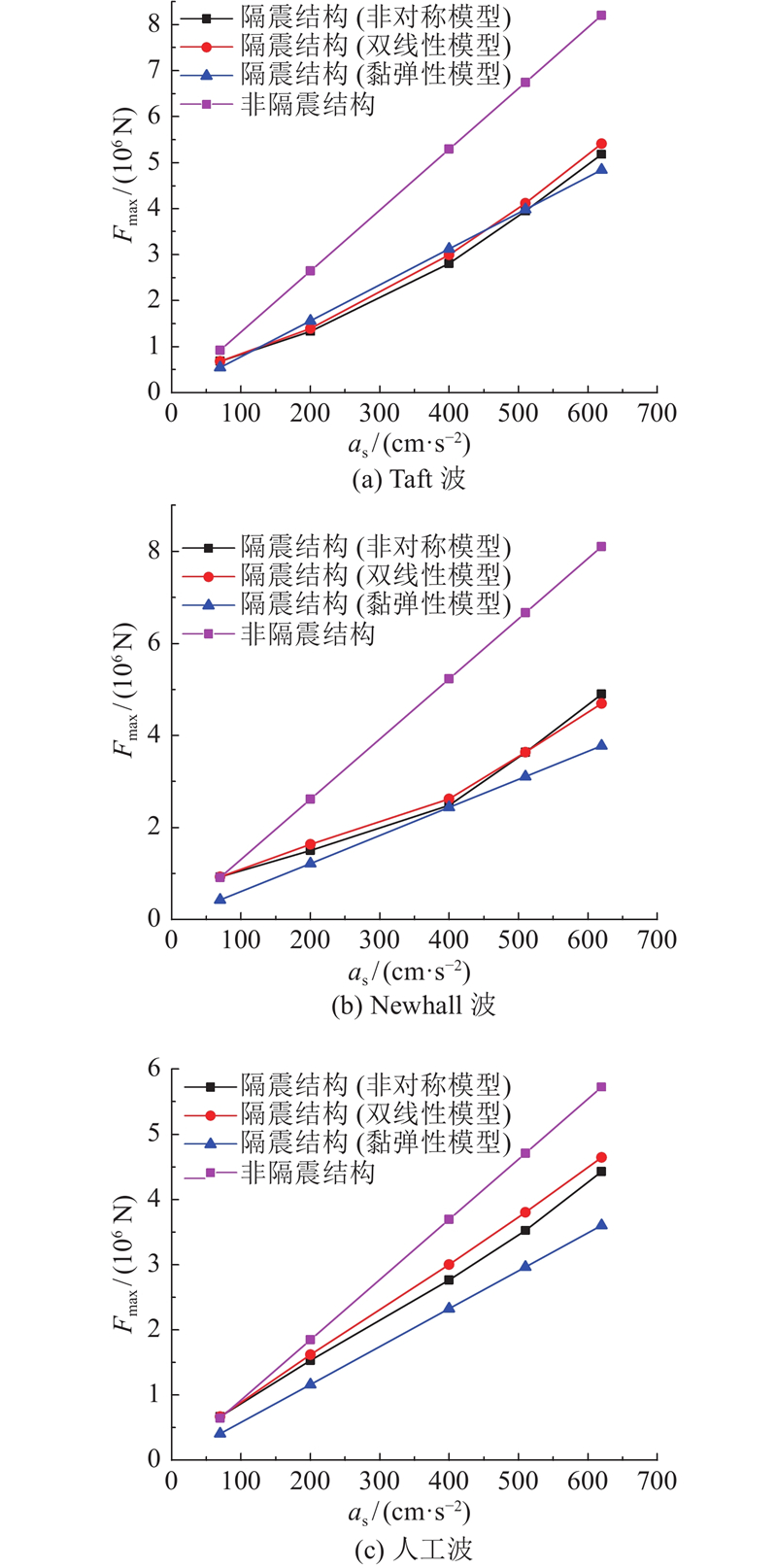

Fig.16 Comparison of maximum forces of DSVI-SDOF system

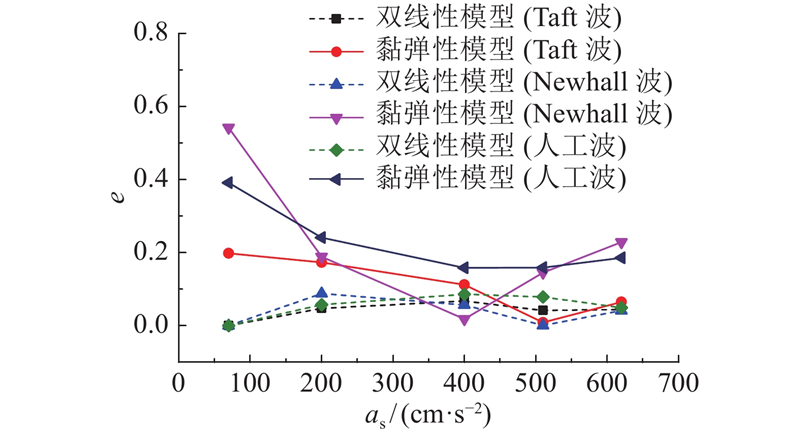

Fig.17 Relative errors of maximum forces of DSVI-SDOF system

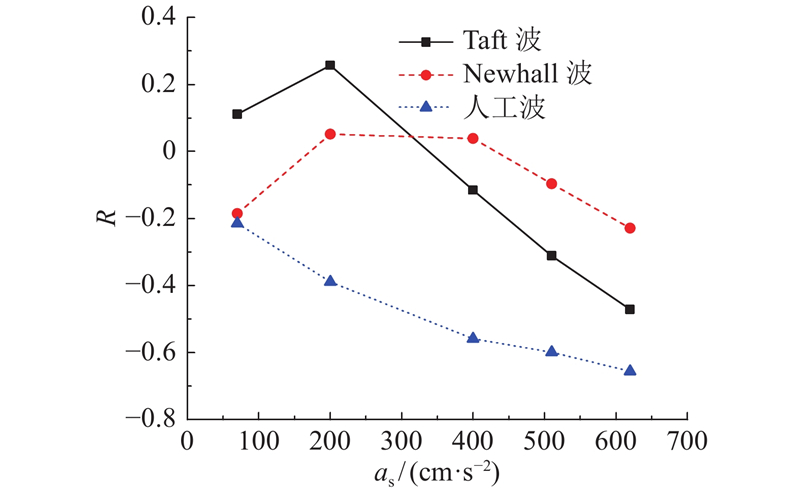

Fig.18 Isolation ratios of maximum forces of DSVI-SDOF system

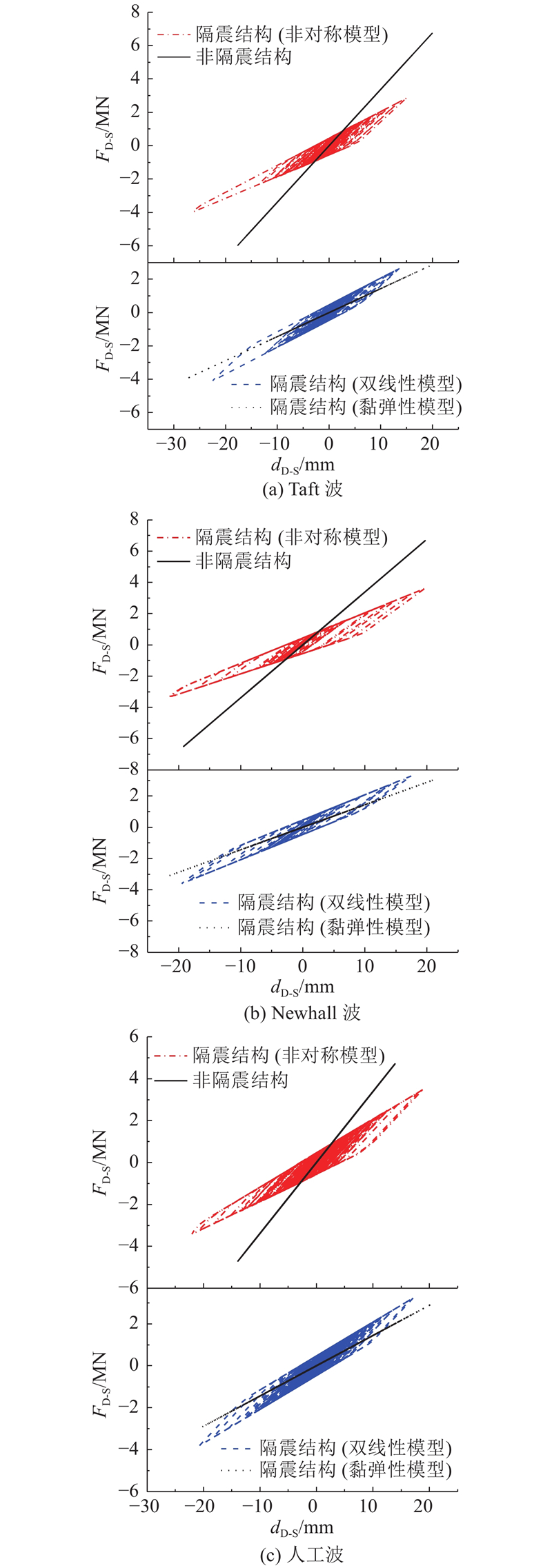

Fig.19 Comparison of force-displacement hysteretic curves of disc spring vertical isolation simplified（DSVI-S）bearing
Fig.20 Dissipated energy of DSVI-S bearing
Fig.21 Relative errors of dissipated energy of DSVI-S bearing

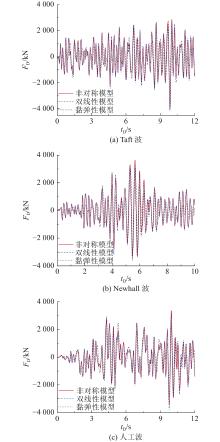

Fig.22 Comparison of force time histories of DSVI-SDOF system
