浙江大学学报(工学版)
浙江大学学报(工学版)  2019, Vol. 53 Issue (6): 1198-1204    DOI: 10.3785/j.issn.1008-973X.2019.06.020
计算机与自动化技术
两级参考点匹配位置指纹声源定位方法
王硕朋1(),杨鹏1,2,*(),孙昊1,2,刘迈1
1. 河北工业大学 人工智能与数据科学学院，天津 300130
2. 教育部智能康复装置与检测技术工程研究中心，天津 300130
Fingerprint-based sound source localization method using two-stage reference points matching
Shuo-peng WANG1(),Peng YANG1,2,*(),Hao SUN1,2,Mai LIU1
1. School of Artificial Intelligence, Hebei University of Technology, Tianjin 300130, China
2. Smart recovery device and testing technology engineering research center of Ministry of Education, Tianjin 300130, China
 全文: PDF(1145 KB)   HTML
摘要：

提出一种两级参考点（RPs）匹配方法来减少位置指纹声源定位（SSL）过程中临近参考点搜索的计算量. 离线采样阶段：通过K均值聚类算法将数据库划分为一定数目的子库，并采用一种距离检测方法对离群点进行剔除. 在线定位阶段：通过第一级临近子库匹配完成对参考点搜索范围的缩减；在临近子库内进行第二级参考点匹配得到临近参考点；完成声源目标（TP）定位. 实验结果表明，采用两级参考点匹配算法可以在保证定位精度的前提下有效提高位置指纹声源定位方法的定位效率.
关键词： 声音位置指纹;  临近参考点;  K均值聚类算法;  两级参考点（RPs）匹配
Abstract:

A two-stage matching method was proposed for computation reduction of adjacent reference points (RPs) searching in fingerprint-based sound source localization (SSL). In offline sampling phase, the K-means clustering method was adopted to divide the database into a certain number of sub-databases and the outliers were eliminated by the distance-based detection method. In online positioning phase, searching space was compressed by the first stage sub-database matching; then adjacent RPs were obtained through the second stage RPs matching in the adjacent sub-database; the auditory target point (TP) location estimation was accomplished. The experimental results show that the two-stage RPs matching algorithm can effectively improve the positioning efficiency of fingerprint-based sound source localization on the premise of ensuring the positioning accuracy.
Key words: sound-position fingerprint    adjacent reference points (RPs)    K-means clustering method    two-stage RPs matching
收稿日期: 2018-05-07 出版日期: 2019-05-22
CLC:  TP 181
通讯作者: 杨鹏     E-mail: wangsp87921@hotmail.com;yphebut@163.com
作者简介: 王硕朋（1987—），男，博士生，从事听觉定位研究. orcid.org/0000-0001-7591-6874. E-mail： wangsp87921@hotmail.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
王硕朋
杨鹏
孙昊
刘迈

引用本文:

王硕朋,杨鹏,孙昊,刘迈. 两级参考点匹配位置指纹声源定位方法[J]. 浙江大学学报(工学版), 2019, 53(6): 1198-1204.

Shuo-peng WANG,Peng YANG,Hao SUN,Mai LIU. Fingerprint-based sound source localization method using two-stage reference points matching. Journal of ZheJiang University (Engineering Science), 2019, 53(6): 1198-1204.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.06.020    或    http://www.zjujournals.com/eng/CN/Y2019/V53/I6/1198

图 1  基于位置指纹的声源定位（SSL）技术示意图
图 2  基于坐标空间的数据库划分方法
图 3  临近子库搜索过程
图 4  子库内临近参考点（RPs）搜索过程
图 5  听觉定位系统和实验场景

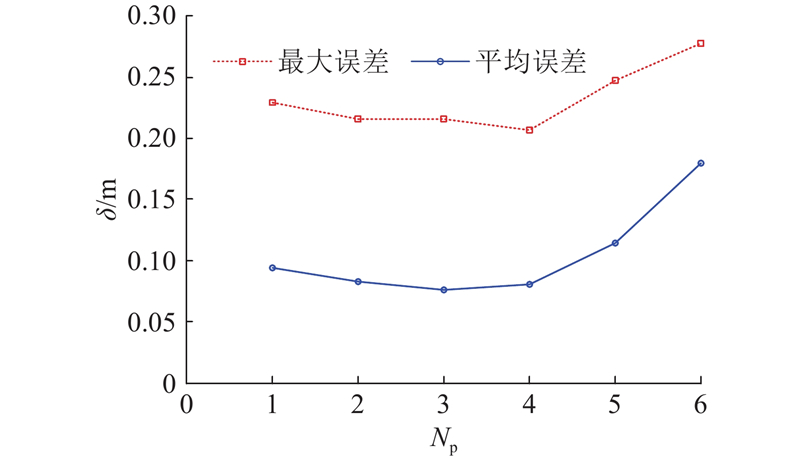

图 6  子库数目对定位的影响
数据库划分方式 NAM TAM / s δMA / m σ2/m2
无分区 72.0 0.027 1 0.094 5 0.006 9
坐标划分 22.3 0.008 4 0.121 4 0.009 8
特征聚类划分 21.7 0.008 1 0.081 3 0.003 9
表 1  不同数据库划分方式对定位效果的影响对比
图 7  子库数目为4时不同划分方式对定位的影响
1 RASCON C, MEZA I Localization of sound sources in robotics: a review[J]. Robotics and Autonomous Systems, 2017, 96 (10): 184- 210
2 SUN Y X, CHEN J J, YUEN C, et al. Indoor sound source localization with probabilistic neural network[J]. IEEE Transactions on Industrial Electronics, 2018, 65 (8): 6403- 6413
doi: 10.1109/TIE.2017.2786219
3 NIU H Q, GERSTOFT P. Source localization in underwater waveguides using machine learning[J]. Journal of the Acoustical Society of America, 2016, 140 (4): 3232- 3232
4 HUANG Q H, ZHANG L, YONG F. Two-step spherical harmonics ESPRIT-type algorithms and performance analysis[J]. IEEE/ACM Transactions on Audio Speech and Language Processing, 2018, 26 (9): 1684- 1697
5 KUMAR L, HEGDE R M Near-field acoustic source localization and beamforming in spherical harmonics domain[J]. IEEE Transactions on Signal Processing, 2016, 64 (13): 3351- 3361
doi: 10.1109/TSP.2016.2543201
6 ALAMEDA-PINEDA X, HORAUD R A geometric approach to sound source localization from time-delay estimates[J]. IEEE/ACM Transactions on Audio Speech and Language Processing, 2014, 22 (6): 1082- 1095
7 方文浩, 邢占元, 文祥计, 等 基于智能手机TDOA估计的被动声源定位方法与系统实现[J]. 仪器仪表学报, 2016, 37 (4): 952- 960
FANG Wen-hao, XING Zhan-yuan, WEN Xiang-ji, et al Passive acoustic source target positioning method based on smart phone platform TDOA estimation and system implementation[J]. Chinese Journal of Scientific Instrument, 2016, 37 (4): 952- 960
doi: 10.3969/j.issn.0254-3087.2016.04.030
8 李晓飞, 刘宏 机器人听觉声源定位研究综述[J]. 智能系统学报, 2012, 7 (1): 9- 20
LI Xiao-fei, LIU Hong A survey of sound source localization for robot audition[J]. CAAI Transactions on Intelligent Systems, 2012, 7 (1): 9- 20
doi: 10.3969/j.issn.1673-4785.201201003
9 万群, 郭贤生, 陈章鑫. 室内定位理论、方法和应用[M]. 北京: 电子工业出版社, 2012: 8-14.
10 CHEN Z, LI Z L, WANG S W, et al. A microphone position calibration method based on combination of acoustic energy decay model and TDOA for distributed microphone array[J]. Applied Acoustics, 2015, 95: 13- 19
doi: 10.1016/j.apacoust.2015.02.013
11 HE S N, JI B, CHAN S H G. Chameleon: survey-free updating of a fingerprint database for indoor localization[J]. IEEE Pervasive Computing, 2016, 15 (4): 66- 75
doi: 10.1109/MPRV.2016.69
12 CHEN L N, LI B H, ZHAO K, et al. An improved algorithm to generate a Wi-Fi fingerprint database for indoor positioning[J]. Sensors, 2013, 13 (8): 11085- 11096
doi: 10.3390/s130811085
13 DAWES B, CHIN K W A comparison of deterministic and probabilistic methods for indoor localization[J]. Journal of Systems & Software, 2011, 84 (3): 442- 451
14 KHALAJMEHRABADI A, GATSIS N, AKOPIAN D Structured group sparsity: a novel indoor WLAN localization, outlier detection, and radio map interpolation scheme[J]. IEEE Transactions on Vehicular Technology, 2017, 66 (7): 6498- 6510
doi: 10.1109/TVT.2016.2631980
15 YOOK D, LEE T, CHO Y Fast sound source localization using two-level search space clustering[J]. IEEE Transactions on Cybernetics, 2016, 46 (1): 20- 26
doi: 10.1109/TCYB.2015.2391252
16 ILANGO M R, MOHAN D V A survey of grid based clustering algorithms[J]. International Journal of Engineering Science and Technology, 2010, 2 (8): 3441- 3446
17 LIU W, FU X, DENG Z L. Coordinate-based clustering method for indoor fingerprinting localization in dense cluttered environments[J]. Sensors, 2016, 16 (12): 1- 26
doi: 10.1109/JSEN.2016.2552300
18 ABUSARA A, HASSAN M S, ISMAIL M H Reduced-complexity fingerprinting in WLAN-based indoor positioning[J]. Telecommunication Systems, 2017, 65 (3): 407- 417
doi: 10.1007/s11235-016-0241-8
19 杨慧琳, 黄智刚, 刘久文, 等 基于核模糊C均值指纹库管理的WIFI室内定位方法[J]. 浙江大学学报: 工学版, 2016, 50 (6): 1126- 1133
YANG Hui-lin, HUANG Zhi-gang, LIU Jiu-wen, et al WIFI fingerprinting localization based on kernel fuzzy C-means Ⅱ clustering[J]. Journal of Zhejiang University: Engineering science, 2016, 50 (6): 1126- 1133
