Stereo visual localization method for plastering robots under mud occlusion

doi:10.3785/j.issn.1006-754X.2026.05.247

Chinese Journal of Engineering Design

2026, Vol. 33

Issue (1): 65-75 DOI: 10.3785/j.issn.1006-754X.2026.05.247

Robotic and Mechanism Design

Stereo visual localization method for plastering robots under mud occlusion

PENG ZUO^1,²(

),Zhengding ZHENG^1,²(

),Quanjie GAO^1,²,Linfei WU^1,²,Hongxia WANG³

^1.Key Laboratory of Metallurgical Equipment and Control Technology of Ministry of Education, Wuhan University of Science and Technology, Wuhan 430081, China
^2.Hubei Key Laboratory of Mechanical Transmission and Manufacturing Engineering, Wuhan University of Science and Technology, Wuhan 430081, China
^3.Hubei University of Automotive Technology, Shiyan 442002, China

Download:

HTML

PDF(4848KB)
Export: BibTeX | EndNote (RIS)

Abstract

This study aims to address the challenge of rapid and accurate localization of brick plastered surfaces under partial occlusion caused by mud splashes in construction environments. A stereo-vision-based localization method suitable for complex working conditions was proposed. The contour information of the plastered surface was extracted using the YOLOv11 instance segmentation model. By combining the contour features with the stereo depth images, a depth restoration model combining confidence-layered mapping and gradient prediction was developed to mitigate the loss of depth information caused by mud occlusion, as well as contour edge blurring resulting from stereo imaging. The restored depth map was then converted into a high-quality point cloud, from which the plastered surface three-dimensional space was precisely localized by extracting the corner points of the plastered surface through plane fitting and minimum bounding rectangle. The experimental results showed that under no occlusion working condition, the average localization errors in the X, Y, and Z directions of the plastered surface after depth restoration decreased by 17.8%, 16.1%, and 12.6%, respectively. Under mild and moderate occlusion working conditions, the average localization errors of the three axes decreased by 23.8%, 21.2%, and 25.1% respectively. When the occlusion rate was less than 25%, the maximum error was controlled within 5 mm, meeting the precision requirements for the robotic end operation. The proposed method has the advantages of rapid and accurate localization under the working conditions of multiple camera postures and moderate occlusion, showing strong potential for engineering applications and providing reliable visual perception technology support for automated plastering operations.

Key words： stereo vision depth restoration partial occlusion plastering robot

Received: 20 September 2025 Published: 01 March 2026

CLC:

TP 242.2

Corresponding Authors: Zhengding ZHENG E-mail: 13707478343@163.com;zdzheng@wust.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	PENG ZUO
	Zhengding ZHENG
	Quanjie GAO
	Linfei WU
	Hongxia WANG

Cite this article:

PENG ZUO,Zhengding ZHENG,Quanjie GAO,Linfei WU,Hongxia WANG. Stereo visual localization method for plastering robots under mud occlusion. Chinese Journal of Engineering Design, 2026, 33(1): 65-75.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2026.05.247 OR https://www.zjujournals.com/gcsjxb/Y2026/V33/I1/65

面向泥浆遮挡的涂抹机器人双目视觉定位方法研究

为了解决砌筑施工现场泥浆飞溅导致的砖块涂抹面局部遮挡以致涂抹机器人难以快速、精准定位的问题，提出了一种适用于复杂工况的基于机器人双目视觉的砖块涂抹面定位方法。利用YOLOv11实例分割模型提取涂抹面轮廓信息；将轮廓特征与双目深度图像结合，构建融合置信度分层与梯度预测的深度修复模型，用以解决泥浆遮挡引起的深度信息缺失、双目成像导致的轮廓边缘模糊等问题；将修复后的深度图像生成高质量点云，并通过平面拟合与最小外接矩形提取涂抹面角点，实现涂抹面三维空间的高精度定位。实验结果表明：在无遮挡工况下，深度修复后涂抹面X、Y、Z向的平均定位误差分别减少17.8%、16.1%和12.6%；在轻度和中度遮挡工况下，三轴平均定位误差分别减少23.8%、21.2%和25.1%；当遮挡率不超过25%时，最大误差均控制在5 mm以内，满足机器人末端操作的精度要求。所提出的方法在相机多姿态变化与中度遮挡工况下具有快速、精准定位的优势，具备良好的工程应用前景，可为涂抹自动化作业提供可靠的视觉感知技术支撑。

关键词： 双目视觉, 深度修复, 局部遮挡, 涂抹机器人

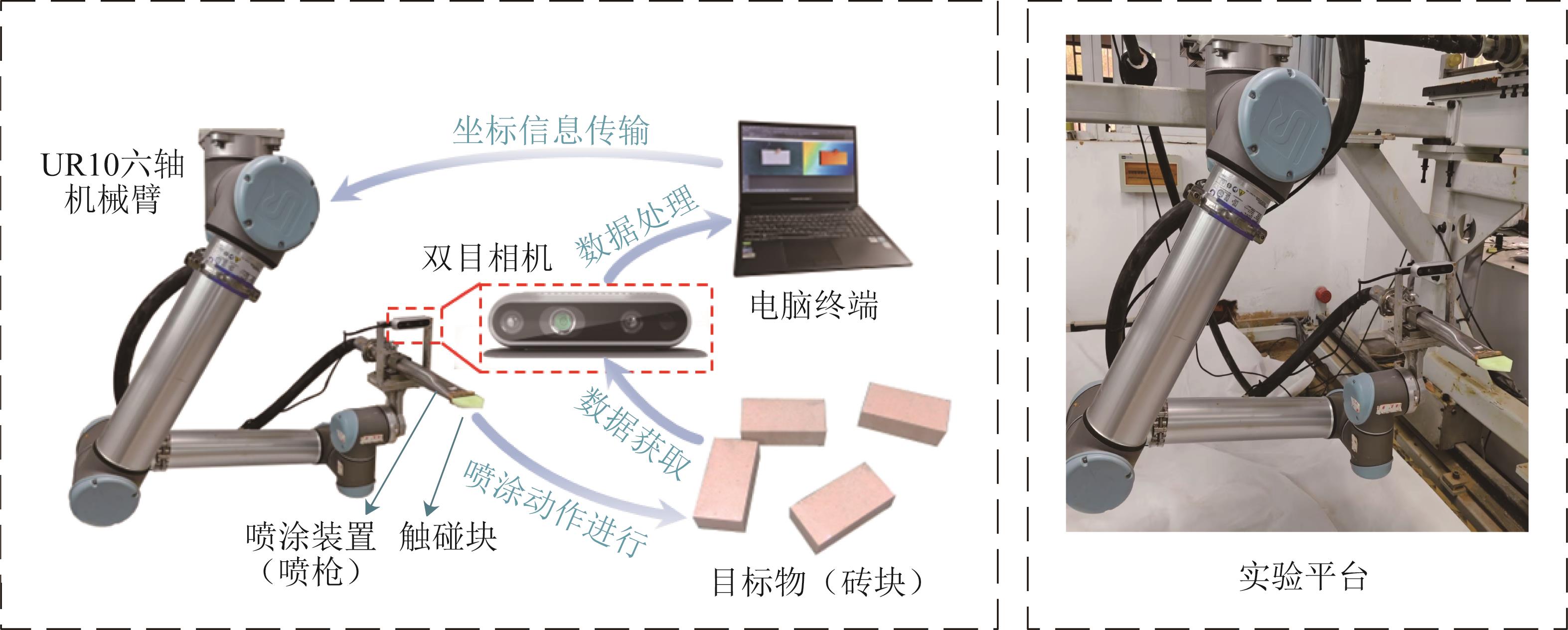

Fig.1 Brick plastered surface positioning experimental platform

参数	数值
焦距 $f / m m$	4.8
主点坐标 $(c x, ? c y)$ /像素	$319.5, ? 339.5$
基线长度 $T$ / $m m$	$50.1$

Table 1 Main parameters of stereo camera

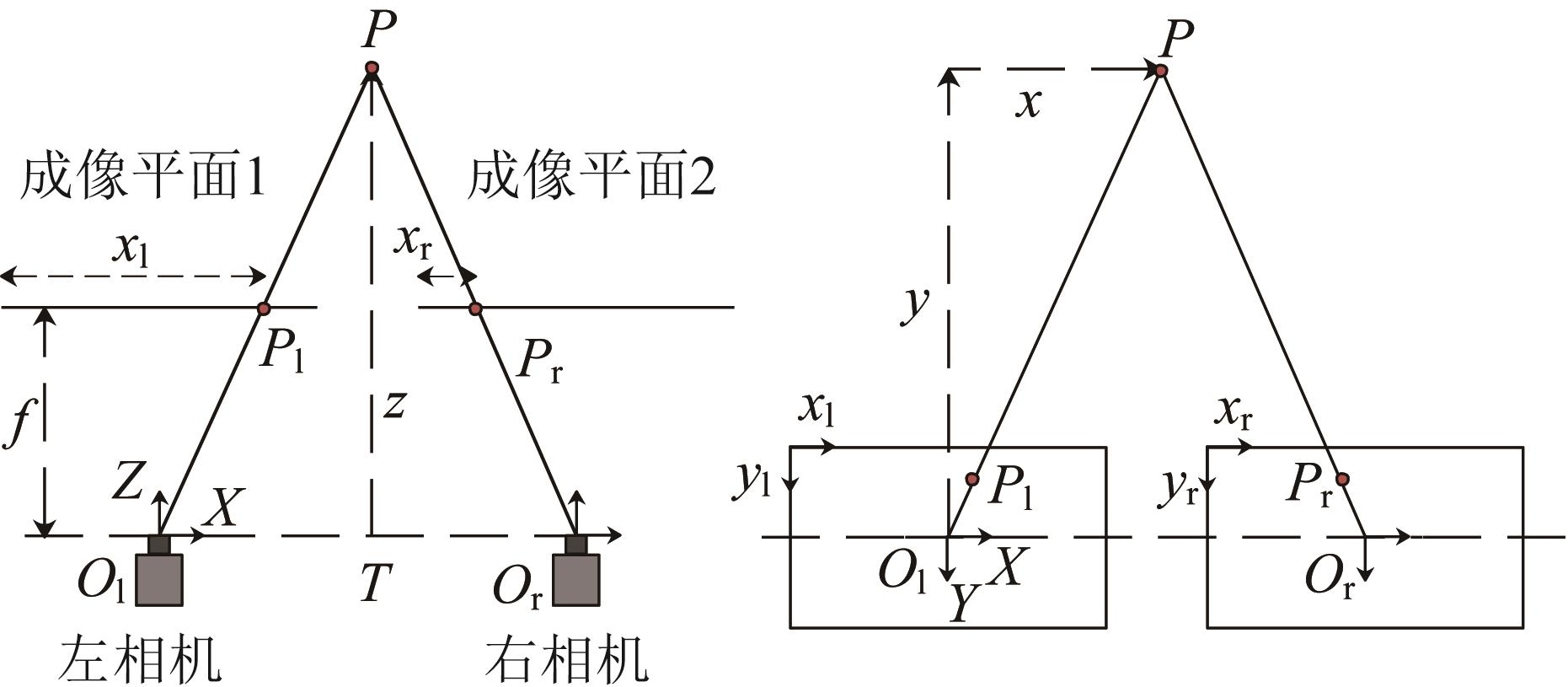

Fig.2 Schematic of stereo camera imaging principle

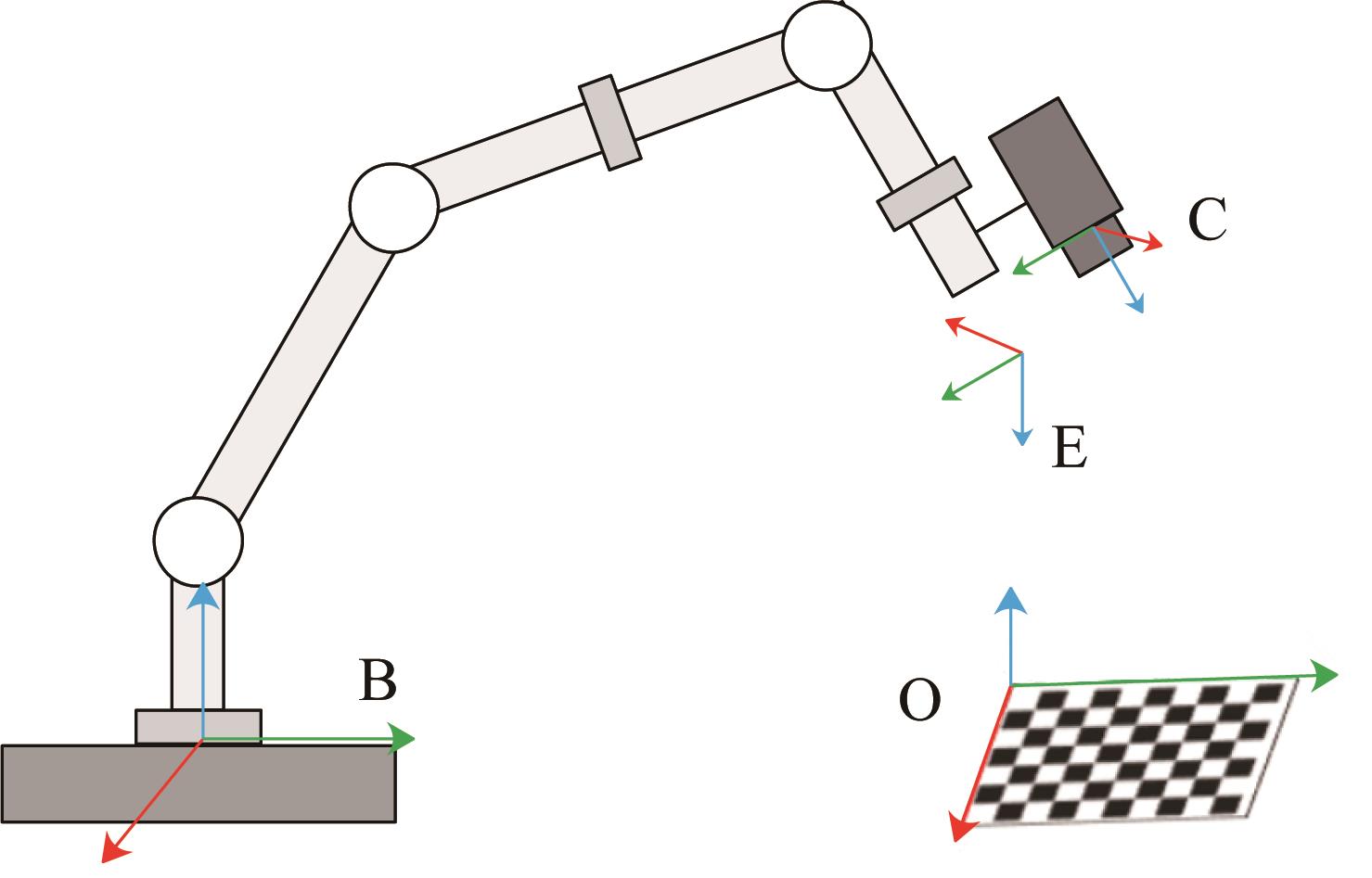

Fig.3 Hand-eye calibration (eye-in-hand)

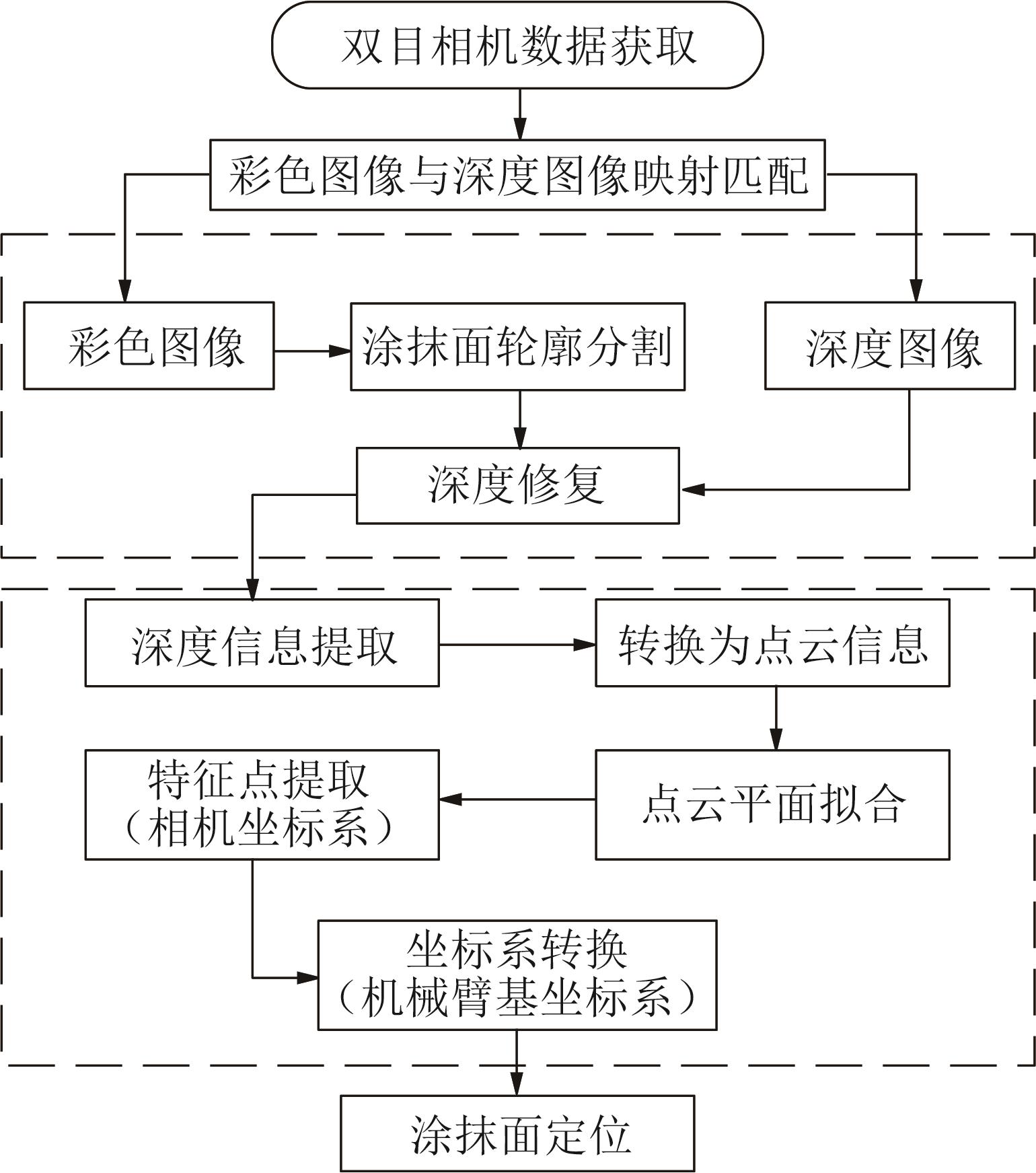

Fig.4 Architecture of depth restoration and localization algorithm

Fig.5 Mud occlusion working condition

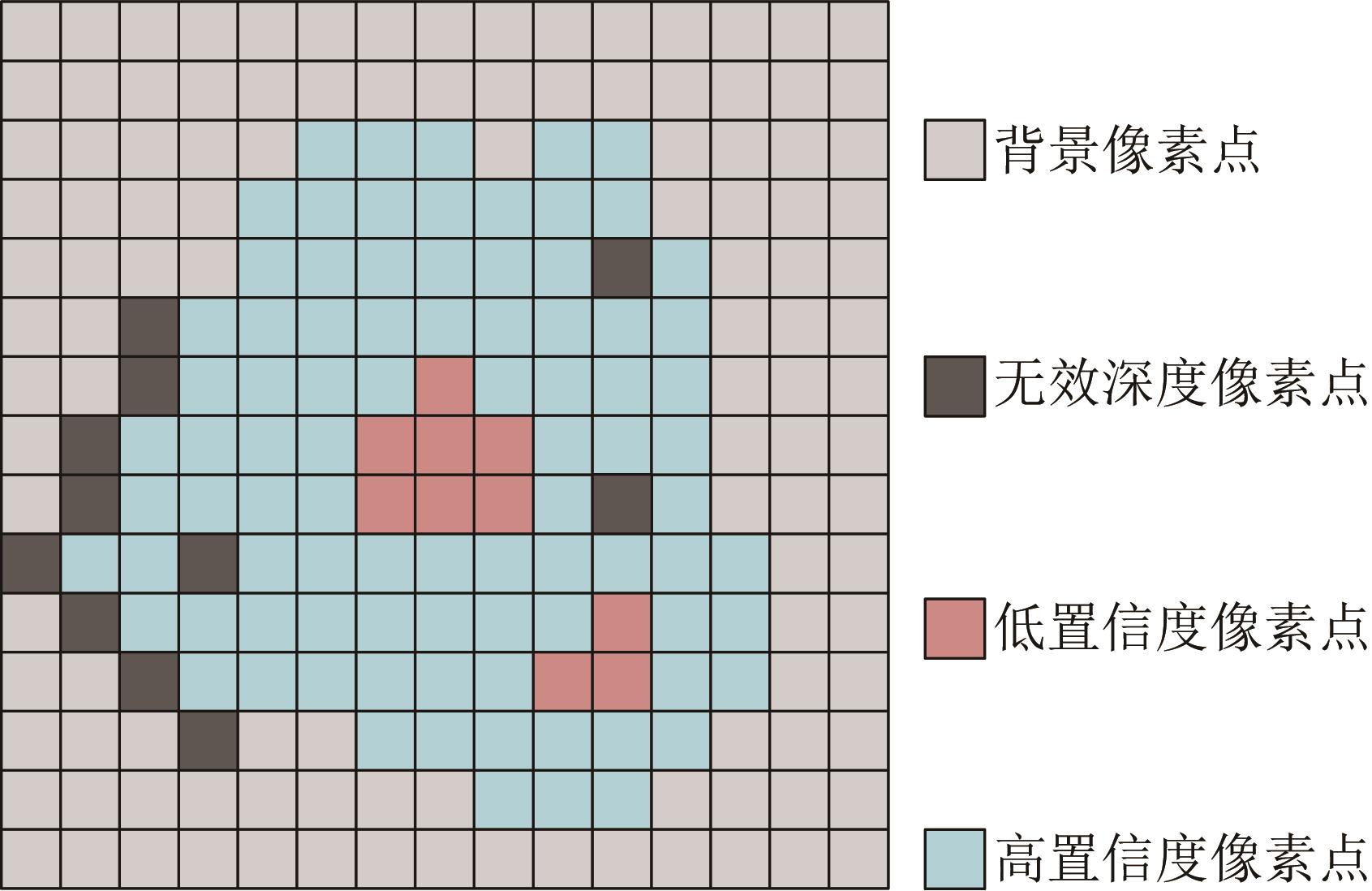

Fig.6 Pixel confidence level stratification

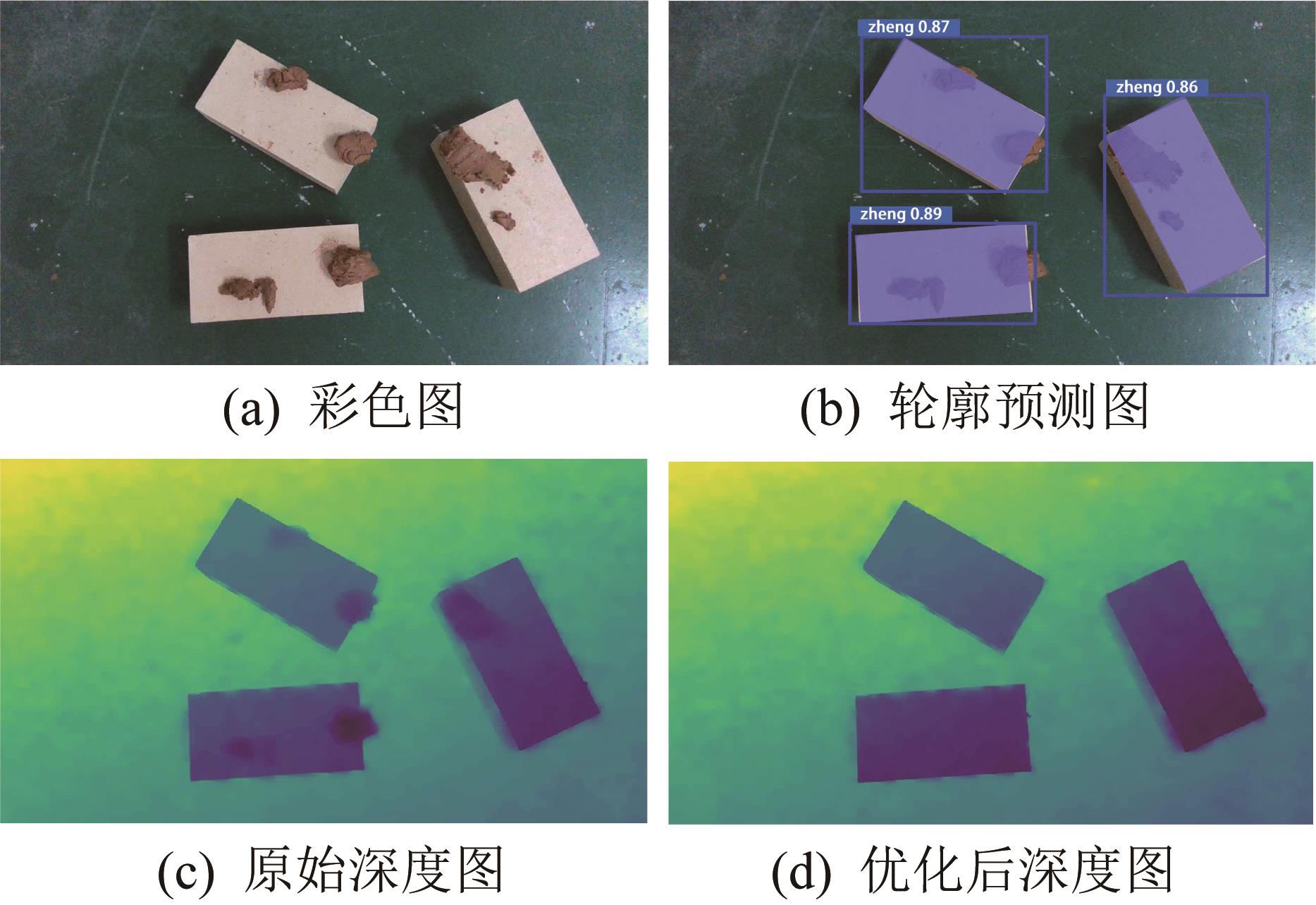

Fig.7 Depth information optimization results

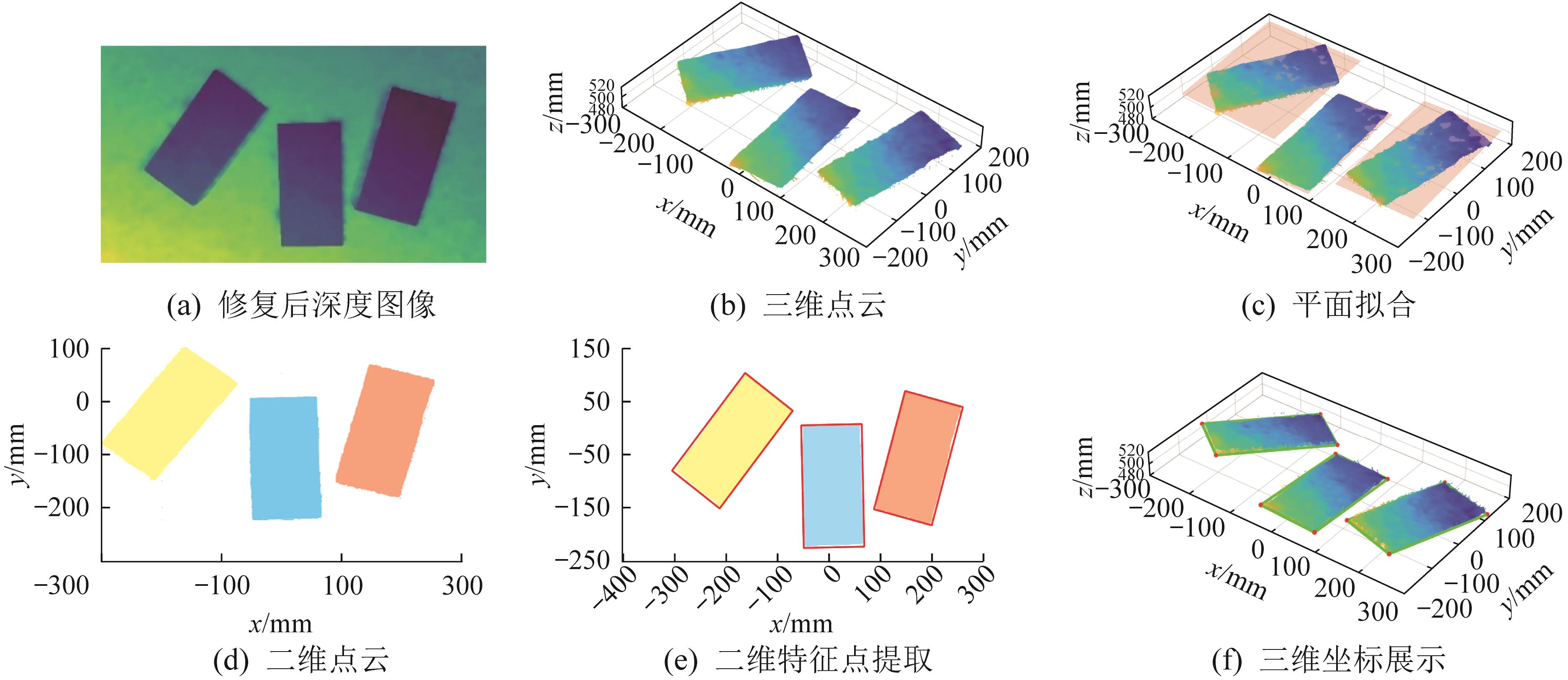

Fig.8 Steps for three-dimensional spatial localization of plastered surface

Table 2 Training parameter for YOLOv11 instance segmentation model

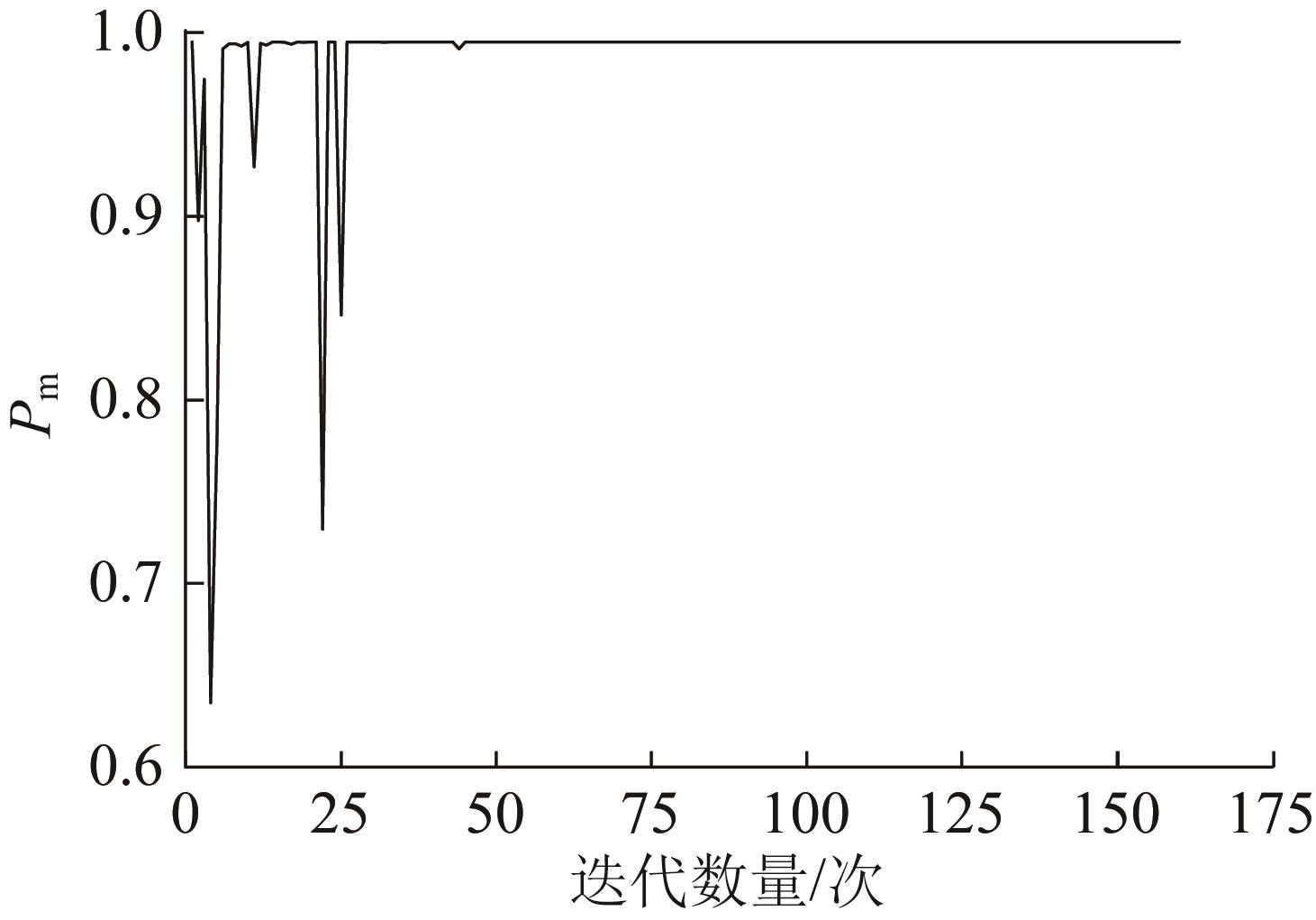

Fig.9 Average recognition accuracy of model

Table 3 Recognition performance parameters under different occlusion working conditions

Fig.10 Segmentation results of plastered surfaces under different occlusion working conditions

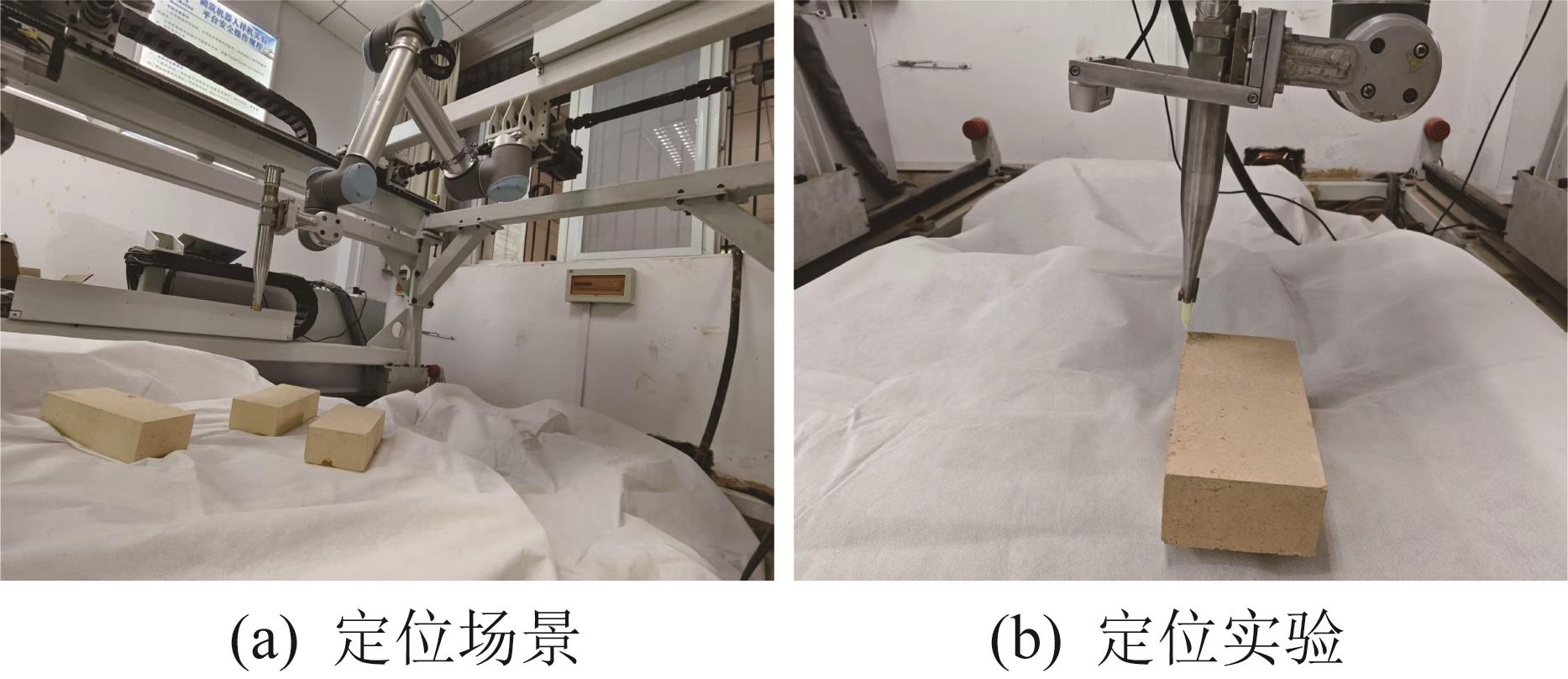

Fig.11 Scene and experiment of plastered surface localization

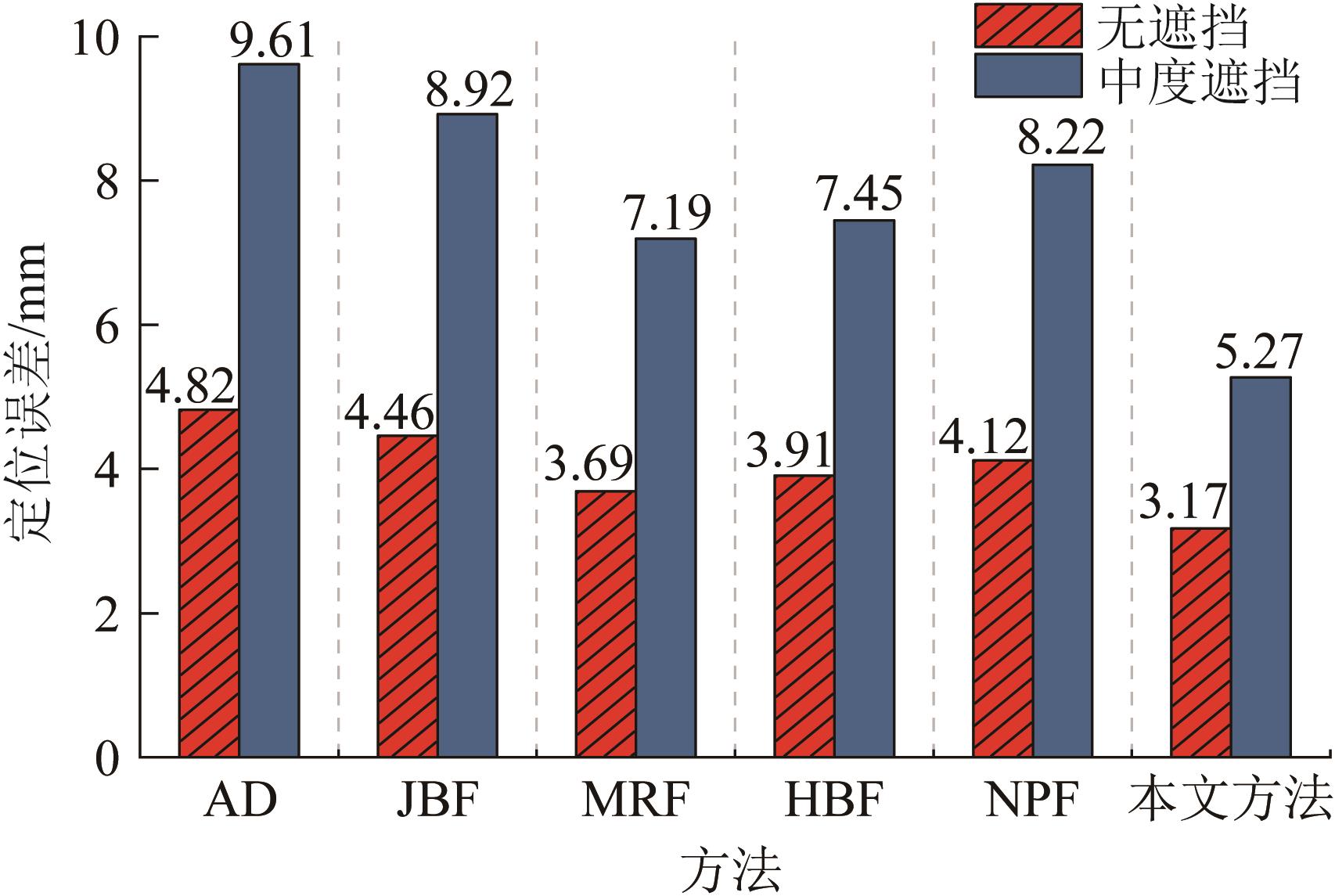

Fig.12 Comparison of localization errors among different depth restoration methods

Table 4 Average runtime of different depth restoration methods

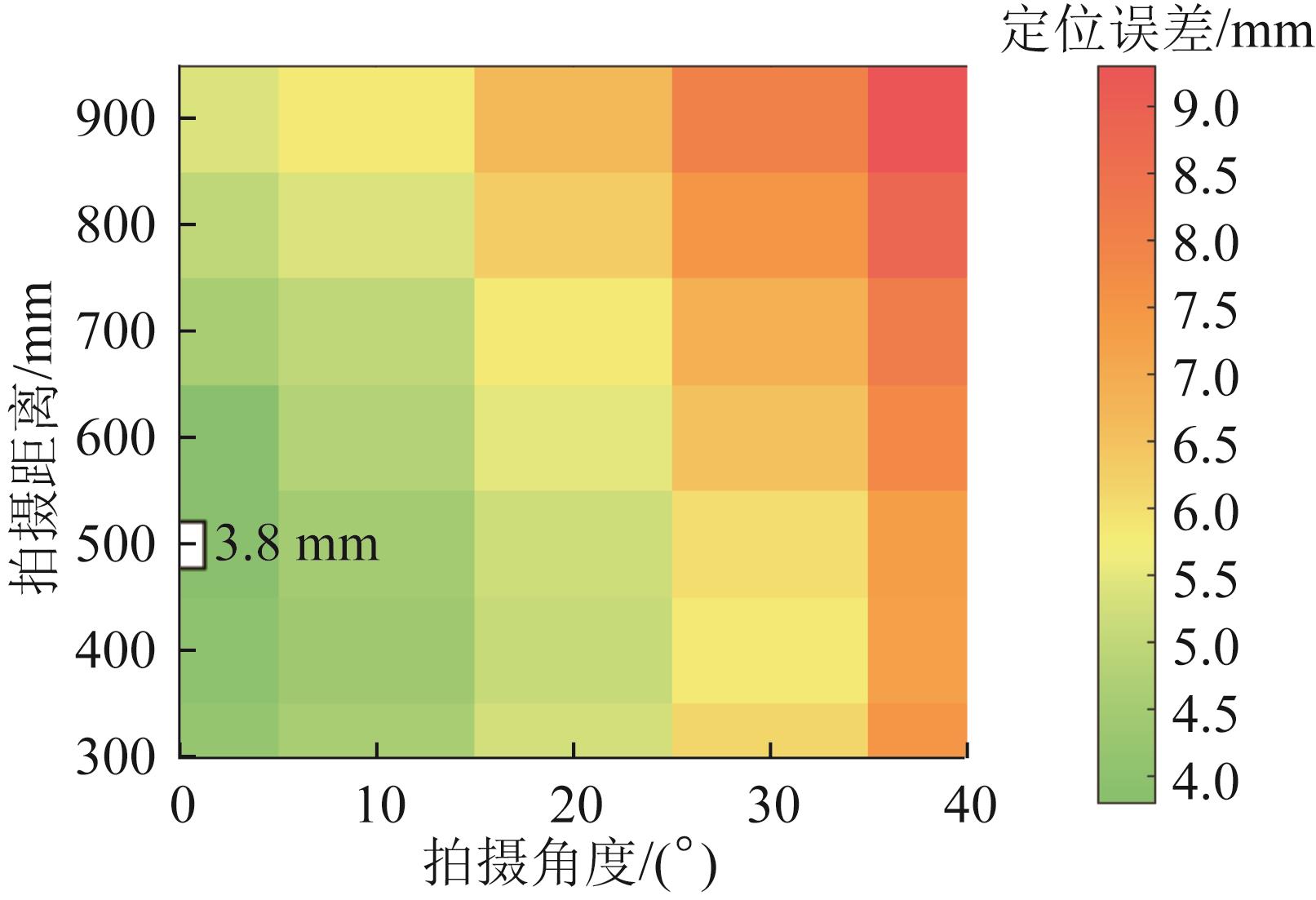

Fig.13 Angle-distance 2D localization error heatmap

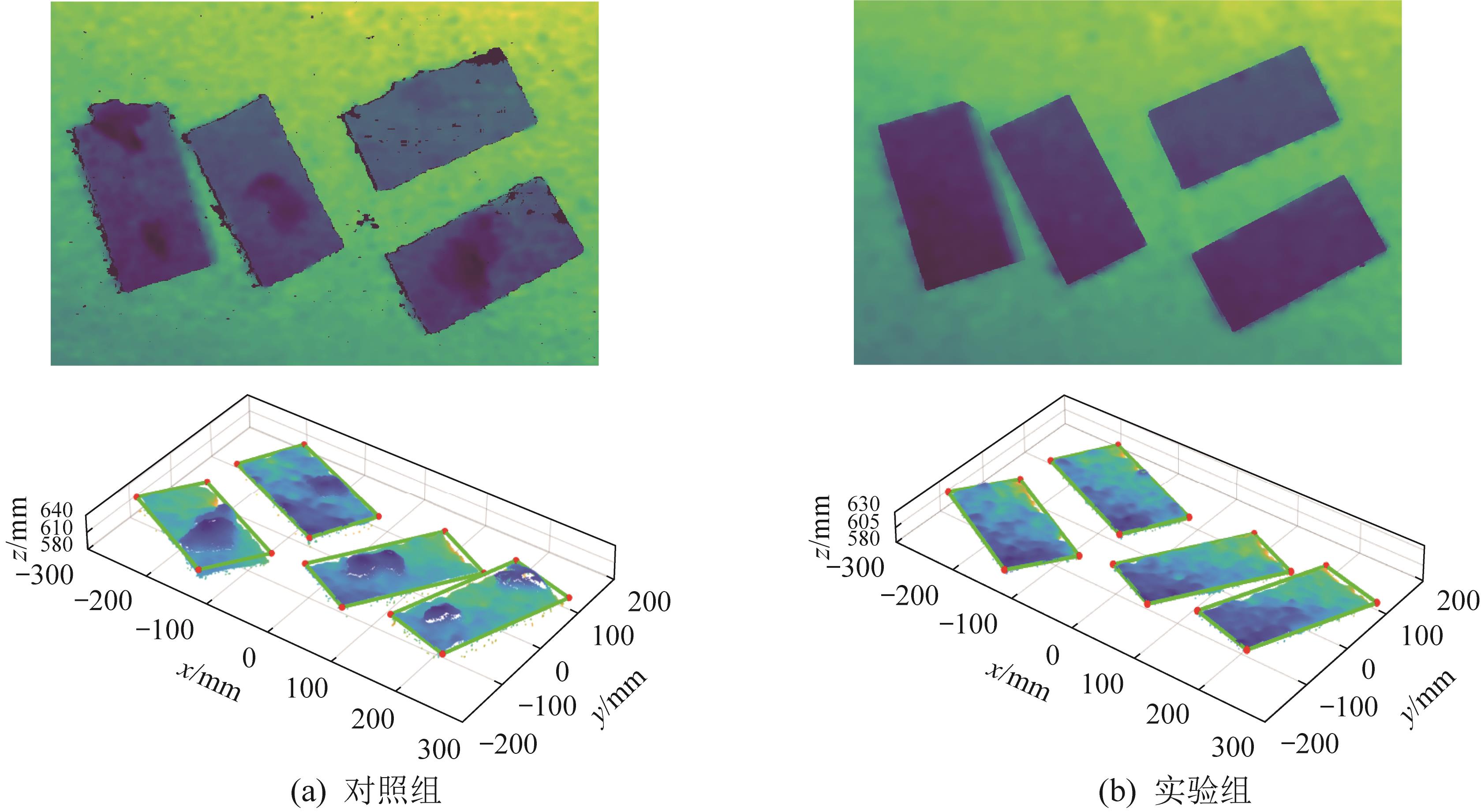

Fig.14 Depth images and feature point extractions under mud occlusion working conditions

Fig.15 Three axis localization errors under different mud occlusion rates
