Motion characteristics analysis and magnetic adsorption module optimization of variable curvature adaptive wall-climbing robot for wind power tower

doi:10.3785/j.issn.1006-754X.2025.04.144

Chinese Journal of Engineering Design

2025, Vol. 32

Issue (2): 169-181 DOI: 10.3785/j.issn.1006-754X.2025.04.144

Robotic and Mechanism Design

Motion characteristics analysis and magnetic adsorption module optimization of variable curvature adaptive wall-climbing robot for wind power tower

Xiang LI¹(

),Ke LI²,Minglu ZHANG¹(

),Chunyan GAO¹,Manhong LI¹

^1.School of Mechanical Engineering, Hebei University of Technology, Tianjin 300401, China
^2.Taishan Nuclear Power Joint Venture Co. , Ltd. , Taishan 529228, China

Download:

HTML

PDF(6786KB)
Export: BibTeX | EndNote (RIS)

Abstract

Aiming at the problem that traditional wall-climbing robots cannot adapt to the variable curvature wall of wind power towers, taking the fast stability and turning flexibility of the wheeled mobile mechanism as the starting point, the attitude change of the wheeled mobile mechanism moving on the variable curvature wall was analyzed, and on this basis, a new wall-climbing robot adopting split wheeled movement and gap permanent magnetic adsorption technology was designed. Firstly, a multi-state motion model for the wall-climbing robot was established, and the adaptive motion characteristics of the robot moving on the variable curvature wall by using the attitude adjustment of its own split structure were analyzed. Then, the magnetic adsorption module of the wall-climbing robot was optimized, and the optimal structural parameters under high adsorption efficiency were obtained through parametric analysis. The experiment results showed that the structural design of the new wall-climbing robot was reasonable, and it could realize the adaptive and reliable motion on the variable curvature wall. The designed wall-climbing robot can provide an efficient and safe solution for the maintenance of wind power towers, which has important engineering application value.

Key words： wall-climbing robot variable curvature adaptive attitude adjustment split wheeled movement permanent magnetic adsorption

Received: 27 May 2024 Published: 06 May 2025

CLC:

TH 122

Corresponding Authors: Minglu ZHANG E-mail: 13315583895@163.com;zhangml@hebut.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xiang LI
	Ke LI
	Minglu ZHANG
	Chunyan GAO
	Manhong LI

Cite this article:

Xiang LI,Ke LI,Minglu ZHANG,Chunyan GAO,Manhong LI. Motion characteristics analysis and magnetic adsorption module optimization of variable curvature adaptive wall-climbing robot for wind power tower. Chinese Journal of Engineering Design, 2025, 32(2): 169-181.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2025.04.144 OR https://www.zjujournals.com/gcsjxb/Y2025/V32/I2/169

风电塔筒用变曲率自适应爬壁机器人运动特性分析与磁吸附模块优化

针对传统爬壁机器人无法自适应风电塔筒变曲率壁面的问题，以轮式移动机构的快速稳定性和转弯灵活性为出发点，分析了轮式移动机构在变曲率壁面上运动时的姿态变化，并以此为基础设计了一种采用分体轮式移动和间隙式永磁吸附技术的新型爬壁机器人。首先，建立了多状态下的爬壁机器人运动模型，分析了机器人利用自身分体结构的姿态调整实现在变曲率壁面上移动时的自适应运动特性；然后，对爬壁机器人的磁吸附模块进行了优化，通过参数化分析得到了高吸附效率下的最优结构参数。实验结果表明，新型爬壁机器人结构设计合理，能够实现在变曲率壁面上的自适应可靠运动。所设计的爬壁机器人可为风电塔筒的维护作业提供高效、安全的解决方案，具有重要的工程应用价值。

关键词： 爬壁机器人, 变曲率自适应, 姿态调整, 分体轮式移动, 永磁吸附

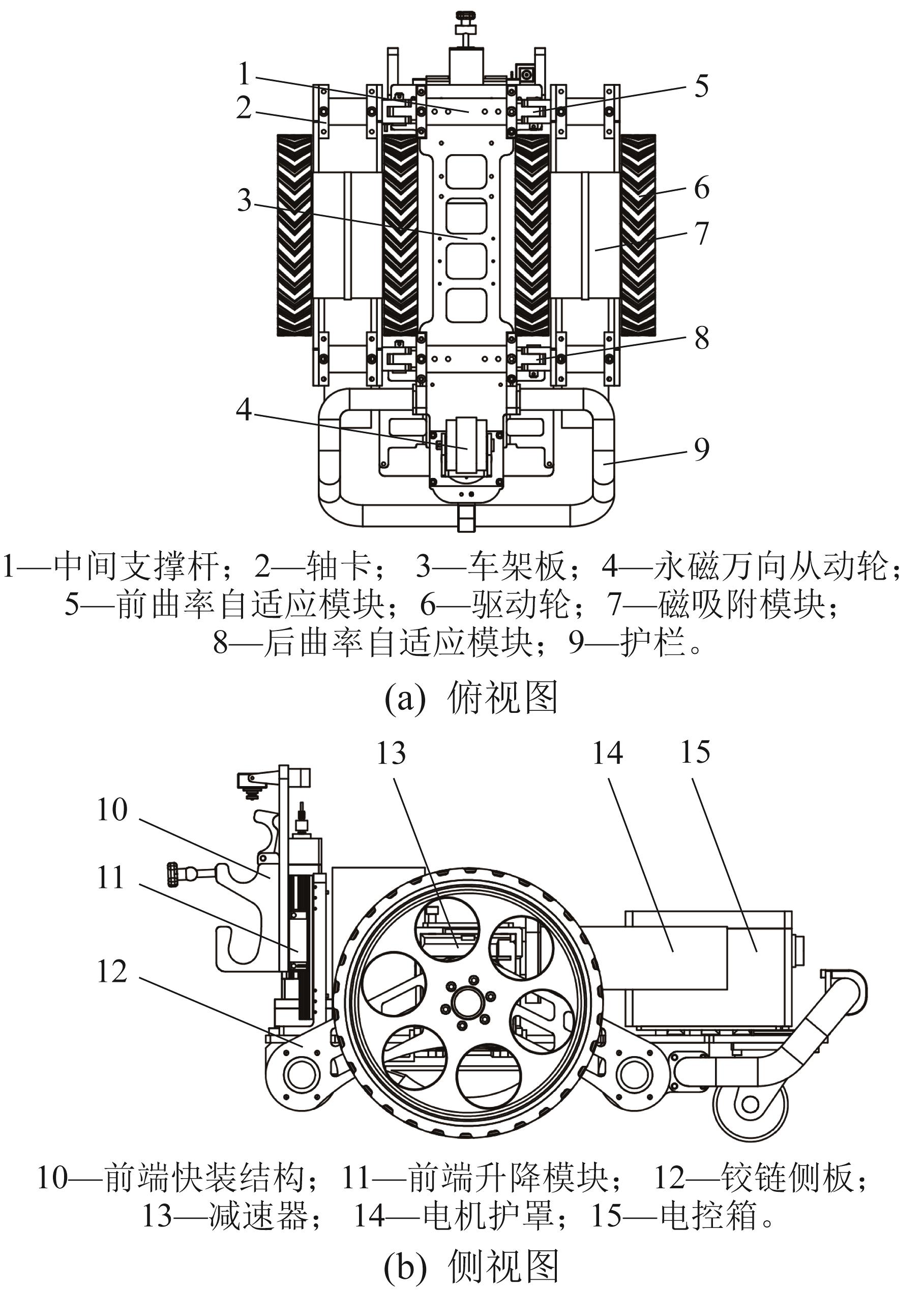

Fig.1 Structure of split-type flexible variable curvature adaptive wall-climbing robot

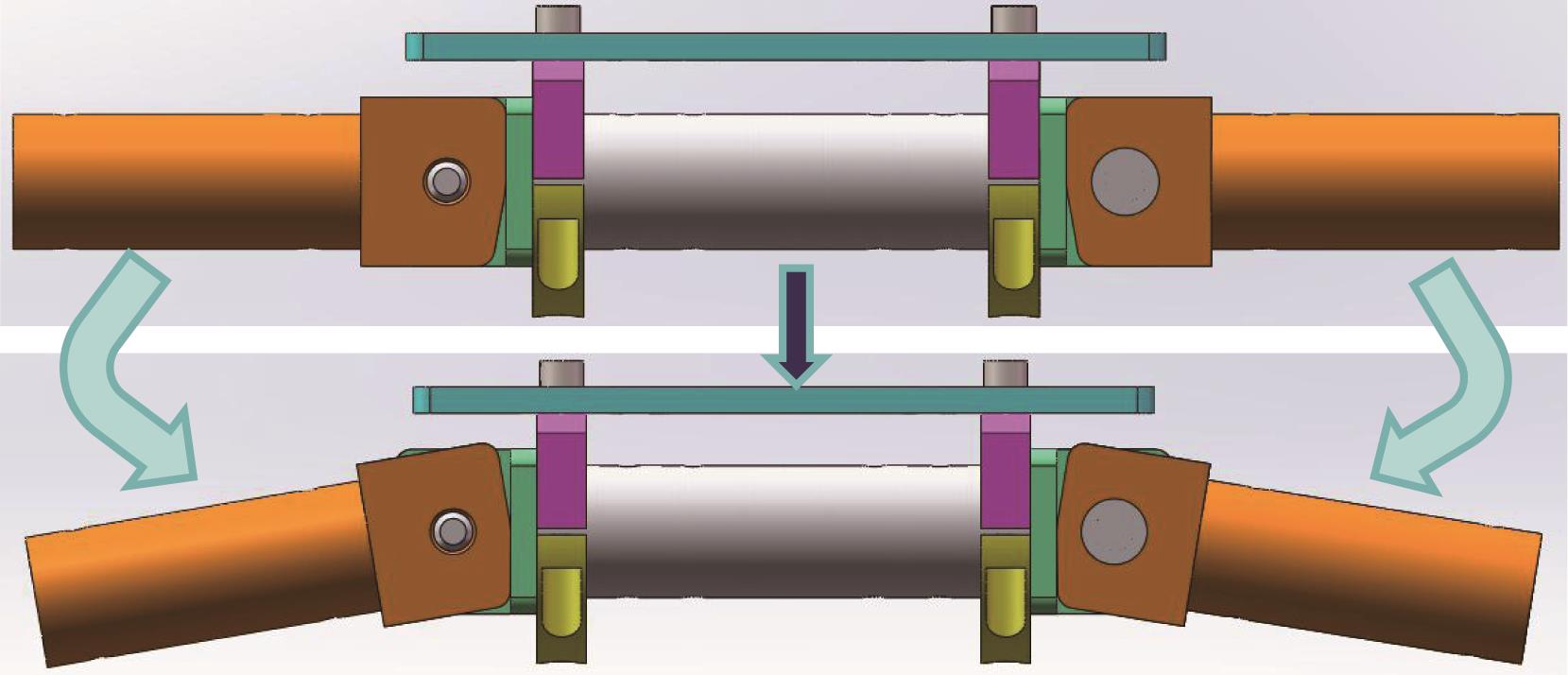

Fig.2 Schematic diagram of flexible connection module

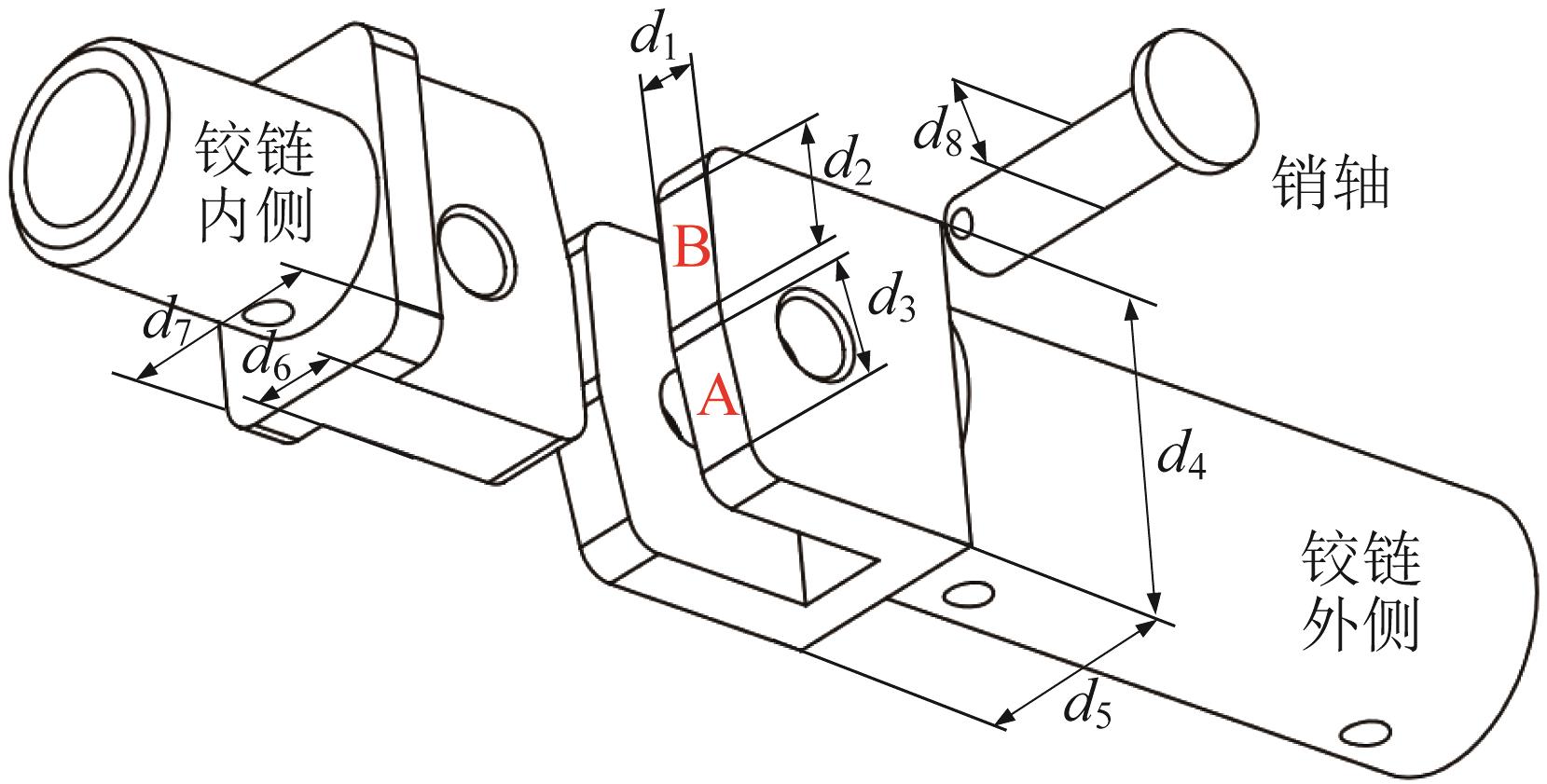

Fig.3 Schematic diagram of flexure hinge structure

Table 1 Key dimension parameters of flexure hinge

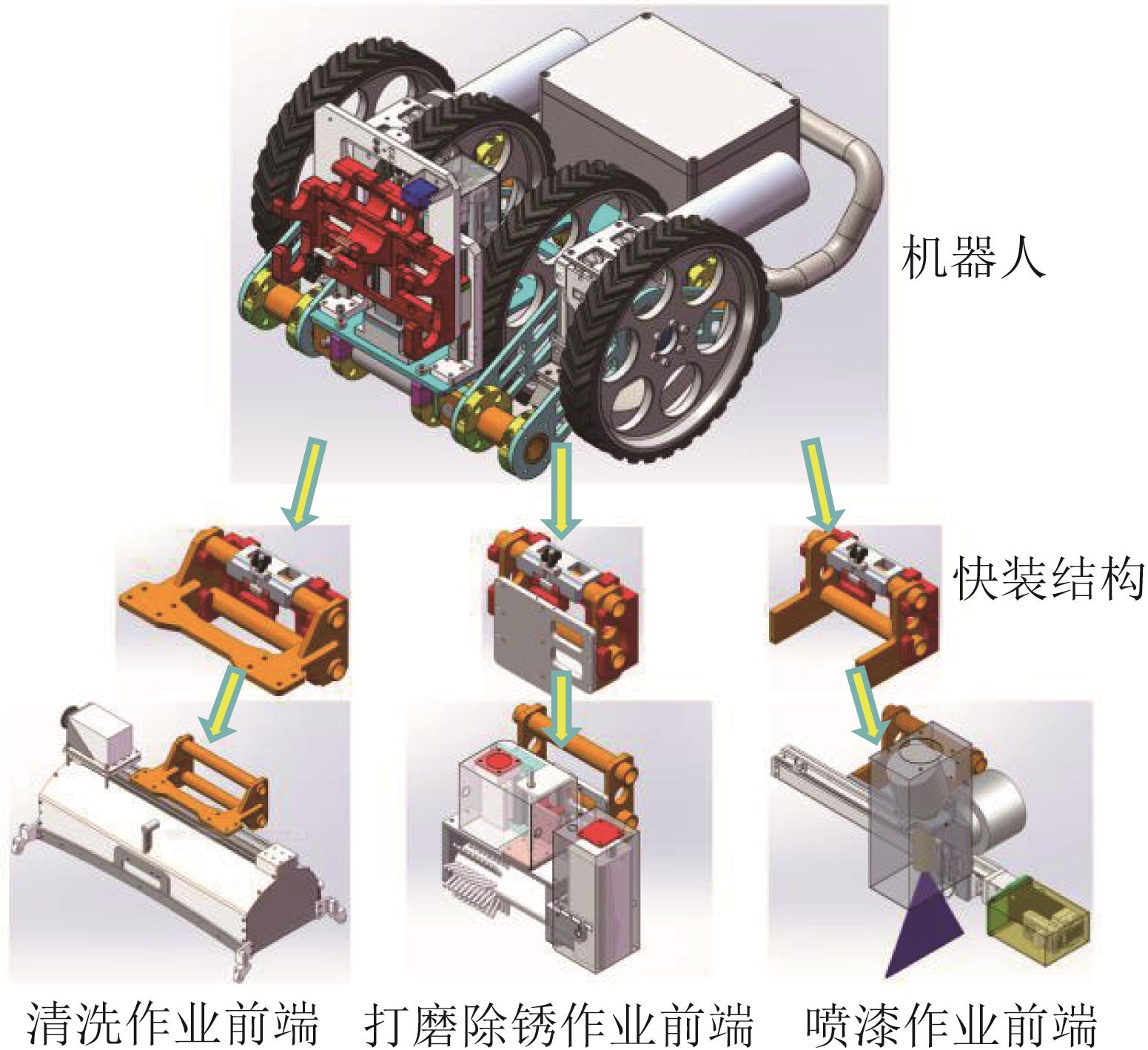

Fig.4 Schematic diagram of rapid replacement of front operation end

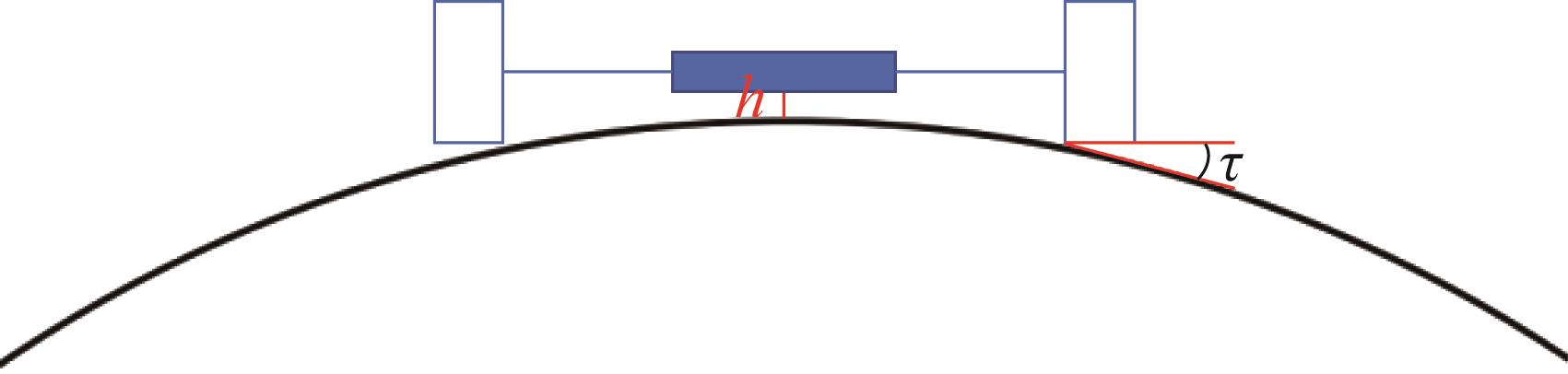

Fig.5 Sketch of curved attitude of conventional wall-climbing robot

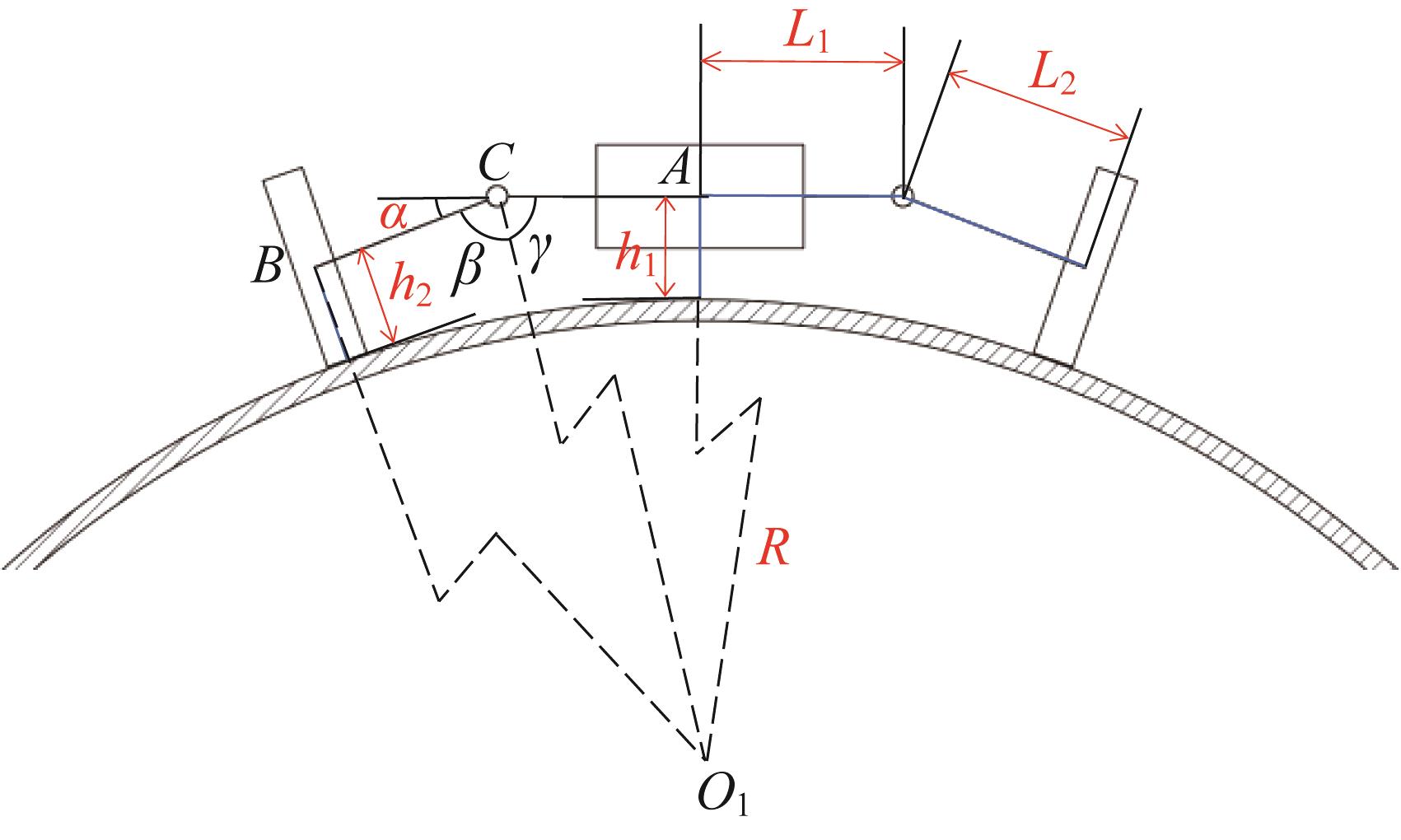

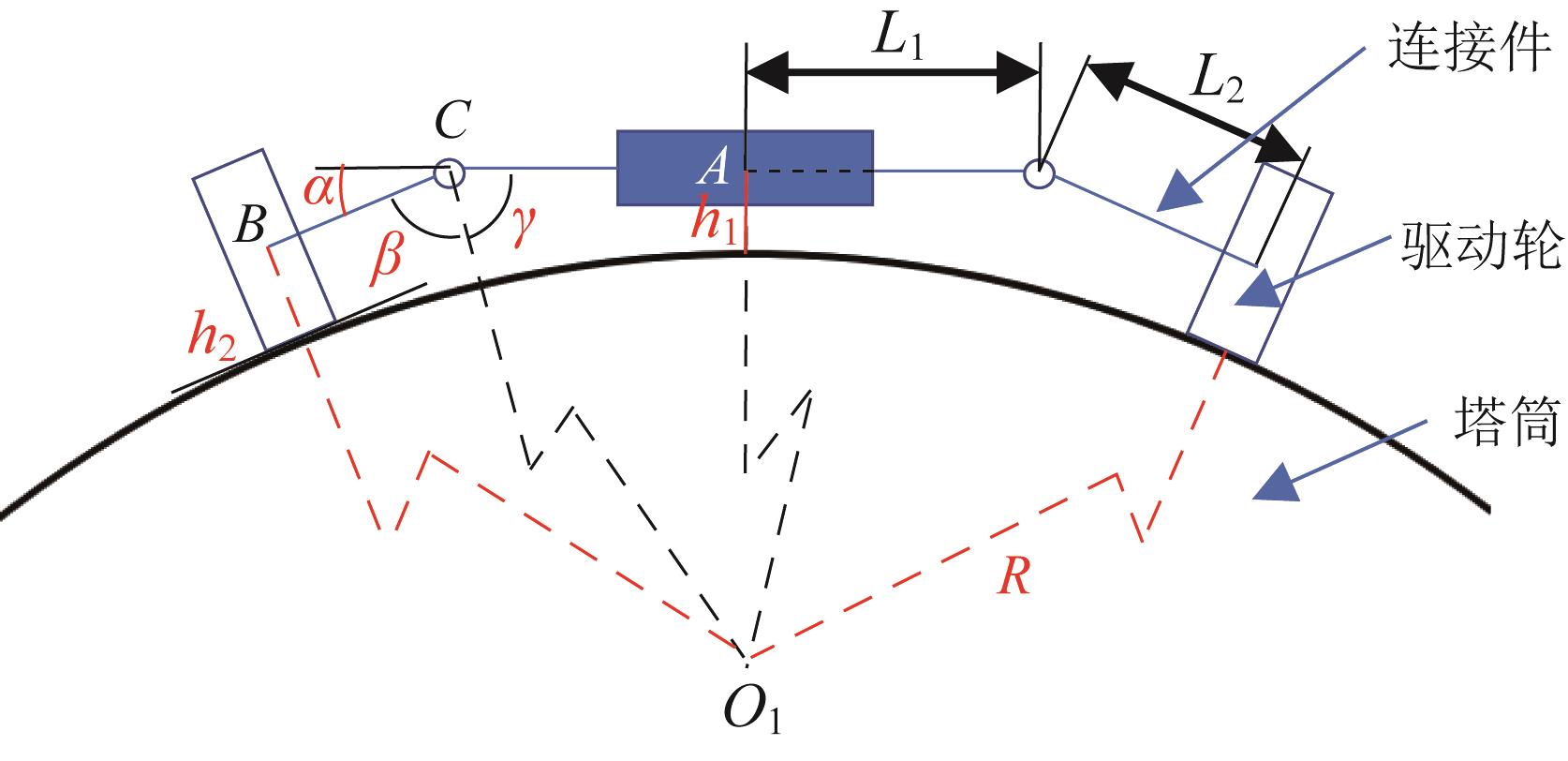

Fig.6 Sketch of curved attitude of variable curvature adaptive wall-climbing robot

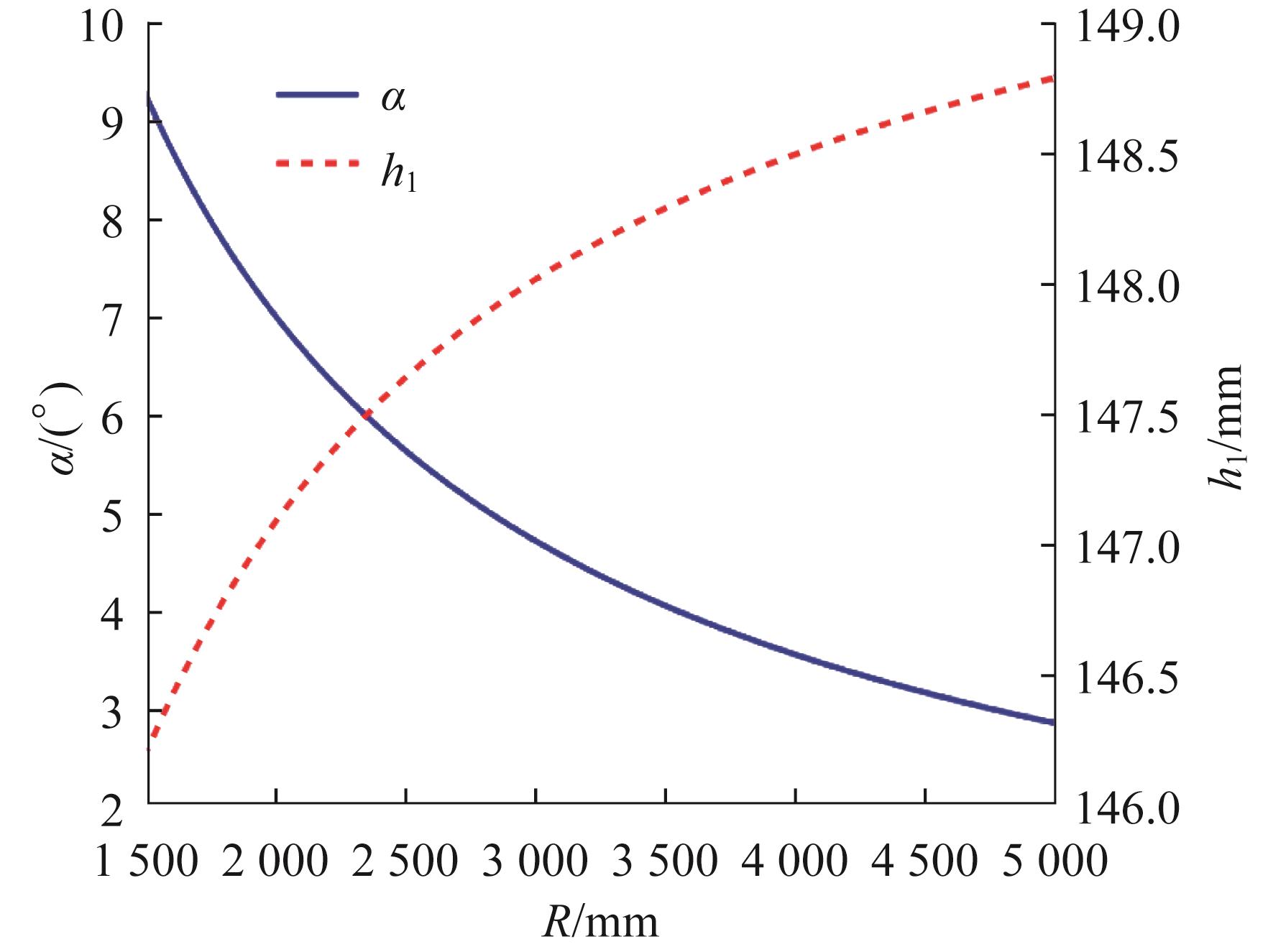

Fig.7 Relationship curves of

α

-

R

and

h 1

-

R

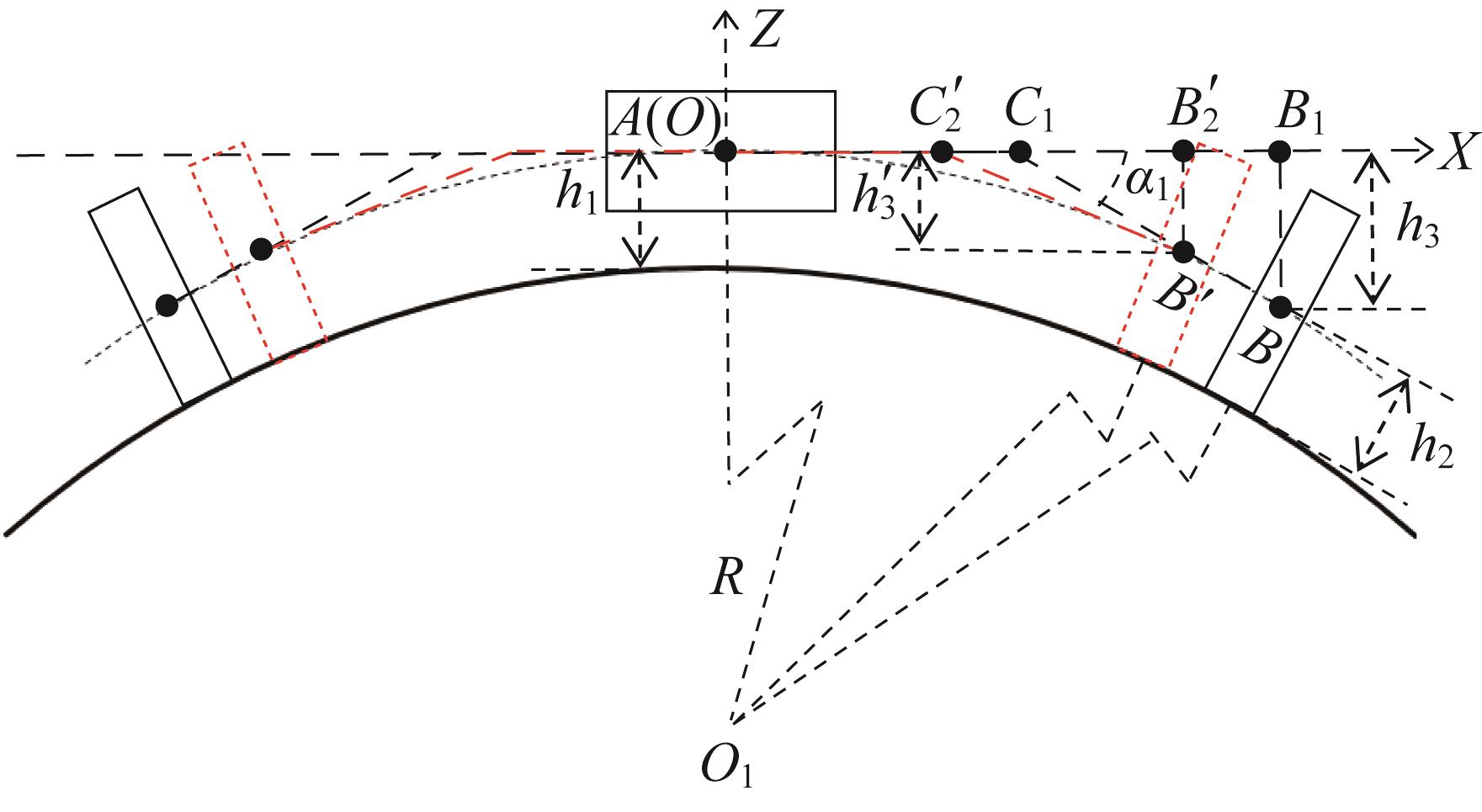

Fig.8 Sketch of curved attitude of optimized variable curvature adaptive wall-climbing robot

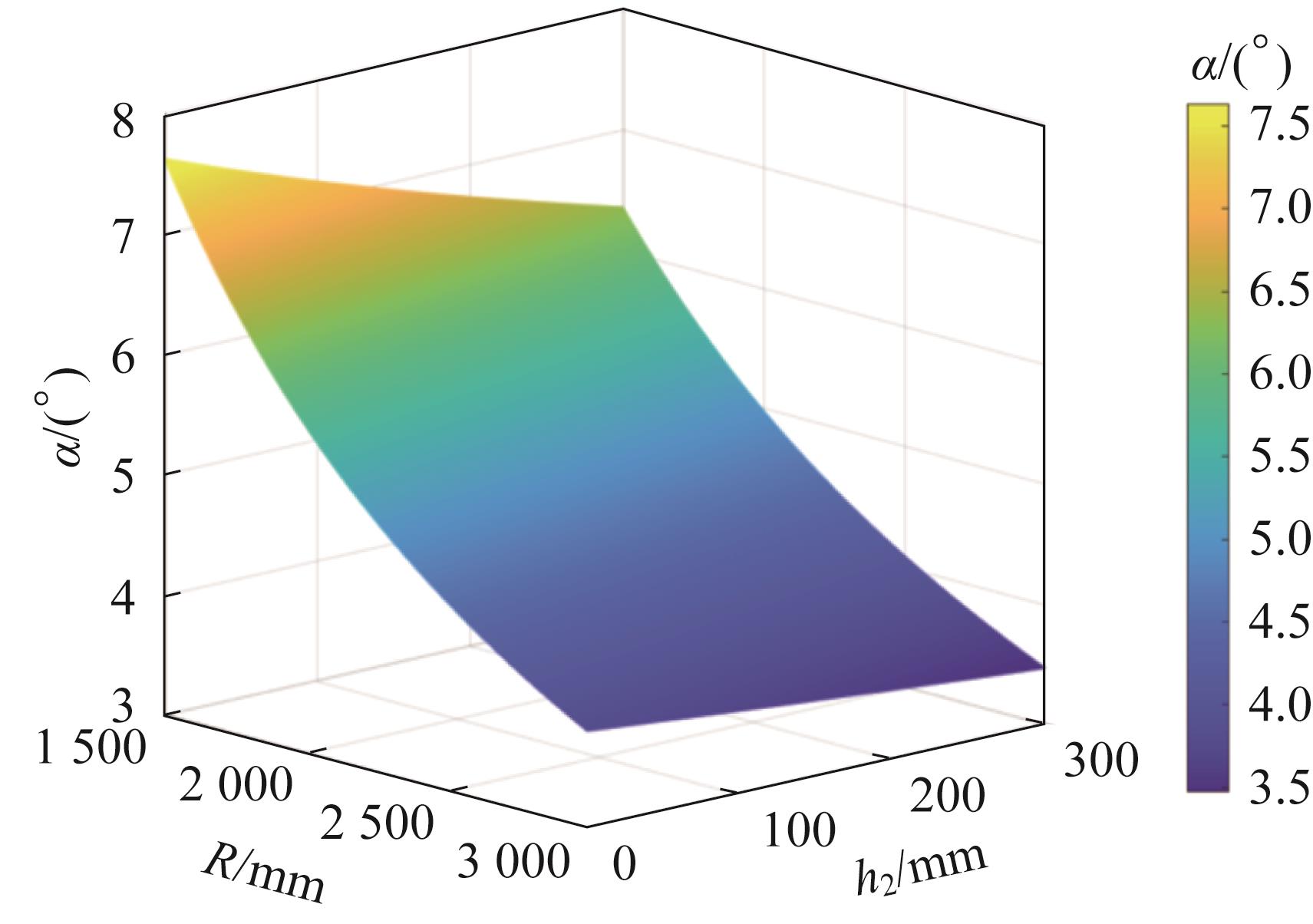

Fig.9 Relationship surface of

α

R

h 2

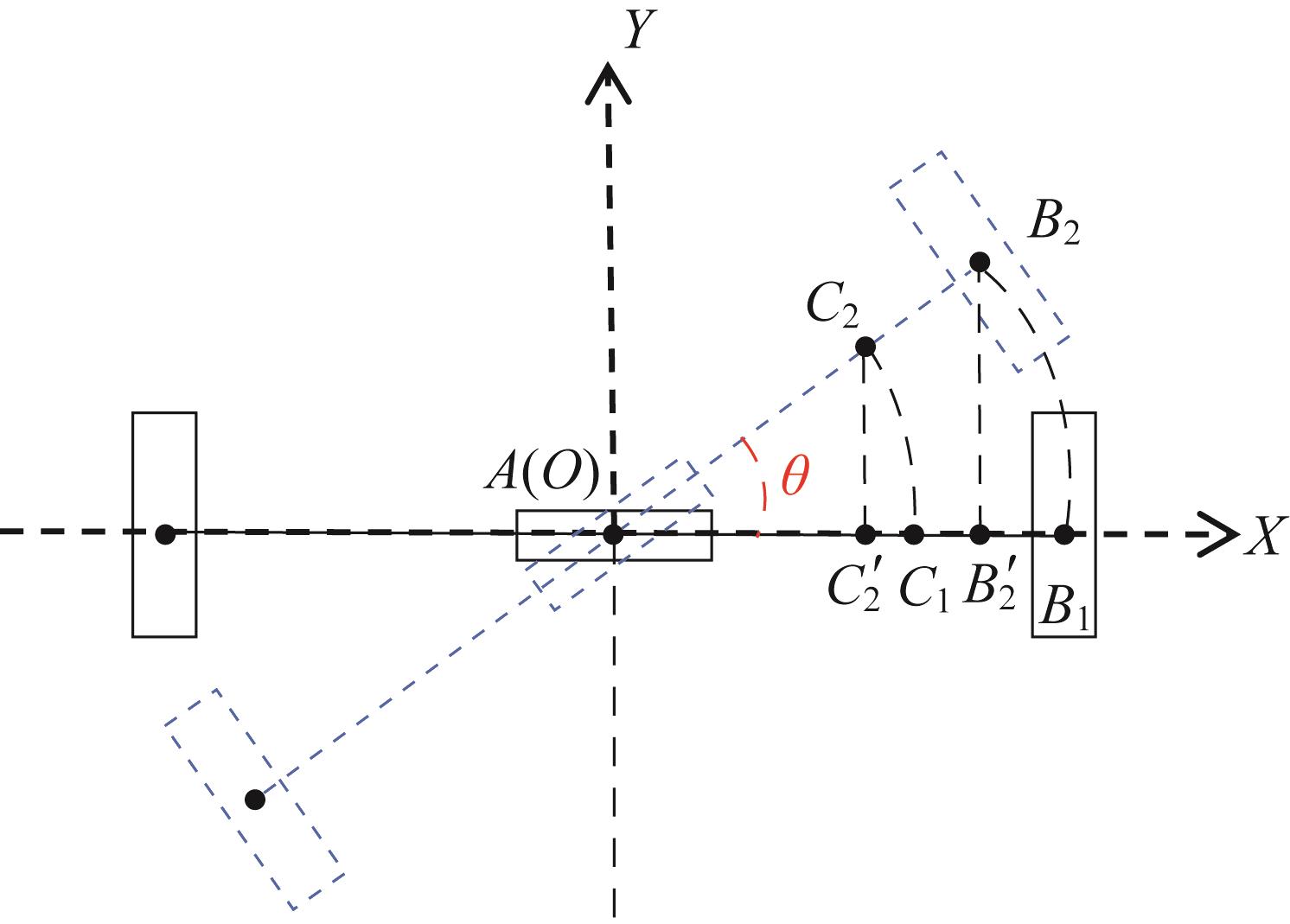

Fig.10 XOY surface projection of wall-climbing robot turning in place

Fig.11 XOZ surface projection of wall-climbing robot turning in place

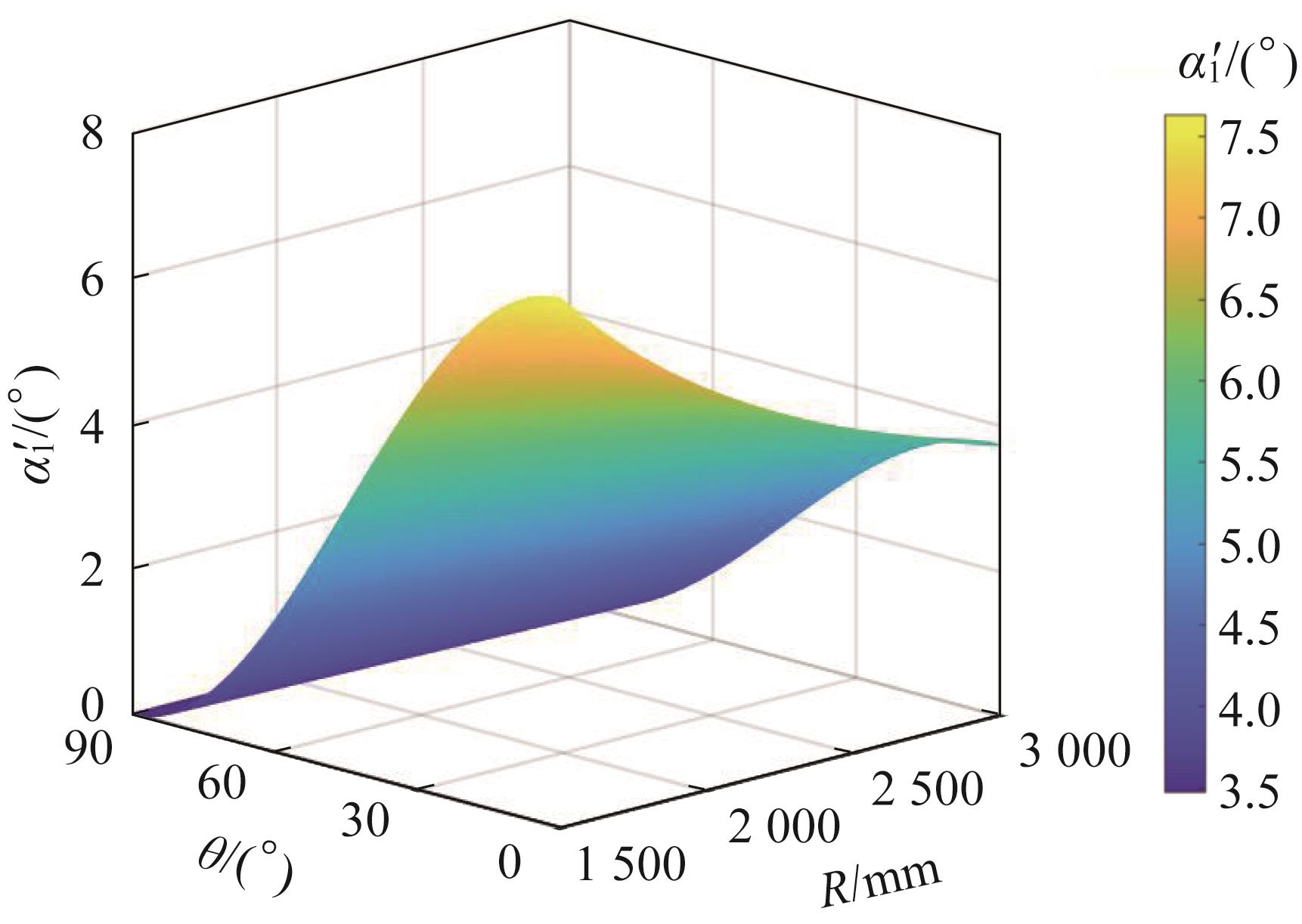

Fig.12 Relationship surface of

α 1'

θ

R

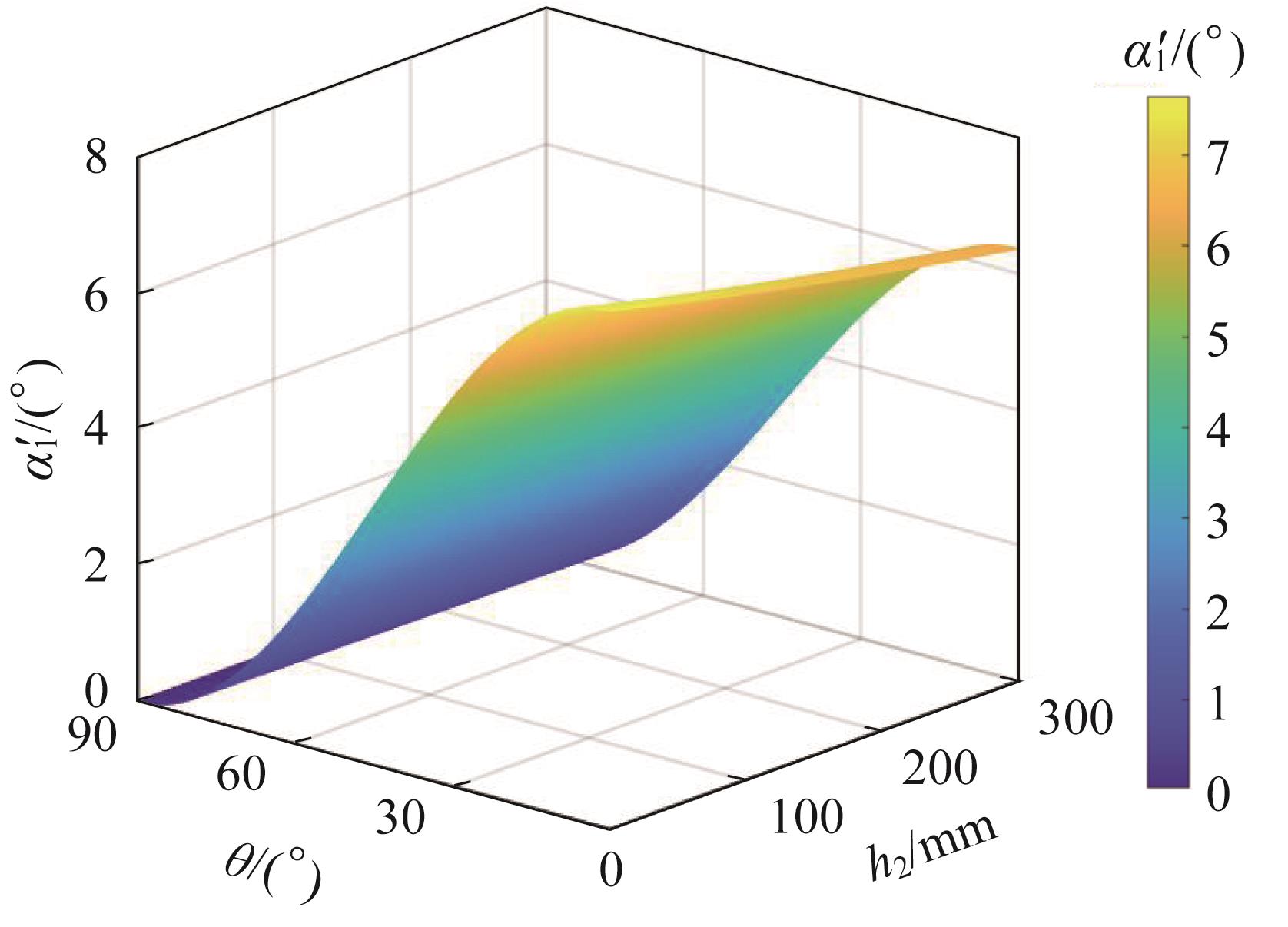

Fig.13 Relationship surface of

α 1'

θ

h 2

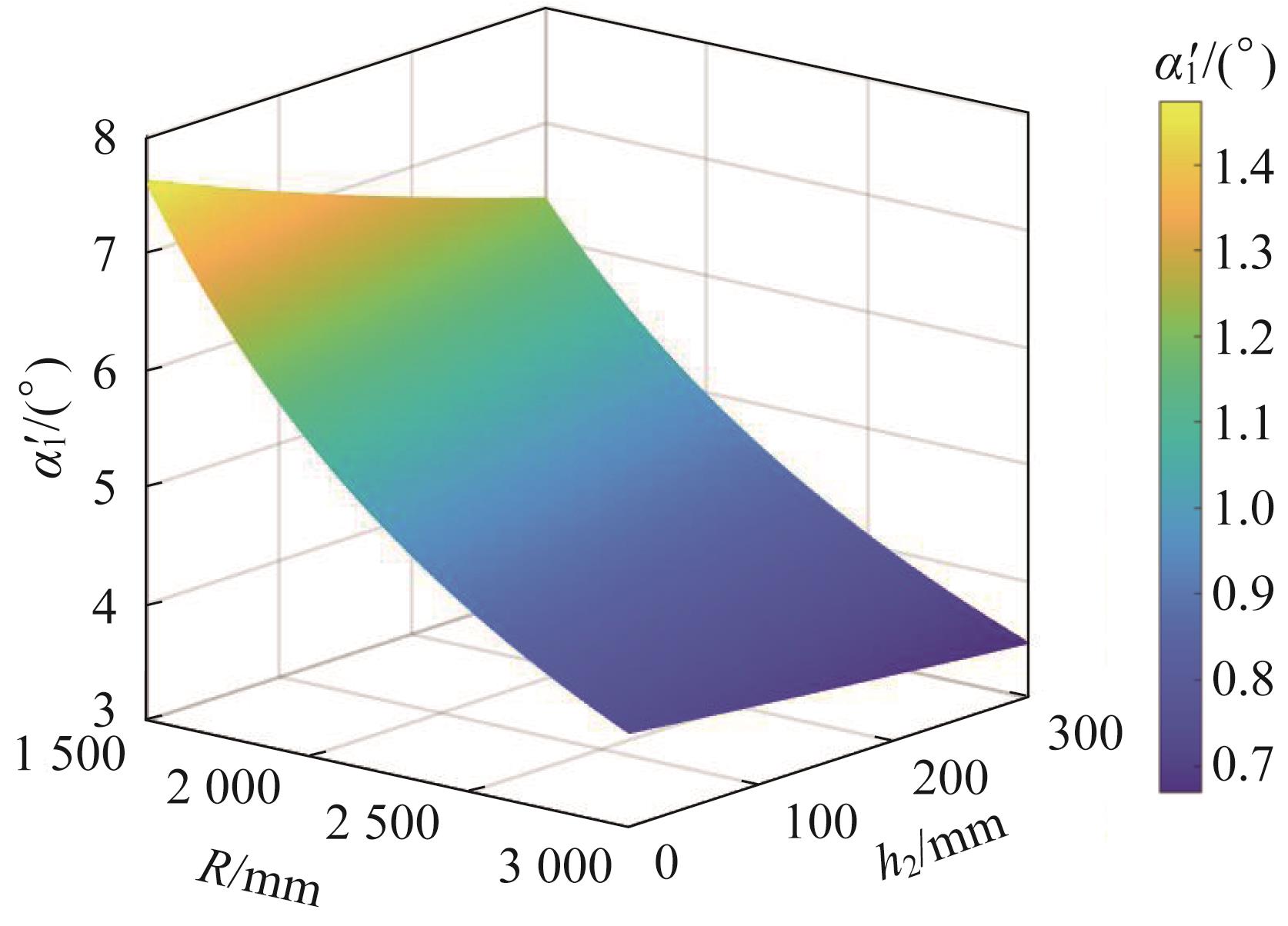

Fig.14 Relationship surface of

α 1'

R

h 2

性能参数	数值
剩磁感应强度 $/ m T$	$1 ? 380 ~ 1 ? 420$
矫顽力 $/ k A / m$	923
最大磁能 $/ k J / m 3$	$366 ~ 390$
最高工作温度 $/ ℃$	$80$

Table 2 Performance parameters of NdFeB-N48

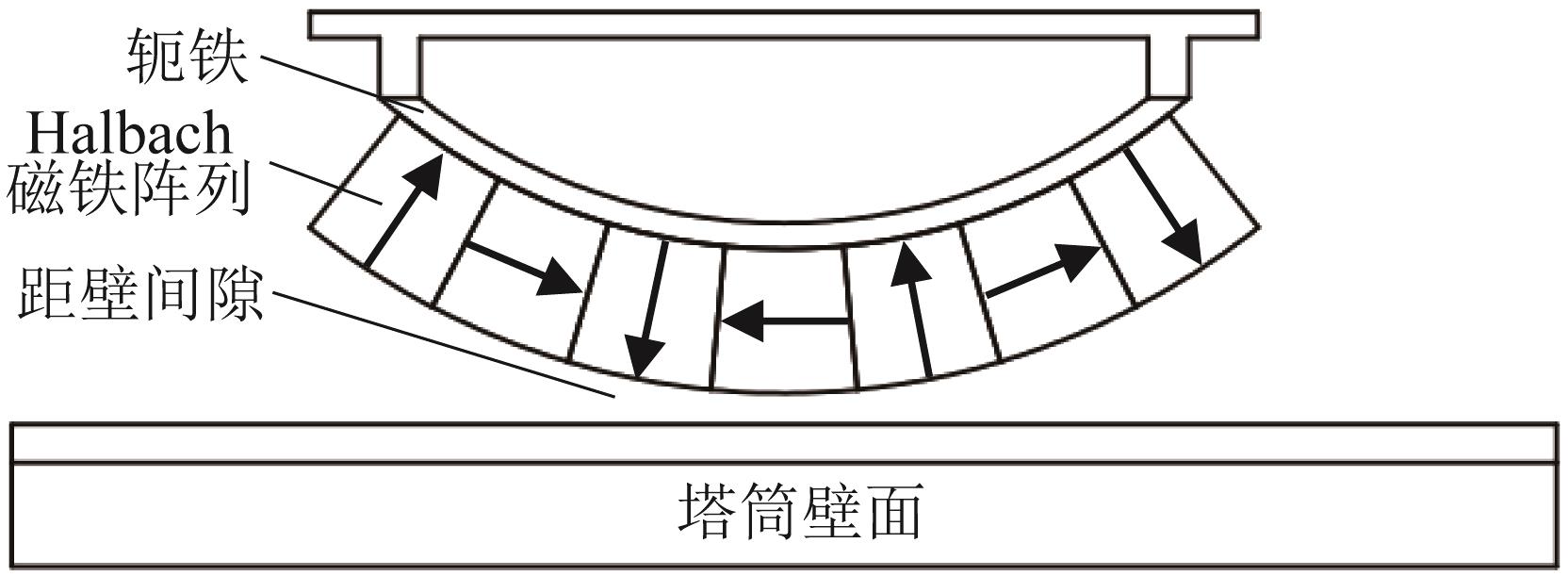

Fig.15 Schematic diagram of magnetic adsorption module structure

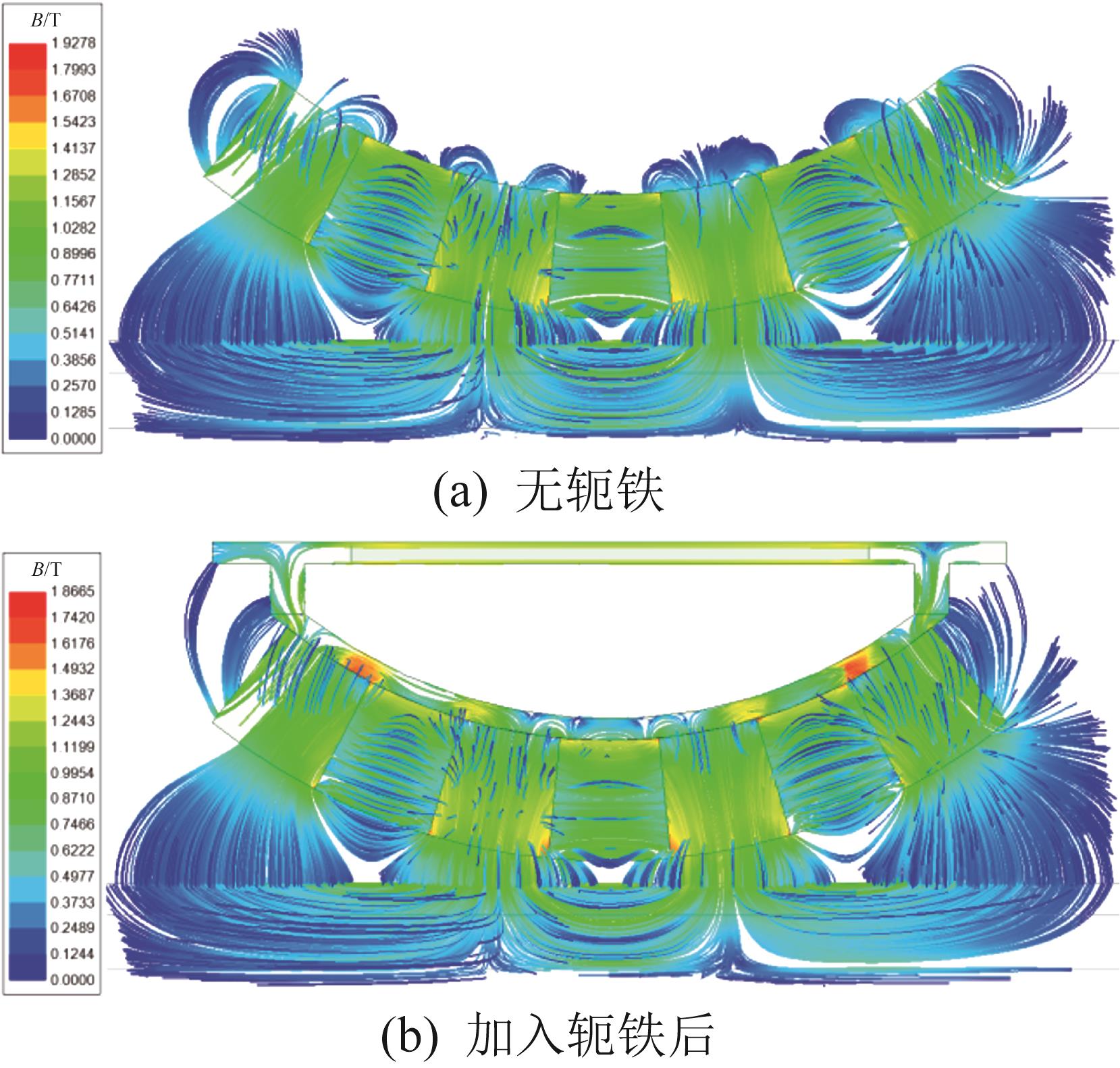

Fig.16 Magnetic induction intensity cloud map of magnetic adsorption module

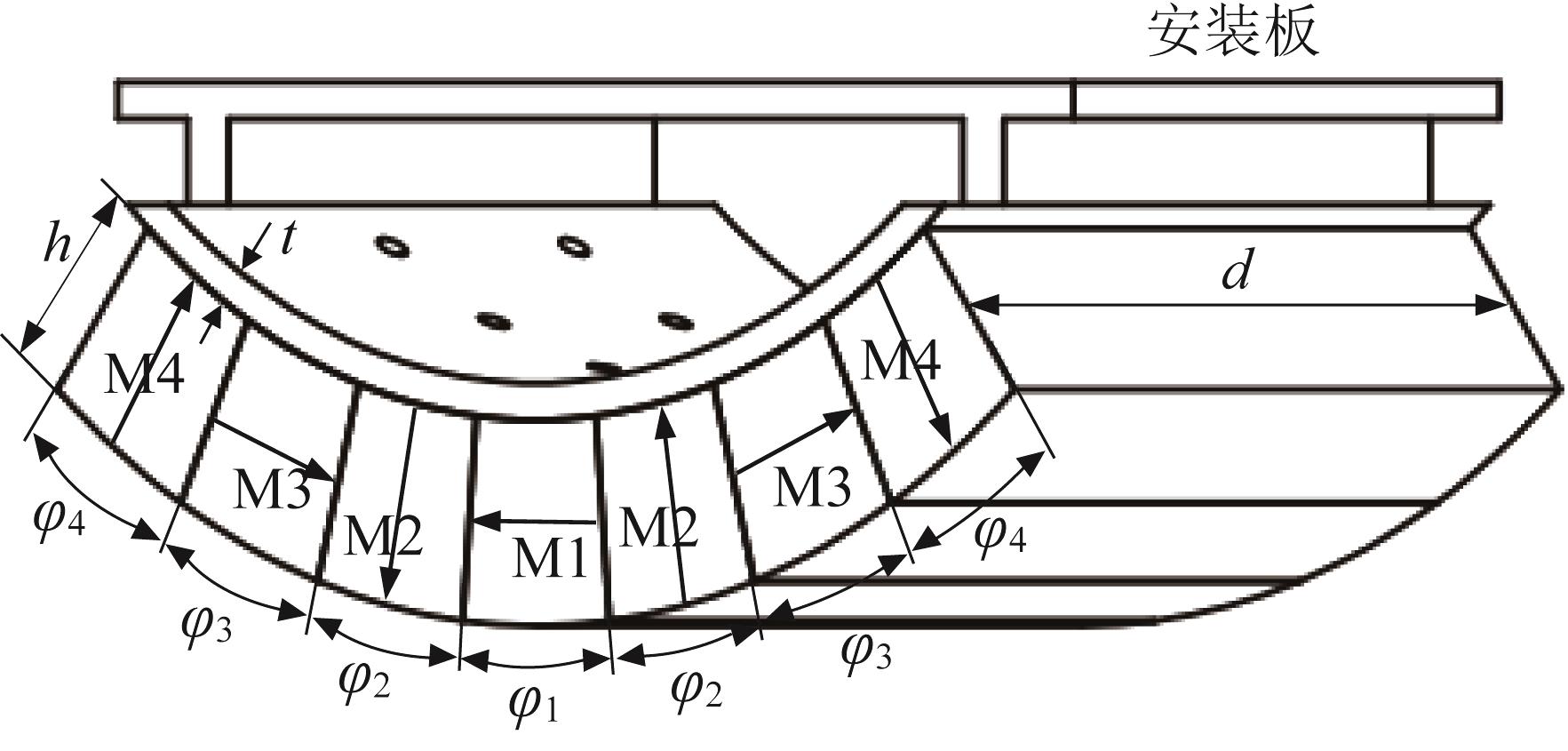

Fig.17 Structural parameters of magnetic adsorption module

参数	初始值	参数	初始值
$φ 1 / °$	11	$h / m m$	28
$φ 2 / °$	11	$d / m m$	105
$φ 3 / °$	11	$t / m m$	5
$φ 4 / °$	11

Table 3 Initial values of structural parameters of magnetic adsorption module

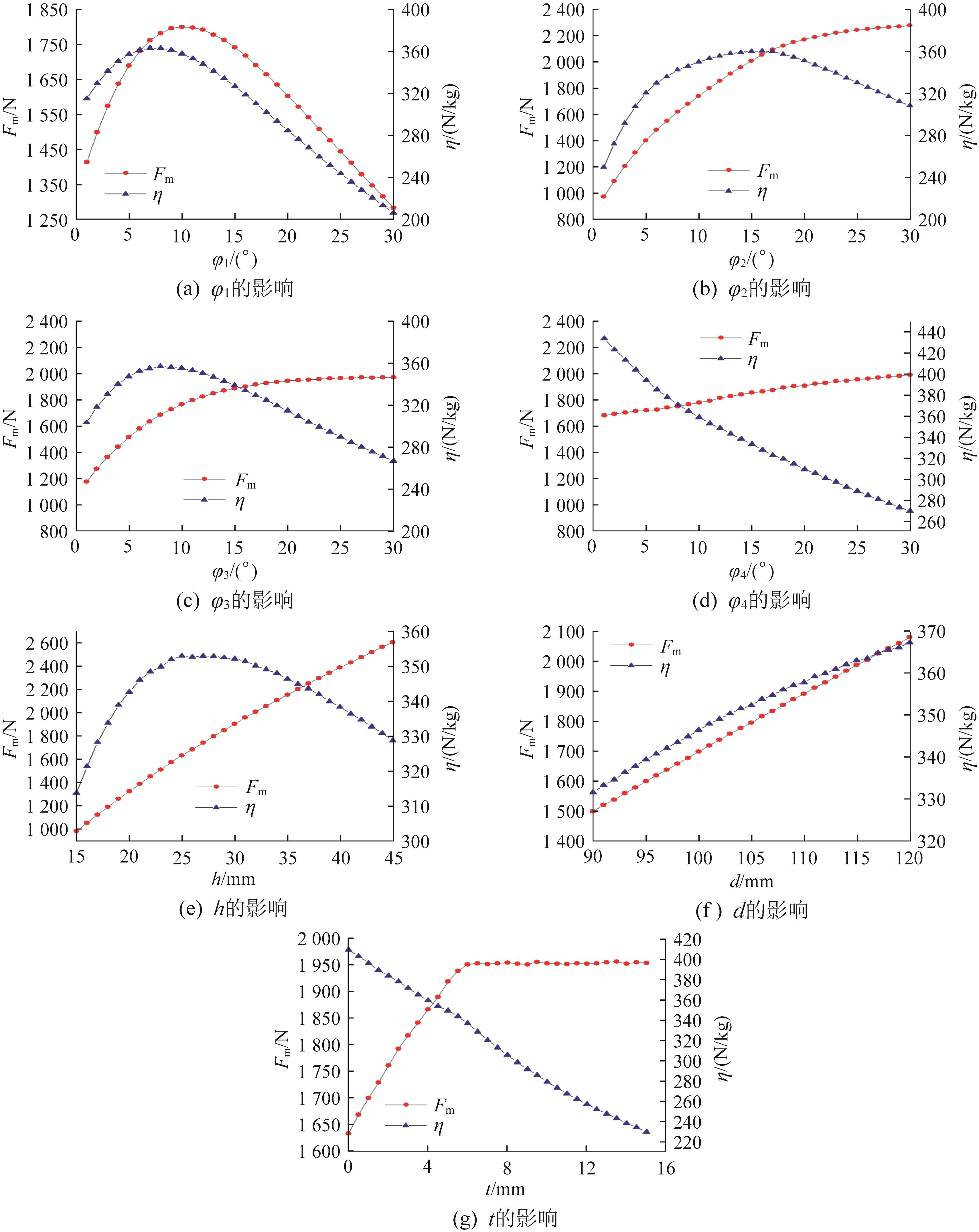

Fig.18 Parameterized analysis results of magnetic adsorption module

参数	优化前	优化后
$φ 1 / °$	11	8
$φ 2 / °$	11	16
$φ 3 / °$	11	10
$φ 4 / °$	11	6
$h / m m$	28	26
d $/ m m$	105	105
t $/ m m$	5	6
$F m / N$	1 796.2	1 833.6
$η / N / k g$	350.7	403.9

Table 4 Optimization results of magnetic adsorption module

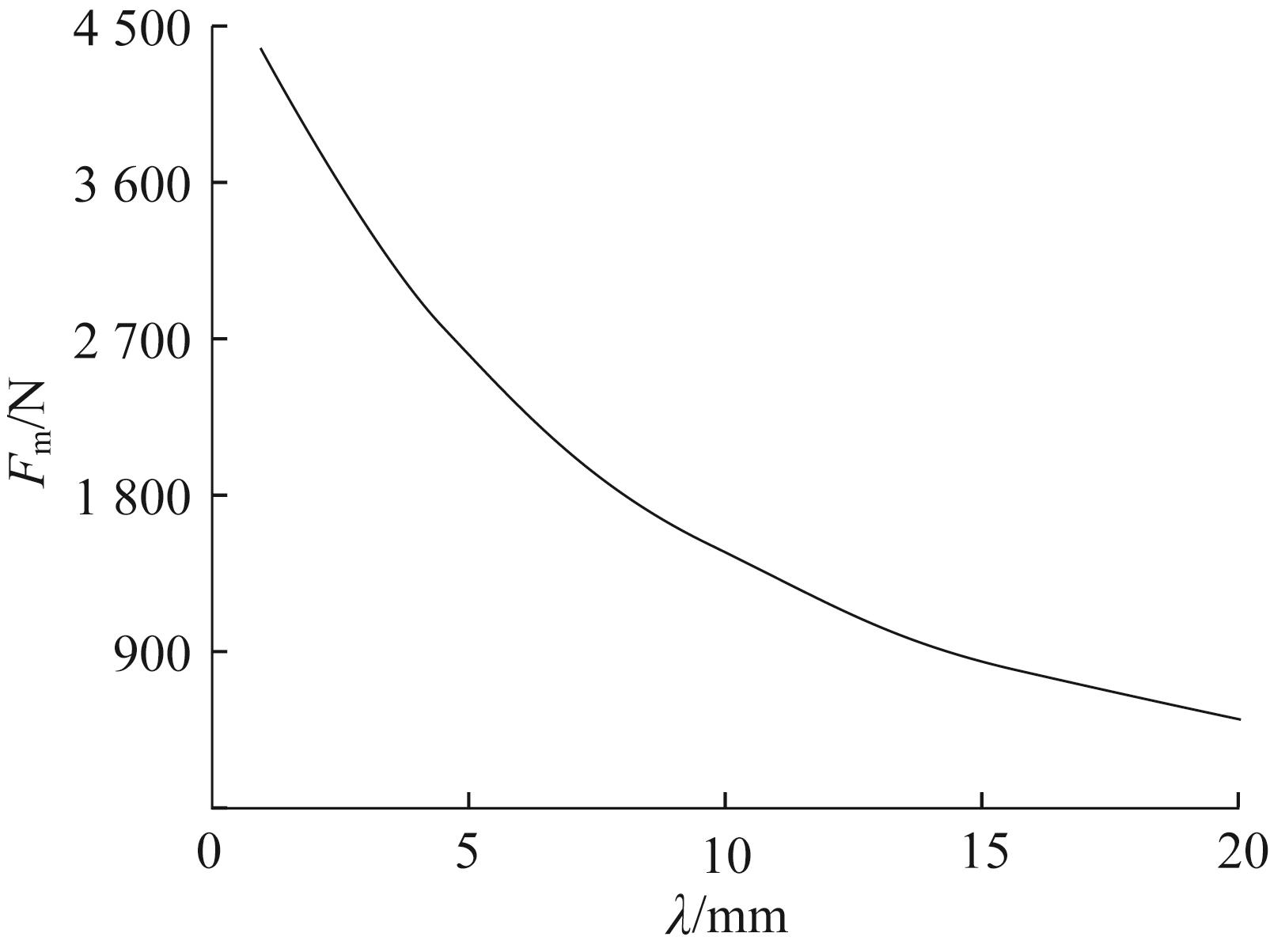

Fig.19 Variation curve of total adsorption force of magnetic adsorption module with clearance from wall

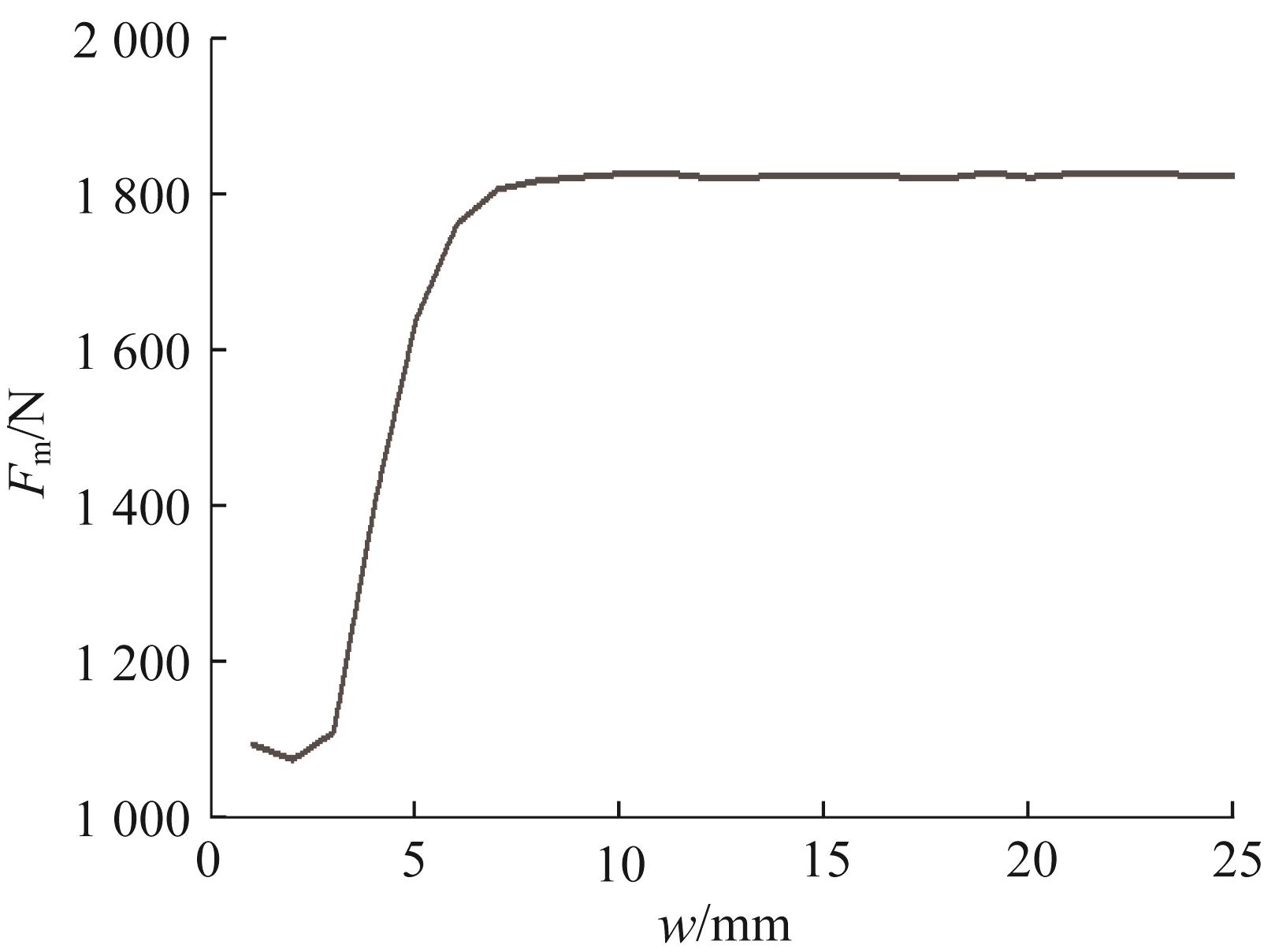

Fig.20 Variation curve of total adsorption force of magnetic adsorption module with wall thickness

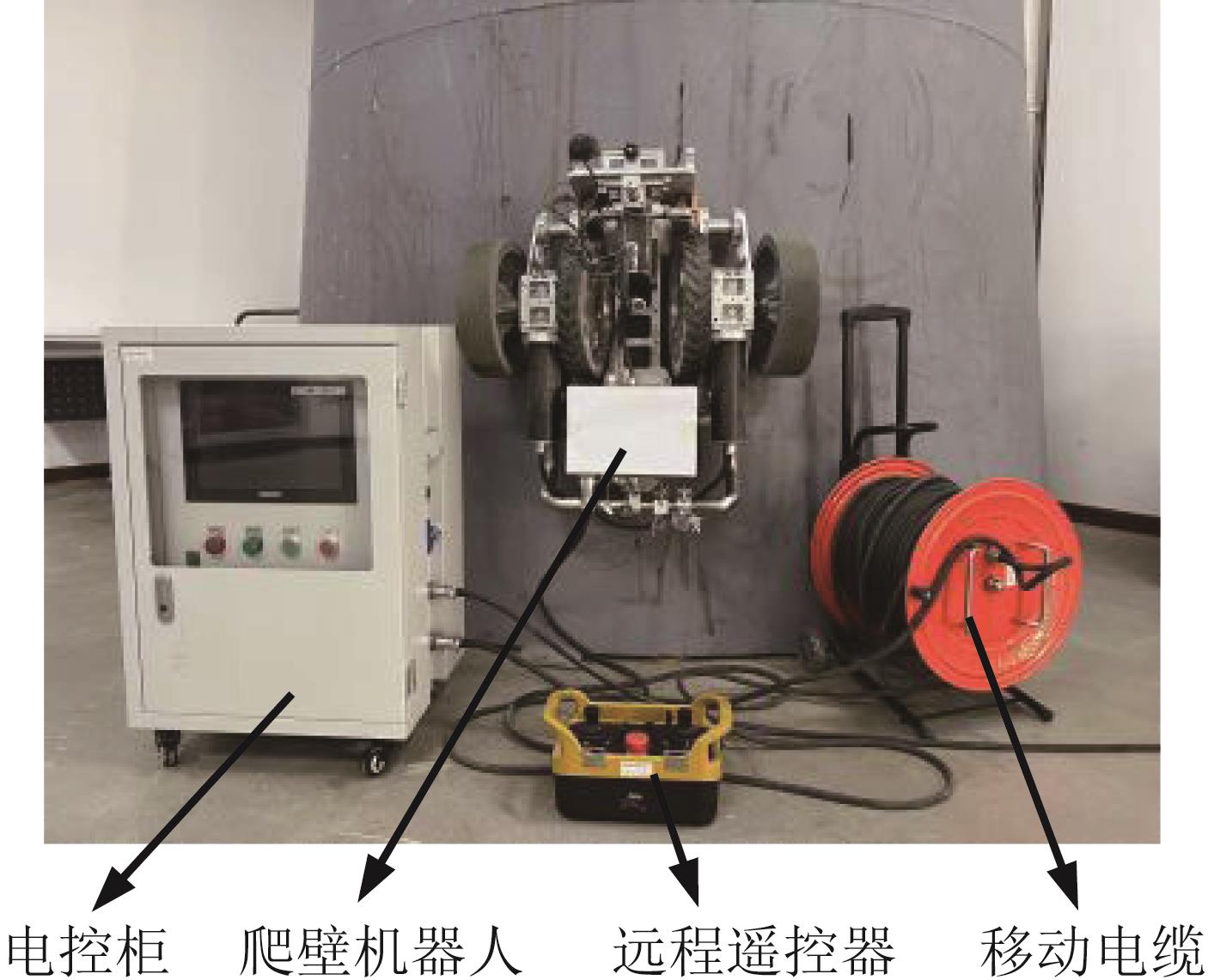

Fig.21 Variable curvature adaptive wall-climbing robot system

参数	数值
机身尺寸^①/(mm $×$ mm $× m m$ )	680 $×$ 500 $×$ 410
质量/kg	55
最大负载/kg	110
载重自重比	2
可适应曲率半径/mm	$≥ 1 ? 500$
最大移动速度/(m/min)	8

Table 5 Parameters of wall-climbing robot

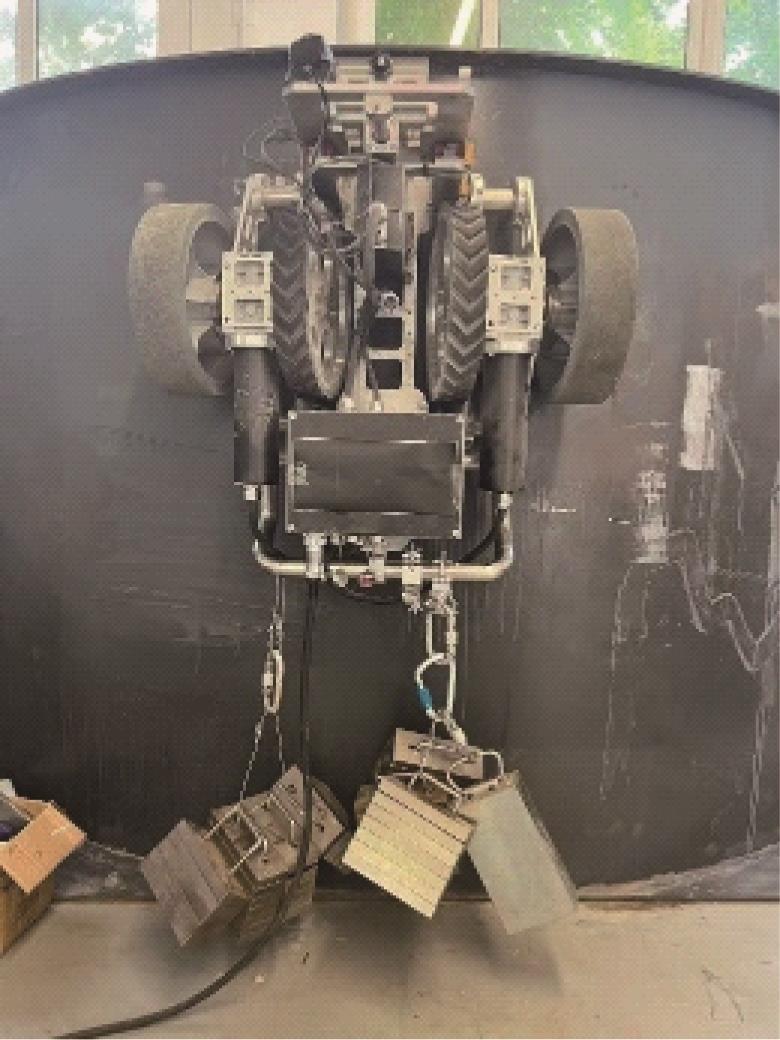

Fig.22 Wall-climbing robot load test site

Fig.23 Variable curvature adaptive motion experiment of wall-climbing robot

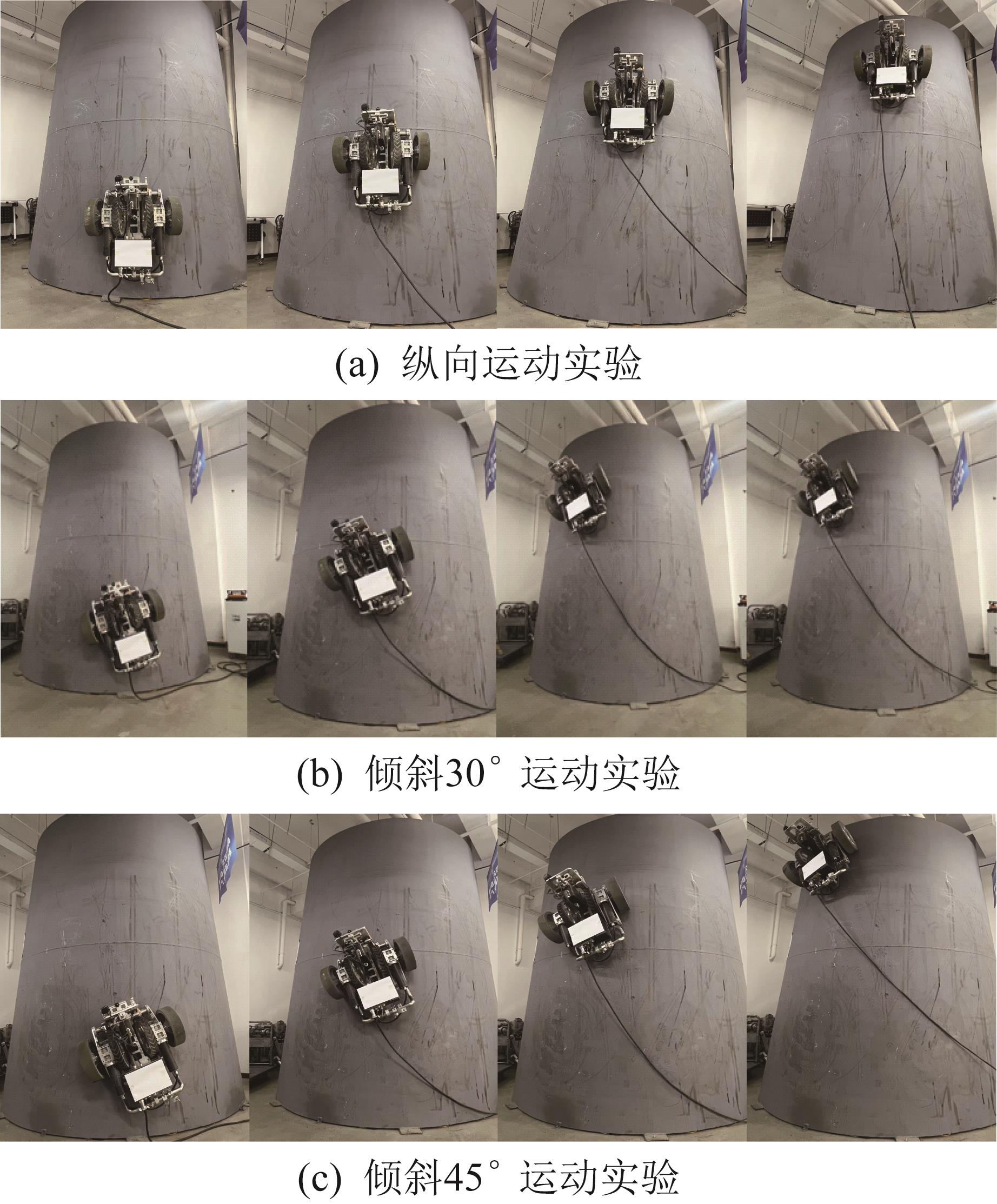

Fig.24 Stability and flexibility test experiment of wall-climbing robot

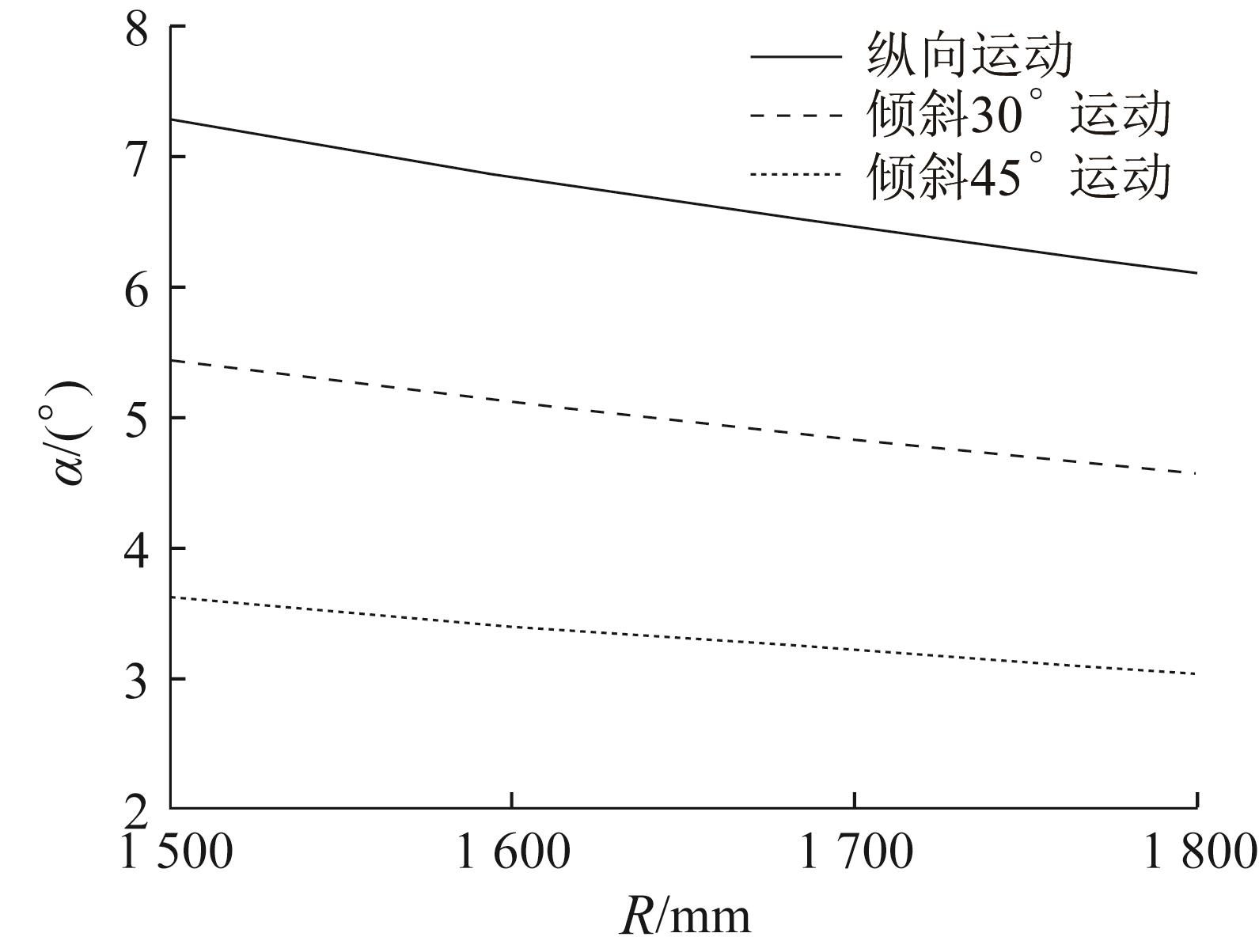

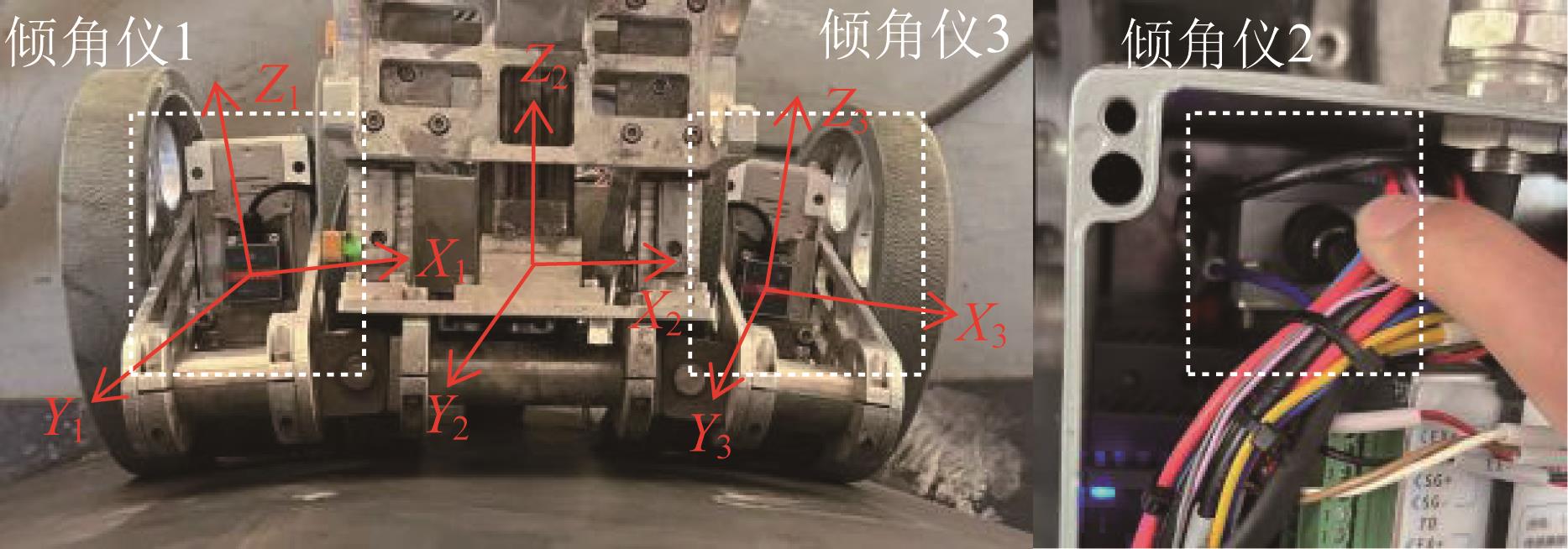

Fig.25 Change of swing angle at the hinge during longitudinal and oblique motion of wall-climbing robot

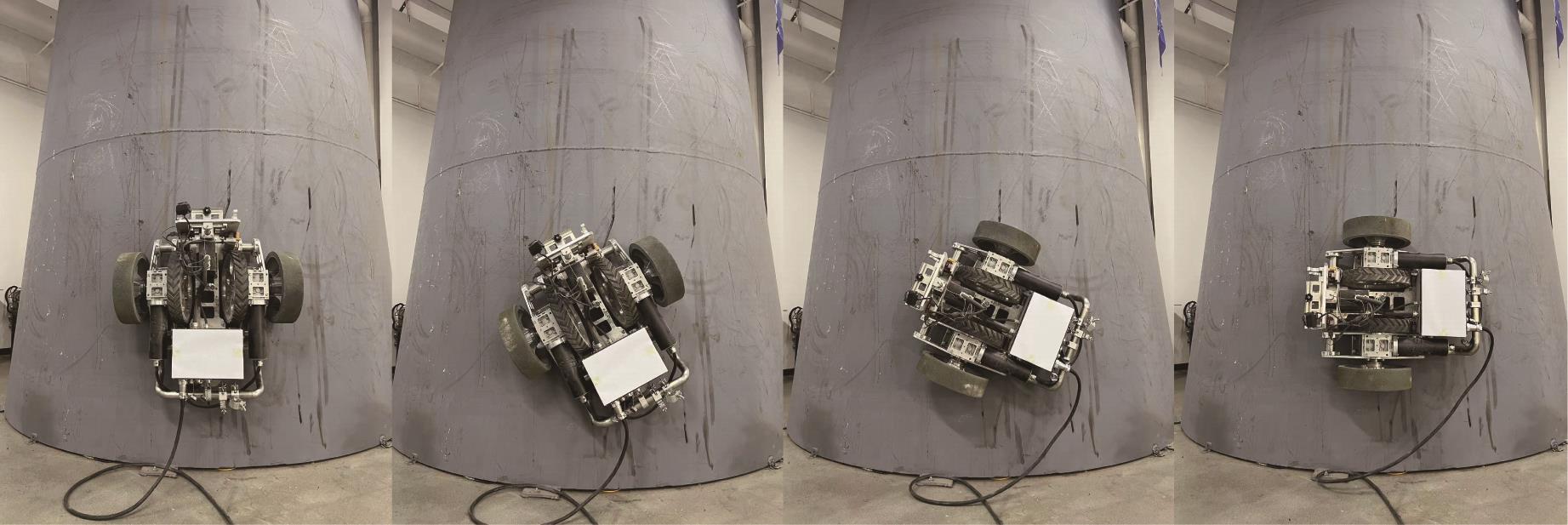

Fig.26 Turning experiment of wall-climbing robot

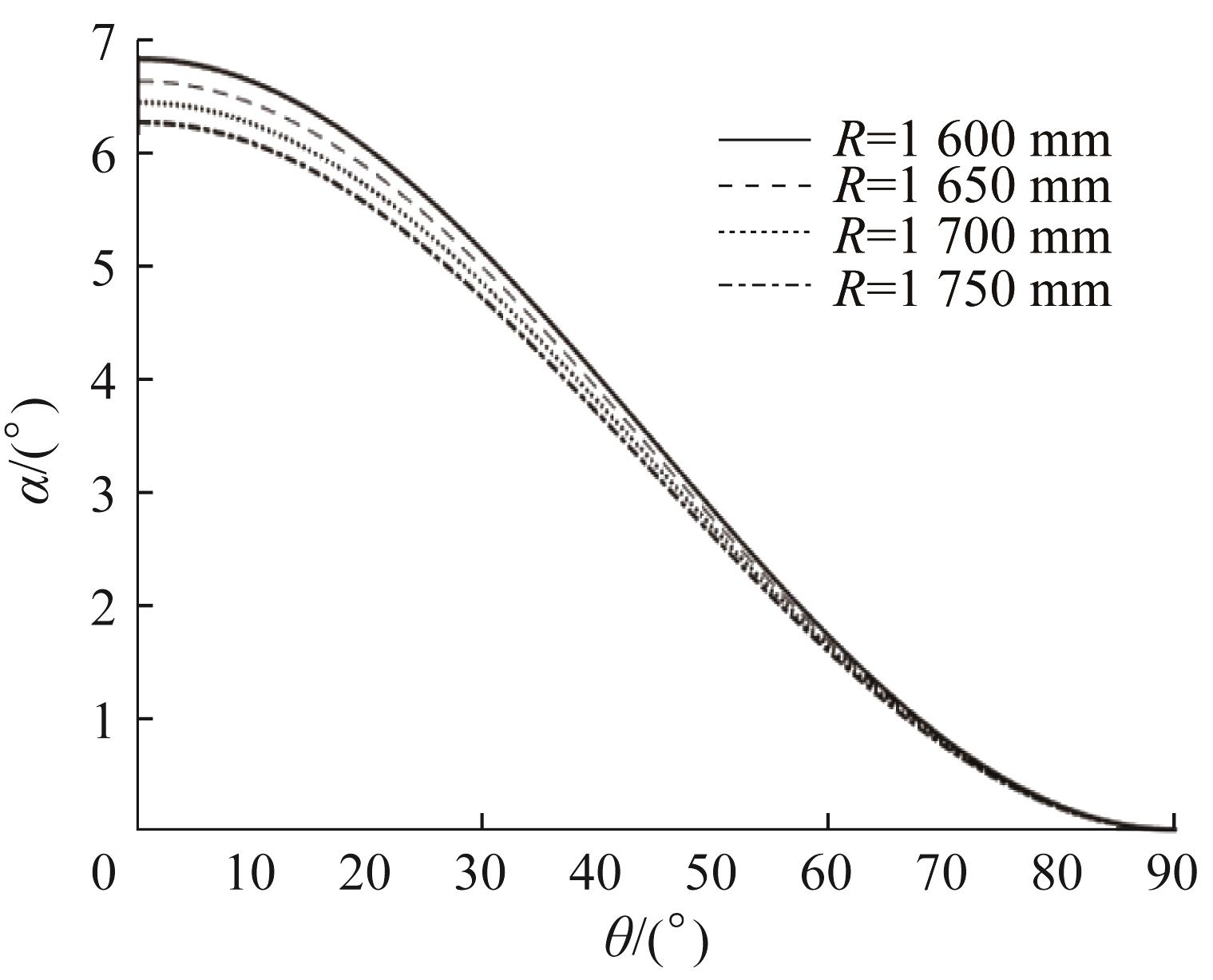

Fig.27 Change of swing angle at the hinge during turning of wall-climbing robot
