Chinese Journal of Engineering Design  2024, Vol. 31 Issue (2): 263-270    DOI: 10.3785/j.issn.1006-754X.2024.03.128
Whole Machine and System Design
Experimental study of vibration characteristics of TBM cutter holder system under typical strata
Yongguang ZHENG1(),Mei YANG2()
1.China Railway Engineering Equipment Group Co. , Ltd. , Zhengzhou 450016, China
2.College of Mechanical and Electrical Engineering, Central South University, Changsha 410083, China
Download: HTML     PDF(4982KB)
Export: BibTeX | EndNote (RIS)

Abstract

During the rock breaking process of tunnel boring machine (TBM) cutter, the cutting stress generated by the strong impact load is transmitted to the cutterhead through the tool holder system, causing severe vibration of the tool holder system, resulting in bolt loosening and breaking, even cutter falling and other serious engineering problems. Therefore, the vibration characteristics of the TBM cutter holder system were studied by rock breaking experiments. The multi-function cutter cutting performance test bench was used to carry out cutter cutting experiments on the red sandstone and granite, and the data of three-directional load and cutter shaft vibration acceleration during the rock breaking process were collected. By comparing and analyzing the load-time history curve of cutter rock breaking under red sandstone and granite strata, the dynamic load change characteristics of cutter holder system during rock breaking and the vibration response characteristics of cutter shaft under different strata were obtained. The research results can provide a theoretical basis for the vibration reduction design of TBM cutter holder system.

Key words： tunnel boring machine      cutter rock breaking      cutter holder system      load characteristics      vibration response
Received: 08 March 2023      Published: 26 April 2024
CLC:  TH 113.1
Corresponding Authors: Mei YANG     E-mail: 15410648@qq.com;183701027@csu.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Yongguang ZHENG
Mei YANG
Cite this article:

Yongguang ZHENG,Mei YANG. Experimental study of vibration characteristics of TBM cutter holder system under typical strata. Chinese Journal of Engineering Design, 2024, 31(2): 263-270.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2024.03.128     OR     https://www.zjujournals.com/gcsjxb/Y2024/V31/I2/263


典型地层下TBM滚刀刀座系统振动特性实验研究

在全断面硬岩隧道掘进机（tunnel boring machine, TBM）滚刀破岩过程中，强冲击载荷下产生的切削应力通过刀座系统传递至刀盘，引起刀座系统剧烈振动，造成螺栓松动断裂甚至滚刀掉落等严重的工程问题。为此，通过开展破岩实验来研究TBM滚刀刀座系统的振动特性。利用多功能刀具切削性能测试实验台开展TBM滚刀切削红砂岩和花岗岩的实验，并采集滚刀破岩过程中的三向载荷和刀轴振动加速度数据。通过对比分析红砂岩和花岗岩地层下滚刀破岩的载荷—时间历程曲线，得到破岩过程中滚刀刀座系统载荷的动态变化特性，以及不同地层下滚刀刀轴的振动响应特性。研究结果可为TBM滚刀刀座系统的减振设计提供理论依据。


关键词： 全断面硬岩隧道掘进机,  滚刀破岩,  滚刀刀座系统,  载荷特性,  振动响应
Fig.1 Multi-function cutter cutting performance test bench
Fig.2 Rock breaking load test system for cutter

岩石

类型

单轴抗压强度/MPa单轴抗拉强度/MPa弹性模量/GPa

密度/

(g/cm3)

红砂岩53.93.6623.12.23
花岗岩100.55.6711.82.66
Table 1 Mechanical parameters of red sandstone and granite

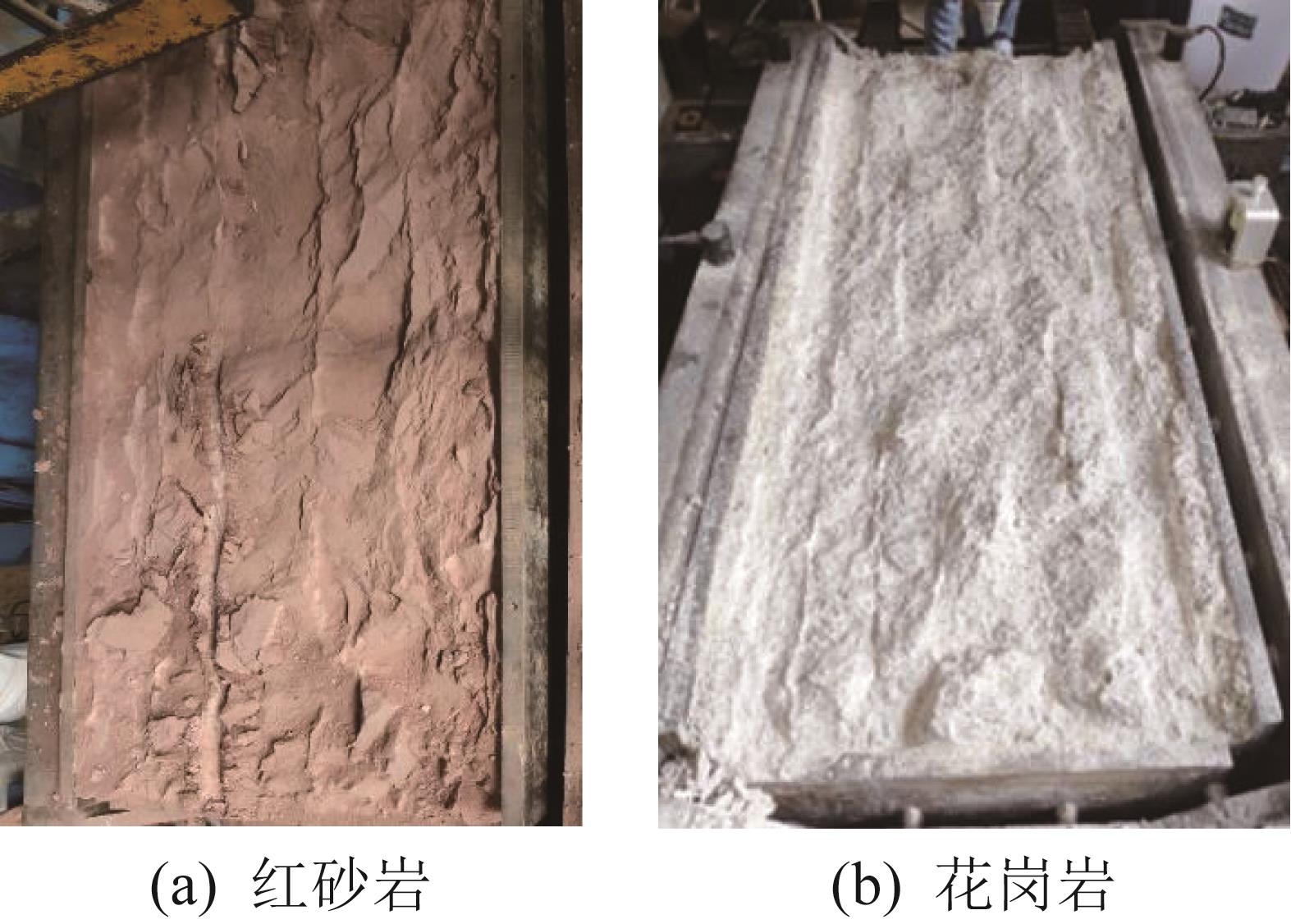

Fig.3 Fracture morphology of red sandstone and granite

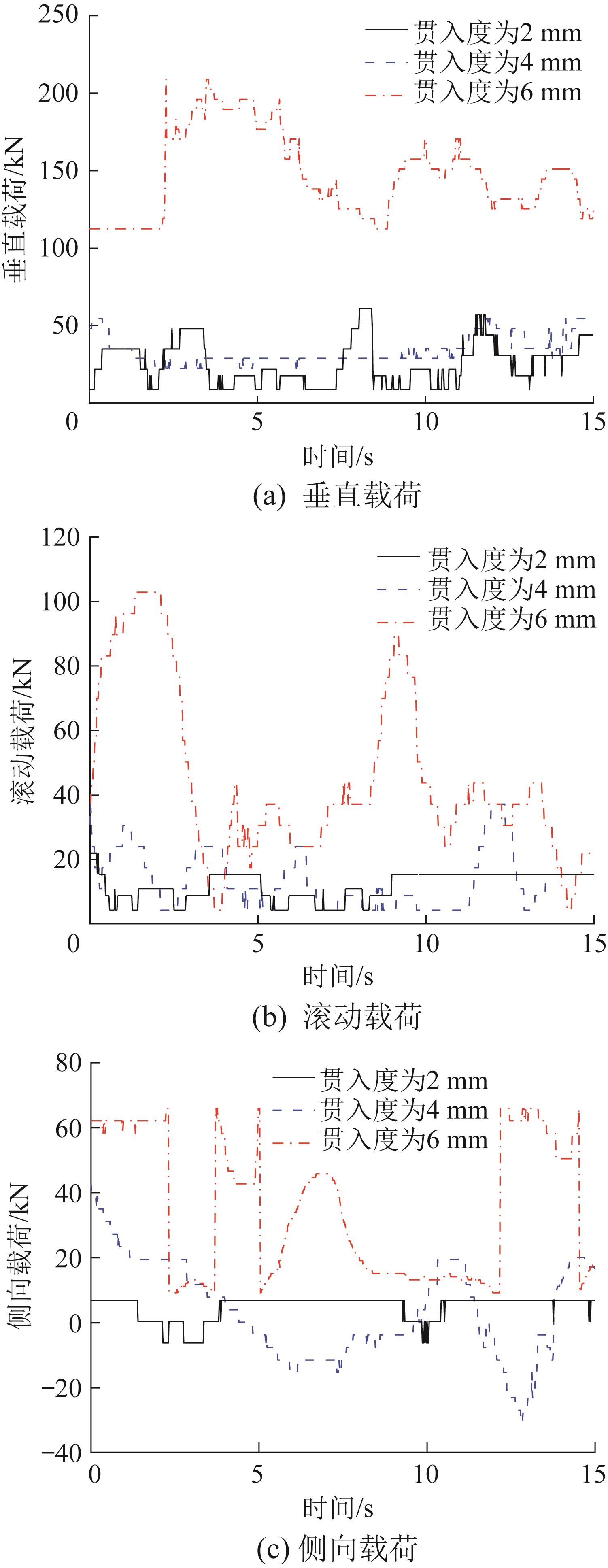

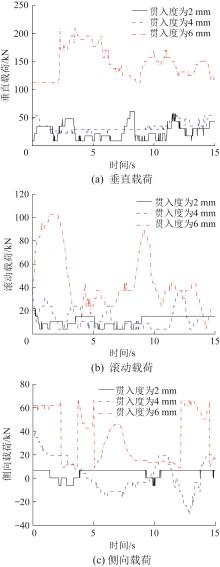

Fig.4 Dynamic variation curves of three-directional load of cutter during cutting red sandstone

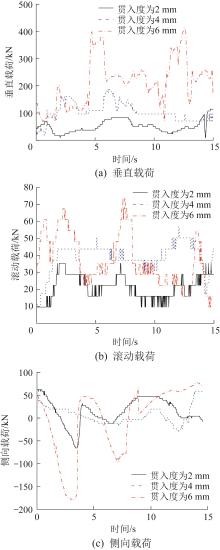

Fig.5 Dynamic variation curves of three-directional load of cutter during cutting granite
Fig.6 Vibration acceleration variation curves of cutter shaft during cutting red sandstone

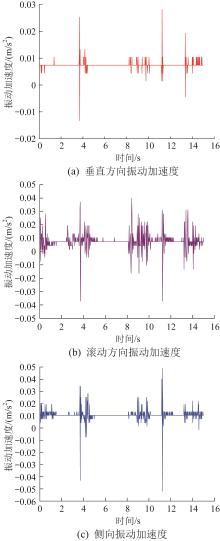

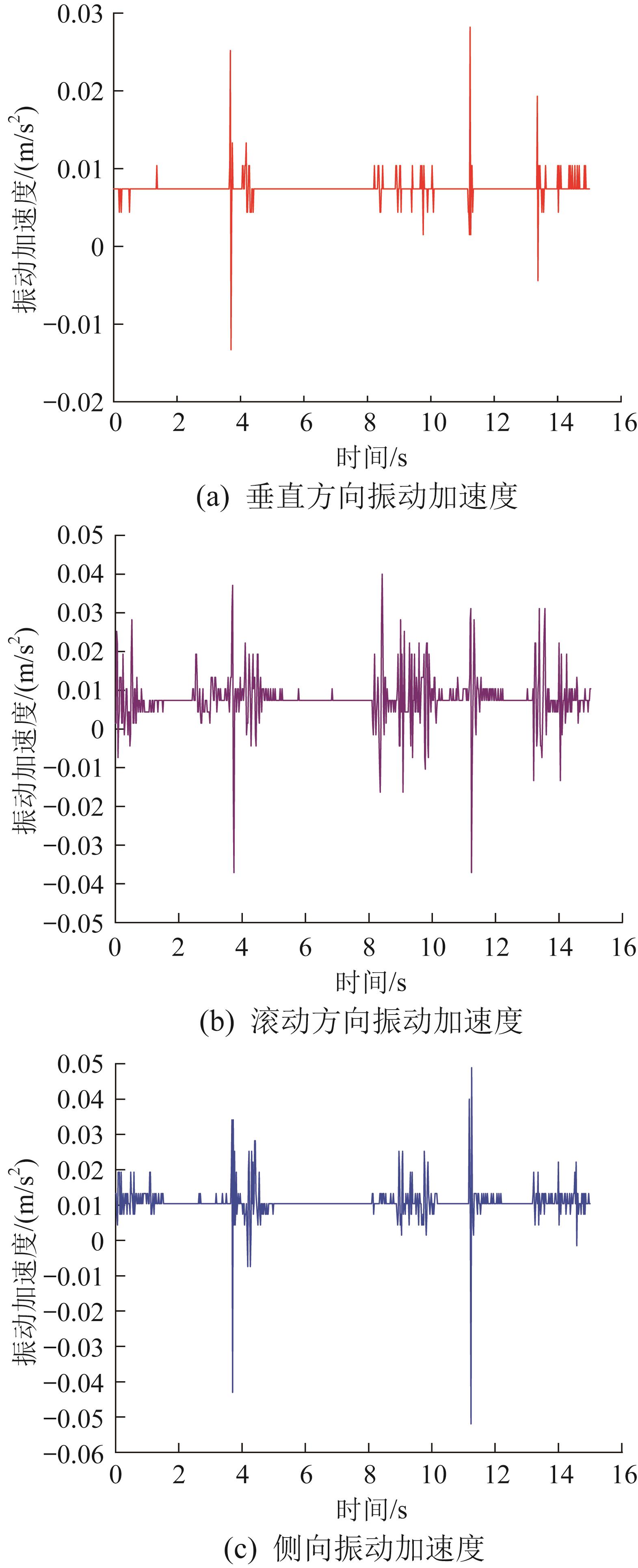

Fig.7 Vibration acceleration variation curves of cutter shaft during cutting granite

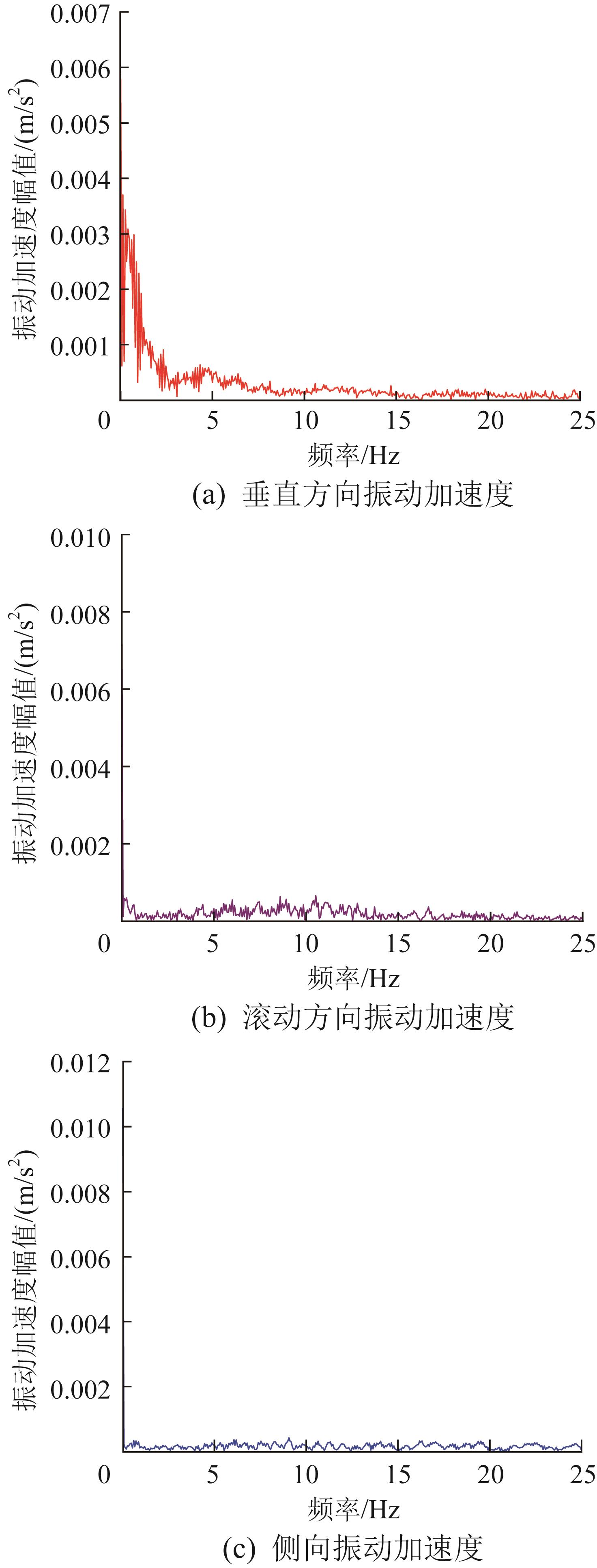

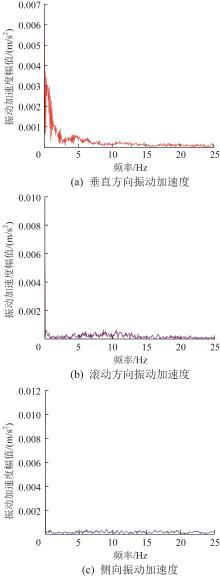

Fig.8 Frequency domain curves of vibration acceleration of cutter shaft during cutting red sandstone

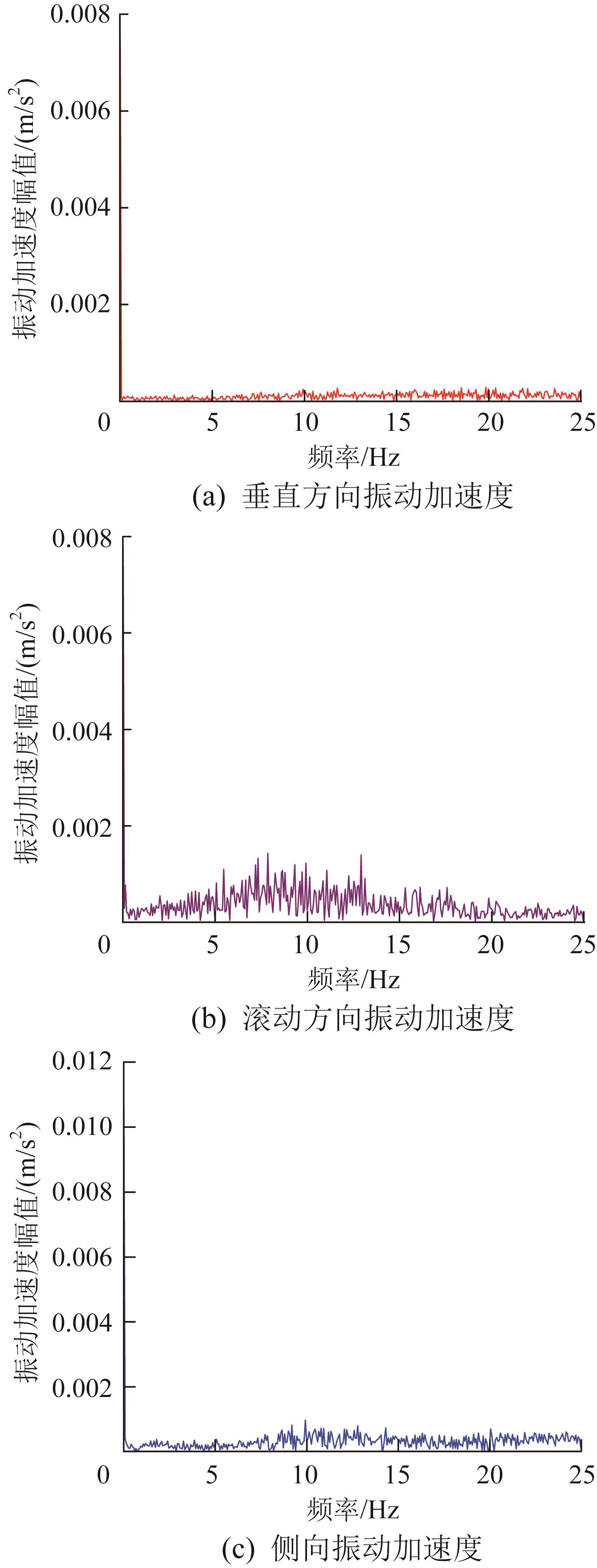

Fig.9 Frequency domain curves of vibration acceleration of cutter shaft during cutting granite
[1]   夏毅敏，柯杰，齐梦学，等.TBM掘进参数与不同岩性地层相关性分析［J］.东北大学学报（自然科学版），2021，42（3）：401-407，421.
XIA Y M， KE J， QI M X， et al. Correlation analysis of TBM operating parameters and different lithologic strata［J］. Journal of Northeastern University （Natural Science）， 2021， 42（3）： 401-407， 421.
[2]   王鲁琦，刘海宁，李苗，等.复合地层下盾构施工模态系统刀盘荷载及振动特性研究［J］.隧道建设，2017，37（1）：103-112. doi：10.3973/j.issn.1672-741X.2017.01.017
WANG L Q， LIU H N， LI M， et al. Study of vibration and loads characteristics of modal cutterhead of shield boring in composite ground［J］. Tunnel Construction， 2017， 37（1）： 103-112.
doi: 10.3973/j.issn.1672-741X.2017.01.017
[3]   洪开荣.超长深埋高地应力TBM隧道修建关键技术［J］.铁道学报，2022，44（3）：1-23. doi：10.3969/j.issn.1001-8360.2022.03.001
HONG K R. Key technology for construction of ultra-long and deep-buried TBM tunnels with high geostress［J］. Journal of the China Railway Society， 2022， 44（3）： 1-23.
doi: 10.3969/j.issn.1001-8360.2022.03.001
[4]   张晓波，刘泉声，张建明.TBM掘进刀具磨损实时监测技术及刀盘振动监测分析［J］.隧道建设，2017，37（3）：380-385.
ZHANG X B， LIU Q S， ZHANG J M. Real-time monitoring technology for wear of cutters and monitoring and analysis of cutterhead vibration of TBM［J］. Tunnel Construction， 2017， 37（3）： 380-385.
[5]   刘晓丽，孙欢，董勤喜，等.深埋引水隧洞极硬岩TBM掘进及辅助破岩技术［J］.清华大学学报（自然科学版），2022，62（8）：1292-1301.
LIU X L， SUN H， DONG Q X， et al. Extremely hard rock mass excavation using rock breakdown methods to assist TBM in a deep， long diversion tunnel in the Qinling Mountains［J］. Journal of Tsinghua University （Science and Technology）， 2022， 62（8）： 1292-1301.
[6]   霍军周，孙晓龙，李广庆，等.滑动支撑的新型滚刀设计及其动态性能［J］.哈尔滨工程大学学报，2015，36（11）：1509-1514. doi：10.11990/jheu.201407063
HUO J Z， SUN X L， LI G Q， et al. Design and dynamic performance of new hob with sliding support［J］. Journal of Harbin Engineering University， 2015， 36（11）： 1509-1514.
doi: 10.11990/jheu.201407063
[7]   LIN L K， XIA Y M， LI Z G， et al. Dynamic characteristics analysis with multi-directional coupling in a TBM mainframe［J］. Chinese Journal of Mechanical Engineering， 2019， 32（6）： 58-69.
[8]   HUO J Z， WU H Y， SUN W， et al. Electromechanical coupling dynamics of TBM main drive system［J］. Nonlinear Dynamics， 2017， 90（4）： 2687-2710.
[9]   HUO J Z， ZHANG Z G， MENG Z C， et al. Dynamic analysis and experimental study of a tunnel boring machine testbed under multiple conditions［J］. Engineering Failure Analysis， 2021， 127： 105557.
[10]   LI X H， YU H B， YUAN M Z， et al. Dynamic modeling and analysis of shield TBM cutterhead driving system［J］. Journal of Dynamic Systems， Measurement， and Control， 2010， 132（4）： 044504.
[11]   WERNER B. Hard rock cutterhead design［C］// Proceedings of the North American Tunneling 2006 Conference. Chicago， Jun. 10-15， 2006.
[12]   ENTACHER M， WINTER G， GALLER R. Cutter force measurement on tunnel boring machines-implementation at Koralm Tunnel［J］. Tunnelling and Underground Space Technology， 2013， 38（9）： 487-496.
[13]   NING B， LIU H， CUI J B， et al. Failure analysis of center cutter mount in shield machine under tuff layer［J］. Engineering Failure Analysis， 2020， 117： 104940.
[14]   ZHU D， CHEN K， HUANG X Q， et al. Finite element analysis of a new welding structure of cutter mount in TBM［C］// International Conference on Mechanics & Mechanical Engineering. Chengdu， Dec. 16-18， 2016.
[15]   凌静秀，孙伟，杨晓静，等.多点分布载荷下TBM刀盘系统振动响应分析［J］.工程设计学报，2017，24（3）：317-322. doi：10.3785/j.issn.1006-754X.2017.03.011
LING J X， SUN W， YANG X J， et al. Vibration response analysis of TBM cutterhead system under multi-point distributed loads［J］. Chinese Journal of Engineering Design， 2017， 24（3）： 317-322.
doi: 10.3785/j.issn.1006-754X.2017.03.011
