In response to the issue of target disappearing when a mobile robot is following a target, a robot target following system based on visual tracking and autonomous navigation is proposed. The robot following problem was divided into two cases: regular following when the target was within the robot's field of view, and autonomous navigation after the target disappeared. For the former case, the target's motion state was predicted using a Kalman filter, appearance features were extracted using a pedestrian re-identification network, and target tracking was performed by fusing motion information and appearance features using data association fusion. Servo control was then applied for following the target. For the latter case, an autonomous navigation algorithm was adopted based on the relative position between the historical target and the robot. The robot moved to the history position of the target and searched the target, aiming to increase the success rate of the target following. Evaluations were conducted on the OTB100 benchmark dataset and a target following test dataset which was in robot application scenarios. Experiments were performed on a mobile robot platform. The results showed that the robot could follow the target in the environment with different lighting conditions and more background pedestrians, which verified the robustness and effectiveness of the proposed algorithm, and it could meet the real-time requirement. The research results can provide reference for research on the problem of robot refollowing after the target disappears.
Rui ZHANG,Wanyue JIANG. Mobile robot target following system based on visual tracking and autonomous navigation. Chinese Journal of Engineering Design, 2023, 30(6): 687-696.
Fig.2 Framework of mobile robot target following system

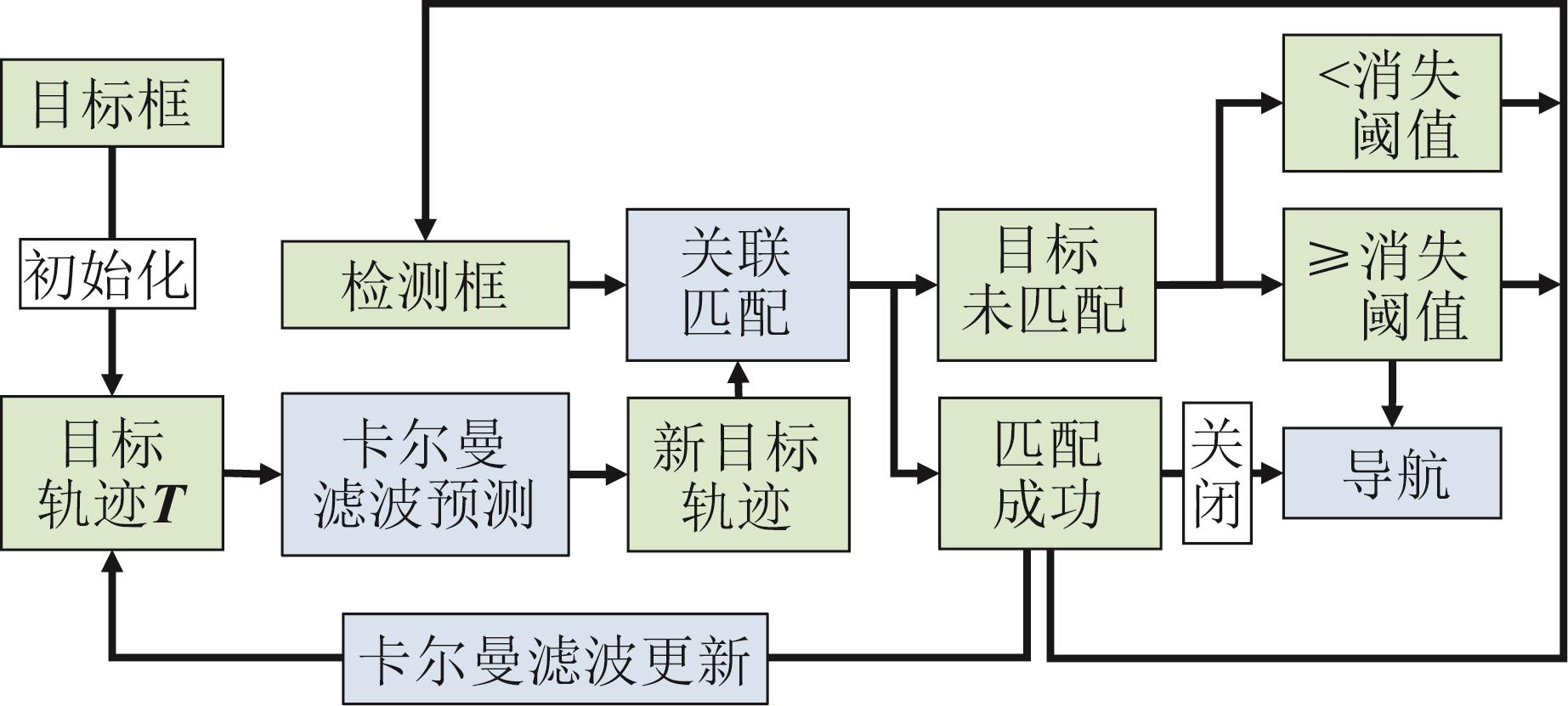

Fig.3 Target tracking process

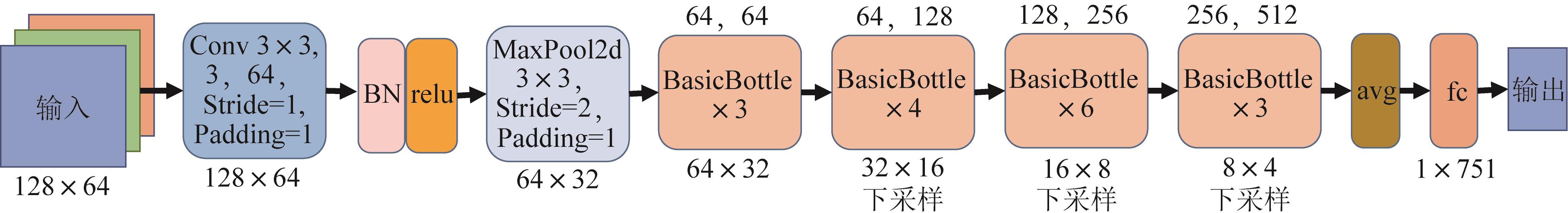

Fig.4 Structure of appearance feature extraction network

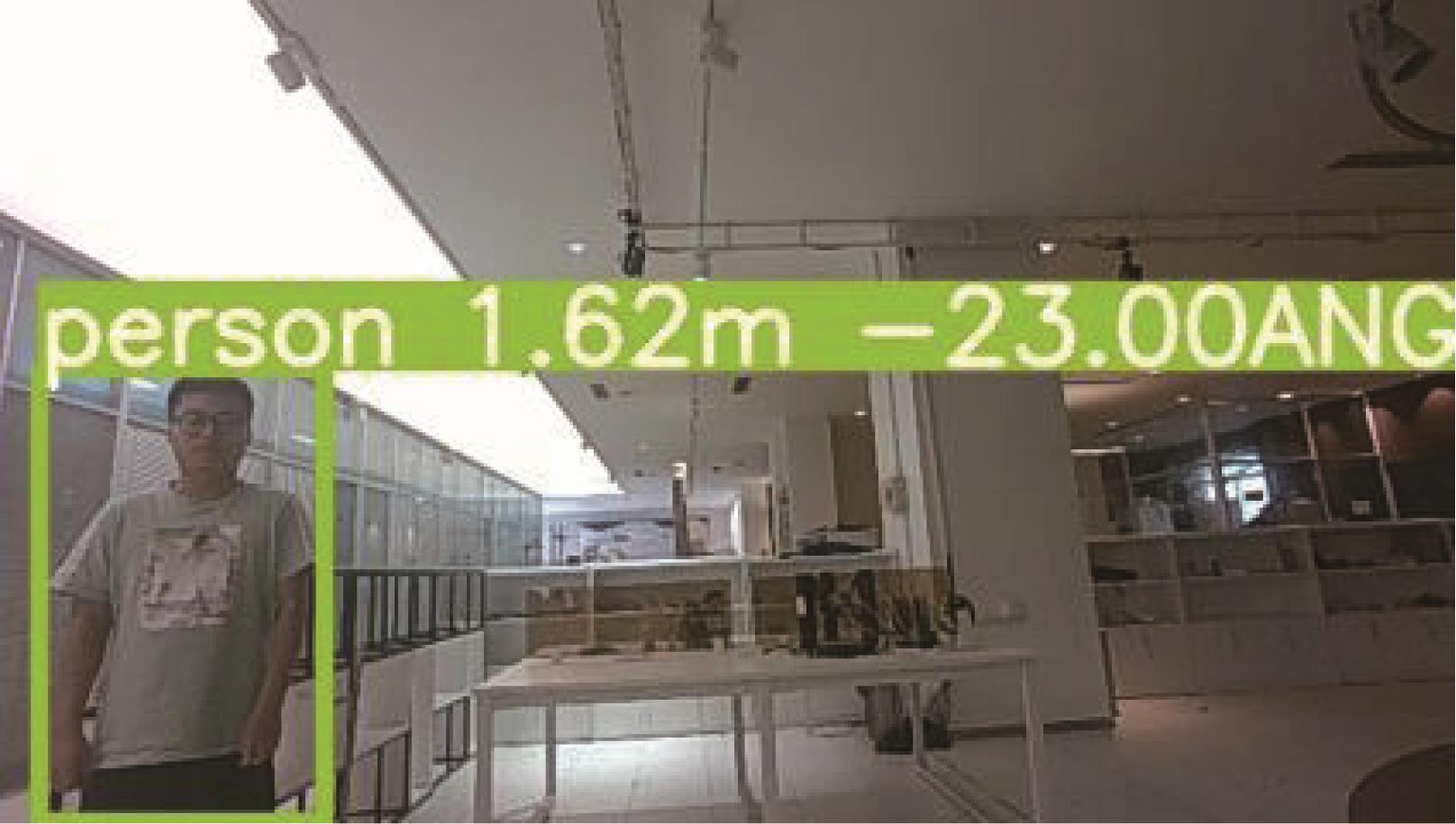

Fig.5 Schematic of distance and angle of target measured by depth camera

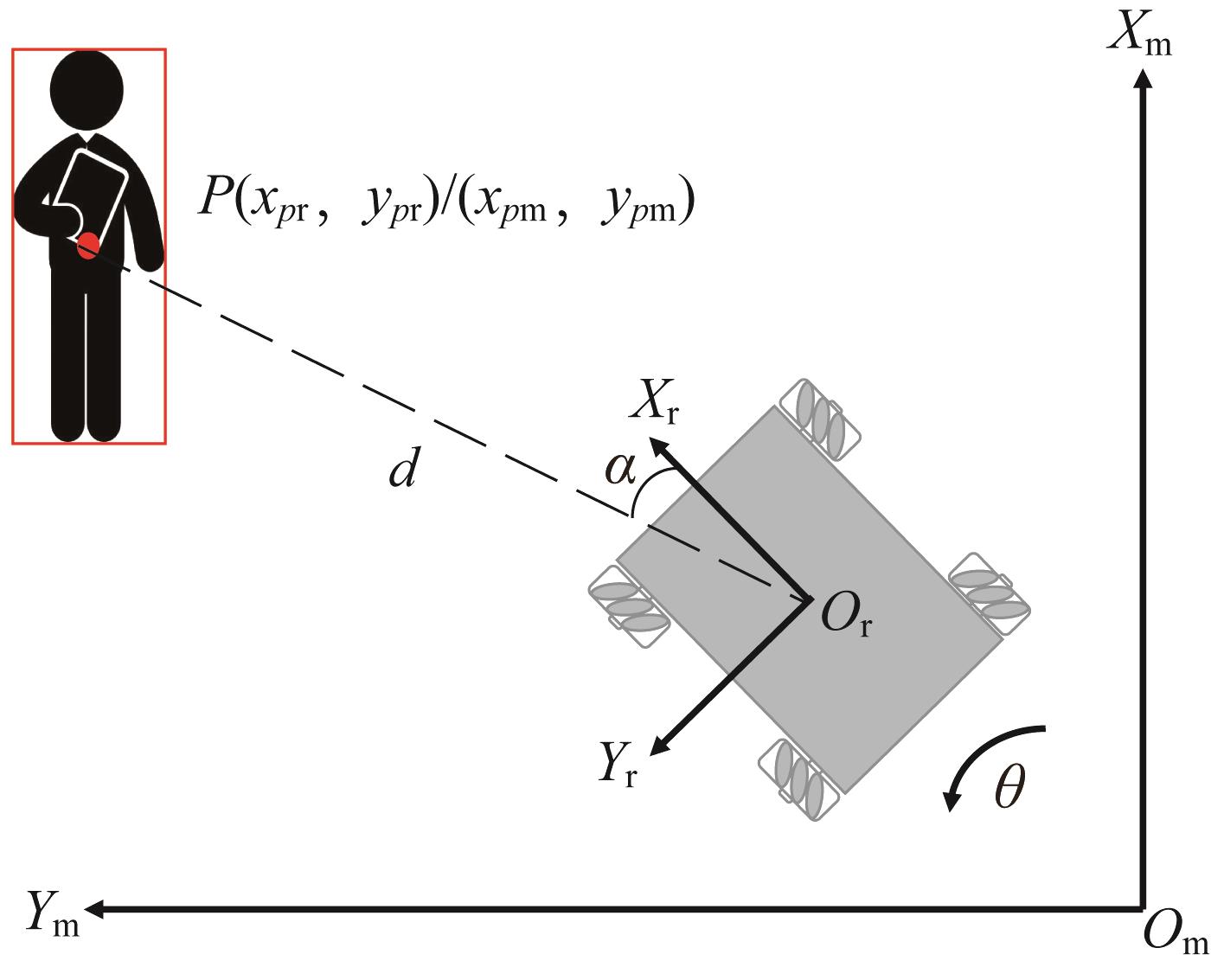

Fig.6 Transformation of robot coordinate system and world coordinate system

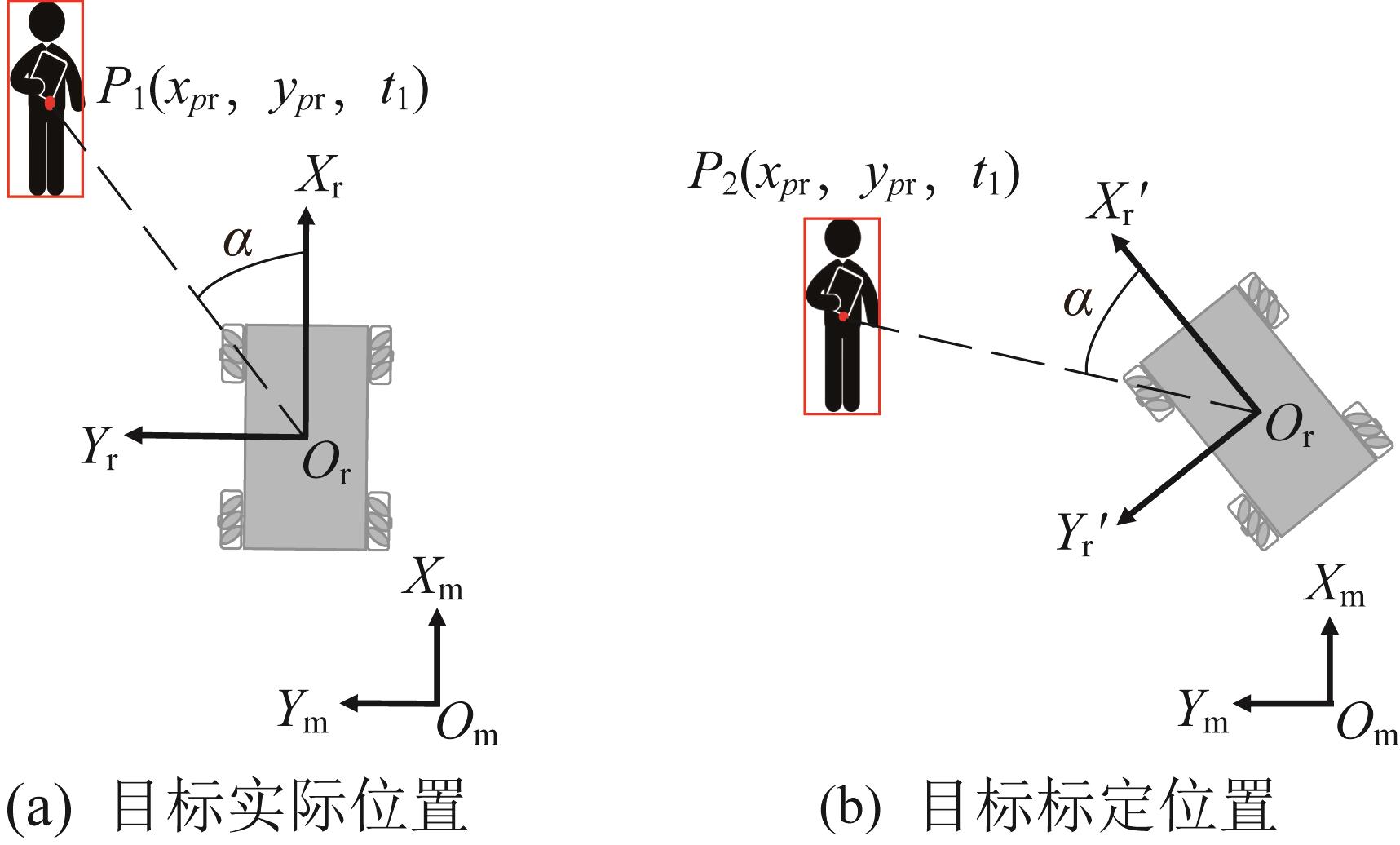

Fig.7 Target positioning deviation after robot offset
参数组序号
运动信息
权重
关联
阈值
外观特征库
更新阈值
1
0.005
0.175
0.15
2
0.005
0.165
0.12
Table 1Parameter values for the algorithm in this paper

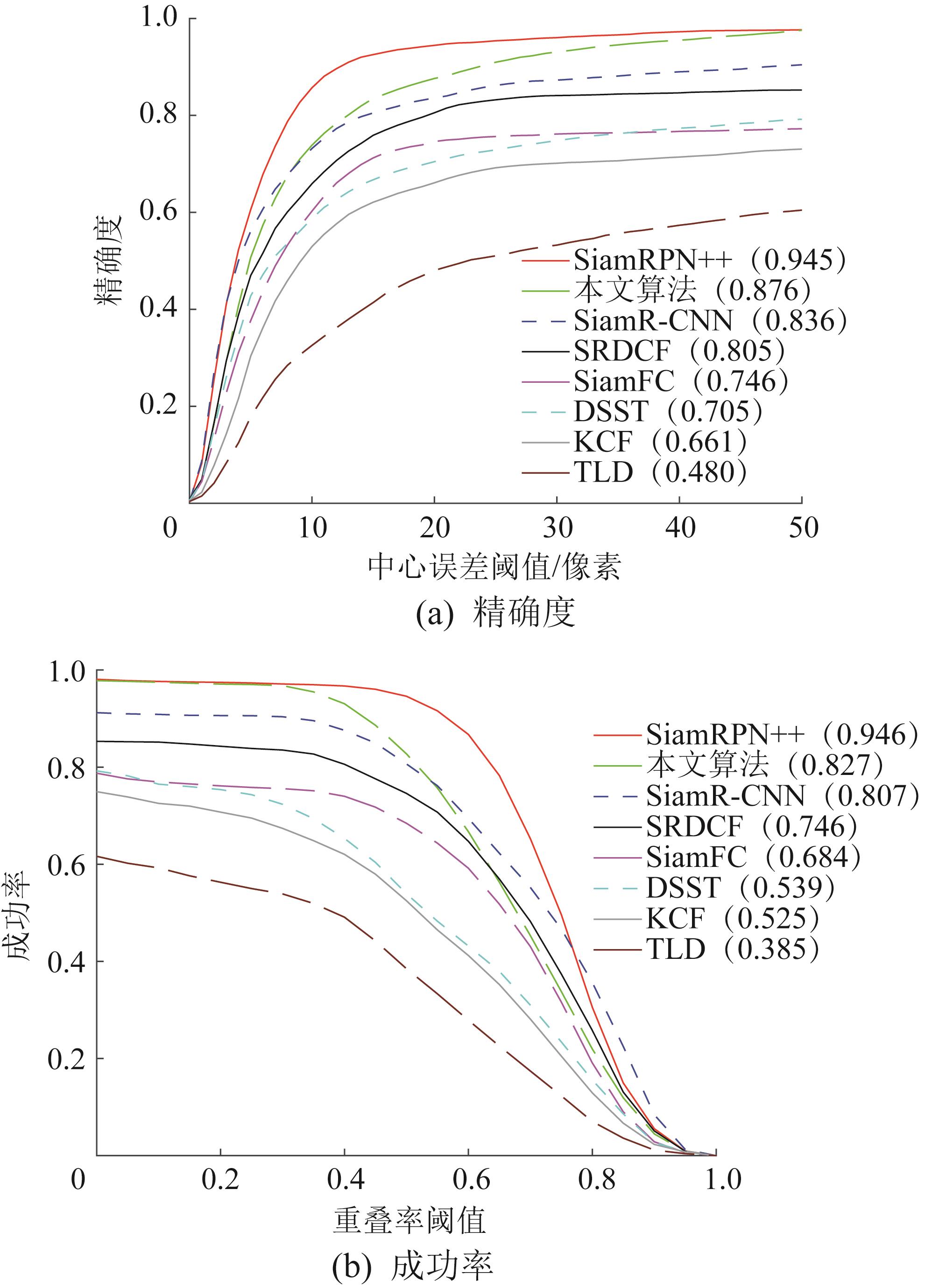

Fig.8 Tracking performance of different algorithms in OTB100 dataset
Fig.9 Tracking effect of the algorithm in this paper on the target in the data stream

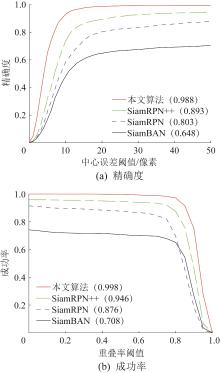

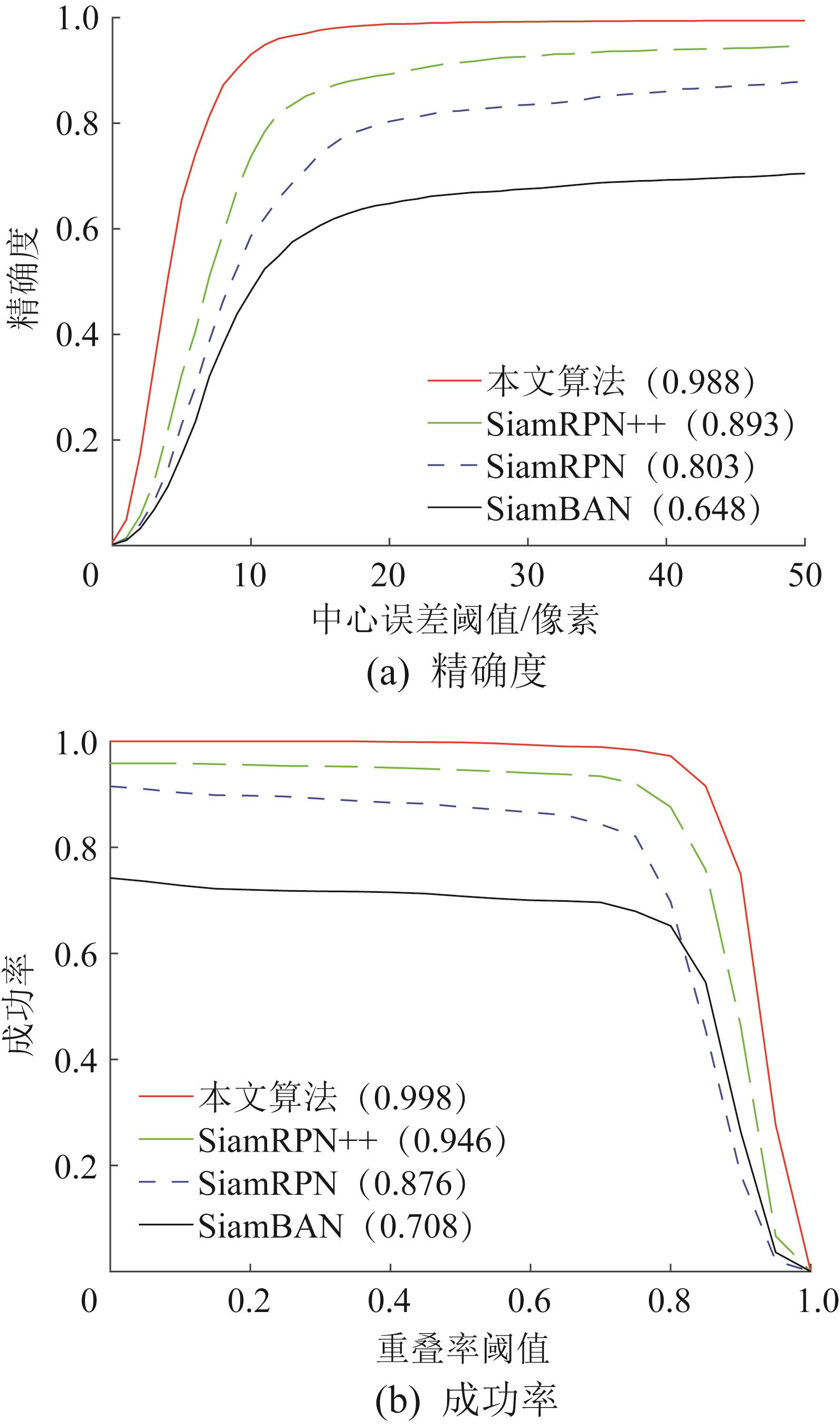

Fig.10 Tracking performance of different algorithms in the collected data stream

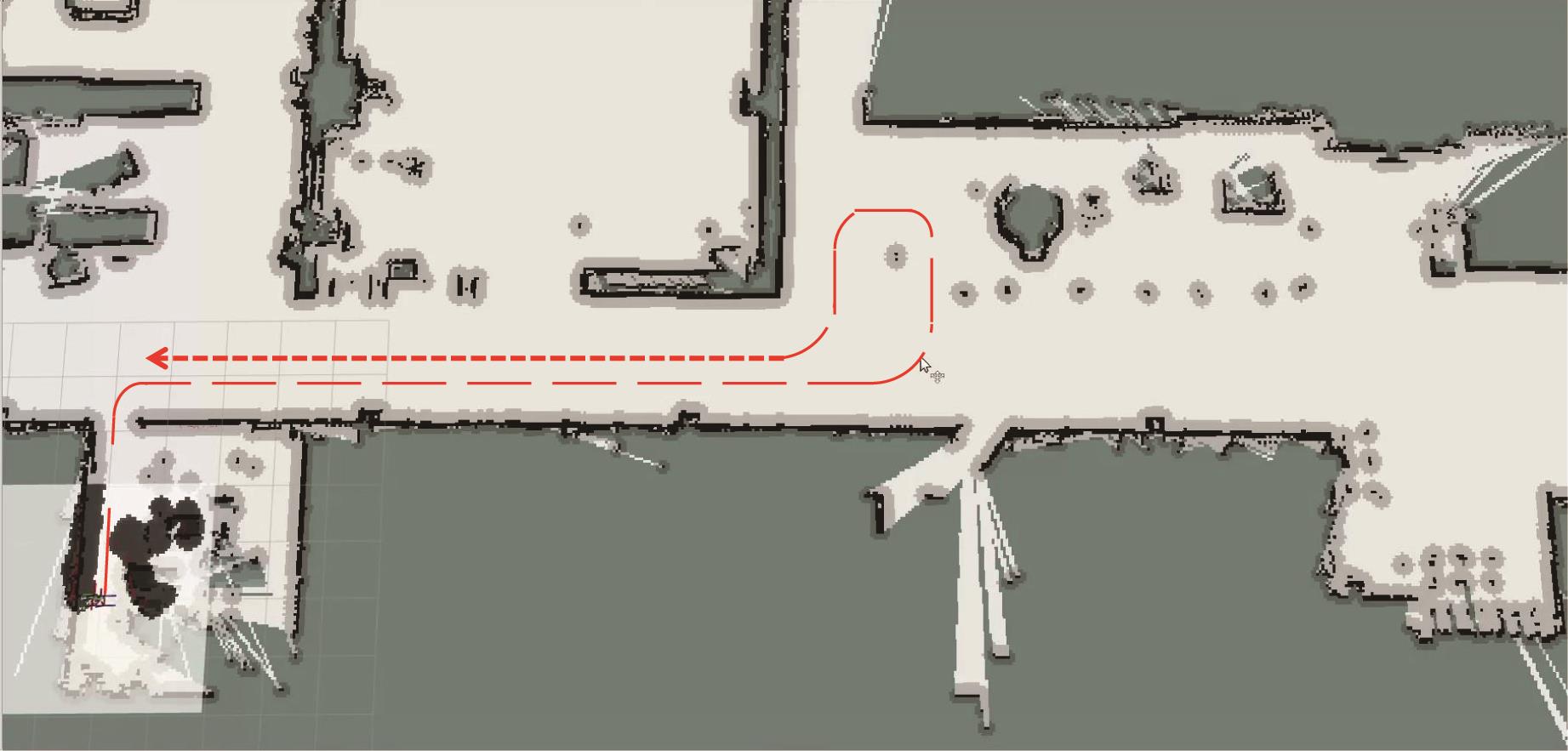

Fig.11 Predefined target walking path
Fig.12 Following effect from robot camera's perspective
Fig.13 Mobile robot following effect

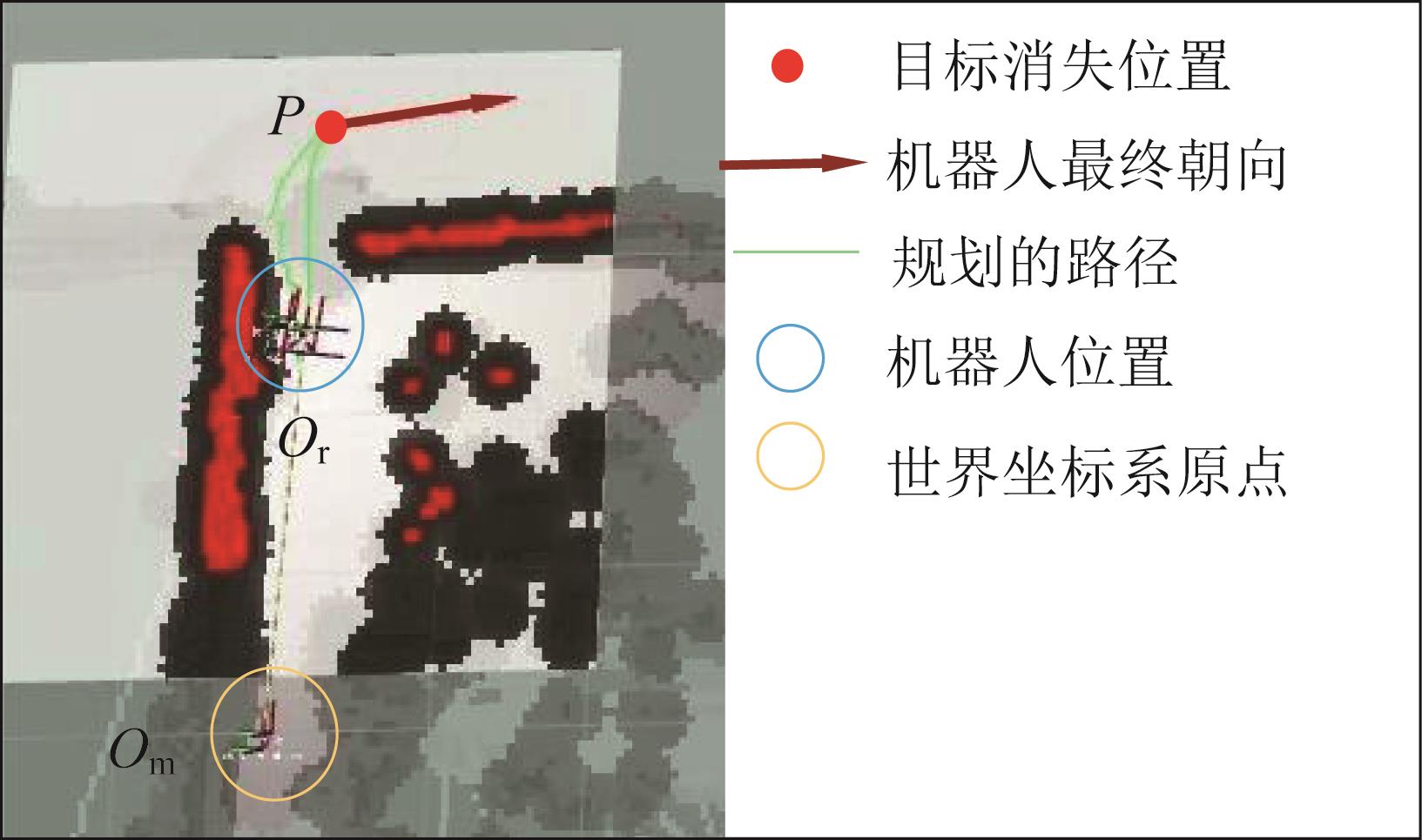

Fig.14 Robot looking for the disappearing target
