工程设计学报
Chin J Eng Design  2023, Vol. 30 Issue (2): 189-199    DOI: 10.3785/j.issn.1006-754X.2023.00.029
Design for Quality
Variable-direction multi-terrain mobile full R pair parallel robot
Chunyan ZHANG1(),Yiwen JIANG1,Jie YANG1,Xinxing JIANG2
1.School of Mechanical and Automotive Engineering, Shanghai University of Engineering Science, Shanghai 201600, China
2.Huahong Semiconductor Co. , Ltd. , Wuxi 214142, China
Download: HTML     PDF(7772KB)
Export: BibTeX | EndNote (RIS)

Abstract

In order to improve the ability of parallel robots to adapt to multiple complex terrain environments, a variable-direction multi-terrain mobile full R pair parallel robot was proposed by combining the advantages of reconfigurable parallel robots and multi-motion mode mobile robots. Based on the spatial axis relation of adjacent kinematic pairs, a closed chain mechanism with three-direction rotation ability was constructed by taking the planar single-ring 4R mechanism as the body. Based on the orthogonal spatial geometric relation, two closed chains with full R pairs were formed into an omni-directional mobile parallel mechanism which could realize multiple rolling modes through geometric deformation and self-reconstruction. Then, the degree of freedom analysis and verification, gait planning simulation and motion control design for the designed parallel robot were carried out. Finally, the robot prototype was made to verify the feasibility of the robot design scheme and its motion mode through experiments. The results showed that using geometric deformation and self-reconstruction could improve the ability of parallel robots to adapt to multiple complex terrain environments. The research results can provide a new idea for the design of multi-mode parallel mobile robots.

Key words： variable-direction mobile      full R pair parallel robot      multi-terrain mobile      motion control design
Received: 10 October 2022      Published: 06 May 2023
CLC:  TP 242
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Chunyan ZHANG
Yiwen JIANG
Jie YANG
Xinxing JIANG
Cite this article:

Chunyan ZHANG,Yiwen JIANG,Jie YANG,Xinxing JIANG. Variable-direction multi-terrain mobile full R pair parallel robot. Chin J Eng Design, 2023, 30(2): 189-199.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2023.00.029     OR     https://www.zjujournals.com/gcsjxb/Y2023/V30/I2/189


可变向多地形移动全R副并联机器人

为了提升并联机器人适应多重复杂地形环境的能力，通过结合可重构并联机器人与多运动模式移动机器人的优势，提出了一种可变向多地形移动全R副并联机器人。以平面单环4R机构为本体，基于相邻运动副的空间轴线关系构造具有三方向转动能力的闭链机构，并以此为本体，基于正交的空间几何关系，将2个全R副单闭链组成一个可通过几何变形和自重构的方式实现多种滚动模式的全向移动并联机构。然后，对所设计的并联机器人进行自由度理论分析验证、步态规划仿真及运动控制设计。最后，制作机器人样机，通过实验来验证机器人设计方案及其运动模式的可行性。结果表明，使用几何变形和自重构的方式可提升并联机器人适应多重复杂地形环境的能力。研究结果可为多模式并联移动机器人的设计提供新思路。


关键词： 可变向移动,  全R副并联机器人,  多地形移动,  运动控制设计

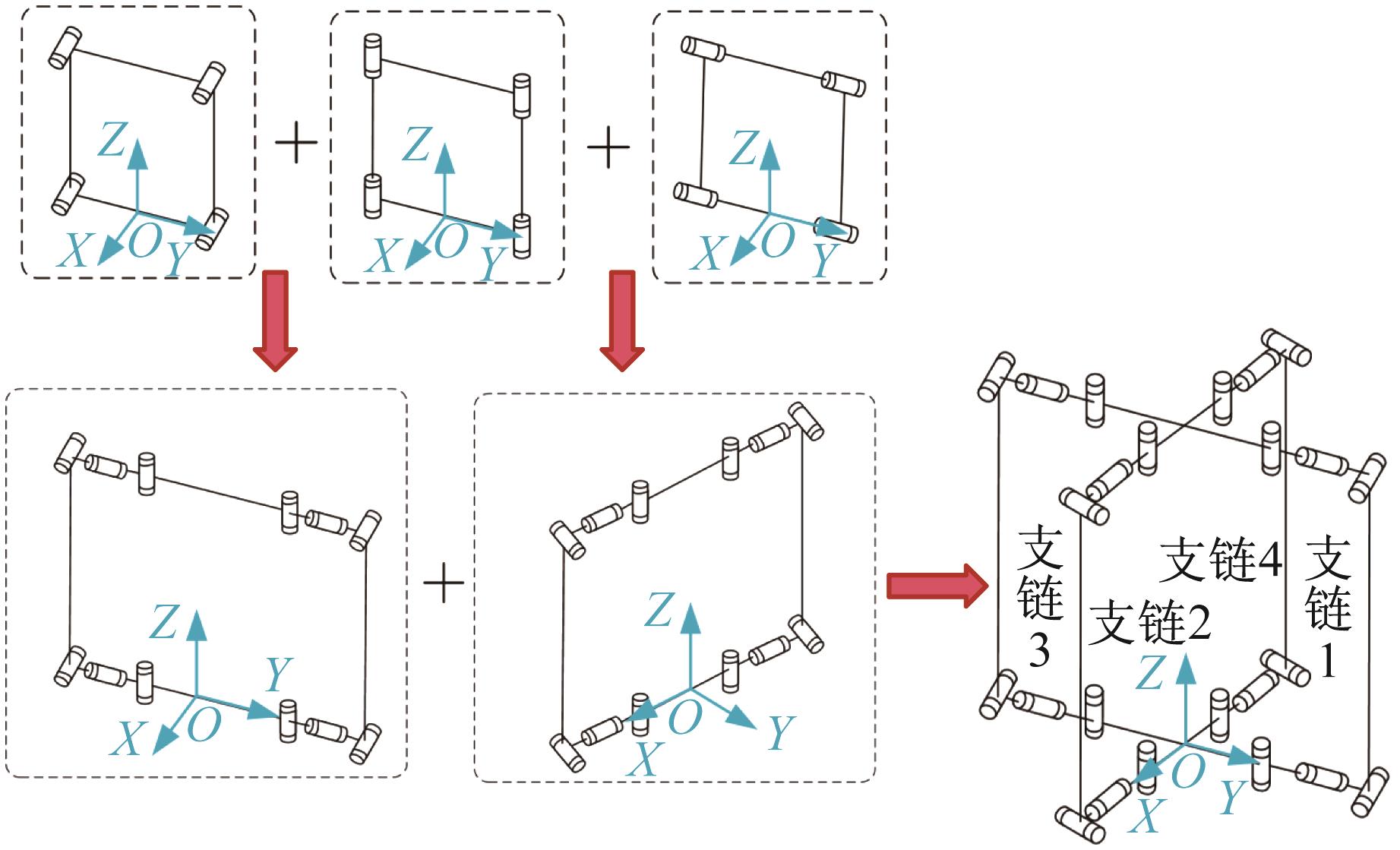

Fig.1 Topological evolution process of variable-direction multi-terrain mobile full R pair parallel mechanism

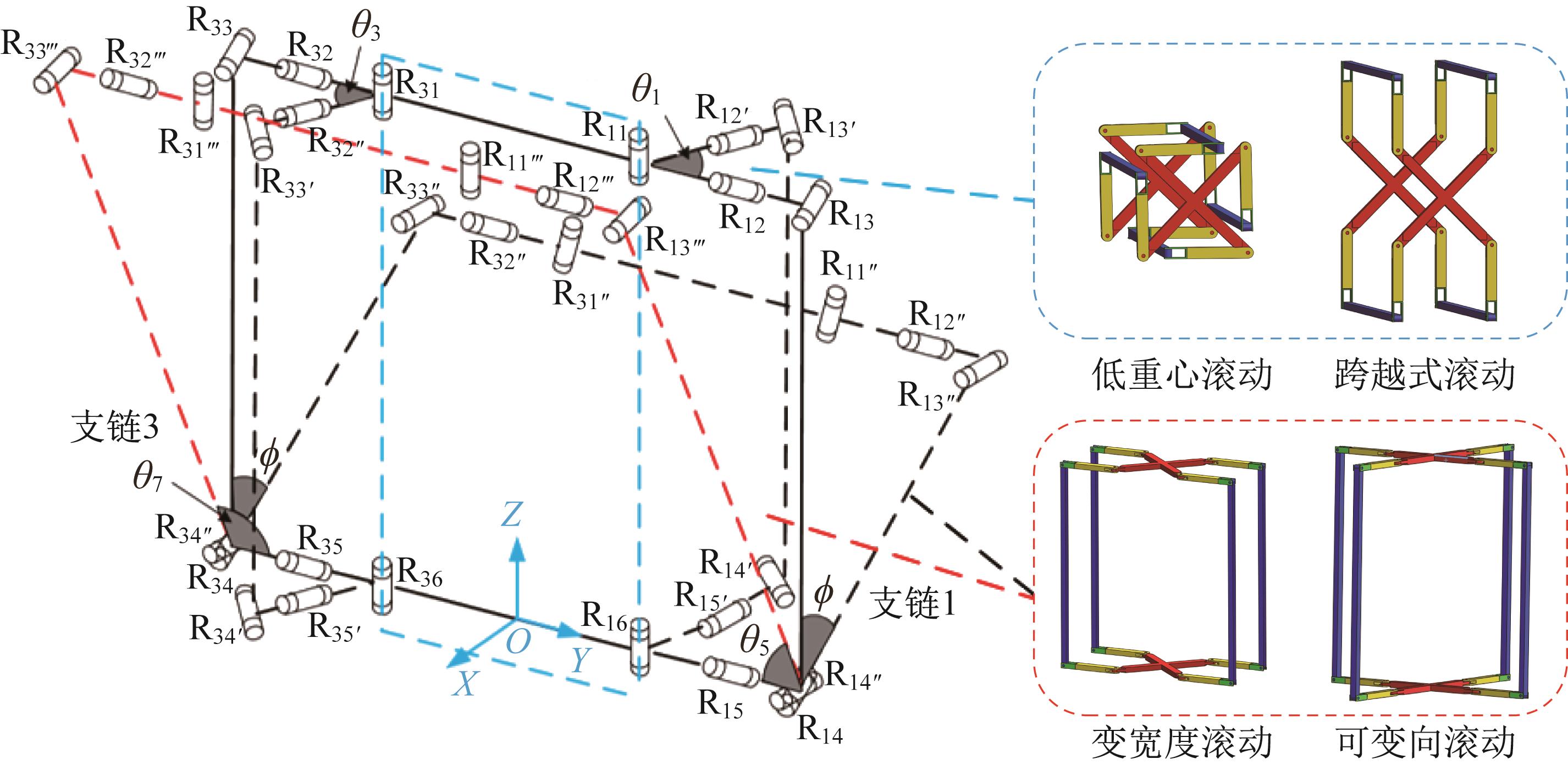

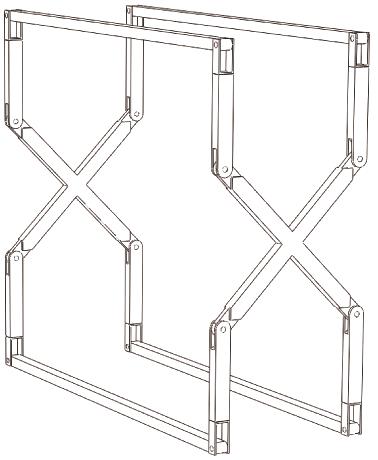

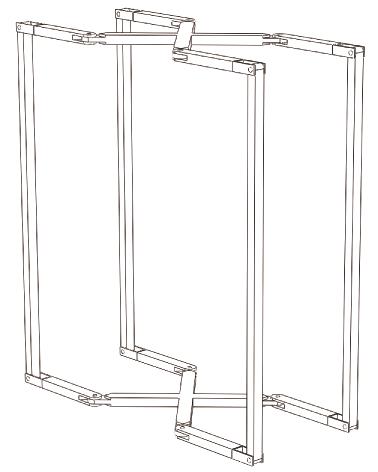

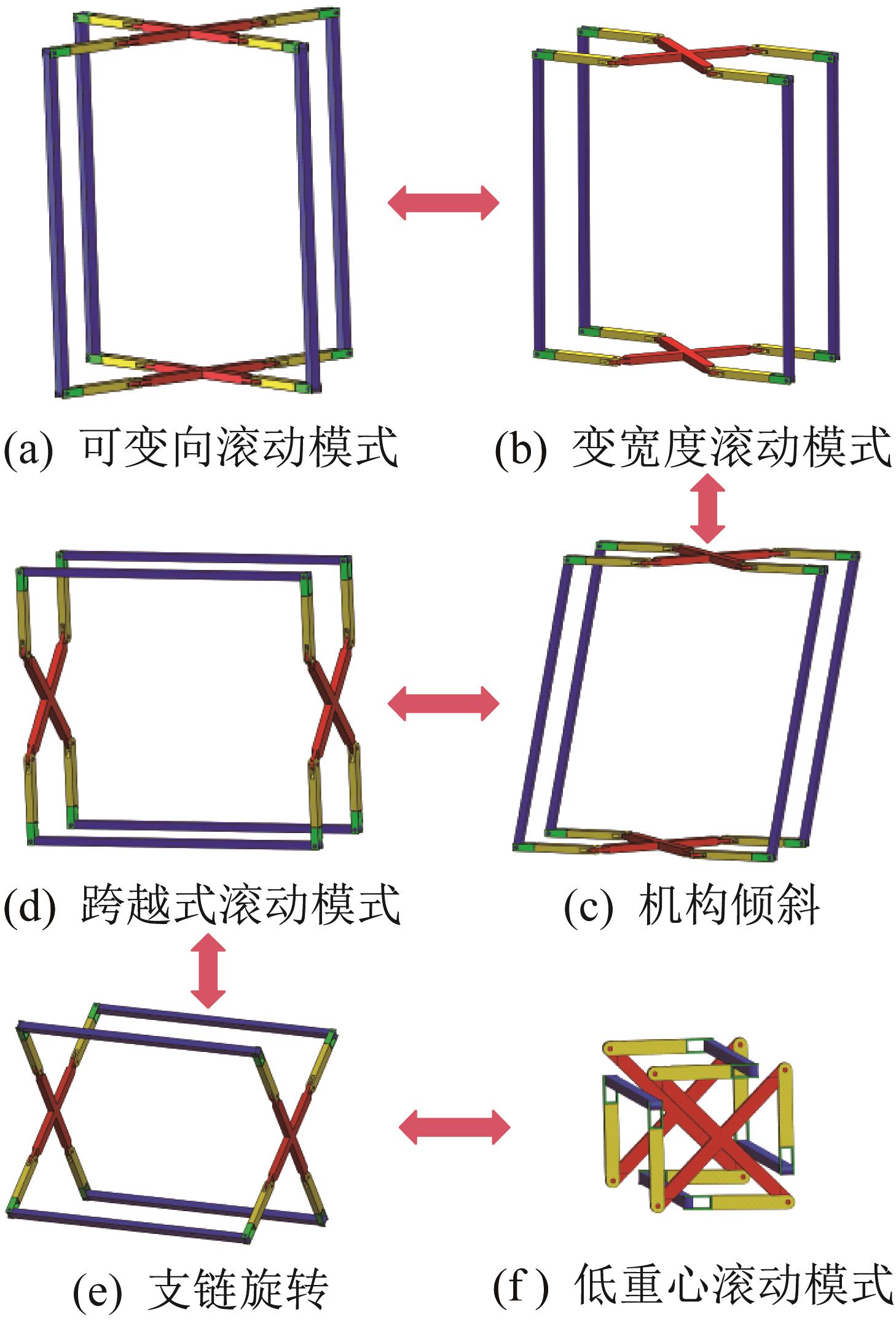

Fig.2 Multi-mode motion mechanism of variable-direction multi-terrain mobile full R pair parallel mechanism

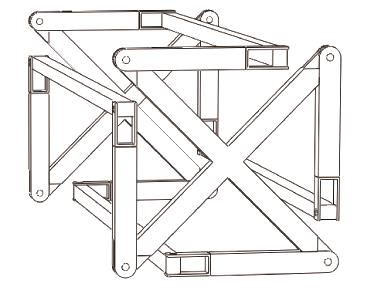

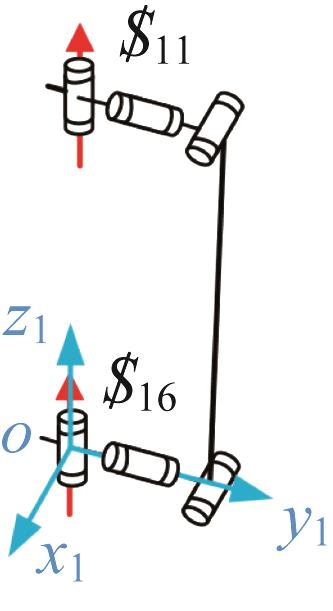

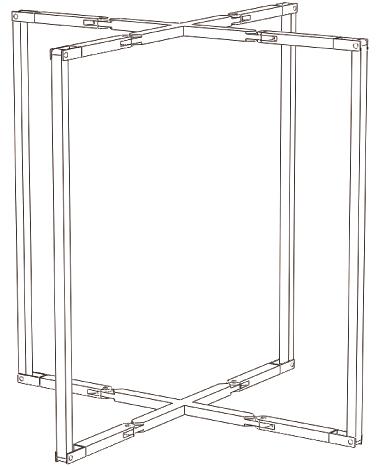

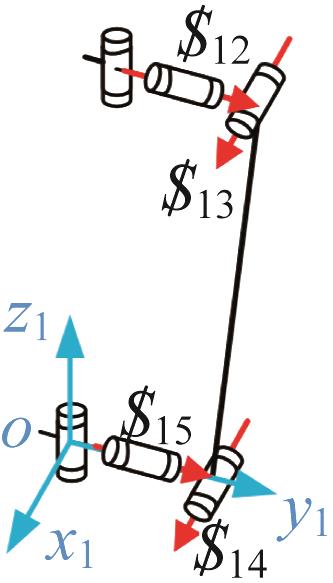

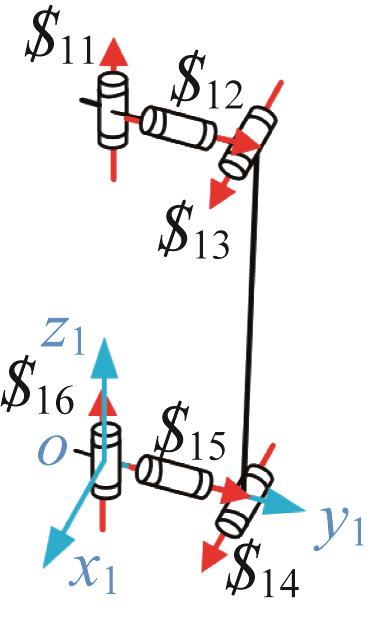

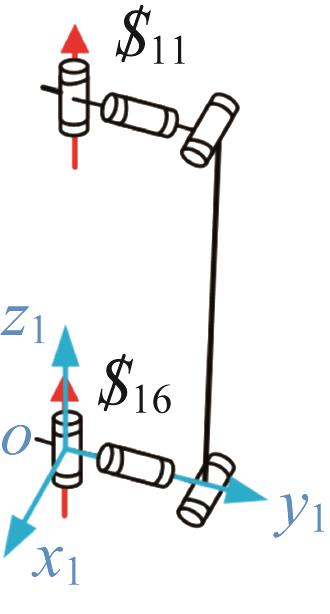

运动模式构型示意支链简图运动旋量约束旋量自由度
可变向滚动$12=(0?1?0?;a2?0?c2)$13=(1?0?0?;0??b3?c3)$14=(1?0?0?;0??0??c4)$15=(0?1?0?;0??0??c5)$11r=(0??0?0?;0???0??1)$12r=(a6?0?1?;b6?c6?0)2
变宽度滚动$11=(0??0??1;a1??0???0)$12=(0??1??0;a2??0??c2)$13=(1??0??0;?0???b3?c3)$14=(1??0??0;?0???0??c4)$15=(0??1??0;?0???0??c5)$16=(0??0??1;?0???0???0)无6
跨越式滚动$11=(0??0??1;0??0??0)$16=(0??0??1;0??0??0)$11r=(1?0?0;0?0?0)$12r=(0?1?0;0?0?0)$13r=(0?0?1;0?0?0)$14r=(0?0?0;1?0?0)$15r=(0?0?0;0?1?0)4
低重心滚动$11=(0??0??1;0??0??0)$16=(0??0??1;0??0??0)$11r=(1?0?0;0?0?0)$12r=(0?1?0;0?0?0)$13r=(0?0?1;0?0?0)$14r=(0?0?0;1?0?0)$15r=(0?0?0;0?1?0)4
Table 1 DOF analysis of variable-direction multi-terrain mobile full R pair parallel mechanism under different motion modes

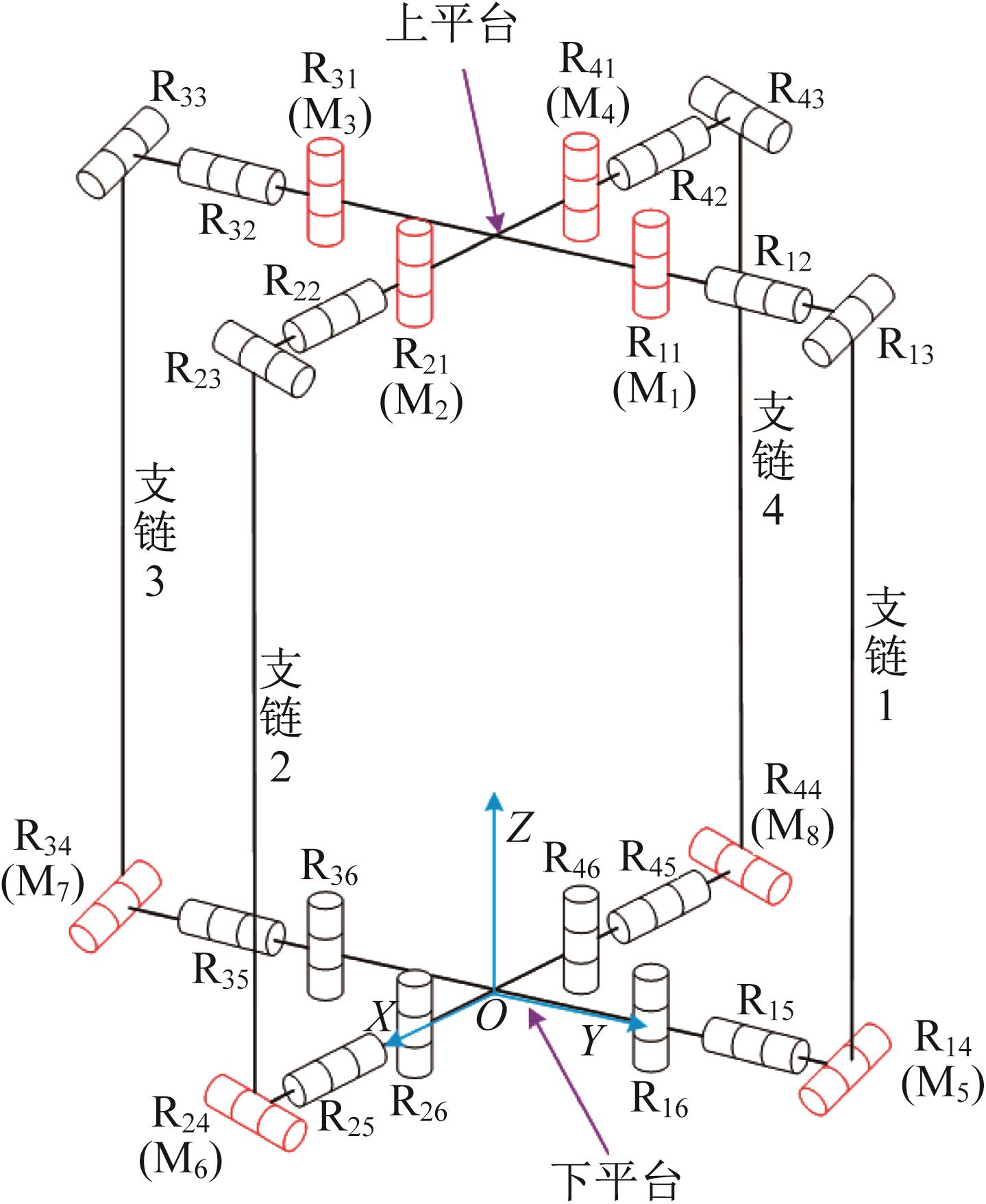

Fig.3 Servo distribution diagram of robot

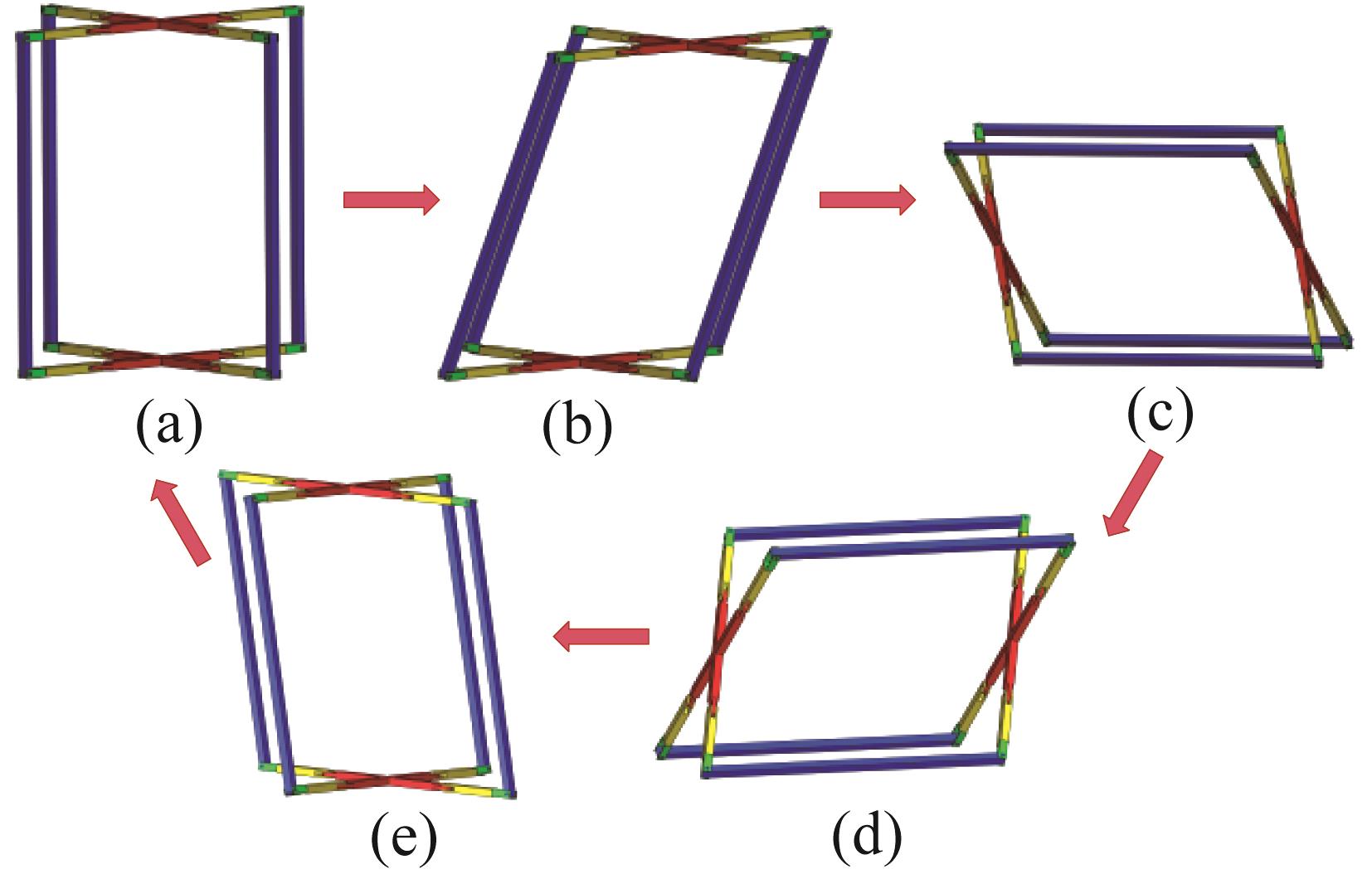

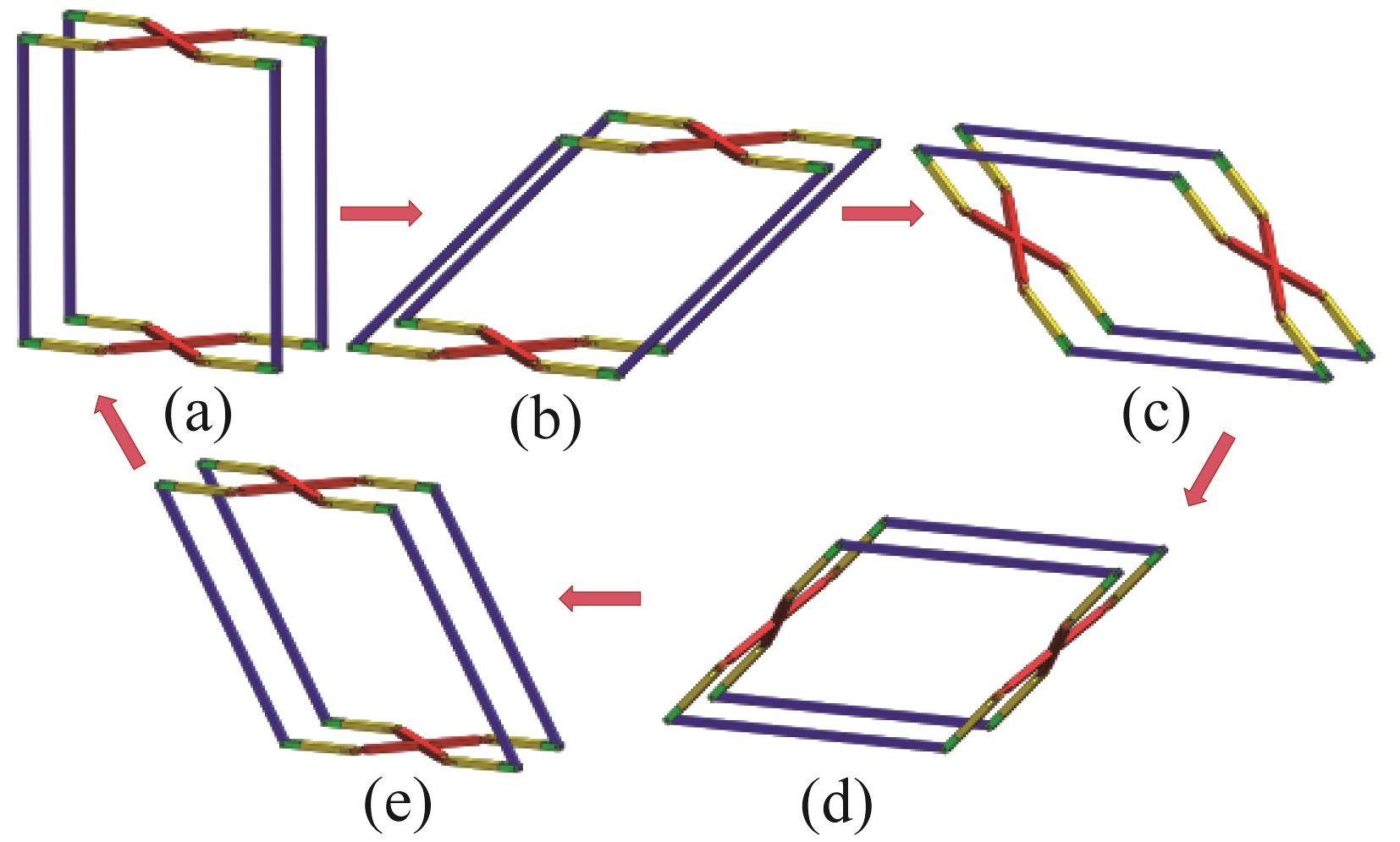

Fig.4 Gait planning of variable-direction rolling mode
Fig.5 Gait planning of variable-width rolling mode
Fig.6 Gait planning of leapfrog rolling mode

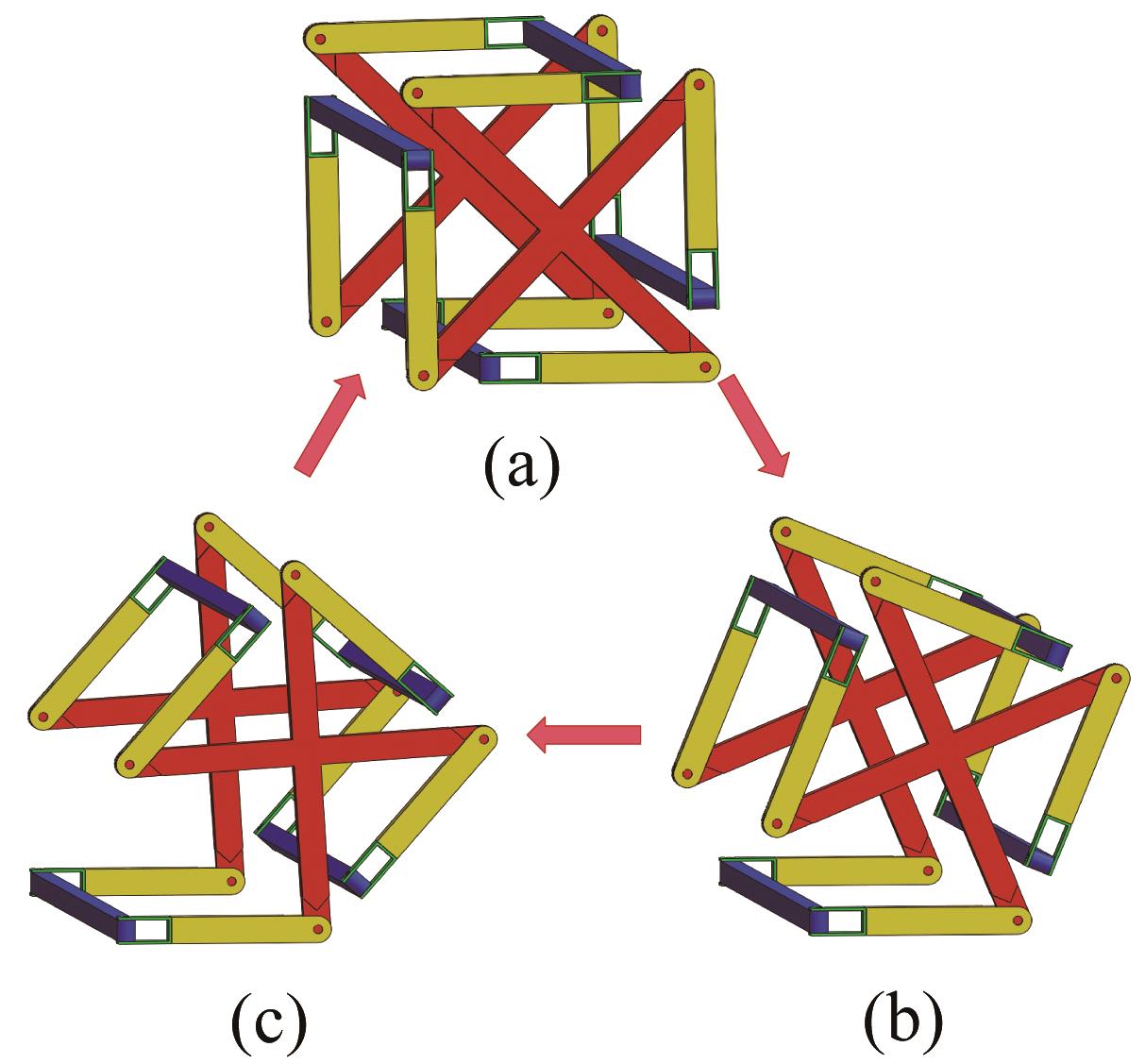

Fig.7 Gait planning of low gravity center rolling mode

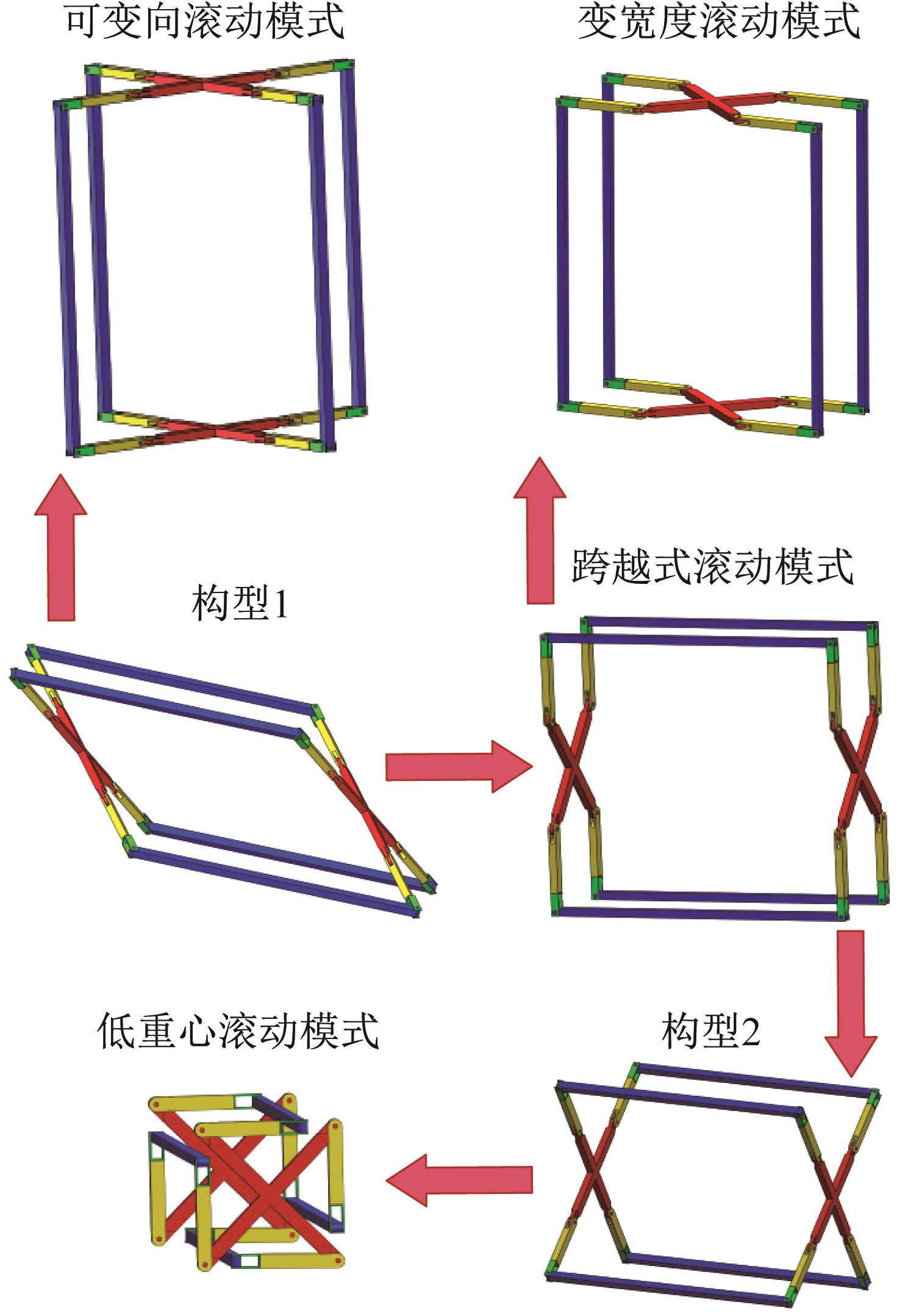

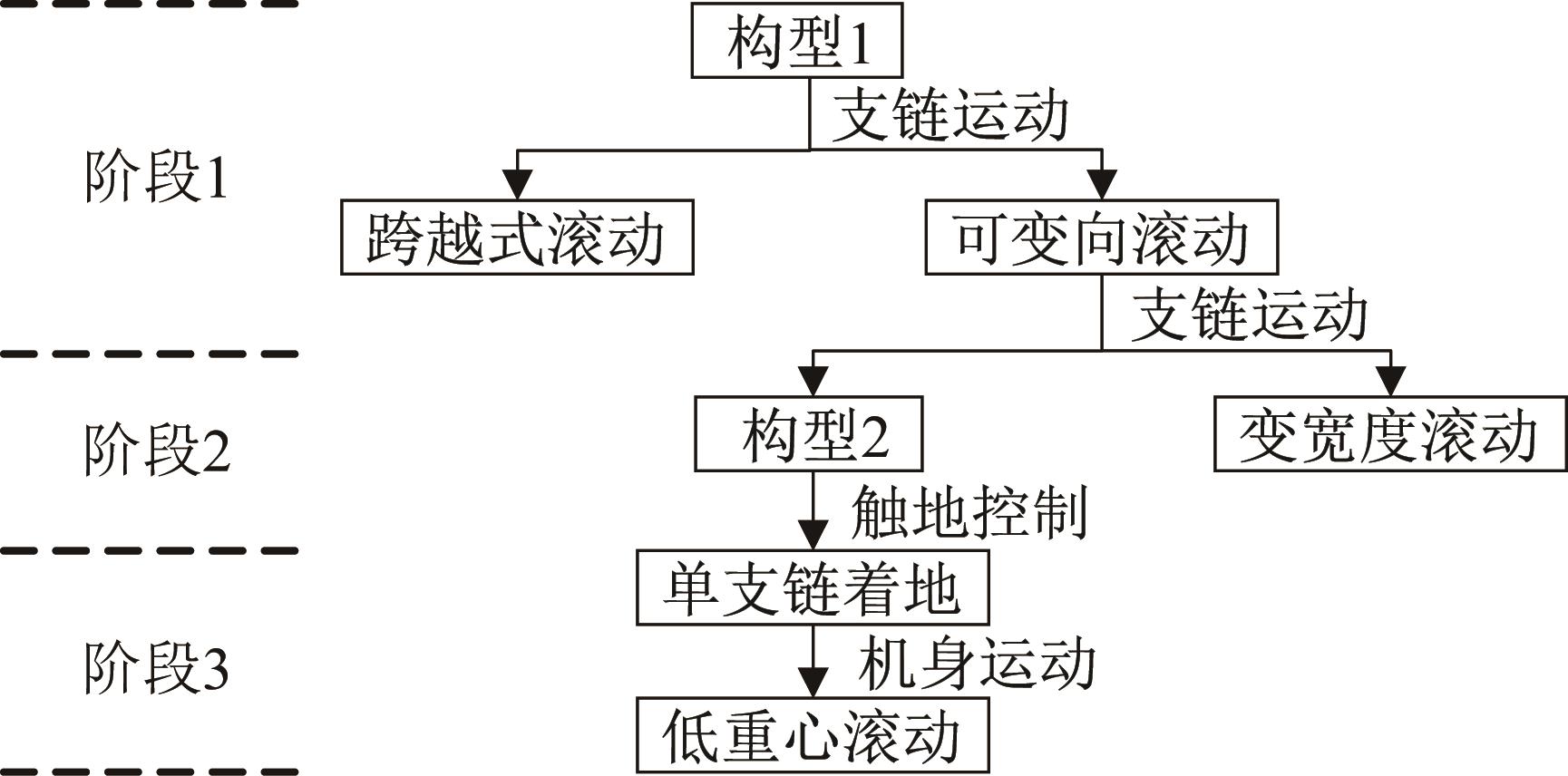

Fig.8 Robot motion mode switching diagram

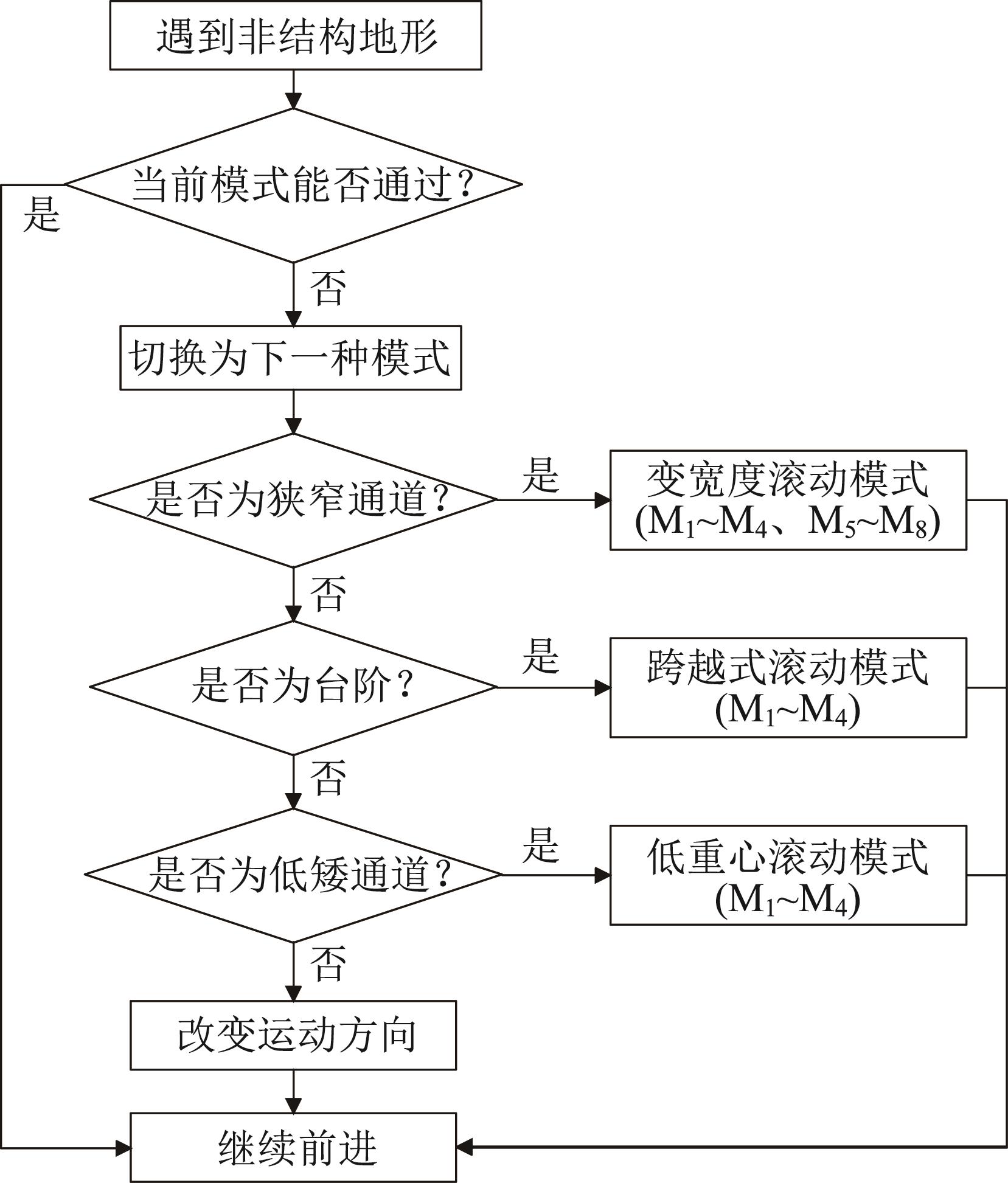

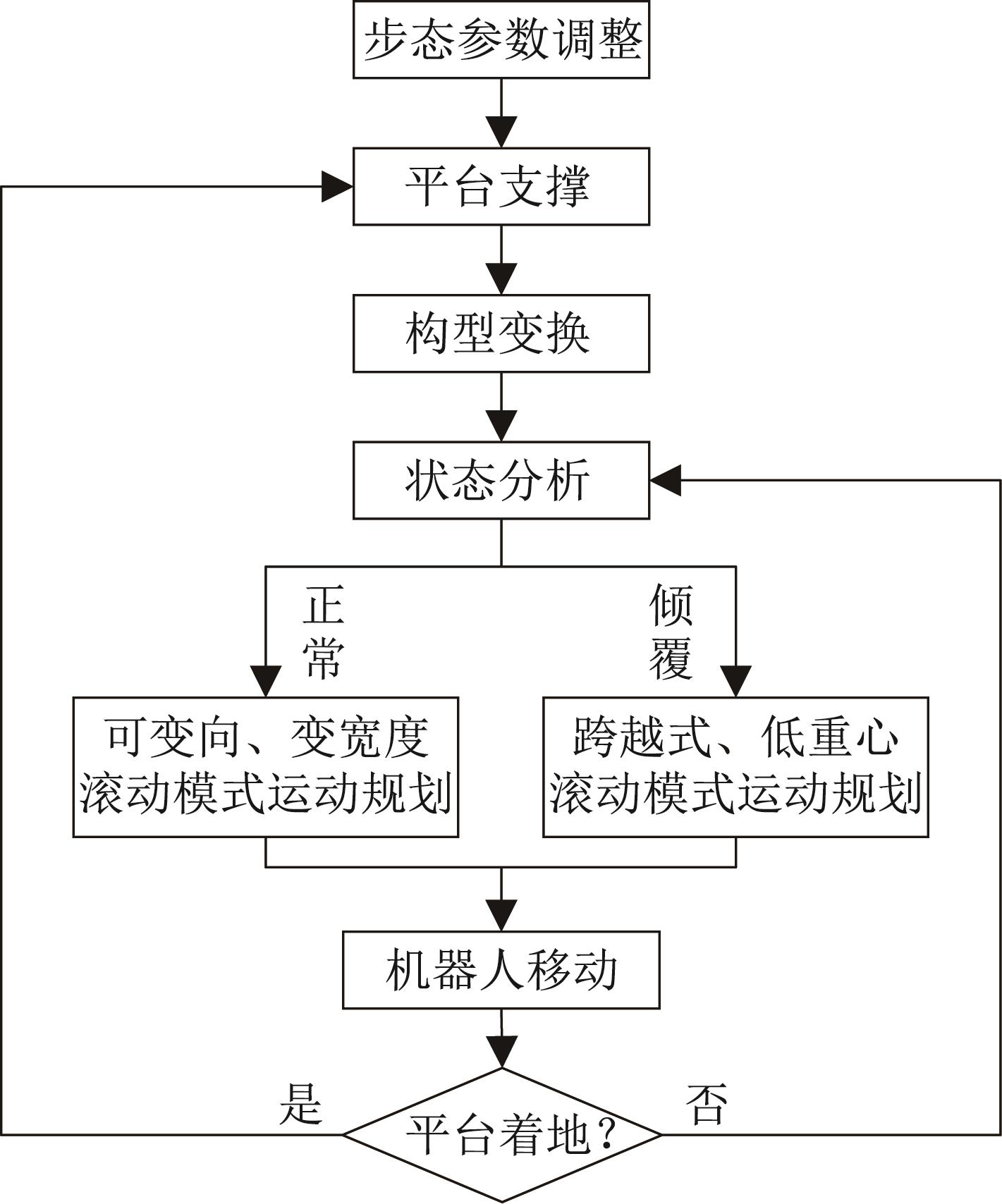

Fig.9 Adaptive gait planning process of robot
Fig.10 Dumping recovery motion planning of robot
Fig.11 Schematic diagram of robot dumping recovery

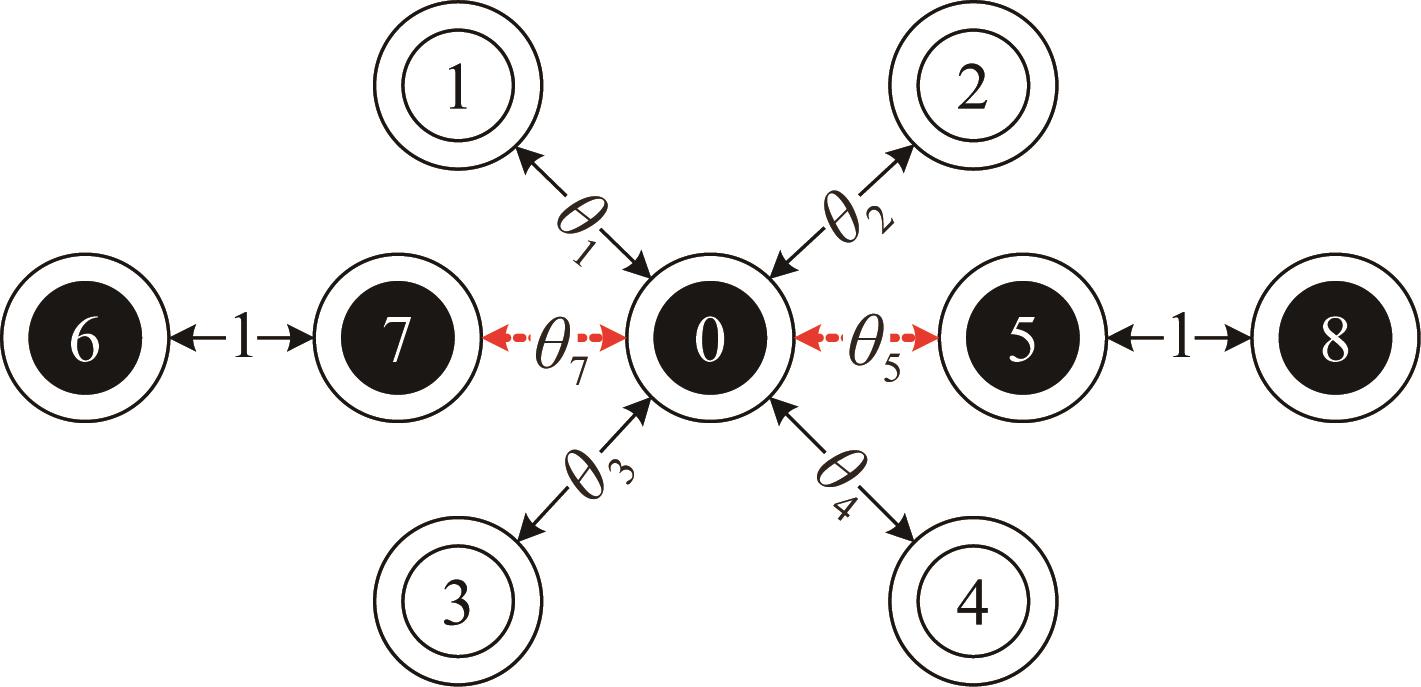

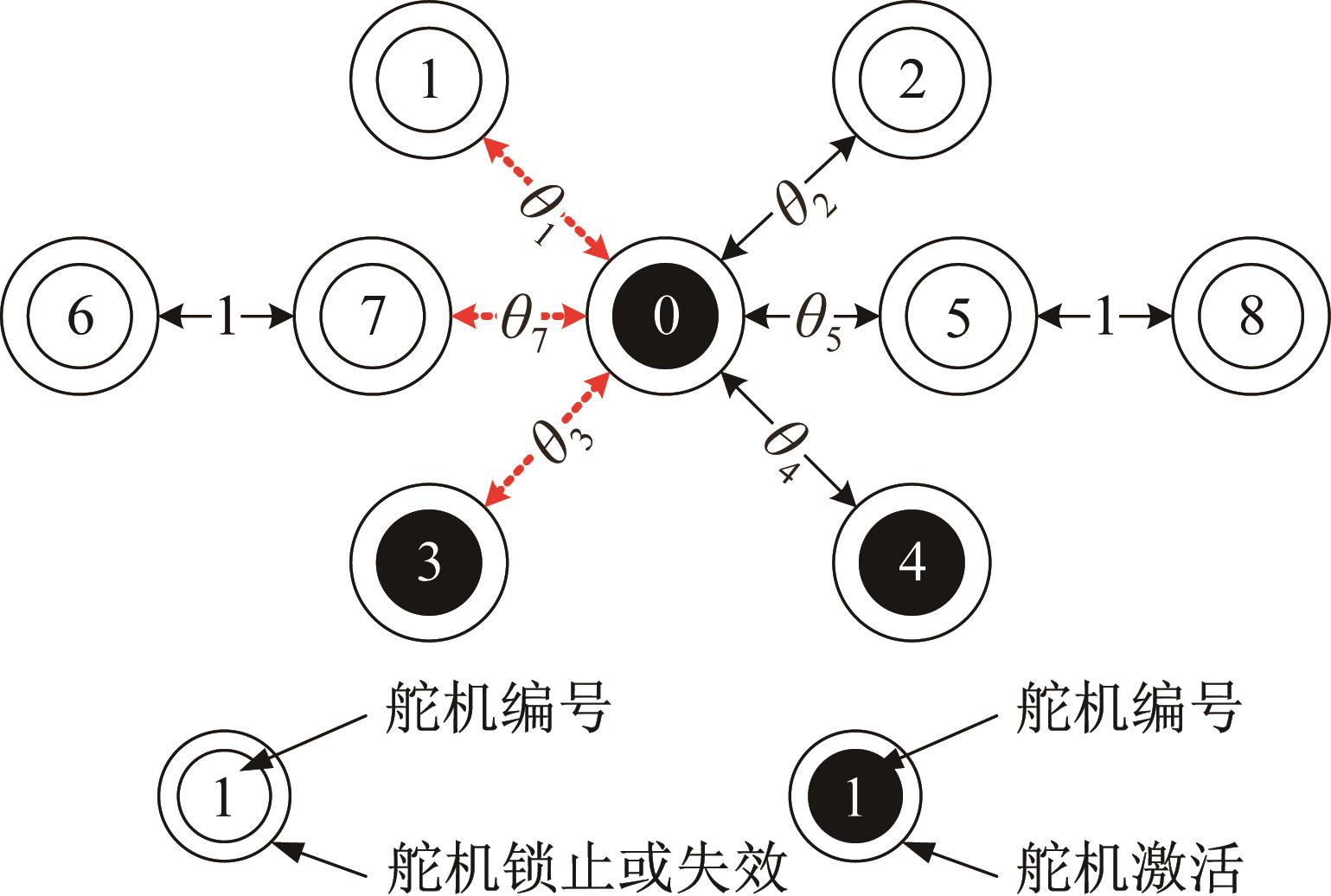

Fig.12 Servo control logic topology diagram
Fig.13 Servo control logic of variable width rolling mode
Fig.14 Servo control logic of leapfrog rolling mode
Fig.15 Process of robot motion control system

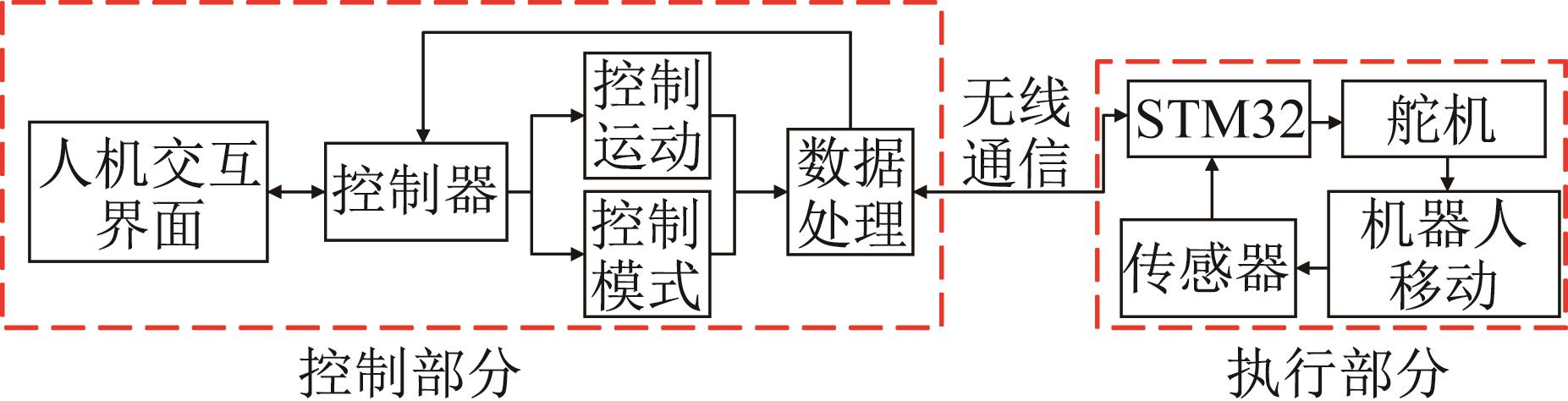

Fig.16 Structure of robot control system

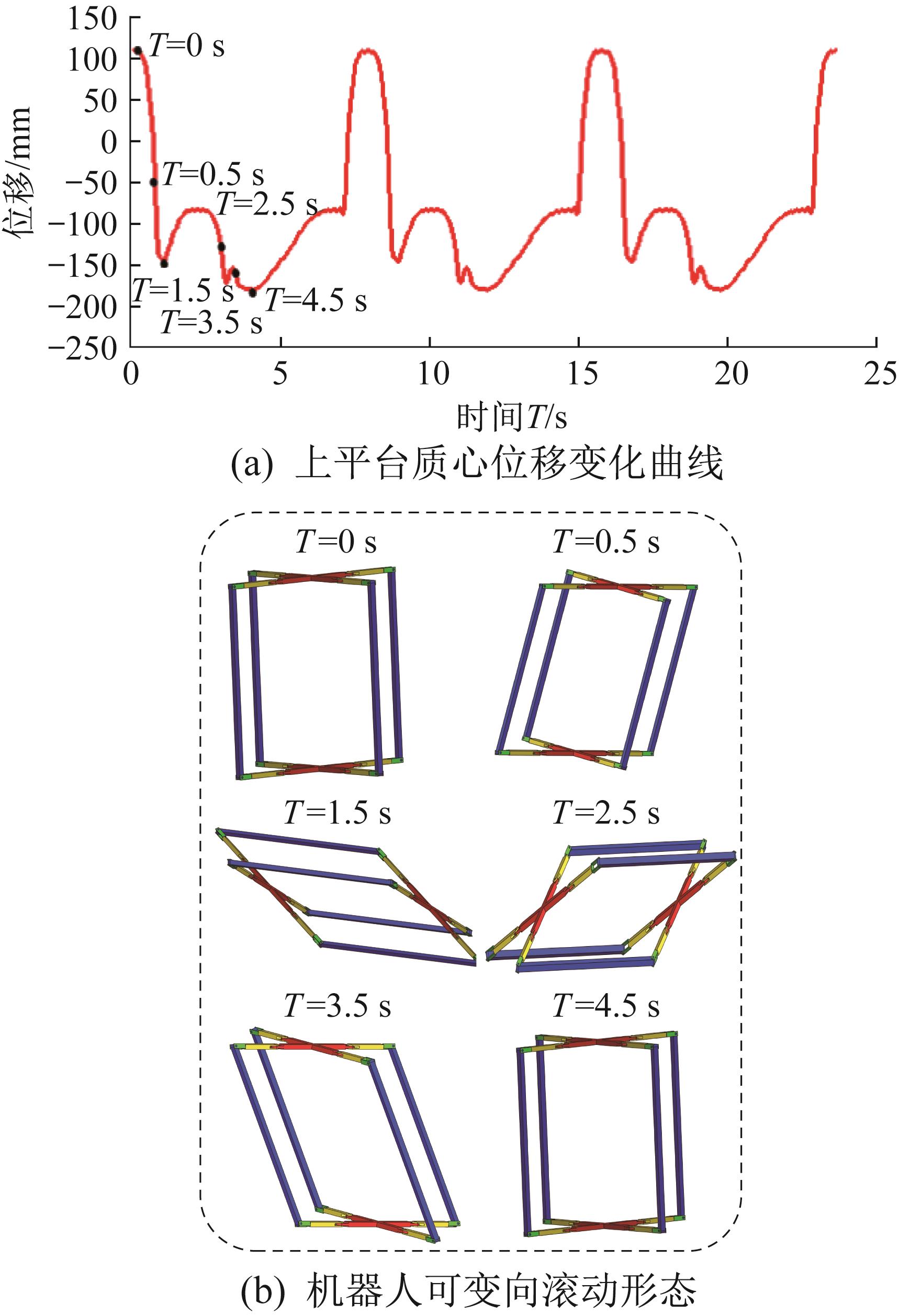

Fig.17 Simulation results of robot variable-direction rolling motion morphology

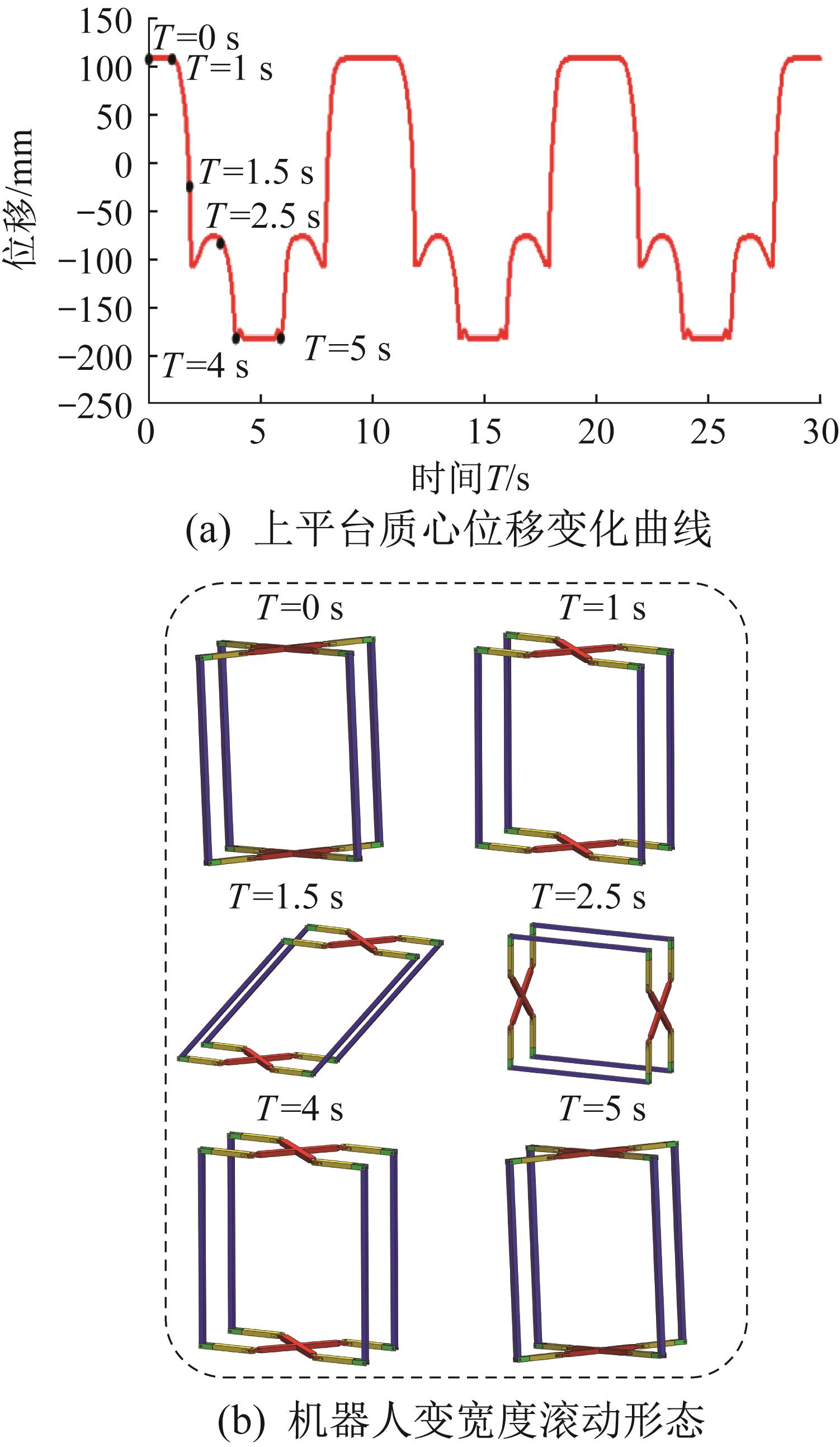

Fig.18 Simulation results of robot variable-width rolling motion morphology

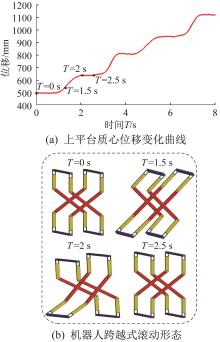

Fig.19 Simulation results of robot leapfrog rolling motion morphology

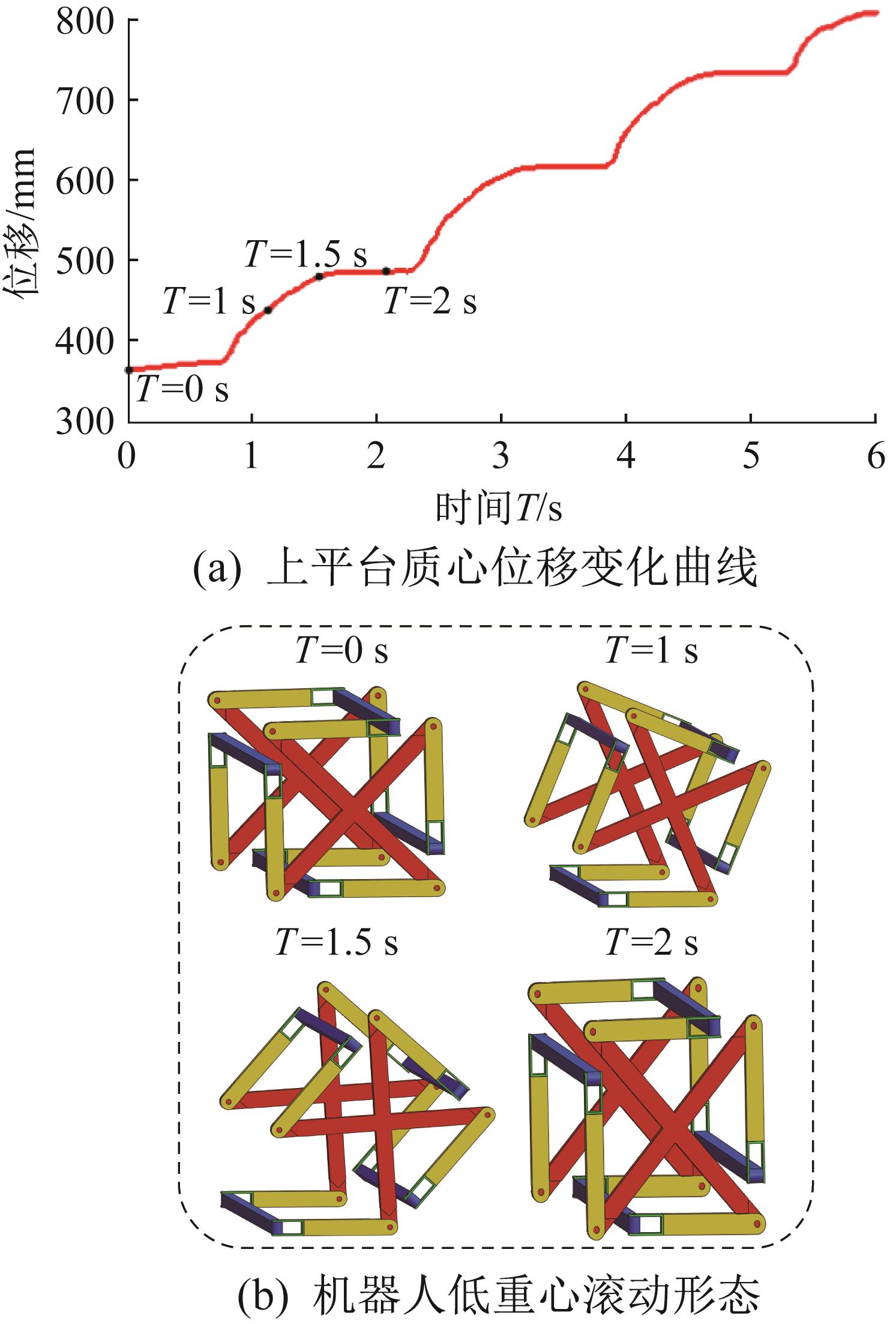

Fig.20 Simulation results of robot low gravity center rolling motion morphology

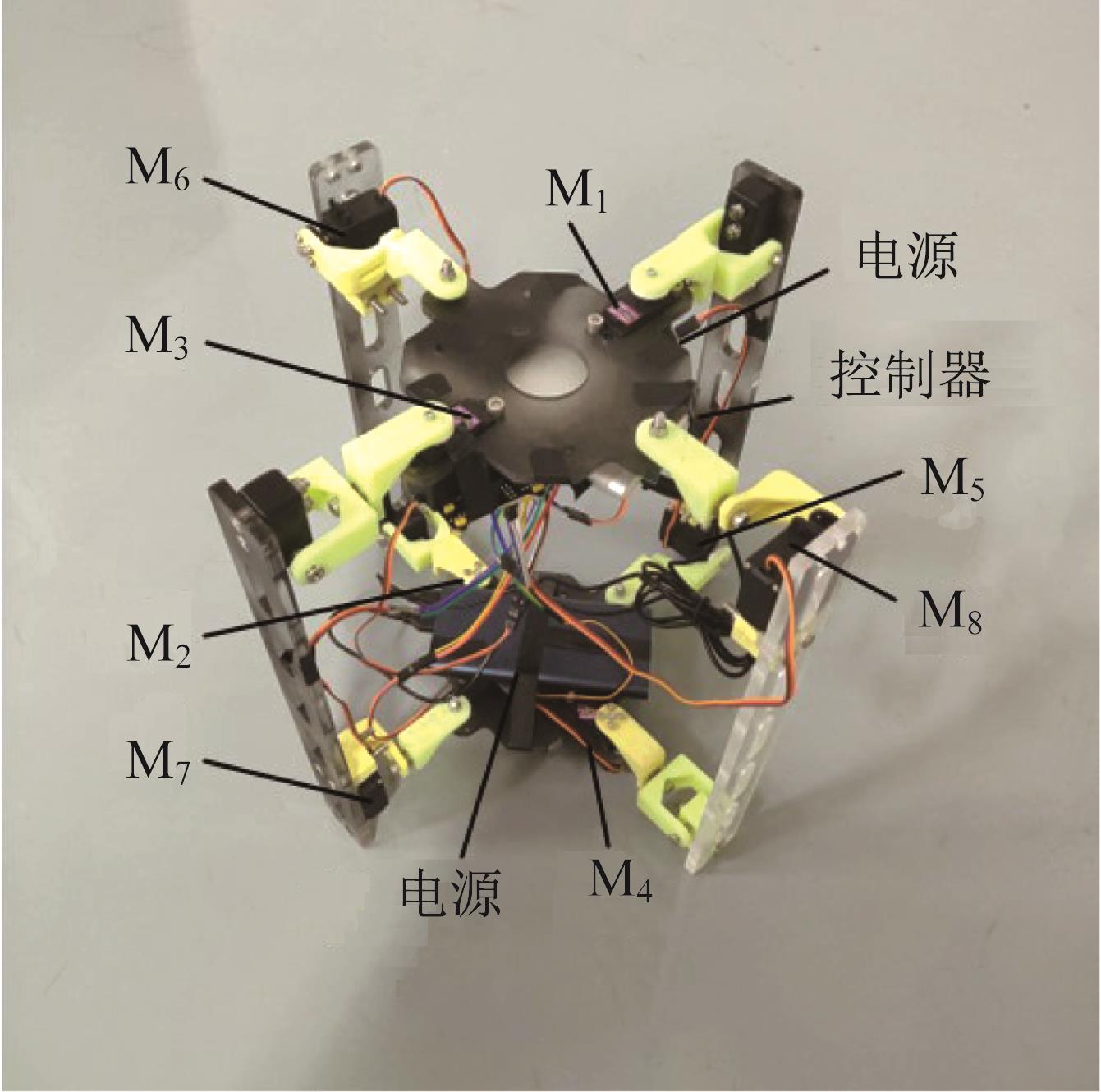

Fig.21 Robot physical prototype
参数数值
质量/kg2.6
工作电压/V5
初始高度/mm340
初始宽度/mm315
电源模块/V12
Table 2 Parameters of robot physical prototype

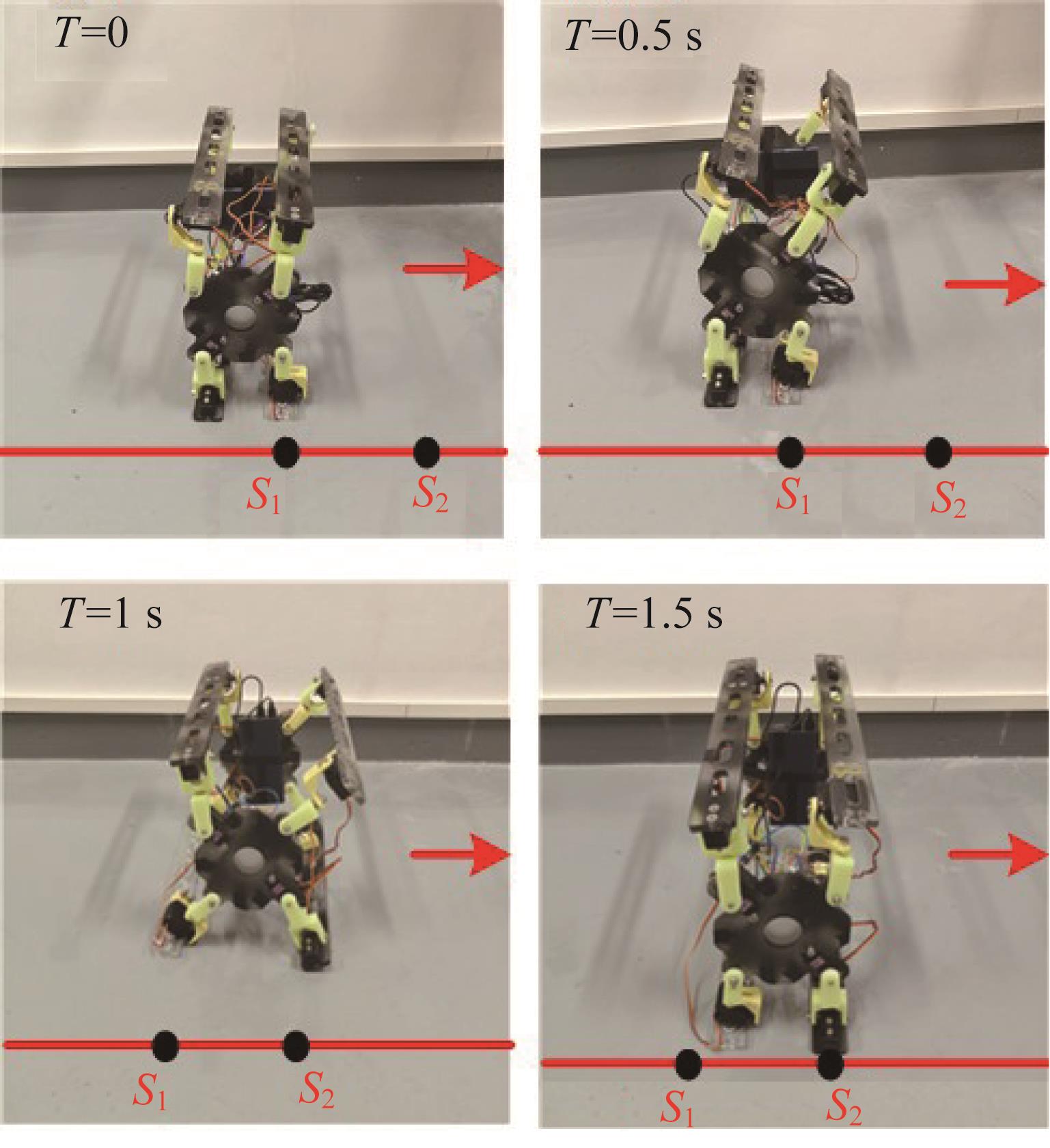

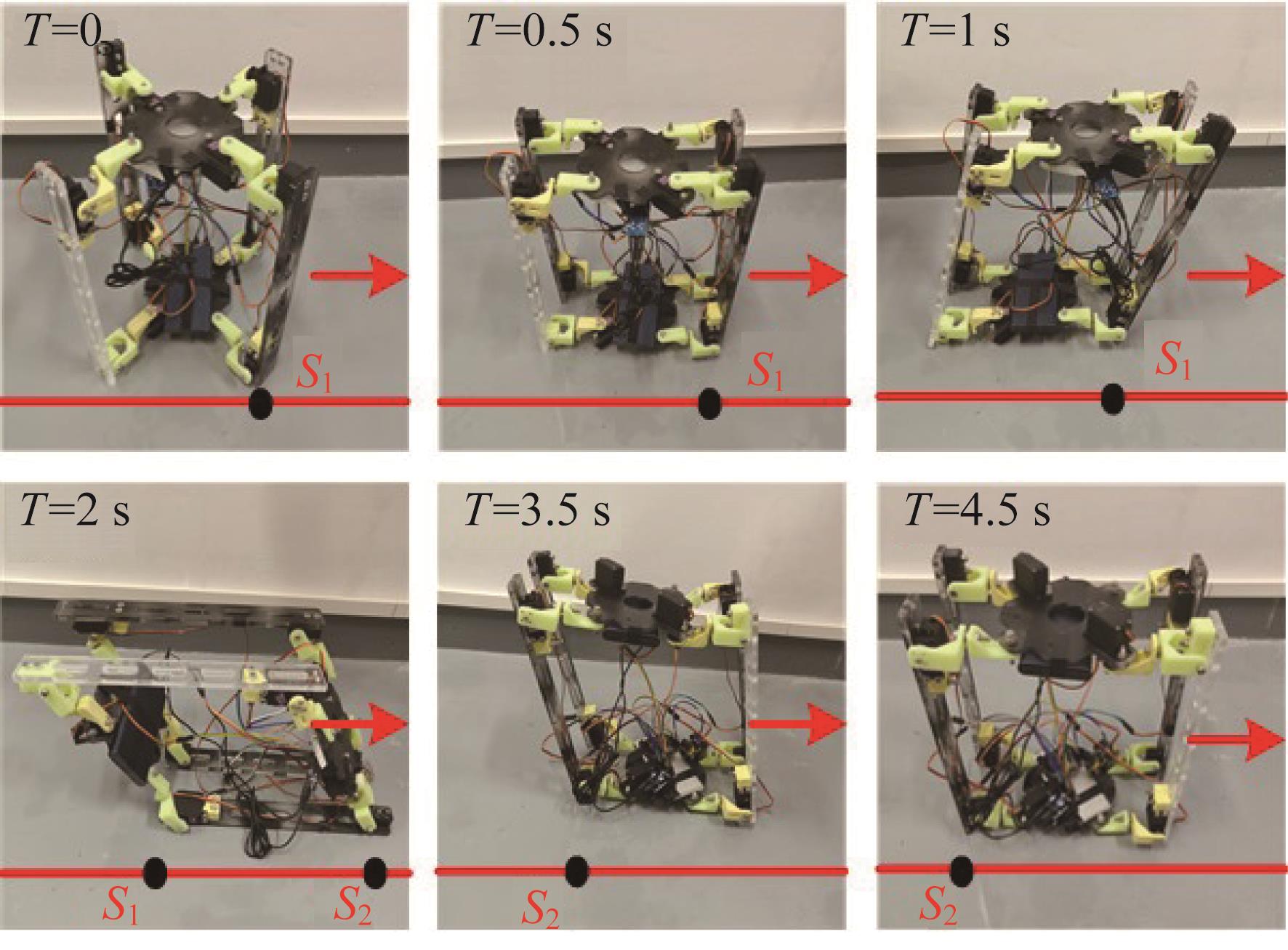

Fig.22 Robot variable-direction rolling experiment site
Fig.23 Robot variable-width rolling experiment site
Fig.24 Robot leapfrog rolling experiment site
Fig.25 Robot low gravity center rolling experiment site

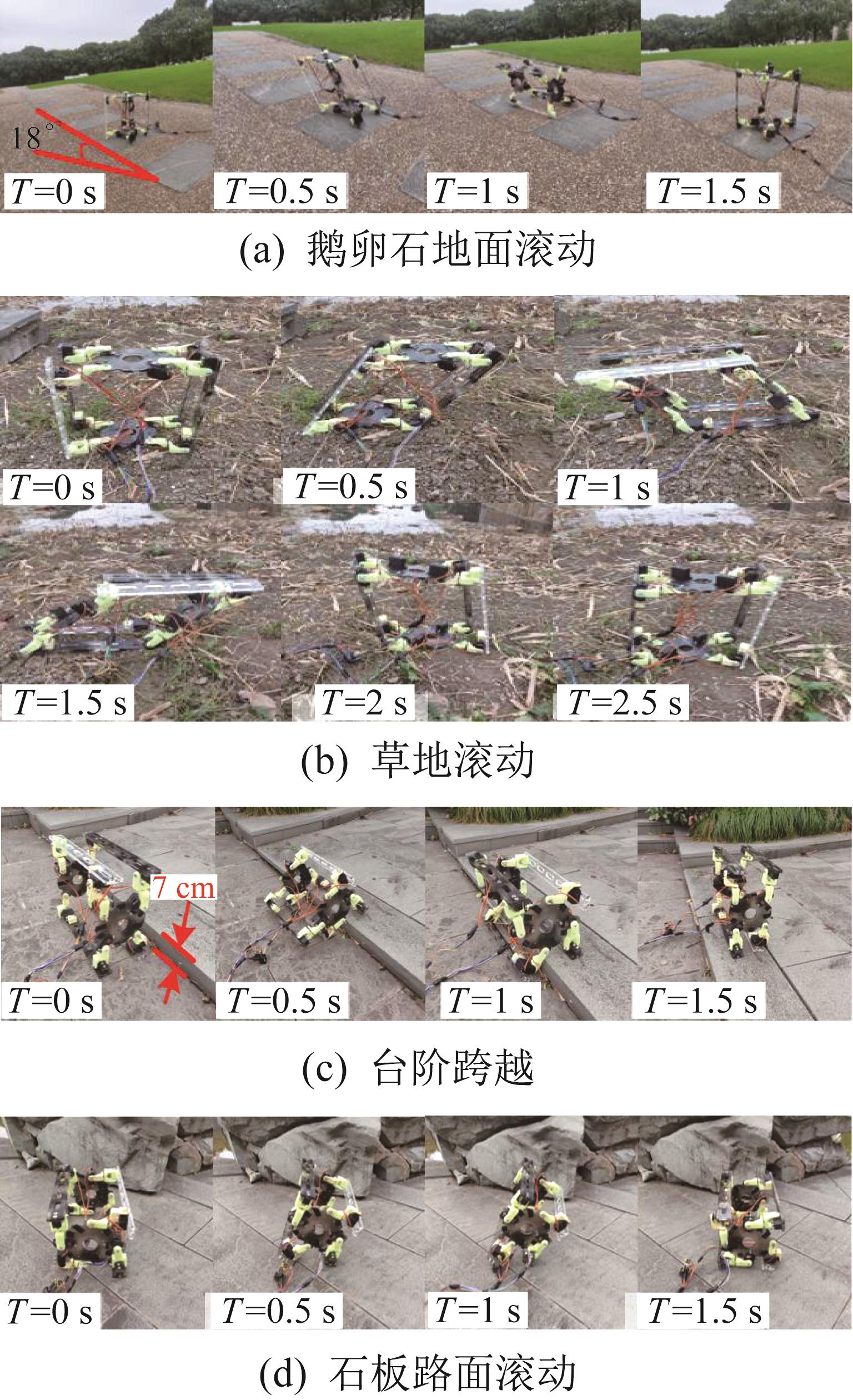

Fig.26 Experimental results of robot rolling in unstructured terrain
