基于声信号识别的水下焊接质量检测方法研究
纪晓东(),程天宇(),华亮,张新松
南通大学 电气工程学院,江苏 南通 226000
Research on detection method of underwater welding quality based on acoustic signal recognition
Xiaodong JI(),Tianyu CHENG(),Liang HUA,Xinsong ZHANG
College of Electrical Engineering, Nantong University, Nantong 226000, China
 全文: PDF(4139 KB)   HTML
摘要:

水下焊接的应用领域广泛,但其焊接质量难以保障。针对水下焊接处理过程中存在的非线性程度高、参数耦合性强以及检测效率低等问题,提出了一种新的基于声信号识别的水下焊接质量检测方法。该方法通过在水下构建基于声信号采集的监测系统,实时采集焊件焊接过程中的声信息,并通过对声信号进行滤波降噪处理和特征提取,构建双权值神经网络(double-weight neural network, DWNN)模型。该模型具有优秀的高维数据非线性拟合能力,可实现水下焊接多参数与声信号多特征之间的非线性映射,且在小样本情况下仍能实现高精度的模式识别。以高强度低碳合金钢——HSLA-115钢作为焊接对象,开展水下焊接质量检测实验。结果表明,DWNN模型应用于水下焊接质量检测的识别精度可达100%。研究结果可为水下焊接工艺的优化和水下焊件专家知识库的构建提供参考依据。

关键词: 水下焊接声信号特征提取双权值神经网络
Abstract:

Underwater welding is widely used in many fields, but its welding quality is difficult to guarantee. Aiming at the problems of high nonlinearity, strong parameter coupling and low detection efficiency in underwater welding process, a new method for underwater welding quality detection based on acoustic signal recognition was proposed. The method constructed a monitoring system based on acoustic signal acquisition underwater to collect the acoustic information during the welding process of weldments in real time, and built a double-weight neural network (DWNN) model through filtering and noise reduction processing and feature extraction for the acoustic signal. The model had excellent nonlinear fitting ability of high-dimensional data and could realize nonlinear mapping between multi-parameters of underwater welding and multi-features of acoustic signals, and it could still realize high-precision pattern recognition in the case of small samples. The underwater welding quality detection experiments were carried out with high strength and low carbon alloy steel—HSLA-115 steel as welding object. The results showed that the recognition accuracy of DWNN model applied to underwater welding quality detection could reach 100%. The research results can provide reference for the optimization of underwater welding process and the construction of underwater weldparts expert knowledge base.

Key words: underwater welding    acoustic signal    feature extraction    double-weight neural network
收稿日期: 2023-03-02 出版日期: 2023-11-03
CLC:  TG 456.5
基金资助: 国家自然科学基金资助项目(51877112)
通讯作者: 程天宇     E-mail: 1731571044@qq.com;chengtianyu518@163.com
作者简介: 纪晓东(1998—),男,江苏盐城人,硕士生,从事模式识别研究,E-mail: 1731571044@qq.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
纪晓东
程天宇
华亮
张新松

引用本文:

纪晓东,程天宇,华亮,张新松. 基于声信号识别的水下焊接质量检测方法研究[J]. 工程设计学报, 2023, 30(5): 562-570.

Xiaodong JI,Tianyu CHENG,Liang HUA,Xinsong ZHANG. Research on detection method of underwater welding quality based on acoustic signal recognition[J]. Chinese Journal of Engineering Design, 2023, 30(5): 562-570.

链接本文:

https://www.zjujournals.com/gcsjxb/CN/10.3785/j.issn.1006-754X.2023.00.066        https://www.zjujournals.com/gcsjxb/CN/Y2023/V30/I5/562

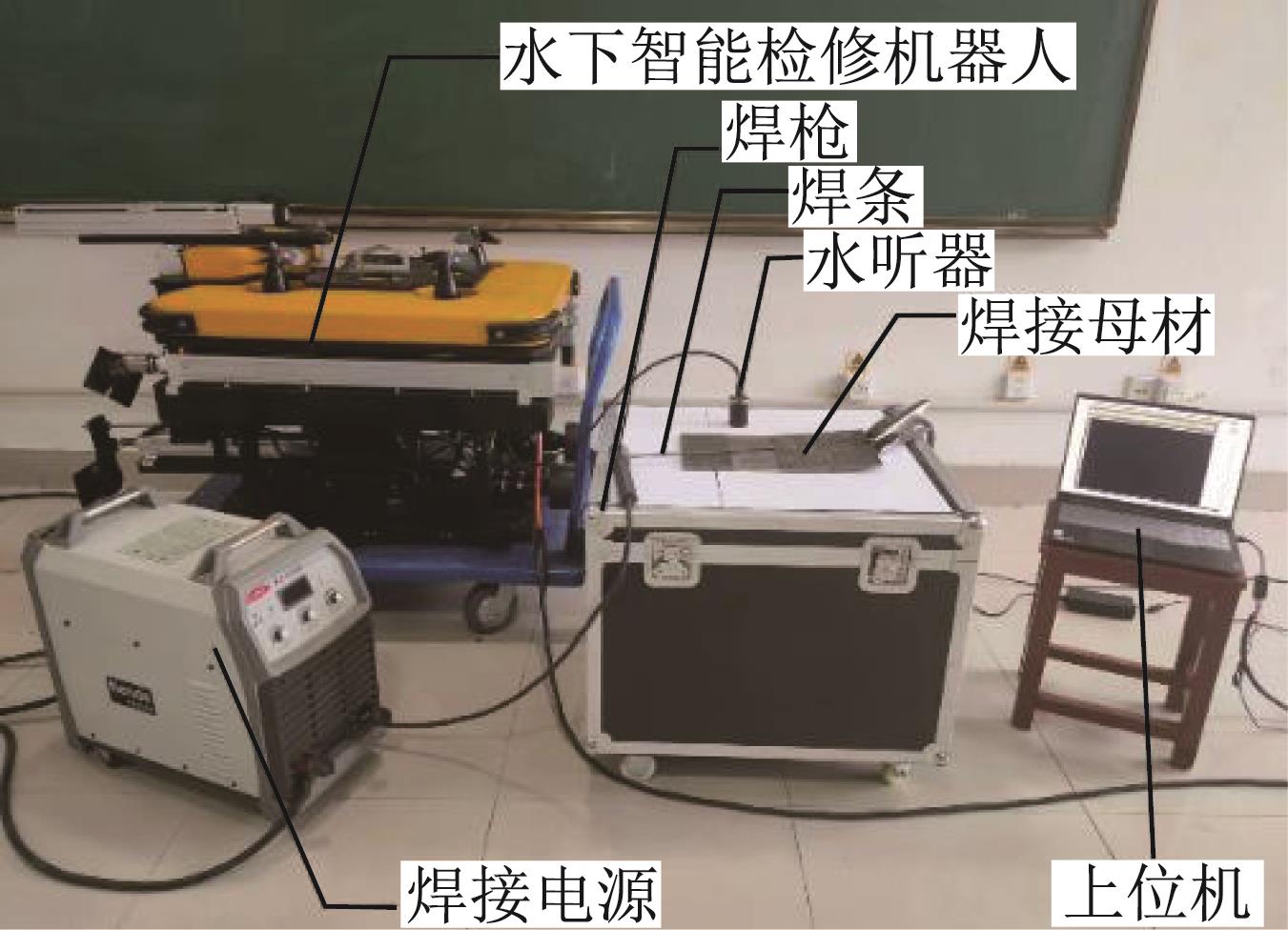

图1  水下焊接实验平台
实验参数(焊接速度、焊接电流、板材厚度)水下焊接处理结果
1.2 m/min、110 A、6 mm合格
0.6 m/min、110 A、6 mm合格
0.6 m/min、140 A、6 mm不合格
1.2 m/min、110 A、8 mm不合格
1.2 m/min、140 A、8 mm合格
1.2 m/min、110 A、10 mm不合格
1.2 m/min、160 A、10 mm合格
1.2 m/min、160 A、12 mm不合格
0.6 m/min、160 A、12 mm合格
0.6 m/min、180 A、12 mm合格
表1  部分水下焊接实验的测定结果

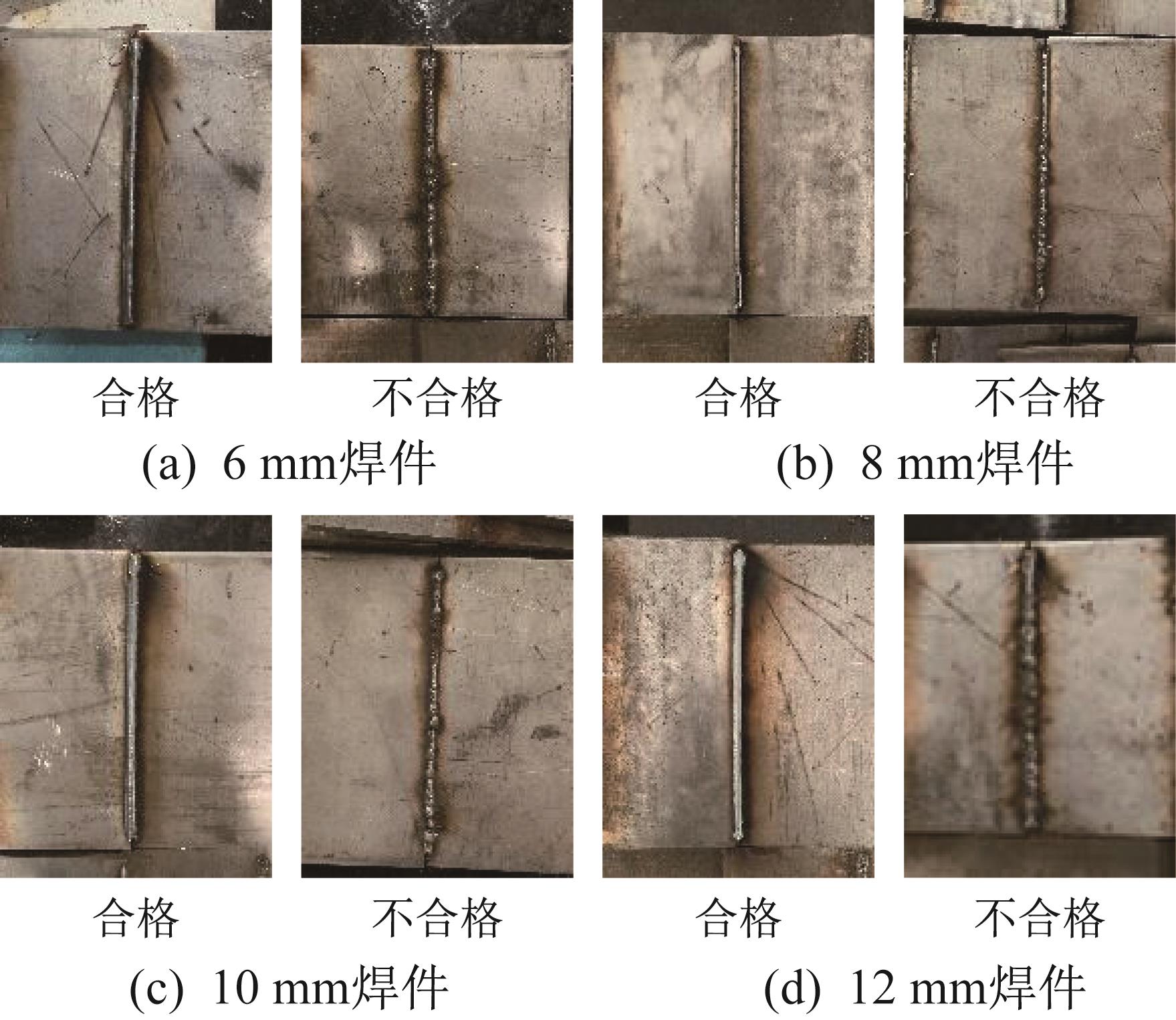

图2  水下焊接钢板实物

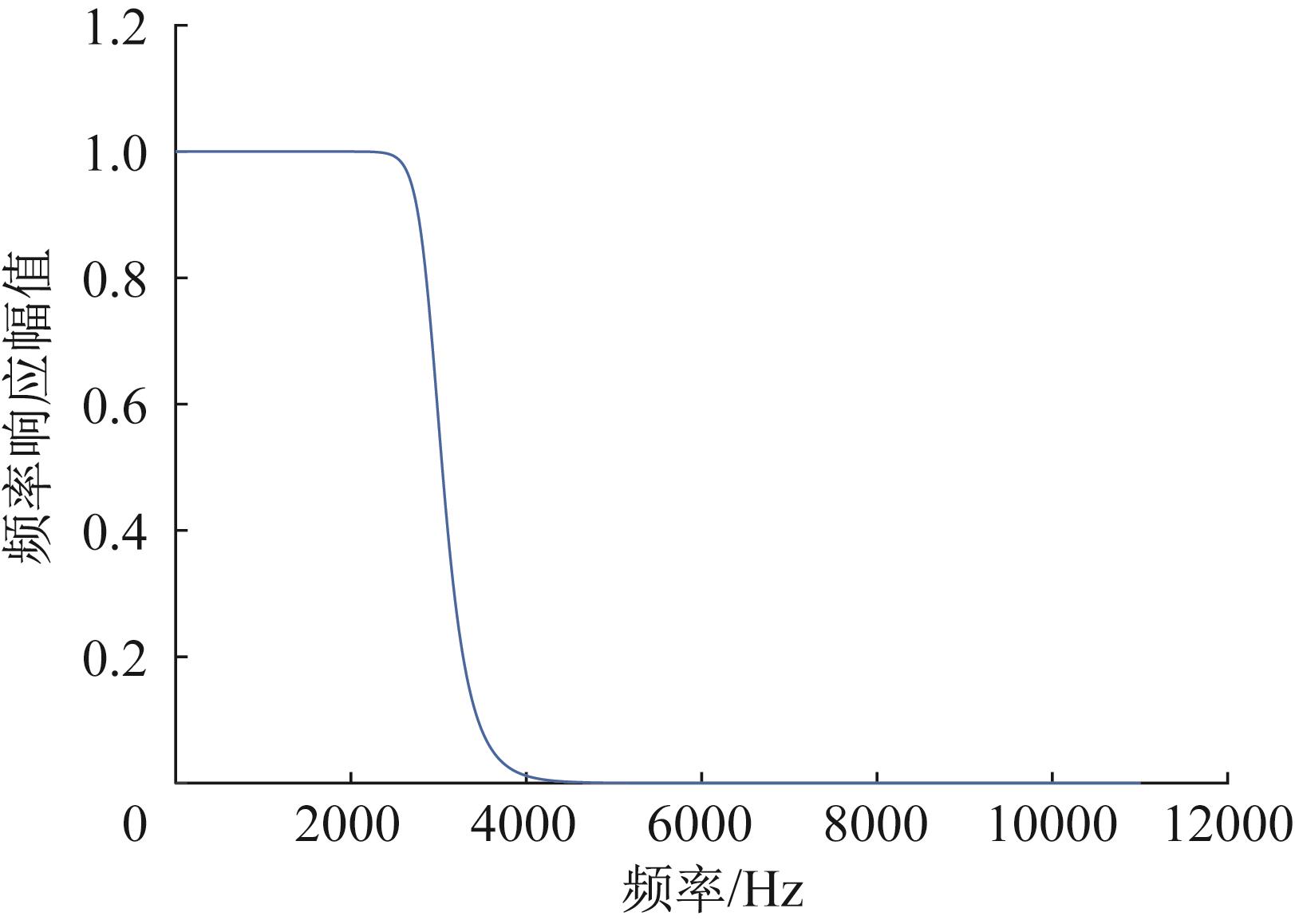

图3  Butterworth滤波器的幅值特性曲线

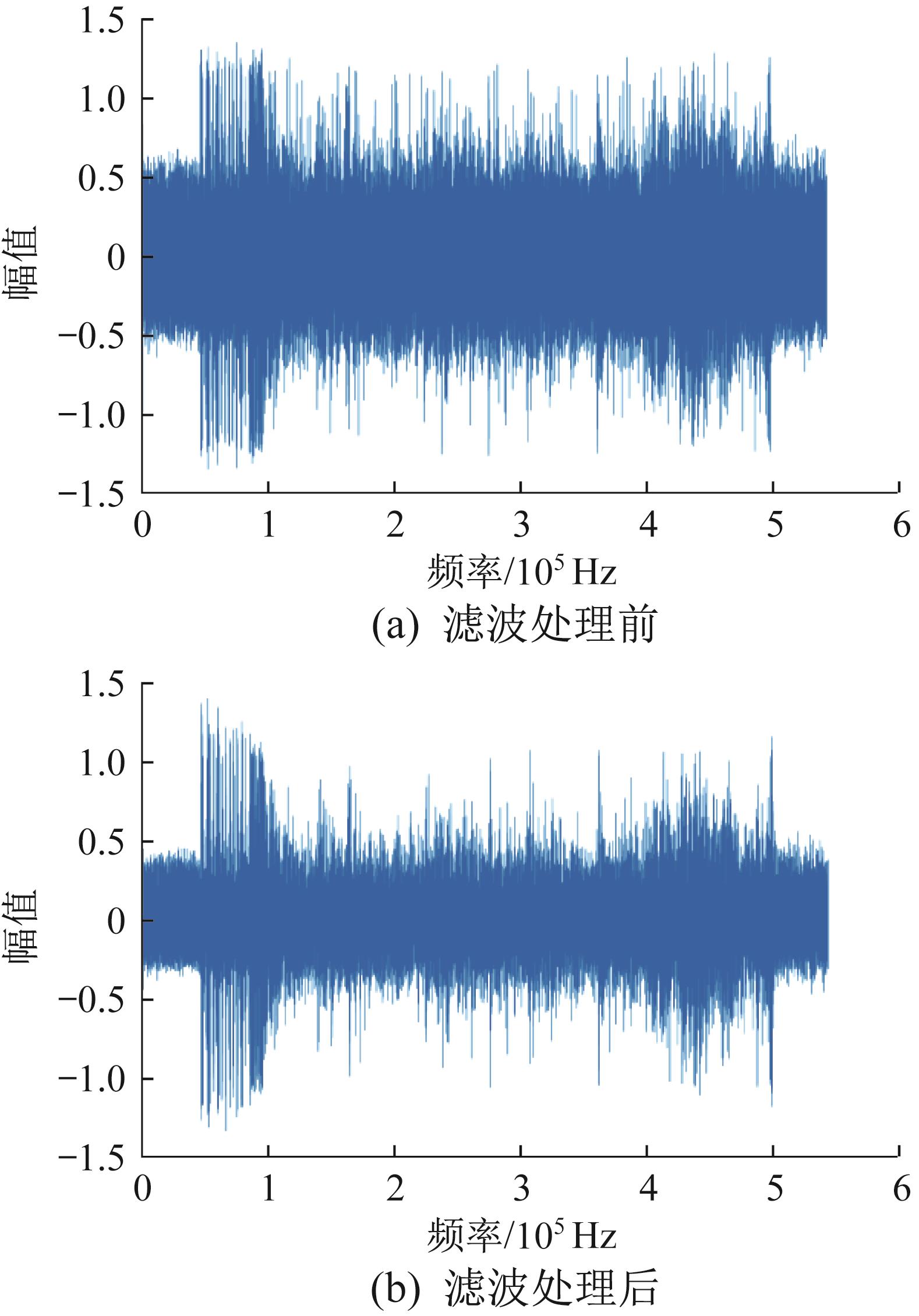

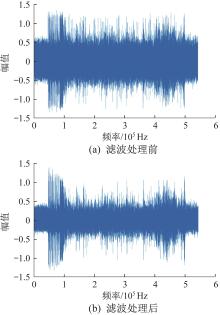

图4  滤波处理前后声信号的频谱图对比

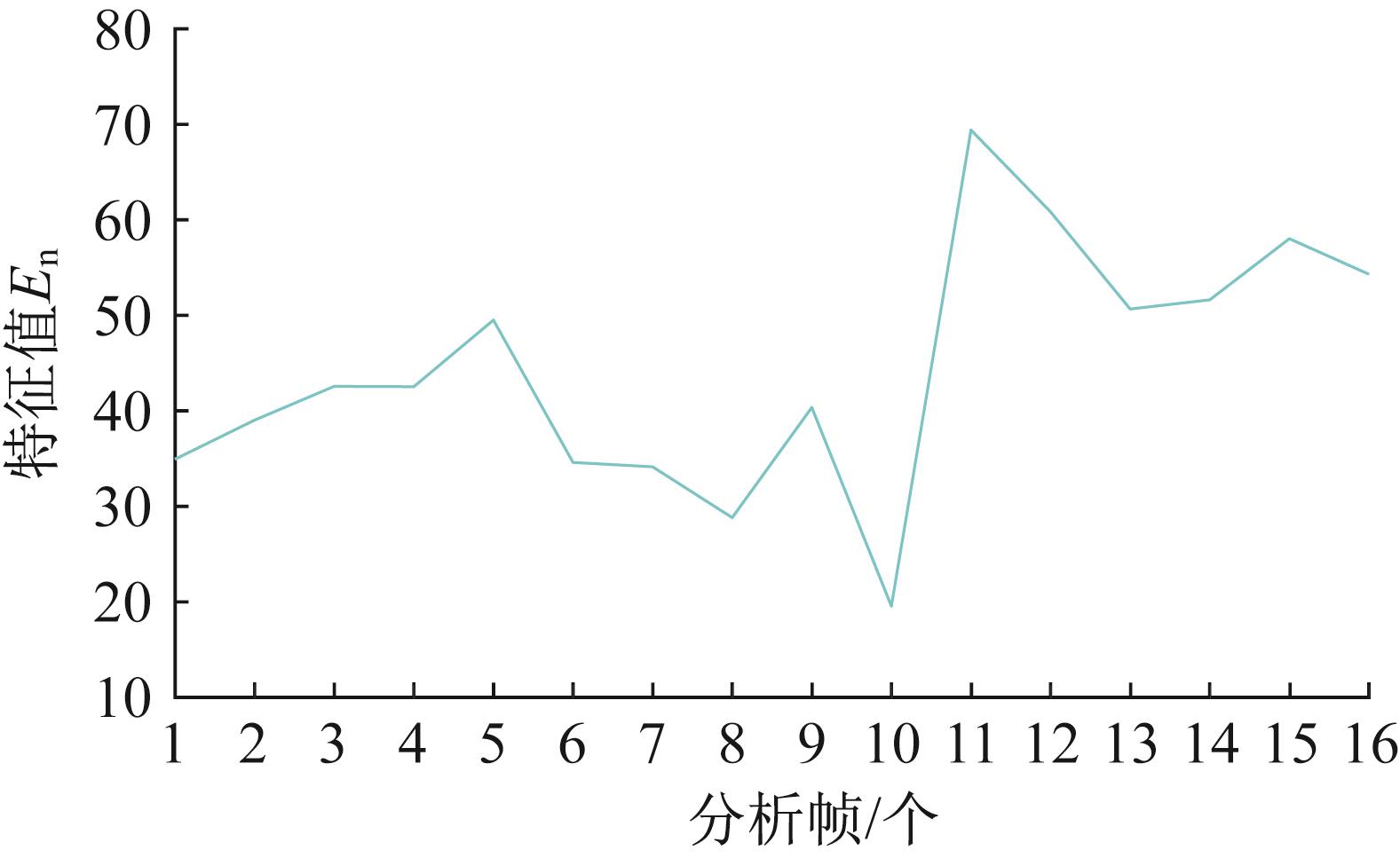

图5  声信号的短时能量

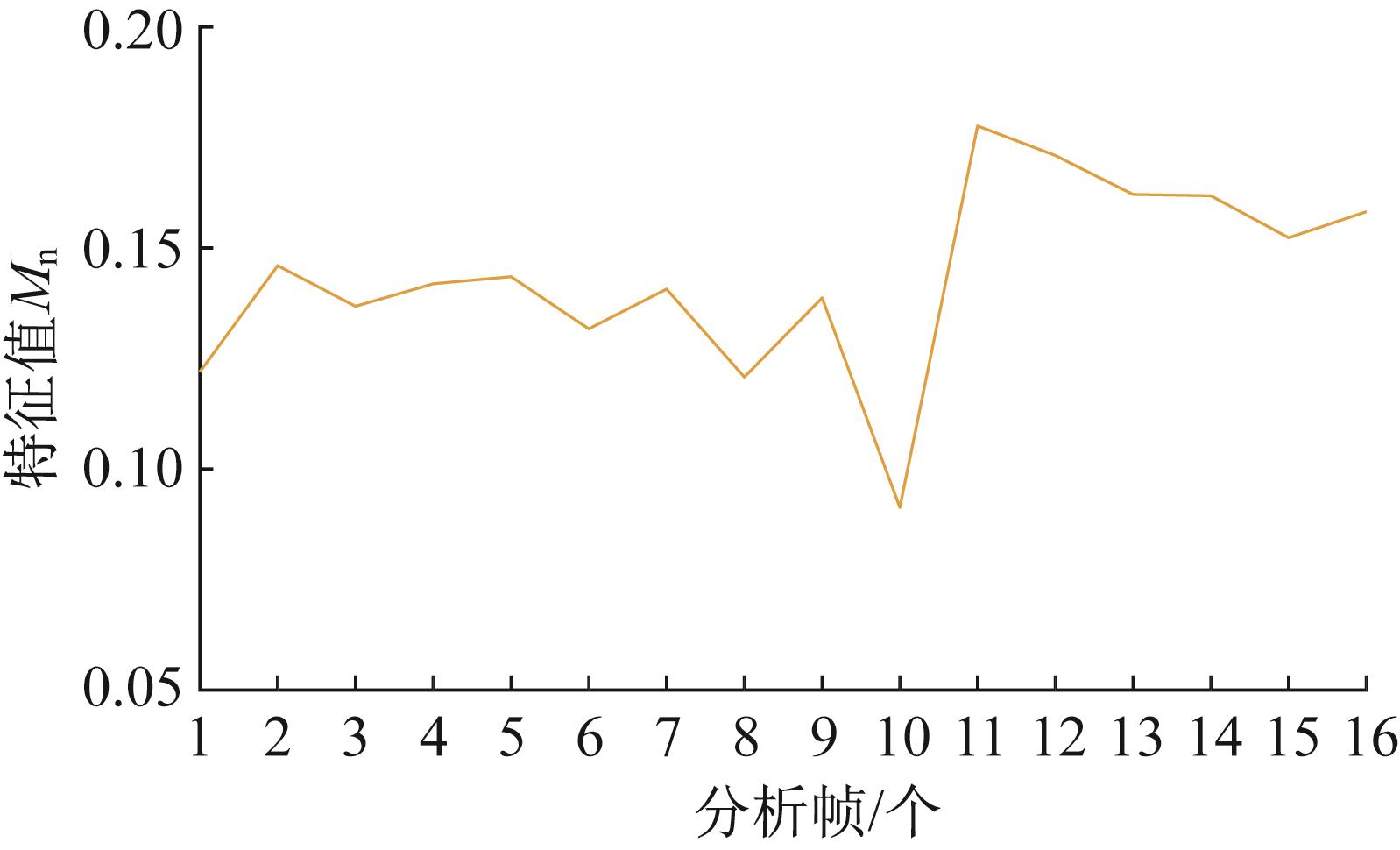

图6  声信号的短时平均幅度
图7  声信号的短时平均过零率

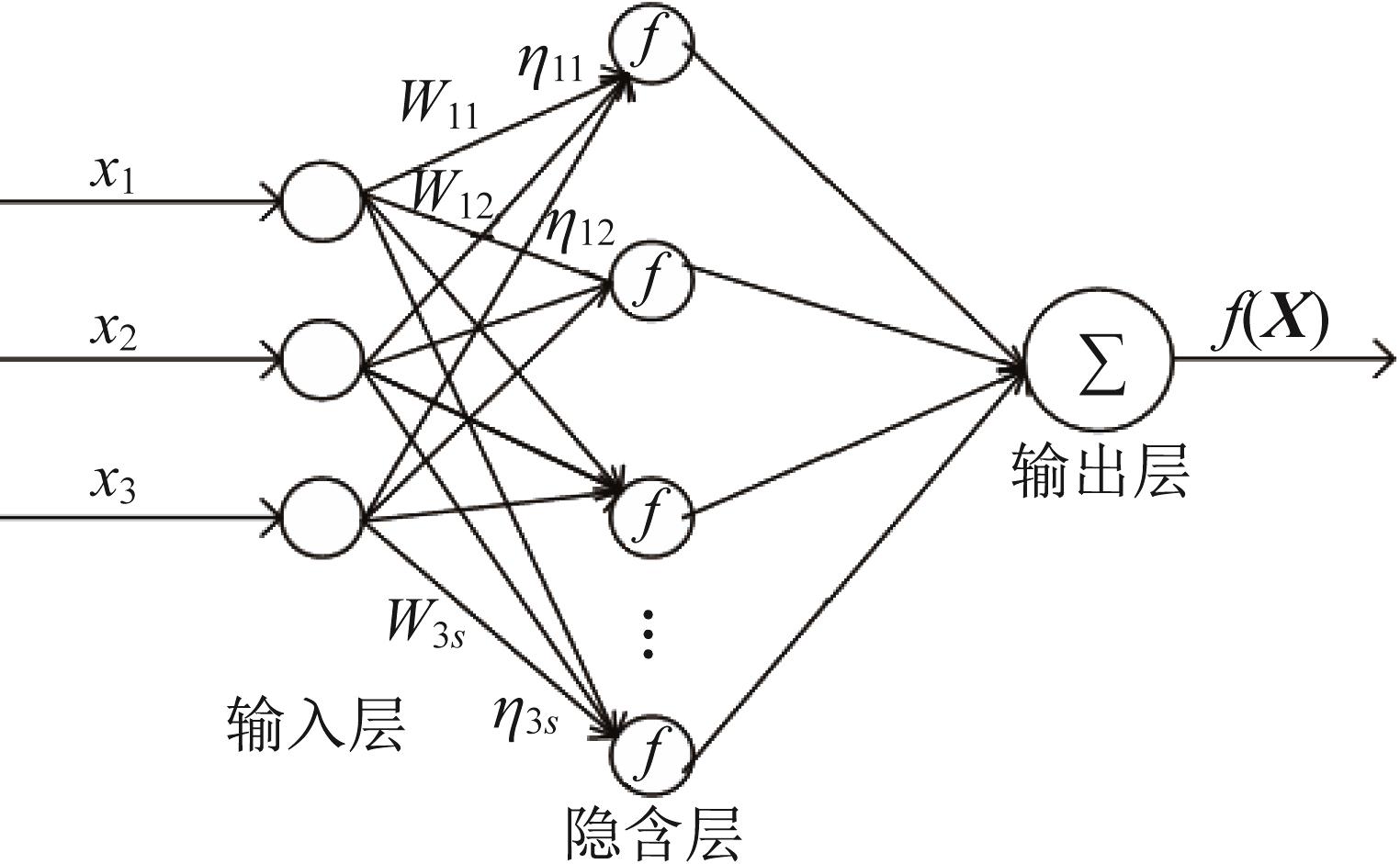

图8  结构固定的DWNN
图9  引入PSO的DWNN算法流程

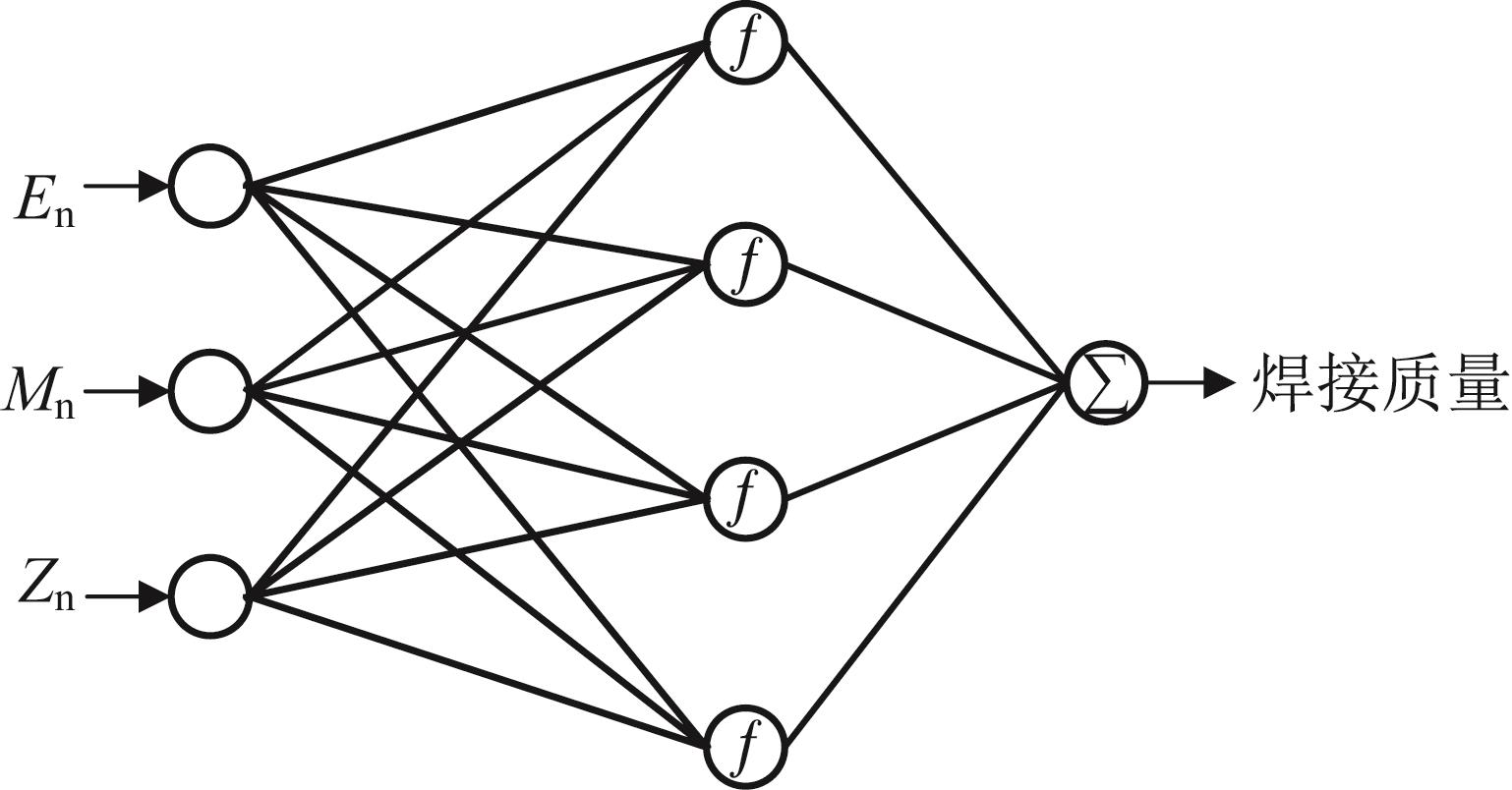

图10  水下焊接质量检测用DWNN的结构

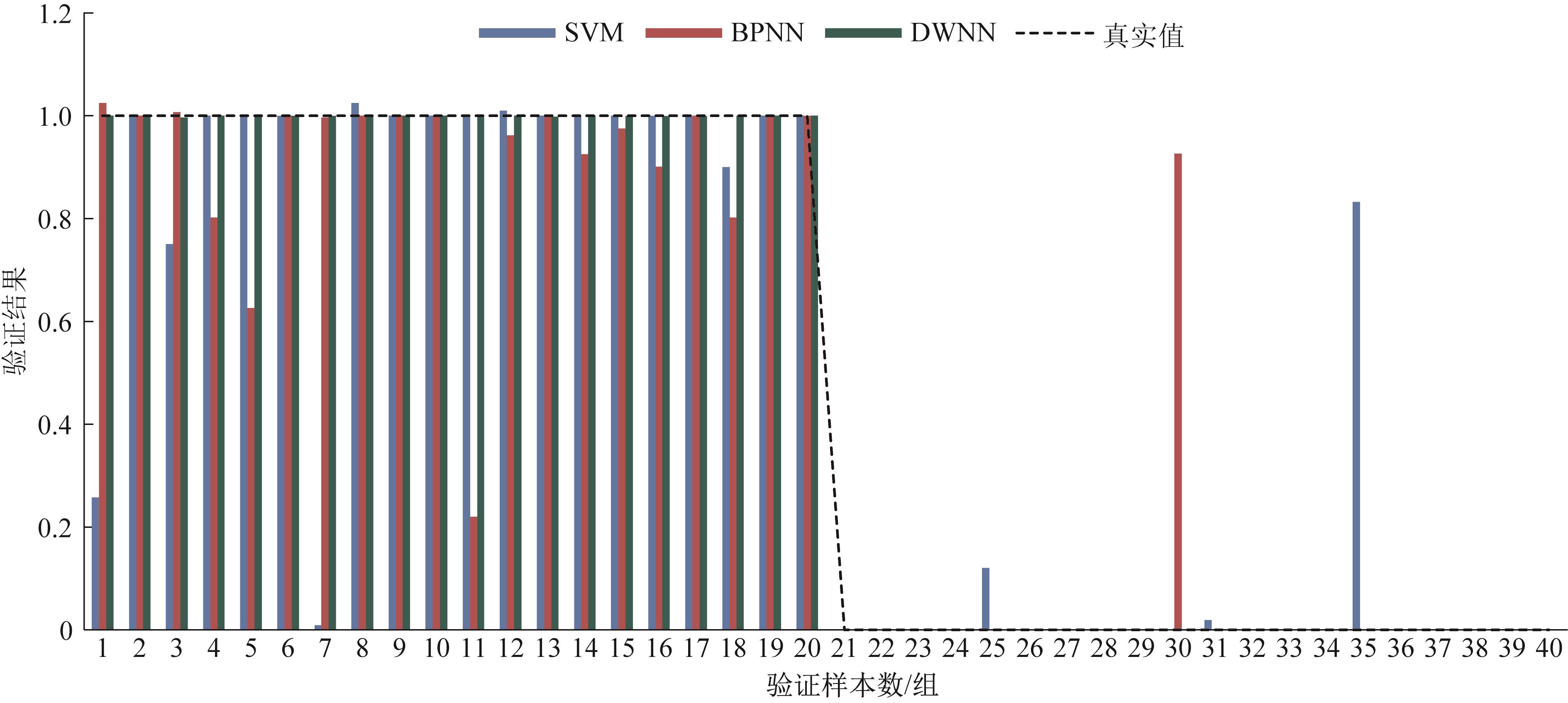

图11  基于不同方法的水下焊接质量识别结果(100组训练样本)

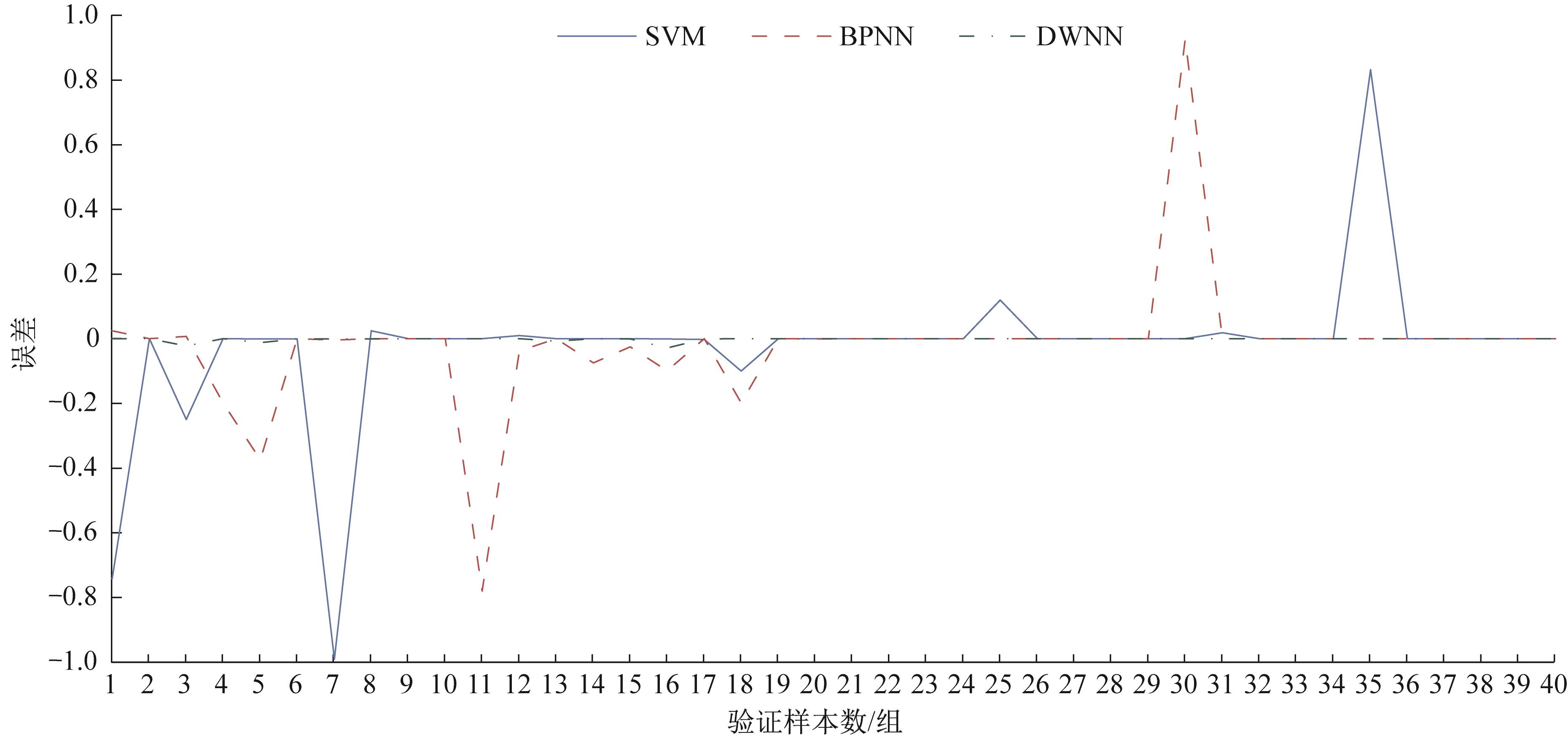

图12  基于不同方法的水下焊接质量识别误差(100组训练样本)
识别模型平均误差最大误差均方误差
DWNN0.002 20.011 40.000 387
SVM0.075 20.988 30.011 039
BPNN0.062 50.876 10.008 856
表2  不同水下焊接质量识别模型的误差对比

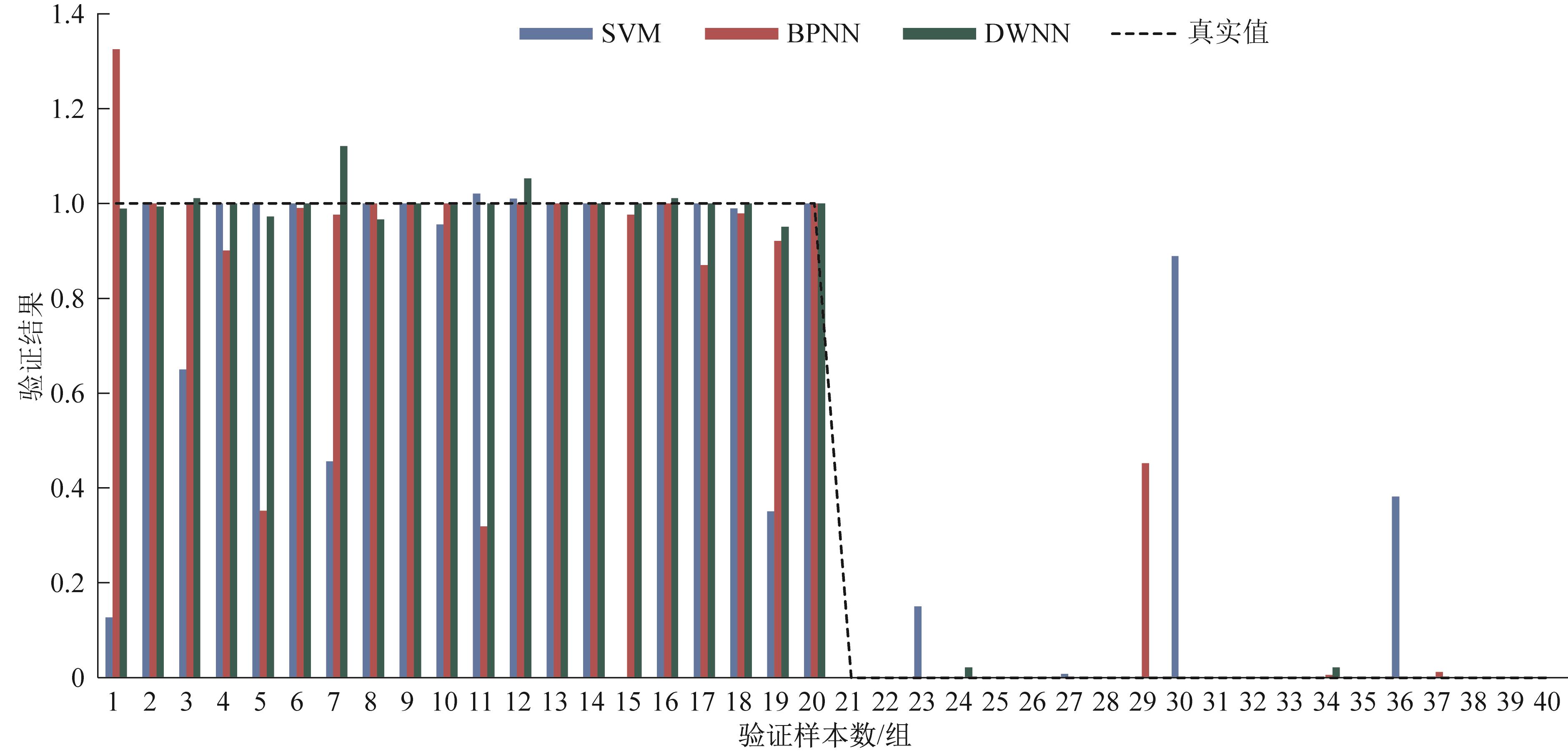

图13  基于不同方法的水下焊接质量识别结果(20组训练样本)

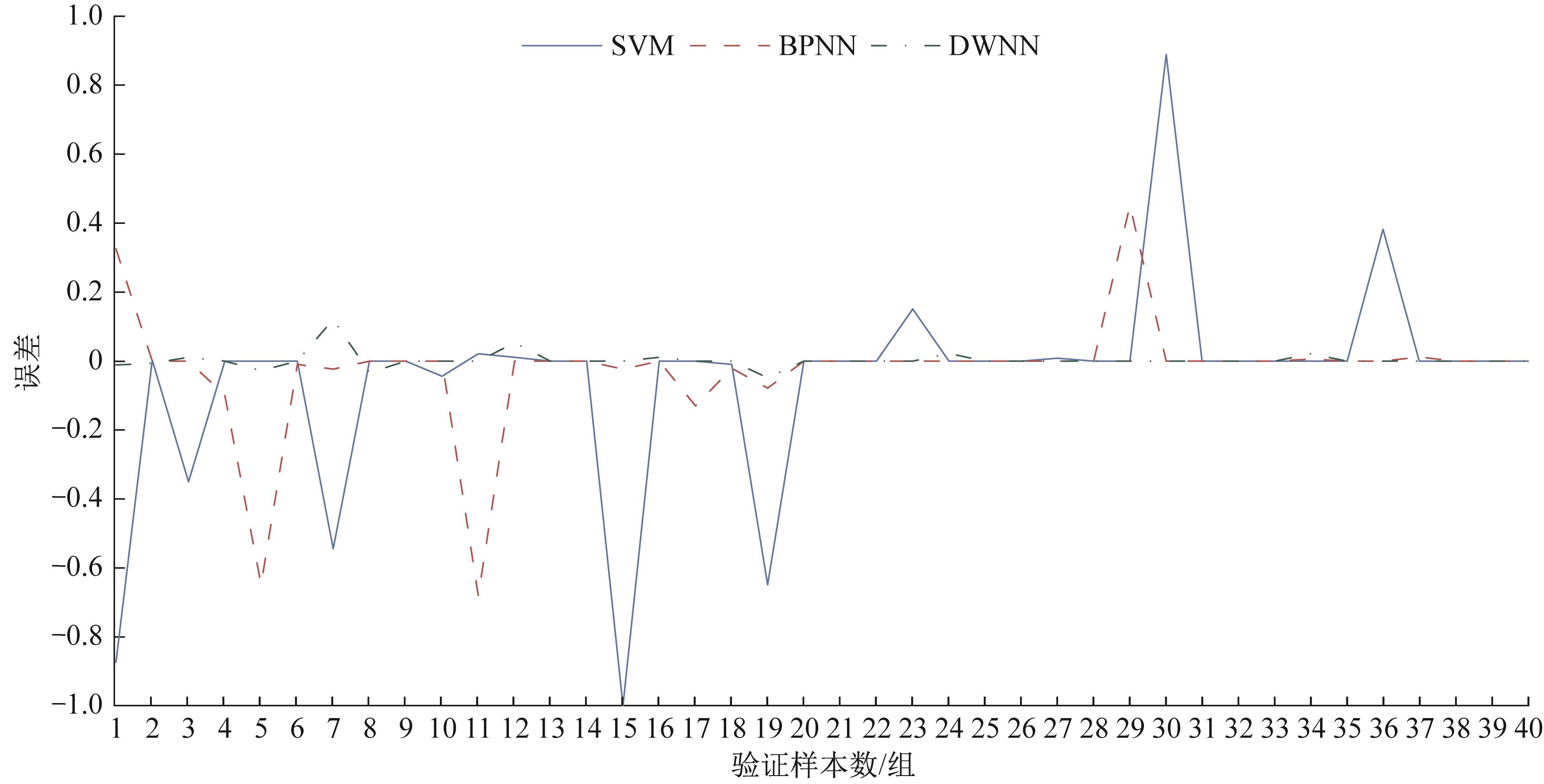

图14  基于不同方法的水下焊接质量识别误差(20组训练样本)
