浙江大学学报(工学版)
Journal of ZheJiang University (Engineering Science)  2023, Vol. 57 Issue (6): 1257-1266    DOI: 10.3785/j.issn.1008-973X.2023.06.022

Electrical resistance heating activated persulfate for remediation of perfluorooctanoic acid-contaminated soil
Liu-tao WU1(),Ming-xiu ZHAN1,2,Jian-ying FU3,Wen-tao JIAO2,Yong-ping SHAN2,Chen-chen ZHANG2,Xu XU1,*()
1. College of Metrology and Measurement Engineering, China Jiliang University, Hangzhou 310018, China
2. Research Center for Eco-Environmental Sciences, Chinese Academy of Sciences, Beijing 100085, China
3. State Key Laboratory of Clean Energy Utilization, Institute for Thermal Power Engineering, Zhejiang University, Hangzhou 310027, China
Download: HTML     PDF(1926KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

In order to effectively remove perfluorooctanoic acid (PFOA) from contaminated soil, electrical resistance heating (ERH) activated persulfate (PS) was used to study the heating law and PFOA removal effect of three different soils (loam, sandy soil and clay) during the ERH-PS coupled remediation process. Taking clay as the representative soil, the effect of amount of oxidant added, initial soil pH, and coexisting chloride ions on PFOA removal and the degradation mechanism of PFOA in soil were further studied. Results showed that when the voltage intensity was 3 V/cm, the time for the three soils to rise from 25 ℃ to 100 ℃ did not exceed 30 minutes. When the amount of PS added per kilogram of soil was 50 g, the heating temperature was 100 ℃, and after 6 h of degradation, the degradation efficiency of PFOA for the soils was as follows: clay (90.9%) > loam (72.7%) > sandy soil (48.8%). In the meanwhile, PS addition was an important condition to ensure the effective degradation of PFOA in soil. The acidic environment of soil was favorable to promote the degradation of PFOA, while the alkaline conditions and coexisting chloride ions would inhibit the degradation of PFOA. Through the detection and analysis of the degradation intermediates, it is inferred that the possible degradation mechanism of PFOA was the step-by-step degradation process of PFOA promoted by ${\mathrm{S}\mathrm{O}}_{4}^{ {\bullet} -}$ and ${^\bullet}\;{\rm{OH}}$ generated by PS activation.

Key words： perfluorooctanoic acid (PFOA)      soil remediation      electrical resistance heating (ERH)      persulfate      degradation effect
Received: 23 June 2022      Published: 30 June 2023
CLC:  X 53
Fund:  国家自然科学基金资助项目（42077126）
Corresponding Authors: Xu XU     E-mail: 954436569@qq.com;xuxu@cjlu.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Liu-tao WU
Ming-xiu ZHAN
Jian-ying FU
Wen-tao JIAO
Yong-ping SHAN
Chen-chen ZHANG
Xu XU
Cite this article:

Liu-tao WU,Ming-xiu ZHAN,Jian-ying FU,Wen-tao JIAO,Yong-ping SHAN,Chen-chen ZHANG,Xu XU. Electrical resistance heating activated persulfate for remediation of perfluorooctanoic acid-contaminated soil. Journal of ZheJiang University (Engineering Science), 2023, 57(6): 1257-1266.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.06.022     OR     https://www.zjujournals.com/eng/Y2023/V57/I6/1257


电阻加热活化过硫酸盐修复全氟辛酸污染土壤

为了有效去除污染土壤中的全氟辛酸（PFOA），通过电阻加热（ERH）活化过硫酸盐（PS）的方法，研究3种土壤（壤土、砂土和黏土）在ERH-PS耦合修复过程中的升温规律和PFOA的去除效果. 以黏土为代表土壤，探究氧化剂添加量、土壤初始pH和共存氯离子对土壤中PFOA去除的影响以及PFOA的降解机制. 研究结果表明，当电压强度为3 V/cm时，3种土壤由25 ℃升至100 ℃的时间均不超过30 min. 每千克土壤添加50 g PS、加热温度为100 ℃，降解6 h后，3种土壤的PFOA降解效率由大到小依次为黏土（90.9%）>壤土（72.7%）>砂土（48.8%）. PS的添加量是保证土壤中PFOA有效降解的重要条件，土壤的酸性环境有利于促进PFOA的降解，碱性条件和共存氯离子均会抑制PFOA的降解. 通过对降解中间产物的检测分析，进而推断PFOA可能的降解机理为PS活化生成的 ${\mathrm{S}\mathrm{O}}_{4}^ { {\bullet} -}$和 ${^\bullet}\;{\rm{OH}} $促使的PFOA逐级降解过程.


关键词： 全氟辛酸(PFOA),  土壤修复,  电阻加热(ERH),  过硫酸盐,  降解效果
土壤类型 wom/% pH R0/% s/(m2·g?1) c/(J·g?1·℃?1) Φ/%
d<0.002 mm 0.002 $ \leqslant {{d}} \leqslant $0.020 mm 0.020 $ < {{d}} \leqslant $2.000 mm
壤土 0.318 7.75 14.37 31.95 53.68 11.248 0.84 24.2
砂土 0.278 8.31 5.80 1.60 92.60 8.501 0.82 17.7
黏土 0.518 7.28 46.01 14.00 39.99 22.943 0.88 30.4
Tab.1 Basic properties of three test soils after air drying, grinding and screening

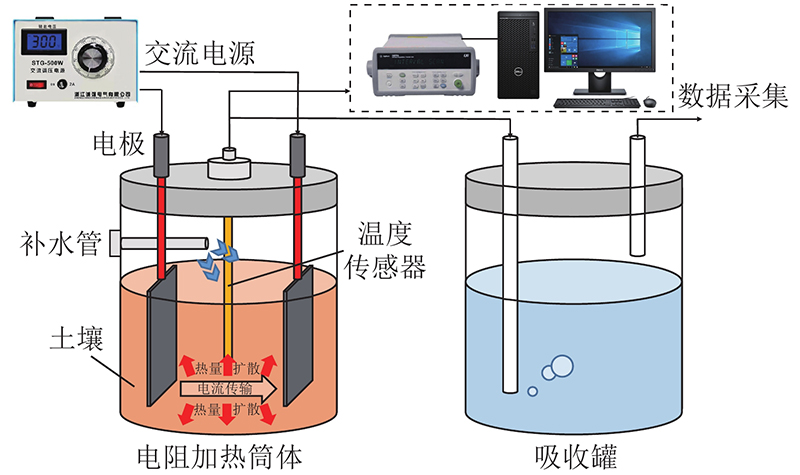

Fig.1 Schematic diagram of electrical resistance heating activated persulfate coupling repair experimental device
实验组 土壤类型 w(PFOA) /
10-9		 X/g θ0/℃ t/h Y/g
A-1 壤土 500 50 100 6 0
A-2 黏土(pH=6.3) 500 50 100 6 0
A-3 砂土 500 50 100 6 0
B-1 黏土 500 0 100 6 0
B-2 黏土 500 12.5 100 6 0
B-3 黏土 500 100 100 6 0
C-1 黏土(pH=2.4) 500 50 100 6 0
C-2 黏土(pH=11.8) 500 50 100 6 0
D-1 黏土 500 50 100 6 10
D-2 黏土 500 50 100 6 30
D-3 黏土 500 50 100 6 50
E-1 黏土 500 100 100 1/6 0
E-2 黏土 500 100 100 0.5 0
E-3 黏土 500 100 100 1 0
E-4 黏土 500 100 100 2 0
E-5 黏土 500 100 100 3 0
Tab.2 Design of electrical resistance heating activated persulfate coupling repair experimental conditions

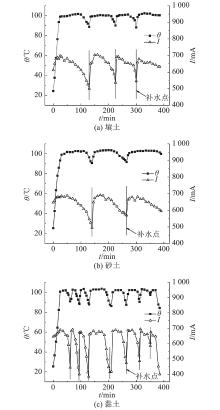

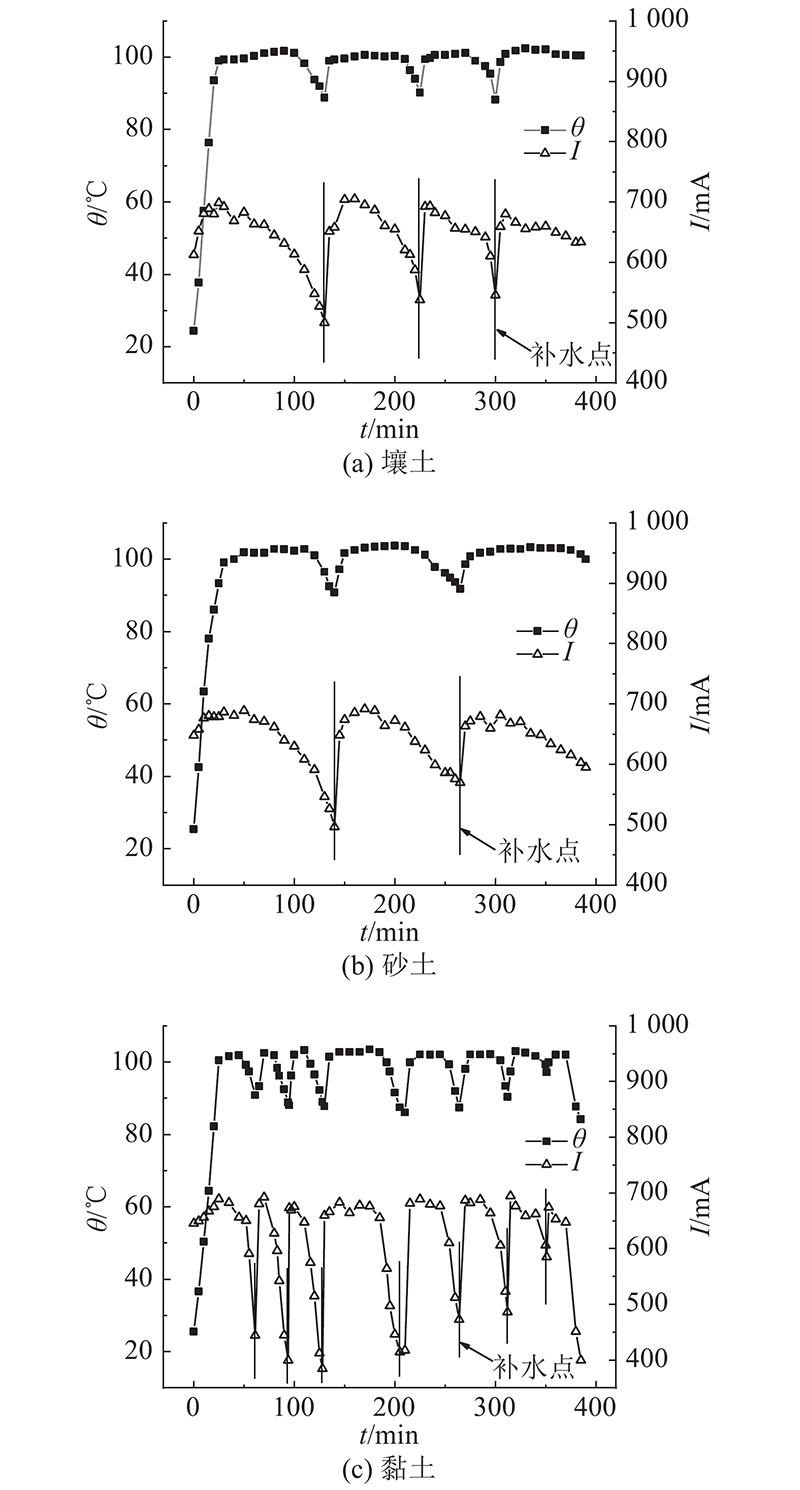

Fig.2 Temperature and current changes of different soils during coupled remediation process

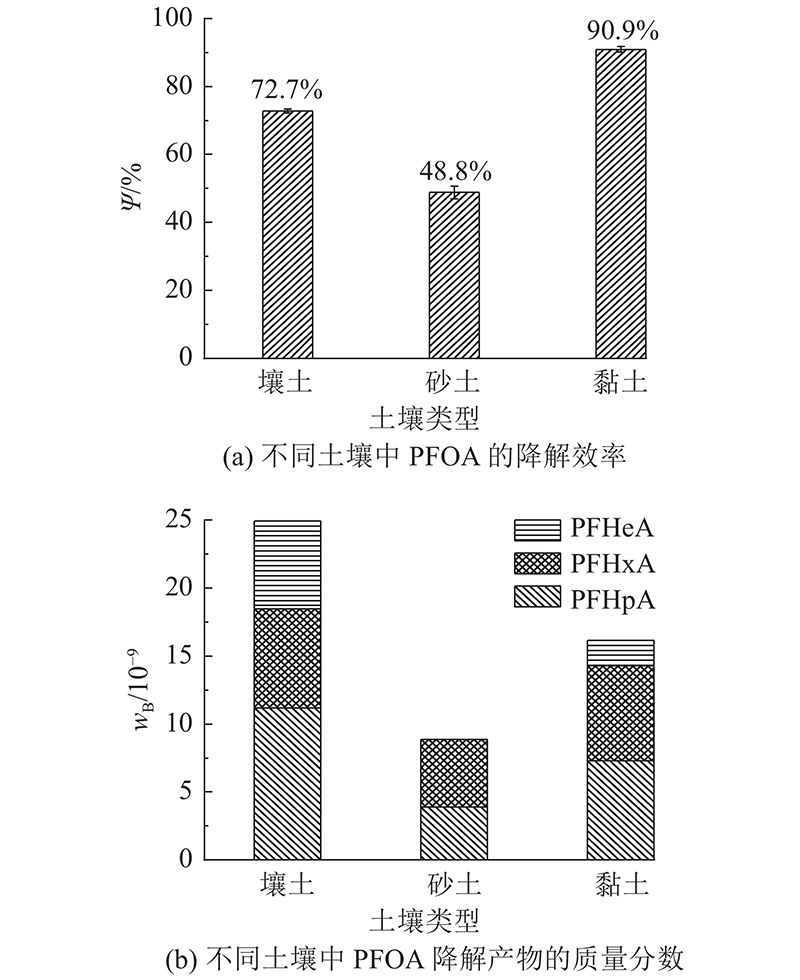

Fig.3 Degradation effect of perfluorooctanoic acid and mass fraction of its degradation products in different soils
Fig.4 SEM photographs of different soils before and after remediation

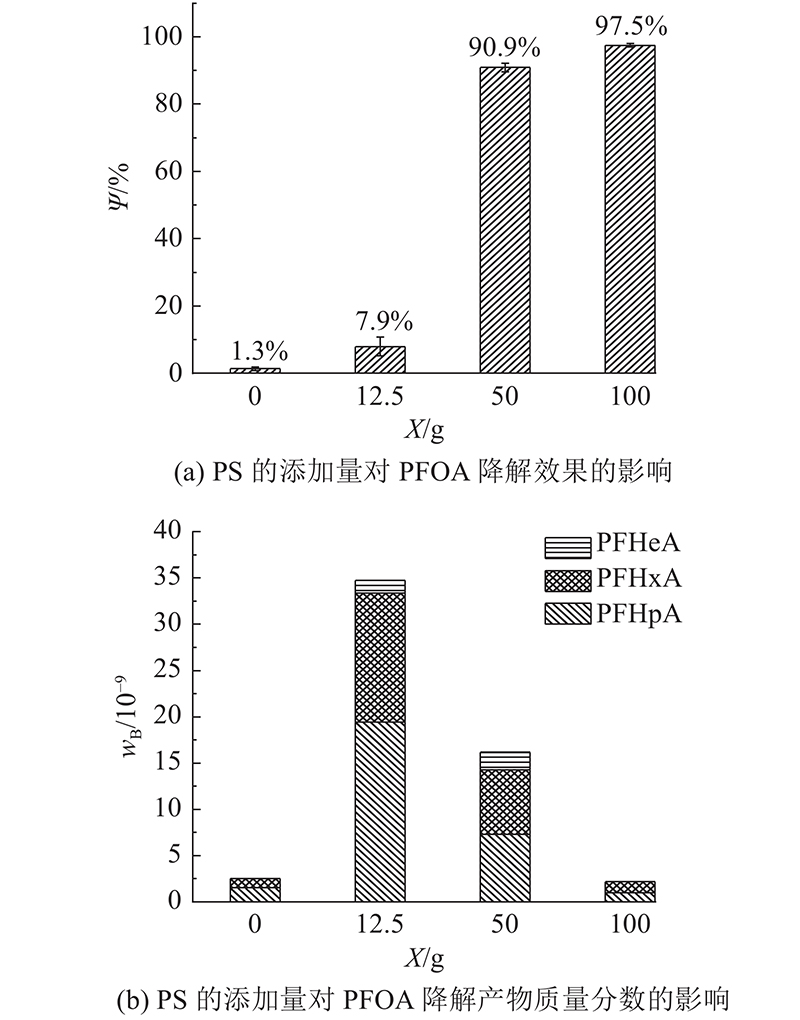

Fig.5 Effect of PS addition on perfluorooctanoic acid degradation effect and mass fraction of degradation products in clay

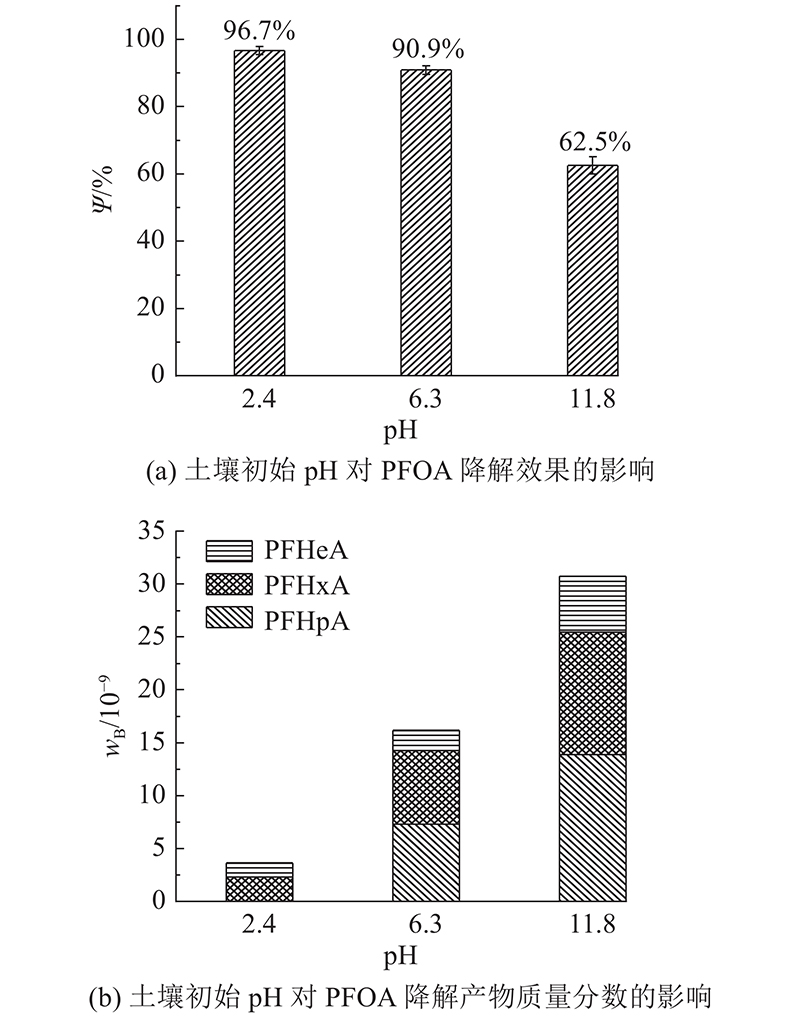

Fig.6 Effect of soil initial pH on perfluorooctanoic acid degradation effect and mass fraction of degradation products in clay

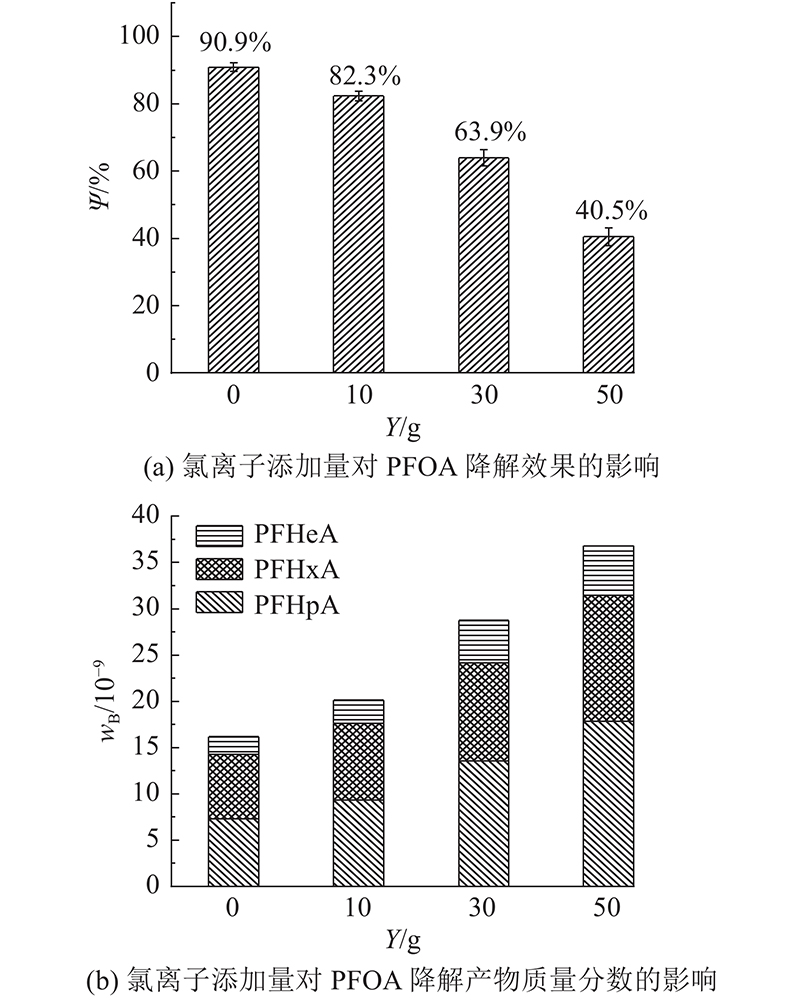

Fig.7 Effect of chloride ion addition on perfluorooctanoic acid degradation effect and mass fraction of degradation products in clay

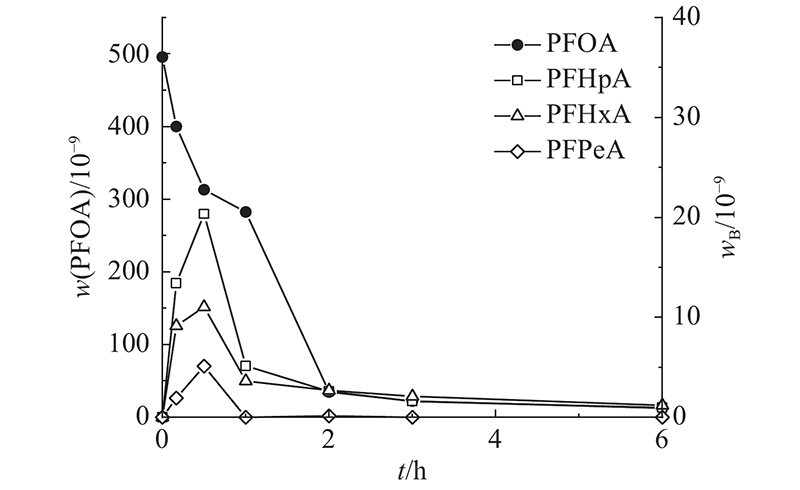

Fig.8 Changes of mass fraction of soil PFOA and its degradation products during coupled remediation

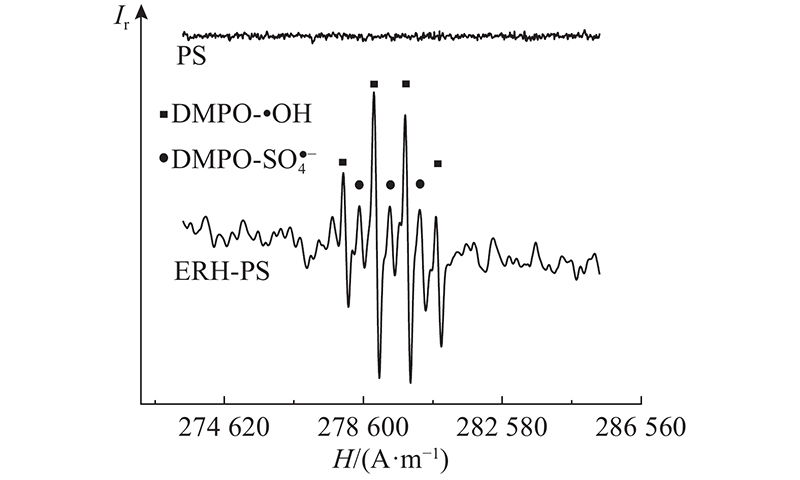

Fig.9 EPR spectra of soil after coupled remediation for 6 h
