Numerical simulation and experimental study on forming of overhang structure by laser power bed fusion of In718 alloy

doi:10.3785/j.issn.1008-973X.2023.06.013

Journal of ZheJiang University (Engineering Science)

2023, Vol. 57

Issue (6): 1175-1185 DOI: 10.3785/j.issn.1008-973X.2023.06.013

Numerical simulation and experimental study on forming of overhang structure by laser power bed fusion of In718 alloy

Cai-hua WANG1(

),Xu-hui LAI1,Huan-qing YANG2,Zheng-ying WEI1,*(

)

1. Institute of Advanced Manufacturing Technology, Xi'an Jiaotong University, Xi'an 710049, China
2. AVIC Xi’an Aero-Engine (Group) Limited, Xi’an 710021, China

Download:

HTML

PDF(2407KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A three-dimensional mesoscopic numerical model of the In718 overhanging fusion channel was developed to address the problem of overhanging print quality of lattice tilting struts in laser powder bed fusion (LPBF). The powder bed was established in EDEM based on the discrete element method. The LPBF channel forming process was implemented in Flow-3D based on the finite volume method, and the flow, heat transfer, melting and solidification processes of the laser-powder particle interaction were analysed by numerical simulation. Results show that the solid-powder interface region is prone to discontinuous fusion channel, and improving the process parameters can improve the continuity of fusion channel forming in the region. The high laser power (300 W) applied at low energy density (44.19 J/mm³) not only does not produce keyhole defects, but also results in stronger Marangoni flow and faster melt pool flow than the low power group (87.5 W) to fill the discontinuities, and improves the continuity of the fusion channel in the solid-powder interface region.

Key words： laser powder bed fusion (LPBF) overhang structure discontinuity heat and mass transfer In718

Received: 14 May 2022 Published: 30 June 2023

CLC:

TG 146.1

Fund: 军工基础性科研院所稳定支持项目(2019KGW-YY4007Tm)

Corresponding Authors: Zheng-ying WEI E-mail: 3120101153@stu.xjtu.edu.cn;zywei@mail.xjtu.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Cai-hua WANG
	Xu-hui LAI
	Huan-qing YANG
	Zheng-ying WEI

Cite this article:

Cai-hua WANG,Xu-hui LAI,Huan-qing YANG,Zheng-ying WEI. Numerical simulation and experimental study on forming of overhang structure by laser power bed fusion of In718 alloy. Journal of ZheJiang University (Engineering Science), 2023, 57(6): 1175-1185.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2023.06.013 OR https://www.zjujournals.com/eng/Y2023/V57/I6/1175

In718合金激光粉末床熔融悬垂结构成形数值模拟与实验研究

针对激光粉末床熔融 (LPBF)成形中点阵倾斜支杆的悬垂打印质量问题, 以In718悬垂熔道为研究单元，建立三维介观数值模型. 基于离散单元法在建模软件EDEM中建立粉末床模型, 基于有限体积法在Flow-3D中实现LPBF熔道成形过程, 通过数值模拟分析激光-粉末颗粒相互作用的流动、传热、熔化、凝固过程. 结果表明, 实体-粉末交界区域容易出现不连续的熔道, 改善工艺参数可以提高该区域熔道成形的连续性. 在低能量密度(44.19 J/mm³)下, 施加高激光功率(300 W)不会产生匙孔缺陷, 能够以比低激光功率(87.5 W)更强的马兰戈尼流动、更快的熔池流动速度填充不连续点, 提高实体-粉末交界区域的熔道连续性.

关键词： 激光粉末床熔融(LPBF), 悬垂结构, 不连续性, 传热传质, In718

Fig.1 Schematic diagram of laser powder bed fusion forming

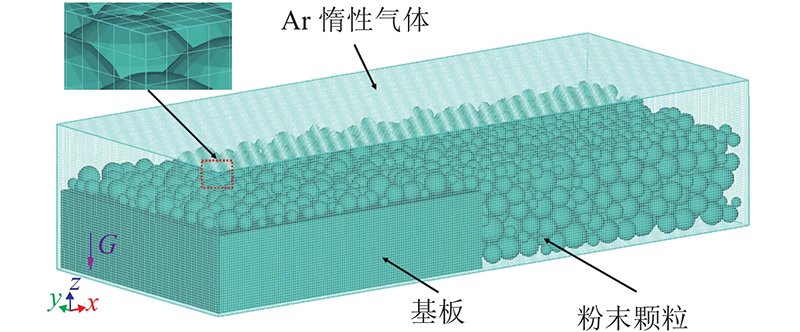

Fig.2 Meshing of computational fluid dynamics domains

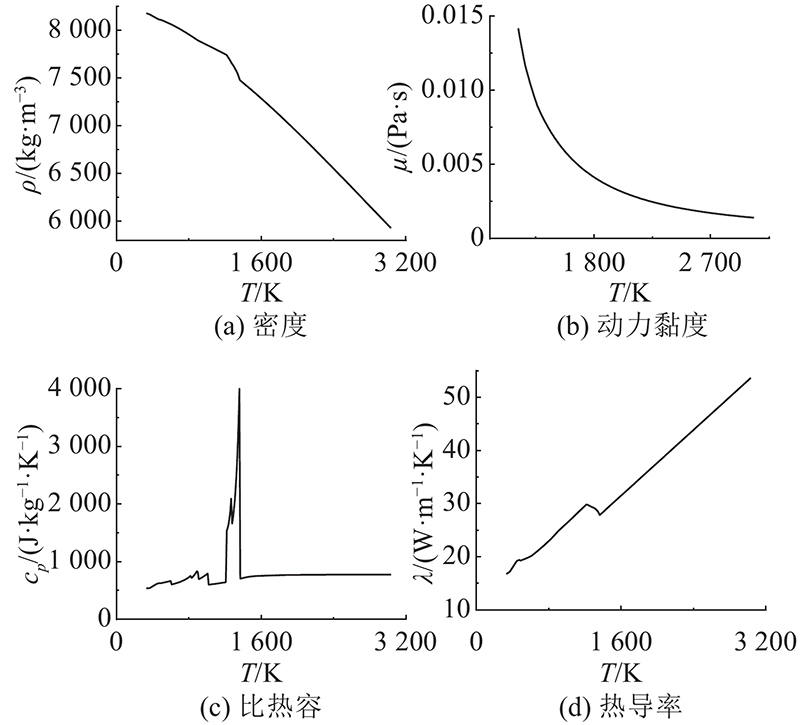

Fig.3 Thermo-physical properties of In718 nickel-based superalloy with temperature

Tab.1 Initial input parameters for numerical simulation of In718 nickel-based superalloy

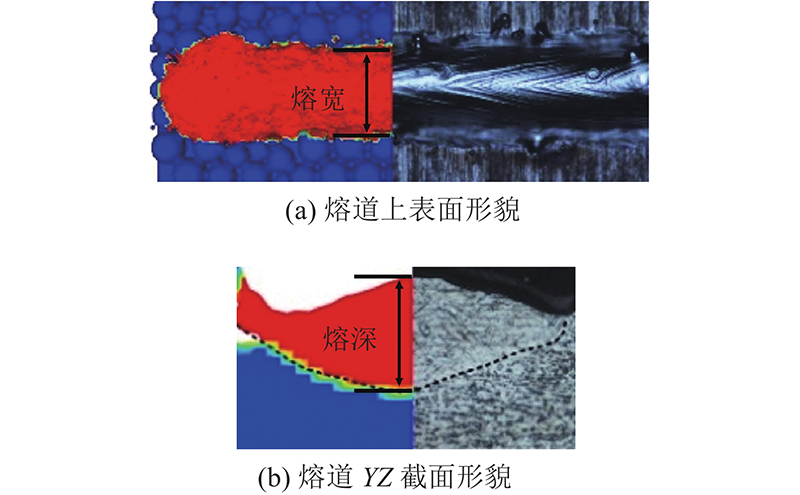

Fig.4 Comparison of simulation results (left) and experimental results (right) of fusion channel morphology

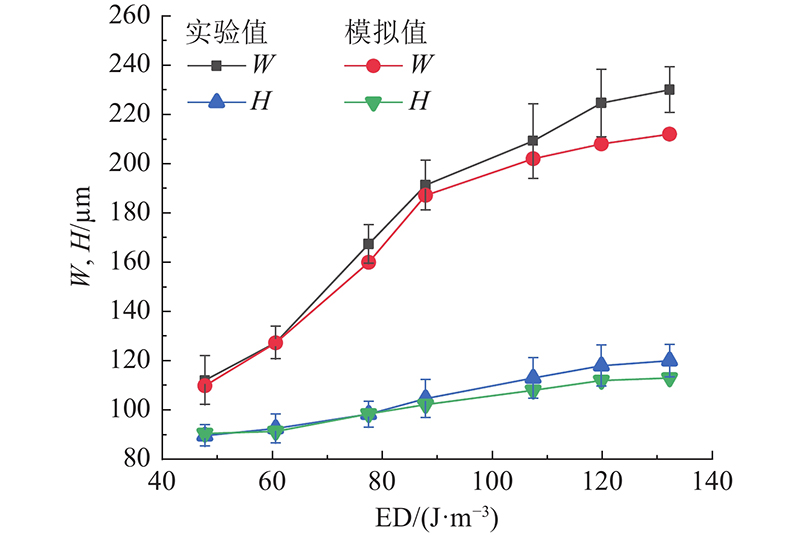

Fig.5 Melt width and depth with energy density

Tab.2 Simulation process parameters of In718 nickel-based superalloy

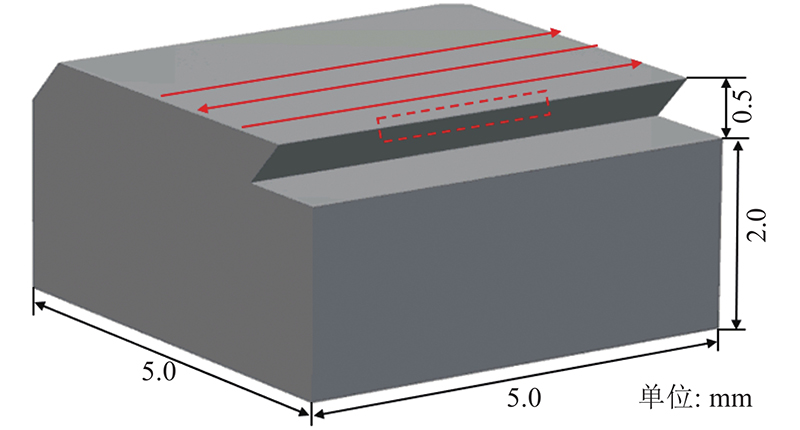

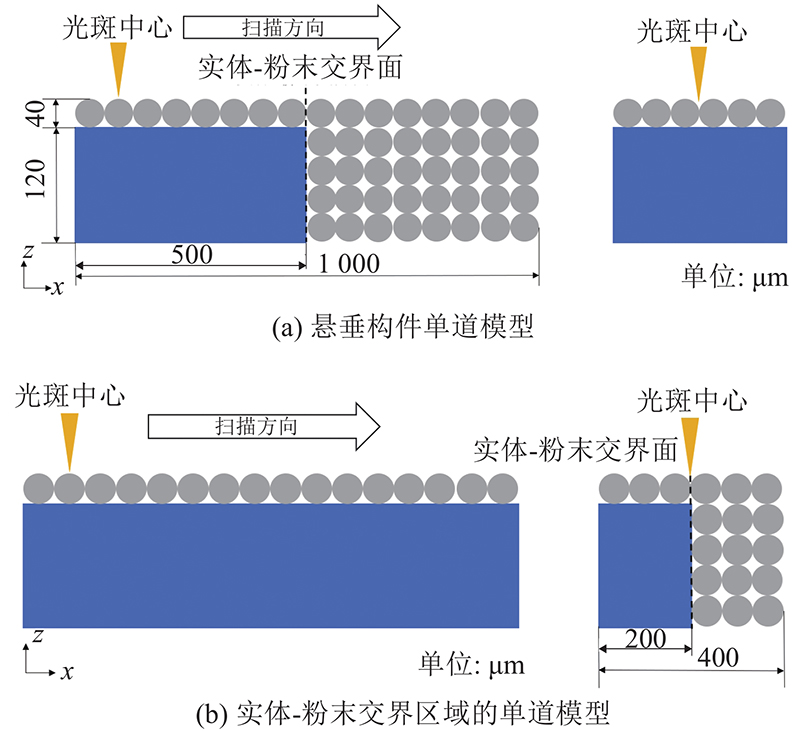

Fig.6 Geometric model of simulated specimen

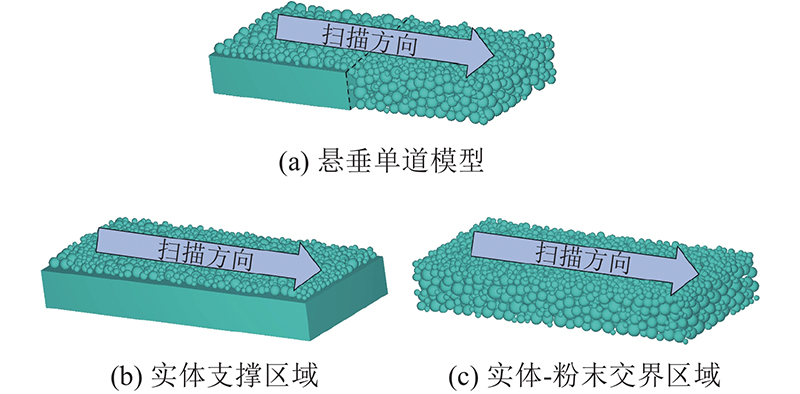

Fig.7 Schematic diagram of solid-powder junction area overhanging fusion channel forming

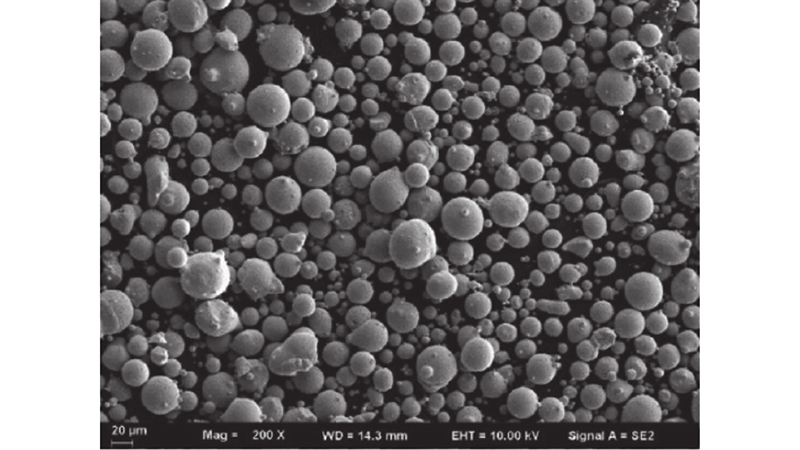

Fig.8 Scanning electron microscope image of In718 powder material

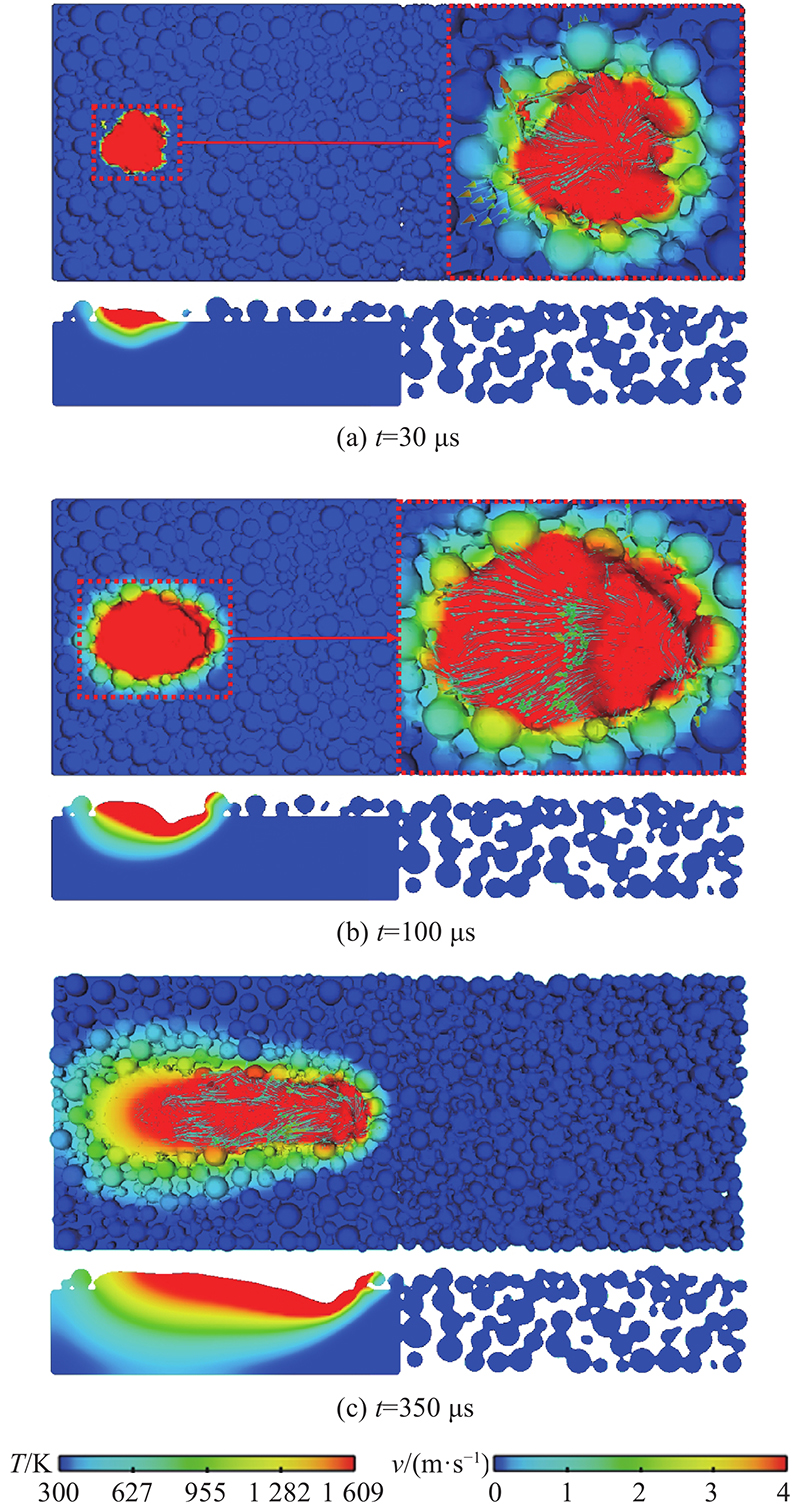

Fig.9 Temperature field and velocity field of solid support area of overhanging structure

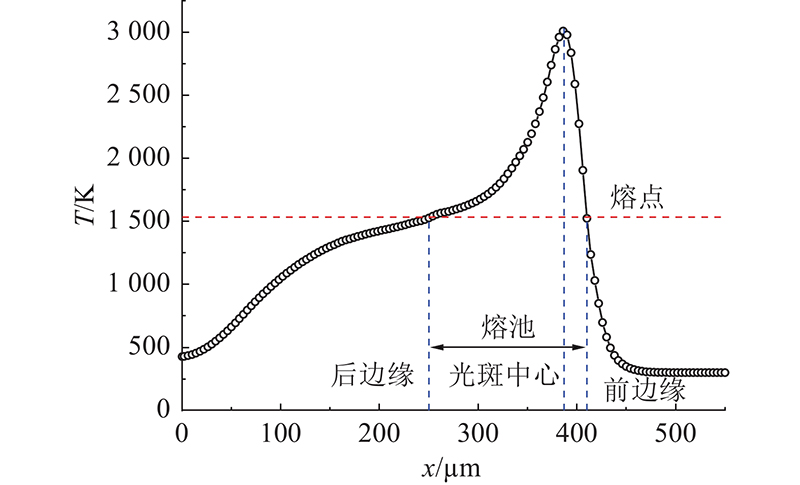

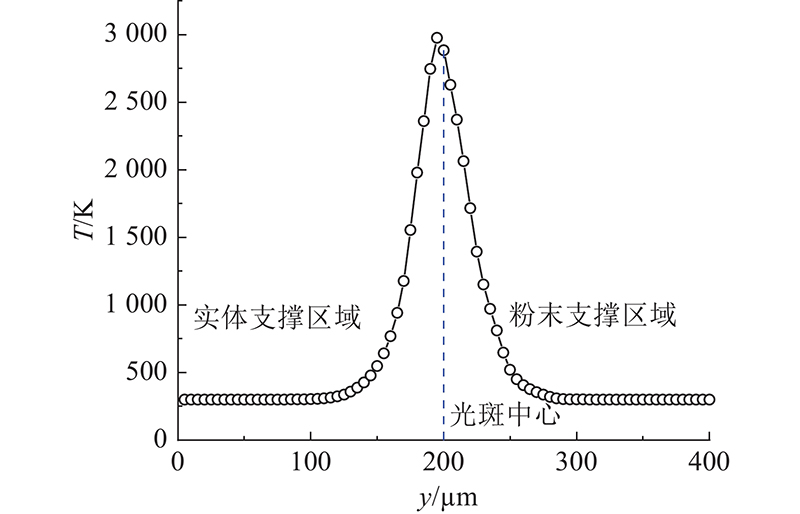

Fig.10 Temperature distribution curve along centerline of molten pool at 350 μs

Fig.11 Temperature and velocity field of powder support area of overhanging structure

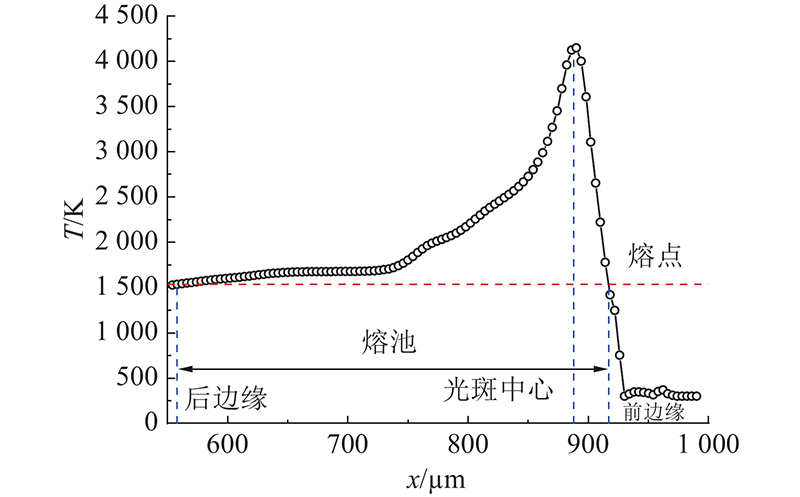

Fig.12 Temperature distribution curve along centerline of molten pool at 900 μs

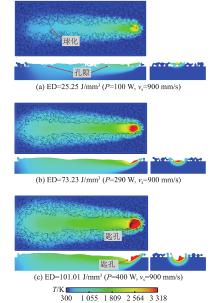

Fig.13 Influence of laser energy density on temperature distribution and surface of single track in solid support area

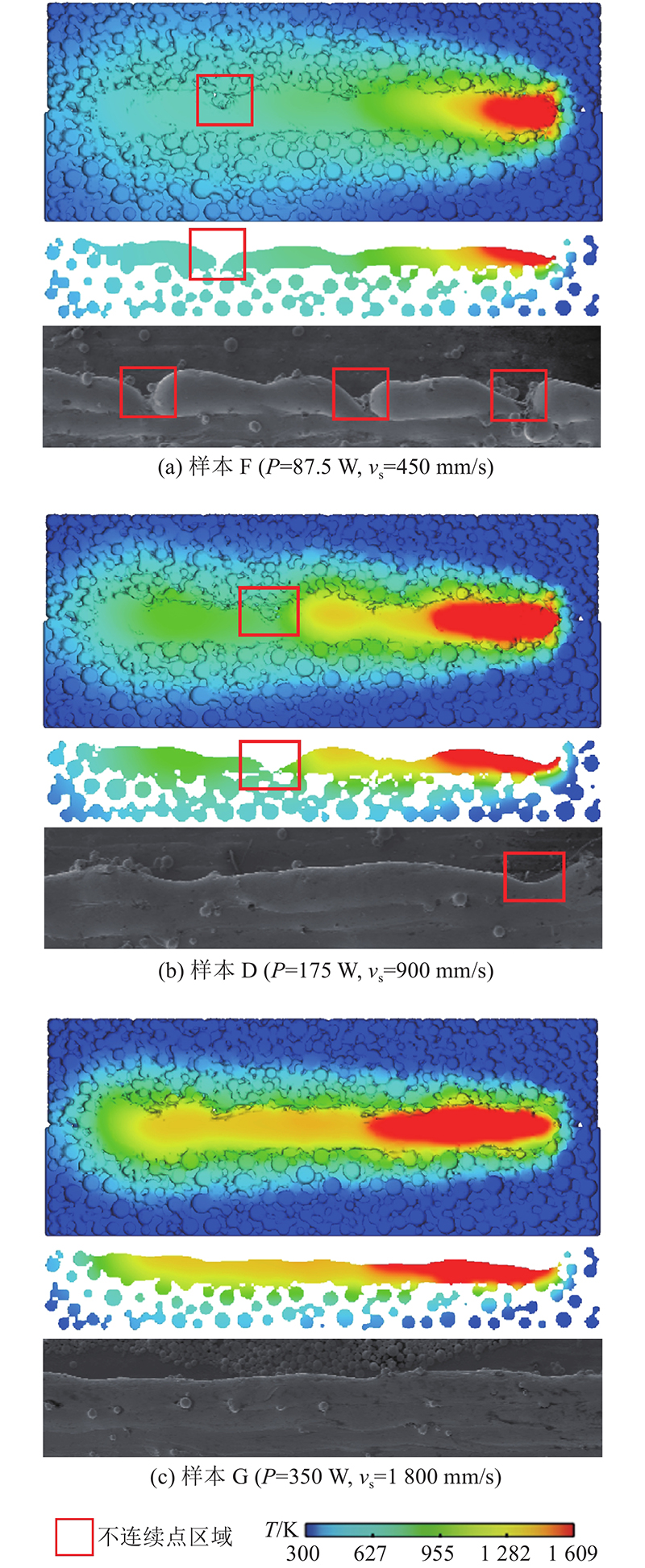

Fig.14 Influence of laser energy density on temperature distribution and surface of single track in interface region

Fig.15 Variation of molten pool temperature on probe line A-B at low energy density

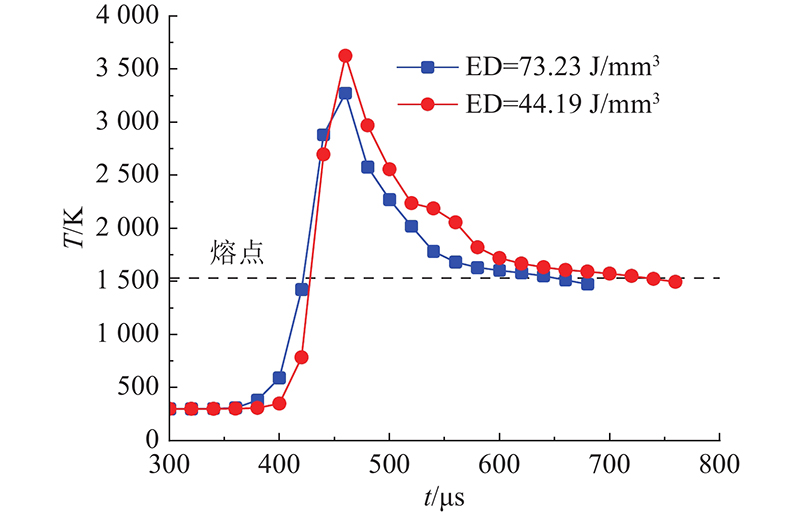

Fig.16 Temperature evolution of detection point at center of molten pool under different energy densities

Fig.17 Influence of process parameters on temperature distribution and surface of single track in interface area

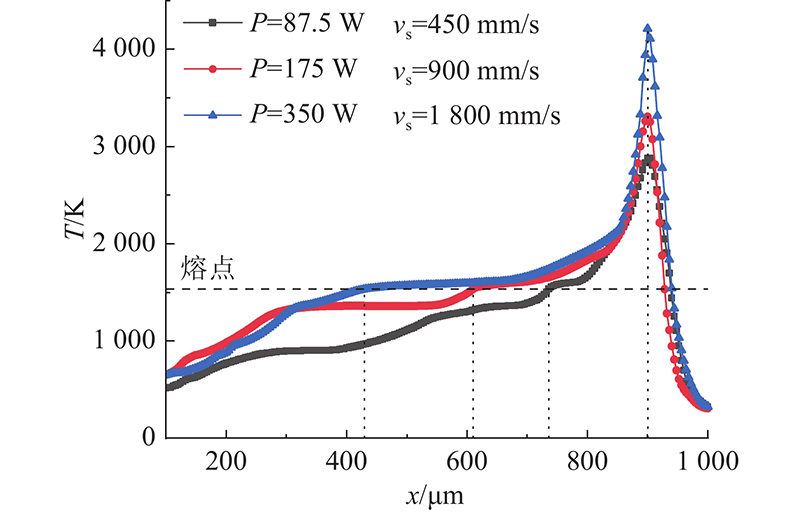

Fig.18 Temperature distribution curve along centerline of molten pool under different process parameters
