Behavior of retaining system of narrow-long deep foundation pit in soft soil in Nansha Port Area

doi:10.3785/j.issn.1008-973X.2022.08.001

Journal of ZheJiang University (Engineering Science)

2022, Vol. 56

Issue (8): 1473-1484 DOI: 10.3785/j.issn.1008-973X.2022.08.001

Behavior of retaining system of narrow-long deep foundation pit in soft soil in Nansha Port Area

Shi-fan QIAO(

),Zi-yong CAI*(

),Zhen ZHANG,Jun-kun TAN

School of Civil Engineering, Central South University, Changsha 410075, China

Download:

HTML

PDF(2529KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

In order to clarify the characteristics of the retaining system of narrow-long deep foundation pit in soft soil in Nansha Port Area, the behavior of retaining system for foundation pit excavation was studied, according to the measured data of Guangzhou deep and narrow foundation pit with diaphragm wall and internal support as retaining system. Results show that the maximum lateral wall displacement ranges from 0.07%H to 0.38%H, with a mean value of about 0.22%H, where H is the excavation depth. The location of the maximum wall displacements H_δm is between H?6 andH+3, and most are above the excavation surface. The wall deformation mainly occurs in the excavation stage of the second and third layers of soil, accounting for 32.6% and 40.1% of the cumulative deformation respectively. Foundation pit excavation has depth effect, and layered excavation of deep foundation pit is very important for wall deformation control. The main influence depth of wall deformation is about twice the excavation depth of foundation pit, and the spatial effect is significant. The variation characteristics of the vertical reinforcement stress and the lateral displacement of the wall are basically similar. With the excavation depth of the foundation pit, the maximum position moves down gradually, revealing the dynamic adjustment process of the wall deformation and stress. The axial force of the support reaches the maximum value after about two weeks after the support is erected, which shows real-time with the excavation of the foundation pit. The axial force of the multi-layer support structure is adapted dynamically with the excavation and support process of the foundation pit to coordinate the deformation development. When the excavation of the foundation pit is completed, the ultimate stable axial force of reinforced concrete support is about 0.73 times of the design value, the axial force of the first and the second steel support is 0.40 and 0.31 times of the design value, and the steel support design is conservative. On the premise of ensuring the stability of the foundation pit, the optimal design of a support scheme can be considered. Research results have important practical significance for the subsequent safety prediction of similar foundation pits in this area, as well as the guidance of similar engineering design and construction parameter optimization.

Key words： railway tunnel narrow-long foundation pit deep soft soil enclosure system field monitoring

Received: 13 August 2021 Published: 30 August 2022

CLC:

TU 476

Fund: 国家自然科学基金资助项目（51878673）；中国铁路总公司科技研究开发计划重点课题资助项目（2017G007-D，2017G008-J）；中国中铁股份有限公司科技研究开发计划重点课题资助项目（20192001）

Corresponding Authors: Zi-yong CAI E-mail: qiaosf@csu.edu.cn;164801006@csu.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Shi-fan QIAO
	Zi-yong CAI
	Zhen ZHANG
	Jun-kun TAN

Cite this article:

Shi-fan QIAO,Zi-yong CAI,Zhen ZHANG,Jun-kun TAN. Behavior of retaining system of narrow-long deep foundation pit in soft soil in Nansha Port Area. Journal of ZheJiang University (Engineering Science), 2022, 56(8): 1473-1484.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.08.001 OR https://www.zjujournals.com/eng/Y2022/V56/I8/1473

南沙港区软土狭长深基坑围护体系性状

为了阐明南沙港区软土狭长深基坑围护体系性状，对广州深厚软土地层采用地连墙加内支撑作为围护体系的狭长深基坑实测分析. 研究结果表明，1) 墙体最大侧移量δ_m的变化范围为0.07%H~0.38%H（H为开挖深度），平均值为0.22%H，最大侧移位置深度H_δm为H－6~H＋3，且大多数位于开挖面以上. 2) 墙体变形主要发生在第2、3层土体开挖阶段，其变形量分别占累积变形的32.6%、40.1%，基坑开挖具有深度效应，深基坑分层开挖对墙体变形控制非常重要，墙体变形主要影响深度约为基坑开挖深度的2倍，空间效应显著. 3) 墙体竖向钢筋应力与侧斜位移变化特性基本相似，随着基坑深度开挖，最大值位置逐渐下移，揭露了墙体变形与应力动态调节过程. 4) 支撑轴力在支撑架设后历时2周左右即达到最大值，随基坑开挖表现出即时性，多层支撑结构的各支撑轴力大小随着基坑开挖支护过程动态调整以协调变形发展，当基坑开挖完成，最终趋于稳定的钢筋混凝土支撑轴力约为设计值的0.73倍，第1、2道钢支撑轴力分别为其设计值的0.40、0.31倍，钢支撑设计偏保守，在保证基坑稳定的前提下，可以考虑支撑方案优化设计. 研究成果对后续该地区同类基坑安全预判以及指导类似工程设计和施工参数优化具有重要的现实意义.

关键词： 铁路隧道, 狭长基坑, 深厚软土, 围护体系, 现场监测

Tab.1 Physico-mechanical parameters of soils

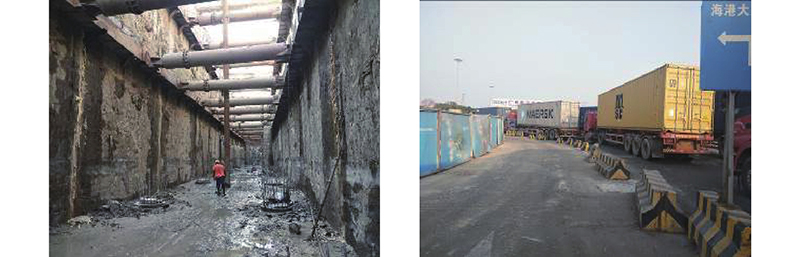

Fig.1 Foundation pit construction and surrounding environment

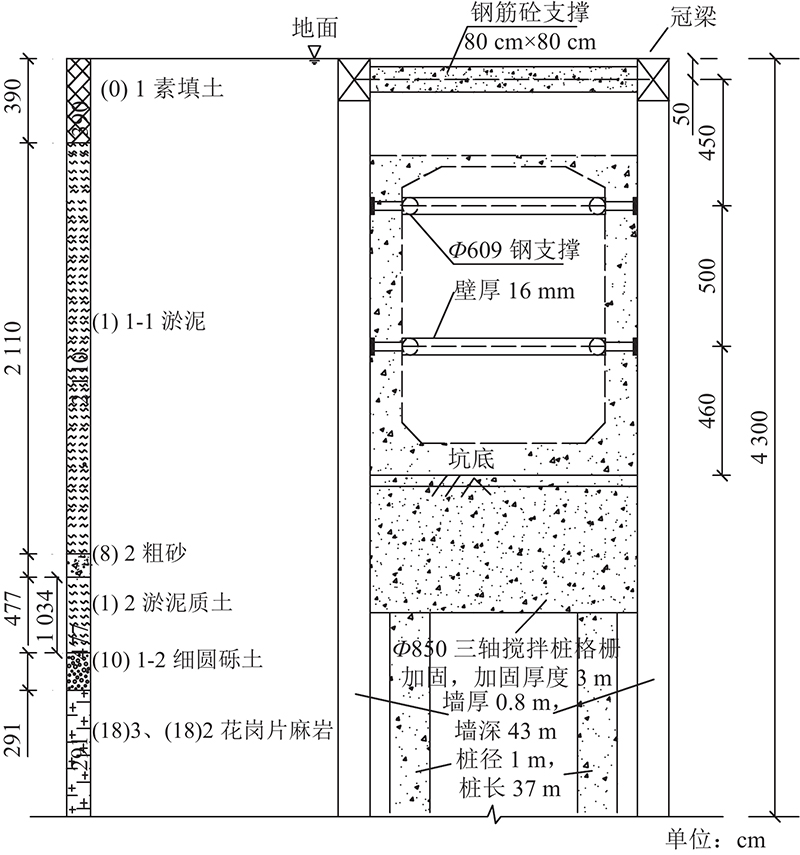

Fig.2 Profile of supporting structure system

Tab.2 Main excavation account of foundation pit

Tab.3 List of foundation pit monitoring contents

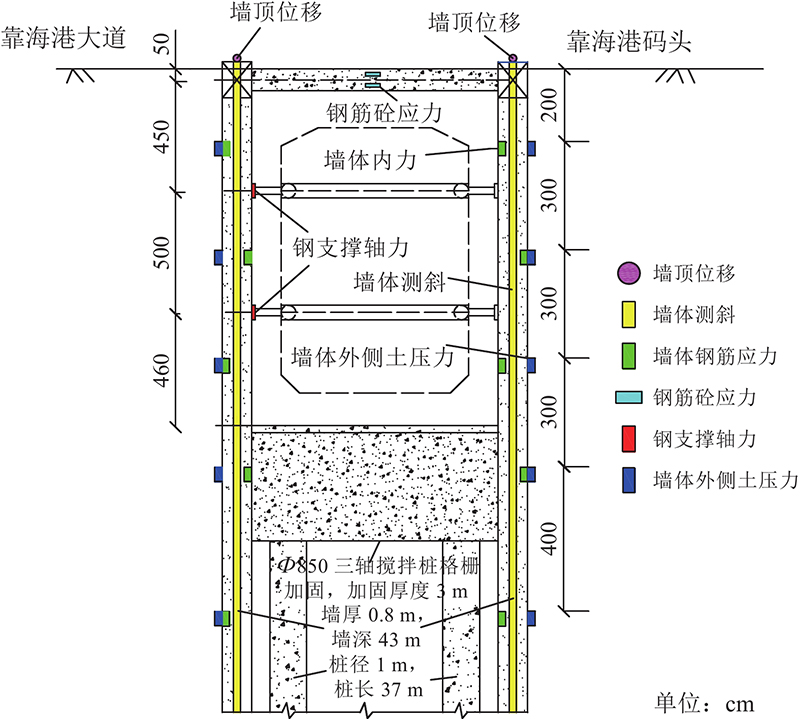

Fig.3 Detailed layout of measuring points

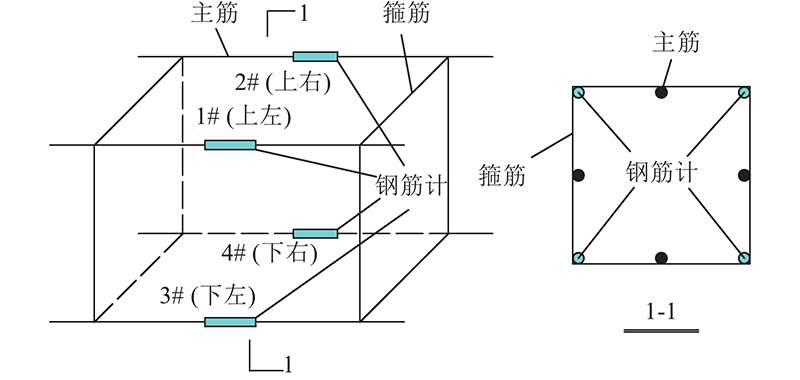

Fig.4 Layout of reinforced concrete support measuring points

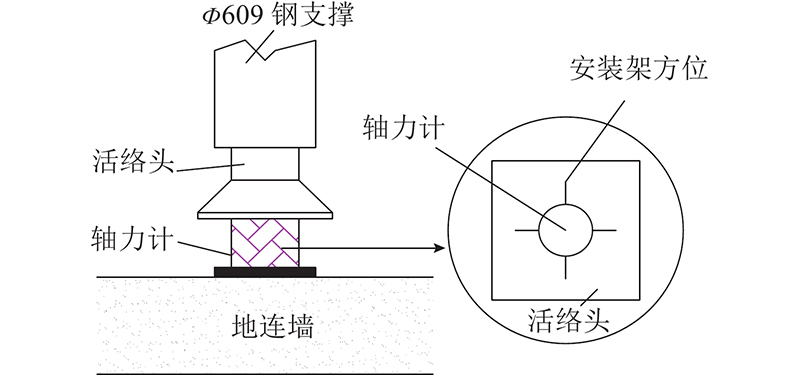

Fig.5 Layout of steel support measuring points

Fig.6 Layout of on-site measuring points

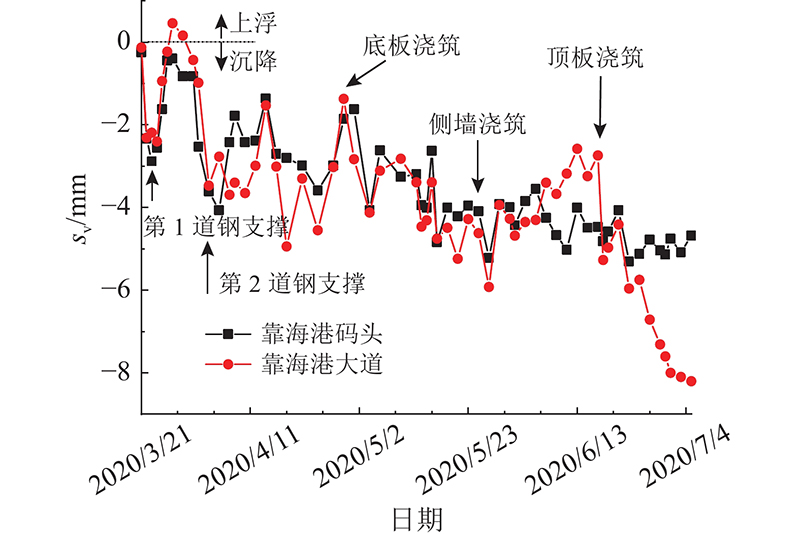

Fig.7 Time history curve of vertical displacement of wall top

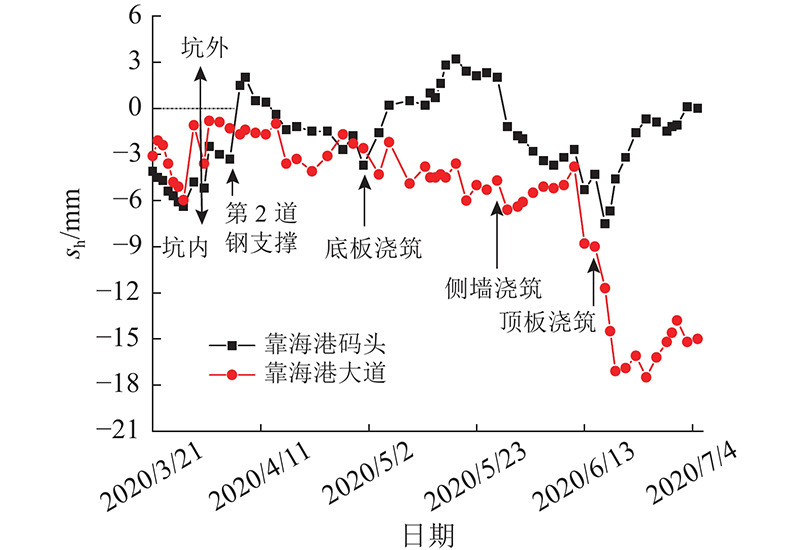

Fig.8 Time history curve of horizontal displacement of wall top

Fig.9 Time history curve of variation of wall top inclinometer

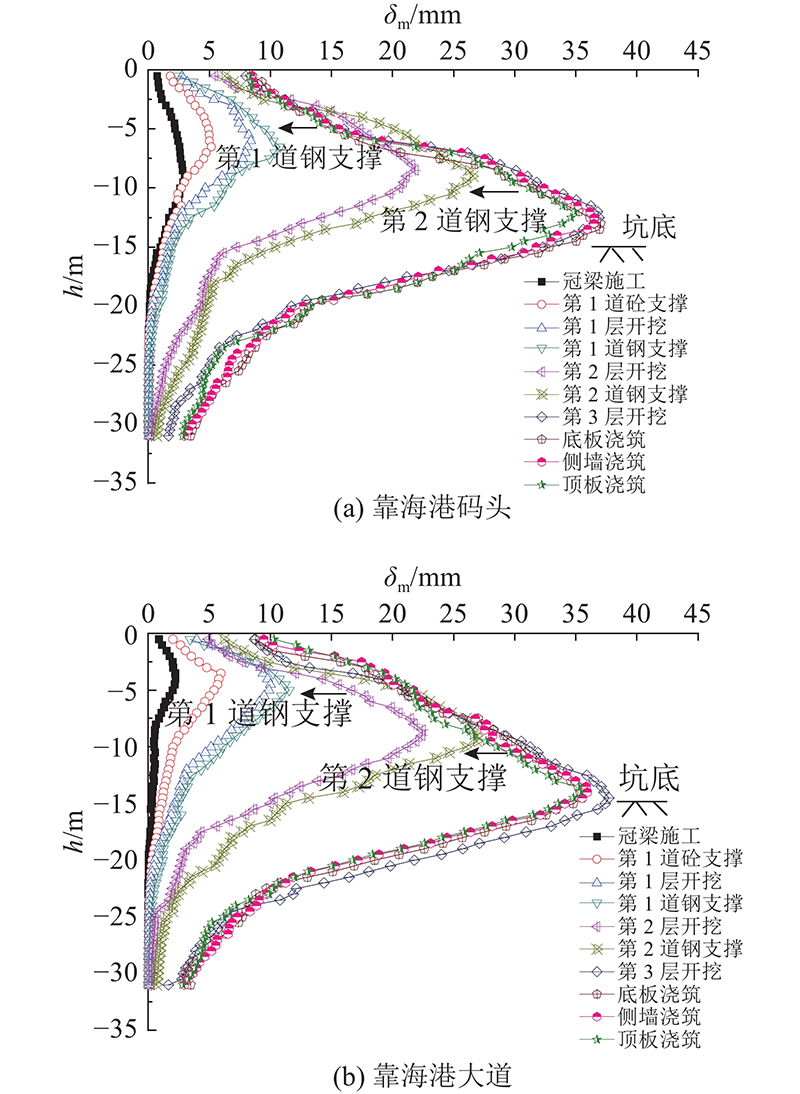

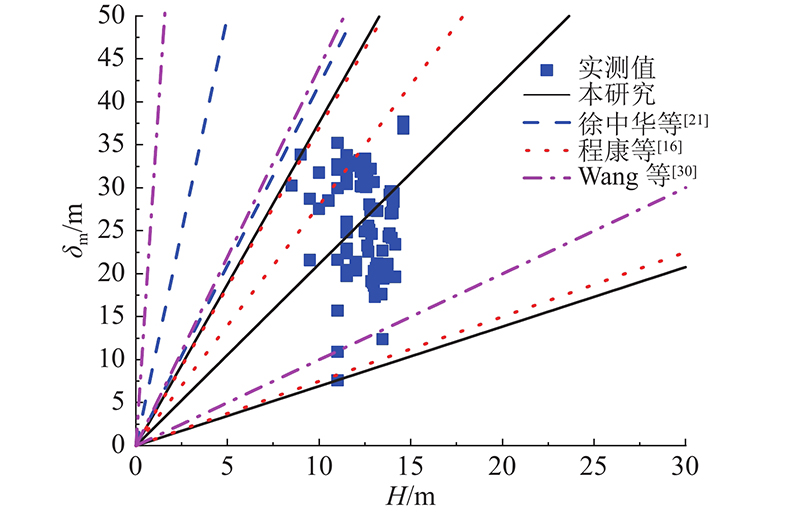

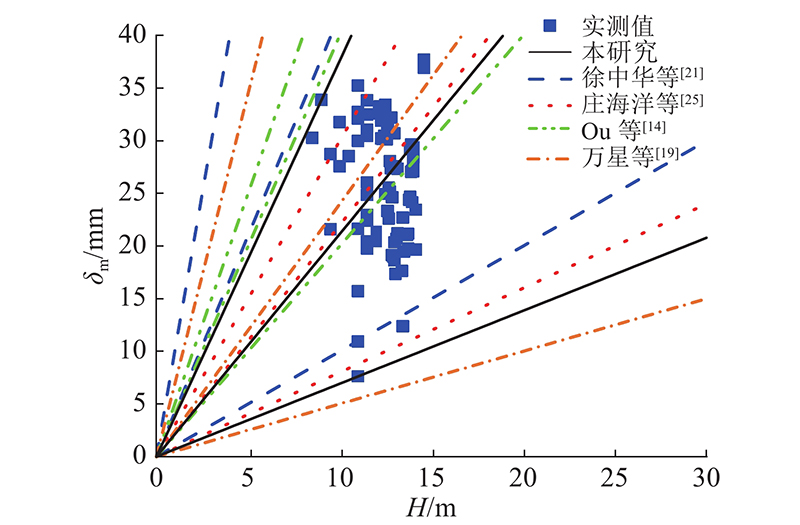

Fig.10 Relationships between maximum lateral displacement of wall and excavation depth

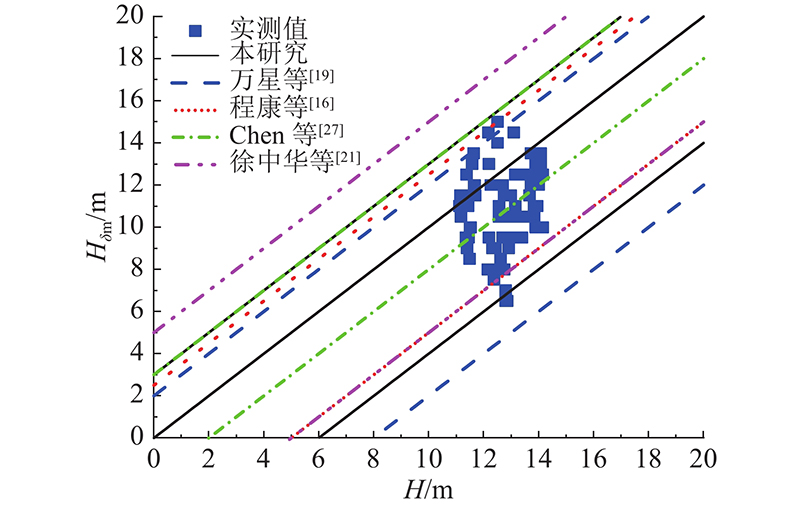

Fig.11 Relationships between location of maximum lateral displacement of wall and excavation depth

Fig.12 Comparison of maximum lateral wall displacement between long-narrow pit and wide pit

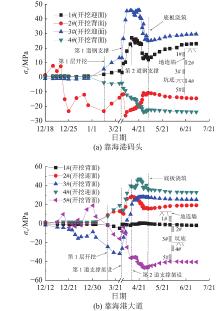

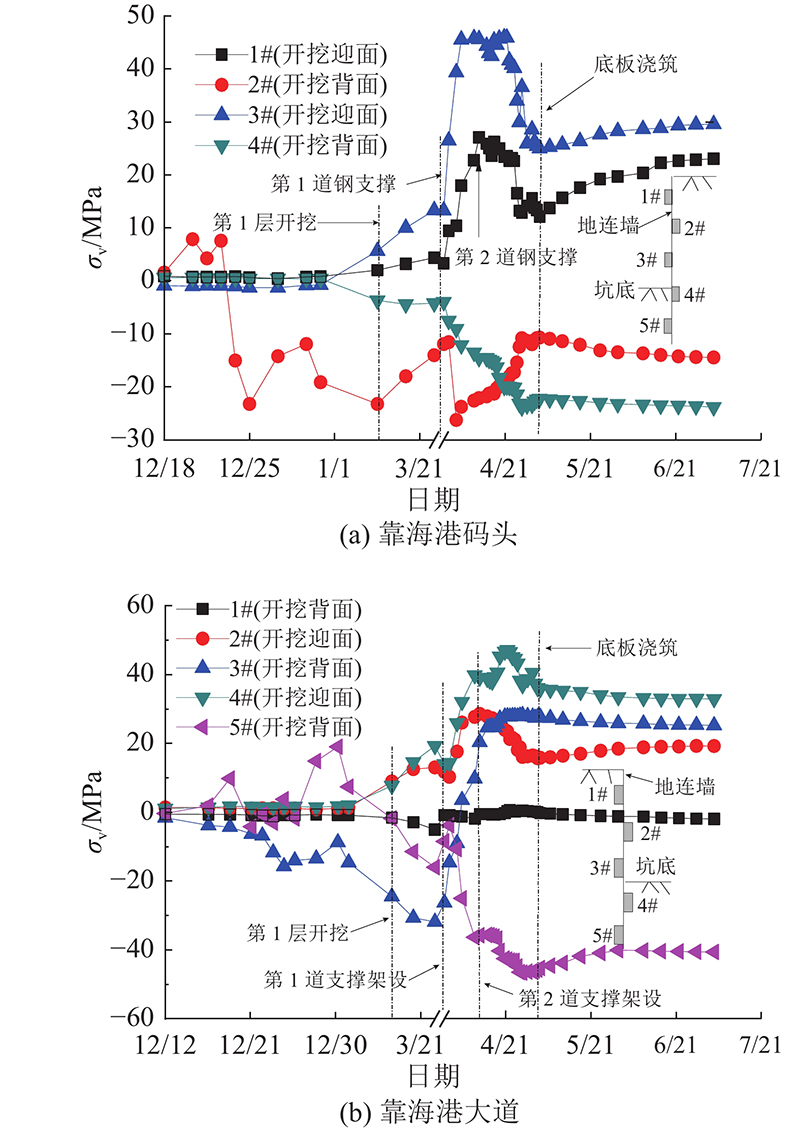

Fig.13 Time history curve of stress variation of vertical reinforcement of wall at different measuring points

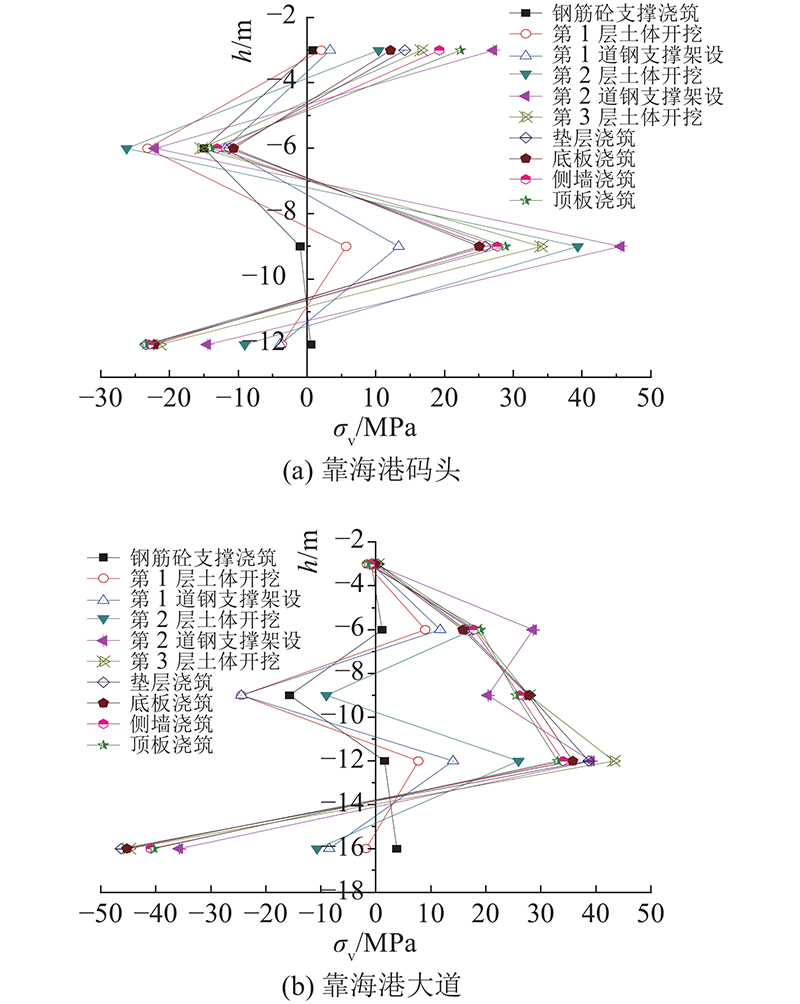

Fig.14 Stress curve of vertical reinforcement in wall underdifferent working conditions

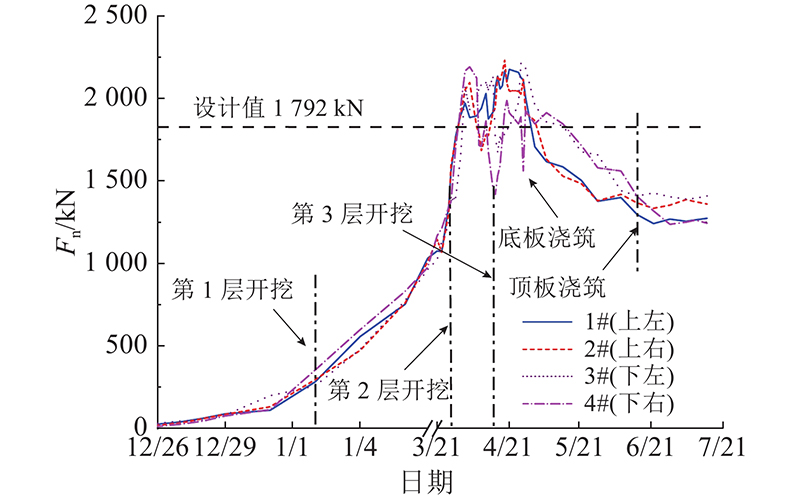

Fig.15 Time history curve of axial force variation of reinforced concrete support

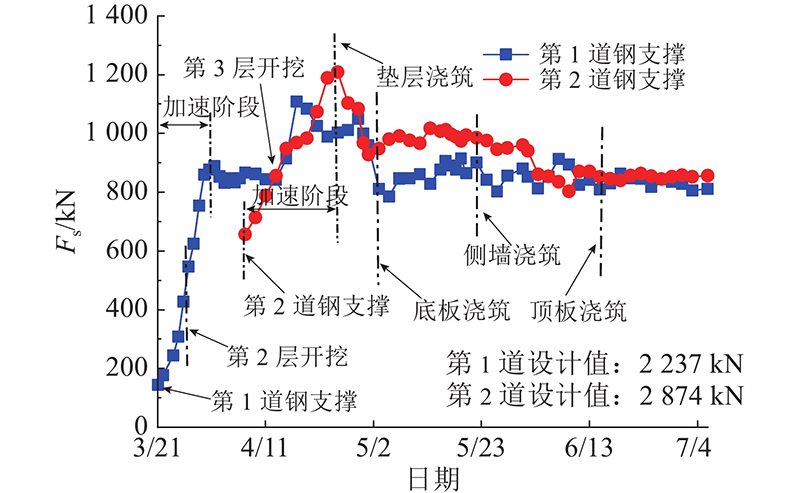

Fig.16 Time history curve of axial force change of steel support

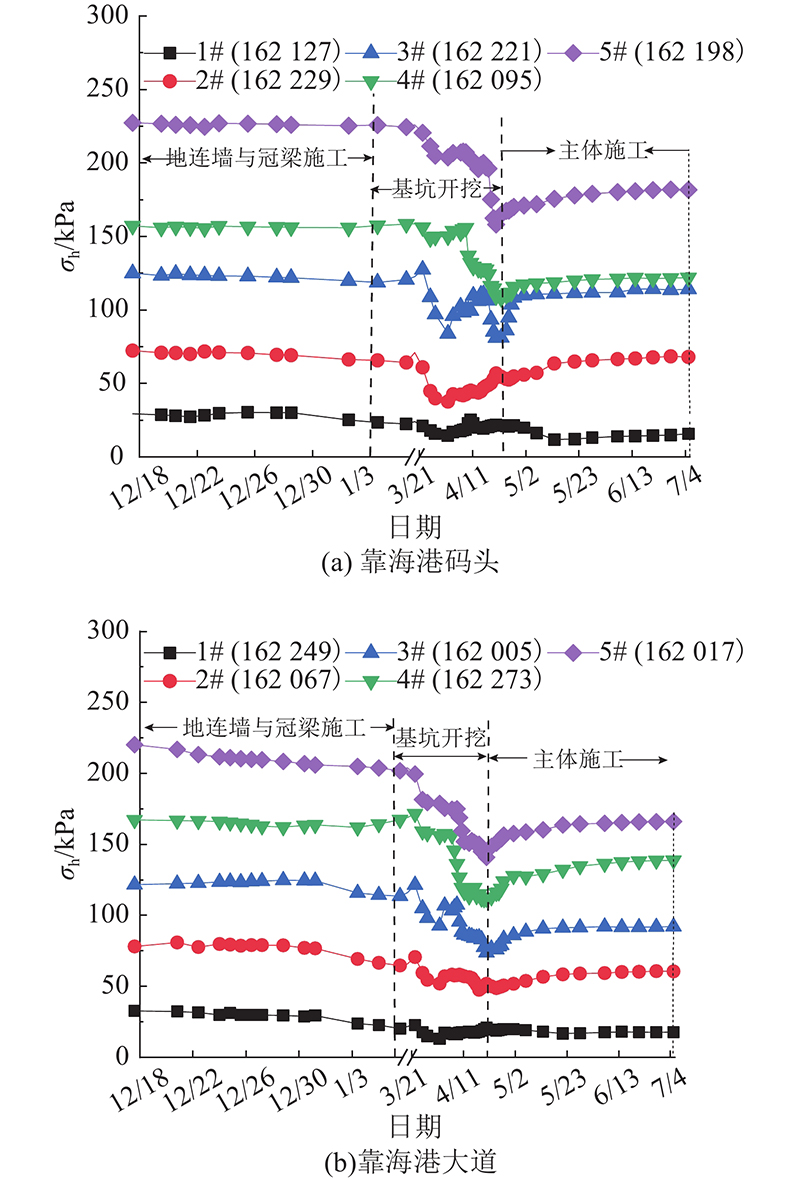

Fig.17 Time history curve of earth pressure change outside wall at different measuring points

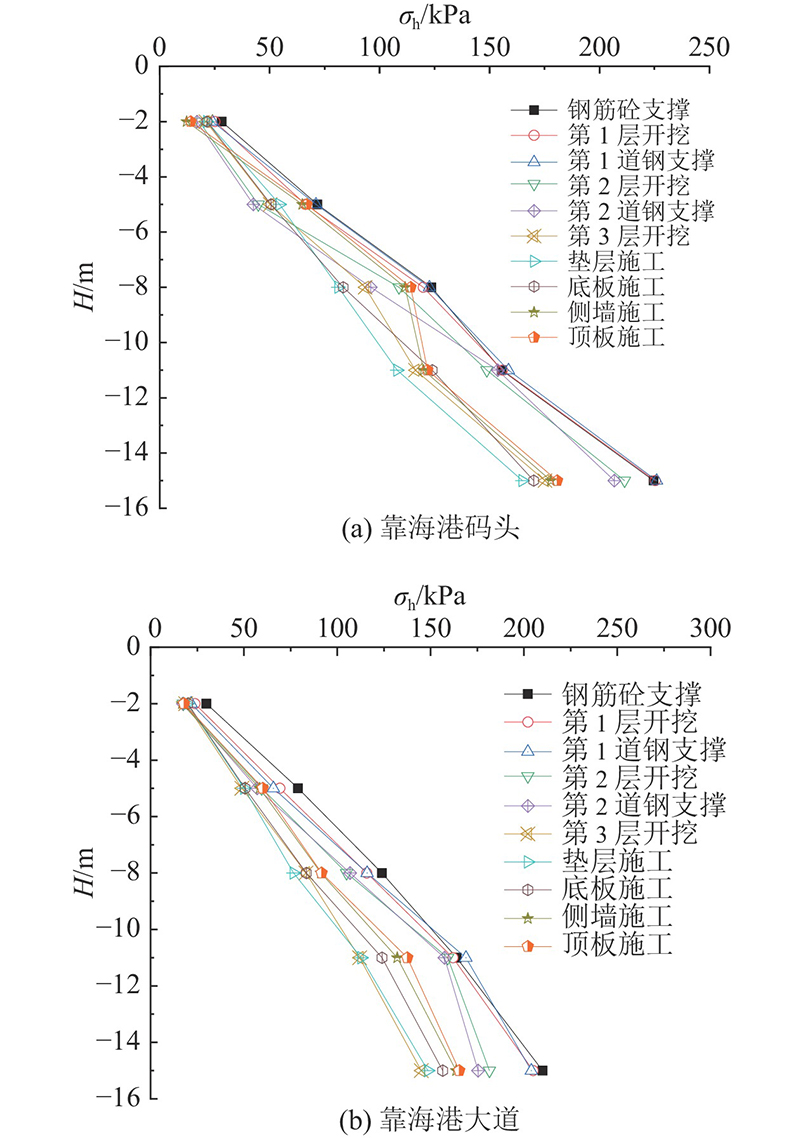

Fig.18 Variation curve of earth pressure outside wall with depth under different working conditions


[1]	杨宇, 王奎, 刘佑祥, 等某深厚软土基坑事故分析及抢险加固设计案例[J]. 岩土工程学报, 2014, 36 (Suppl.1): 175- 179 YANG Yu, WANG Kui, LIU You-xiang, et al Analysis and reinforcement design case of deep silt excavation accident[J]. Chinese Journal of Geotechnical Engineering, 2014, 36 (Suppl.1): 175- 179 doi: 10.11779/CJGE2014S1030

[2]	张旷成, 李继民杭州地铁湘湖站“08.11. 15”基坑坍塌事故分析[J]. 岩土工程学报, 2010, 32 (Suppl.1): 338- 342 ZHANG Kuang-cheng, LI Ji-min Accident analysis for “08.11. 15” foundation pit collapse of Xianghu Station of Hangzhou metro[J]. Chinese Journal of Geotechnical Engineering, 2010, 32 (Suppl.1): 338- 342

[3]	薛丽影, 杨文生, 李荣年深基坑工程事故原因的分析与探讨[J]. 岩土工程学报, 2013, 35 (Suppl.1): 468- 473 XUE Li-ying, YANG Wen-sheng, LI Rong-nian Discussion and analysis of accident reasons of deep foundation pits[J]. Chinese Journal of Geotechnical Engineering, 2013, 35 (Suppl.1): 468- 473

[4]	吴忠诚, 汤连生, 刘晓纲, 等复合土钉墙大型现场测试及变形性状分析研究[J]. 岩石力学与工程学报, 2007, (Suppl.1): 2974- 2980 WU Zhong-cheng, TANG Lian-sheng, LIU Xiao-gang, et al Study on large-scale in-situ test on compound soil nailing wall and deformation property analysis[J]. Chinese Journal of Rock Mechanics and Engineering, 2007, (Suppl.1): 2974- 2980 doi: 10.3321/j.issn:1000-6915.2007.z1.059

[5]	徐中华, 王建华, 王卫东软土地区采用灌注桩围护的深基坑变形性状研究[J]. 岩土力学, 2009, 30 (5): 1362- 1366 XU Zhong-hua, WANG Jian-hua, WANG Wei-dong Deformation behavior of deep excavations retained by bored pile wall in soft soil[J]. Rock and Soil Mechanics, 2009, 30 (5): 1362- 1366 doi: 10.3969/j.issn.1000-7598.2009.05.031

[6]	楼春晖, 夏唐代, 刘念武软土地区基坑中SMW围护桩变形性状研究[J]. 岩土工程学报, 2013, 35 (Suppl.2): 1208- 1211 LOU Chun-hui, XIA Tang-dai, LIU Nian-wu Deformation characteristics of SMW piles in excavation on soft clay[J]. Chinese Journal of Geotechnical Engineering, 2013, 35 (Suppl.2): 1208- 1211

[7]	吴昌将, 孙召花, 赖允瑾, 等软土地区地下连续墙深大基坑的变形性状研究[J]. 岩土力学, 2018, 39 (Suppl.2): 245- 253 WU Chang-jiang, SUN Zhao-hua, LAI Yun-jin, et al Study of deformation characteristics of diaphragm wall induced by deep large excavation in soft soil region[J]. Rock and Soil Mechanics, 2018, 39 (Suppl.2): 245- 253

[8]	蔡袁强, 李碧青, 徐长节挖深不同情况下基坑支护结构性状研究[J]. 岩土工程学报, 2010, 32 (Suppl.1): 28- 31 CAI Yuan-qiang, LI Bi-qing, XU Chang-jie Characteristics of retaining structures of deep foundation pits under different excavation depths[J]. Chinese Journal of Geotechnical Engineering, 2010, 32 (Suppl.1): 28- 31

[9]	徐长节, 成守泽, 蔡袁强, 等非对称开挖条件下基坑变形性状分析[J]. 岩土力学, 2014, 35 (7): 1929- 1934 XU Chang-jie, CHENG Shou-ze, CAI Yuan-qiang, et al Deformation characteristic analysis of foundation pit under asymmetric excavation condition[J]. Rock and Soil Mechanics, 2014, 35 (7): 1929- 1934 doi: 10.16285/j.rsm.2014.07.035

[10]	郑刚, 宗超, 曾超峰, 等非对称基坑分步降水开挖引起的围护结构变形性状[J]. 岩土工程学报, 2013, 35 (Suppl.2): 550- 554 ZHENG Gang, ZONG Chao, ZENG Chao-feng, et al Deformation of asymmetric foundation pit caused by staged dewatering and excavation[J]. Chinese Journal of Geotechnical Engineering, 2013, 35 (Suppl.2): 550- 554

[11]	郑刚, 魏少伟坑内降水基坑底不同位置土体变形性状的室内试验研究[J]. 岩土工程学报, 2011, 33 (2): 247- 252 ZHENG Gang, WEI Shao-wei Experimental studies on influence of pit dewatering on soil deformation at different locations below excavation base[J]. Chinese Journal of Geotechnical Engineering, 2011, 33 (2): 247- 252

[12]	许四法, 周奇辉, 郑文豪, 等基坑施工对邻近运营隧道变形影响全过程实测分析[J]. 岩土工程学报, 2021, 43 (5): 804- 812 XU Si-fa, ZHOU Qi-hui, ZHENG Wen-hao, et al Investigation on deformation behaviors of foundation pit adjacent to existing metro stations[J]. Chinese Journal of Geotechnical Engineering, 2021, 43 (5): 804- 812

[13]	丁勇春, 程泽坤, 王建华, 等临江基坑变形及受力性状三维数值分析[J]. 岩土工程学报, 2012, 34 (Suppl.1): 243- 247 DING Yong-chun, CHENG Ze-kun, WANG Jian-hua, et al Three-dimensional numerical analysis of deformation and mechanical behavior of deep excavations adjacent to river[J]. Chinese Journal of Geotechnical Engineering, 2012, 34 (Suppl.1): 243- 247

[14]	OU C Y, CHIOU D C, HSIEH P G Characteristics of ground surface settlement during excavation[J]. Canadian Geotechnical Journal, 1993, 30 (5): 758- 767 doi: 10.1139/t93-068

[15]	OU C Y, LIAO J T, LIN H D Performance of diaphragm wall constructed using top-down method[J]. Journal of Geotechnical and Geoenvironmental Engineering, 1998, 124 (9): 798- 808 doi: 10.1061/(ASCE)1090-0241(1998)124:9(798)

[16]	程康, 徐日庆, 应宏伟, 等杭州软黏土地区某30.2m深大基坑开挖性状实测分析[J]. 岩石力学与工程学报, 2021, 40 (4): 851- 863 CHENG Kang, XU Ri-qing, YING Hong-wei, et al Performance analysis of a 30.2 m deep-large excavation in Hangzhou soft clay[J]. Chinese Journal of Rock Mechanics and Engineering, 2021, 40 (4): 851- 863 doi: 10.13722/j.cnki.jrme.2020.0636

[17]	魏仕锋, 谭勇, 廖少明, 等钱江隧道顺逆结合法深基坑变形性状实测分析[J]. 土木工程学报, 2014, 47 (8): 112- 119 WEI Shi-feng, TAN Yong, LIAO Shao-ming, et al Field measurement of a semi-top-down deep excavation for shield-launching shaft of Qianjiang tunnel[J]. China Civil Engineering Journal, 2014, 47 (8): 112- 119 doi: 10.15951/j.tmgcxb.2014.08.039

[18]	应宏伟, 杨永文杭州深厚软黏土中某深大基坑的性状研究[J]. 岩土工程学报, 2011, 33 (12): 1838- 1846 YING Hong-wei, YANG Yong-wen Characteristics of a large and deep soft clay excavation in Hangzhou[J]. Chinese Journal of Geotechnical Engineering, 2011, 33 (12): 1838- 1846

[19]	万星, 戈铭, 贺智江, 等南京软土地区基坑墙体变形性状研究[J]. 岩土工程学报, 2019, 41 (Suppl.1): 85- 88 WAN Xing, GE Ming, HE Zhi-jiang, et al Characteristics of deformation of retaining wall due to deep excavation in Nanjing[J]. Chinese Journal of Geotechnical Engineering, 2019, 41 (Suppl.1): 85- 88

[20]	廖少明, 魏仕锋, 谭勇, 等苏州地区大尺度深基坑变形性状实测分析[J]. 岩土工程学报, 2015, 37 (3): 458- 469 LIAO Shao-ming, WEI Shi-feng, TAN Yong, et al Field performance of large-scale deep excavations in Suzhou[J]. Chinese Journal of Geotechnical Engineering, 2015, 37 (3): 458- 469 doi: 10.11779/CJGE201503009

[21]	徐中华, 王建华, 王卫东上海地区深基坑工程中地下连续墙的变形性状[J]. 土木工程学报, 2008, (8): 81- 86 XU Zhong-hua, WANG Jian-hua, WANG Wei-dong Deformation behavior of diaphragm walls in deep excavations in Shanghai[J]. China Civil Engineering Journal, 2008, (8): 81- 86 doi: 10.15951/j.tmgcxb.2008.08.013

[22]	康志军, 黄润秋, 卫彬, 等上海软土地区某逆作法地铁深基坑变形[J]. 浙江大学学报:工学版, 2017, 51 (8): 1527- 1536 KANG Zhi-jun, HUANG Run-qiu, WEI Bin, et al Deformation behaviors of deep top-down metro excavation in Shanghai soft clay[J]. Journal of Zhejiang University: Engineering Science, 2017, 51 (8): 1527- 1536

[23]	张震, 叶建忠, 贾敏才上海软土地区小宽深比基坑变形实测研究[J]. 岩石力学与工程学报, 2017, 36 (Suppl.1): 3627- 3635 ZHANG Zhen, YE Jian-zhong, JIA Min-cai Field data analysis of small width-depth ratio foundation pits deformation in Shanghai soft soils[J]. Chinese Journal of Rock Mechanics and Engineering, 2017, 36 (Suppl.1): 3627- 3635 doi: 10.13722/j.cnki.jrme.2016.0004

[24]	中华人民共和国住房和城乡建设部. 建筑基坑工程监测技术规范: GB 50497—2009 [S]. 北京: 中国计划出版社, 2009.

[25]	庄海洋, 张艳书, 薛栩超, 等深软场地地铁狭长深基坑变形特征实测与已有统计结果的对比分析[J]. 岩土力学, 2016, 37 (Suppl.2): 561- 570 ZHUANG Hai-yang, ZHANG Yan-shu, XUE Xu-chao, et al Deformation characteristics of narrow-long deep foundation pit for subway station in soft ground and compared with existing statistical results[J]. Rock and Soil Mechanics, 2016, 37 (Suppl.2): 561- 570 doi: 10.16285/j.rsm.2016.S2.071

[26]	任彦华, 李军, 樊继良, 等深基坑工程中空间效应的影响分析[J]. 地下空间与工程学报, 2015, 11 (Suppl.1): 177- 182 REN Yan-hua, LI Jun, FAN Ji-liang, et al Analysis on space effect in deep foundation pit[J]. Chinese Journal of Underground Space and Engineering, 2015, 11 (Suppl.1): 177- 182

[27]	CHEN H H, LI J P, LI L Performance of a zoned excavation by bottom-up technique in Shanghai soft soils[J]. Journal of Geotechnical and Geoenvironmental Engineering, 2018, 144 (11): 05018003 doi: 10.1061/(ASCE)GT.1943-5606.0001964

[28]	刘建航, 侯学渊. 基坑工程手册[M]. 北京: 中国建筑工业出版社, 2009.

[29]	李淑, 张顶立, 房倩, 等北京地区深基坑墙体变形特性研究[J]. 岩石力学与工程学报, 2012, 31 (11): 2344- 2353 LI Shu, ZHANG Ding-li, FANG Qian, et al Research on characteristics of retaining wall deformation due to deep foundation in Beijing[J]. Chinese Journal of Rock Mechanics and Engineering, 2012, 31 (11): 2344- 2353 doi: 10.3969/j.issn.1000-6915.2012.11.024

[30]	WANG J H, XU Z H, WANG W D Characteristics of a large-scale deep foundation pit excavations in Shanghai soft soils[J]. Journal of Geotechnical and Geoenvironmental Engineering, 2010, 136 (4): 985- 994

[31]	TAN Y, LU Y, XU C J, et al Investigation on performance of a large circular pit-in-pit excavation in clay-gravel-cobble mixed strata[J]. Tunnelling and underground space technology, 2018, 79 (1): 356- 374
