Pair-wise point cloud registration method based on normal distribution similarity
Zhaolong LI(),Shanmin PANG*(),Chaoyu WANG,Yifeng WANG,Pengcheng SHI
School of Software Engineering, Xi’an Jiaotong University, Xi’an 710049, China
Download: HTML     PDF(2571KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A pair-wise point cloud registration method based on normal distribution similarity was proposed to solve the problem of slow efficiency and low accuracy of existing “point-to-point” pair-wise point cloud registration algorithms. The traditional “point-to-point” registration problem was transformed to a “distribution-to-distribution” registration problem. The K-means clustering algorithm was used to generate several clusters as normal distributions to fit the original point cloud data, and then these normal distributions were used for registration, in order to reduce the calculation overhead and improve the registration efficiency. Kullback-Leibler divergence was introduced to evaluate the similarity of the nearest neighbor distributions to reduce the negative effect of non-overlapping data regions on registration in order to improve the registration accuracy. The final registration result can be obtained by using Lie algebra solver on the basis of the above steps. Eight other pair-wise point cloud registration methods were selected for comparison, including a lot of traditional “point-to-point” registration methods, in order to verify the effectiveness of the proposed method. The experimental results showed that the proposed algorithm could effectively improve the stability and accuracy of the registration tasks while keeping the computation cost low. In addition, experiments on two datasets in real scenarios further proved that the proposed algorithm had good application potential in real environment registration tasks.



Key wordspair-wise registration      partial overlapping registration      normal distribution transformation      K-means clustering algorithm      Kullback-Leibler divergence      Lie algebra solver
Received: 09 July 2024      Published: 30 May 2025
CLC:  TP 391
Fund:  国家自然科学基金资助项目(61972312).
Corresponding Authors: Shanmin PANG     E-mail: li159515@stu.xjtu.edu.cn;pangsm@xjtu.edu.cn
Cite this article:

Zhaolong LI,Shanmin PANG,Chaoyu WANG,Yifeng WANG,Pengcheng SHI. Pair-wise point cloud registration method based on normal distribution similarity. Journal of ZheJiang University (Engineering Science), 2025, 59(6): 1179-1190.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.06.009     OR     https://www.zjujournals.com/eng/Y2025/V59/I6/1179


基于正态分布相似性的双视角点云配准方法

针对现有“点到点”双视角点云配准算法效率慢、精度低的问题,提出基于正态分布相似性的双视角点云配准方法. 将传统“点到点”配准问题转化为“分布到分布”配准问题,利用K-means聚类算法生成若干正态分布聚簇来拟合原始点云数据,再对这些正态分布聚簇进行配准,从而降低计算开销,提升配准效率;将Kullback-Leibler散度引入最近邻匹配正态分布的相似性评估,从而削弱非重叠数据区域对配准的负面影响,提升配准精度. 使用李代数求解器来获取最终的配准结果. 为了验证所提方法的有效性,选取其他8种双视角点云配准方法进行比对,其中包含多种“点到点”配准方法. 结果表明,本研究所提算法在保持较低计算开销的同时,有效提升了配准的稳定性和精确性. 在2个数据集上进行真实场景实验,证明了本研究所提算法在真实环境配准任务上拥有较好的应用潜力.


关键词: 双视角配准,  部分重叠配准,  正态分布变换,  K-means聚类算法,  Kullback-Leibler散度,  李代数求解器

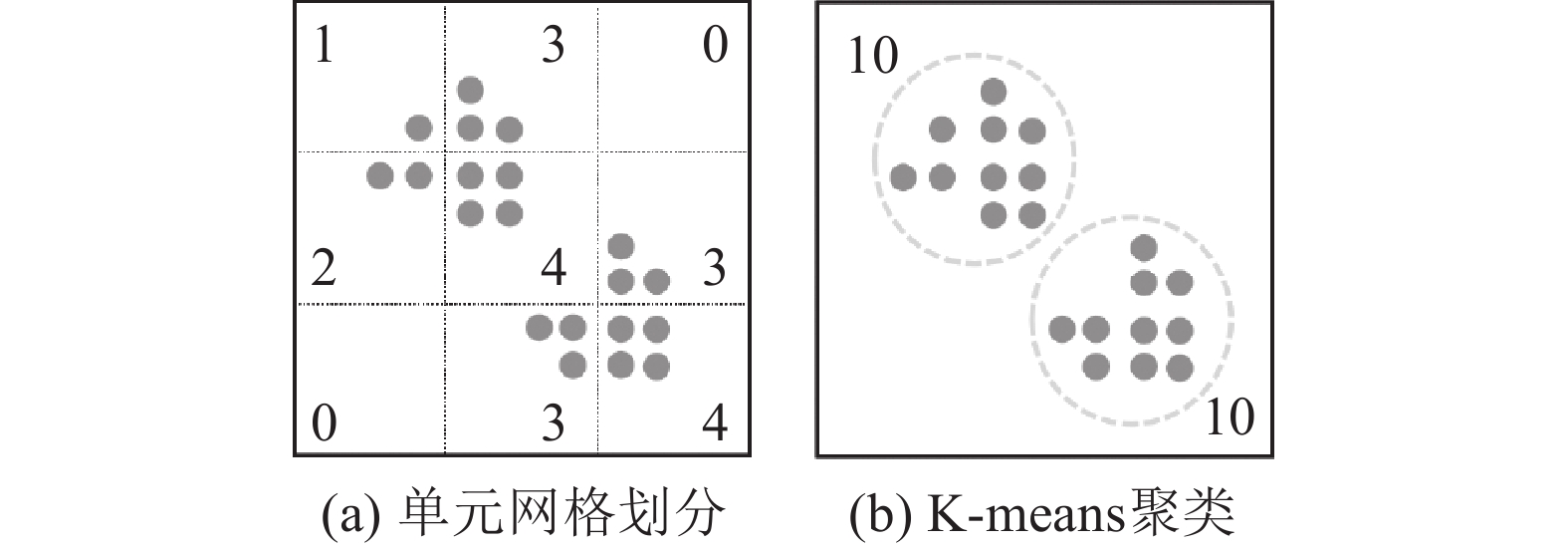

Fig.1 Methods for solving normal distribution parameters
Fig.2 Diagram of pair-wise point cloud registration method based on normal distribution similarity
所属模块具体操作时间复杂度
K-means聚类建立k-d$ 2O(hK \times \lg\; K) $
K-means聚类更新聚簇并计算正态参数$ 2O(hN\times \lg \;K) $
KL散度计算搜索最近邻匹配正态分布$ O(HK\times \lg \;K) $
KL散度计算计算KL散度并生成权重$ O(HK) $
李代数求解器优化新一轮刚性变换$ O(HK) $
Tab.1 Time complexity analysis of pair-wise point cloud registration
所属模块具体操作空间复杂度
K-means聚类建立k-d$ 2O(DK) $
K-means聚类求解正态分布聚簇中心$ 2O(DK) $
K-means聚类求解正态分布协方差矩阵$ 2O({D^2}K) $
KL散度计算计算KL散度并生成权重$ O(K) $
李代数求解器优化新一轮刚性变换$ O(1) $
Tab.2 Spatial complexity analysis of pair-wise point cloud registration

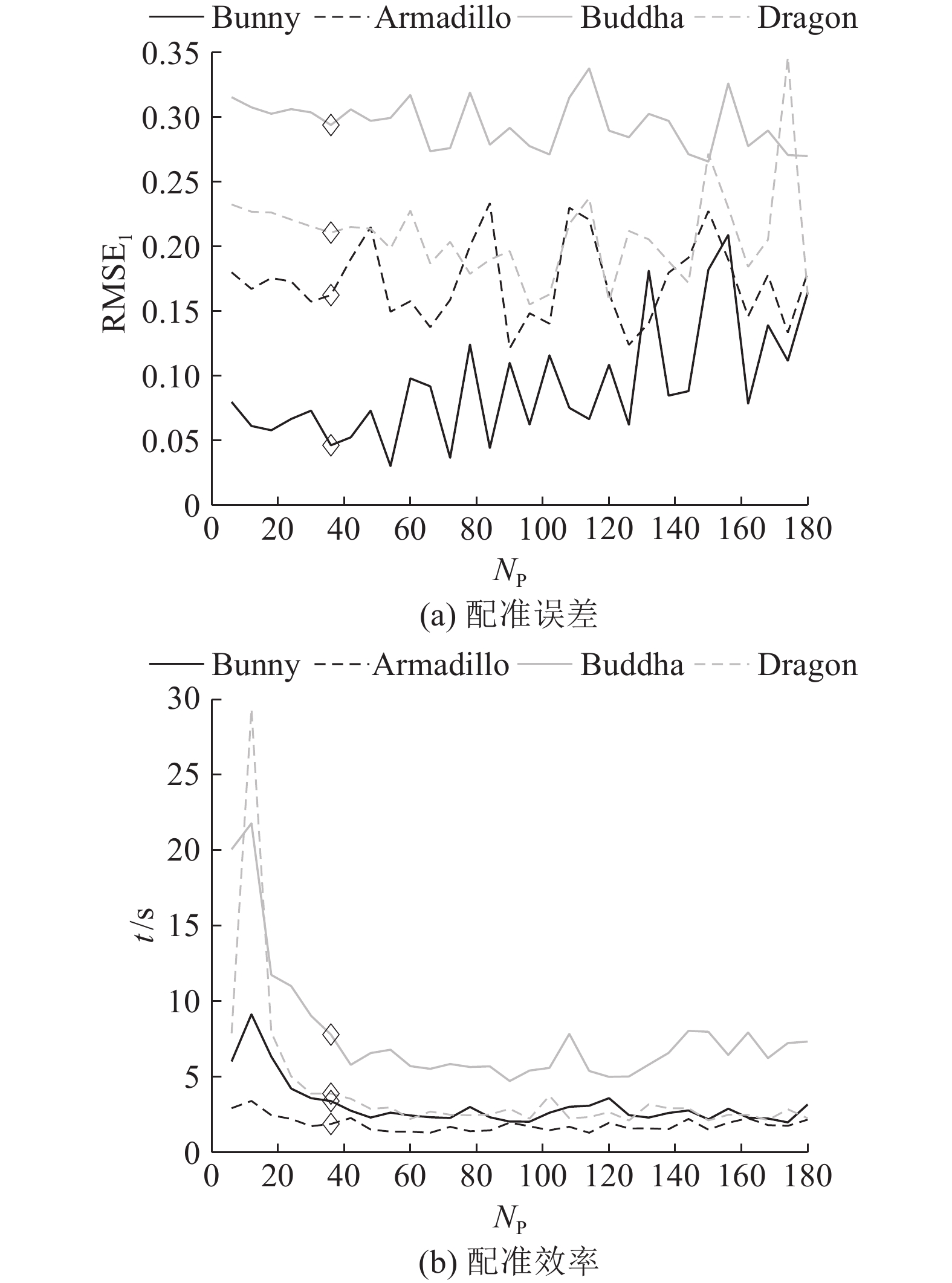

Fig.3 Registration results with different mean data volume within normal distribution clusters
配准方法BunnyArmadilloBuddhaDragon
RMSESRRMSESRRMSESRRMSESR
Initial13.448719.340516.912617.9725
TrICP2.759 40.780.17281.002.55400.640.94720.93
NDT12.78110.0017.49360.006.32080.5017.65230.00
SpICP5.78420.561.78180.915.11190.214.48010.57
SmICP24.87430.220.25541.000.31011.001.11780.86
AAICP16.21110.110.27741.000.27051.000.92050.93
RTC3.83470.562.58840.731.76570.861.64720.79
MICP5.40270.440.21201.000.249 61.000.95940.93
RSICP27.99100.560.15911.000.25101.000.335 21.00
本研究方法0.42491.000.161 91.000.24721.000.32891.00
Tab.3 Accuracy comparison of different methods on four datasets

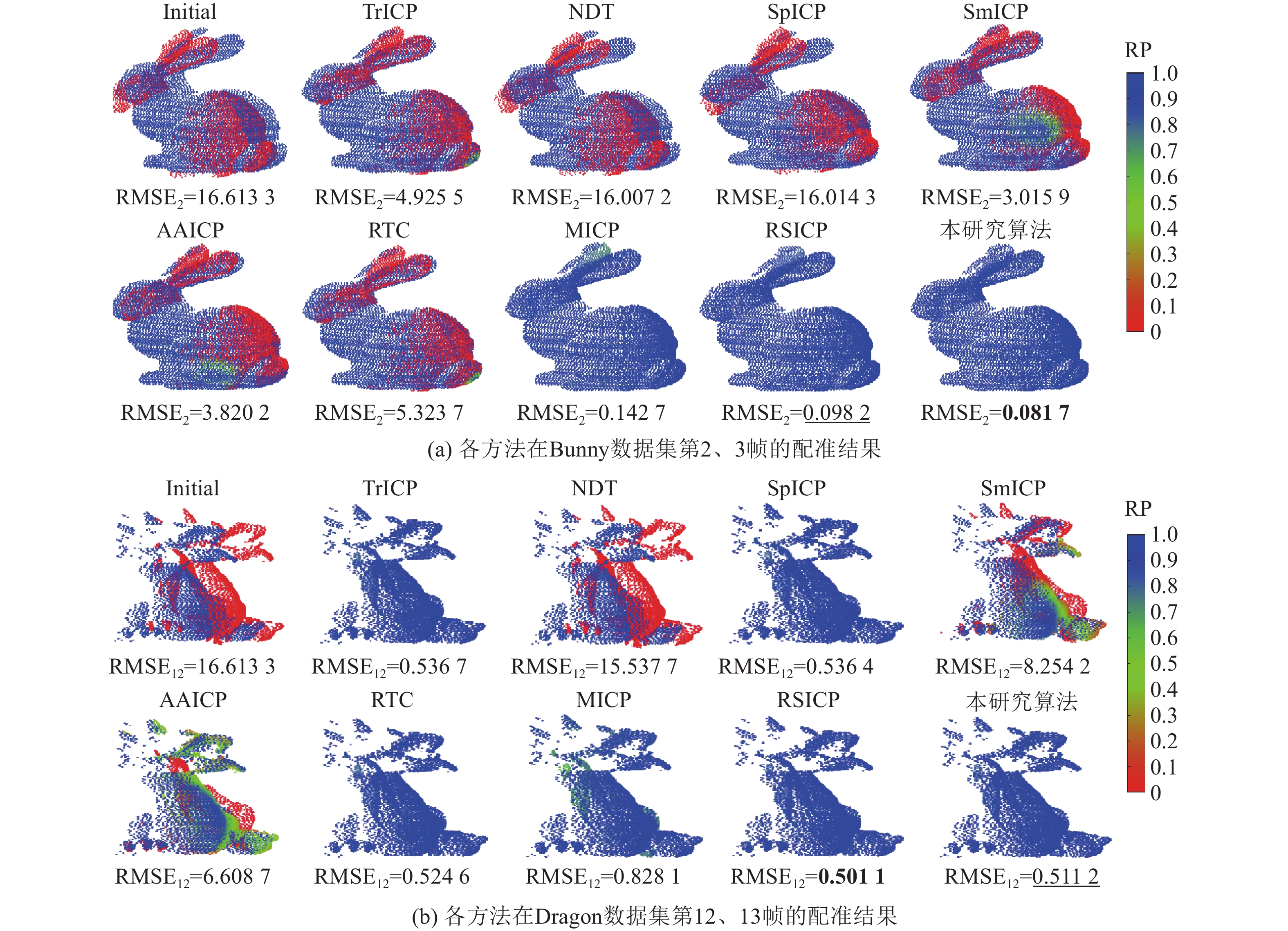

Fig.4 Color gradient illustration of registration results of different methods

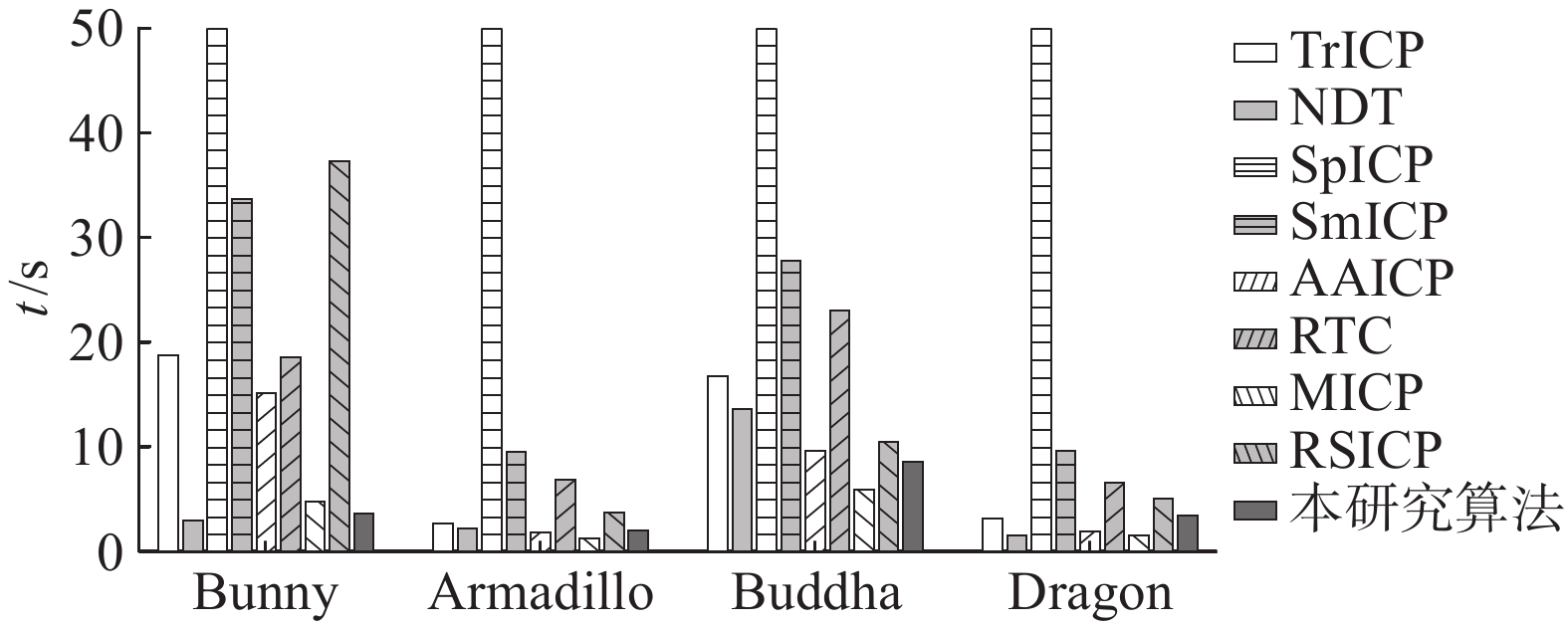

Fig.5 Comparison of relative runtime of different pair-wise point cloud registration methods
配准方法SNR/dBRMSE
BunnyArmadilloBuddhaDragon
TrICP502.7612±0.00170.1727±0.00032.5530±0.00090.9465±0.0004
252.7563±0.00810.1733±0.00142.4407±0.01990.9474±0.0028
NDT5012.7890±0.006222.2961±0.01816.6362±0.497424.0140±0.0787
2512.7977±0.023217.3343±0.32546.8398±0.501817.5718±0.0923
SpICP505.7519±0.00891.6955±0.00315.2335±0.00194.6071±0.0038
255.8516±0.01711.7163±0.00205.1914±0.00254.5882±0.0046
SmICP5020.3221±2.22950.2554±0.00020.3103±0.00031.1177±0.0005
2520.4048±1.62120.2548±0.00090.3108±0.00031.1218±0.0020
AAICP5016.2103±0.00130.2774±0.00020.2706±0.00030.9206±0.0003
2516.2135±0.00510.2778±0.00090.2709±0.00060.9204±0.0010
RTC503.8398±0.00472.5661±0.01341.7657±0.00041.6704±0.0372
253.8460±0.02462.6874±0.19111.7591±0.00271.4611±0.1315
MICP505.3758±0.07350.2111±0.00140.2535±0.00100.9608±0.0035
255.4674±0.06440.2111±0.00220.2553±0.00190.9907±0.0473
RSICP5027.9803±0.02000.1592±0.00020.2510±0.00030.3353±0.0005
2527.7358±0.55710.1583±0.00060.2499±0.00070.3354±0.0012
本研究方法500.4265±0.00780.1611±0.00170.2470±0.00090.3287±0.0012
250.4294±0.01850.1615±0.00150.2478±0.00120.3293±0.0028
Tab.4 Comparison of registration results under Gaussian noise of 50 dB and 25 dB
数据集InitialP2DNDTD2DNDT本研究方法
RMSERMSEt /sSRRMSEt /sSRRMSEt /sSR
Bunny13.44874.459219.750.3313.75523.990.330.42493.741.00
Armadillo19.34050.645214.580.910.76991.640.820.16192.331.00
Buddha16.91260.429542.881.000.41844.351.000.24729.471.00
Dragon17.97250.827315.991.003.66871.930.710.32893.561.00
Tab.5 Results of ablation experiments on different datasets
配准方法GazeboSGazeboW
RMSEt /sSRRMSEt /sSR
Initial0.26890.3685
TrICP0.027913.880.840.02042.831.00
NDT0.14892.850.260.07841.970.63
SpICP0.03021242.400.770.019 6402.321.00
SmICP0.070934.420.740.025517.370.97
AAICP0.02995.770.710.02282.291.00
RTC0.02615.660.740.02291.941.00
MICP0.02772.240.710.05751.540.93
RSICP0.021126.040.930.01977.880.97
本研究方法0.02089.480.900.01924.251.00
Tab.6 Registration results of different real scene datasets
